48V Solar Inverter Lineup: From 6kW Cabin Units to 60kW Commercial

A 48V solar inverter is the standard heart of a modern home battery system. Running the bank at 48V instead of 12V or 24V cuts current by a factor of four, so cables are thinner, losses are lower and one inverter can push 6,000 to 18,000W without exotic wiring. Every unit in this collection converts a 48V lithium bank plus solar into 120/240V split-phase power, and most charge the bank from the grid or a generator as well.

There are 39 inverters here from EG4, Sol-Ark, Sungold Power, Rich Solar and APEX. Prices start at from $1,450 for an 8,000W Sungold unit and reach $14,455 for the three-phase Sol-Ark 60K built for commercial buildings.

How to choose a 48V inverter

• Output for the loads you run together. The EG4 6000XP at 6,000W handles a cabin or a critical-loads panel. The Sungold Power 8,000W Split Phase and the 10,000W version cover most homes without electric heat. For everything at once, the Sungold SGN-11K15PRO offers 11.4kW continuous with 200A whole-home backup, so there is no sub-panel to plan.
• Solar input and string voltage. The Sungold 8kW accepts 11,000W of PV with a 500V open-circuit limit; the EG4 FlexBOSS18 takes 18,000W across two trackers. If your roof can hold more panels than the inverter accepts, buy up a size.
• Grid interaction. Sol-Ark 12K, 15K and 18K, the EG4 12kPV and FlexBOSS models, and the UL 1741 listed Rich Solar NOVA 12K all operate grid-tied or off-grid. The APEX-6.5K is off-grid with dedicated grid and generator inputs.
• Charge current. A big bank needs a big charger. The Sungold 8kW and the NOVA 12K both list 200A maximum charge, which refills a 15kWh bank in a few hours of strong sun or generator time.
• Paralleling. The 6000XP stacks up to 16 units, the Sungold 8kW supports parallel split-phase or three-phase operation, and the Sol-Ark 60K parallels up to 10 units for large sites.

Popular picks in this collection

Sizing tips

• Use the Solar Kit Calculator first. It turns your appliance list and ZIP code into an inverter wattage, a battery size and a panel count that agree with each other.
• Confirm your battery's continuous discharge rating supports the inverter. A 10kW 48V hybrid inverter can pull over 200A from the bank at full load.
• Match the output voltage to your panel. A 48V to 240V inverter with split-phase output is required for well pumps, dryers and central AC; a 120V-only unit will not start them.
• For surge-heavy loads, look at the surge rating. The Sol-Ark 18K lists 36kW for 10 seconds, which starts HVAC compressors and high-torque motors without a soft starter.
• Outdoor mounting calls for a rated enclosure. The EG4 12kPV and FlexBOSS models are NEMA 4X; the Sungold and APEX units belong on an indoor wall.
• Keep 20 percent of headroom on continuous output. An inverter running at its limit all evening runs hot and ages faster.

Frequently asked questions

Why 48V rather than 24V for a home? At 48V a 6,000W load draws about 125A instead of 250A, so wiring, fuses and busbars are smaller and cheaper. Every home-scale inverter here is 48V for that reason.

Which solar inverter 48V model works with any lithium battery? All of them accept a 48V lithium bank. Closed-loop battery communication depends on the specific pairing, so ask us before mixing brands if you want the battery to report state of charge to the inverter.

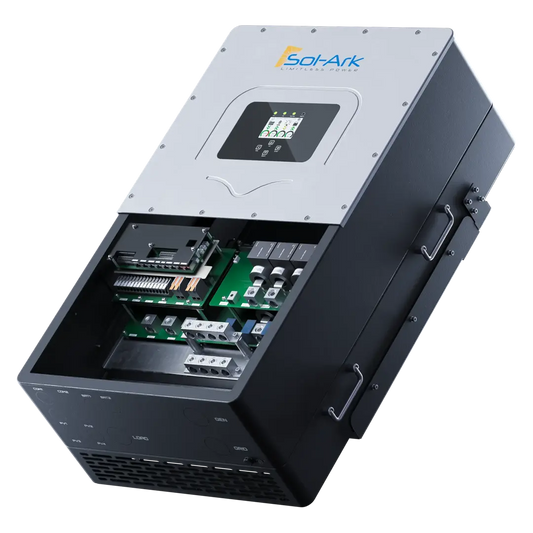

Can I run three-phase equipment? The Sol-Ark 60K delivers native 277/480V three-phase with 78kW of PV input, and the Sungold 8kW supports three-phase in parallel groups. Residential units are split-phase only.

Every inverter ships free to the mainland US from our brand partner warehouses, usually within a few business days, with 30-day returns. Call us with your battery brand and panel layout and we will confirm compatibility before you order.
