OVERVIEW
Introducing the Sungold Power 12000W 48V split-phase inverter, engineered to seamlessly power entire homes, business offices, or large RVs. Tailored for use with renewable solar energy, it's an ideal solution for off-grid living or as a backup power supply for homes and businesses.
This advanced inverter boasts a split-phase design, requiring a 240V AC input while delivering versatile output options of 110/120VAC or 220/230/240VAC to accommodate various appliances.
Equipped with a UPS function, the inverter ensures uninterrupted power flow to keep household devices running smoothly. With its integrated internal transfer switch, there's no need for manual intervention during power outages. Your selected devices seamlessly switch to backup power, providing continuous operation without any noticeable interruption in service. Enjoy peace of mind knowing that your power needs are effortlessly managed by the Sungold Power inverter.

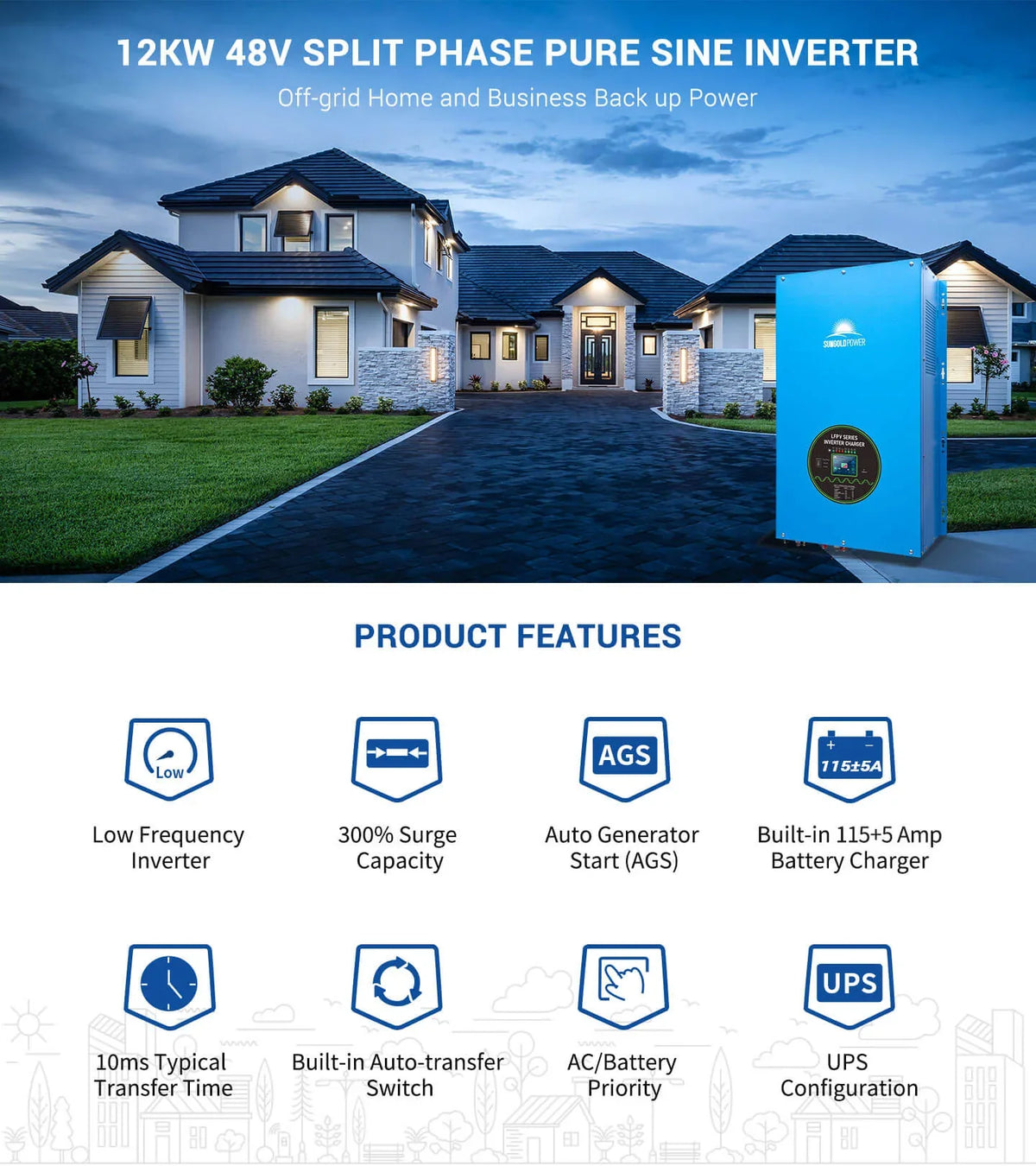

FEATURES

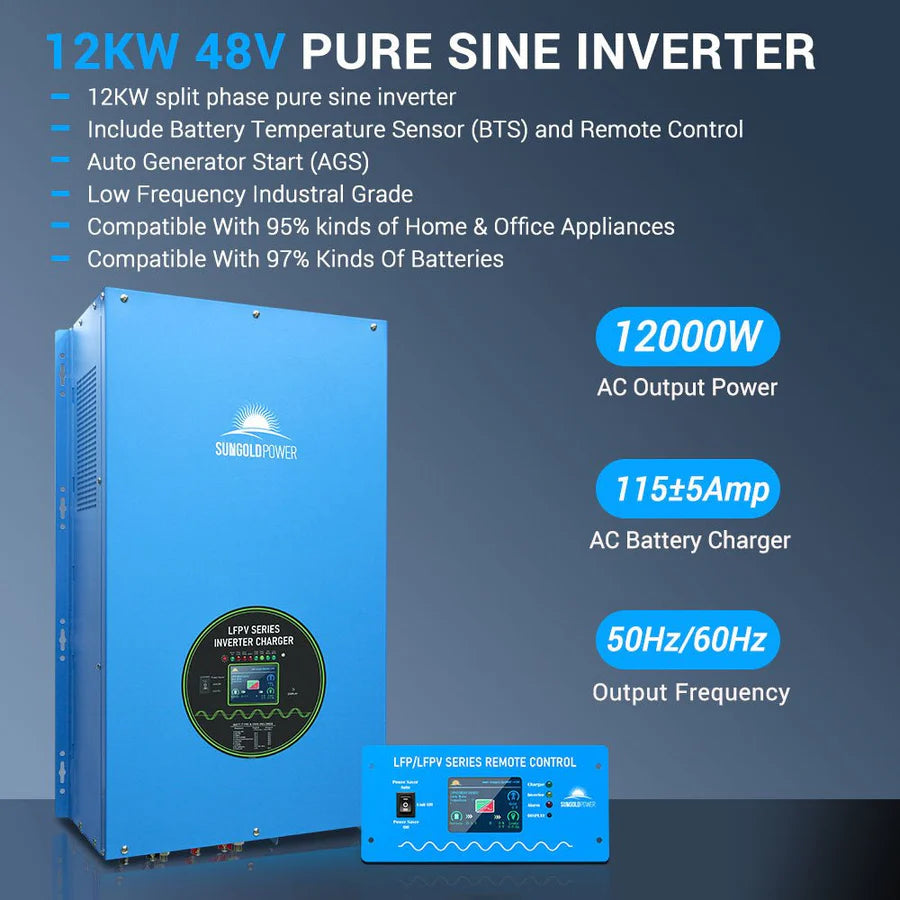

- Delivers 12KW power with split-phase design, ensuring smooth operation for your home or office.
- Equipped with Auto Generator Start (AGS) for seamless transition to backup power when needed.
-
The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
- Comes complete with Battery Temperature Sensor (BTS) and Remote Control for convenient monitoring and control.

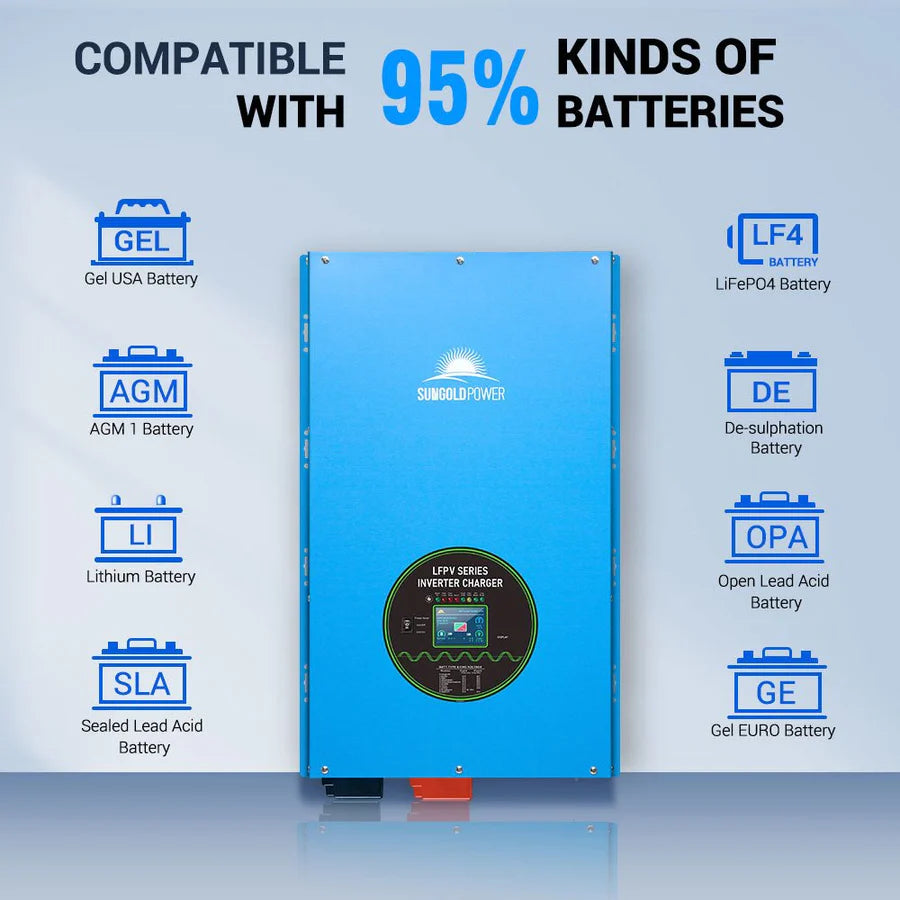

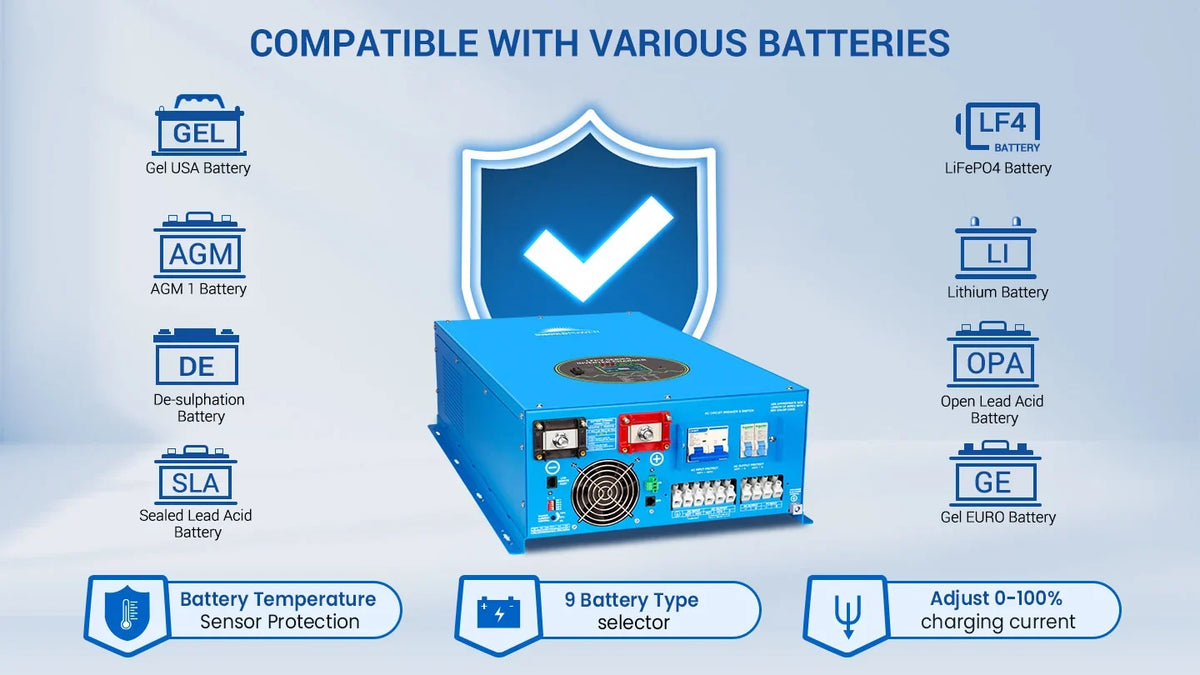

- Offers flexibility with 8 types of battery voltage selection, including lithium LiFePO4, gel, AGM, and lead-acid batteries.
- Compatible with a wide range of home and office appliances, ensuring versatile usage.
- Boasts a powerful charge rate of up to 120Amp, adjustable from 0% to 100%.
- Features a built-in transfer switch and battery charge for backup or off-grid power solutions.
- Offers AC/Battery Priority Mode, prioritizing inverter usage for uninterrupted power supply.
- Utilizes 4-step Intelligent Battery Charging and PFC (Power Factor Correction) for efficient charging.
- Guarantees a typical transfer time of 8ms between utility and battery, ensuring continuous power flow.
- Provides a 15-second delay before transfer when AC recovers, protecting loads when used with a generator.
PACKAGING
- 2000W 48V Split Phase Pure Sine Wave Power Inverter
- English Manual for easy setup and operation guidance
- Remote Control for convenient control from a distance
- BTS Cable for connecting the Battery Temperature Sensor
- Unit Weight: 160LB
- Unit Size: 27.6 x 16.5 x 8 inch
- Shipping Weight: 185 LB
- Shipping Size: 29.2 x 23 x 16.5 inch
SPECIFICATIONS
Main Specification
|
|
Continuous Output Power |
12.0KW |
Surge Rating (20s) |
36.0KW |
Output Waveform |
Pure Sine Wave |
AC Output Voltage |
120V and 240V |
AC Input Voltage |
240V (not suitable for AC 120V input) |
DC Battery Voltage |
48Vdc |
AC Battery Charger |
120±5Amp |
Output Frequency |
50Hz/60Hz |
Typical Transfer Time |
10ms (Max) |
DC Input
|
|
Nominal Input Voltage |
48.0Vdc |
Minimum Start Voltage |
40.0Vdc/42.0Vdc |
Low Battery Alarm |
42.0Vdc/44.0Vdc |
Low Battery Trip |
40.0Vdc/42.0Vdc |
High Voltage Alarm |
64.0Vdc |
Low Battery Voltage Recover |
62.0Vdc |
Power Saver on Idle Consumption |
40W |
Power Saver off Idle Power |
180W |
Charger
|
|
Output Voltage |
Depends on battery type |
Battery Initial Voltage for Start Up |
40-62.8V |
Over Charge Protection Shutdown |
62.8V |
Charger Breaker |
80A |
Input Voltage Waveform |
Sine wave (Grid or Generator) |
AC Input Range |
184-253Vac/140-270Vac |
Nominal Input Frequency |
50Hz or 60Hz (Auto detect) |
