Server Rack LiFePO4 Batteries: How to Build a 48V Battery Bank

Server rack batteries for solar are 48V (51.2V nominal) lithium iron phosphate modules built in a standard rack width, so several stack in one enclosure and wire in parallel to a hybrid inverter. Most modules here are 100Ah, which works out to 5.12kWh each. They are the standard building block for off-grid cabins, home backup systems and any installation where you expect to add capacity over time instead of buying it all at once.

The collection has 13 products from Pytes, Sungold Power, Rich Solar, Fortress Power, HomeGrid and Sol-Ark. A single 5.12kWh module starts from $1,150, two- and four-packs cover the 10 to 20kWh range, and the Sol-Ark high-voltage 40kWh bank tops the range from $18,199.

How to choose a server rack battery

• Capacity per module and how many you need. Standard modules are 5.12kWh. The Sungold Power SGH48100T 5,120Wh Self-Heating Battery is the lowest-cost single module in the collection; the 4 x Sungold Power SGH48100T pack gives 20.48kWh in one order for a house that runs a well pump and a fridge overnight.

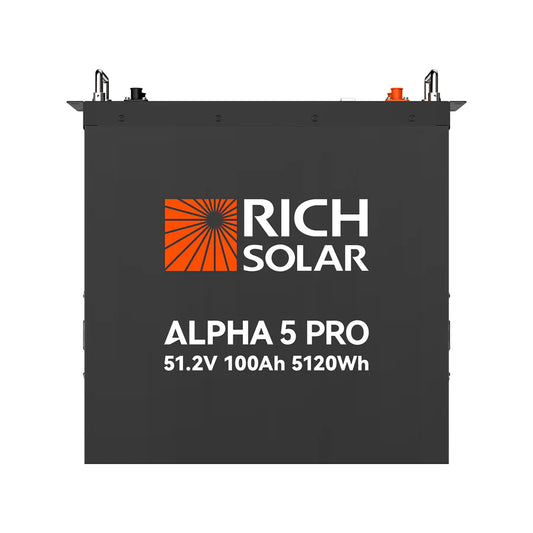

• Self-heating or not. LiFePO4 cells cannot be charged below freezing. The SGH48100T series and the Rich Solar ALPHA 5 PRO (with a 150W internal heater) suit unheated garages and northern cabins; the Pytes V5 and Sungold SG48100P are the choice for a conditioned utility room.
• Cycle rating and warranty. The Pytes V5 is rated 6,000+ cycles, the ALPHA 5 PRO 7,000+ with a 10-year warranty, and the Fortress Power eFlex Max 5.4kWh 8,000 cycles at 80 percent depth of discharge with an IP65 enclosure. Daily off-grid cycling rewards the higher ratings; occasional backup does not need them.
• Rack versus stackable versus high voltage. The rack modules need an enclosure. The HomeGrid 2 Stack'd Series 9.6kWh stacks on the floor and grows in 4.8kWh steps to 38.4kWh with no rack. The Sol-Ark 40kWh bank is high voltage and works only with the Sol-Ark 30K inverter, so it is a matched-system purchase, not a drop-in.

Popular picks in this collection

Sizing tips

• Use the Solar Kit Calculator to turn your appliance list and ZIP code into a kilowatt-hour target, then divide by 5.12 to get the module count.
• Buy modules in one order when you can. Mixing a new module into a bank that has aged for two years leaves the pack imbalanced; the two- and four-packs from Sungold Power avoid that.
• Check the inverter's closed-loop list. Most server rack lifepo4 batteries talk CAN or RS485, but the protocol has to match the inverter brand for accurate state-of-charge readings.
• Budget for the rack and busbars. Rack modules need an enclosure, cables and a breaker per string; the HomeGrid stack and the Pytes outdoor cabinet bundle skip that step.
• Do not undersize the inverter's charger. Four modules can absorb far more current than one; pair a 20kWh bank with an inverter that can push at least 100A of charge or the array will sit idle at midday.

Frequently asked questions

Are server rack batteries only for off-grid homes? No. They also back up grid-tied homes through a hybrid inverter, and many buyers use a 10kWh bank purely to ride out outages while charging from the grid.

How many modules can I parallel? It depends on the model. The ALPHA 5 PRO and Pytes V5 are built for parallel expansion, and the Sol-Ark bank grows in 5.12kWh steps; check the product page for the maximum count before planning a very large bank.

Do I need the self-heating version? Only if the battery will sit where temperatures drop below freezing during charging hours. In a heated basement the standard SG48100P or Pytes V5 saves money.

Every module and bundle here ships free to the mainland US from the brand partner warehouse, usually within a few business days, with 30-day returns. Call us if you want a second opinion on module count or inverter matching before you order solar rack batteries.
