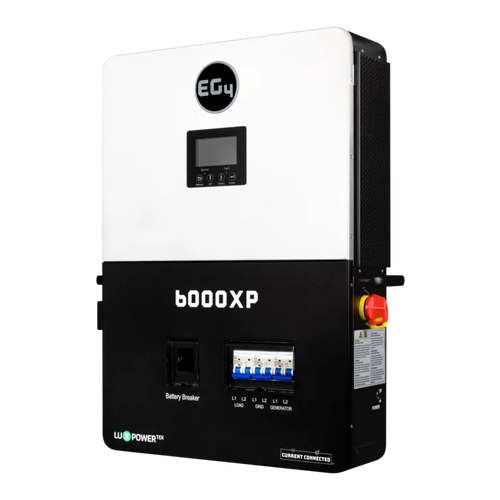

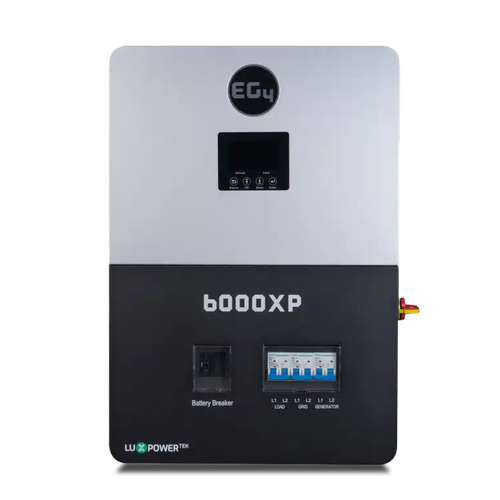

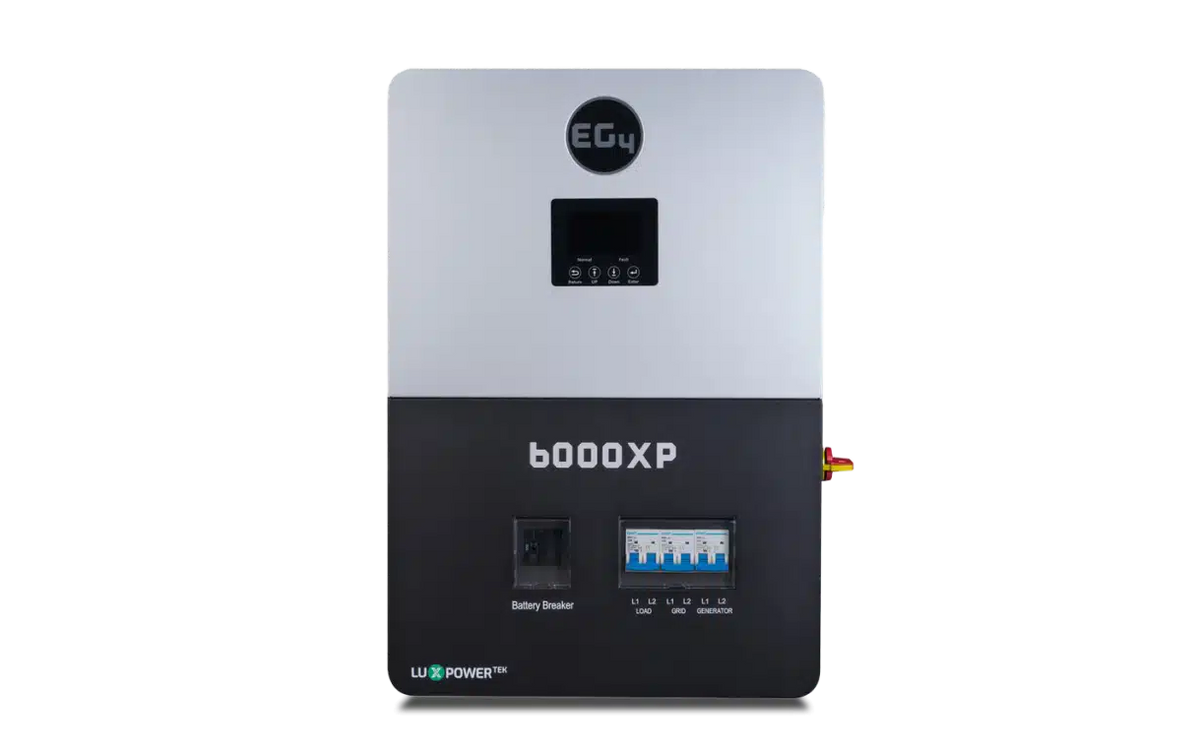

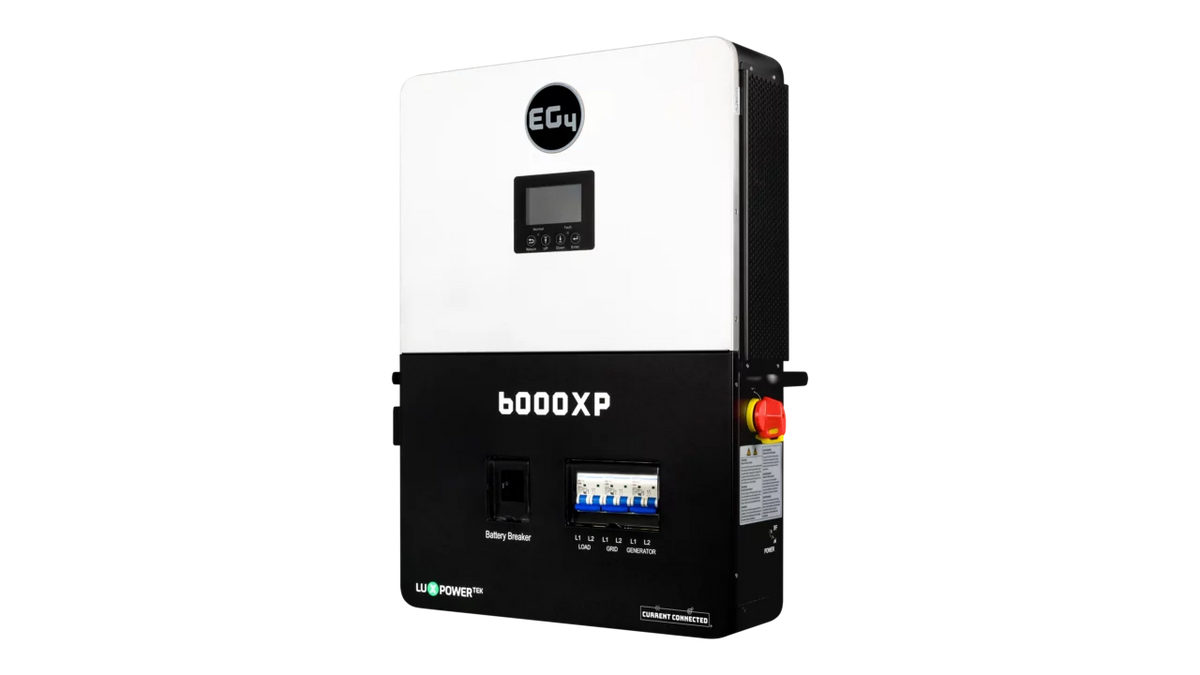

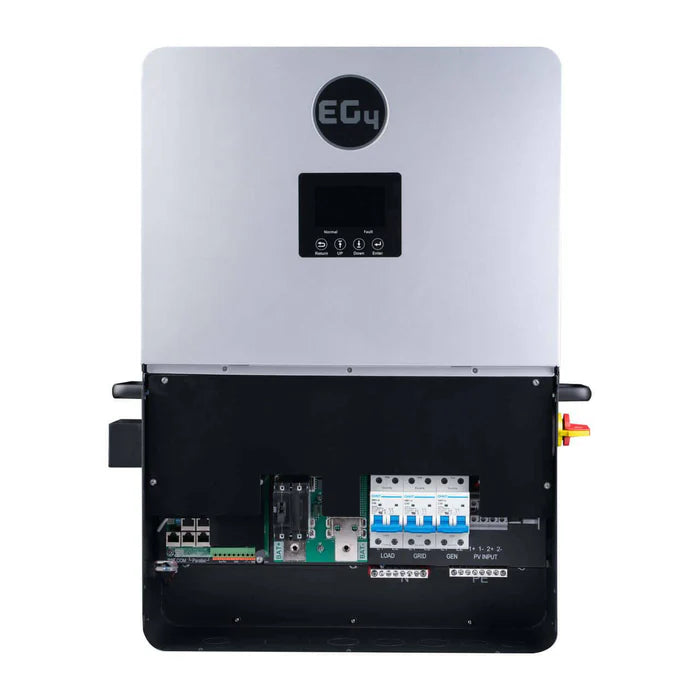

Introducing the EG4 6000XP All-in-One Inverter & Charger, a cutting-edge, multifunctional split-phase off-grid and solar inverter designed to support even the most robust home power systems. With a rated power of 6000W and the capacity to handle PV arrays up to 8000W, this high-tech inverter provides reliable, efficient power for a wide range of applications, including solar backup and off-grid systems.
AC Voltage: |
120V AC / 240V AC
|
AC Frequency: | 50 Hz / 60 Hz |
Max. Continuous AC Current: | 37.5A @ 240V |
Max. AC Input Power: | 9000W |
AC Bypass: | 50A |
Output Voltage: |
120V AC / 240V AC
|
Output Frequency: | 50 Hz / 60 Hz |
Max. Continuous Output Current: | 25A @ 240V |
Output Power: | 6000W |
Surge Capacity: |
12000W (3.5 sec) / 11000W (5 sec)
|
Power Factor: |
0.99 (Full Load)
|
Reactive Power Adjustment Range: |
-0.8 - 0.8 Leading Adjustable
|
Total Harmonic Distortion: | <3% |
Switching Time: |
<15 ms (Single) / <30 ms (Parallel)
|
No. of MPPTs (Inputs per MPPT): | 2 (1) |
Max. Input Current: | 17A / 17A |
Max. Short Circuit Input Current: | 25A / 25A |
DC Input Voltage Range: | 100 - 480V DC |
Start Up Voltage: |
100V DC ± 10V DC
|
MPPT Operating Voltage Range: | 120 - 385V DC |
MPPT Voltage: | 320V DC |
Max. PV Array Power: |
8000W (4000W per MPPT)
|
MPPT Efficiency: | 99% |
Nominal Voltage: | 48V DC |
Battery Voltage Range: | 46.4 - 60V DC |
Max. Discharge Current: | 140A |
Max. Charge Current: | 125A |
DC Cut-Off Voltage: | 59V DC |
DC Recovery Voltage: | 57.4V DC |
Charge Cut-Off Voltage: | 58.4V DC |
Operating Temperature: |
32ºF - 113ºF (0ºC - 45ºC)
|
Storage Temperature: |
5ºF - 140ºF (-15ºC - 60ºC)
|
Altitude: |
<6,561 ft (2000 m)
|
Relative Humidity: | 5 - 95% |
Typical Noise Emission: | <58 dB |
Protection Rating: | IP20 |
Max. Parallel Connections: | 16 |
Weight: |
52.9 lbs (24 kg)
|
Depth: |
5.25 in (132 mm)
|
Width: |
18 in (457 mm)
|
Height: |
25.5 in (648 mm)
|
Spec Sheet: | Click Here |
User Manual: | Click Here |
Monitoring System Guide: | Click Here |
Monitoring Adapter Installation Guide: | Click Here |
UL1741 Certificate: | Click Here |
Warranty: | Click Here |
