Self-Heating Server Rack Battery · 48V · 100Ah

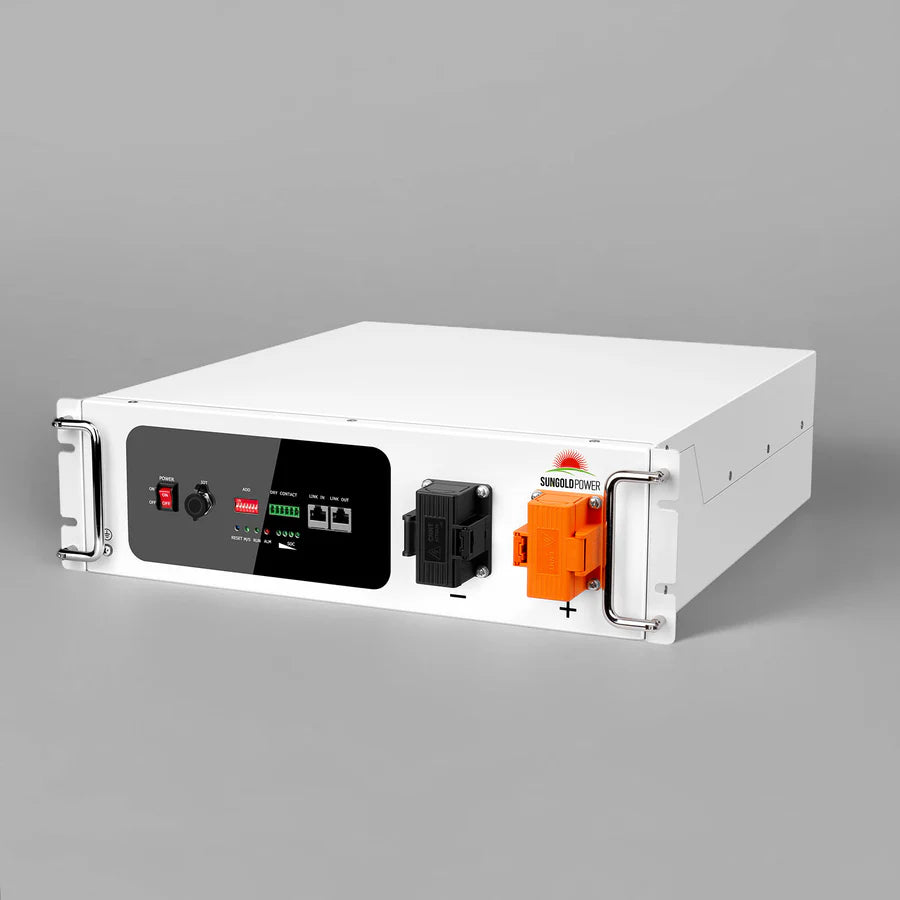

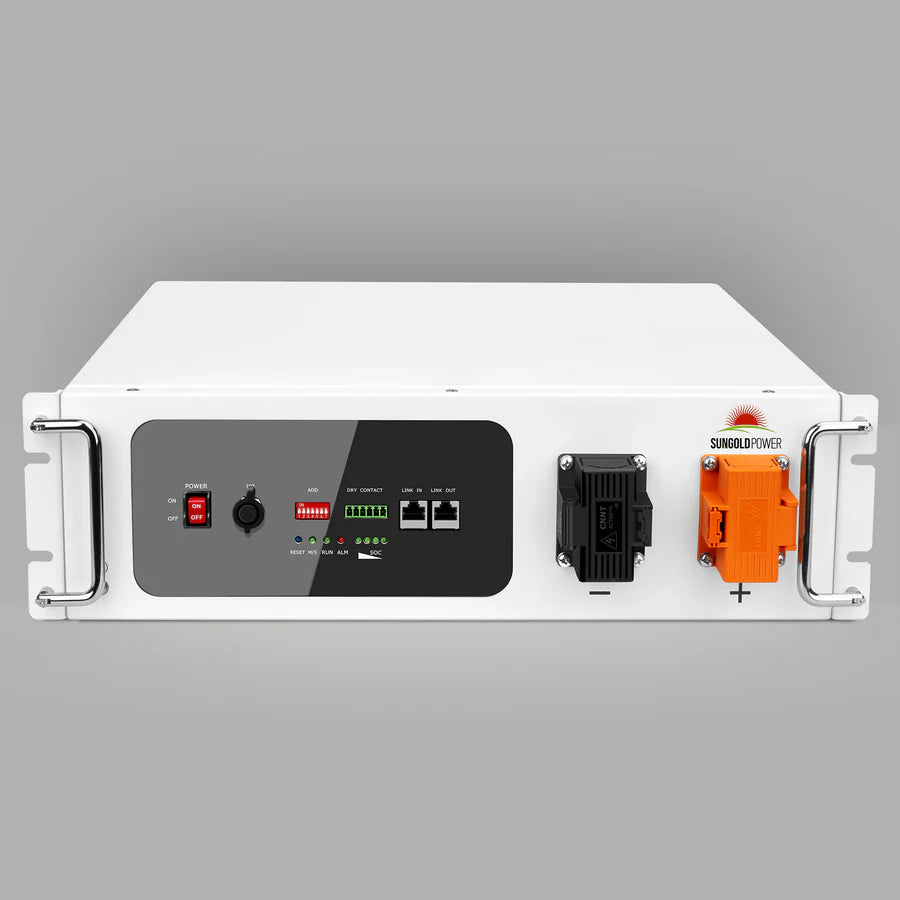

The SGH48100T delivers 51.2 V and 100 Ah (5.12 kWh) in a 3U server-rack module. Its integrated self-heating system keeps the cells charging safely when temperatures drop, and four units give you 20.48 kWh of expandable storage out of the box.
Overview
The SGH48100T activates its heating function automatically when cell temperature falls between -13°F and 41°F (-25°C to 5°C), warming the pack to 53.6°F (12°C) so it can accept a charge safely. Once warm, the heater switches off and the battery runs as a standard 48 V LiFePO4 module.

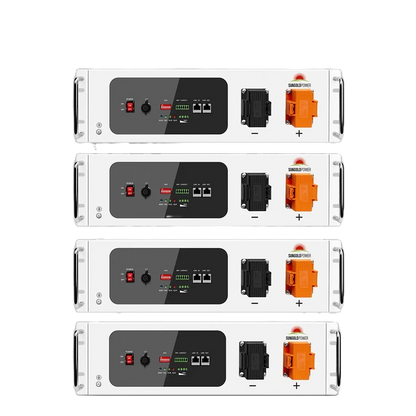

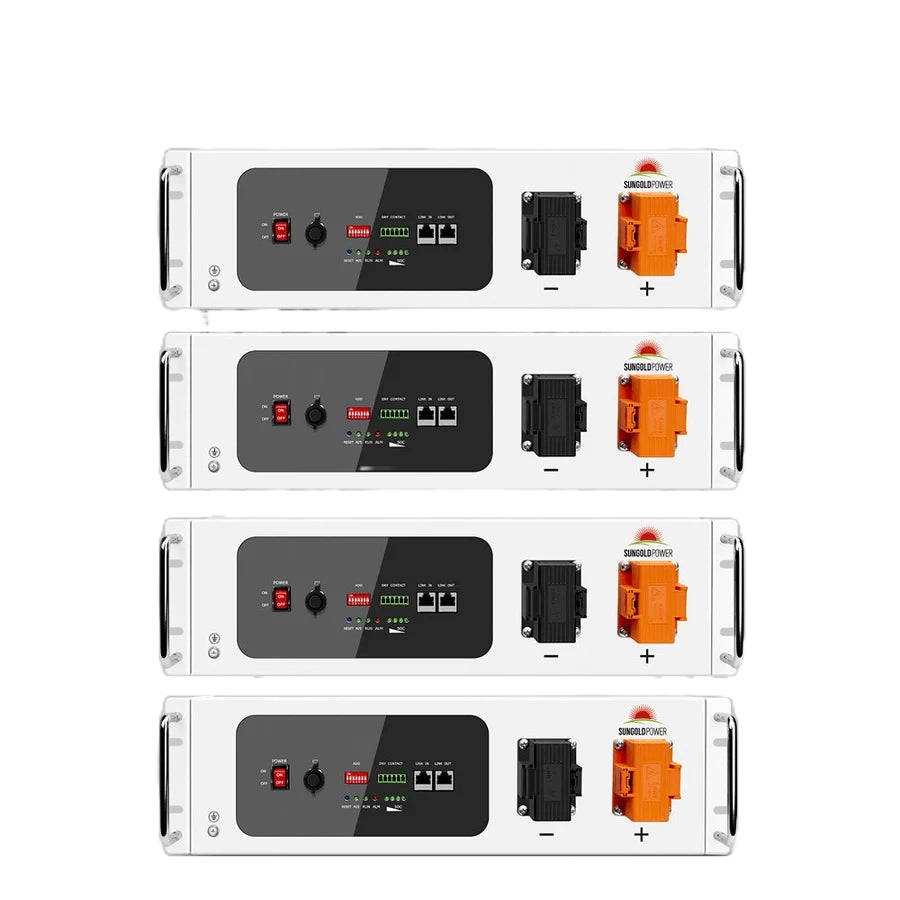

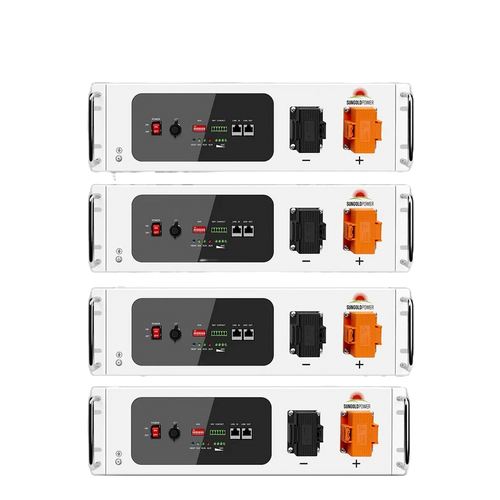

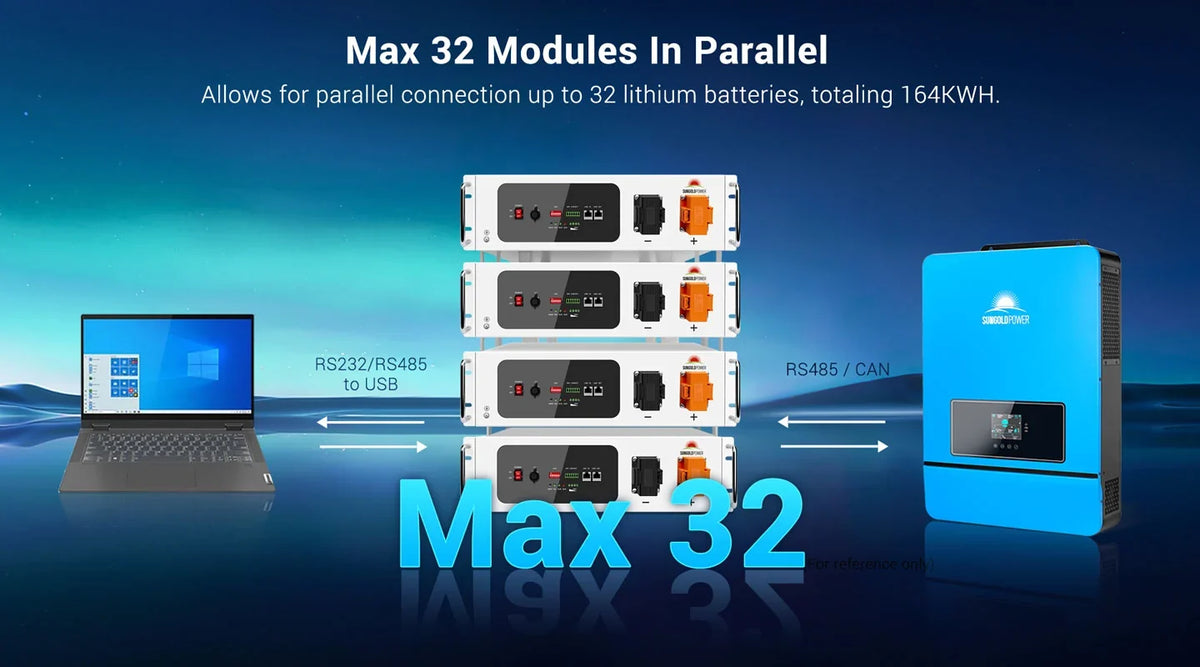

The compact 3U pack slides into any standard 19-inch rack, ships with the cables and accessories needed for installation, and needs minimal maintenance. Its modular design lets you connect up to 32 units in parallel, so this four-battery bundle (20.48 kWh) can grow with your load.
From home energy storage to small commercial and industrial systems, the SGH48100T delivers consistent, dependable performance wherever the demand is.
Features
Cold-Weather Protection
Data
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 100 Ah |
| Nominal energy | 5.12 kWh (per unit) |
| Bundle energy | 20.48 kWh (4 units) |
| Form factor | 3U server rack |
| Cycle life | 7,000+ cycles |
|---|---|
| Max. units in parallel | 32 |
| Communication | RS485, CAN Bus |
| Self-heating range | -13°F to 41°F (-25°C to 5°C) |
| Certifications | UL 1973, UL 9540 (pending) |
Use Cases
Additional Documentation
