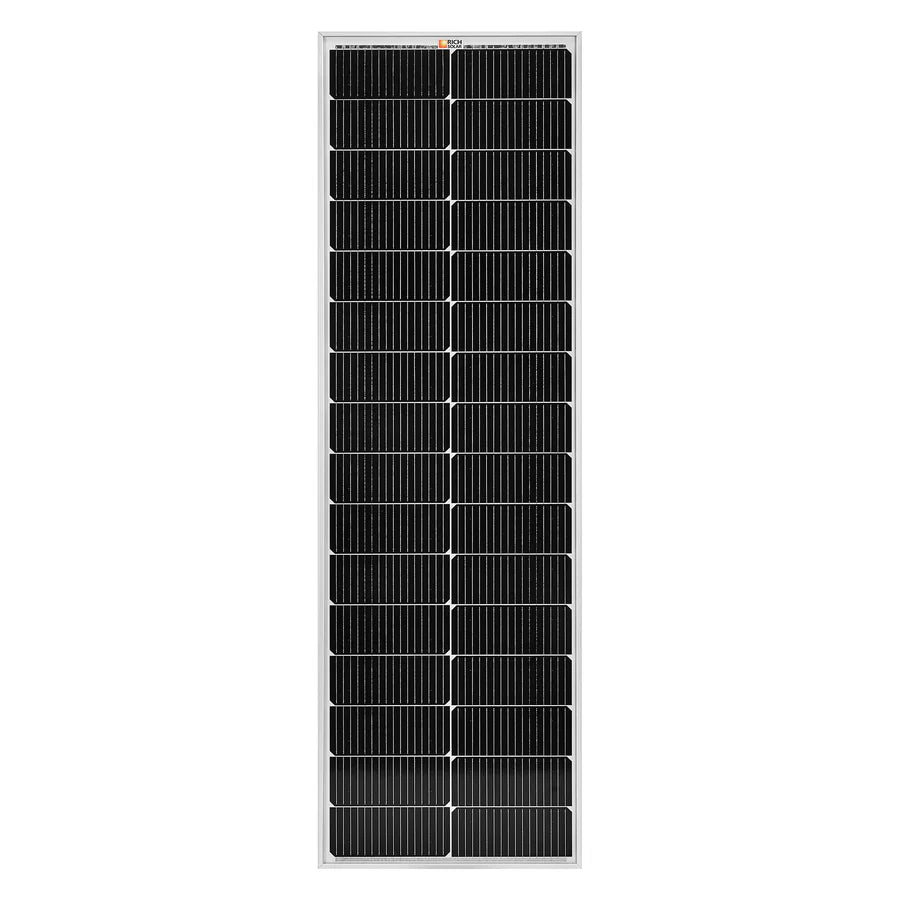

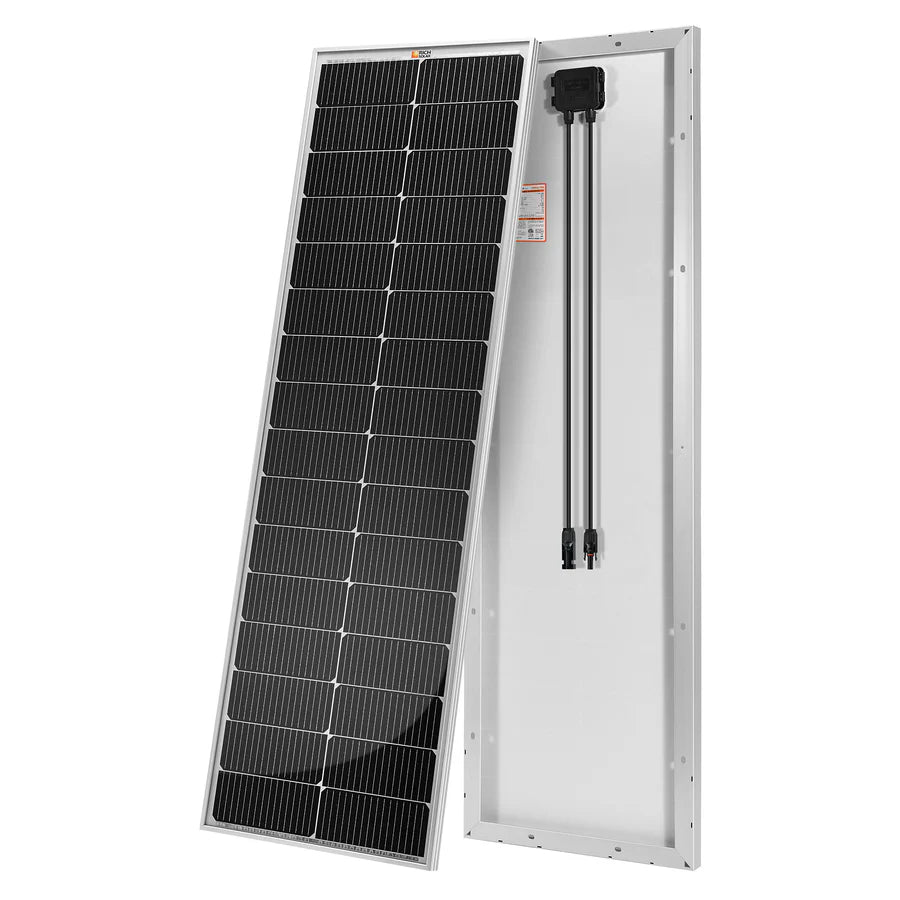

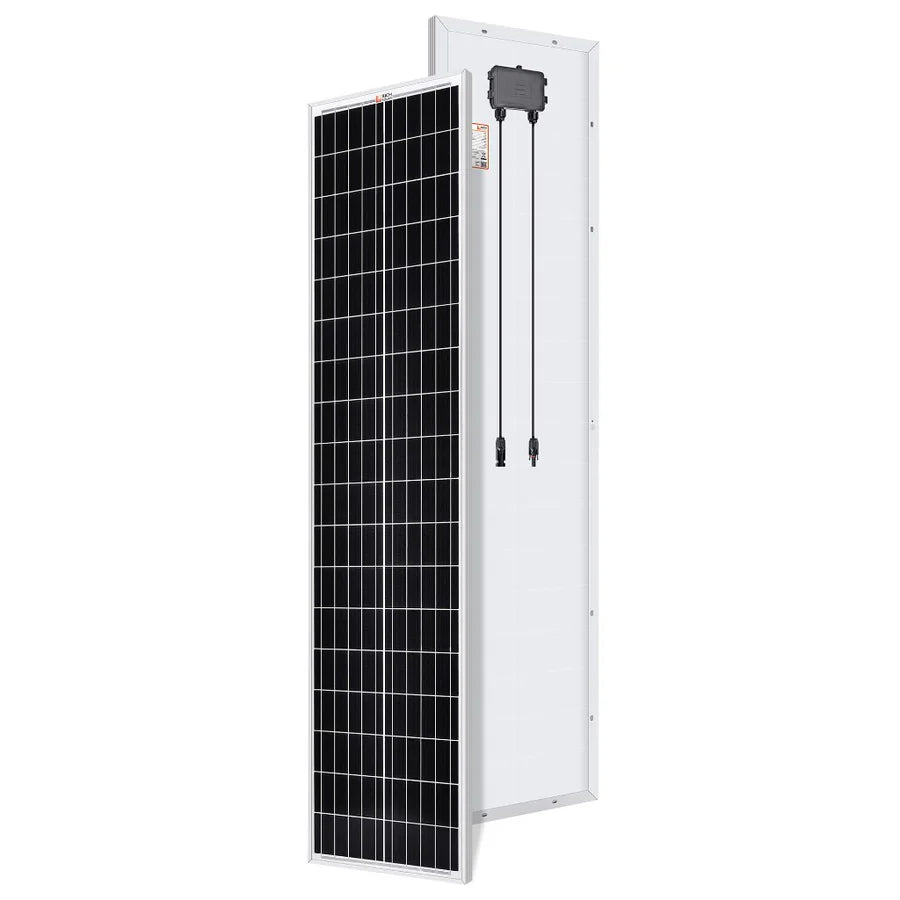

12V Solar Panel · Slim Design · N-Type TOPCon
The MEGA 100 SLIM packs 16-busbar N-Type TOPCon cells into a narrow 50.0 × 15.7 in frame — built for the tight roof space on Class B/A RVs, trailers, and boats, without giving up efficiency or durability.
| Max. power (Pmax) | 100 W |
| Max-power voltage (Vmp) | 19.6 V |
| Max-power current (Imp) | 5.01 A |
| Open-circuit voltage (Voc) | 23.6 V |
| Short-circuit current (Isc) | 5.38 A |
| Max. system voltage (Vmax) | 1000 Vdc |
| Max. series fuse rating | 15 A |
| Weight | 12.4 lbs |

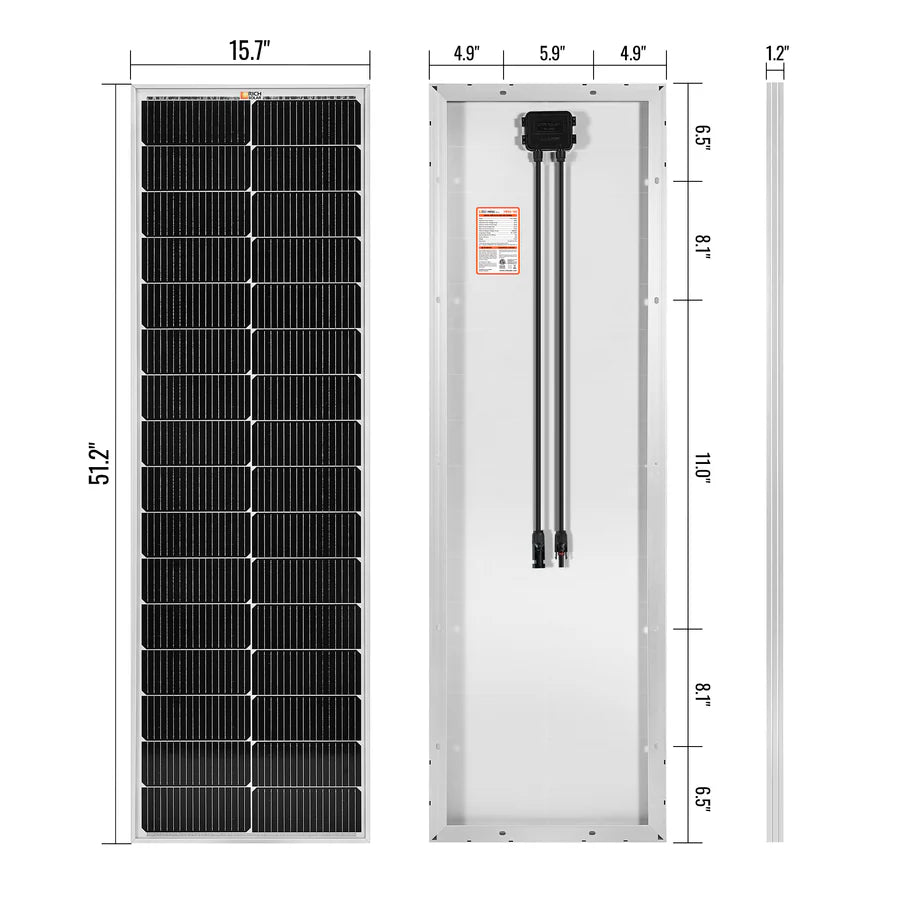

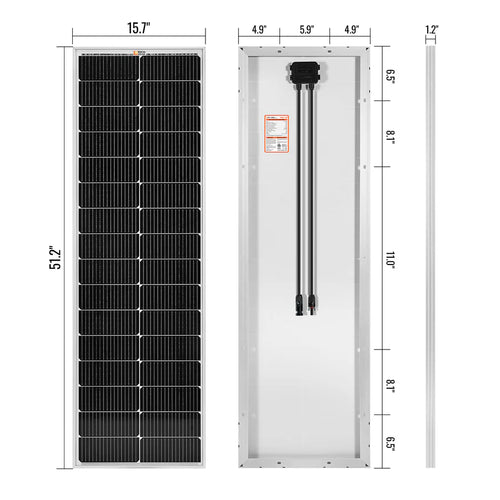

| Dimensions | 50.0 × 15.7 × 1.2 in |
| Operating temp | -40°F to 185°F |

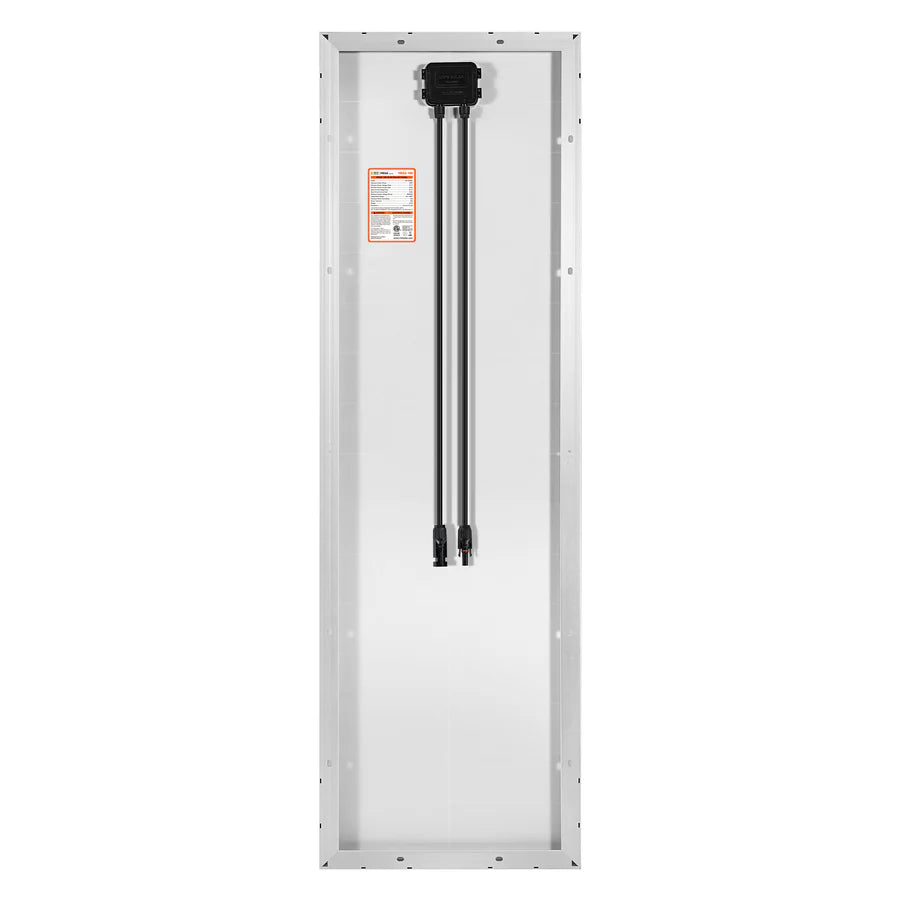

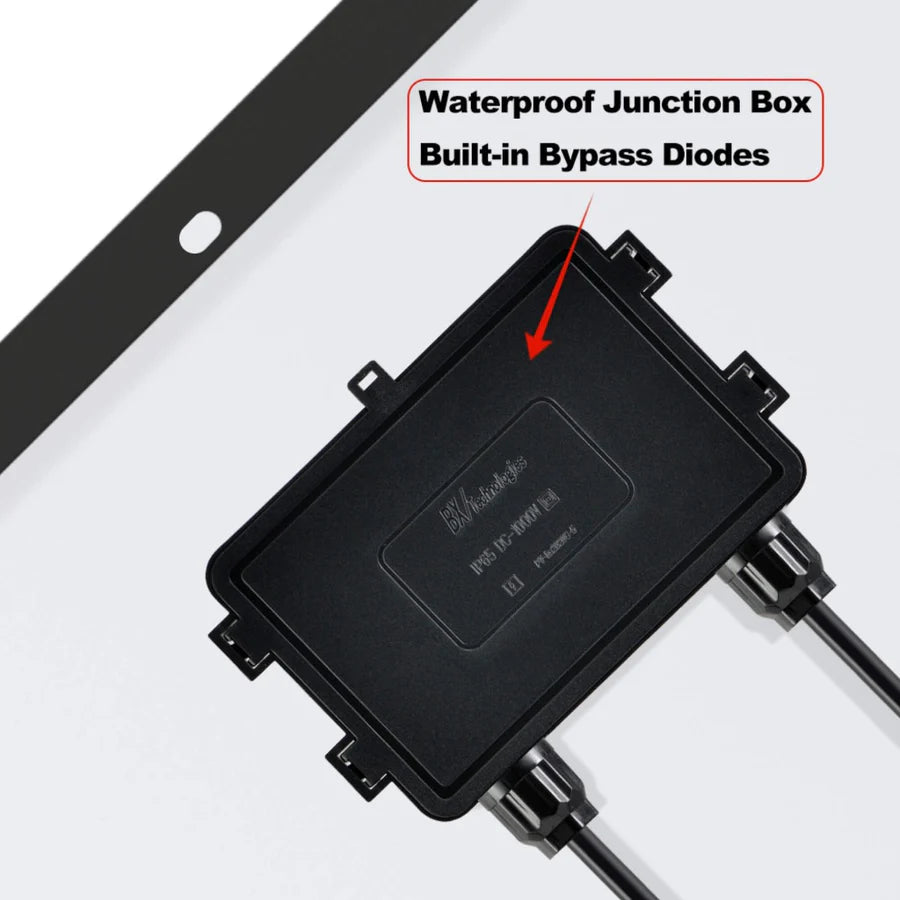

| Junction box & cables | IP67 |
| Cable length | 4 ft, MC4 connectors |

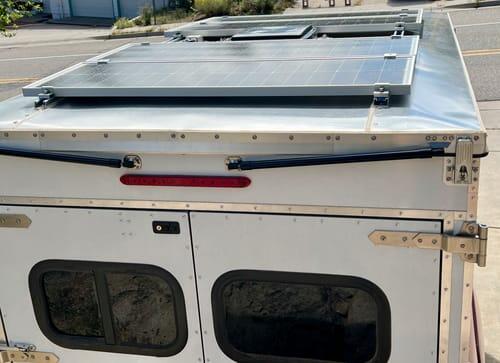

The SLIM's narrower 15.7in width is designed to fit tighter roof layouts — Class B RVs, vans, and boats — at an 11.8% smaller footprint than the MEGA 100 SLIM SLX, while still delivering the same 100W output.
No — an inverter isn't needed just to charge a battery. You'll only need one if you plan to run AC appliances like a TV or refrigerator directly off the battery.
No, as long as a solar charge controller is installed in the system — it prevents reverse current from flowing back into the battery after dark.
It carries a 25-year performance warranty: at least 95% of rated output after 5 years, 90% after 10 years, and 80% after 25 years.

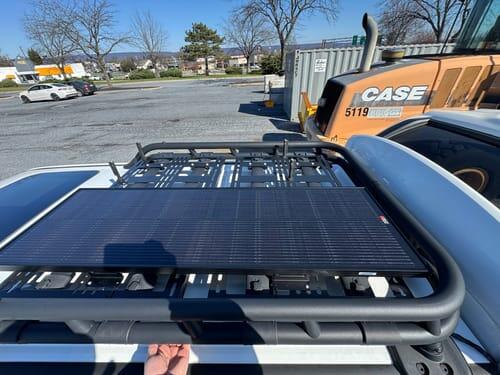

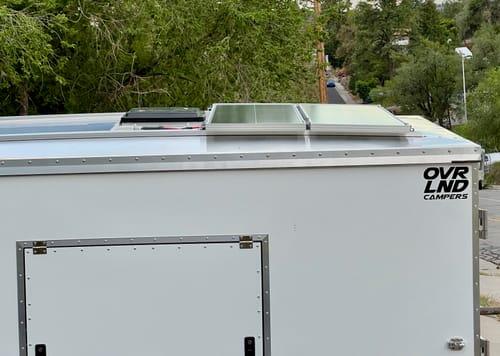

Not necessarily — panels are often mounted with sealant rather than drilled fasteners, or installed on a ground mount instead of the roof.
The MEGA 100 SLIM is available in Silver or Onyx (Black) finish.
