Hybrid Solar Kit · 12,000W · 16.07kWh · 9,000W PV

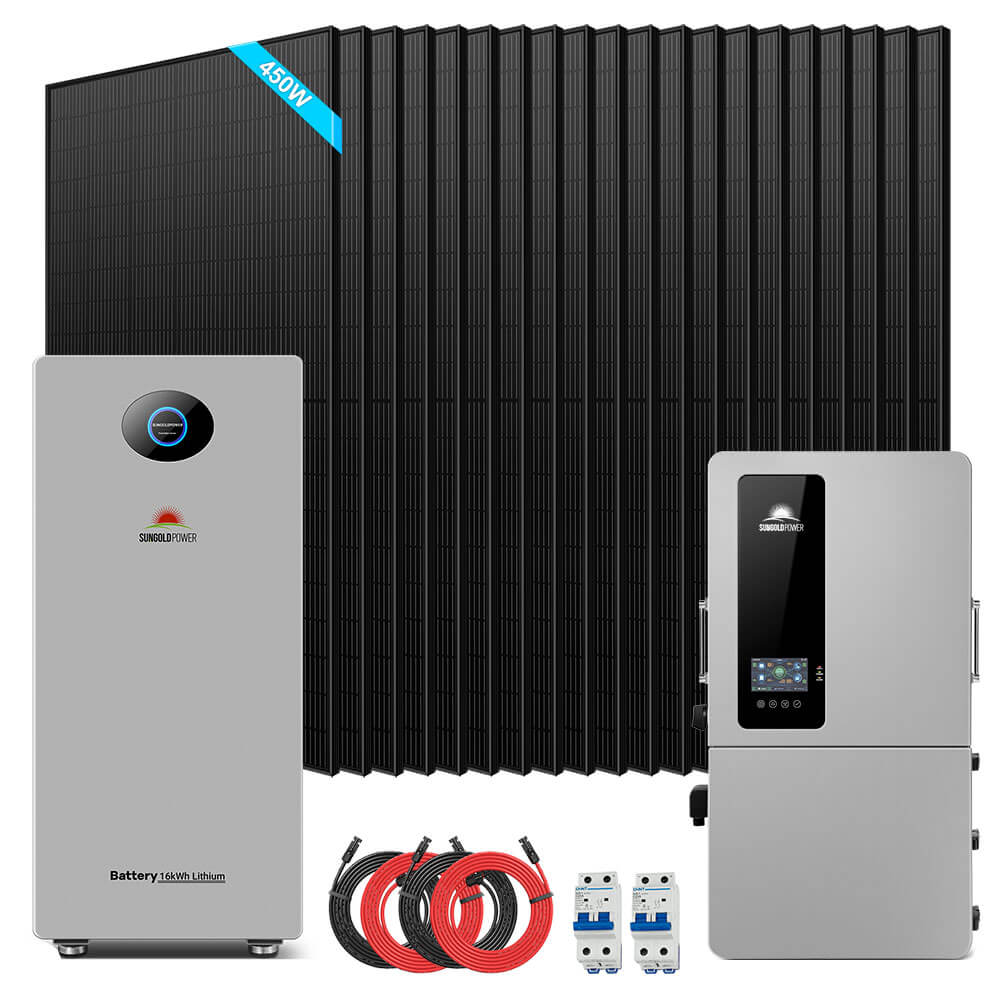

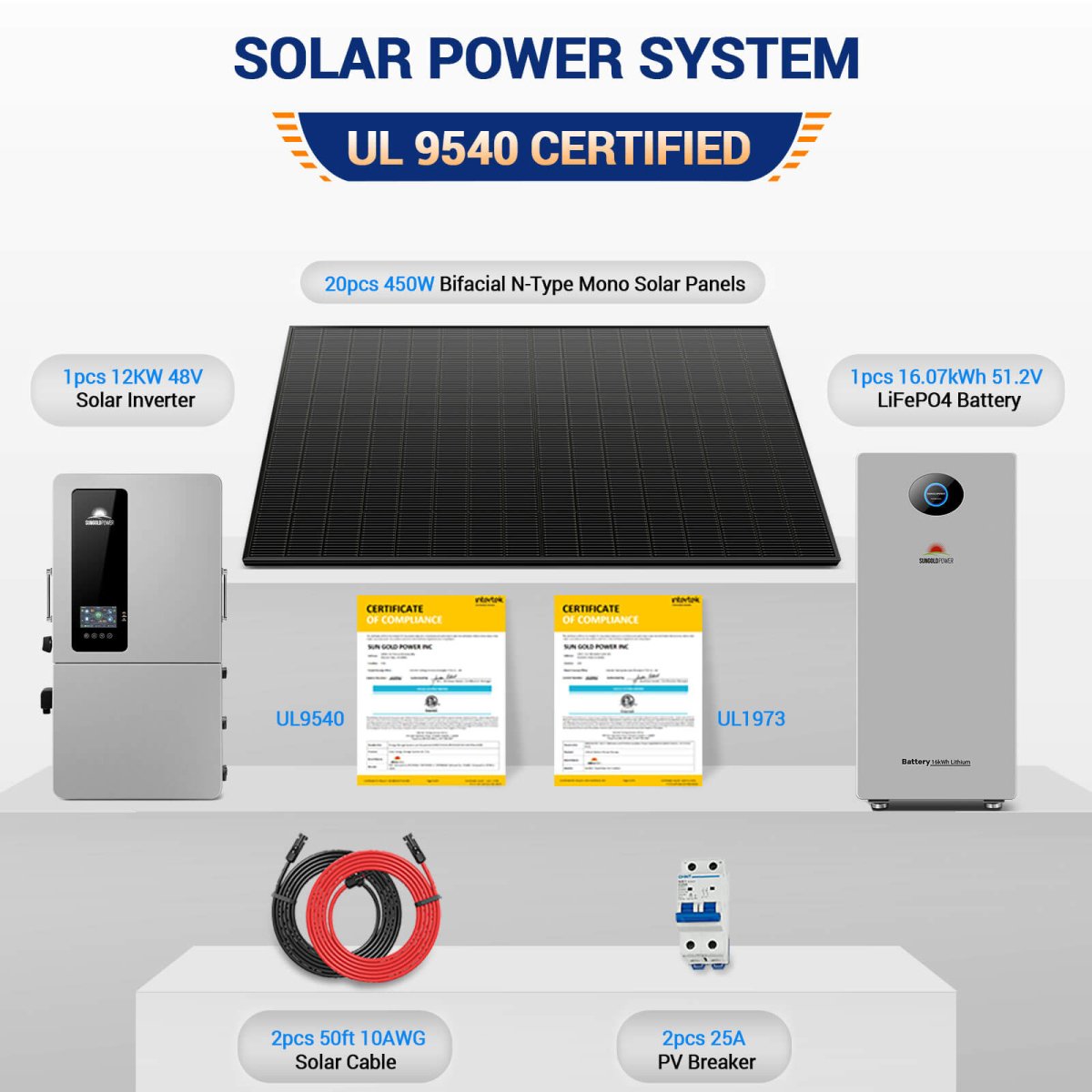

A grid-tied, whole-home hybrid solar kit: the UL1741 SB SGS-12K18MAX 12kW inverter with 200A pass-through, twenty 450W bifacial N-type panels and one 16.07kWh PowerMax 314 outdoor battery - certified together to UL 9540.
The SGS12K-PM1-450 is Sungold Power's entry into whole-home hybrid solar: one system that lowers the power bill every day and keeps the entire house running when the grid fails. The SGS-12K18MAX inverter delivers 12,000W of 120/240V split-phase power, exports surplus solar under UL1741 SB / IEEE 1547 rules, and its 200A pass-through lets it feed a full 200A main panel rather than a small critical-loads panel.

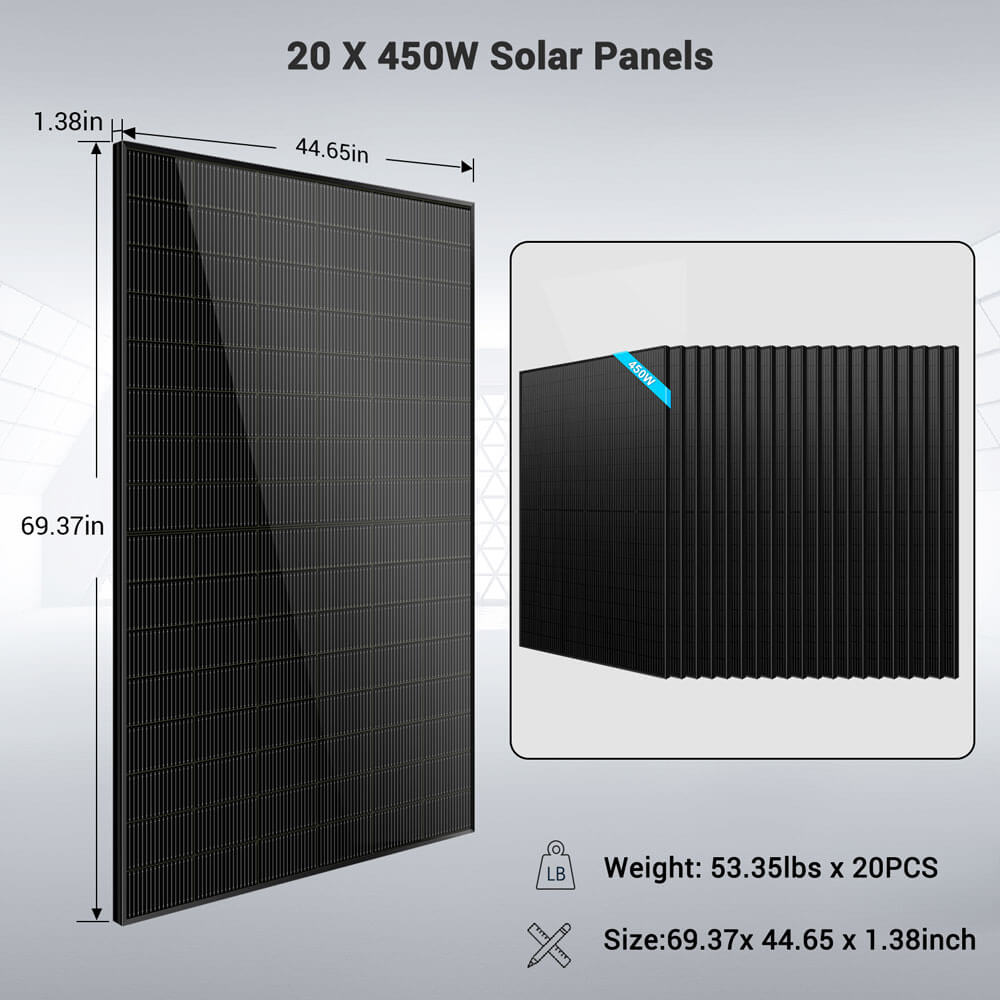

Twenty SGN-450-BDG5 bifacial N-type monocrystalline panels supply 9,000W of PV (up to 36kWh a day at four sun hours, more with bifacial gain), well within the inverter's 18kW input limit, so there is headroom to add panels later. The PowerMax 314 Outdoor battery stores 16.07kWh in an IP65 cabinet that can sit outside, is UL1973 and UL9540A certified and CEC listed, and communicates with the inverter in closed loop.

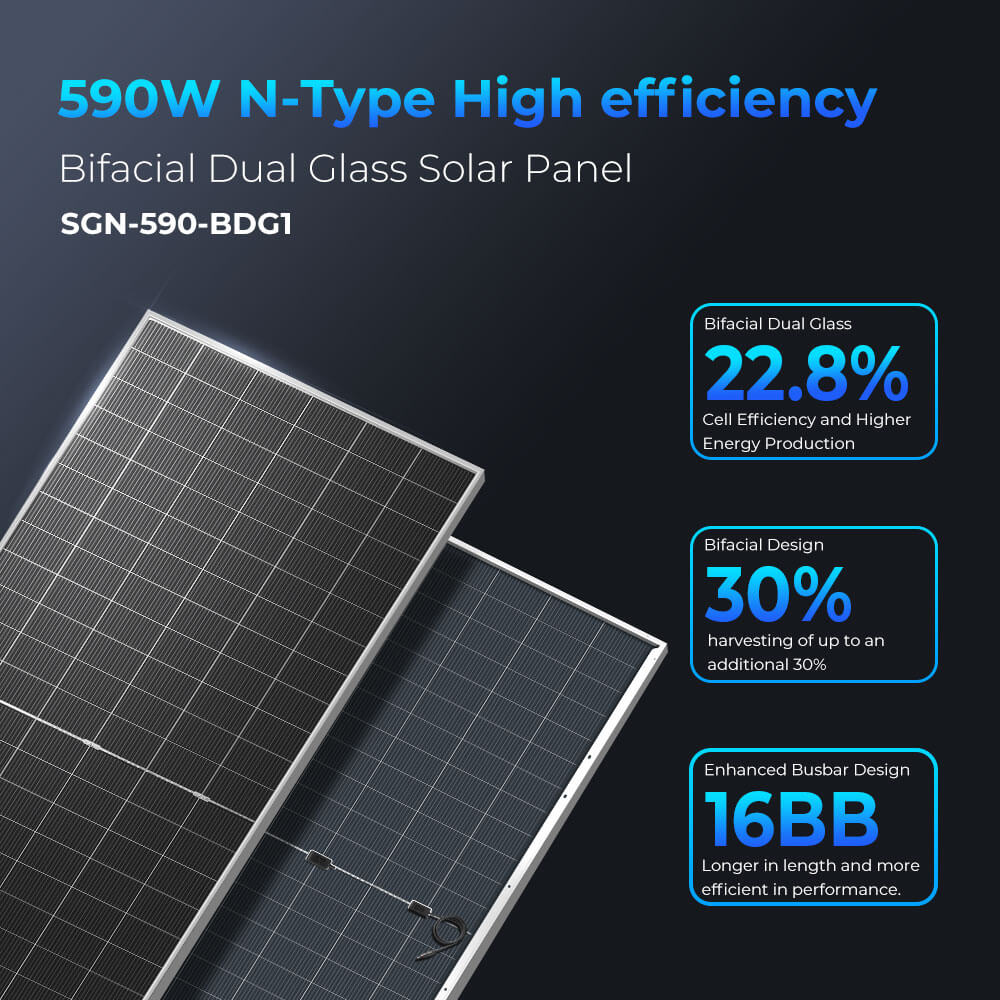

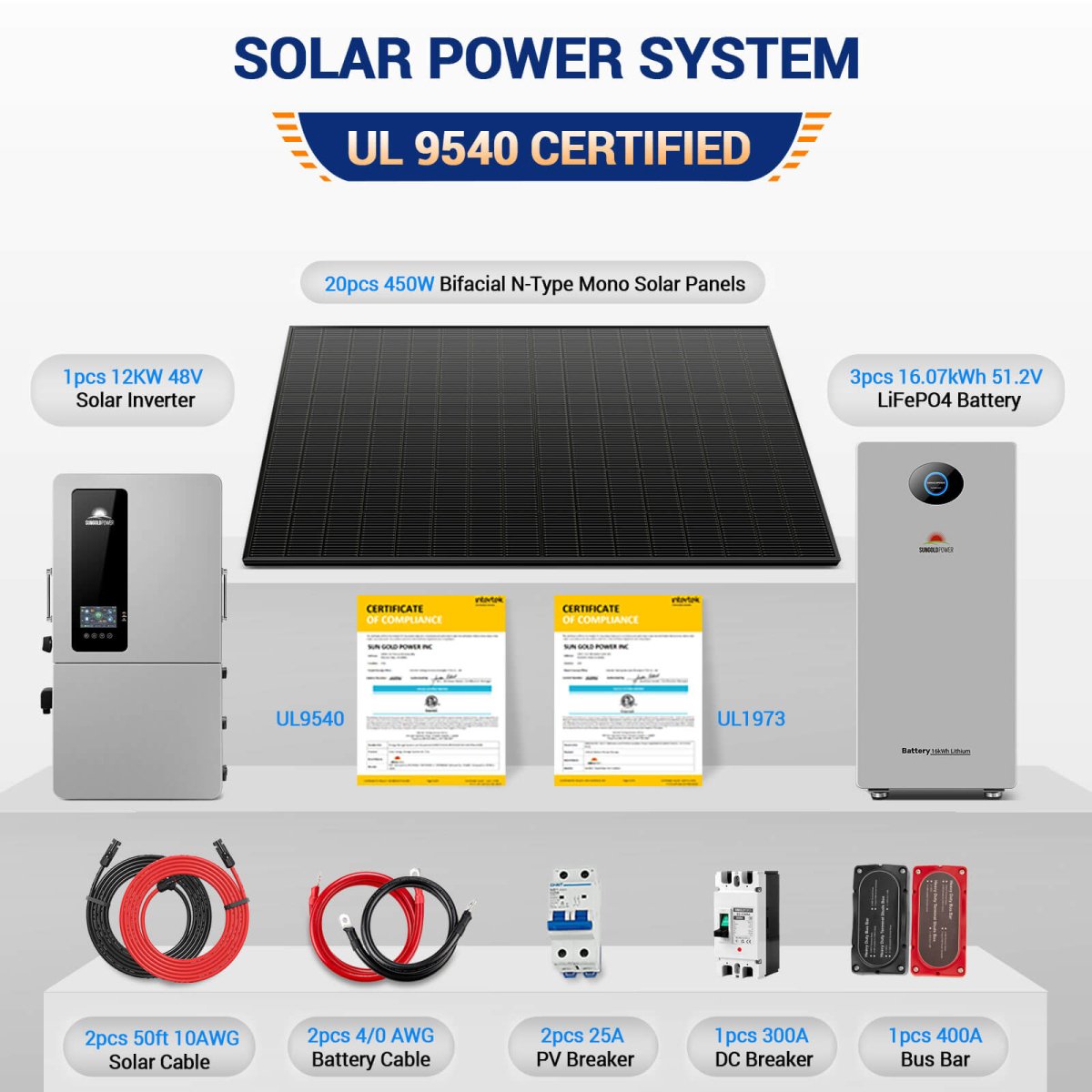

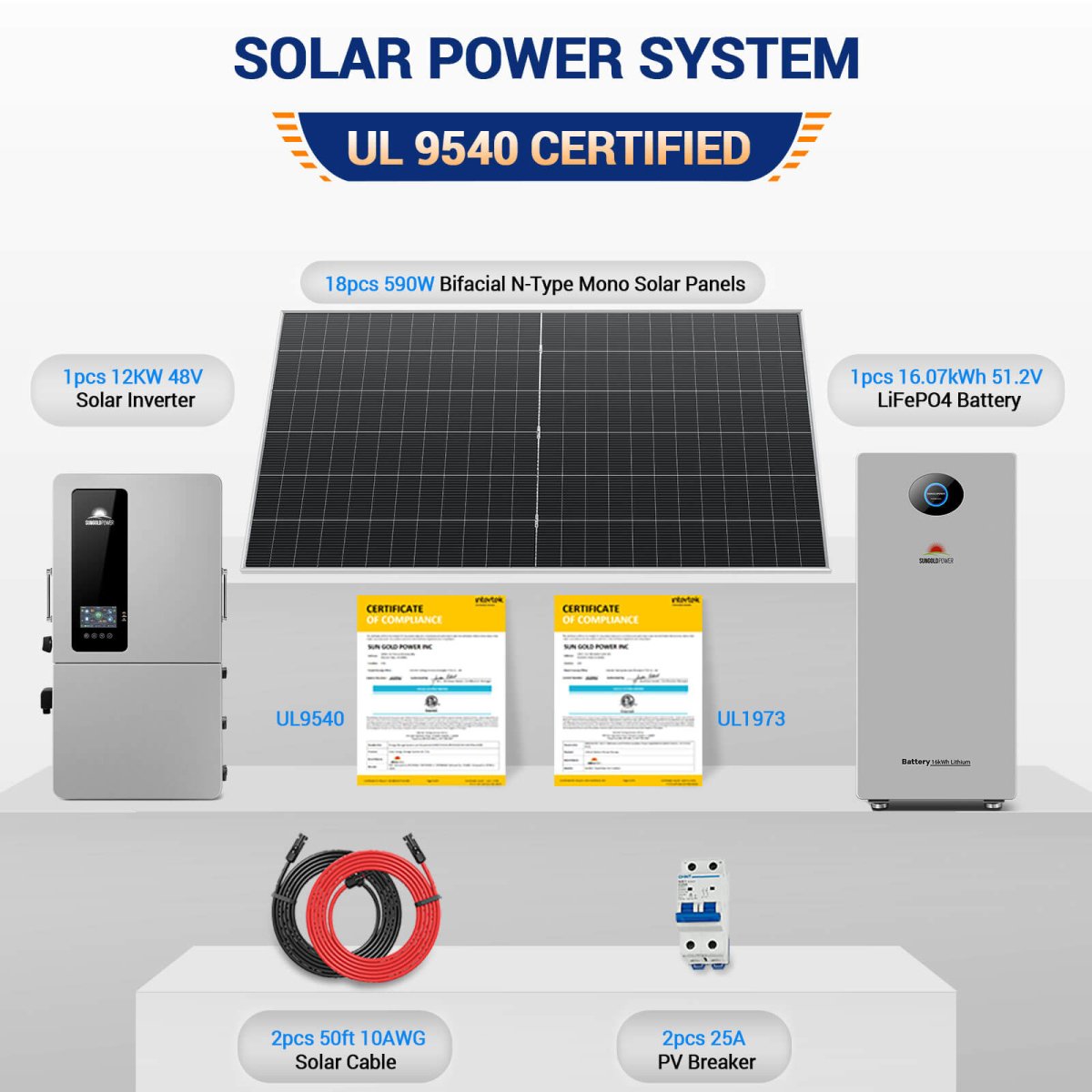

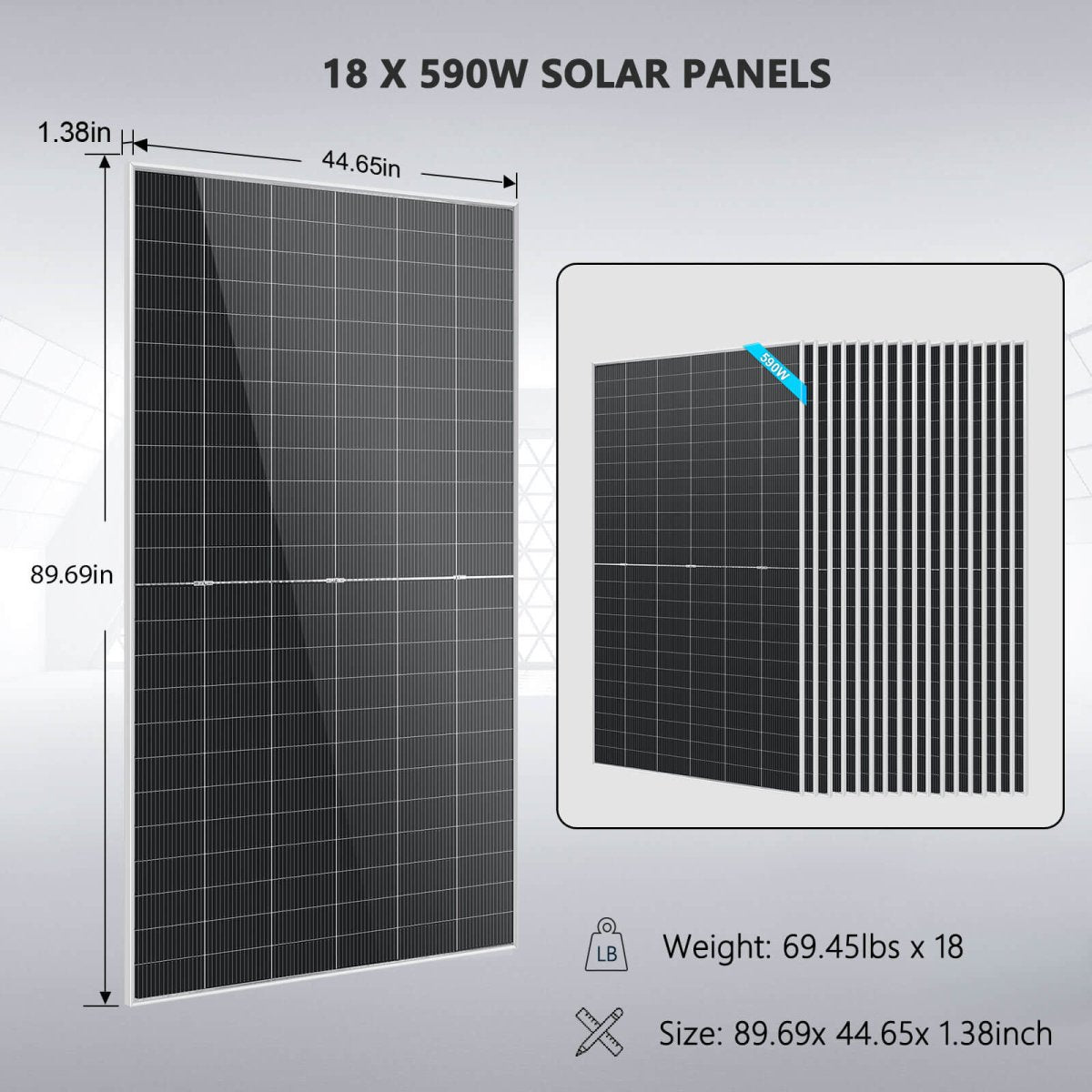

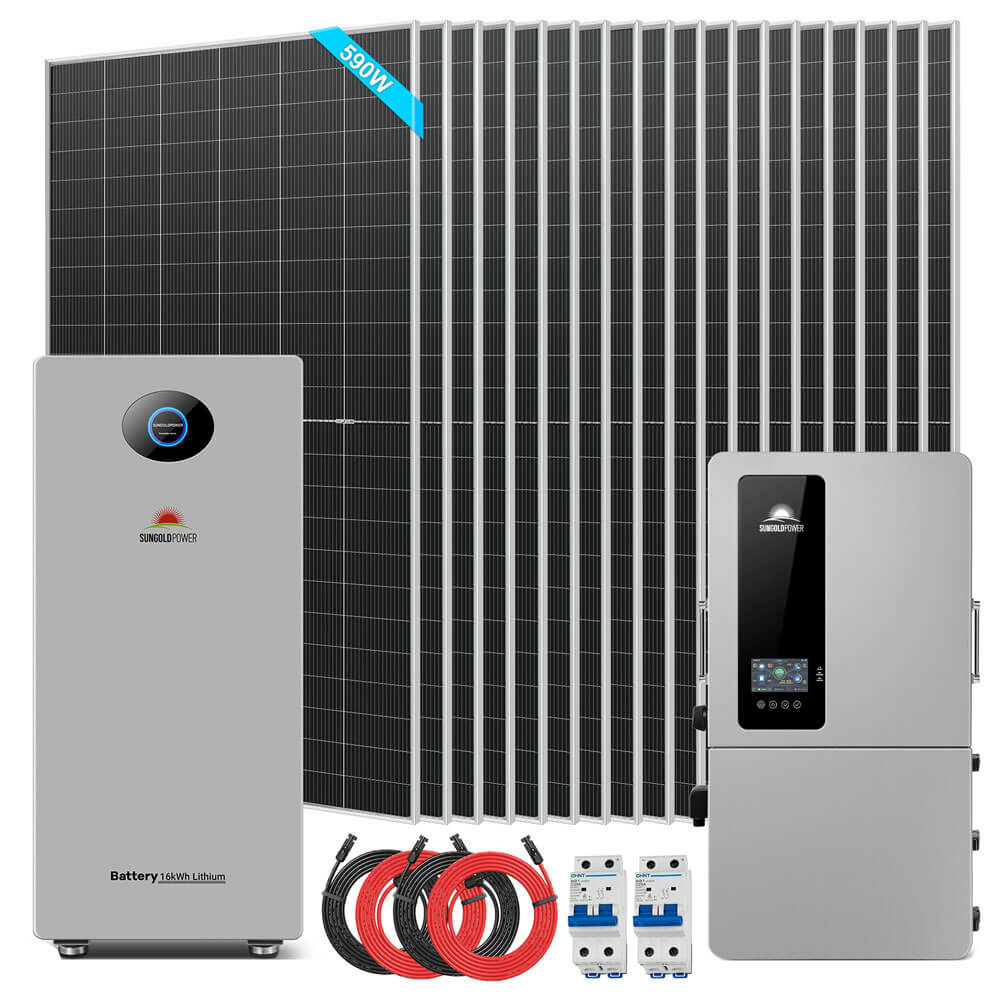

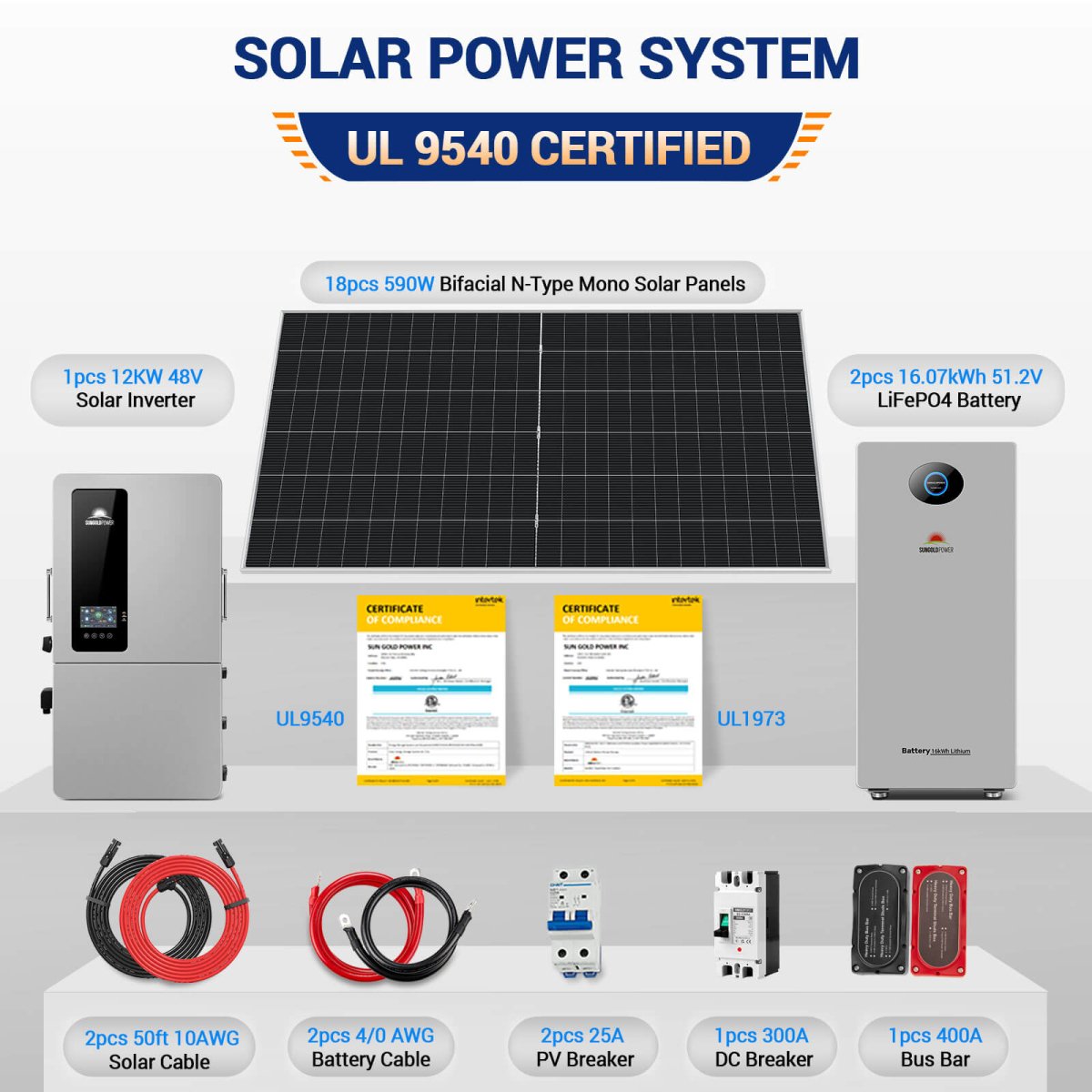

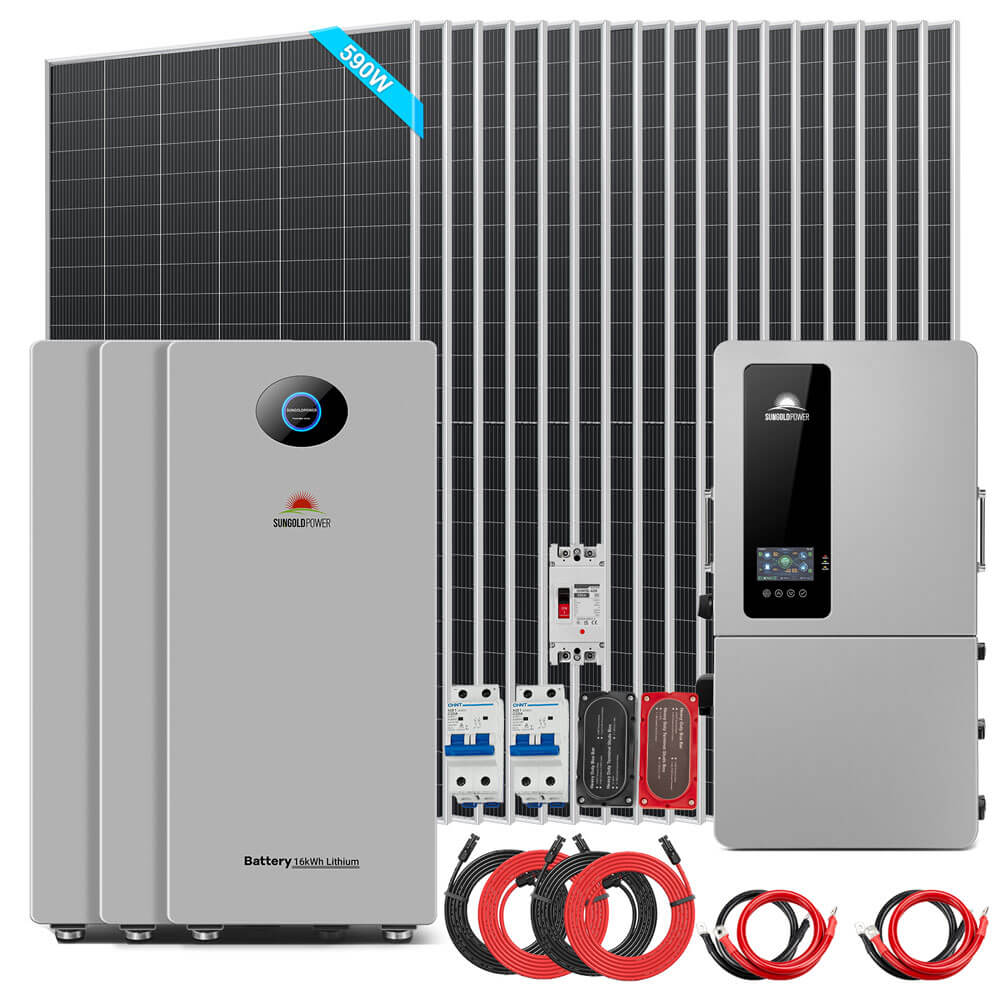

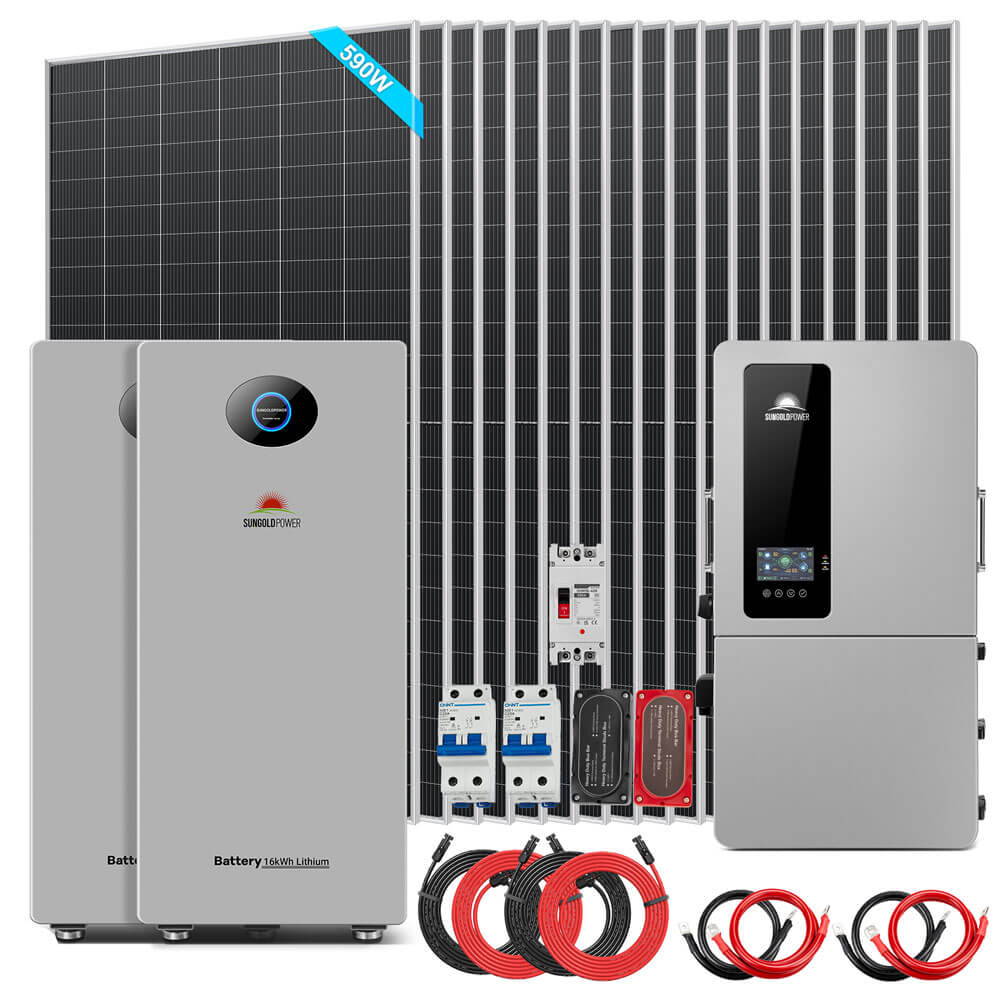

Because the inverter and battery are certified together as a UL 9540 energy storage system, plan review and inspection are simpler. The kit includes 50 ft PV extension cables and 25A PV breakers; add roof or ground racking to suit the site. Need more storage? Two- and three-battery versions (SGS12K-PM2/PM3) and the 590W panel option are available.
Browse all Sungold Power products, Sungold solar kits, inverters and batteries.

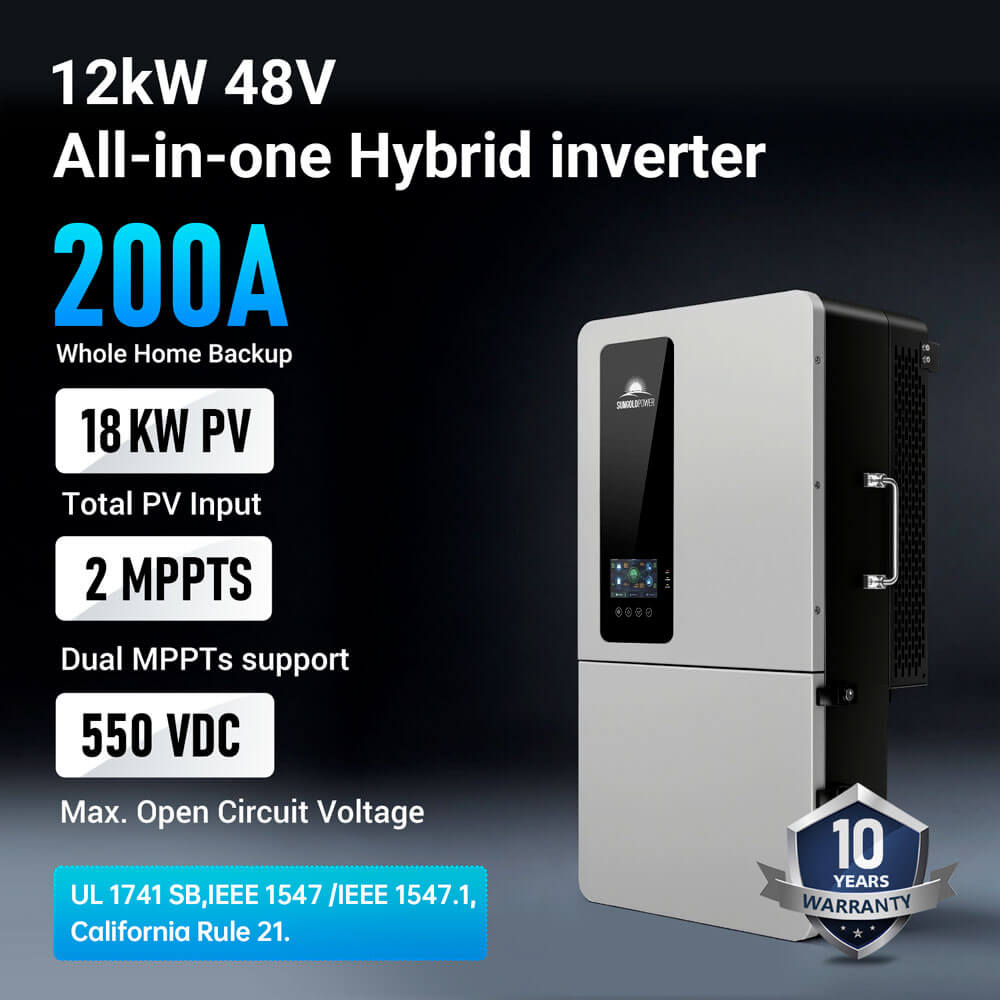

SGS-12K18MAX: 12kW output, 18kW PV input, 200A pass-through, on-grid, off-grid and hybrid modes with grid export, AC coupling and 10ms transfer.

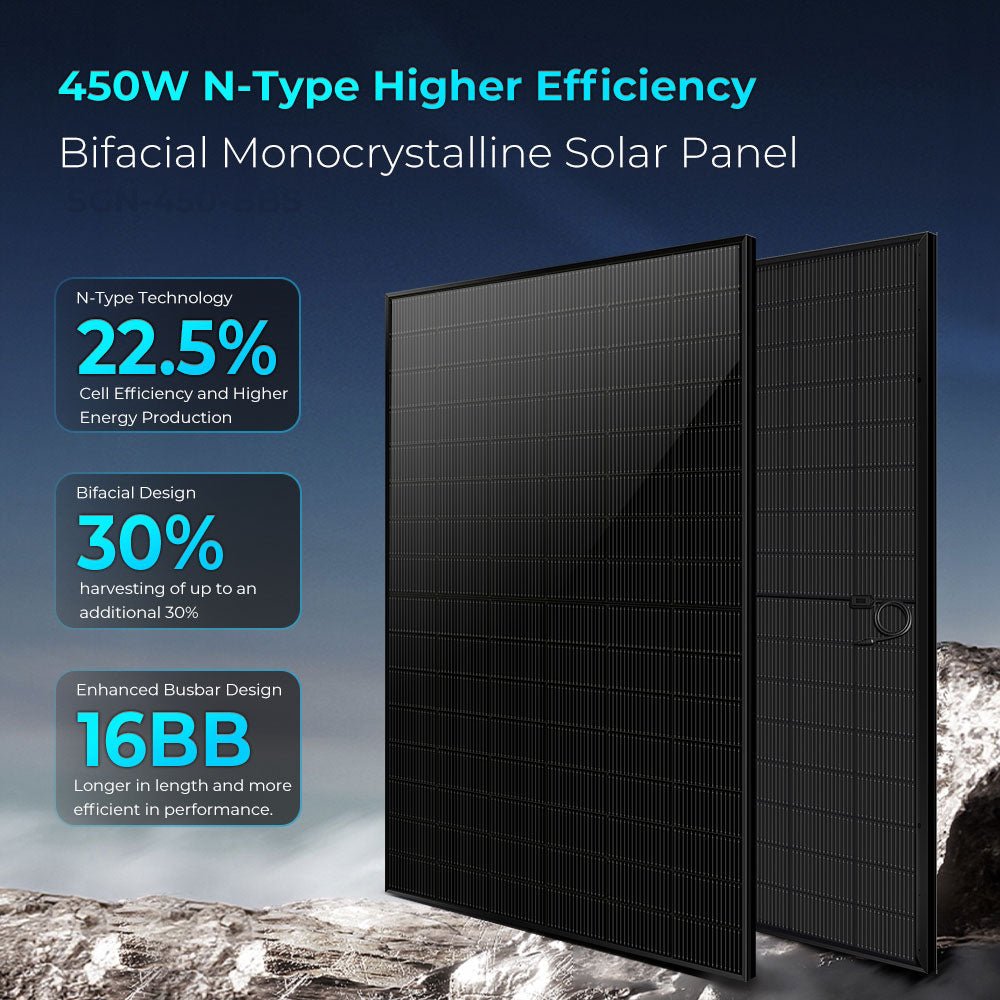

Twenty 450W dual-glass panels at 22.5% efficiency with rear-side gain, UL61730 and CEC listed, 30-year performance warranty.

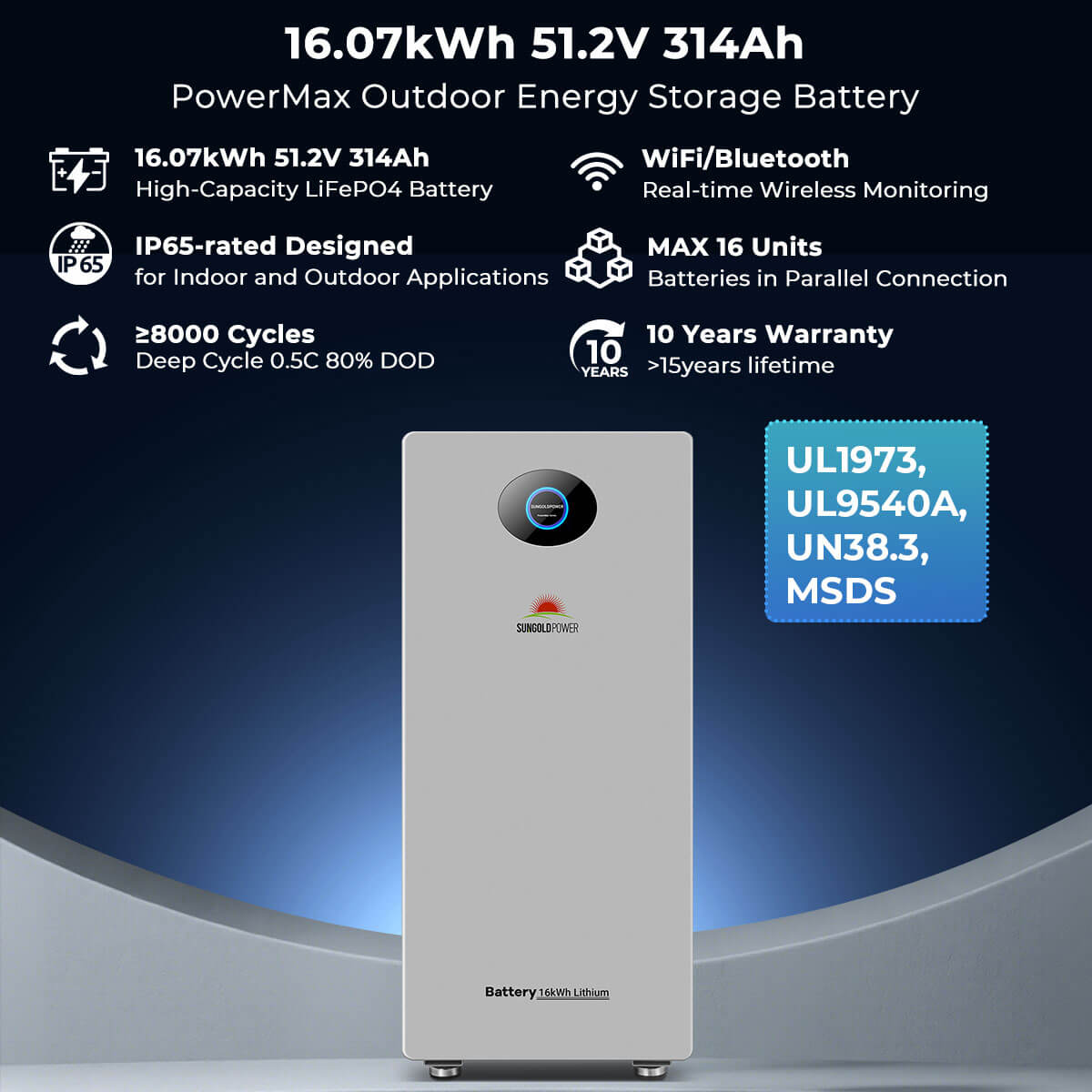

PowerMax 314: 51.2V 314Ah LiFePO4, IP65, 8,000 cycles, touch screen, Wi-Fi/Bluetooth, UL1973 and UL9540A certified.
Inverter and battery listed together as one energy storage system - what most AHJs and utilities now ask for.
Charge from solar or cheap off-peak grid power and discharge at peak rates automatically.
Add PowerMax batteries (up to 16), more panels (18kW input) or a second inverter (up to six for 72kW).
Estimates assume 85% usable energy and typical load ratings; actual runtime depends on your appliances, weather and settings.
Both. The SGS-12K18MAX is a hybrid inverter: it can export solar to the grid, run self-consumption with battery backup, or operate fully off-grid.
Around 36kWh in four hours of full sun from the 9,000W array, plus bifacial gain from reflected light on the rear glass.

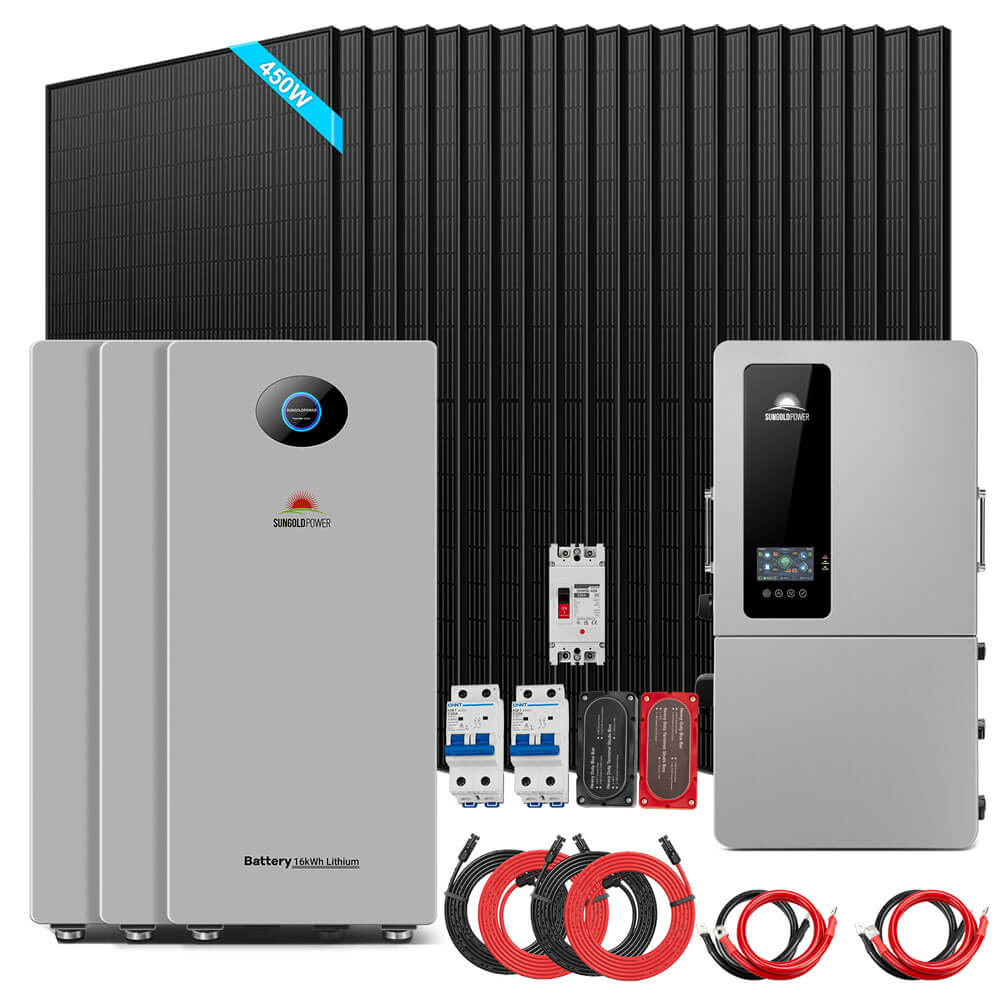

Yes - up to 16 PowerMax 314 units in parallel (257kWh). The PM2 and PM3 kits ship with two or three batteries.
Yes - free shipping within the contiguous USA (freight delivery for kits), $0 sales tax in most states, and the ECO100 promo code takes another $100 off at checkout.
SGS-12K18MAX 12kW Hybrid Solar Inverter
| Inverter Output | |
| Rated output power | 12,000W @ 240V / 10,400W @ 208V |
| Peak power | 1.5 x rated (10s) |
| Rated output voltage | 120/240Vac split-phase or 120/208Vac three-phase |
| Output current | 50A |
| Load motor capacity | 6HP |
| Frequency | 50/60Hz |
| Waveform | Pure sine wave |
| Parallel capacity | Up to 6 units (72kW) |
| Battery | |
| Battery type | Lithium-ion / lead-acid / user-defined |
| Rated battery voltage | 48Vdc |
| Voltage range | 40-60Vdc |
| Max grid charging current | 200A |
| Max generator charging current | 200A |
| Max hybrid charging current | 240A |
| PV Input | |
| MPPT trackers | 2 |
| Max PV array power | 9,000W + 9,000W (18kW) |
| Max input current | 32A / 32A |
| Short-circuit current | 40A / 40A |
| Max open-circuit voltage | 550Vdc |
| MPPT voltage range | 125-450Vdc |
| MPPT tracking efficiency | 99.9% |
| Grid / Generator Input | |
| Input voltage range | 90-140Vac |
| Frequency range | 50/60Hz |
| Continuous grid pass-through | 200A |
| General | |
| Dimensions | 33.07 x 17.32 x 10.24 in (840 x 440 x 260 mm) |
| Weight | 105.82 lb (48 kg) |
| Protection | IP65, indoor or outdoor |
| Operating temperature | -13°F to 140°F (derated above 113°F) |
| Noise | <60dB |
| Self-consumption | <100W |
| Cooling | Heat sink + intelligent fan |
| Communication | RS485 / CAN / USB / dry contact; Wi-Fi / GPRS optional |
| Protection functions | Reverse polarity, DC switch per MPPT, output over-voltage varistor, over-current, ground fault monitoring, grid monitoring, pole sensitive leakage current unit, AFCI, RSD |
| Certifications | UL1741 SB, DC Arc-Fault Circuit Protection, UL1699B:2018, CSA C22.2#107.1, California Rule 21, IEEE1547:2018, IEEE1547.1:2020, Hawaiian HECO SRD-IEEE-1547.1:2020 Ed.2.0, FCC 15 Class B |
| Warranty | 10 years |
PowerMax 314 Outdoor 16.07kWh LiFePO4 Battery
| Battery | |
| Rated voltage | 51.2V |
| Voltage range | 44.8-57.6Vdc |
| Rated capacity | 314Ah |
| Rated energy | 16.07kWh (15.42kWh usable) |
| Depth of discharge | >96% |
| Rated DC power | 7.68kW |
| Standard charge / discharge current | 150A / 150A |
| Max charge / discharge current | 190A / 190A |
| Peak charge / discharge current | 220A (3s) |
| Breaker | 240A |
| Cycle life | 8,000 cycles (80% DOD, 0.5C, 25°C) |
| Max charging voltage | 57.6V |
| Over-discharge voltage | 44.8V |
| Max parallel | 16 units (257kWh) |
| Communication | CAN / RS485 / USB / Wi-Fi / Bluetooth |
| Screen | Touch screen |
| General | |
| Standards | UL1973, UL9540A, UN38.3, MSDS; CEC listed |
| Charging temperature | 32-131°F (0-55°C) |
| Discharging temperature | 14-131°F (-10-55°C) |
| Storage | 6 months at 25°C; 3 months at 35°C; 1 month at 45°C |
| Cooling | Natural cooling |
| Enclosure | IP65, indoor and outdoor |
| Dimensions | 41.26 x 18.11 x 10.67 in (1048 x 460 x 271 mm) |
| Weight | 271.17 lb (123 kg) |
| Warranty | 10 years (15-year design life) |
SGN-450-BDG5 450W Bifacial N-Type Solar Panel
| Electrical | |
| Peak power | 450W (power tolerance 0/+5W) |
| Cell type | N-type monocrystalline, 96 cells (2 x 48) |
| Module efficiency | 22.5% |
| Bifaciality | 80% ±10% |
| Max power voltage (Vmp) | 30.08V |
| Max power current (Imp) | 14.97A |
| Open-circuit voltage (Voc) | 35.03V |
| Short-circuit current (Isc) | 16.05A |
| Max fuse rating | 30A |
| Mechanical | |
| Dimensions | 69.37 x 44.65 x 1.38 in (1762 x 1134 x 35 mm) |
| Weight | 53.35 lb (24.2 kg) |
| Construction | Bifacial dual-glass |
| Operating temperature | -40 to 185°F |
| Certifications | UL61730, CEC listed |
| Warranty | 12 years materials and workmanship, 30 years performance |
