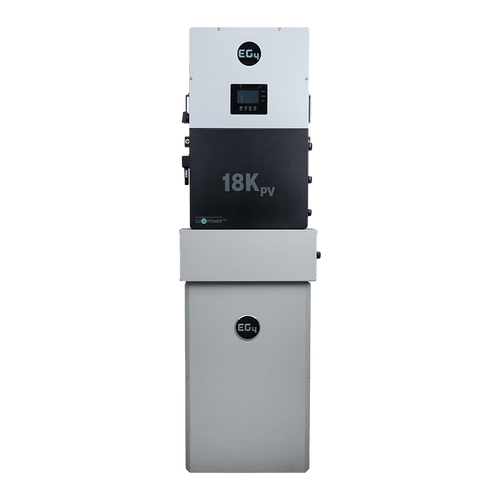

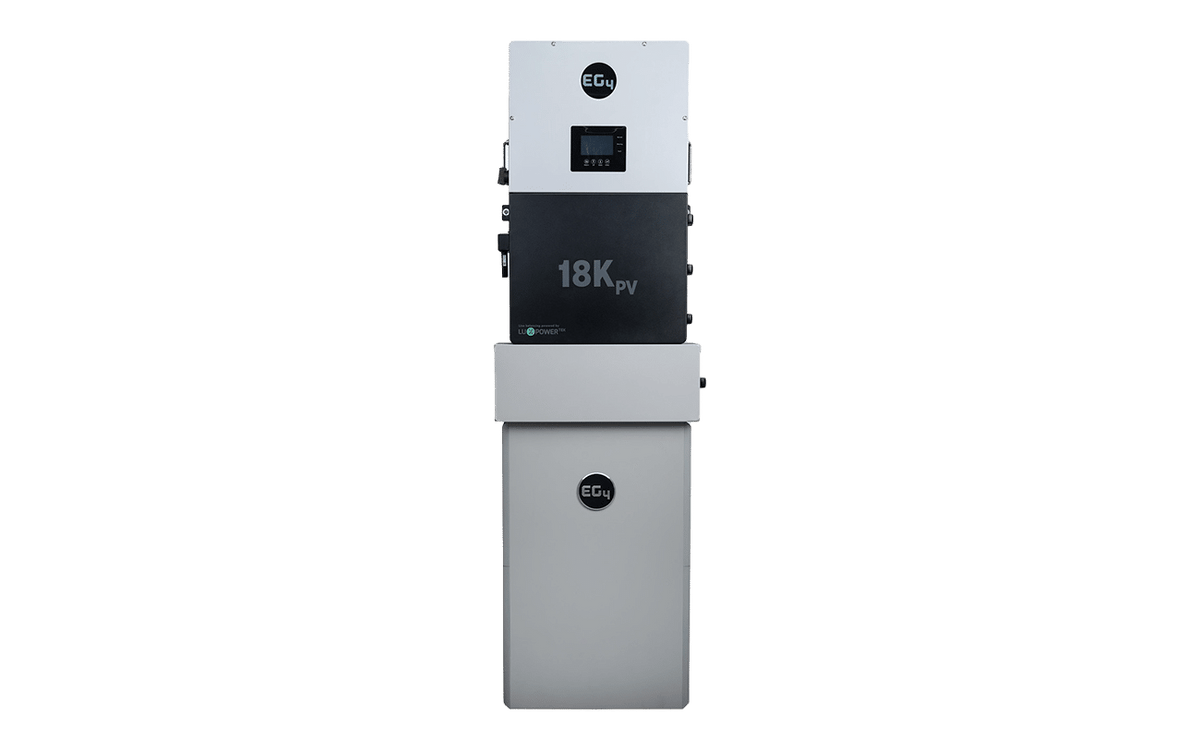

EG4 PowerPro 12kW 14.3kWh 48V System

SKU: K0756
Regular price $8,499.00
Regular price Sale price $8,499.00
Sold out
  • Authorized Distributor
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI or AK)
  • Use Promocode ECO400 To Further Get $400 Off
  • $0 SALES TAX For Every Order (WY is an exclusion)
  • Have Questions? Call our Expert for Answers +1 307 317 7213
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Delivery Information

Delivery information

Payment Methods

Return and Refund Policy

Live Chat

Live Agent

Category: BigBattery Battery
View full product details



OVERVIEW

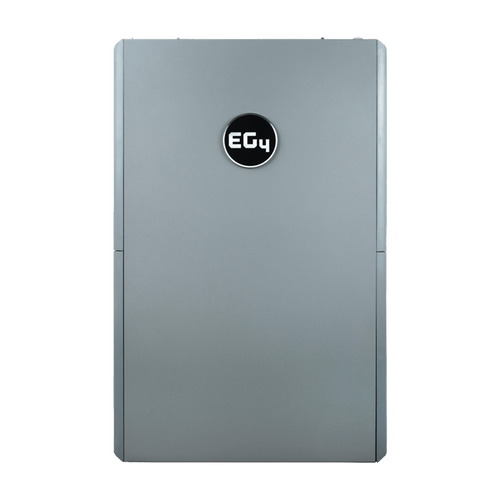

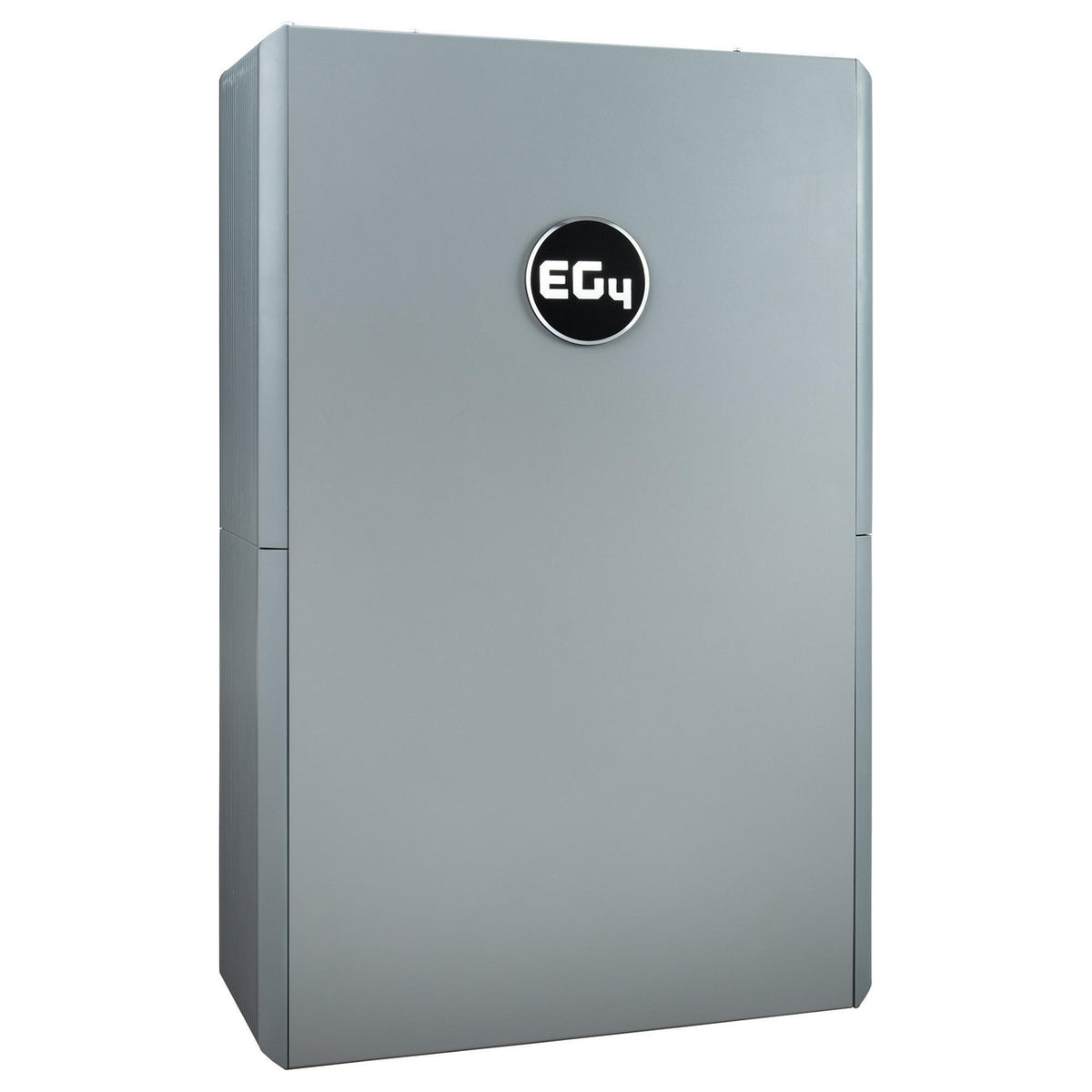

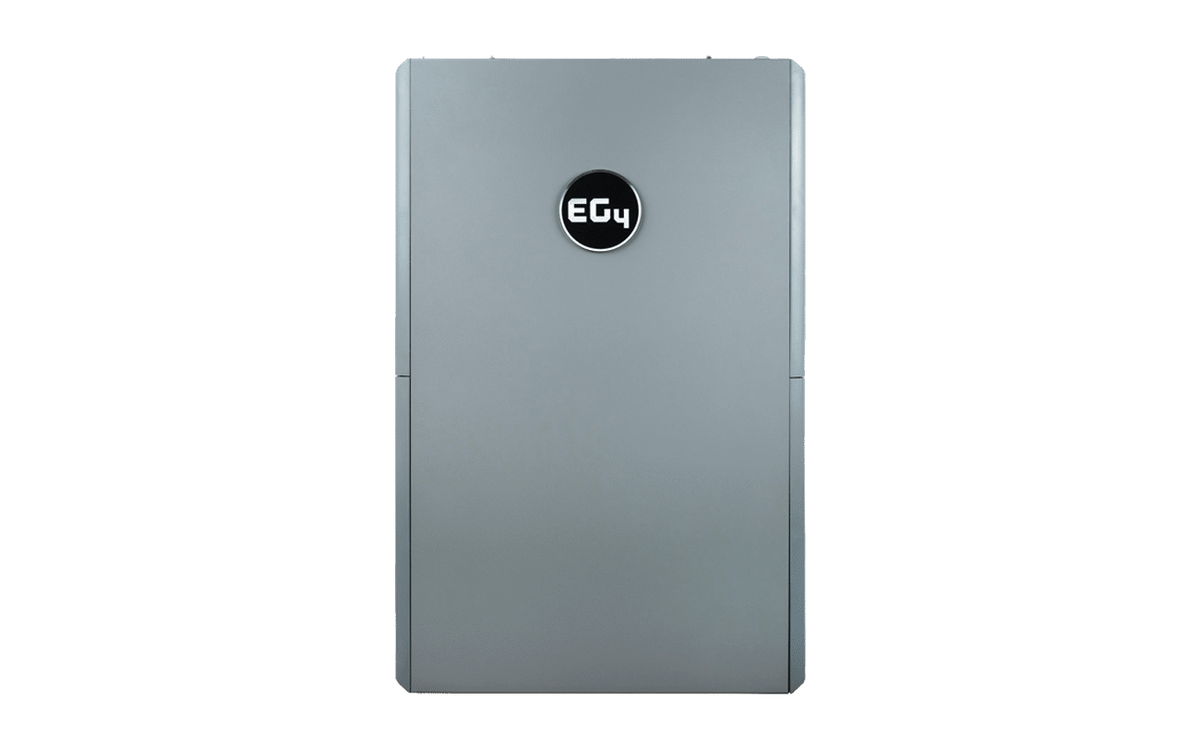

Introducing the EG4 PowerPro, a high-capacity, all-weather residential energy storage system (ESS) that is set to transform power storage for homes across America. With a 14.34kWh capacity, this wall-mountable ESS is the perfect solution for grid-tied power in tiny homes, cabins, family homes, mansions, and office buildings. Backed by industry-leading certifications including UL9540, UL9540A, and UL1973, the PowerPro delivers unparalleled safety, reliability, and advanced performance.



FEATURES

  • 14.34kWh high-capacity energy storage ideal for grid-tied power in a variety of residential and commercial spaces
  • Wall-mountable design with all necessary hardware for easy installation
  • IP65-rated all-weather casing for both indoor and outdoor use
  • Advanced Battery Management System (BMS) with auto cell-balancing and a self-heating function for long-term safety and performance in all conditions
  • Interactive LED display for real-time monitoring of system status and performance
  • Full CANBus and RS485 communication protocols for seamless system integration and monitoring
  • Internal fire extinguishing unit for added safety, providing peace of mind whether installed indoors or outdoors
  • Engineered to last up to 8,000 cycles at 80% depth of discharge (DoD), ensuring a lifespan of 10+ years



DURABILITY AND SAFETY

  • Equipped with an IP65-rated casing to withstand all weather conditions

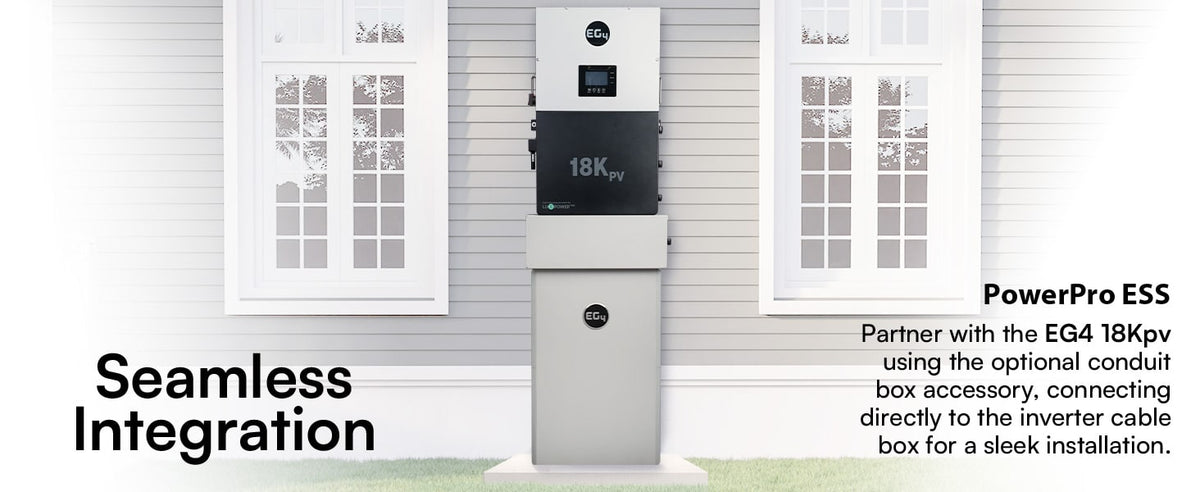

  • Integrated conduit box for clean and easy cable management
  • Engineered for effortless wall installation with all necessary hardware included
  • Supports up to 8,000 cycles at 80% DoD, providing a reliable, long-lasting solution for home power storage







SPECIFICATIONS

SKU K0756
No. of MPPTs 3
Inputs per MPPT
2 (MPPT 1) / 1 (MPPT 2 & 3)
Max. Input Current
25A (MPPT 1) / 15A (MPPT 2 & 3)
Max. Short Circuit Input Current
31A (MPPT 1) / 19A (MPPT 2 & 3)
DC Input Voltage Range 100 - 600V DC
MPPT Operating Voltage Range 120 - 500V DC
Max. PV Array Power 18000W
AC Input Voltage
120V AC / 240V AC (120V AC / 208V AC)
AC Frequency 50 Hz / 60 Hz
Max. Continuous Line Wattage
8000W (per 120V line)
AC Bypass
200A (Grid) / 90A (Generator)
Transfer Time 10 ms
Max. Continuous Output Current 50A
Output Power
12000W @ 240V / 10400W @ 208V
Surge Capacity
14700W (10 min) / 15500W (5 min)
Max. Continuous Output Current (Battery Only) 42.6A
Output Power (Battery Only)
10200W @ 240V/208V
Surge Capacity (Battery Only) 15000W (10 sec)
Nominal Voltage 51.2V
Ah Capacity 280Ah
kWh Capacity 14.34kWh
Max. Charge / Discharge Current 200A
Operating / Storage Temperature Range
-13ºF - 140ºF (-25ºC - 60ºC)
Altitude
<6,561 ft (2000 m)
Typical Noise Emission 68 dB @ 3 ft
Protection Rating IP65 / NEMA 4X
Communications RS485 / CANBus
Idle Consumption
~70W (Normal) / ~18W (Standby Mode)
Max. Efficiency (PV to Grid) 97.50%
Max. Efficiency (Battery to Grid) 94%
Battery Weight 308.6 lbs (140 kg)
Battery Dimensions (DxWxH)
9.1 x 22.3 x 34.6 in (231 x 566.5 x 879 mm)
Inverter Weight 121 lbs (55 kg)
Inverter Dimensions (DxWxH)
11.2 x 20.5 x 34.3 in (285 x 520 x 871 mm)
Conduit Box Weight 16.6 lbs (7.5 kg)
Conduit Box Dimensions (DxWxH)
9.1 x 24 x 10.6 in (231 x 610 x 269 mm)
