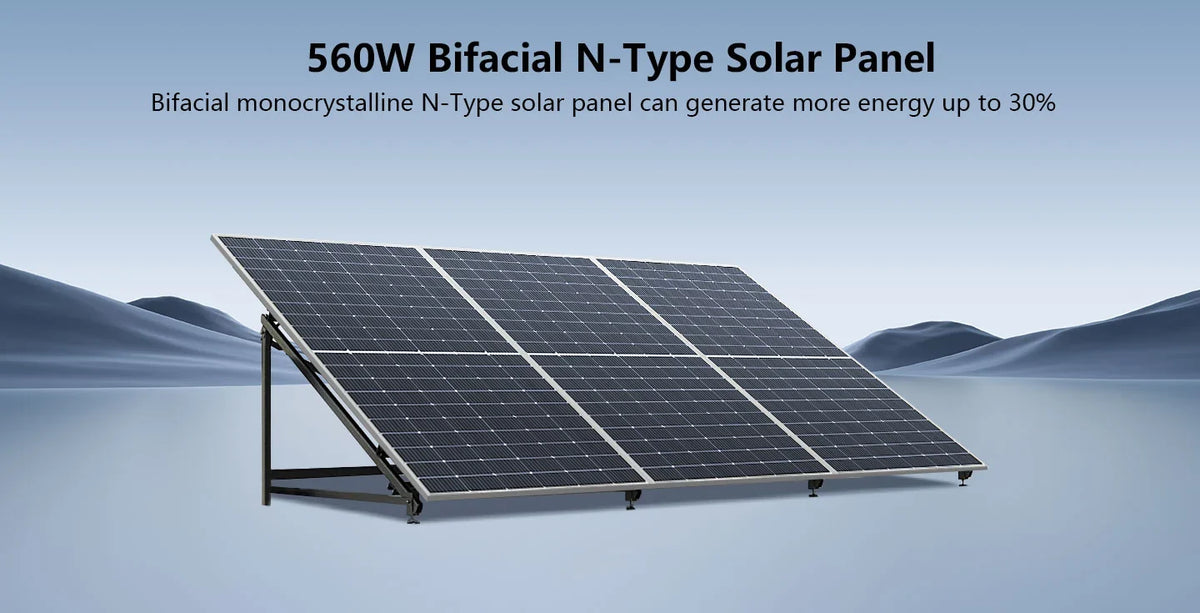

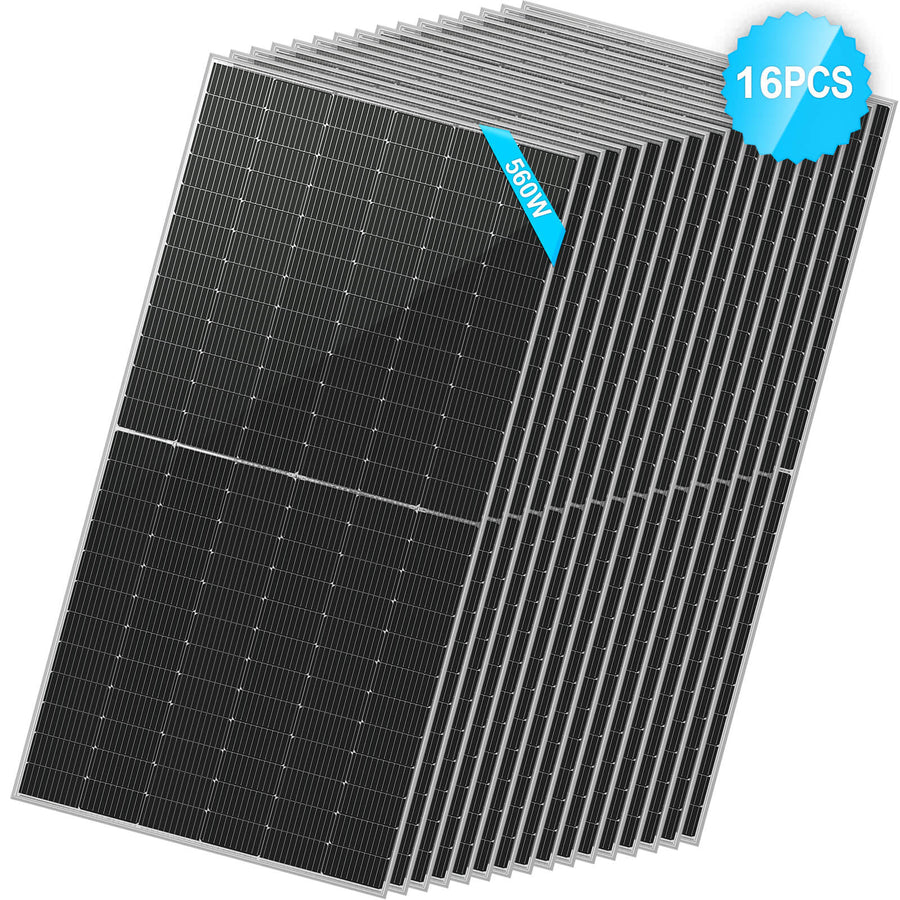

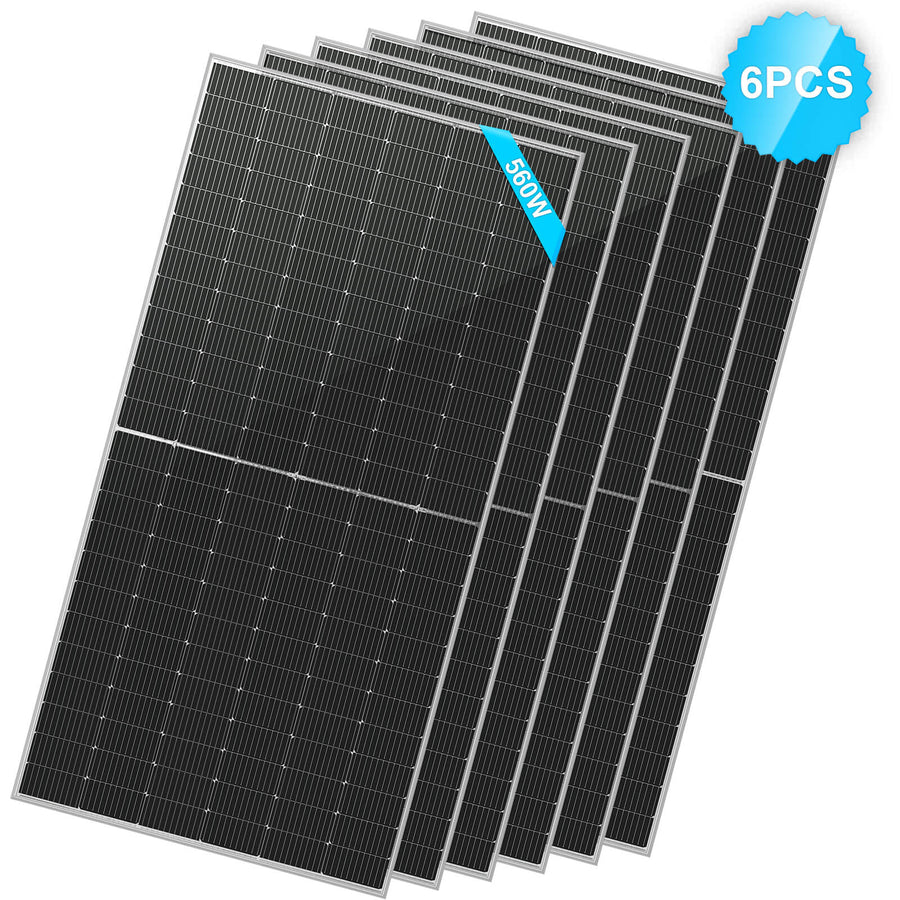

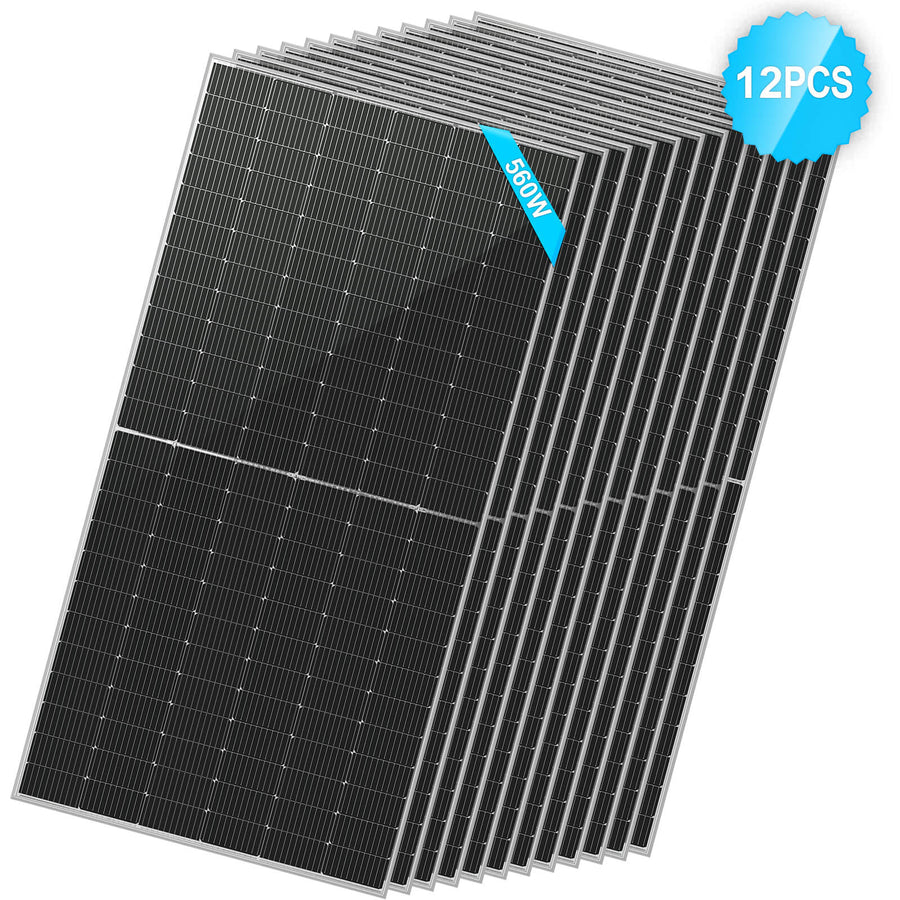

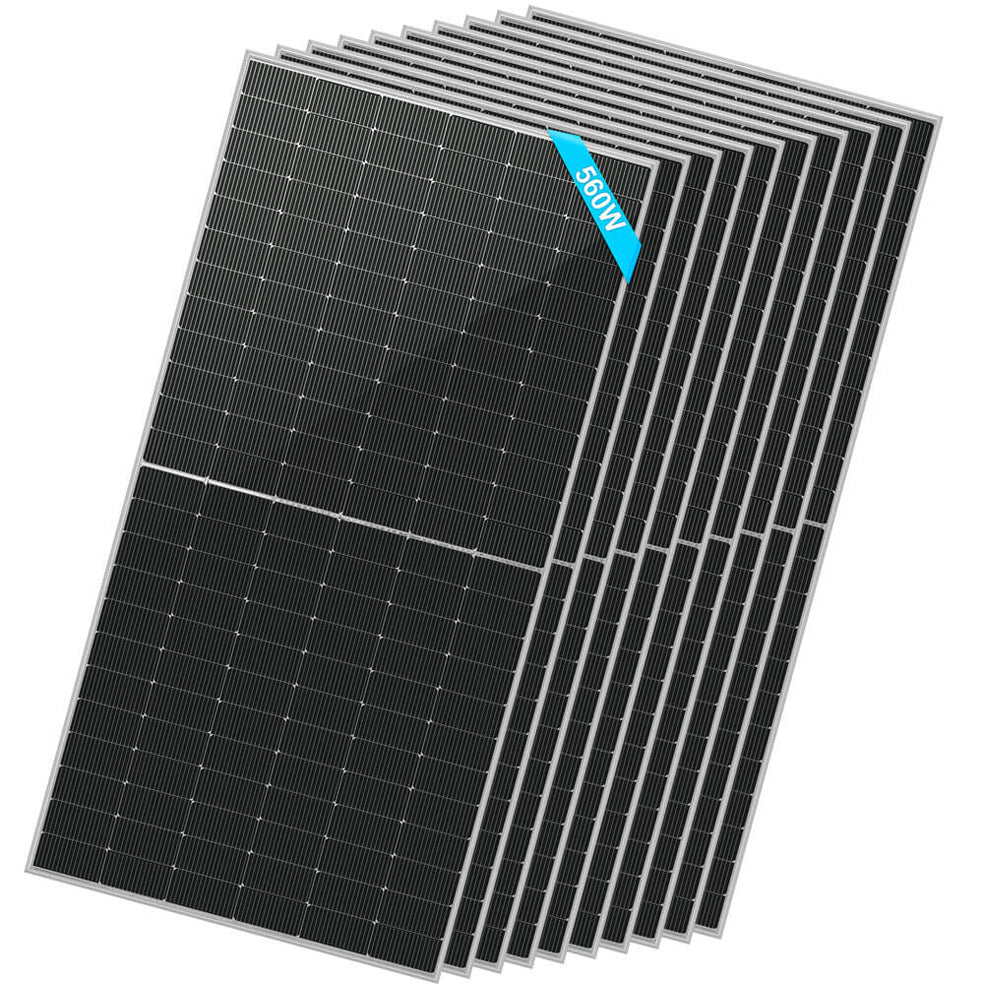

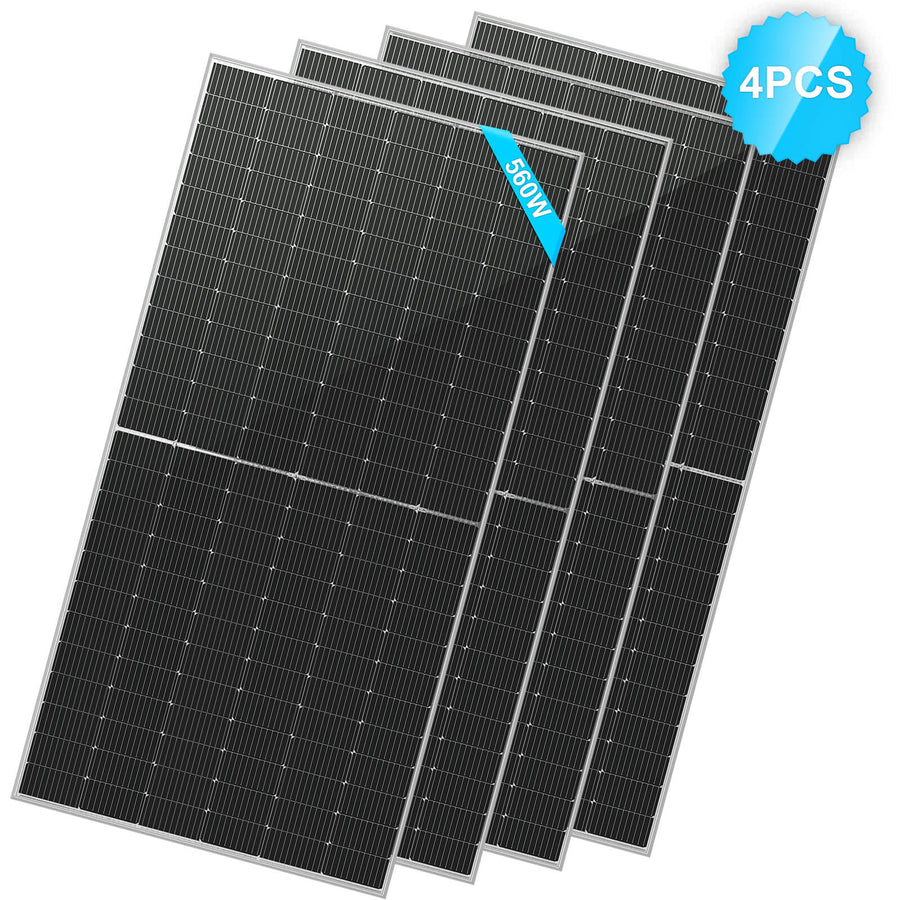

Bifacial Solar Panel · N-Type · 560W

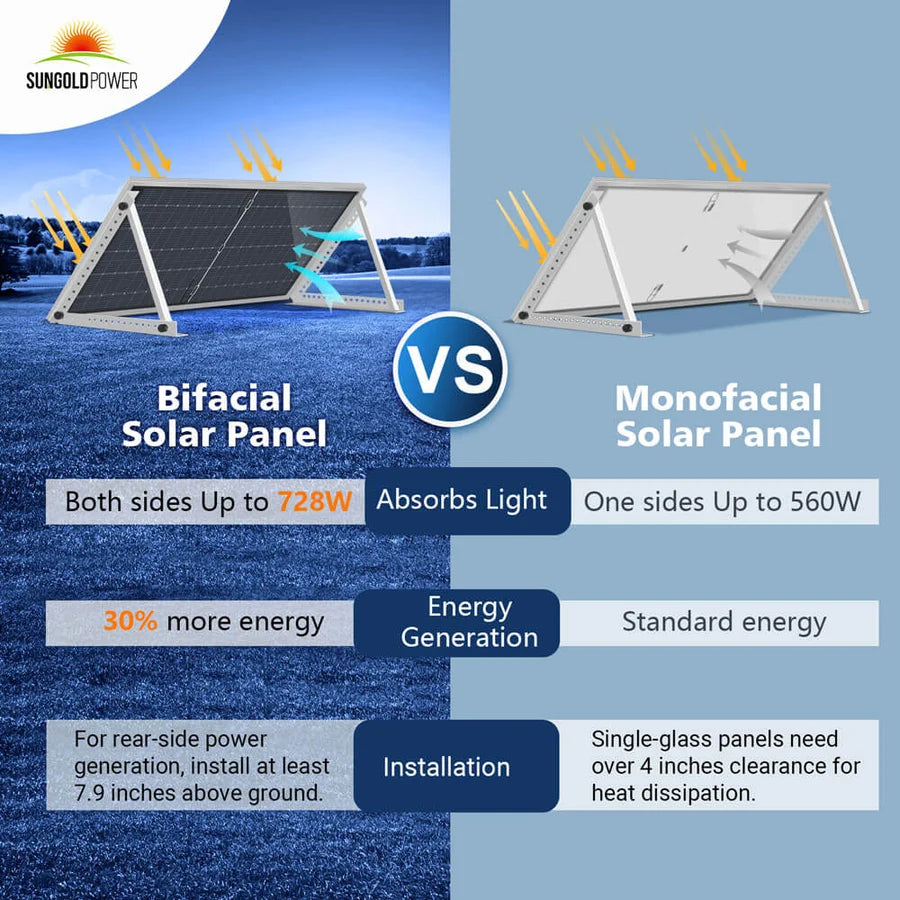

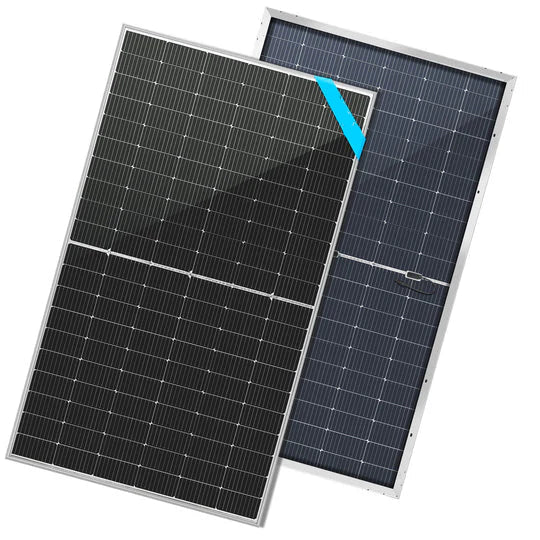

Sungoldpower Bifacial N-Type solar panels are solar panels that can capture sunlight on both their front and back, it can generate up to 30% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.
The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar technology to maximize energy output even under partial shading.
This N-Type solar panel has 30 years Linear power warranty, 12-years Material and workmanship warranty.
| Model type | SG-560WBG |
| Peak power (Pmax) | 560 W |
| Production tolerance | ± 3% |
| Max. power current (Imp) | 13.3 A |
| Max. power voltage (Vmp) | 42.1 V |
| Short circuit current (Isc) | 14.09 A |
| Open circuit voltage (Voc) | 50.09 V |
| Max. system voltage | 1500 V |
| Wind resistance | 2400 Pa |
| Output cables | 12 AWG (1ft per cable) |
| Number of cells | 144 (6×24), 60 cells in series |
| Cell type | N-Type |
| Certifications | CE, TUV |
| Product weight | 70.4 lbs |

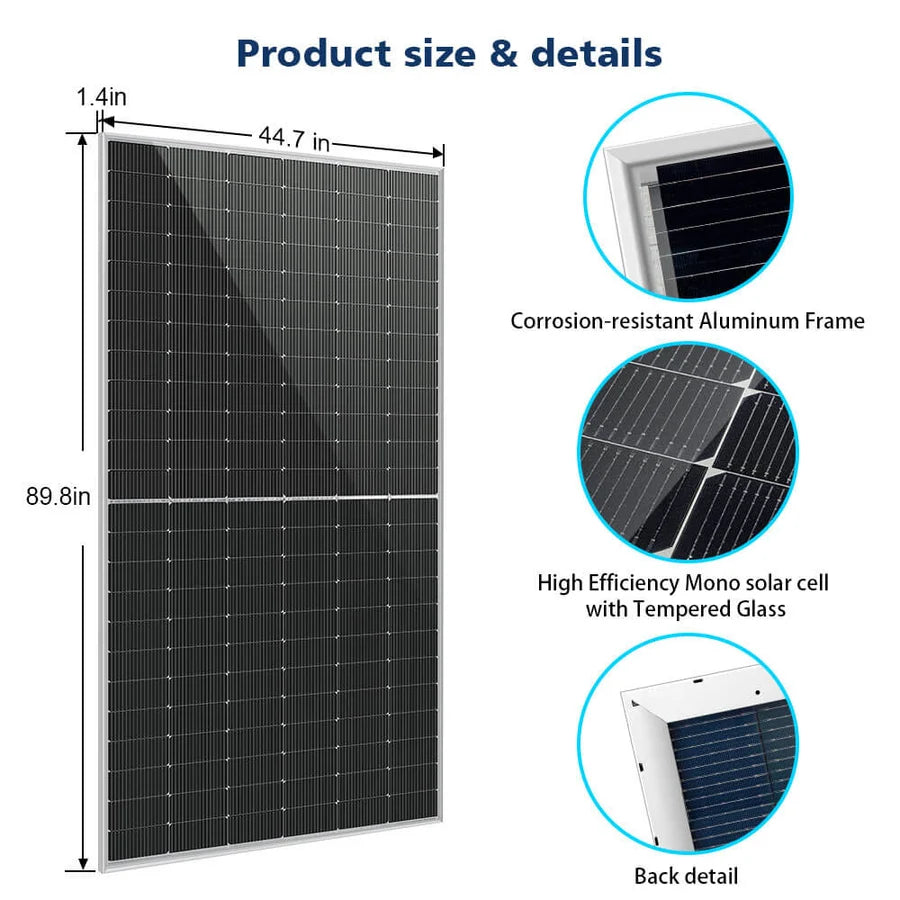

| Product dimensions | 89.8 × 44.7 × 1.4 in |

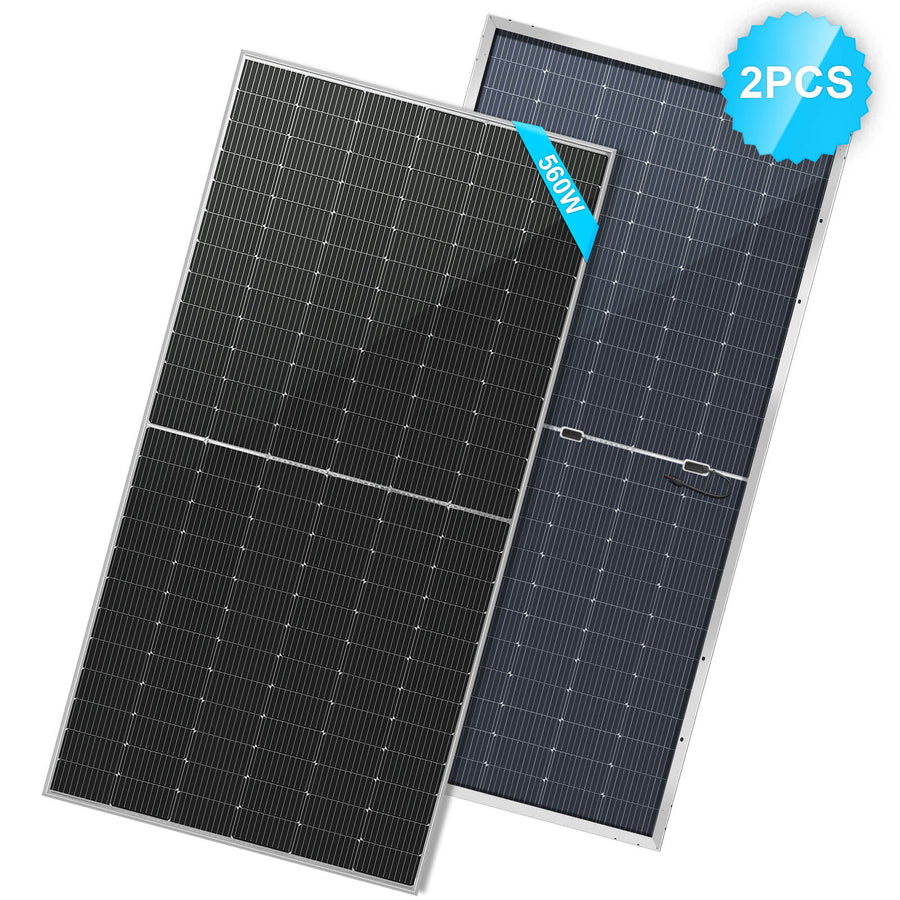

| Package (2pcs) | 128.7 lbs, 92.5 × 47.6 × 3.1 in |
Dear Customer, yes, this solar panel is waterproof.

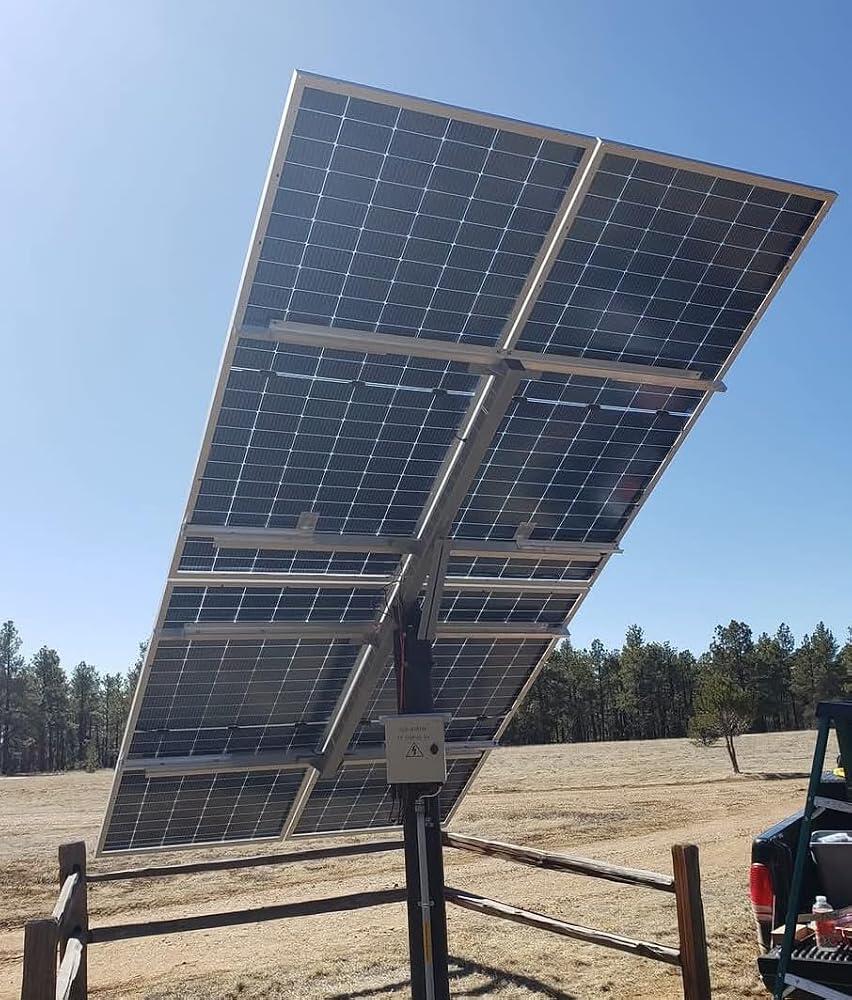

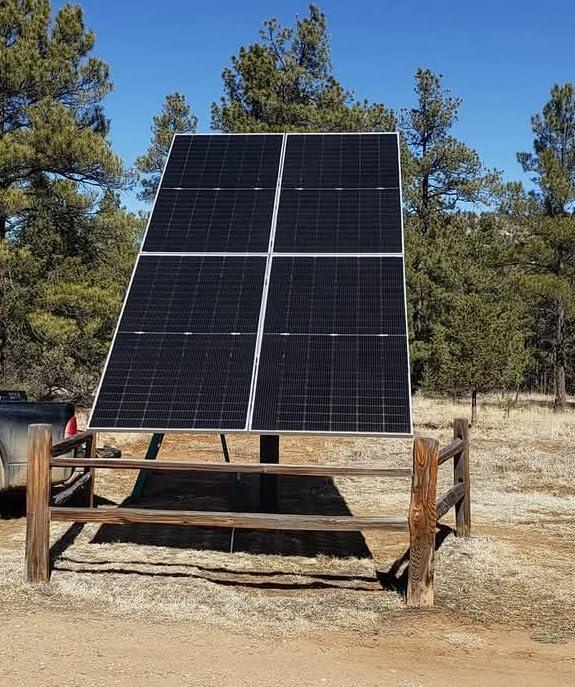

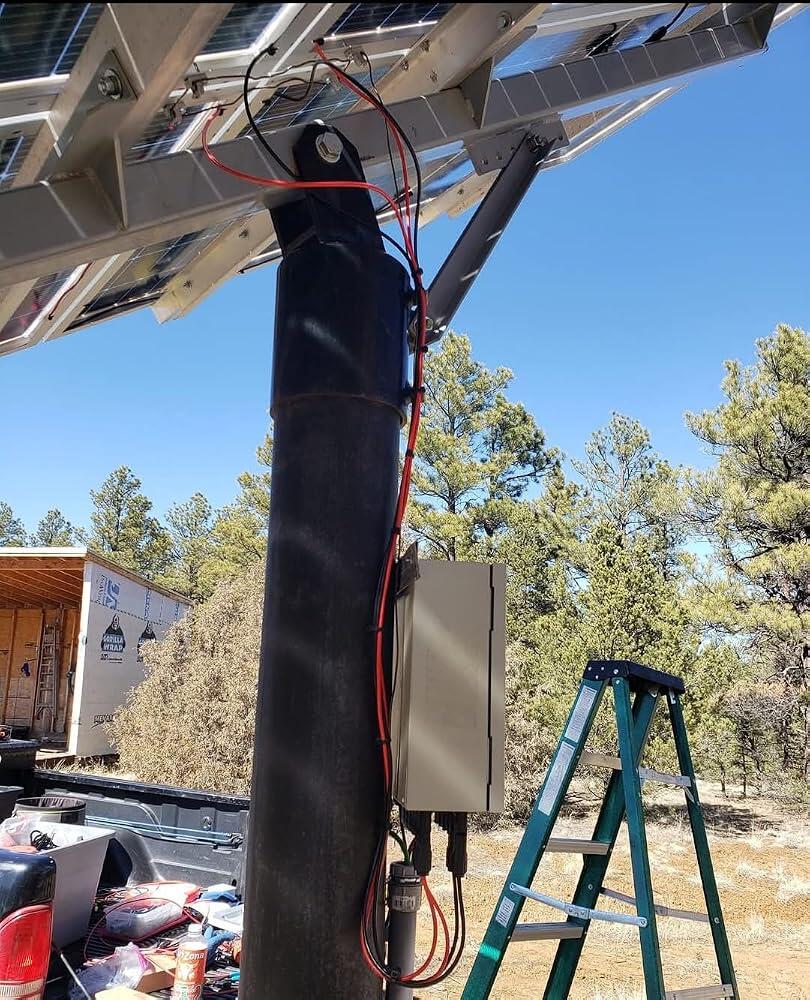

My neighbor and customer requested I upgrade their panels from old 300 Watt single face to something better. I told them about the Sungold 560 Watt Bifacial PERC Solar Panels. They were interested right away. Shipping was extremely efficient and quick. They arrived very well packaged. They were easy to install. The factory holes lined up perfectly. The panels have been in service for a year now and still function 100% output. They no longer use their backup generator and they always feel free to use any appliances in their cabin. They even bought a full sized refrigerator and an 18k BTU split heat pump / air-conditioning unit. No complaints. No issues. I am a solar power repair and installation technician. I love Sungold so much I purchased 6 additional panels to upgrade my own system. You will not be disappointed!
(Review from sungoldpower.com)
