Eco Solar Kits · Sungold Power · SGM-5K5E

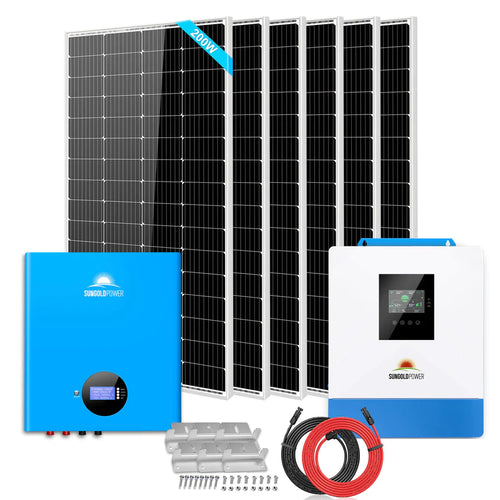

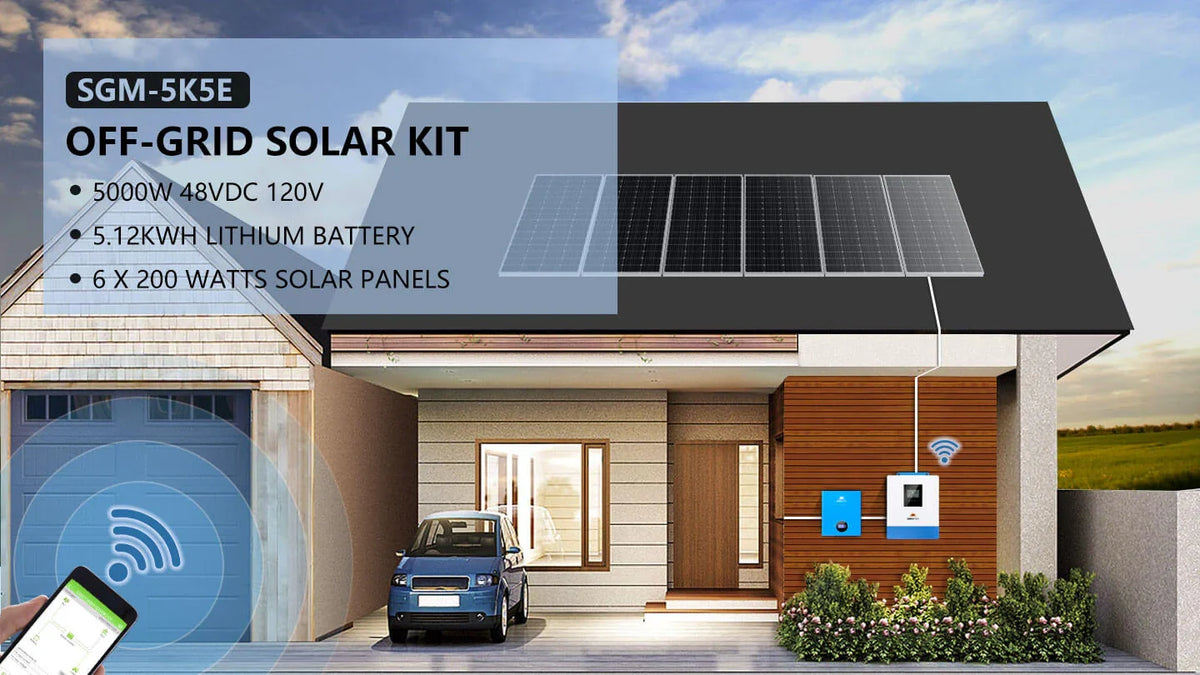

A complete off-grid solar system — 5,000W inverter, 5.12kWh of LiFePO₄ battery storage, and six 200W monocrystalline panels — customizable with extra batteries and panels as needs grow.

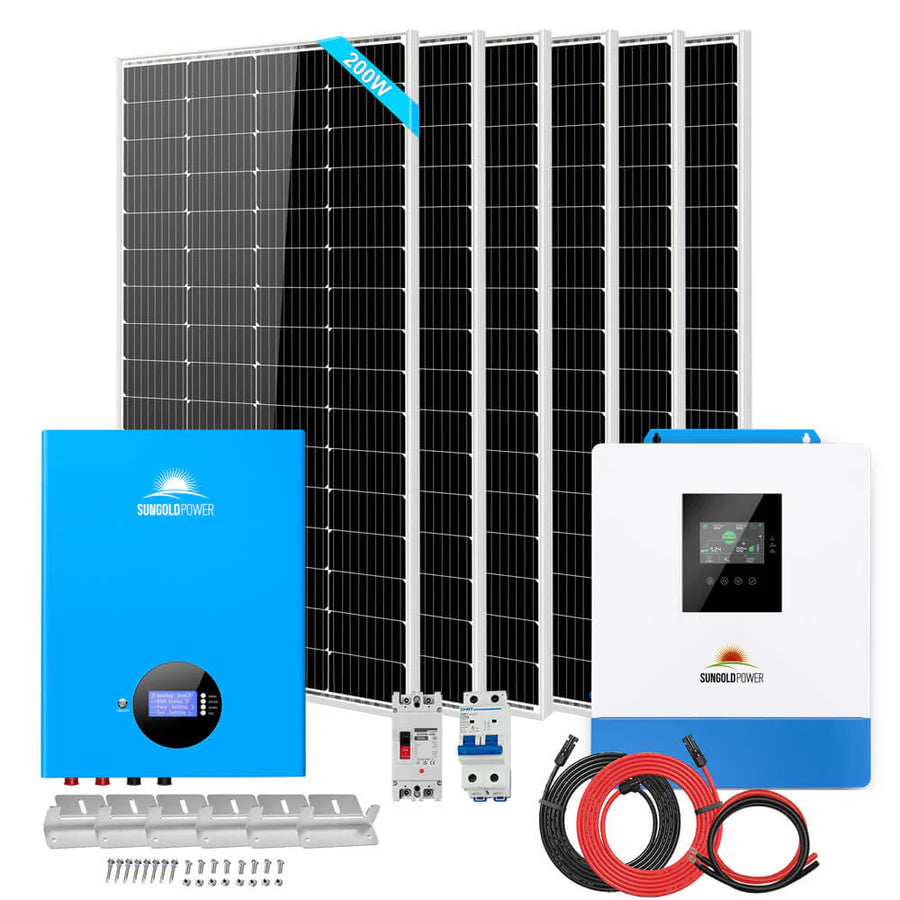

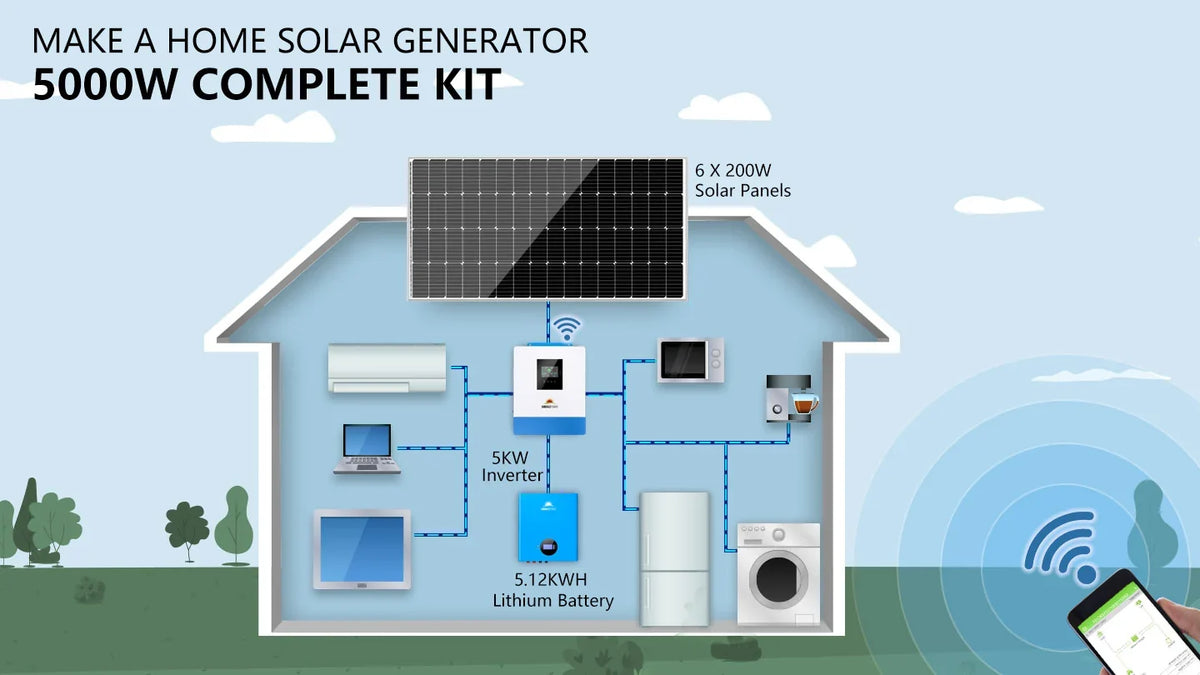

The SGM-5K5E Solar Kits offer everything you need to establish an off-grid solar system. This comprehensive kit features a powerful 5000W inverter capable of connecting to a maximum of 5000W of solar panels, along with six 200W solar panels, 5.12kWh server rack batteries, a complete set of solar cables, and brackets.
With the solar panels receiving 4 hours of sunlight daily, the Solar Array will produce approximately 5.12kWh of electricity each day. For tailored setups, you have the flexibility to customize the kit by adding extra batteries and solar panels to meet your specific requirements. Experience the freedom of off-grid living and embark on adventures with this Solar Energy Kit!
Rated output with double the power available briefly for motor starts and other high-draw moments.
Minimal energy loss whether running on battery, solar, or passthrough grid power.
Room to add panels beyond the 1,200W (6×200W) included, up to the system's rated ceiling.
Add remote monitoring hardware for system status and performance without needing to be on-site.
Parallel up to 6 identical inverters as a system's power needs grow.
Meets recognized international safety standards for solar charge controller equipment.
The LiFePO₄ battery is rated for at least 7,000 cycles to 80% depth of discharge — a 15-year design life.

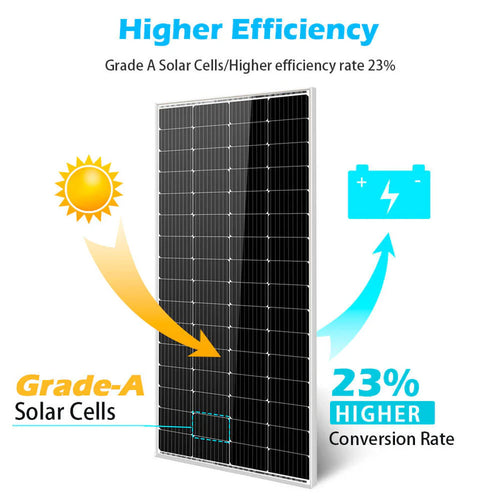

Grade-A monocrystalline cells with IP67-rated connectors for weather resistance.

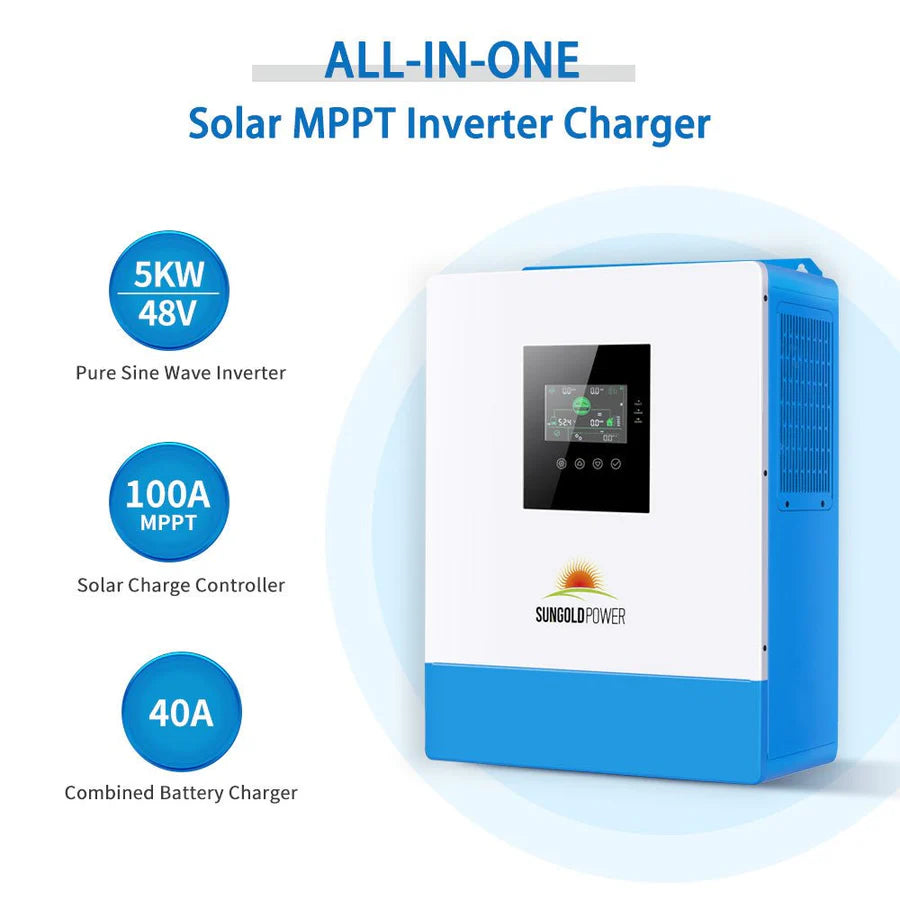

SPH5048P Inverter/Charger (×1)
| Rated output power | 5,000 W |
| Peak power | 10,000 VA |
| Rated output voltage | 120 Vac |
| Line-mode efficiency | >95% |
| Inverter-mode max efficiency | >92% |
| Nominal DC input voltage | 48 Vdc |
| Max. charging current (hybrid) | 100 A |
| Certification | CE (IEC62109-1) |
| No. of MPPT trackers | 1 |
| Max. PV input power | 5,500 W |
| Max. input current | 22 A |
| Max. open circuit voltage | 500 Vdc |
| MPPT voltage range | 120–450 Vdc |
| Weight | 28.7 lbs (13 kg) |
| Dimensions | 17.6 × 13.8 × 5.2 in |
| Operating temp | 14–131°F |
| Noise | ≤60 dB |
| Built-in | USB / RS485 / Dry contact |
| Optional | Wi-Fi / GPRS module |
| Max parallel | 6 units |

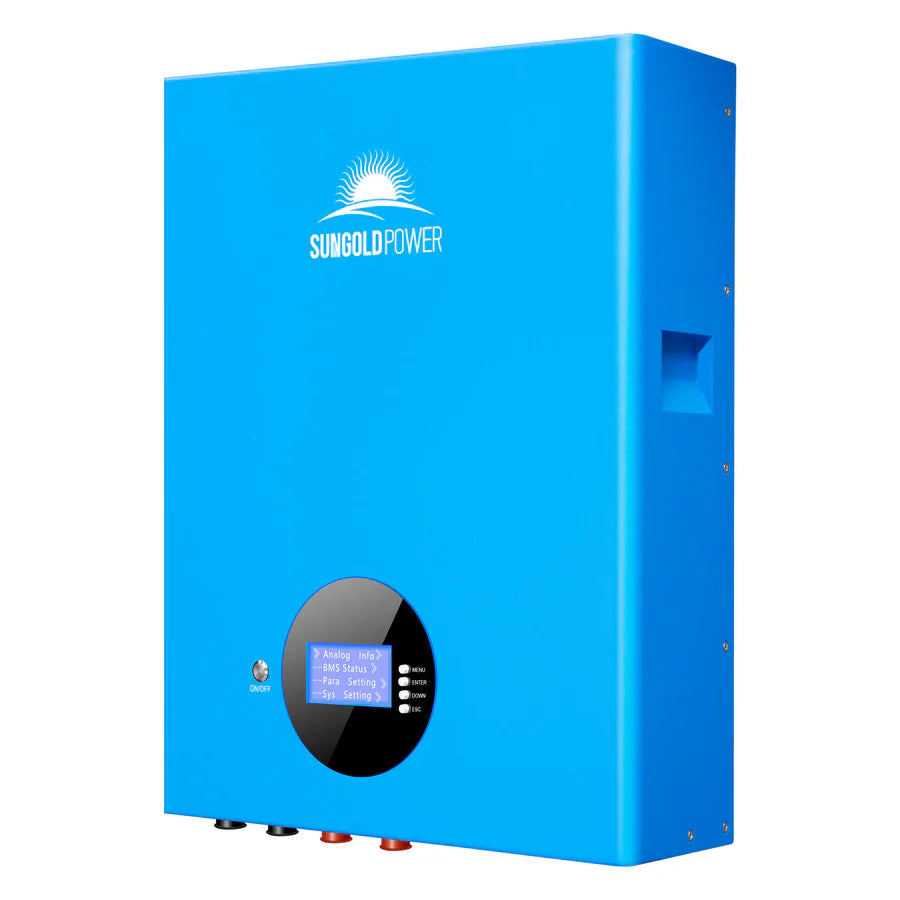

SG48100M LiFePO₄ Battery (×1)
| Rated capacity | 100 Ah |
| Nominal voltage | 51.2 V |
| Energy per unit | 5,120 Wh (5.12 kWh) |
| Standard current | 50 A |
| Max. continuous current | 100 A |
| Cycle life | ≥7,000 @ 80% DOD |
| Design life | 15 years |
| Weight | ~95 lbs (43 kg) |
| Dimensions | 23 × 16.5 × 6 in |
| Protection rating | IP65 (battery box) |
| Charging temp | 32–113°F |
| Discharging temp | -4–140°F |
| Communication | RS232 / RS485 / CAN |
| Warranty | 10 years (store-stated)* |

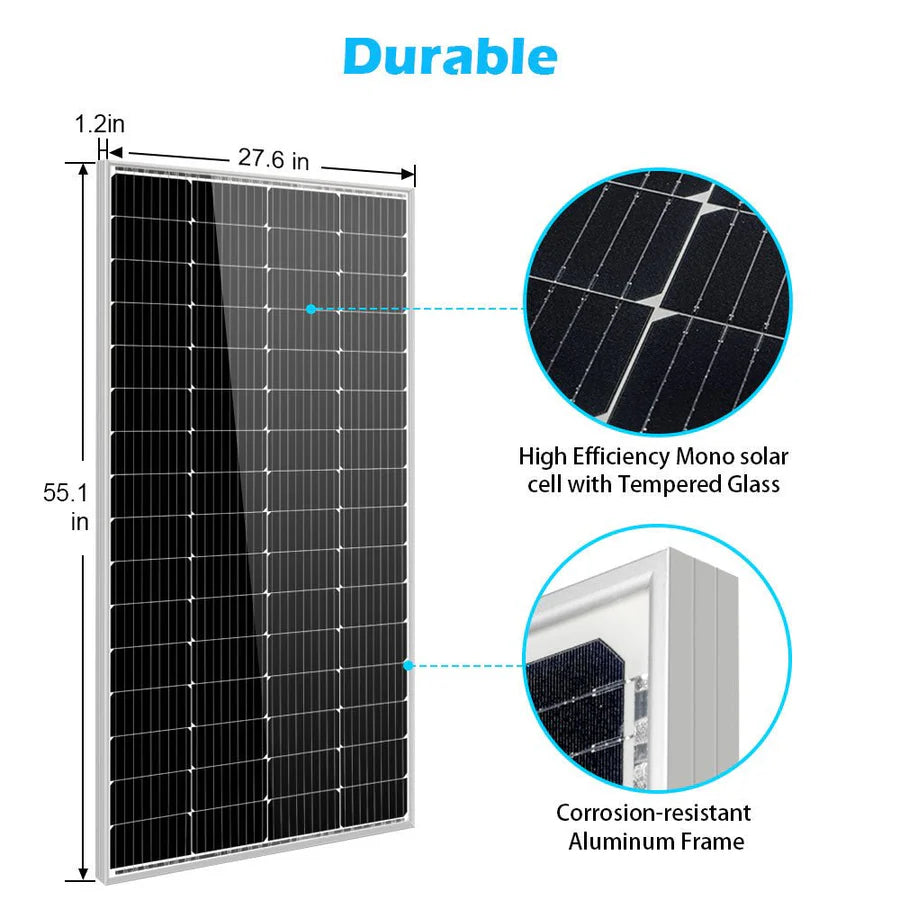

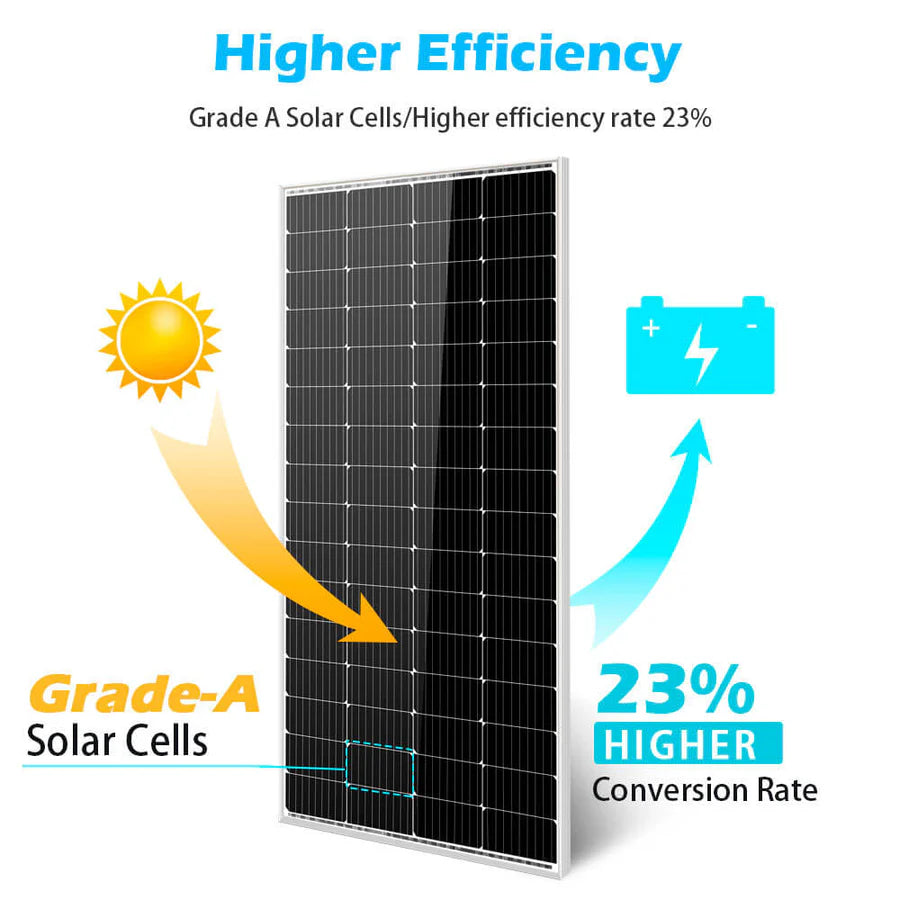

200W Monocrystalline Panel (×6)
| Rated power | 200 W |
| Module efficiency** | 20.41% |
| Cell type | Monocrystalline |
| Junction box | IP65 |
| Connectors | IP67 |
| Frame | Anodized aluminum |
With about 4 hours of direct sunlight, the included panel array produces roughly 5.12kWh per day — matching the battery's own capacity, so a full day of typical sun keeps the system topped up for daily use.
Yes — the inverter supports up to 5,500W of solar input in total, well above the 1,200W (6×200W) included in this kit, leaving significant room to expand.
Yes — up to 6 identical SPH5048P inverters can run in parallel as a system's power needs grow.
5.12kWh from a single LiFePO₄ battery, rated for at least 7,000 cycles to 80% depth of discharge — a 15-year design life per the manufacturer.
Yes — the kit is designed for expansion, with additional batteries and solar panels addable as energy needs grow, per the manufacturer's own product description.
Given the voltages, currents, and battery wiring involved, installation should be handled by a qualified, licensed electrician familiar with your local code.
