Powerwall LiFePO4 Battery · 51.2V · 100Ah

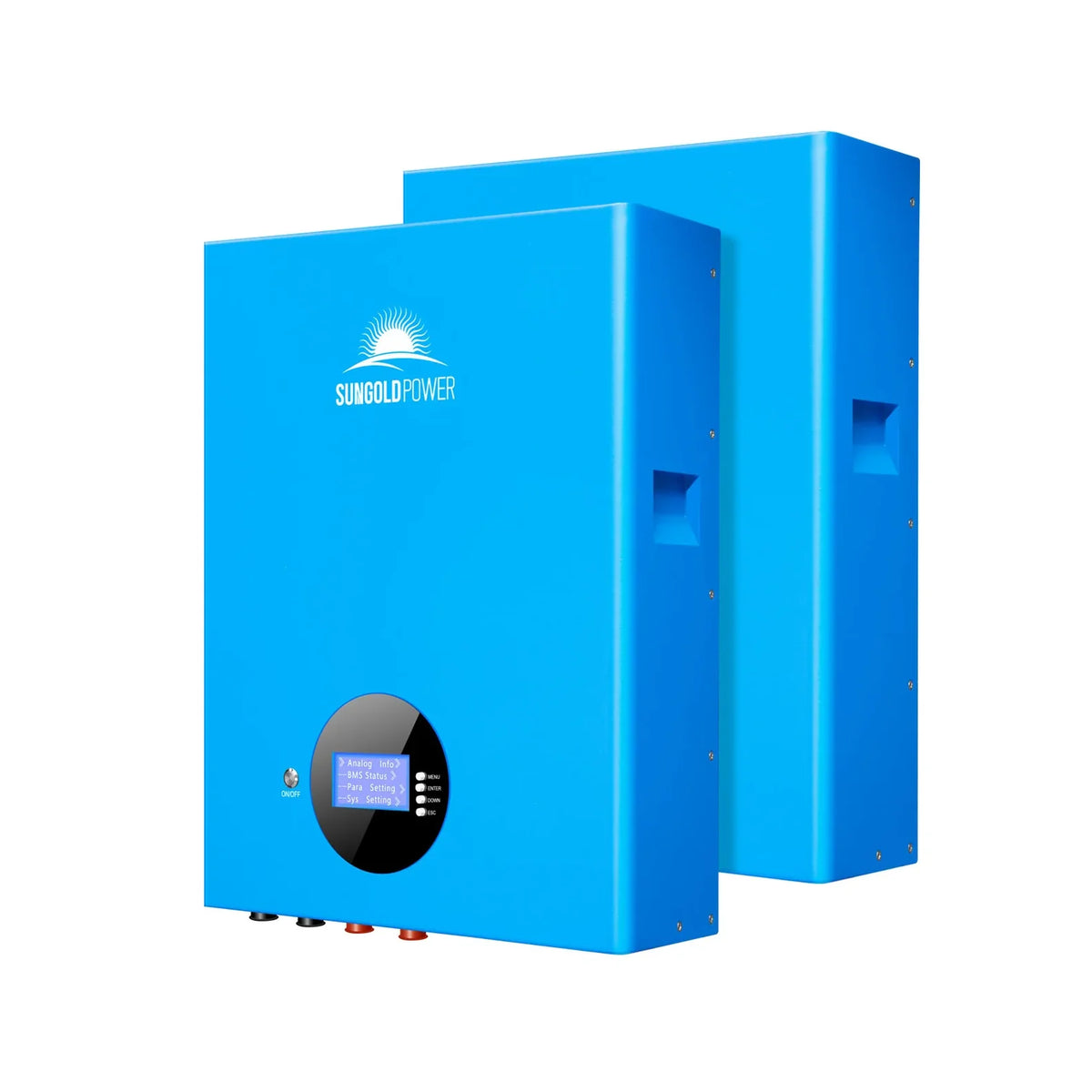

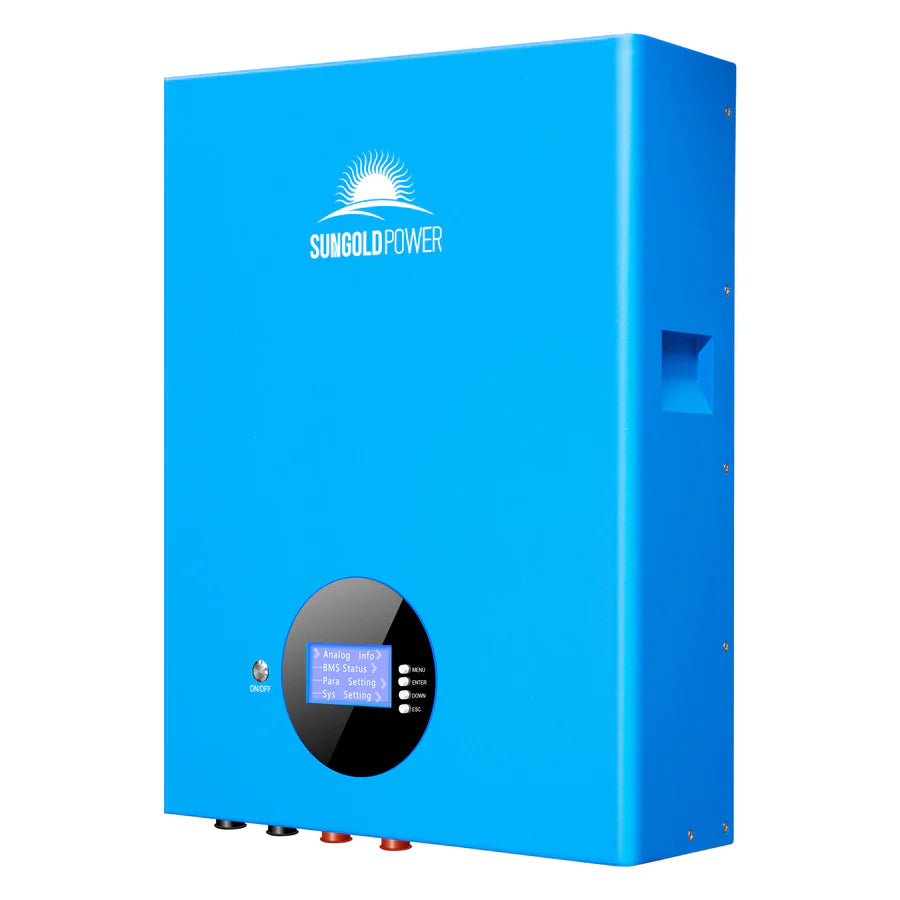

The SG48100M Lithium Battery is tailored for energy storage systems, offering a meticulously engineered and high-performance standard battery pack. Its compact design facilitates easy installation and maintenance-free operation.
Additionally, it can be parallel-installed within energy storage systems to boost capacity. Widely utilized in home applications, small commercial ventures, and industrial energy storage systems, it serves diverse needs efficiently.

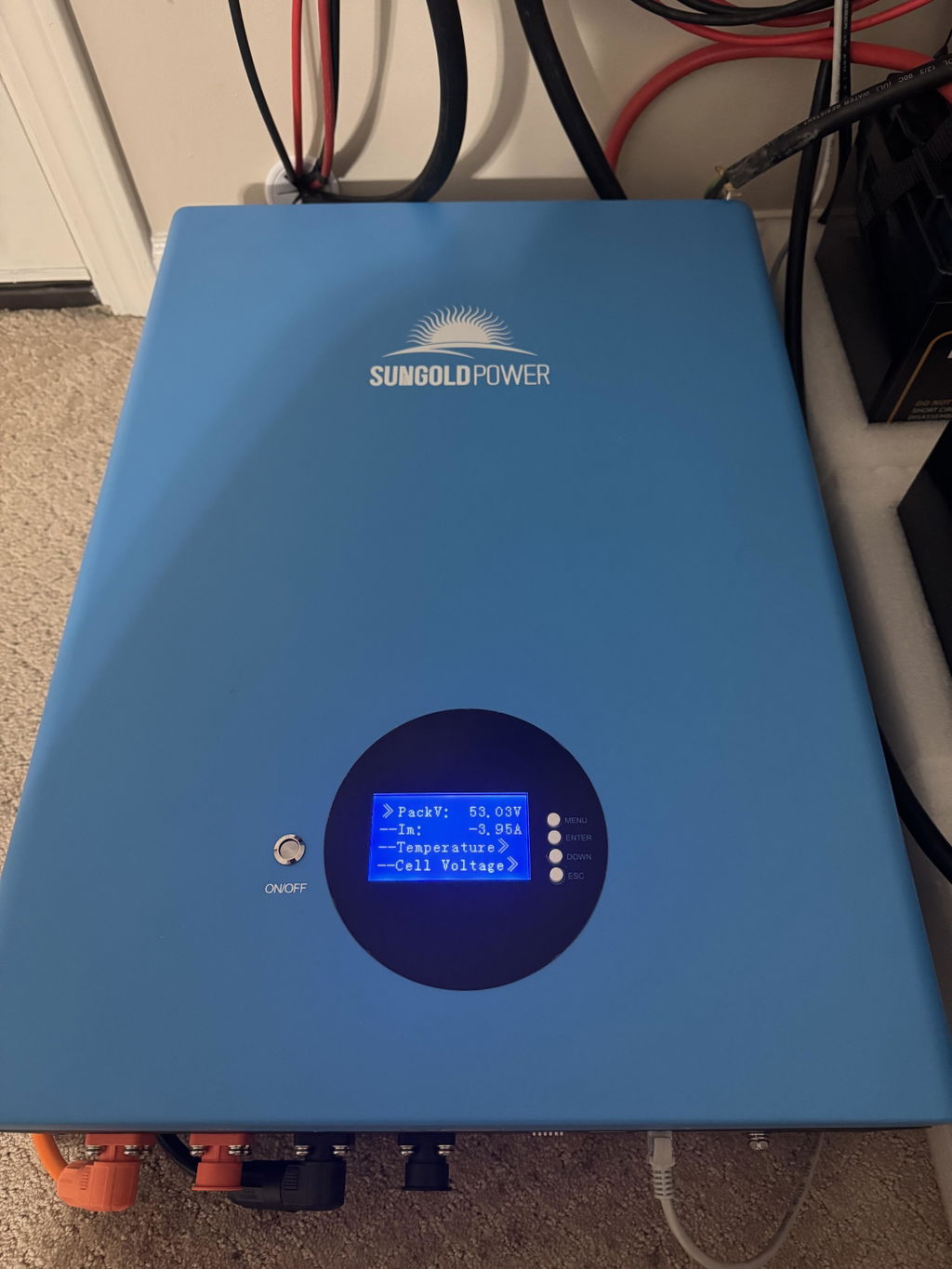

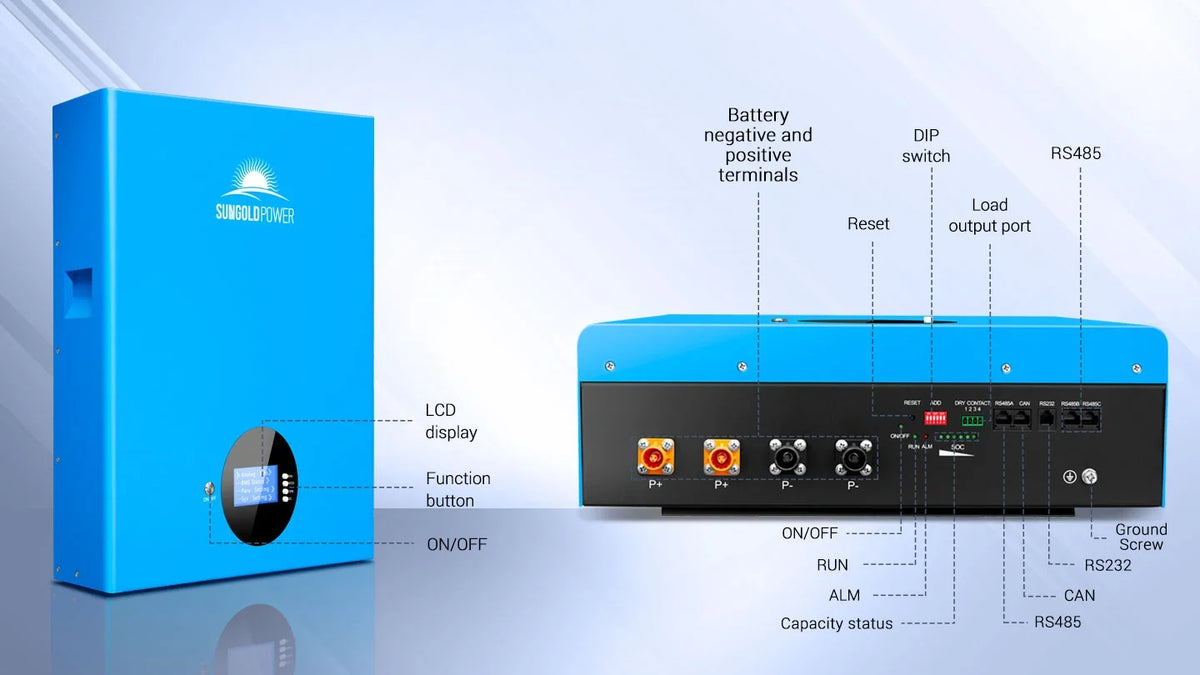

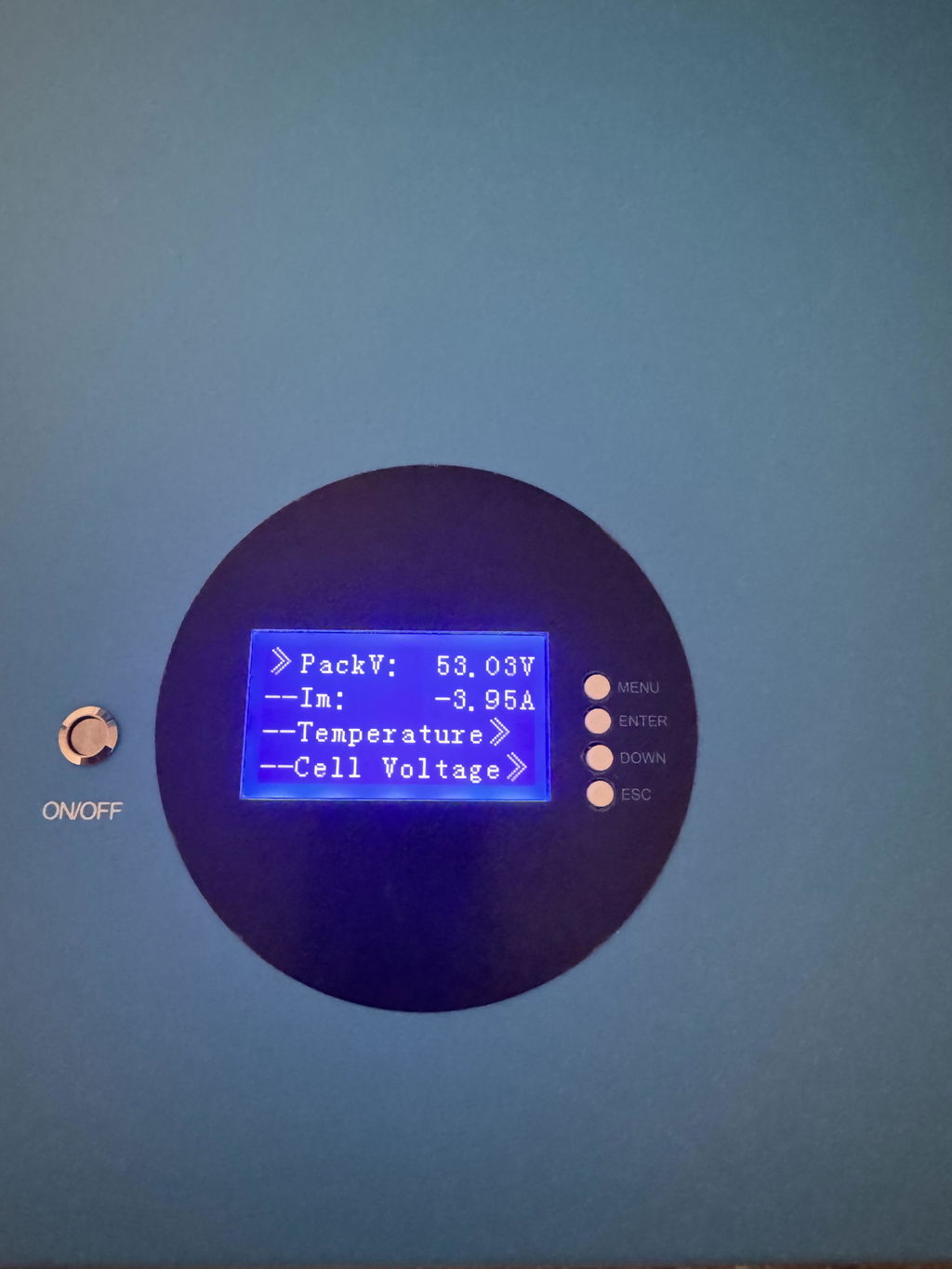

The 51.2V 100AH LFP Battery is compact, well-designed, LCD, and cable/accessories ready for installation. It boasts a minimum of 7000 cycles in deep cycle performance and is backed by a 10-year warranty, designed for up to a 15-year life.

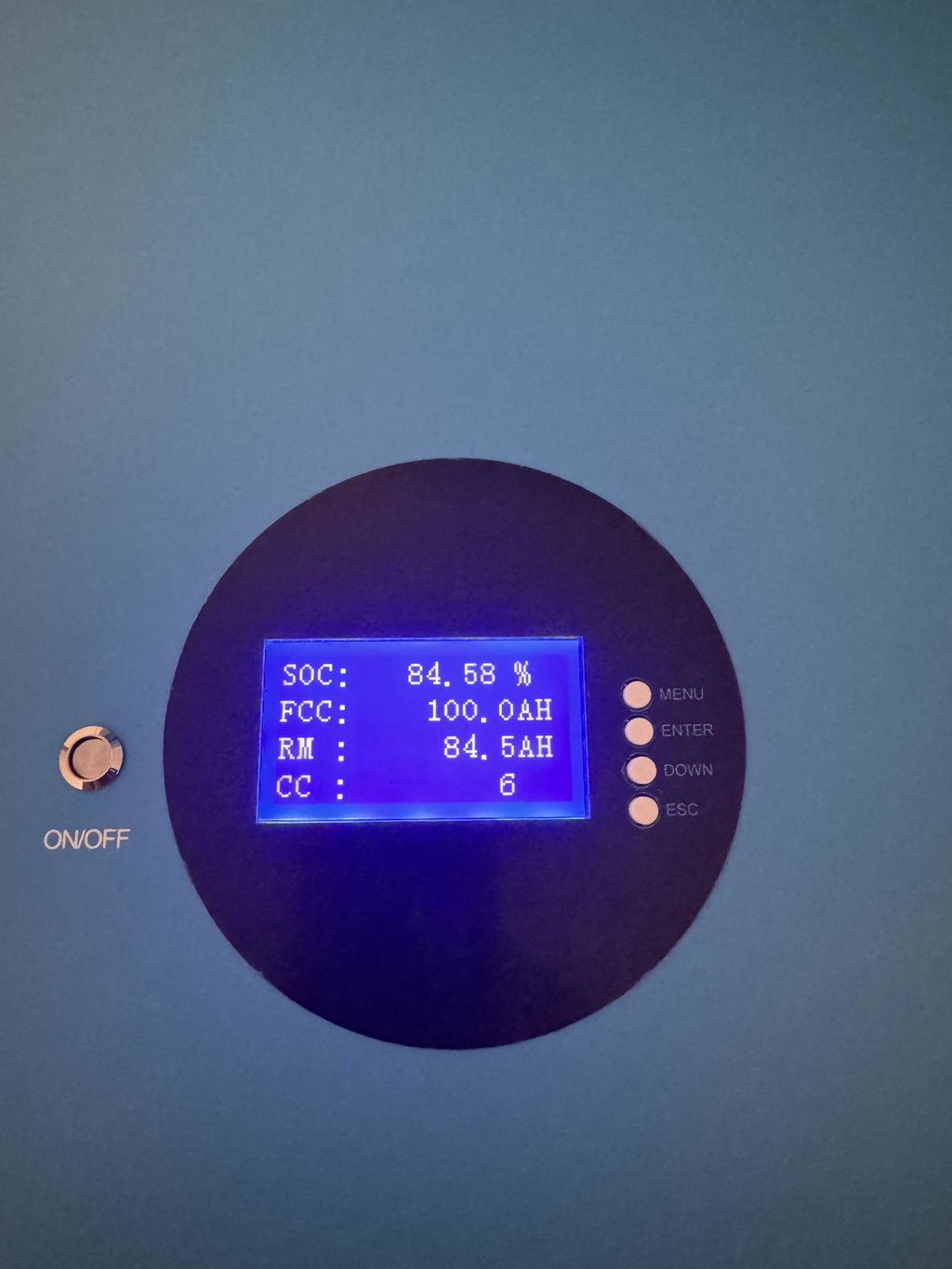

The Battery Management System (BMS) can manage and monitor cell information, including voltage, current, and temperature. It provides protection against overcharge, deep discharge, overloading, overheating, and short circuits, helping to extend the battery's lifetime.

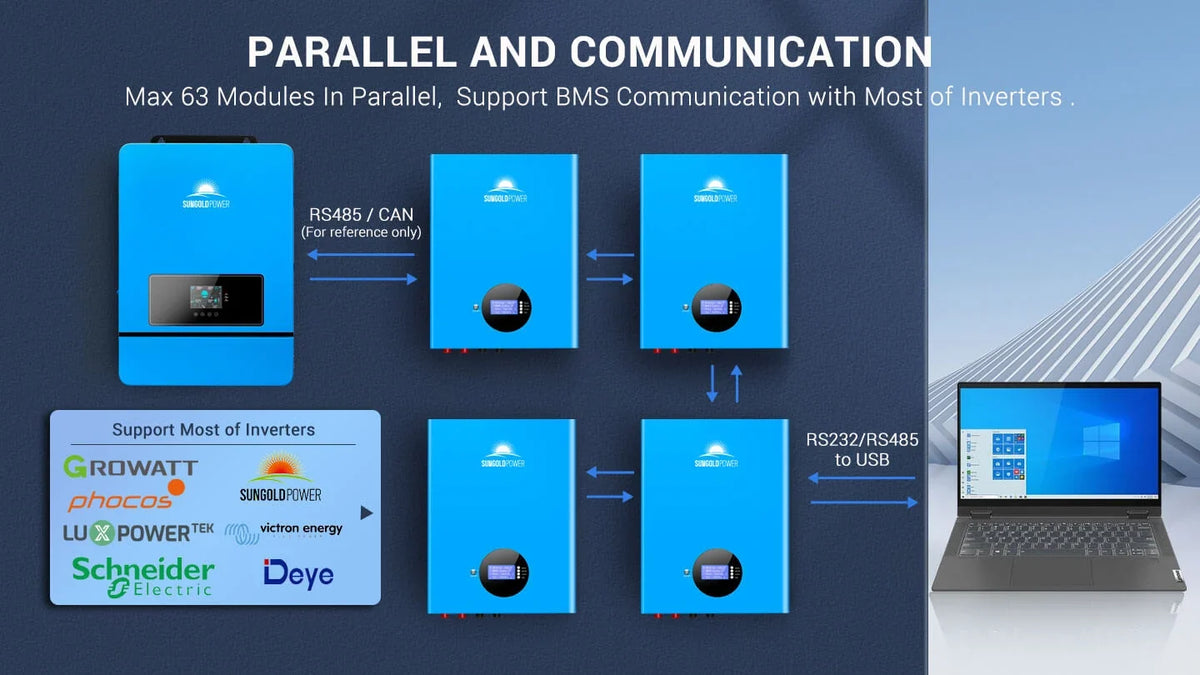

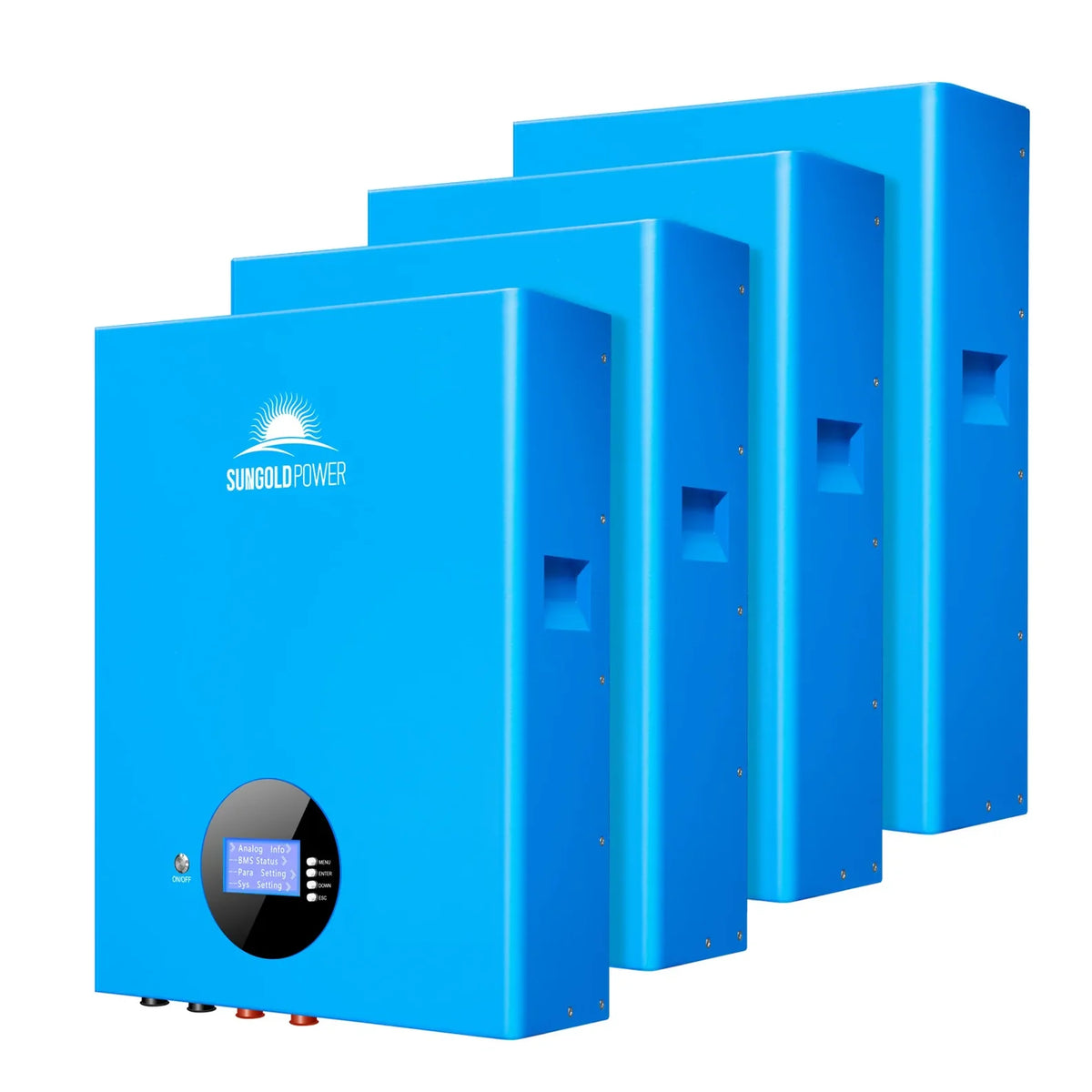

With its modular design, the battery is easily expandable. It supports a maximum of 16 units in parallel, with a total capacity of 81.9kWh. This flexibility makes it suitable for a variety of applications, including residential and commercial settings, as well as other energy storage systems aimed at increasing self-consumption ratios.
The battery supports CAN/RS485/RS232 Communication Protocol, making it compatible with most inverters available in the market. Whether it's Growatt, Deye, SunGoldPower, Luxpower, Victron energy, Schneider, Phocos, SMK, or others, this battery seamlessly integrates with a wide range of systems.
| Nominal voltage | 51.2 V |
| Nominal capacity | 100 Ah |
| Nominal energy | 5.12 kWh |
| Cycle life | 7,000+ cycles at 80% DOD |

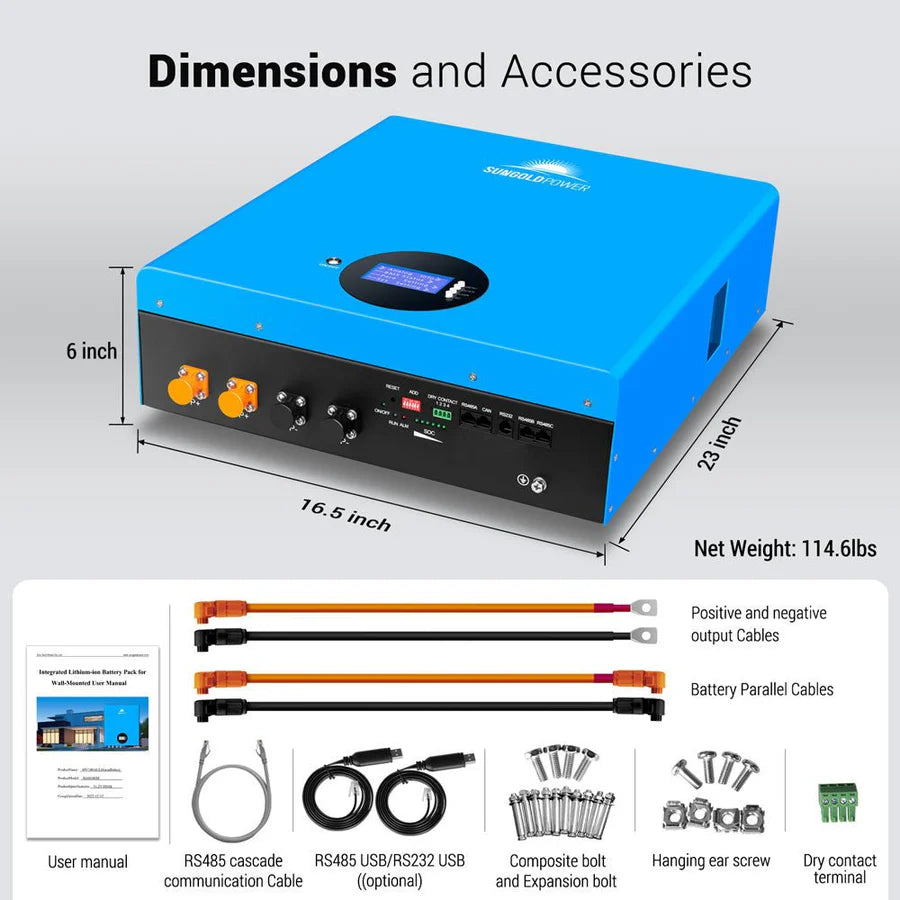

| Dimensions | 23 × 16.5 × 6 in |
| Net weight | 114.6 lbs |
| Protection rating | IP65 |
| Max. units in parallel | 16 (81.9 kWh total) |

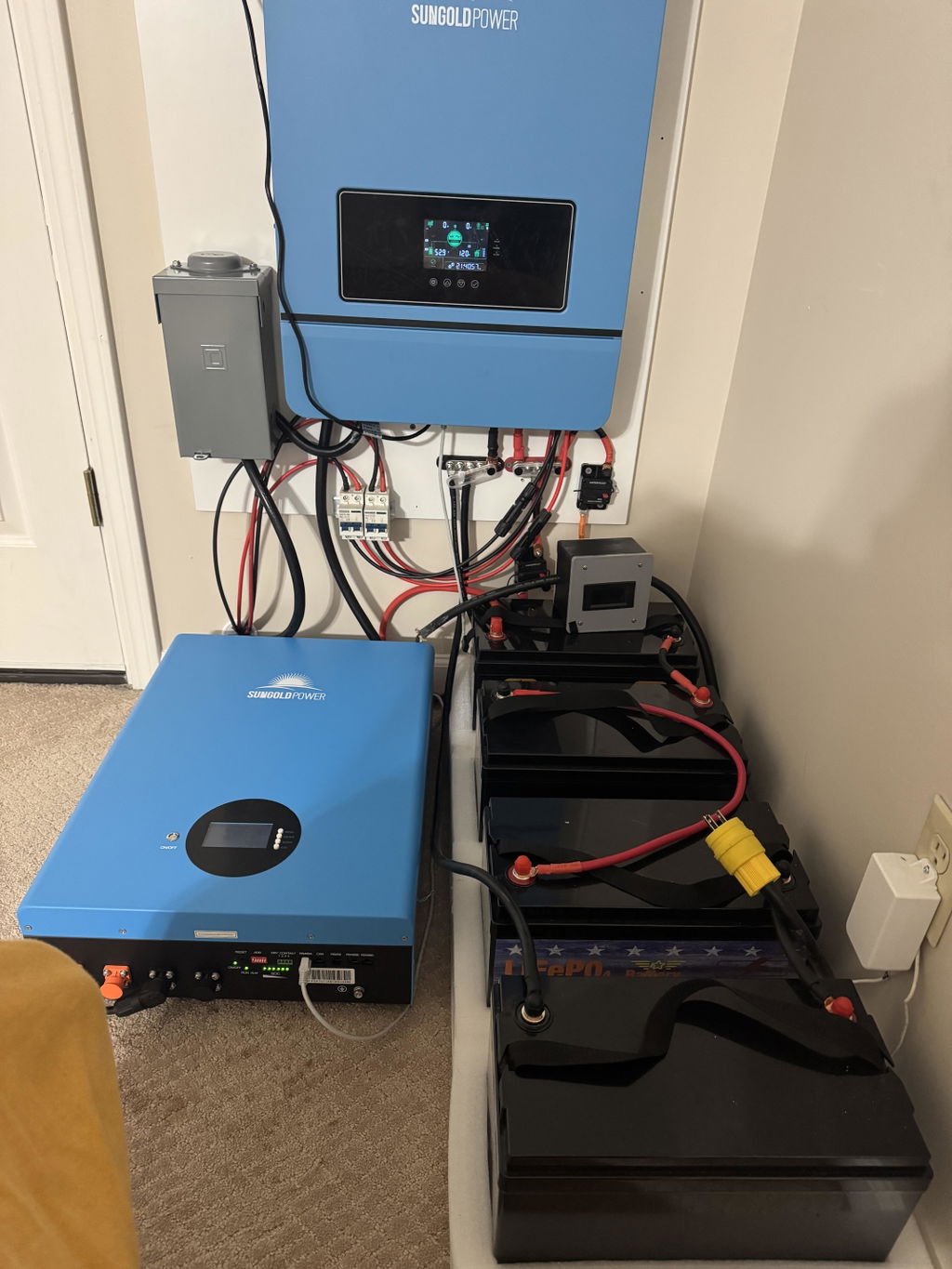

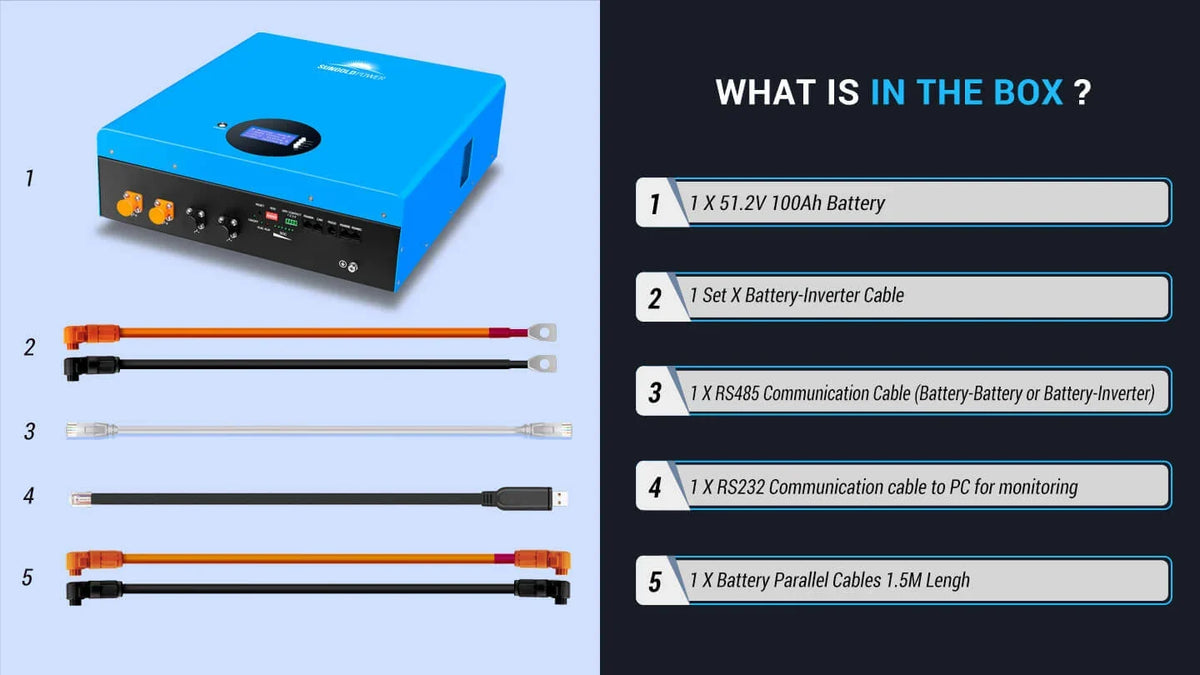

Well made and well packed for shipping. Includes connection for either battery to battery, or battery to busbar, cables. Also included is a manual, mounting hardware, and communication cables.
These two now make a total of six for me.

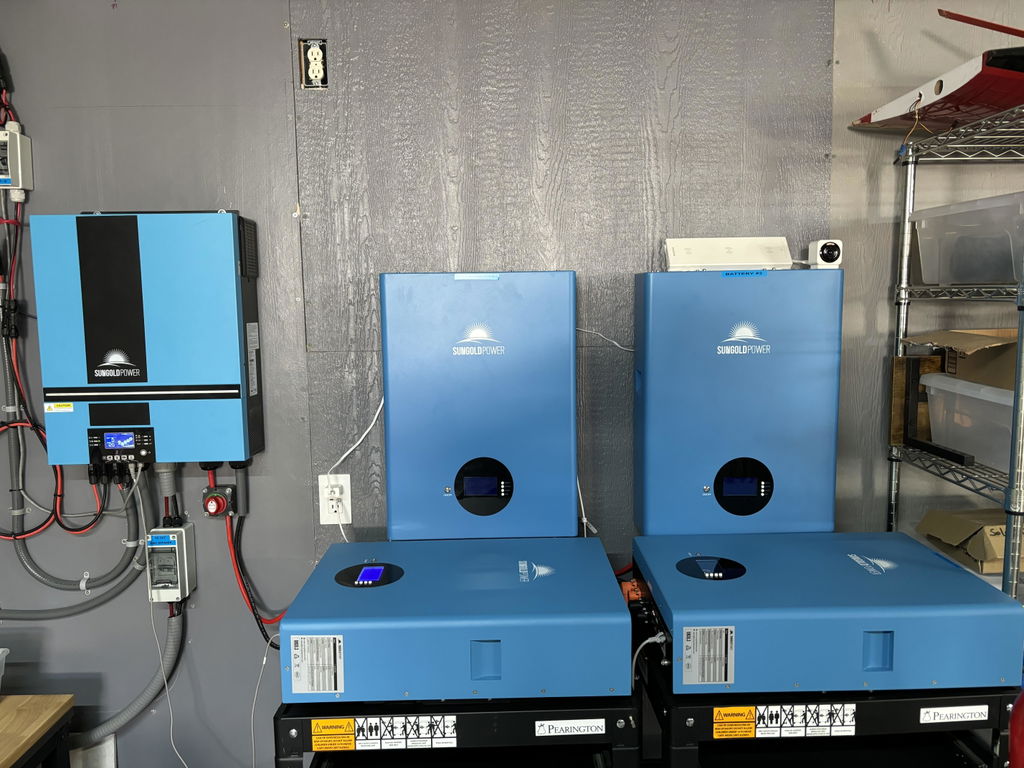

I don’t mount mine on a wall but rather lay them flat on a heavy duty storage rack. Eco Solar Kits makes it easy to order and are very nice to do business with.
Besides this being my fourth 5.12 SG48100M battery, ECO Solar Kits has made it easy for me when it comes to purchasing. ⭐️⭐️⭐️⭐️⭐️ and more.
