Eco Solar Kits · Sungold Power · SGR-16K25E

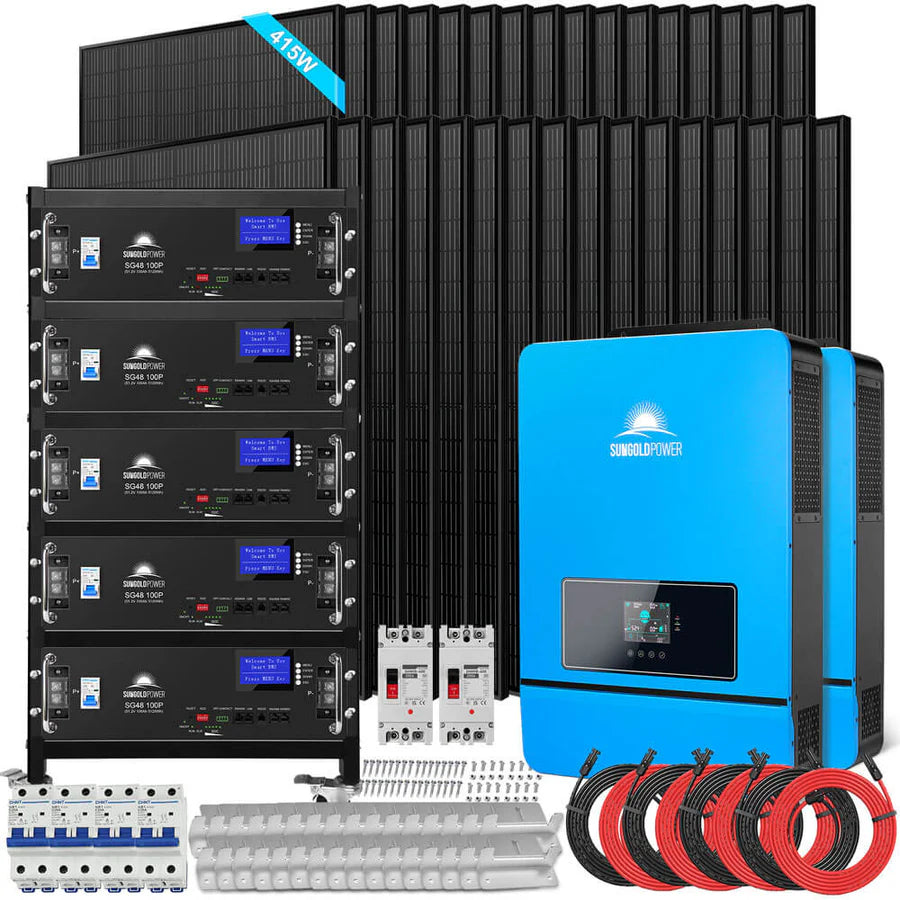

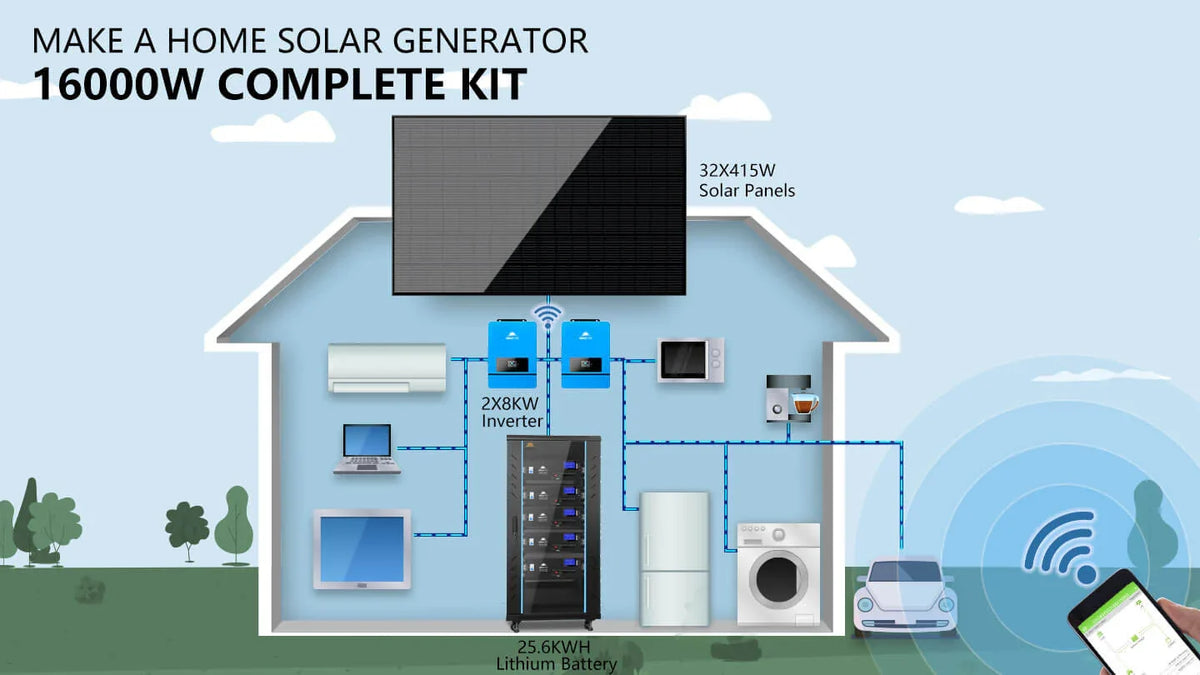

A complete off-grid solar system — dual 8,000W inverters paralleled for 16,000W total, 25.6kWh of LiFePO₄ battery storage across five server-rack batteries, and thirty-two 415W monocrystalline panels.

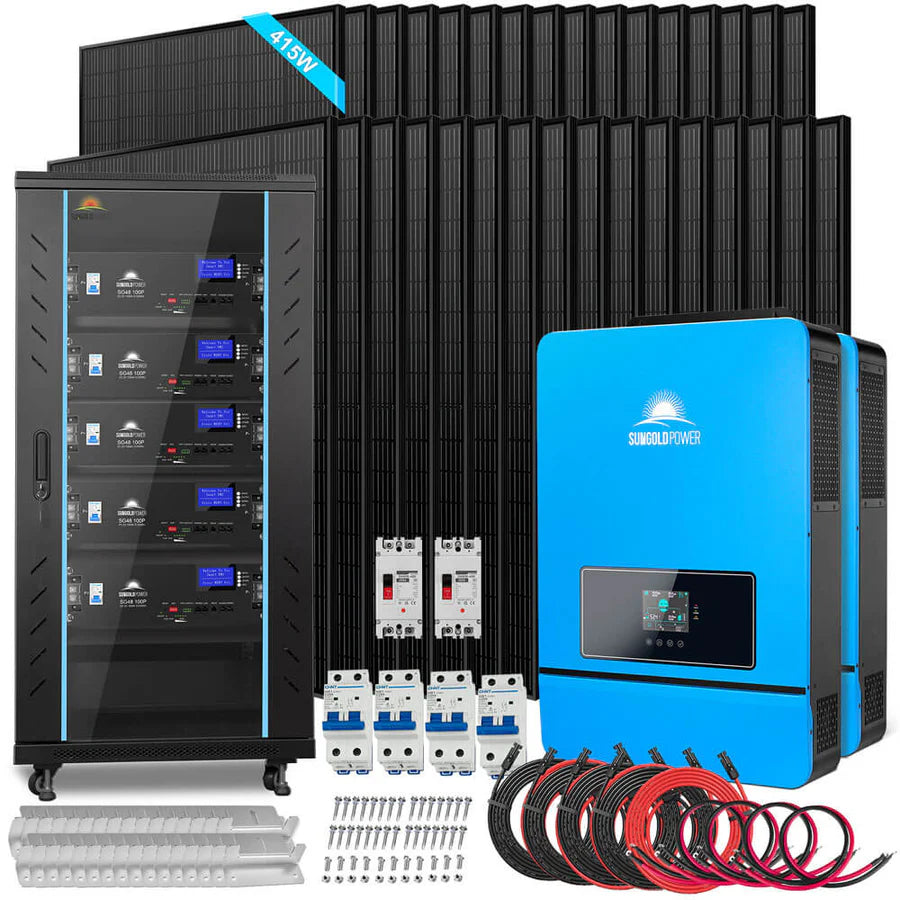

This all-in-one SGR-16K25E solar kit is a robust solution, featuring 32 x 415W solar panels, 5 x 5.12kWh server rack batteries, and 2 x 8000W solar inverters (120V/240V), along with all necessary cables and mounting brackets. Designed to generate approximately 43kWh per day with just 4 hours of sunlight, this system is more than capable of powering a wide range of household appliances, including air conditioners, well pumps, refrigerators, TVs, workshops, and offices.
With a 16kW 120V/240V split-phase inverter, this system delivers reliable, consistent power to meet all your energy needs. Plus, it's ready for future expansion—you can parallel up to 6 identical inverters in single-phase (120VAC), split-phase (240VAC), or three-phase (208V) configurations, allowing you to easily scale your system as needed. Additional batteries and solar panels can also be added to customize your setup according to your specific requirements.
Perfect for those seeking the freedom of off-grid living, this solar energy kit offers the reliability and flexibility you need to enjoy a sustainable, independent lifestyle. To explore more options and find the ideal solution tailored to your home's energy needs, visit our Whole House Solar Systems catalog. Embrace the adventure and start your journey into clean energy today!
Two 8,000W inverters paralleled, each with double the power available briefly for motor starts and other high-draw moments.
Runs standard household circuits and larger 240V appliances from the same system.
Two MPPT trackers per inverter (four total), with room to add panels beyond the 13,280W (32×415W) included.
Check system status and performance remotely, without needing to be on-site.
Parallel up to 6 identical inverters in single-phase, split-phase, or three-phase configurations.
Meets the standard utilities and inspectors look for on grid-interactive and off-grid inverter equipment.
Each LiFePO₄ battery is rated for at least 7,000 cycles to 80% depth of discharge — a 15-year design life.

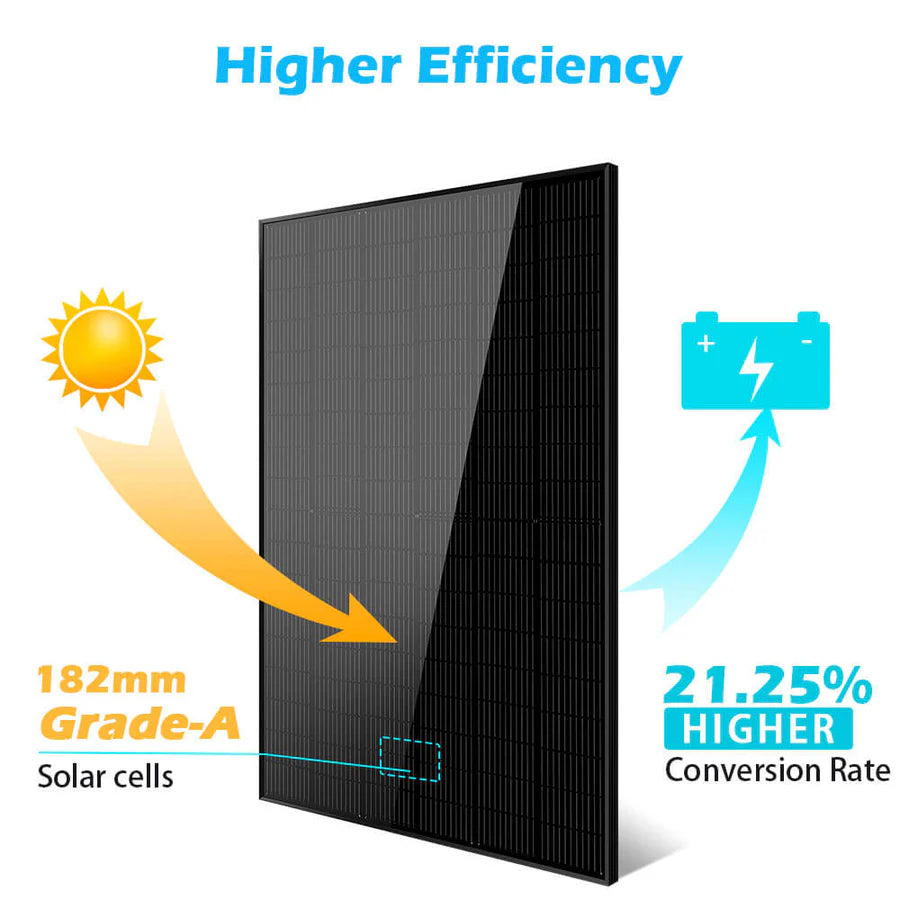

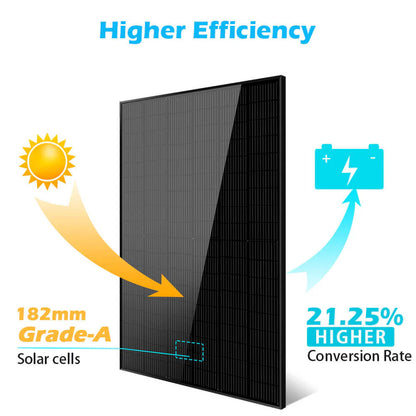

182mm Grade-A monocrystalline cells backed by a 25-year linear product warranty on the panels.

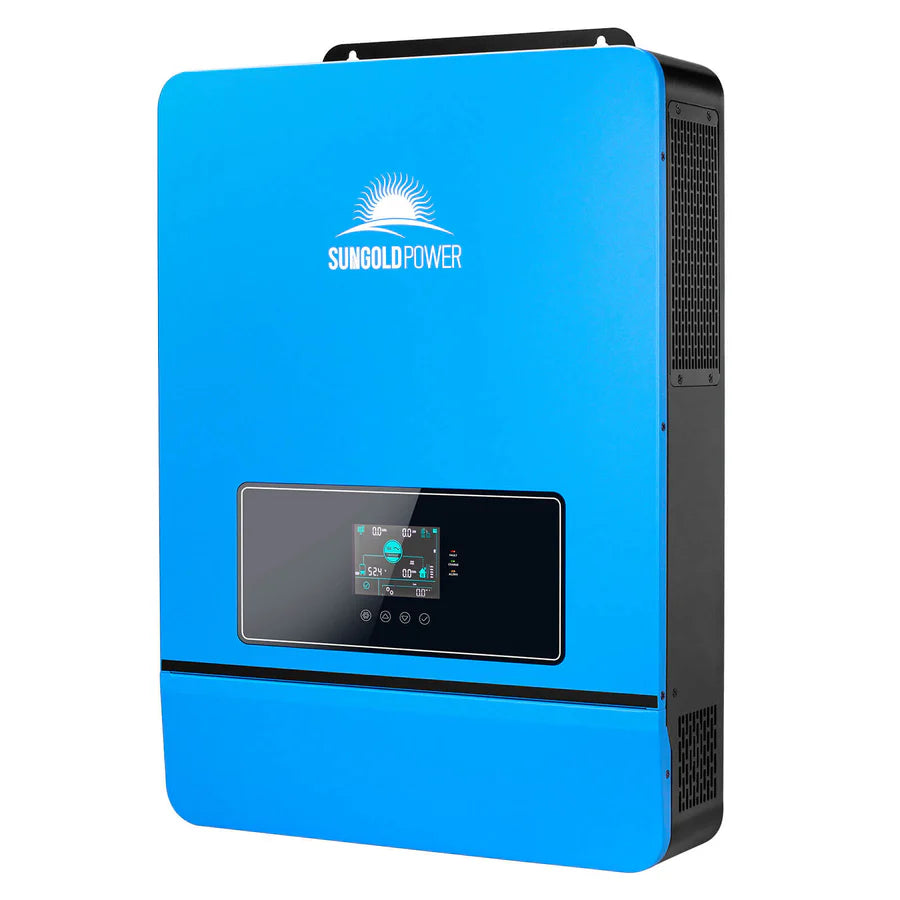

SPH8048P Inverter/Charger (×2, Paralleled)
Per-unit values below; two units paralleled for 16,000W combined.
| Rated output power | 8,000 W |
| Max. peak power | 16,000 W |
| Rated output voltage | 120/240 Vac split-phase |
| Load capacity of motors | 5 HP |
| Waveform | Pure sine wave |
| Rated battery voltage | 48 Vdc (40–60V range) |
| Max. PV charge current* | 180 A |
| Max. mains/generator charging | 100 A |
| Max. mix charge current | 180 A |
| No. of MPPT trackers | 2 |
| Max. PV input power | 11,000 W |
| Max. input current | 22A + 22A |
| Max. open circuit voltage | 500 Vdc |
| MPPT voltage range | 125–425 Vdc |
| MPPT tracking efficiency | 99.9% |
| Max. battery inverter efficiency | 92% |
| Weight | 59.5 lbs (27 kg) |
| Dimensions | 24.4 × 17.5 × 5.1 in |
| Protection rating | IP20, indoor use only |
| Built-in | RS485 / CAN / USB / Dry contact |
| Optional external | Wi-Fi / GPRS |
| Max parallel | 6 units |
| Safety | IEC62109-1/2, UL1741 |
| EMC | EN61000-6-1/6-3, FCC15 Class B |

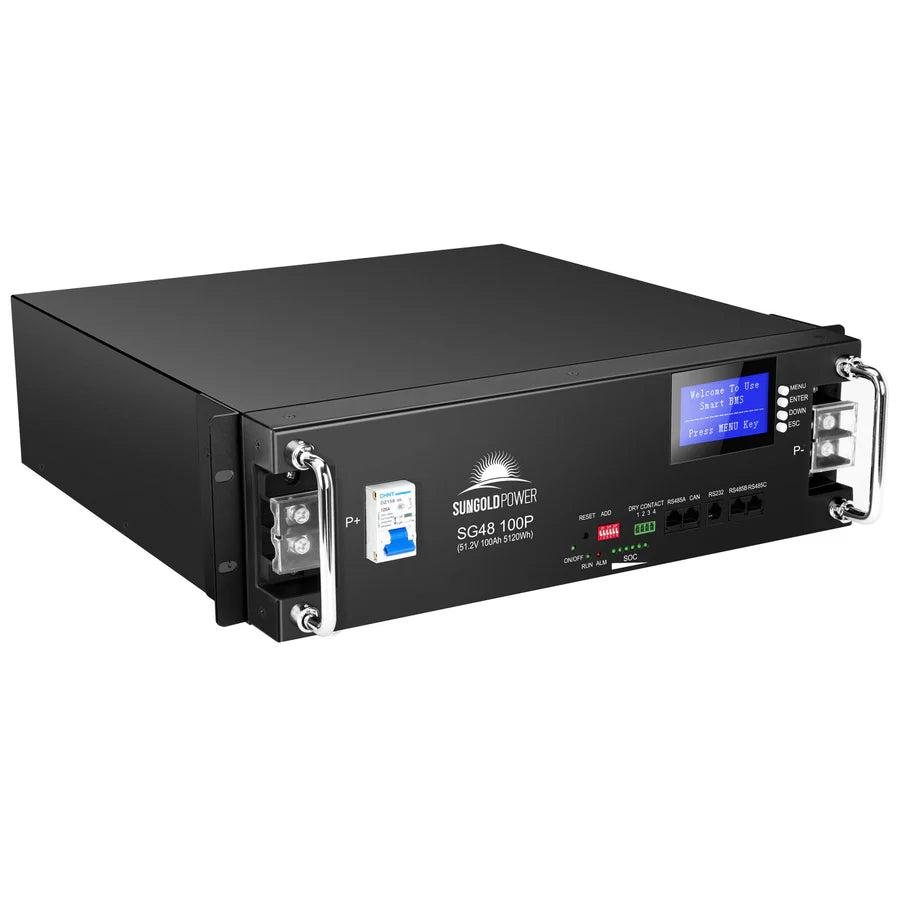

100AH 51.2V Battery (×5, In Server Rack Cabinet)
| Rated capacity | 100 Ah |
| Nominal voltage | 51.2 V |
| Energy per unit | 5,120 Wh |
| Combined (5 units) | 25,600 Wh (25.6 kWh) |
| Standard current | 50 A |
| Max. continuous current | 100 A |
| Cycle life | ≥7,000 @ 80% DOD |
| Design life | 15 years |
| Weight (each) | ~95 lbs (43 kg) |
| Dimensions | 16.5 × 22.8 × 5.5 in |
| Protection rating | IP20 (battery box) |
| Charging temp | 32–113°F |
| Discharging temp | -4–140°F |
| Max parallel | 63 batteries |
| Communication | RS232 / RS485 / CAN |

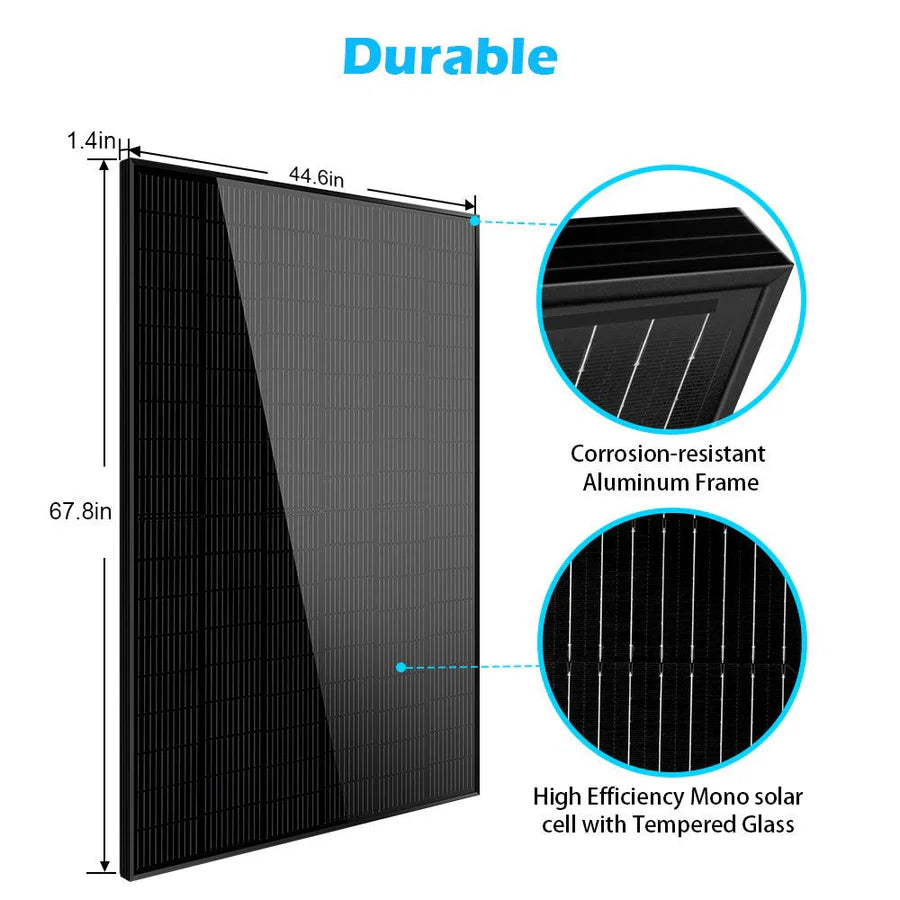

SG-415WM Monocrystalline Panel (×32)
| Max. power | 415 W |
| Max-power voltage | 31.61 V |
| Max-power current | 13.13 A |
| Open-circuit voltage | 38.82 V |
| Module efficiency | 21.25% |
| Cell type | Mono 182×91mm (108 cells) |
| Weight (each) | 45.1 lbs (20.45 kg) |
| Dimensions | 67.8 × 44.6 × 1.4 in |
| Junction box | IP68 |
| Warranty | 25yr linear product + 10yr workmanship |
With about 4 hours of direct sunlight, the 32-panel array produces roughly 43kWh per day — enough for air conditioners, well pumps, refrigerators, TVs, workshops, and offices, per the manufacturer's own description.
Yes — the two inverters combined support up to 22,000W of solar input, well above the 13,280W (32×415W) included in this kit, leaving room to expand.
Yes — up to 6 identical SPH8048P inverters can run in parallel in single-phase (120VAC), split-phase (240VAC), or three-phase (208V) configurations.
25.6kWh combined from five 5,120Wh LiFePO₄ batteries in the included server rack cabinet, each rated for at least 7,000 cycles to 80% depth of discharge.

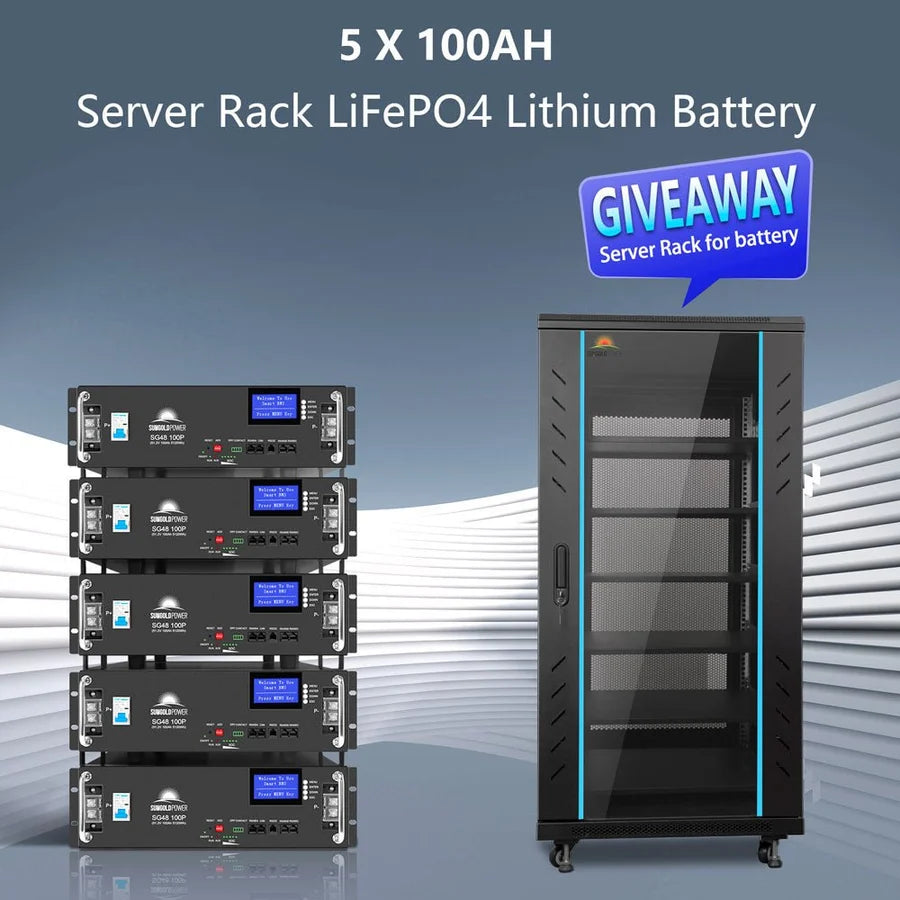

This kit includes an enclosed server rack cabinet sized for all five 100AH batteries, rather than mounting them individually.
Given the scale of this system — dual inverters, a 25.6kWh battery bank, and 32 panels — installation should be handled by a qualified, licensed electrician familiar with your local code.
