Home Backup Kit Pro · 6,000W · 14,120Wh · 120/240V

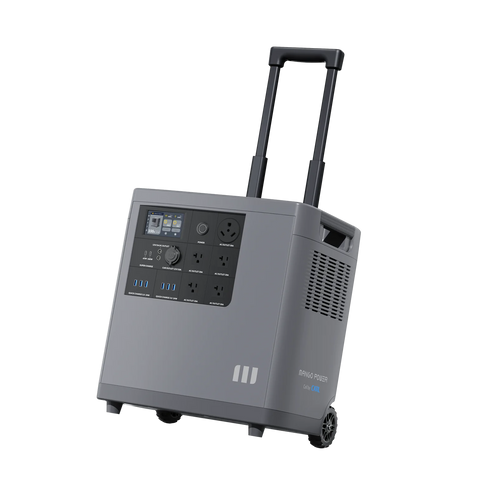

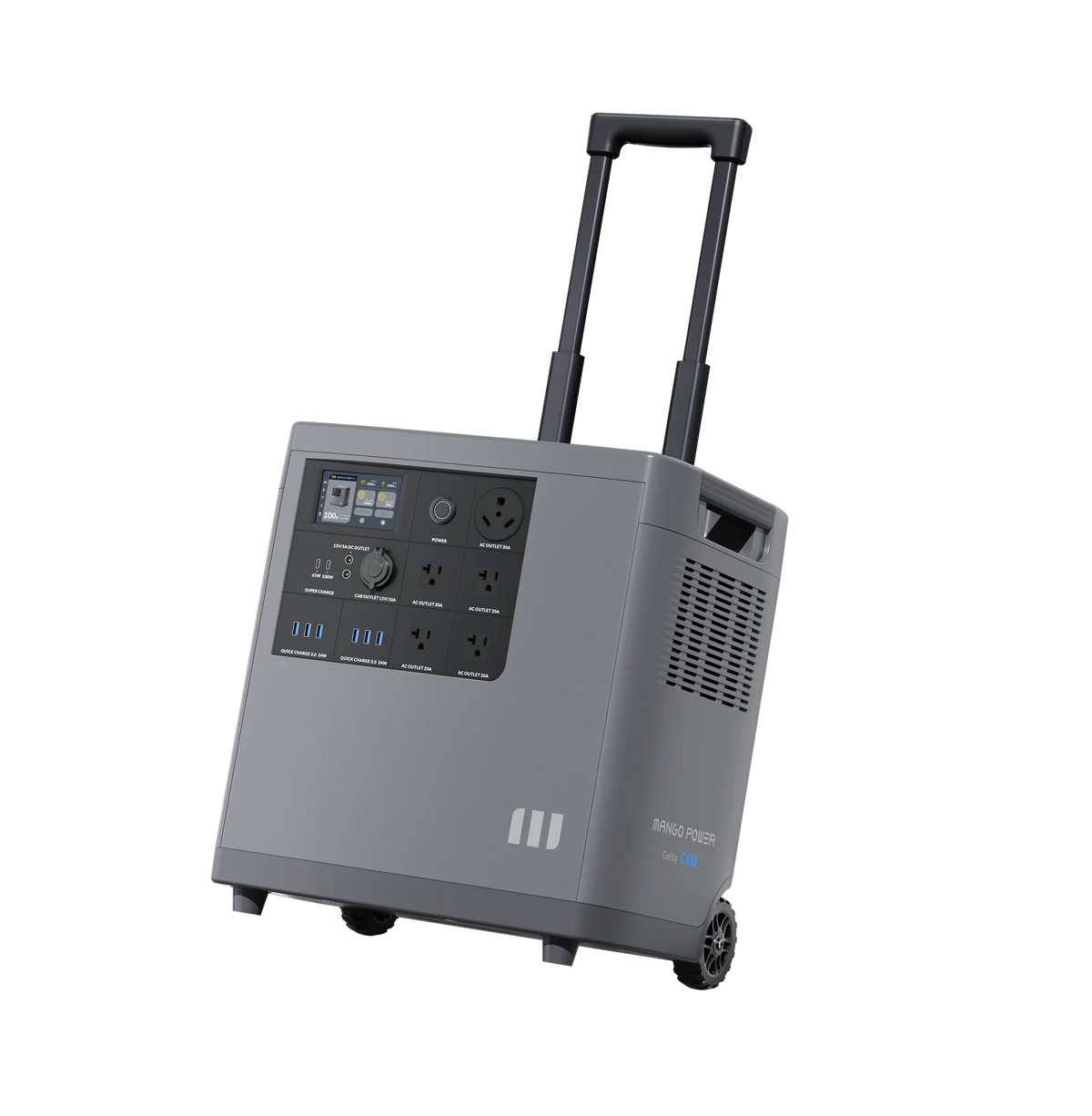

The top-tier Mango Power home backup solution: two Mango Power E power stations, two expansion batteries, and the mPanel Pro included in one package — enough combined capacity and output to back up an entire home circuit at 240V, not just a handful of essential outlets.
Pairing two Mango Power E units brings combined output to 6,000W and 240V split-phase capability, while the two included expansion batteries roughly double total storage to around 14kWh. With the mPanel Pro included in this kit, the system wires directly into a home's circuit panel — when the grid goes down, backup power kicks in automatically, without needing to buy the panel hardware separately.

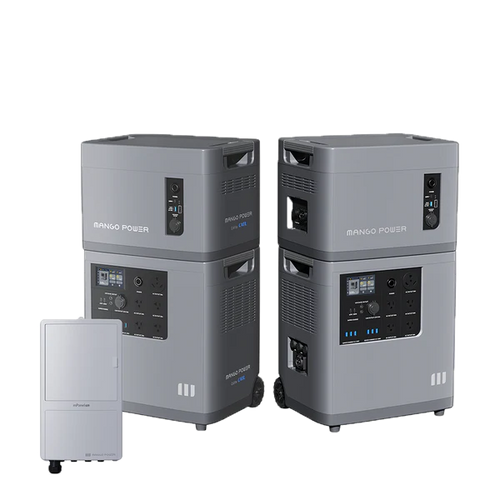

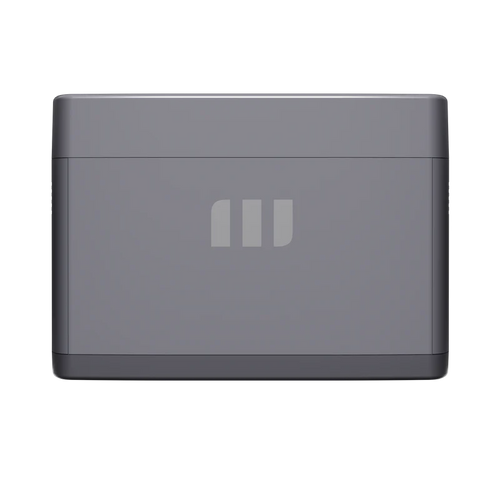

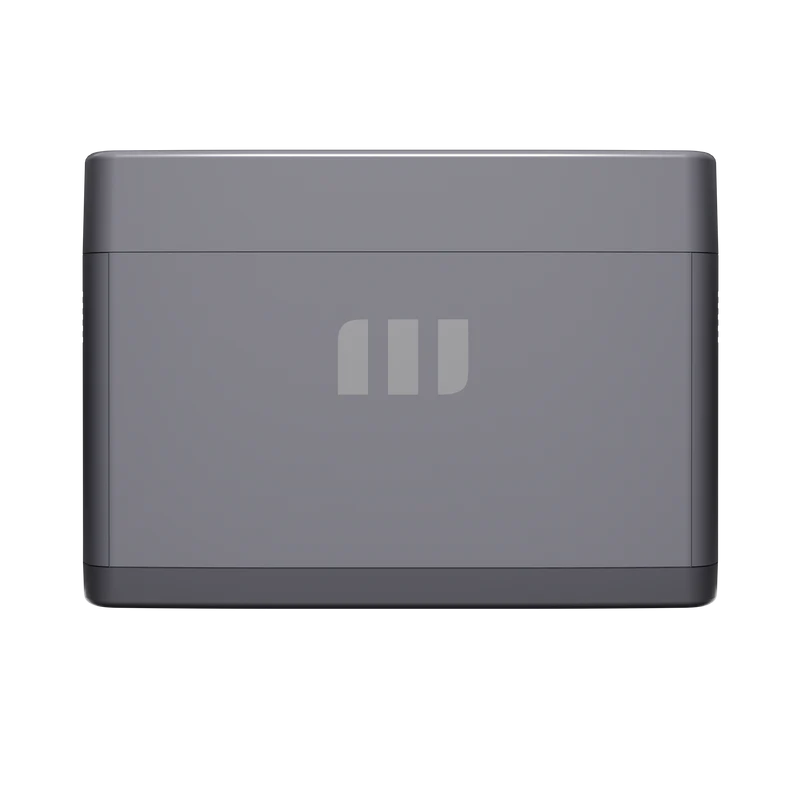

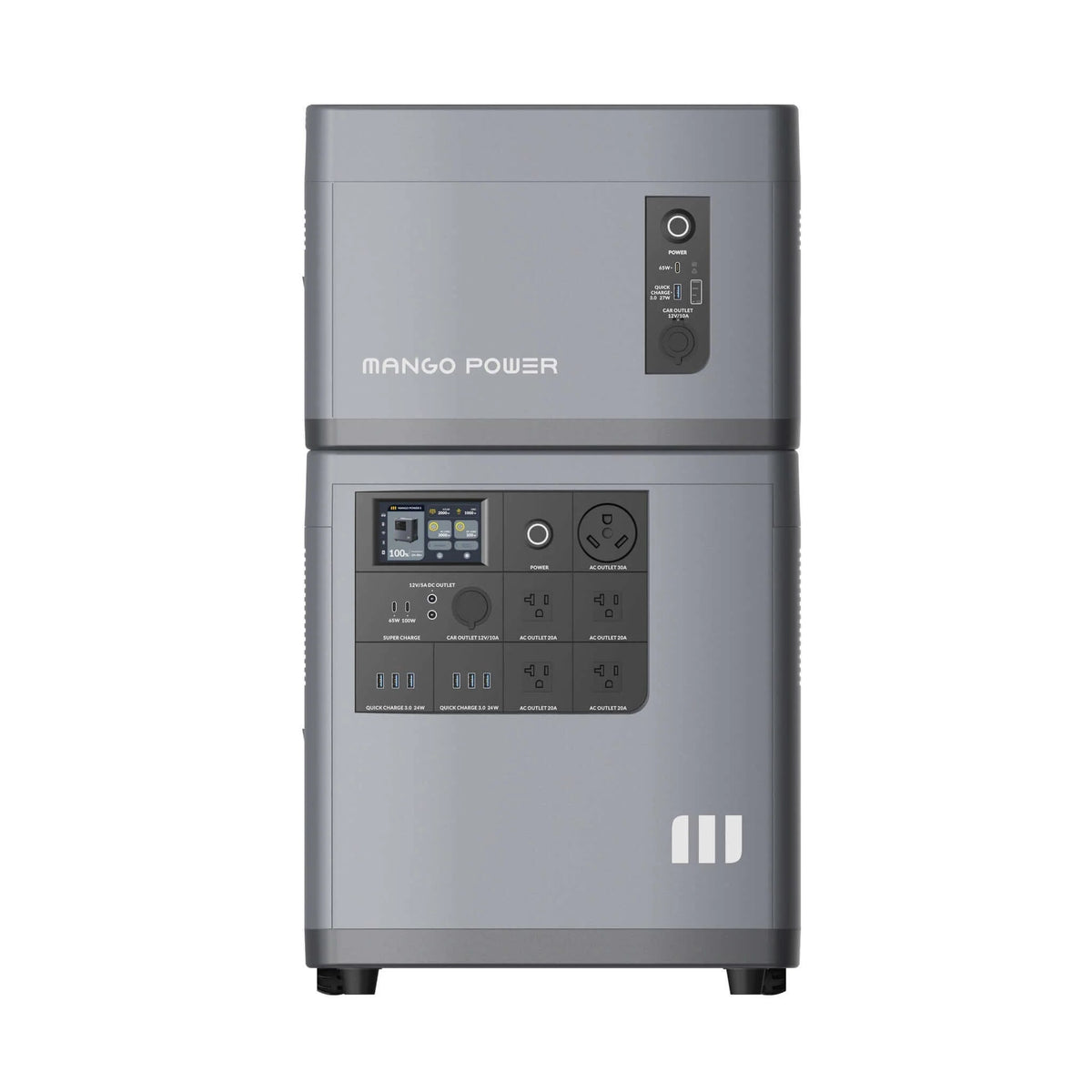

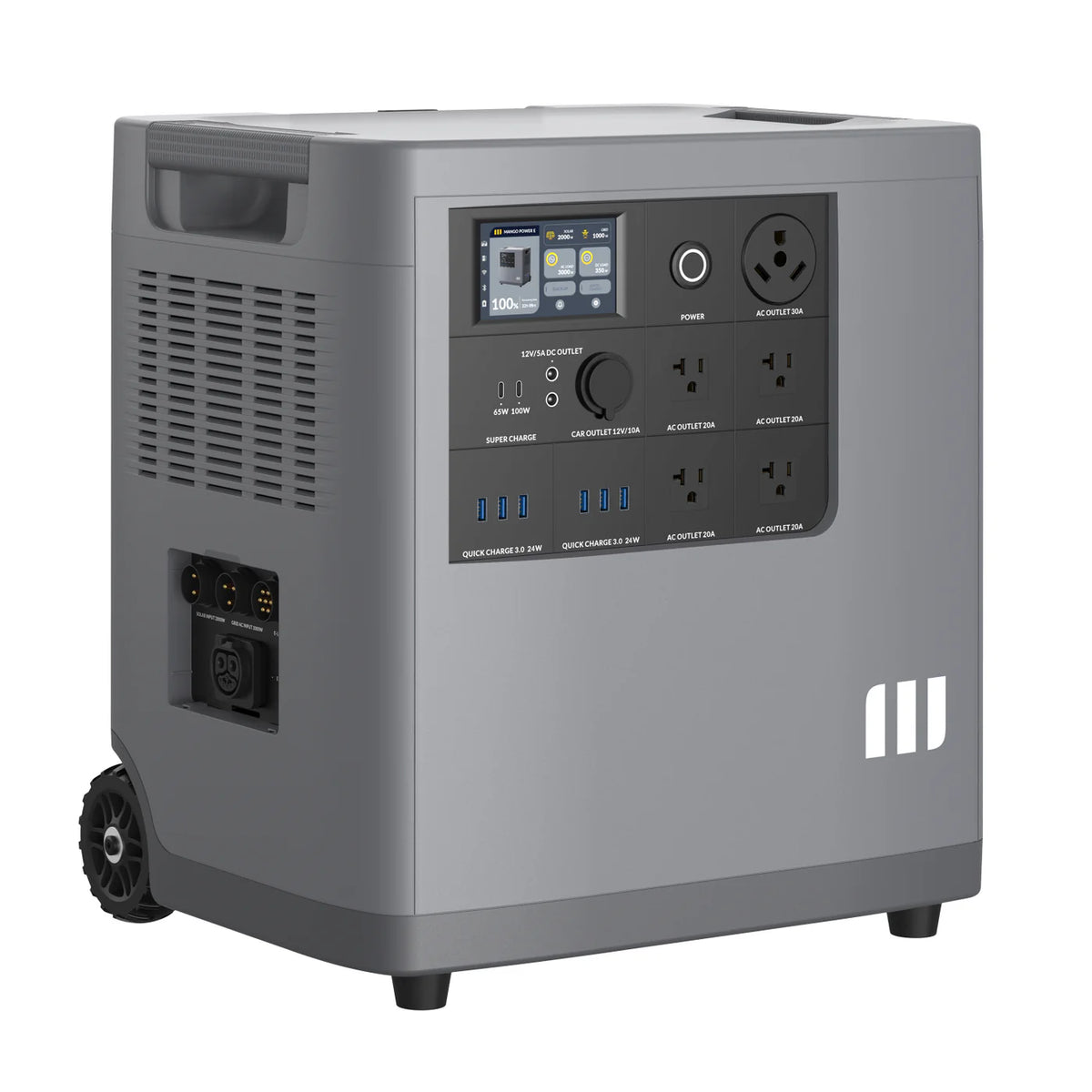

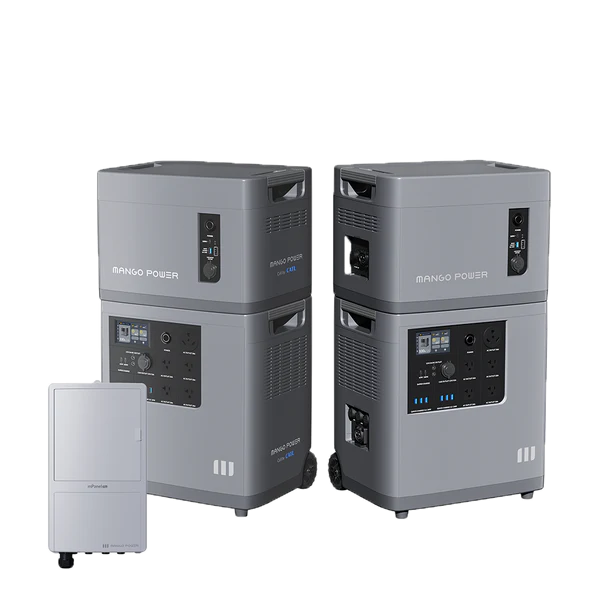

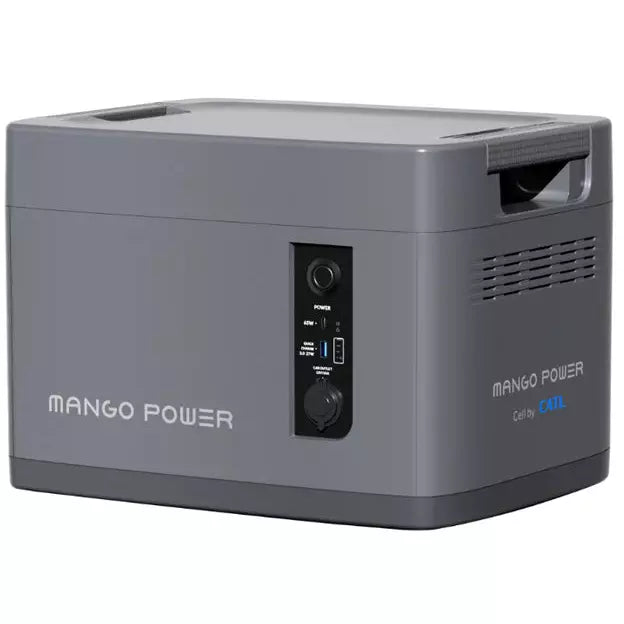

This kit includes 2× Mango Power E power stations, 2× Mango Power E expansion batteries, and the mPanel Pro accessory. Some general Mango Power marketing material describes the mPanel as sold separately — that applies to smaller packages; this specific kit includes it.
Every unit in this kit runs on CATL lithium iron phosphate cells, the same chemistry used in some of the highest-performing electric vehicles on the road. Rated for over 6,000 cycles while retaining more than 70% of original capacity, these cells are built for years of daily charging and discharging without a meaningful drop in real-world performance.

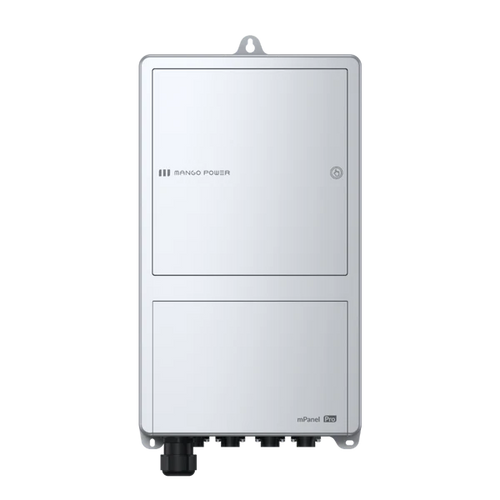

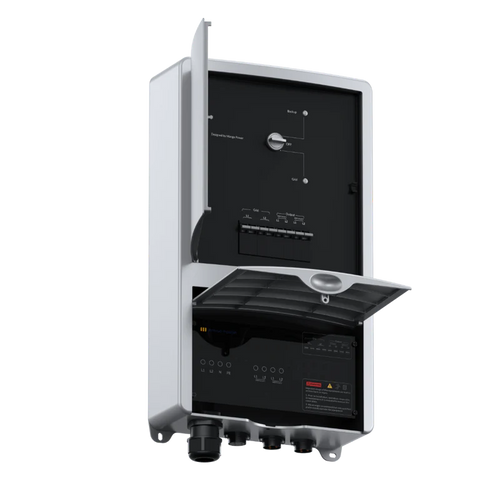

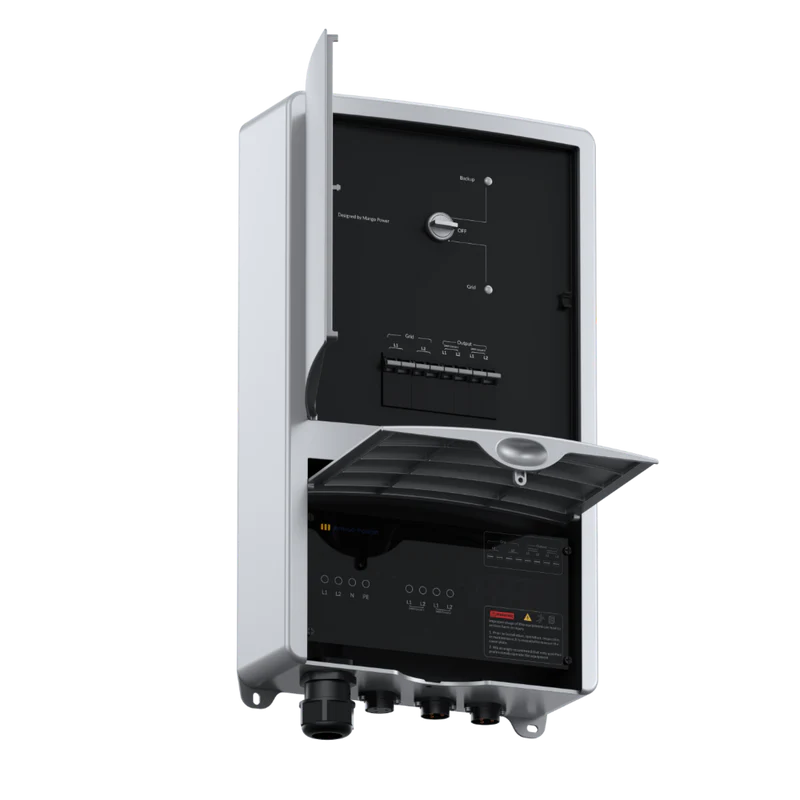

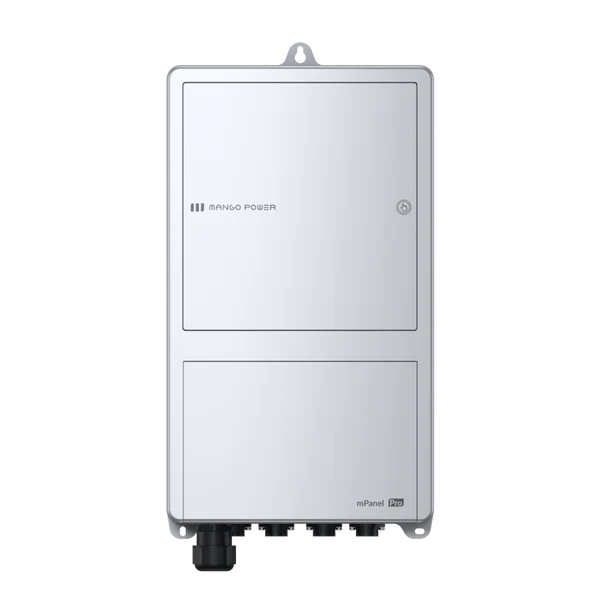

The included mPanel Pro wires the entire kit directly into a home's circuit panel. When utility power fails, the system transitions to battery power automatically — no manual switching, no scrambling for extension cords. Lights, refrigerators, and other essentials plugged into that circuit stay powered without interruption.
With two Mango Power E units working together and mPanel Pro integration, this kit delivers genuine 240V split-phase output — enough to run heaters, dryers, well pumps, and other large appliances that a single 120V-only power station can't handle.
CATL's cell chemistry tolerates a wide operating range, so the system keeps working through conditions that would degrade many consumer battery packs — whether that's a garage through a hard winter or a heat wave with the AC running non-stop.
General
| Specification | Mango Power E | Expansion Battery |
|---|---|---|
| Net weight | 100 lbs (45.4 kg) | 73 lbs (33.18 kg) |
| Size | 17.8 × 13.6 × 19.4 in | 17.8 × 13.6 × 12.5 in |
| Working temperature | Charge -20°C to 60°C, discharge -30°C to 60°C | Charge -20°C to 60°C, discharge -30°C to 60°C |
| Warranty | 5 years | 5 years |
| IP level | IP21 | IP21 |
| Quick charge | 80% in 1hr, 100% in 1.5hrs | — |
| Running noise | < 40dB no-load, < 51dB full-load | — |
Battery
| Specification | Mango Power E | Expansion Battery |
|---|---|---|
| Battery capacity | 3.53 kWh | 3.53 kWh |
| Cell chemistry | CATL LFP | CATL LFP |
| Life span | > 70% capacity after 6,000 cycles @ 25°C | > 70% capacity after 6,000 cycles @ 25°C |
| Max charging rate | Up to 1.1C | Up to 1.1C |
Input & Inverter
| Specification | Mango Power E | Expansion Battery |
|---|---|---|
| Charging method | AC wall, solar, EV charger, generator | AC wall, adapter |
| AC charging | Max 3,000 W | Max 3,000W (via MPE) / AC adapter |
| Solar charging | Max 2,000 W (60–150V) | — |
| Rated AC output | 3,000 W, 120V, 60Hz | — |
| MPPT | 1× (roof and portable solar) | — |
| Inverter efficiency | Up to 88% | — |

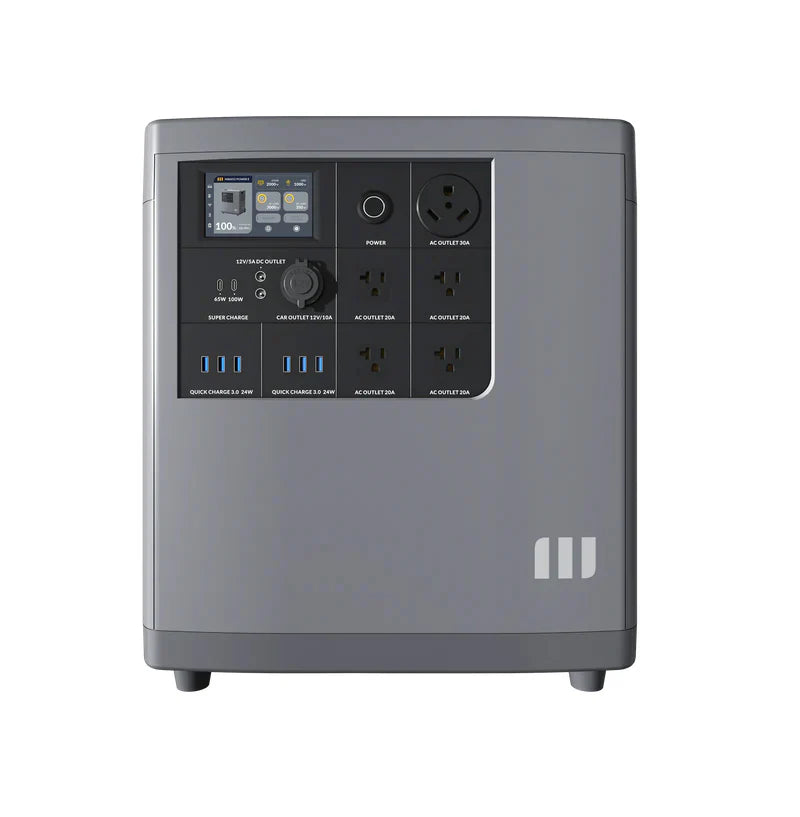

Output Ports
| Specification | Mango Power E | Expansion Battery |
|---|---|---|
| Total output ports | 16 | 3 |
| AC output | 4 × 20A | — |
| USB-A | 6 × QC 3.0 27W | 1 × QC 3.0 27W |
| USB-C | 1 × PD 65W + 1 × PD 100W | 1 × PD 100W |
| Car power | 12V / 10A | 12V / 10A |
| AC RV port | 30A | — |
Smart Control & Display (Mango Power E)
| Specification | Value |
|---|---|
| Connectivity | Bluetooth and Wi-Fi |
| App remote control | Yes |
| OTA / USB firmware update | Yes |
| Customized modes | Backup, economical, time-based control |
| Screen | 4.3in touchscreen, 480×800, 16.7M colors |
It's included in this specific kit. Smaller Mango Power packages typically require mPanel or mSocket Pro as a separate purchase, but this bundle includes it.
Two Mango Power E units (3.53kWh each) plus two expansion batteries (3.53kWh each) combine for roughly 14.12kWh of total storage.
Yes. Each Mango Power E unit accepts up to 2,000W of solar input via its built-in MPPT controller.
Home circuit-panel integration involves electrical wiring and should be installed by a qualified electrician.
