FEATURES

• Fulfill 99% of Your Portable Power and Home Backup Requirements
• 240V Split-phase for High-Power Appliances
• Ensure Your Essential Appliances Run During a Power Outage
• Featuring World-Class CATL Ultra-Durable LFP Battery Cells

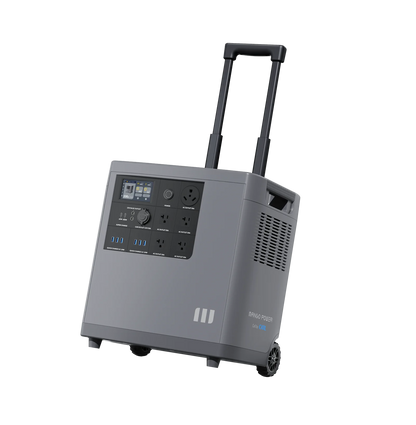

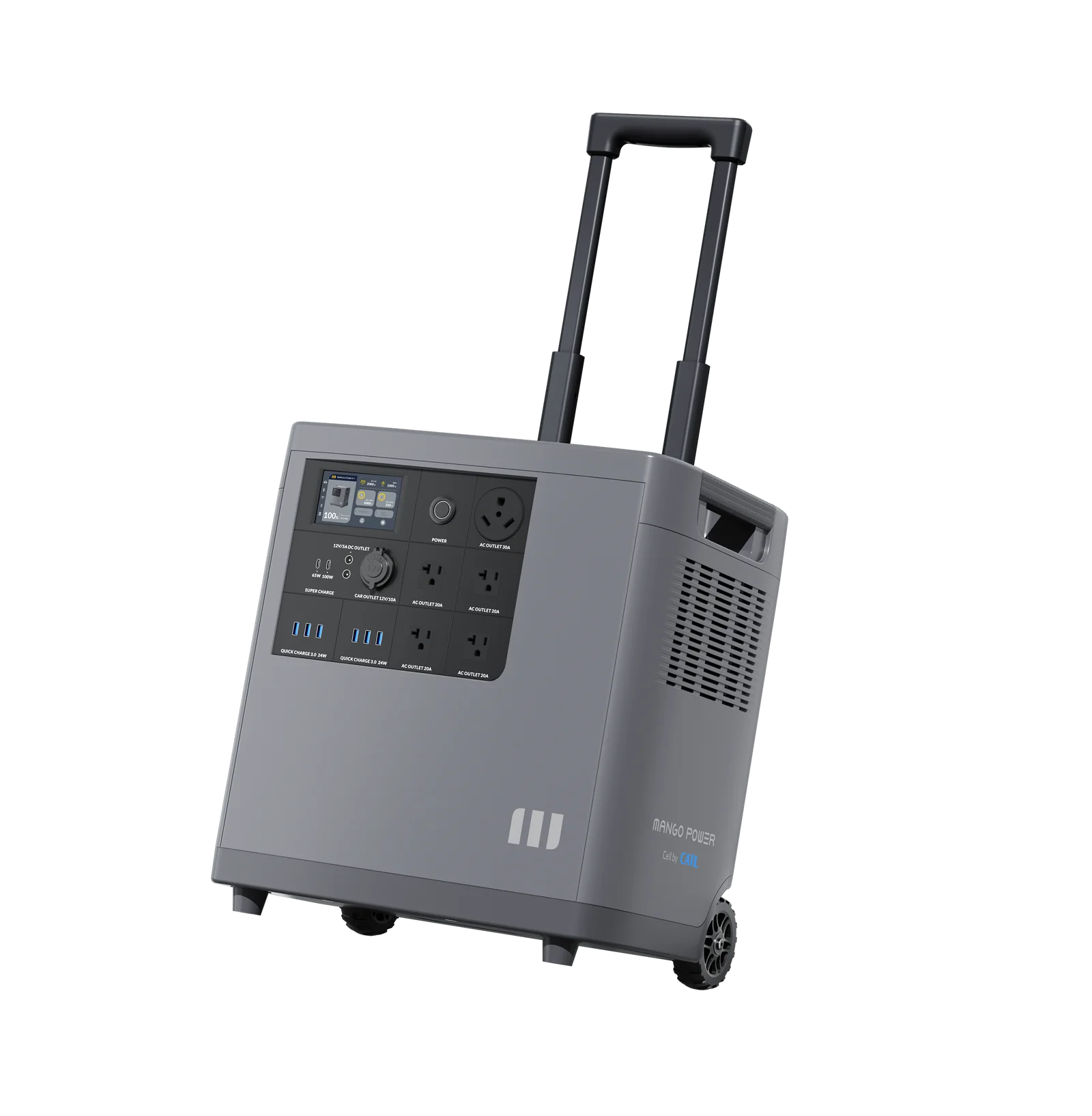

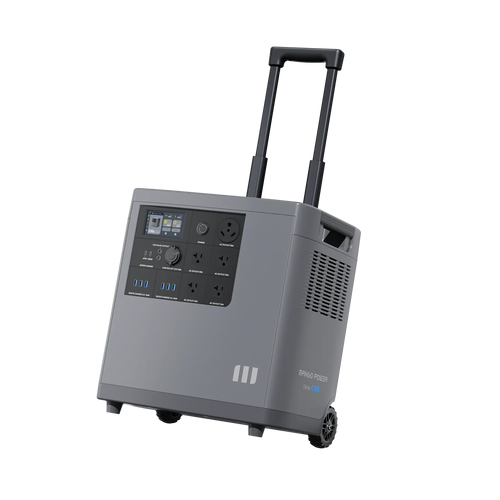

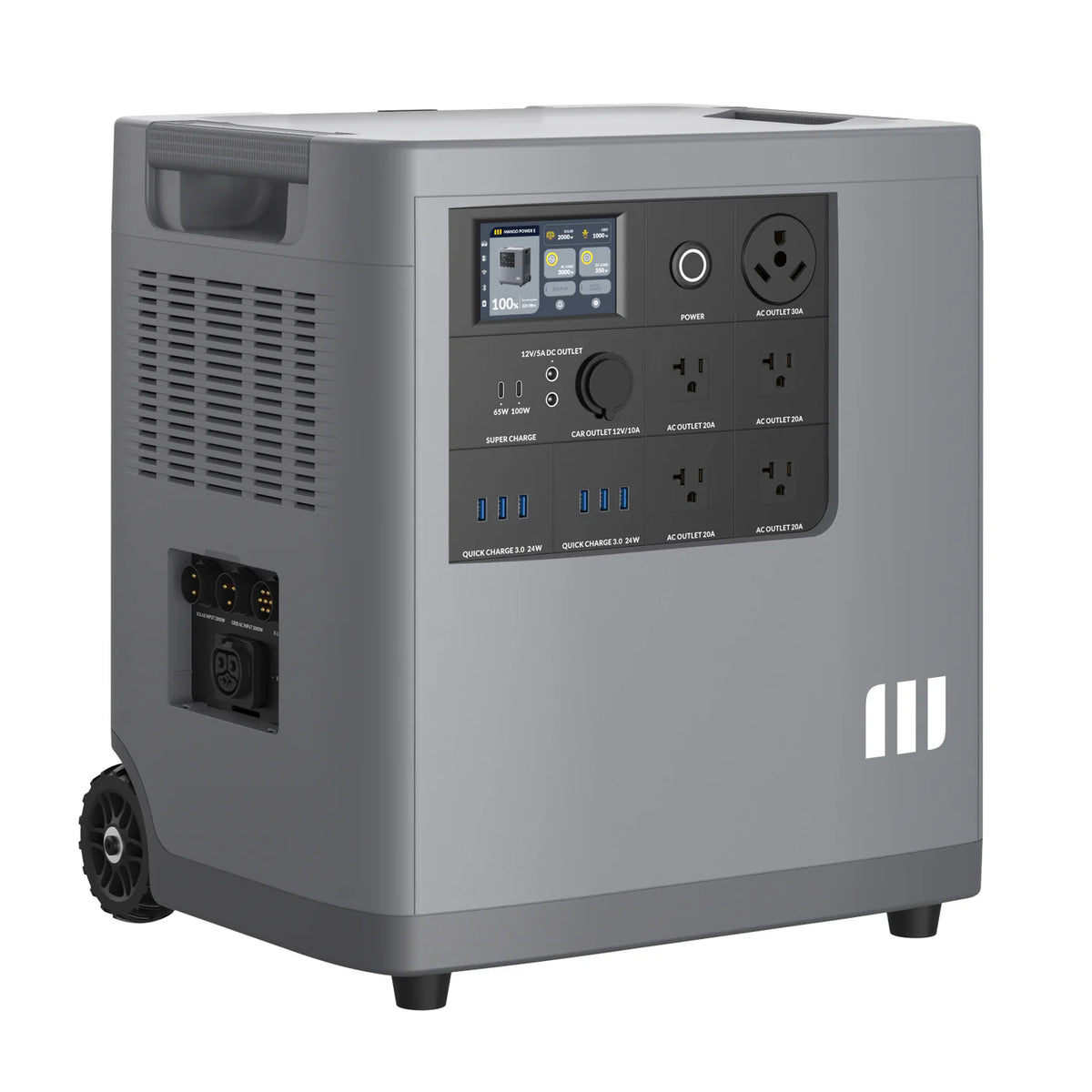

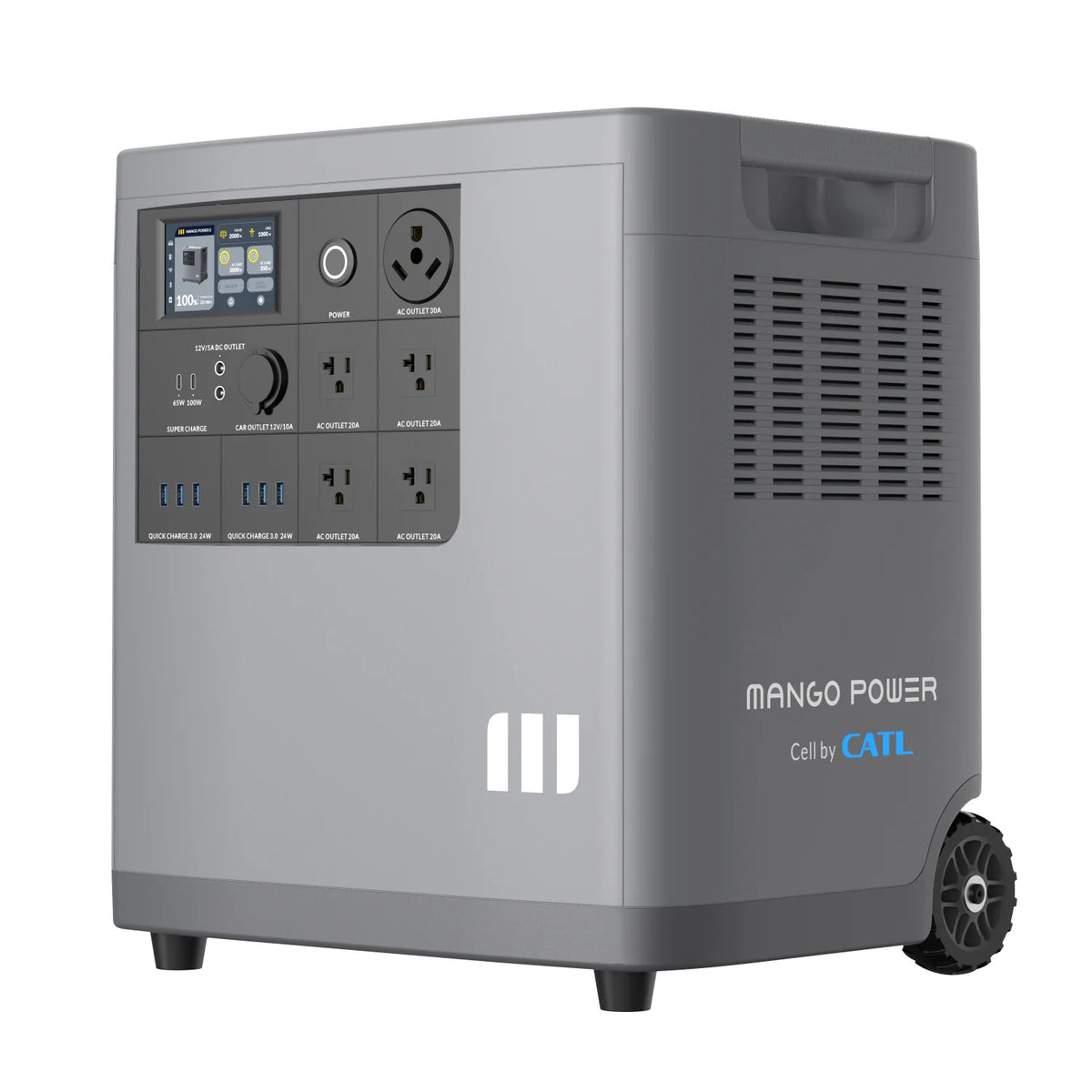

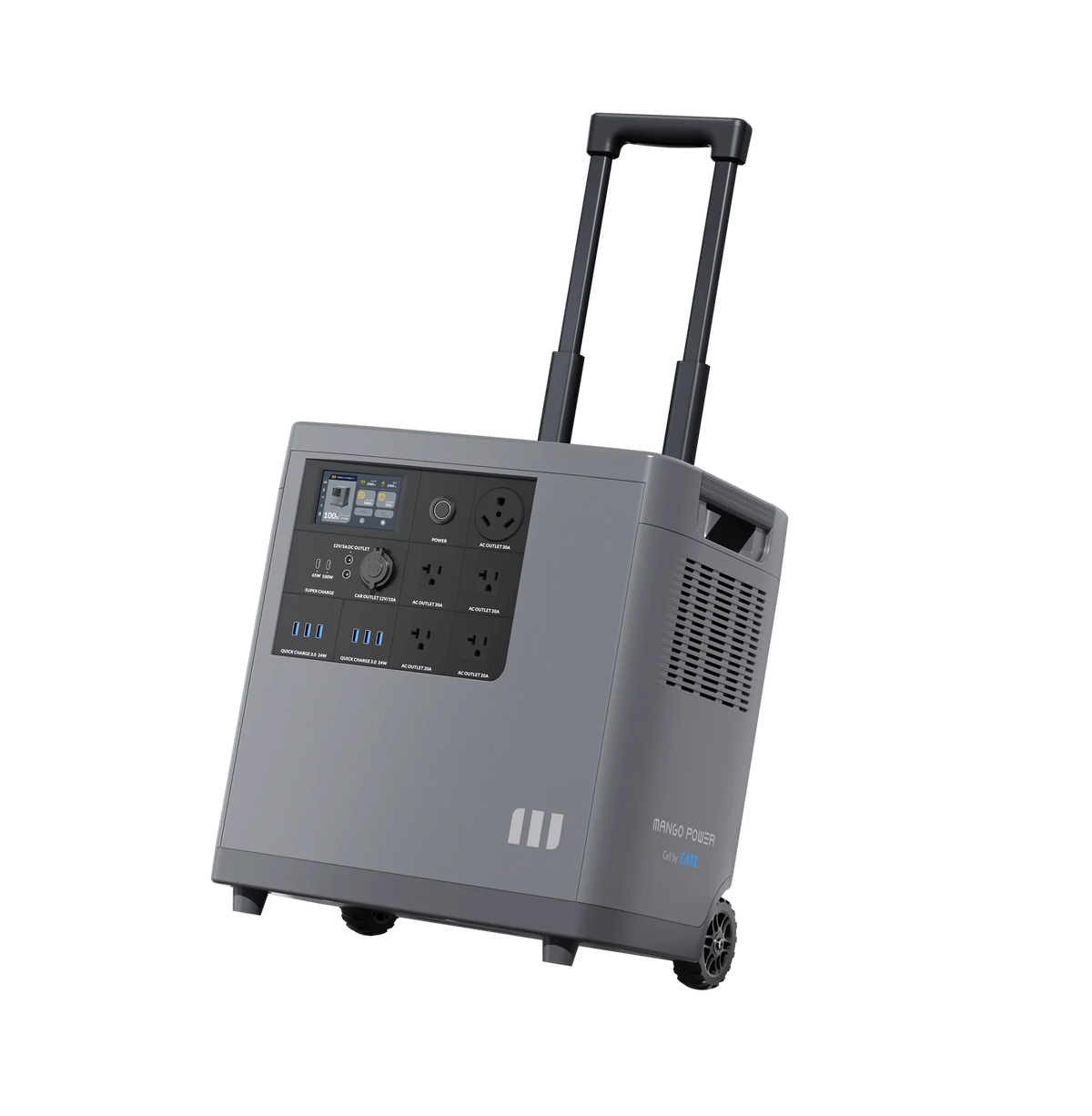

Mango Power E: 3kW/3.5kWh 120V

3.5 kWh - 14 kWh Capacity
3000W - 6000W AC Output

MANGO POWER E Fully Backup Your Off-Grid Life

240V Split-Phase for
Heavy-Duty Appliances

With the mSocket Pro* accessory, the Mango Power E becomes a high-powered split-phase generator capable of delivering 240V output so you can run large power-consuming appliances such as heaters, dryers, water pumps, and more.

*The mSocket Pro sold separately.

Use The Same Cells That
Power the World’s Best EVs

The Mango Power E boasts ultra-durable LFP battery cells that are also used in the world's top-performing EVs. These cells not only charge quickly but also have a longer lifespan and greater reliability compared to traditional NCA/NCM battery cells.Even after continuous use, which could span up to five years of constant charging, discharging, and recharging, the Power E's battery cells maintain their peak performance and remain as effective as they were when they were first used.

Better Environmental Adaption

CATL's batteries can withstand temperatures from -20°C to 60°C. This allows our power stations to operate smoothly even in extreme cold conditions.

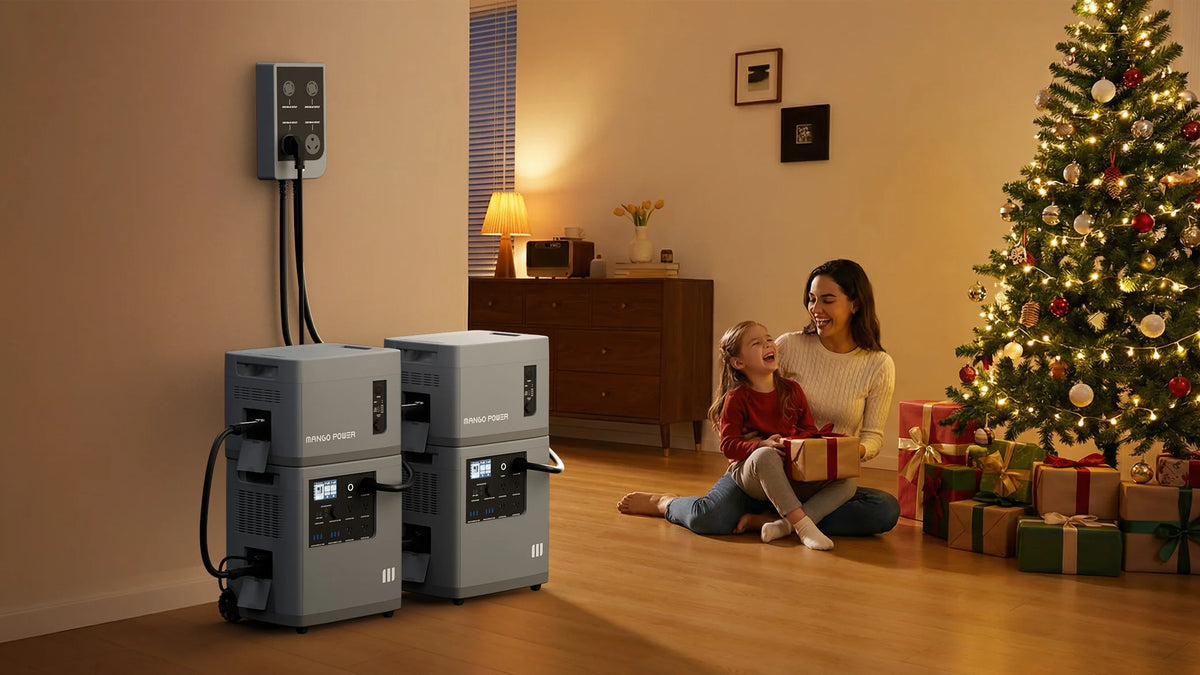

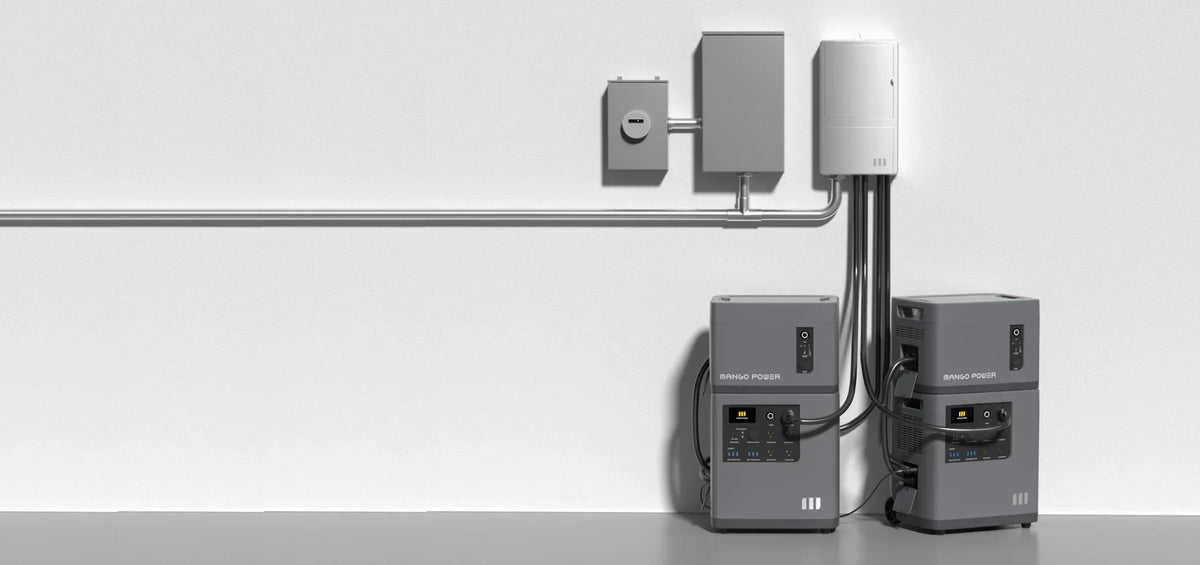

SEAMLESS HOME BACKUP

Power Your Essential Appliances in the Event of A Power Outage

By integrating Mango Power’s ecosystem into your home circuit*, you guarantee that at the moment a blackout strikes, you enjoy power security and grid independence with a seamless, uninterrupted flow of electricity powering your lights, refrigerators, computers, and any other essential devices you have plugged in.

*Home circuit backup requires the mPanel accessory, sold separately

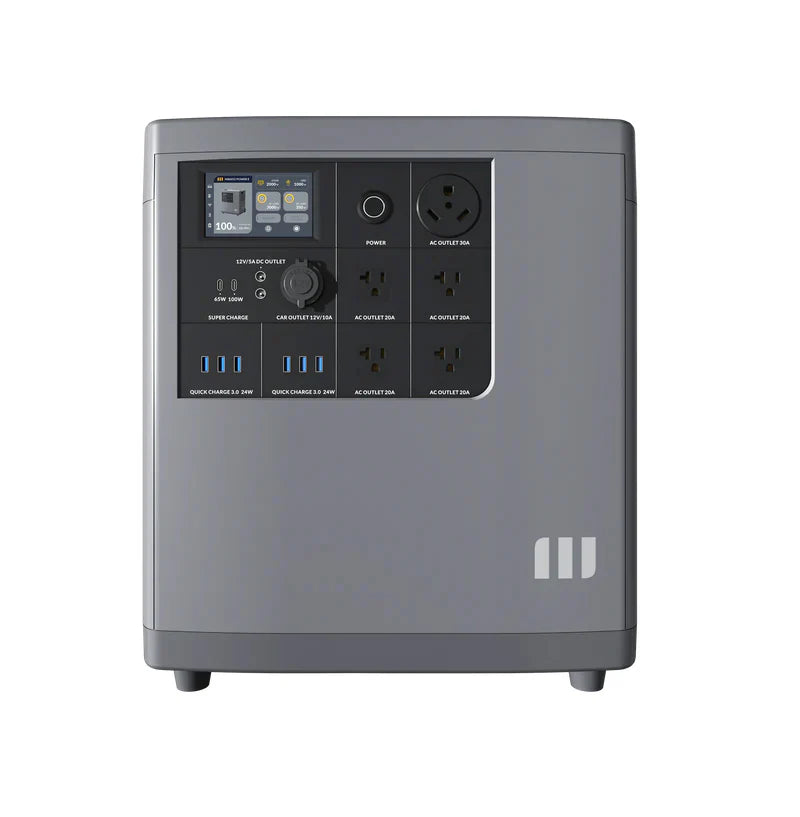

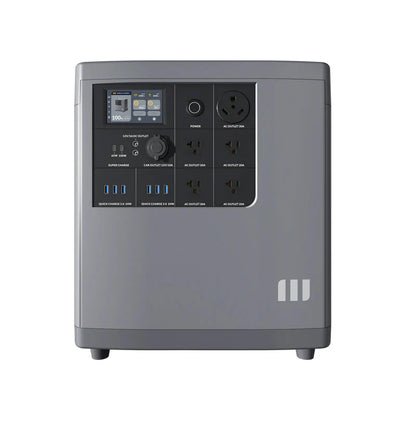

16 x Output Ports
6 Different of Outlets



Mango Power E and Battery Specifications

Product	Mango Power E	Mango Power E Battery
Net Weight	100 lbs (45.4kg)	73 lbs (33.18kg)
Size	17.8×13.6×19.4 inches (452x345x494 mm)	17.8×13.6×12.5 inches(452x345x318mm)
Working Temperature	Charging: -20°C~60°C Discharging: -30°C~60°C	Charging: -20°C~60°C Discharging: -30°C~60°C
Warranty	5 years	5 years
Certificates	Meets US and International Safety and EMI Standards	Meets US and International Safety and EMI Standards
Quick Charge	Recharge to 80% in 1 hour Recharge to 100% in 1.5 hours
Running Noise	<40dB under no-load <51dB under full-load”
IP level	IP21	IP21

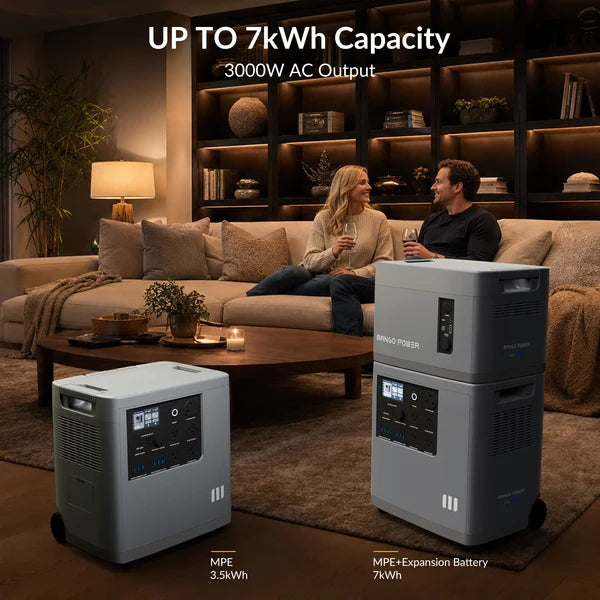

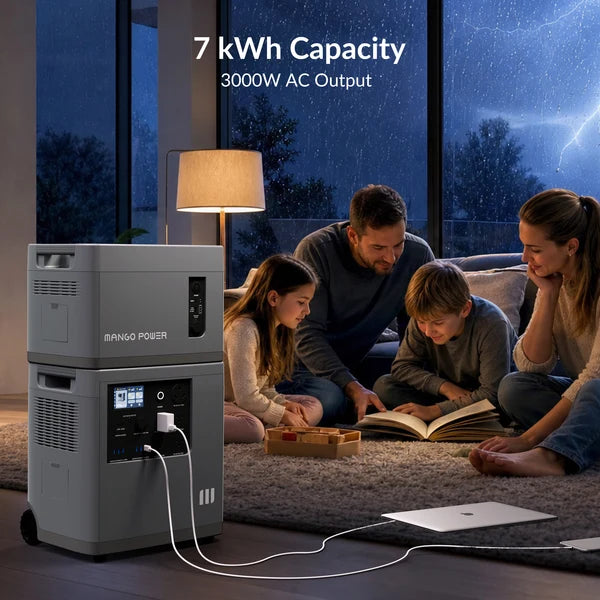

Capacity Expansion	Can expand the capacity by one E Battery to 7.06kWh
Power Expansion	Can expand the power by two to 6kW
240V split phase	With mSocket Pro or mPanel (sold separately), can output 240V split phase, 6000W
Home Backup	Support (need mPanel)
Battery
Battery Capacity	3.53 kWh	3.53 kWh
Cell Chemistry	World’s best CATL LFP	World’s best CATL LFP
Life Span	Capacity Retention >70% after 6000 cycles (@25℃, +0.5C/-0.5C)	Capacity Retention >70% after 6000 cycles (@25℃, +0.5C/-0.5C)
Battery Management Systems	Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low-Temperature Protection, Low Voltage Protection, Overcurrent Protection	Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low-Temperature Protection, Low Voltage Protection, Overcurrent Protection
Max charging rate	Up to 1.1C	Up to 1.1C
Input
Charging Method	AC Wall Outlet, Solar Panel, EV Charger, Generator	AC Wall Outlet, AC Adapter
AC Charging	Max 3000W	Max 3000W (by connected to MPE)/AC Adapter
Solar Charging	Max 2000W (60V-150V)
EV AC Charging Spot	Adapter needed
Generator
Inverter
Rated AC Output Power	3000W, 120V AC, 60Hz
Power of Over-load	3150W<load≤3750W, 5mins; 3750W<load≤4500, 60s 4500W<load≤4800W, 10s 4800W<load, less than 40ms
Maximum Power Point Trackers	1x, Support Both Roof and Portable Solar Panels
Inverter Efficiency	Up to 88%
Output
Output Ports	16	3
AC Output	4 x 20A
USB-A	6 x QC 3.0 27W	1 x QC 3.0 27W
USB-C	1 x PD 65W+1 x PD 100W	1 x PD 100W
Car Power Output	12V/10A	12V/10A
DC5521 Output	2x12V/5A
AC RV Port	30A
Smart Control
Connection	Bluetooth and Wi-Fi
App Remote Control	Yes
OTA Upgrade	Yes
USB Firmware Update	Yes
Customized Mode	Backup Power Mode / Economical Mode / Time-based Control Mode
Smart Measurement	Yes
Smart Energy and Carbon Footprint Report	Yes
Smart Notifications	Yes
Screen
Size	4.3 inches
Touch Screen	Yes
Resolution Ratio	480 x 800
Screen pigment	16.7M colors
Safety
Smart Self-Check System	Yes

ADDITIONAL DOCUMENTATION

Mango Power E User Guide

Mango Power E Layout
