Eco Solar Kits · Sungold Power · SGM-10K20

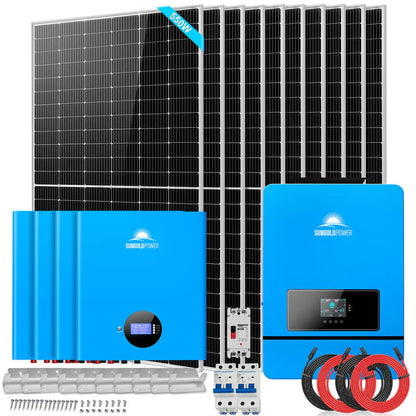

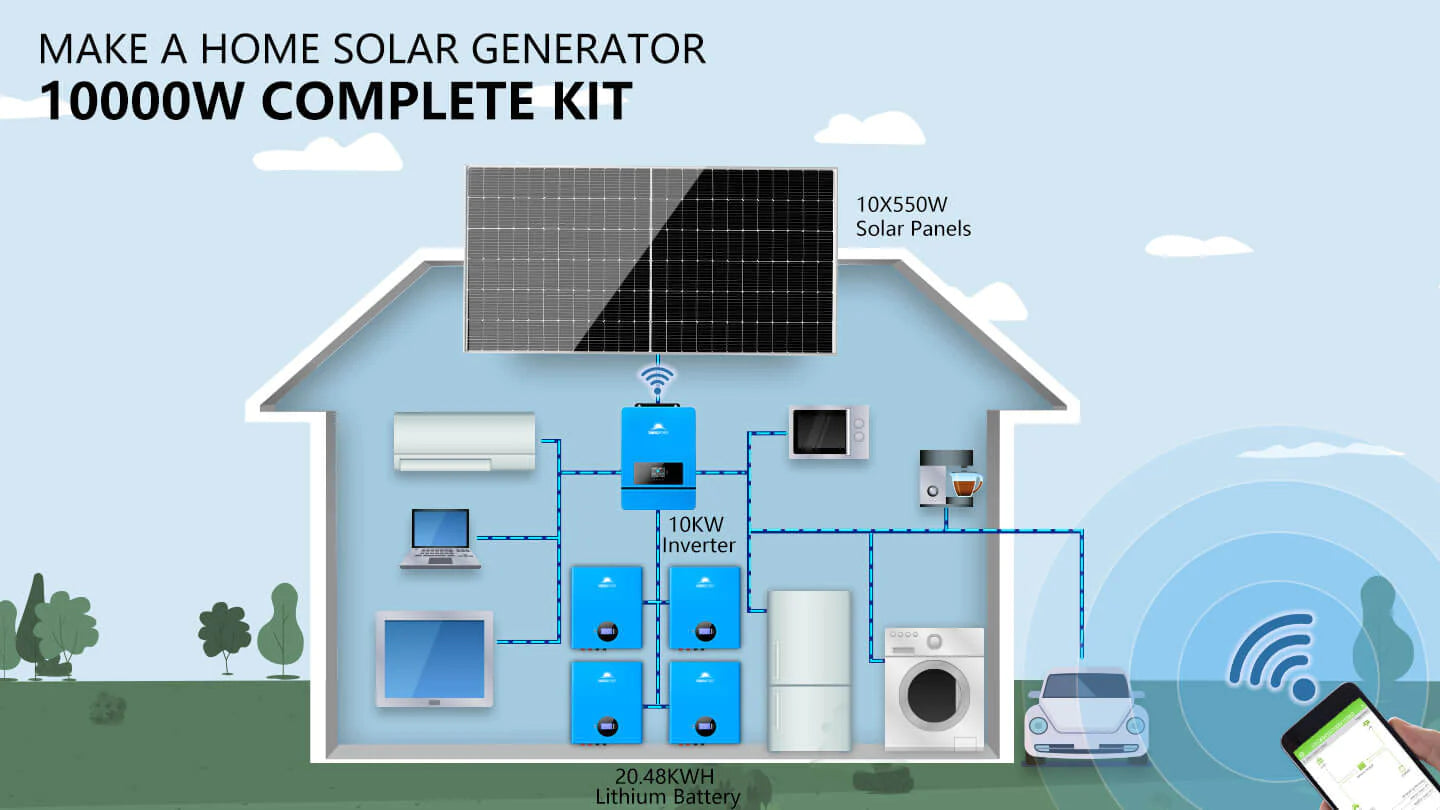

A complete off-grid solar system — 10,000W split-phase inverter, 20.48kWh of powerwall LiFePO₄ battery storage, and ten 550W monocrystalline panels — for cabins, shops, and homes.
Introducing our solar energy kit, designed to power your off-grid lifestyle with ease and efficiency. This comprehensive kit includes everything you need to harness the sun's energy:
With this setup, your solar array will generate approximately 22kWh per day, based on 4 hours of sunlight. Ideal for cabins, shops, and homes, this system provides reliable power wherever you need it.
But that's not all – the modular design allows you to customize your setup according to your specific needs. Add more batteries and solar panels as required to expand your energy capacity.
Embrace the freedom of off-grid living and embark on your solar adventure with our solar energy kit!
Rated continuous output with a 20-second surge rating triple the continuous power for motor starts and other high-draw moments.
Runs standard household circuits and larger 240V appliances from the same system.
Low standby draw keeps the system efficient even when appliances aren't actively running.
Track performance and energy data remotely through a dedicated mobile app.
Add more batteries and solar panels in the future as your energy needs grow.
Meets recognized North American safety standards for solar inverter equipment.
Junction box rated for full submersion protection, backed by a 25-year linear product warranty.

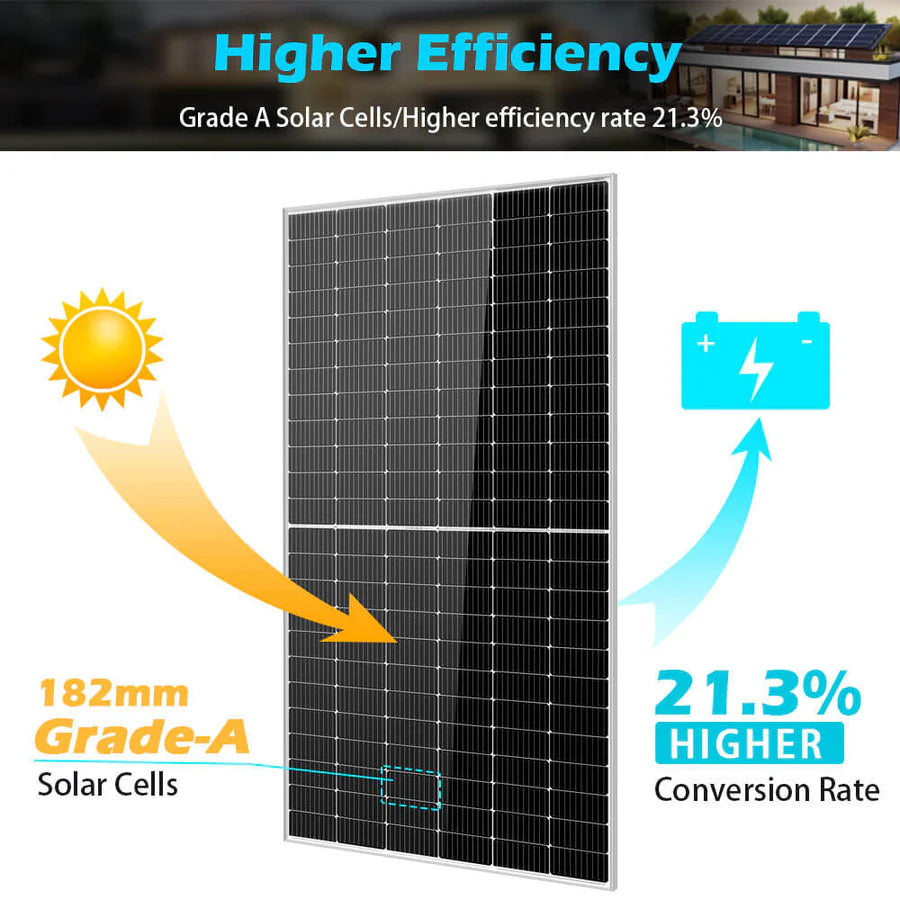

182mm Grade-A monocrystalline cells for a higher conversion rate per panel.

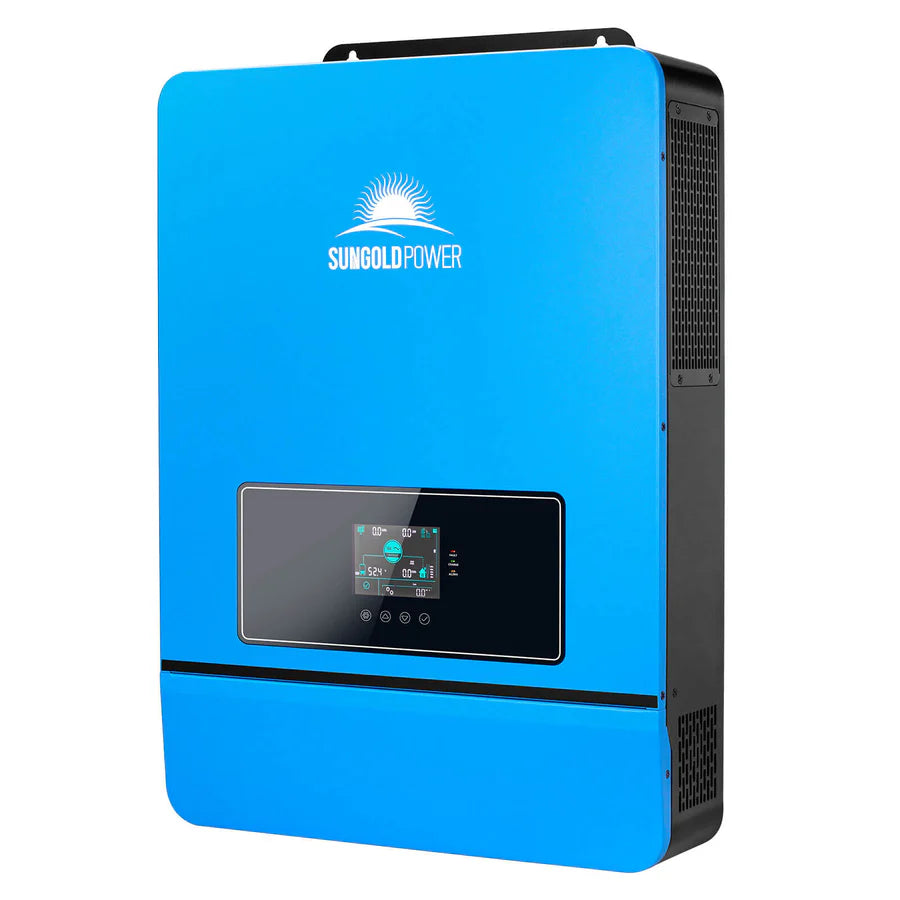

LF-PV 10KW Off-Grid Inverter/Charger (×1)
| Continuous output power | 10,000 W |
| Surge rating (20 sec) | 30,000 W |
| Rated output voltage | 120/240Vac split-phase |
| Waveform | Pure sine wave |
| No-load consumption | 100 W |
| Nominal DC input voltage | 48 Vdc |
| Safety | UL1741 Listed by ETL |
| Monitoring | WiFi app included |

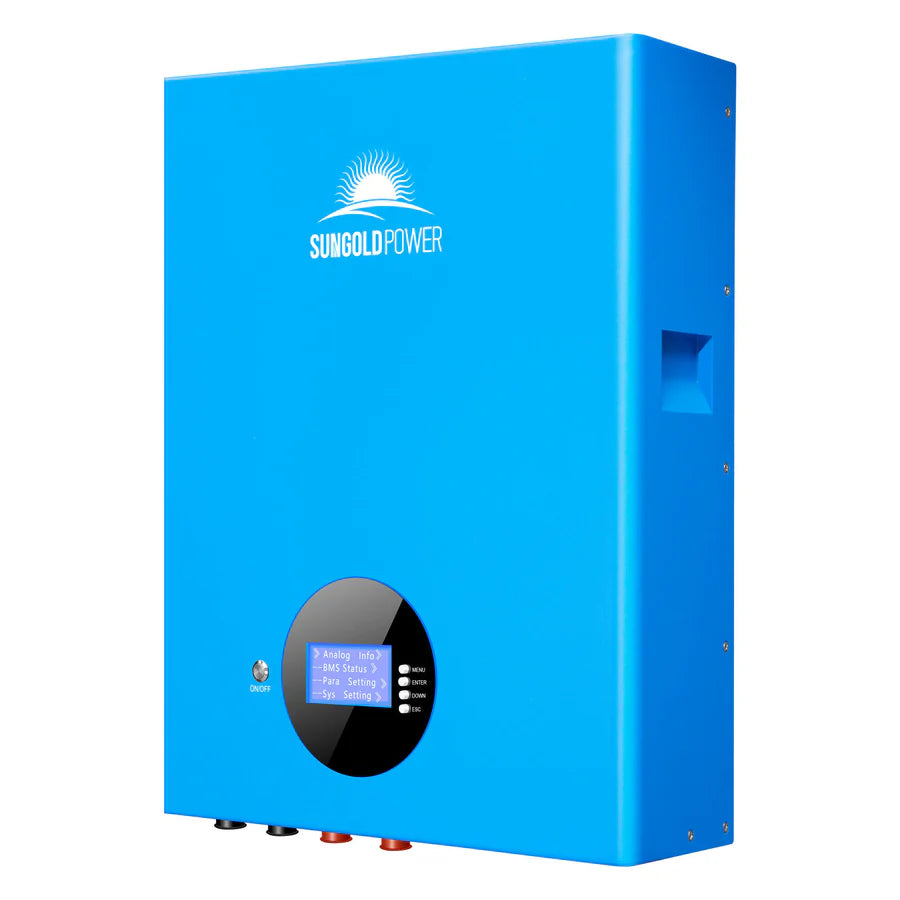

SG48100P Powerwall LiFePO₄ Battery (×4)
| Rated capacity | 100 Ah |
| Rated voltage | 51.2 V |
| Rated energy per unit | 5.12 kWh |
| Combined (4 units) | 20.48 kWh |
| Standard current | 50 A |
| Max. continuous current | 100 A |
| Cycle life | ≥7,000 @ 80% DOD |
| Design life | 15 years |
| Weight (each) | ~95 lbs (43 kg) |
| Dimensions | 16.5 × 22.8 × 5.5 in |
| Protection rating | IP20 (battery box) |
| Certification | UL1973 |
| Charging temp | 32–113°F |
| Discharging temp | -4–140°F |
| Max parallel | 63 batteries |
| Communication | RS232 / RS485 / CAN |
SG-550WM Monocrystalline Panel (×10)
| Max. power | 550 W |
| Max-power voltage | 41.96 V |
| Max-power current | 13.11 A |
| Open-circuit voltage | 49.9 V |
| Module efficiency | 21.28% |
| Cell type | Mono 182×91mm (144 cells) |
| Weight (each) | 63.05 lbs (28.6 kg) |

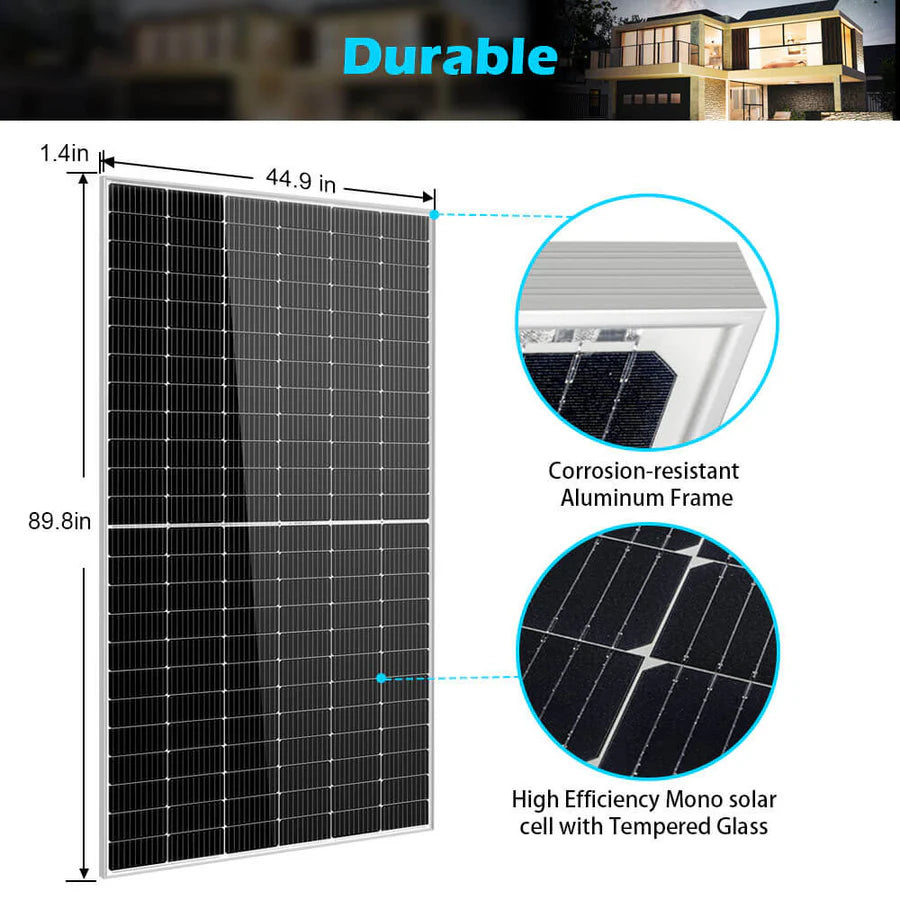

| Dimensions | 89.72 × 44.65 × 1.38 in |
| Junction box | IP68 |
| Warranty | 25yr linear product + 10yr workmanship |
With about 4 hours of direct sunlight, this system generates roughly 22kWh per day — ideal for cabins, shops, and homes, per the manufacturer's own description.
Yes — the LF-PV 10KW inverter has integrated solar charging, so no separate MPPT controllers are needed for this kit.
20.48kWh combined from four 5.12kWh powerwall batteries.
Yes — the modular design lets you add more batteries and solar panels as required to expand your energy capacity, per the manufacturer's own product description.
Cabins, shops, and homes, per the manufacturer's own product description — anywhere reliable off-grid power is needed.
Given the scale of this system — a 10,000W inverter and a 20.48kWh battery bank — installation should be handled by a qualified, licensed electrician familiar with your local code.
Solar System Upgrade – Implementation & Outcomes
1. Background
* Existing setup: 4.6 kWh solar array installed several years ago.
* New demands: Added an EV, network gear, security cameras, NAS, etc., so the original capacity is insufficient.
* NEM constraints: The installer can’t add more panels without converting from NEM 1.0 to NEM 3.0—where the export rate would drop to 75%.
2. Solution Search
After months of research on internet forums and YouTube, I settled on a turnkey system that could be installed independently:
Component,Model & Specs
Inverter,Sungoldpower 10 kW DC, 48 V, UL1741 compliant
Battery bank,Four Sungoldpower SG48100M LiFePO₄ powerwalls (5.12 kWh each)
Solar panels,Renogy Bifacial, N‑type monocrystalline, 590 W × 4
3. Installation Steps
1. Panel mounting
* Fixed the four Renogy panels on the backyard patio.
* Routed all DC cables from the panels to a central point in the garage.
2. Garage frame & safety
* Built an 8 ft × 4 ft plywood support inside the garage and treated it with fire‑proof paint.
* Affixed strut channels to the frame for mounting heavy equipment.
3. Hardware installation

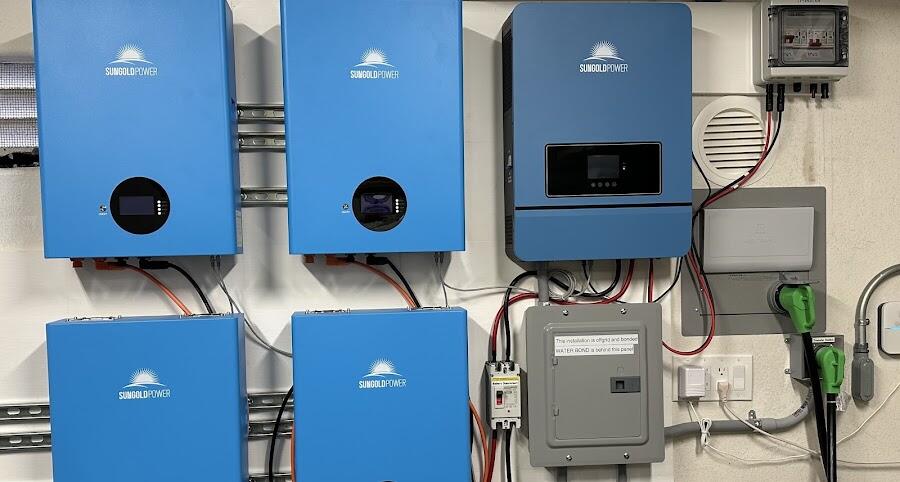

* Hanged the Sungoldpower inverter and the four LiFePO₄ batteries on the struts (two helpers required).
* Connected the supplied cables between inverter & batteries; attached the solar DC lines to the inverter as per manufacturer instructions.
4. System integration
* Hooked the inverter to the internet and performed a firmware upgrade.
* Carefully followed every instruction to avoid connectivity or safety issues.
5. Electrical control
* Installed a circuit‑breaker load center.
* Added a manual transfer switch and an EV charger.
* The transfer switch allows me to select which circuits draw from the solar system—critical during grid outages, where the older NEM 1.0 setup would otherwise prevent any solar use for safety reasons.
4. Results (After Several Months of Operation)
* Reliability: No incidents or faults reported.
* Performance: The 10 kW inverter operates within specifications; battery bank meets daily load, including the EV and network gear.
* Power sufficiency: The added panels supply adequate energy for all connected devices (security cameras, NAS, etc.).
Conclusion: By selecting a self‑contained solar solution and installing it independently, I was able to bypass NEM 3.0 restrictions and meet my current power needs without sacrificing safety or reliability. Best Solar Inverter!
(Review from sungoldpower.com)

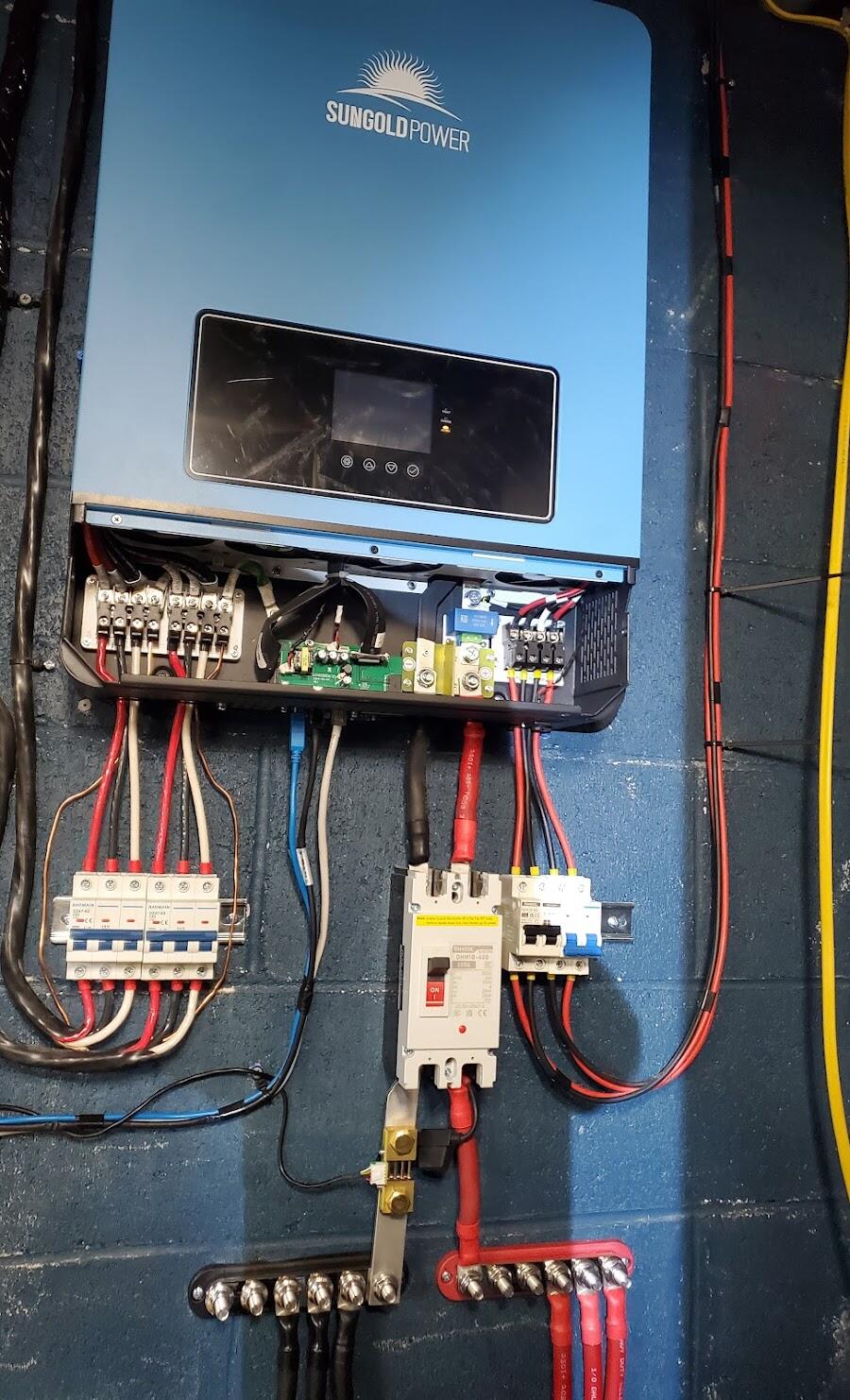

We purchased our 10k Solar system directly from Sun Solar.
This is our 5 star review of our 10k solar system.

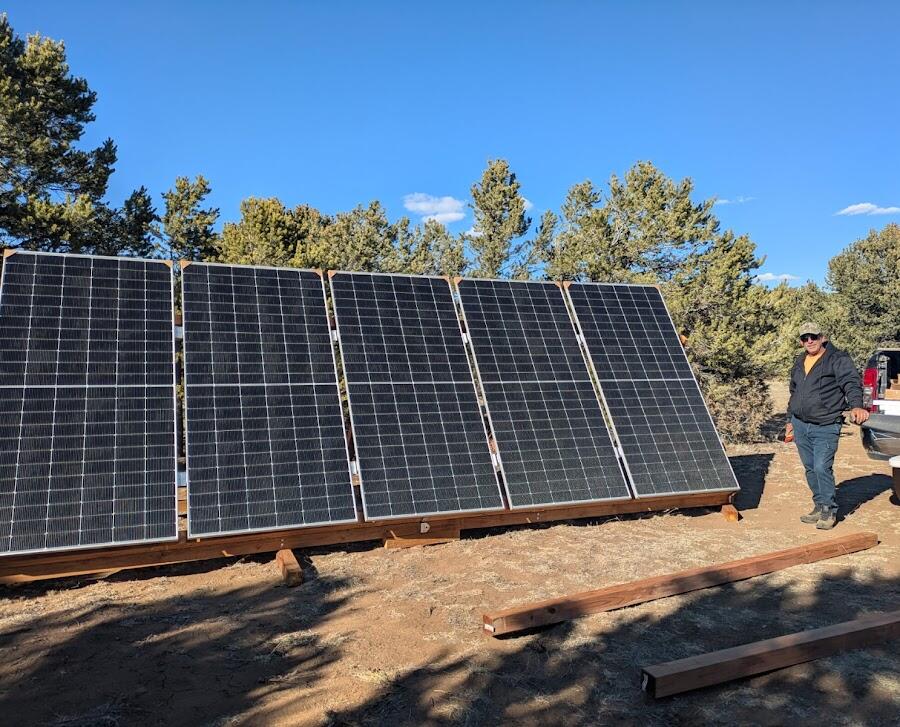

Our Sun Solar system came in complete, and packed well to avoid any damage. I have never installed anything solar previously. This was a DIY off grid install. The system instructions were easy to read and follow. The panels and equipment installed according to the instructions. The system powered up the first time and we have had power every since. We also found several Sun Solar videos to reference, as well as googling our questions ( communication fault at first). We love the Wifi communication device that transmits realtime information to an app on our phone. Allows for great realtime monitoring.
(Review from sungoldpower.com)

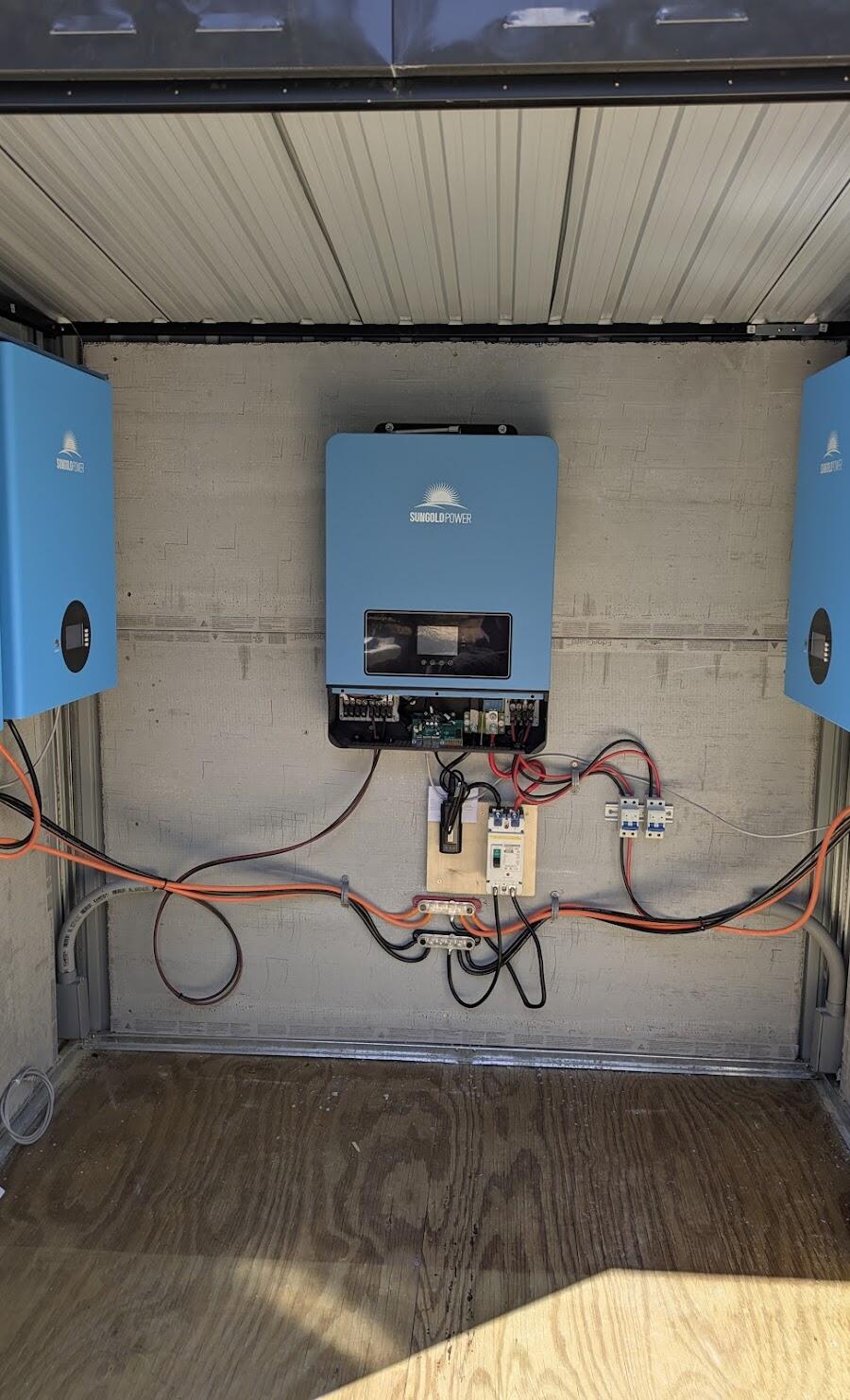

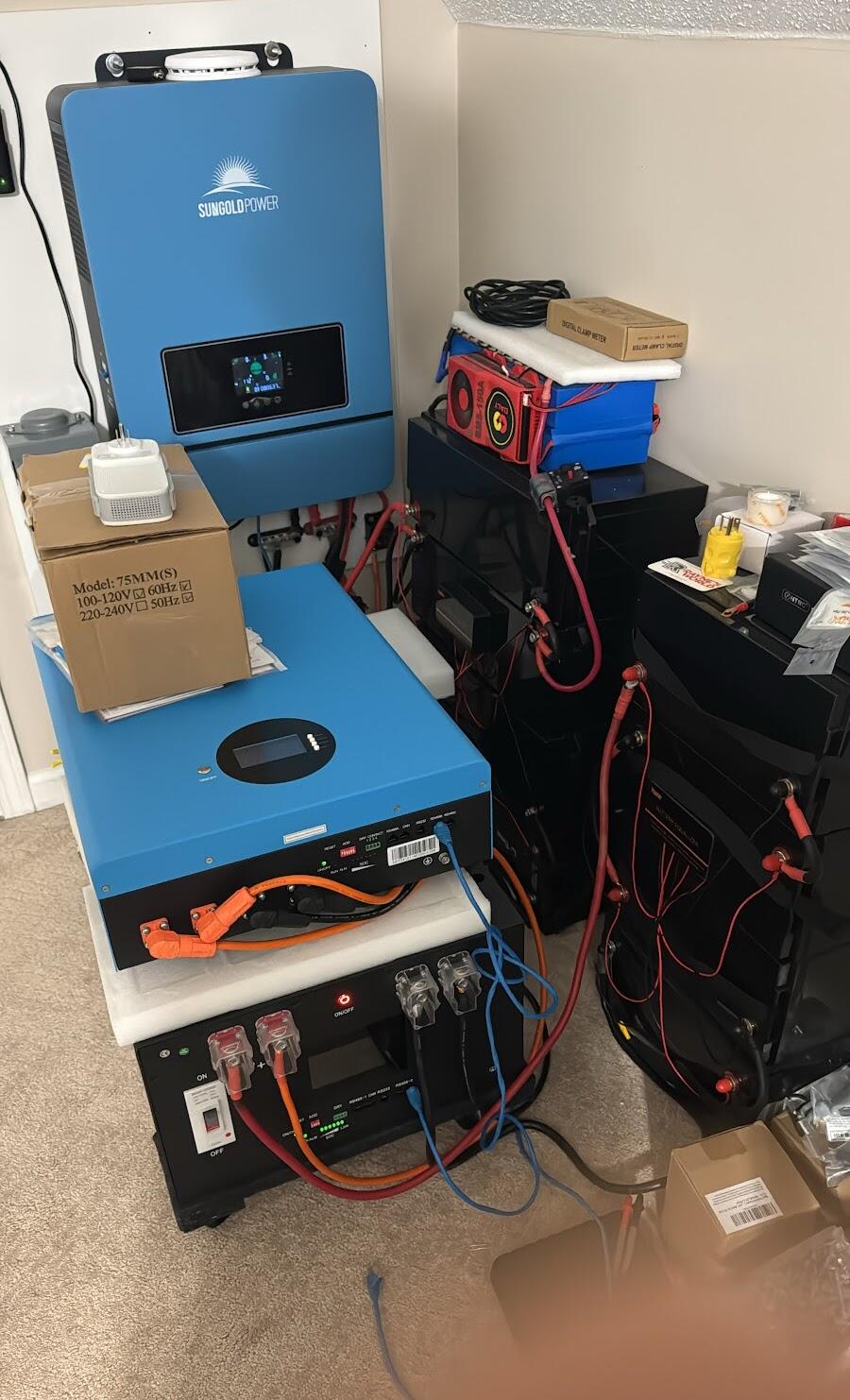

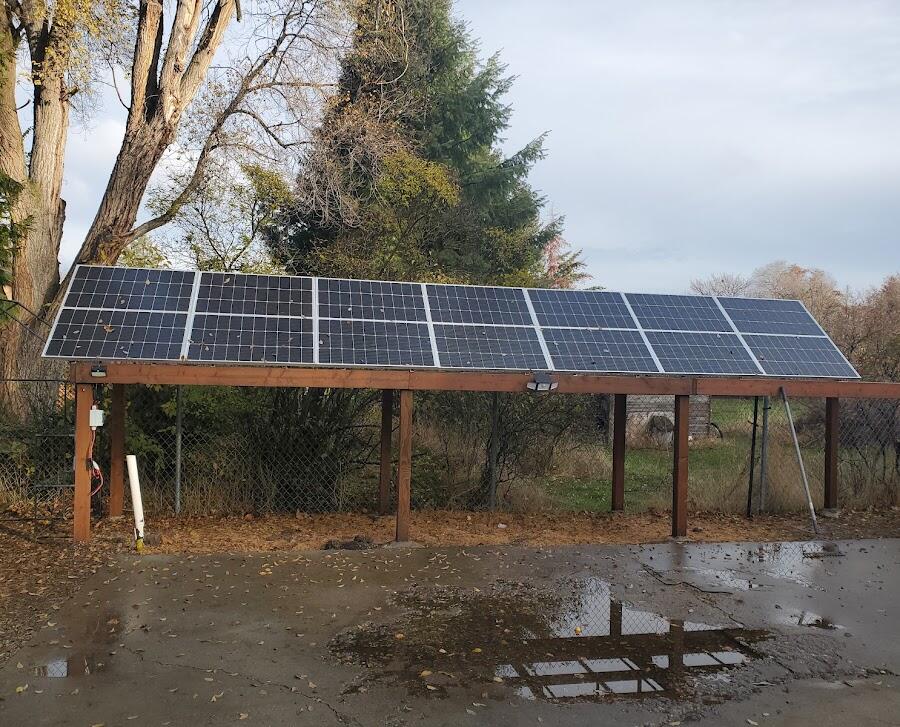

We had purchased a 10KW 48V Split Phase Solar Inverter from Sun Gold Power directly in December of 2025. We have been setting up our new small system mostly for a backup in case of power failure as the winter months do not produce much sunlight in our northwestern location. We chose the location, mounted the inverter, then had to finish the solar panel mounting system. We custom designed and chose to use a four foot elevated wooden universal platform. After a couple of weeks to finish the wiring and mounting 550 watt panels the system was up and running in January 2026. We have 550 watts of panels just now in April starting to charge our 4pcs 48V 200Ah batteries. The system so far has been working great and will be expanding solar panels and battery capacity in the near future. We purchased a Solar Assistant terminal to monitor the system performance and is so much easier to adjust the settings.
(Review from sungoldpower.com)
I have this inverter for about a year and is good i will used to charge my New EV. by now i have a 5 kilowatt sun gold battery and 30 that i make it and charger good i love this inverter.
(Review from sungoldpower.com)
Excelente equipo también la empresa es muy amable y te atiende si tienes cualquier problema esto es lo mejor de lo mejor
(Review from sungoldpower.com)
