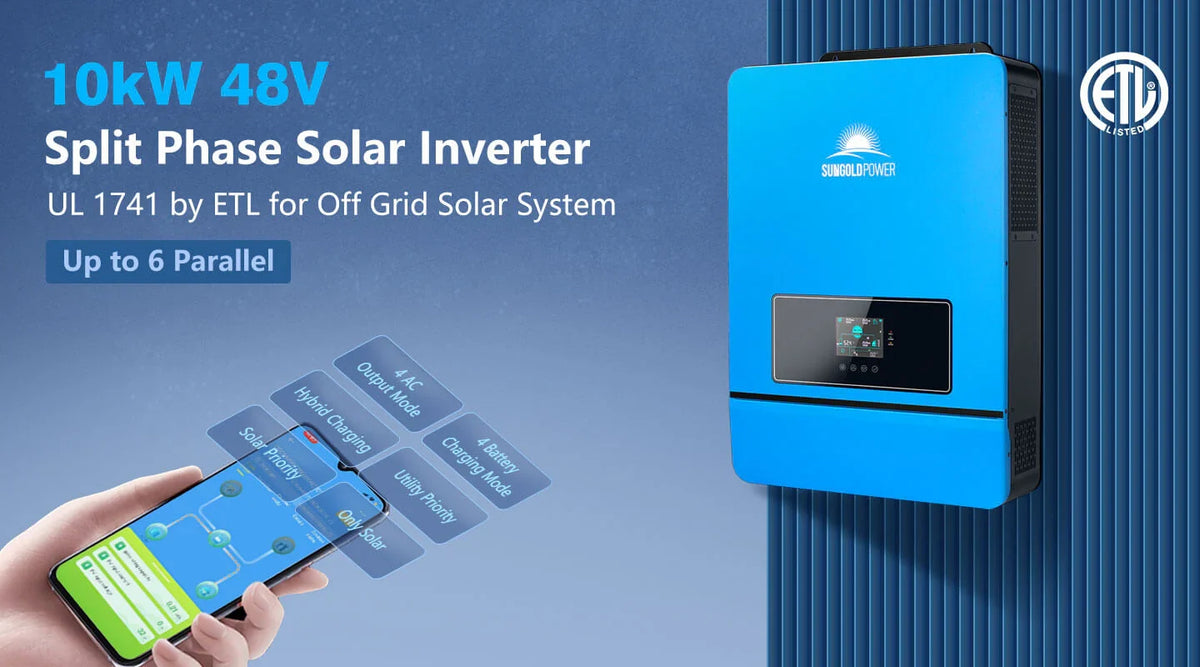

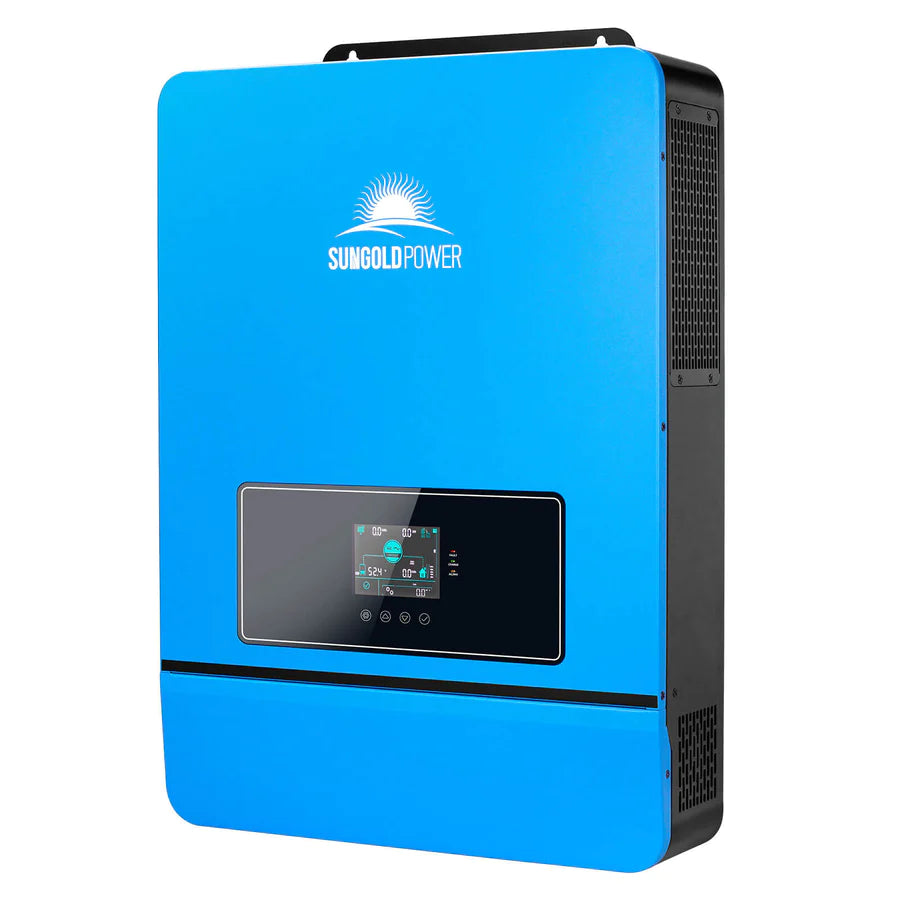

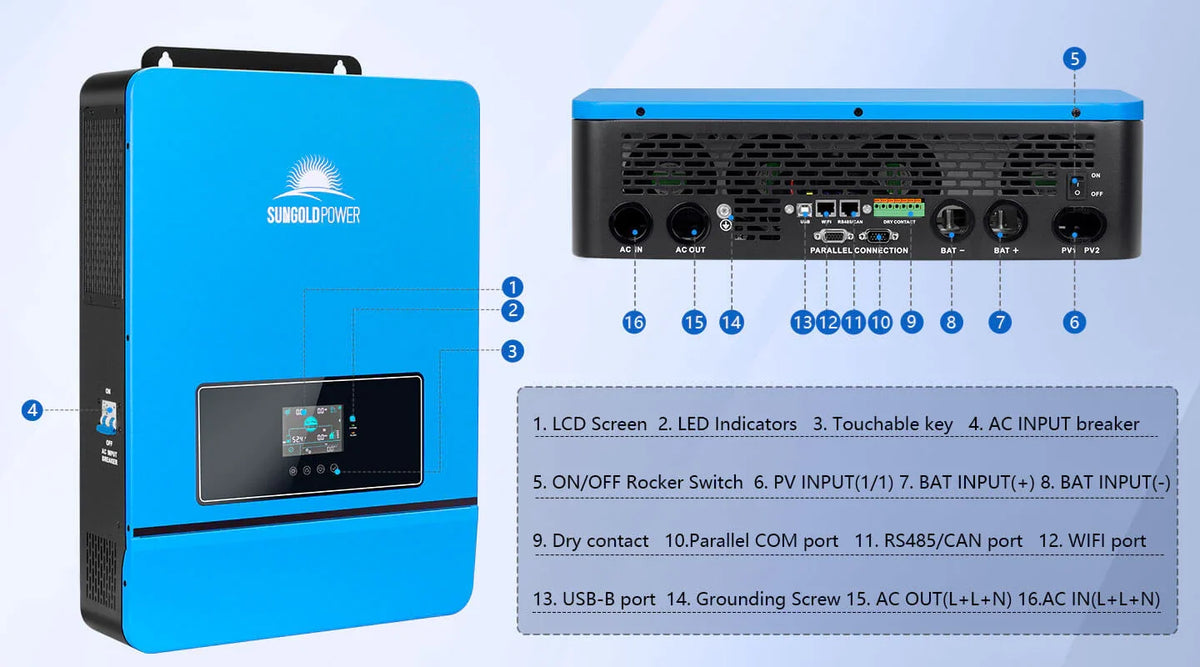

SUNGOLD POWER 10KW 48V SPLIT PHASE SOLAR INVERTER

SKU: SPH10K48SP
AvailabilityIn stock
Regular price $1,584.00
Regular price Sale price $1,584.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI or AK)
  • $0 SALES TAX For Every Order (WY is an exclusion)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Delivery Information

Delivery information

Payment Methods

Return and Refund Policy

Live Chat

Live Agent

View full product details

FEATURES

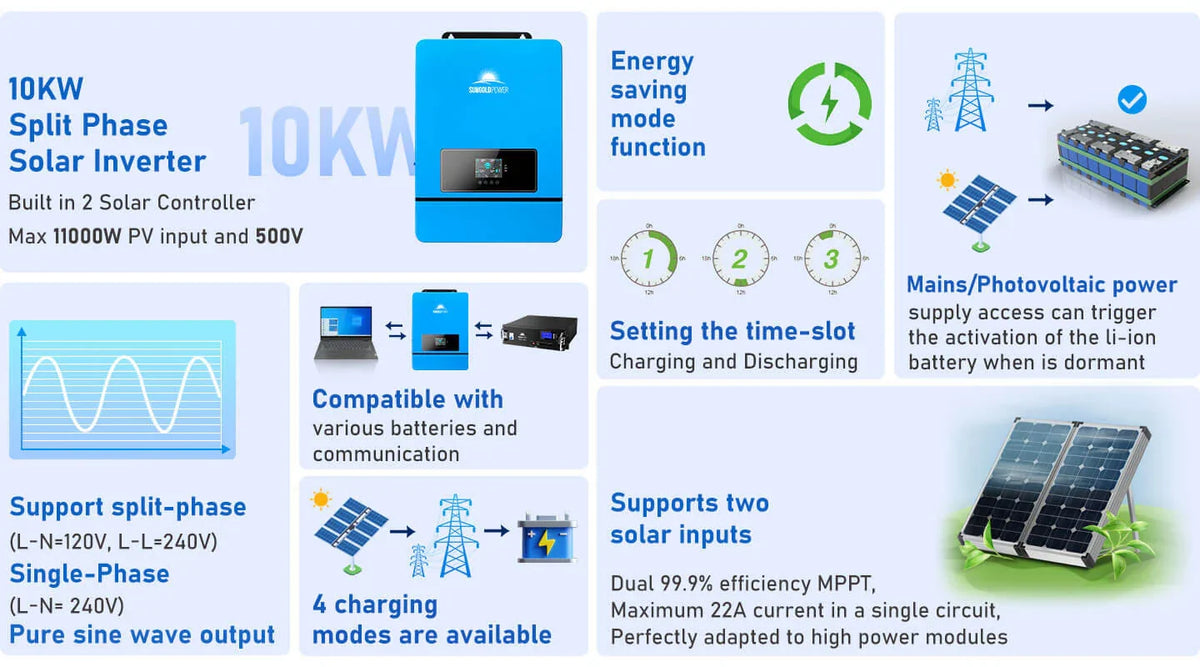

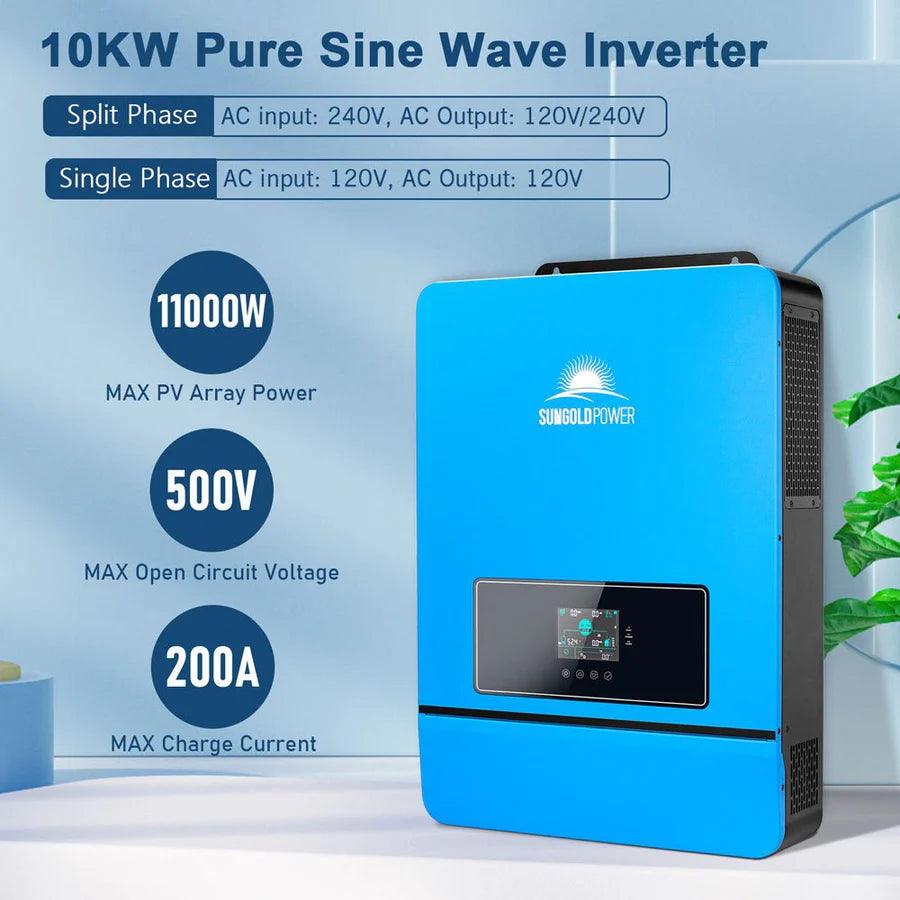

  • All in one unit: 10KW Pure Sine Wave Solar Inverter Combined with Max 200A battery charging, 2 MPPT Solar controller inbuilt, Max. Voltage of Open Circuit: 500VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP.

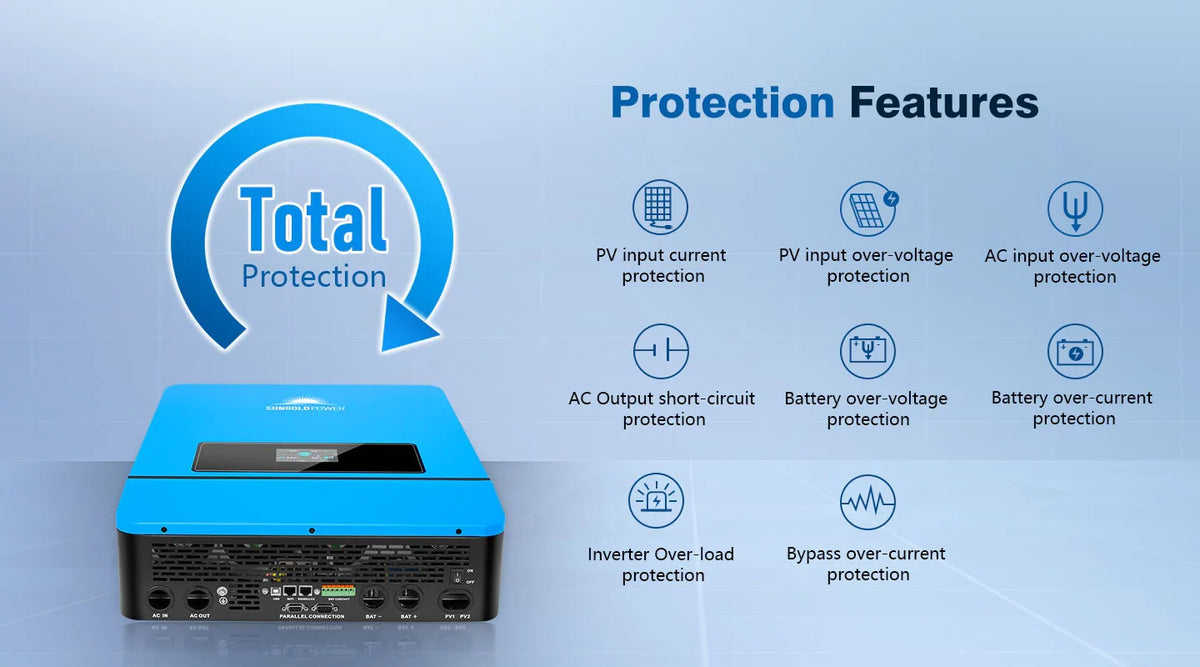

  • Stable AC output and Smart Protection: Rated Output Power: 10000W, Max Peak Power: 20,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.

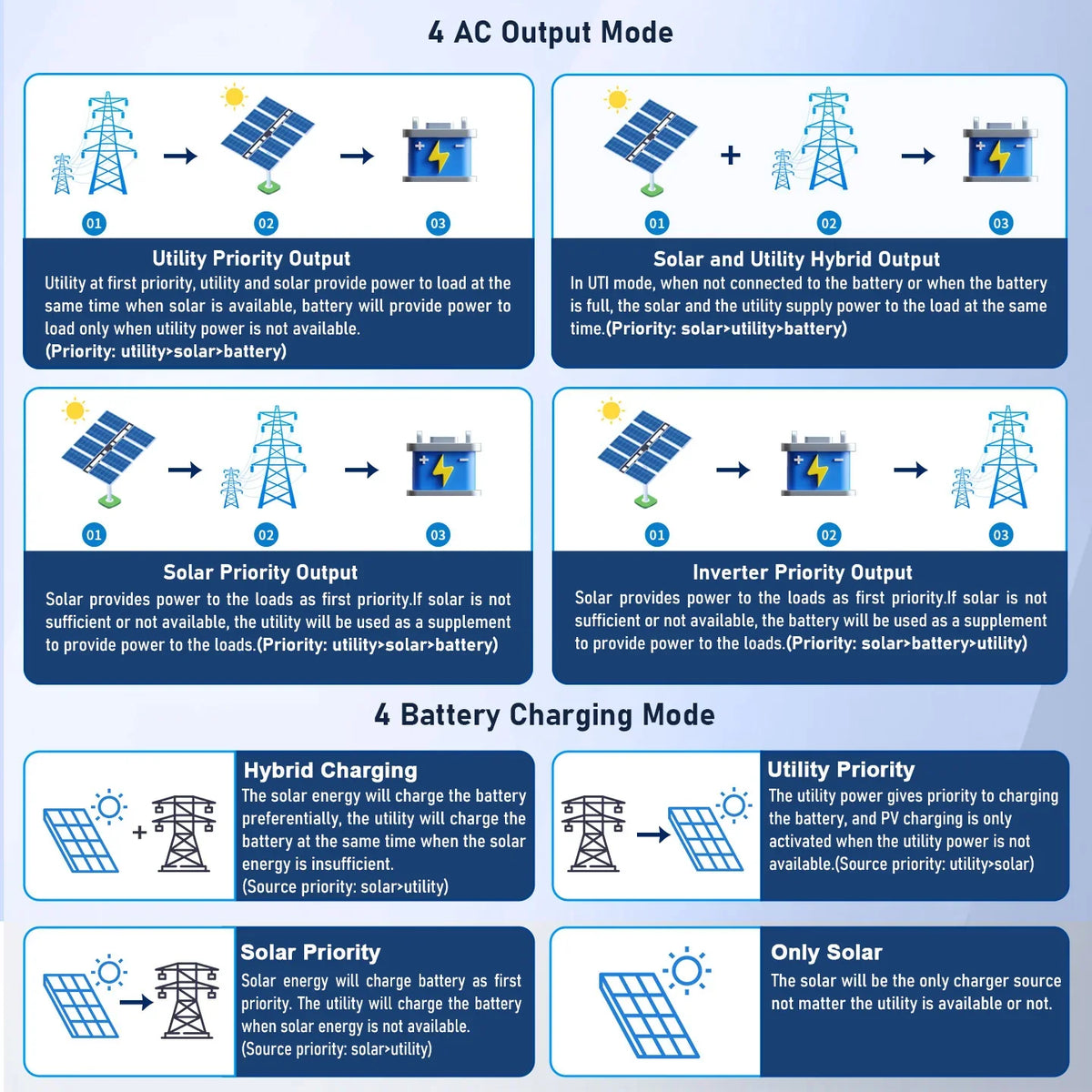

  • Four charging / Output modes: Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes: Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.

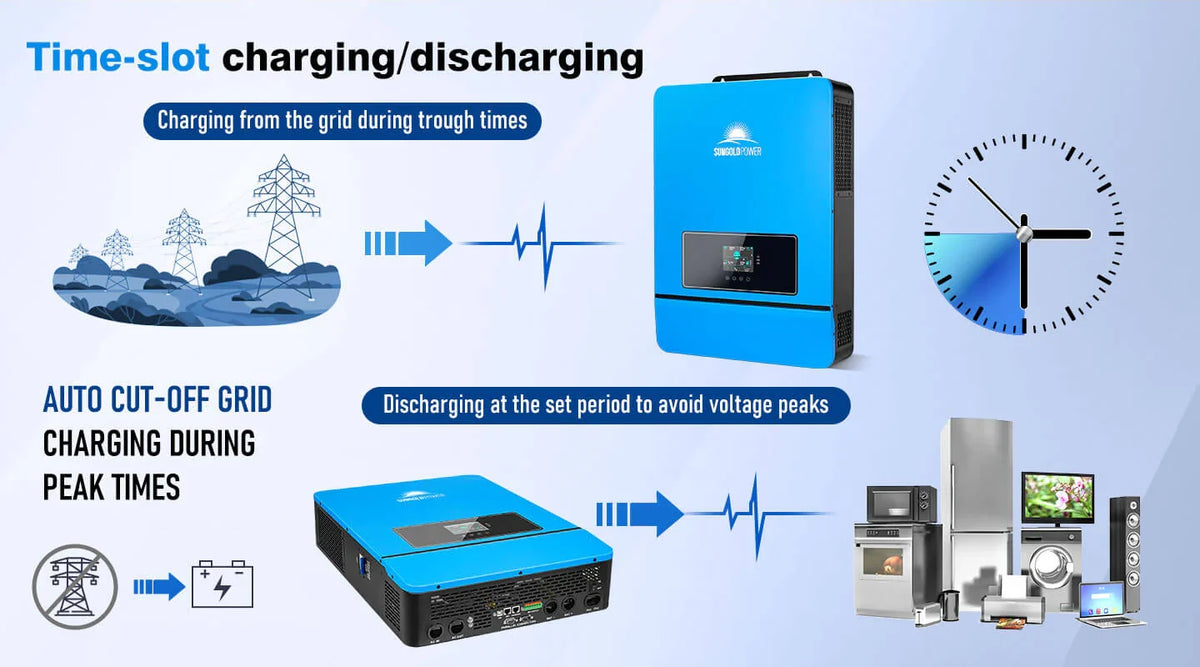

  • Time-slot charging/discharging function: The SPH series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

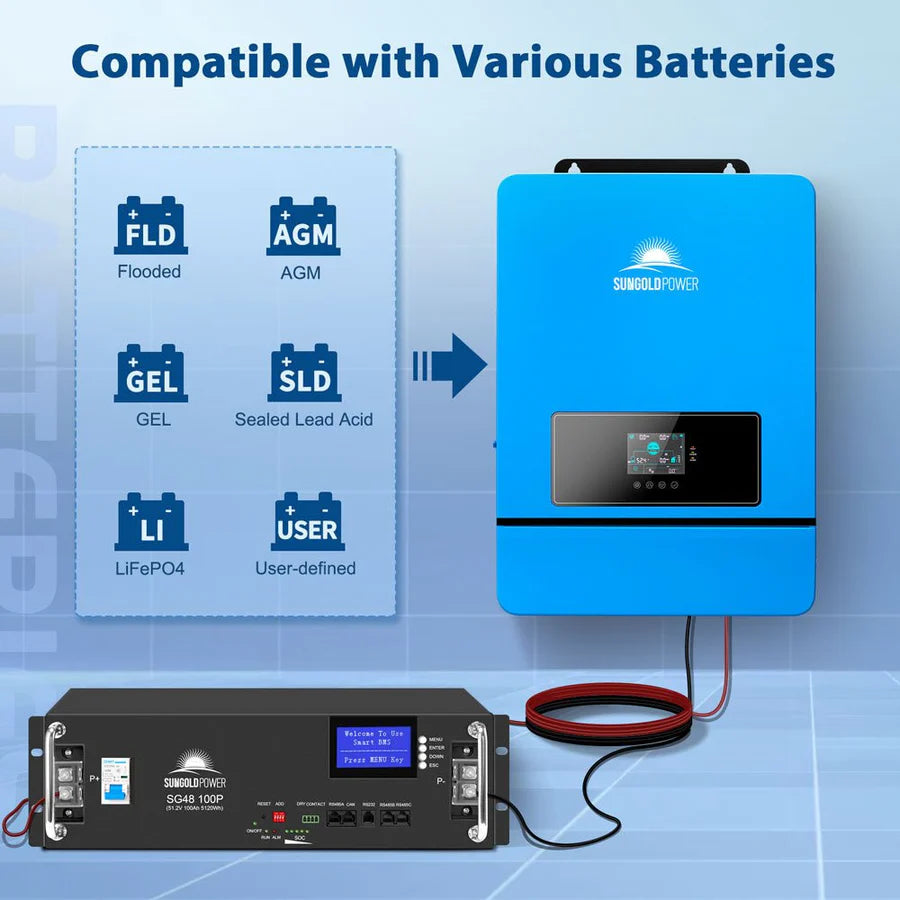

  • Battery type: 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. and supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. Support Can, USB and RS485 communication with SunGoldPower batteries.


10KW-01.jpg__PID:db075cb4-1459-42aa-af3c-d28ad84480f5
10KW-02.jpg__PID:a28044d7-26f4-46f6-9ff9-020a4f6a5507

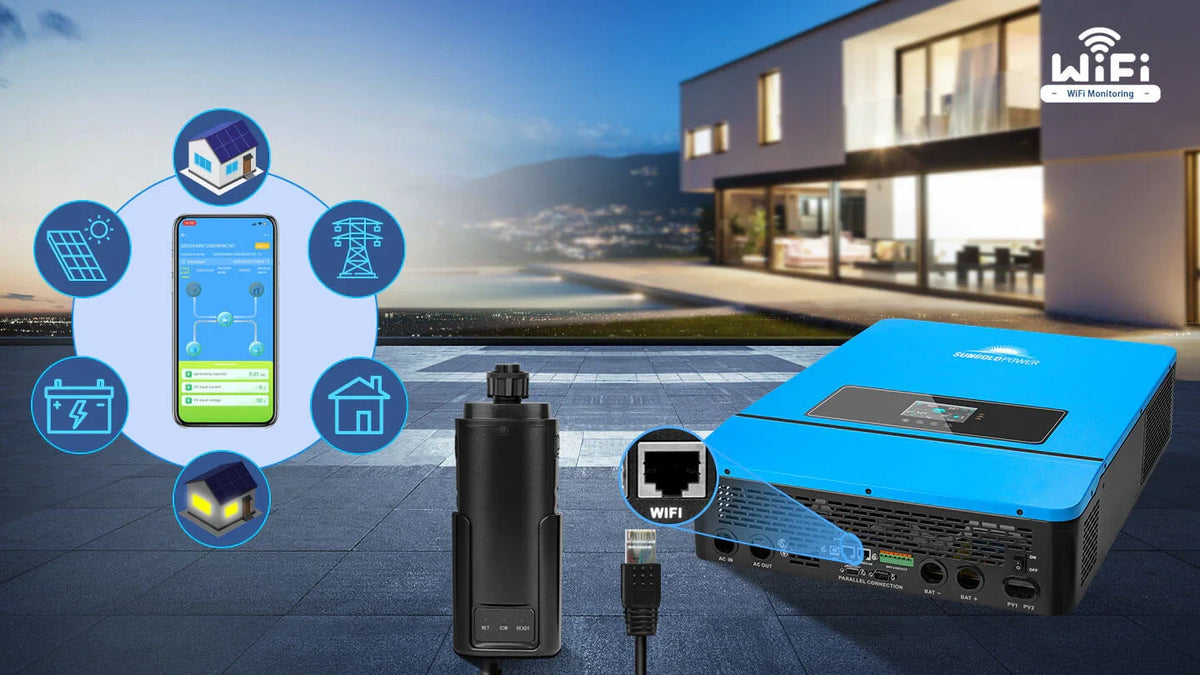

WIFI MONITORING

Configured with Wi-Fi components, allowing user to quick and easyaccess to inverter data on mobile phone.

10KW-03.jpg__PID:8044d726-f4e6-461f-b902-0a4f6a5507e1
详情04.jpg__PID:9e2ee310-5fcb-49a3-81b8-83592c9d695c

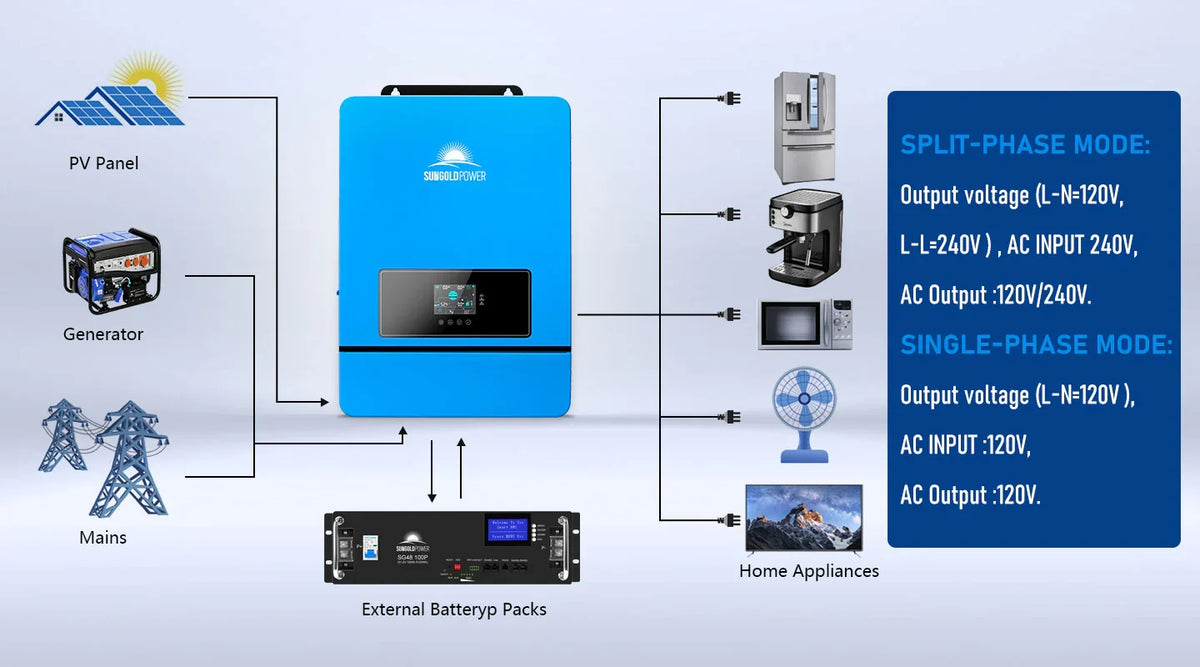

SYSTEM CONNECTION

PV can charge the battery and supply the power to the load by inverter, if PV orbattery is no power, you canpowerthe load and charge the battery by the gridor generator.

详情05.jpg__PID:2a1d8c27-1d7e-418d-9b5b-26127dc07130
10KW-06.jpg__PID:d726f4e6-f61f-4902-8a4f-6a5507e1f6f3

GRID TIED FUNCTION

An off-grid solar inverter with solar panels that generates electricity, stores that power in solarbatteries, and runs independently from the power grid.

10KW-08.jpg__PID:4b59f196-f8a1-4d44-b91d-a9c4d07d1147
10KW-07.jpg__PID:26f4e6f6-1ff9-420a-8f6a-5507e1f6f384
10KW-09.jpg__PID:7f787083-e115-4133-bae8-0d5f1a07ef40

Specifications


ADDITIONAL DOCUMENTATION

8K-10KW Split Phase Solar Inverter  User's Manual
