Wall-Mounted Battery · 5.12kWh · 51.2V

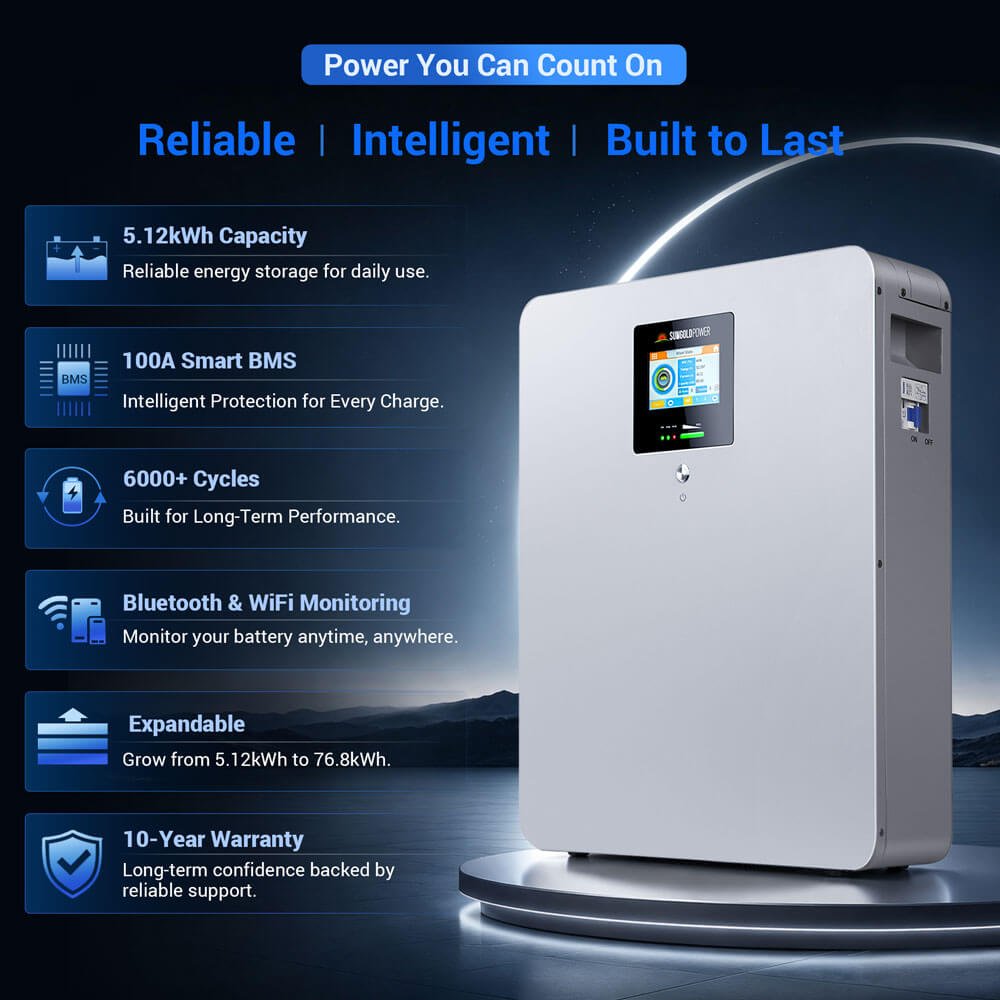

A slim wall-mounted 51.2V 100Ah LiFePO4 battery built on EVE Grade A cells, with a 100A smart BMS, LCD plus Wi-Fi/Bluetooth monitoring, CAN/RS485 inverter communication and expansion to 15 units (76.8kWh).

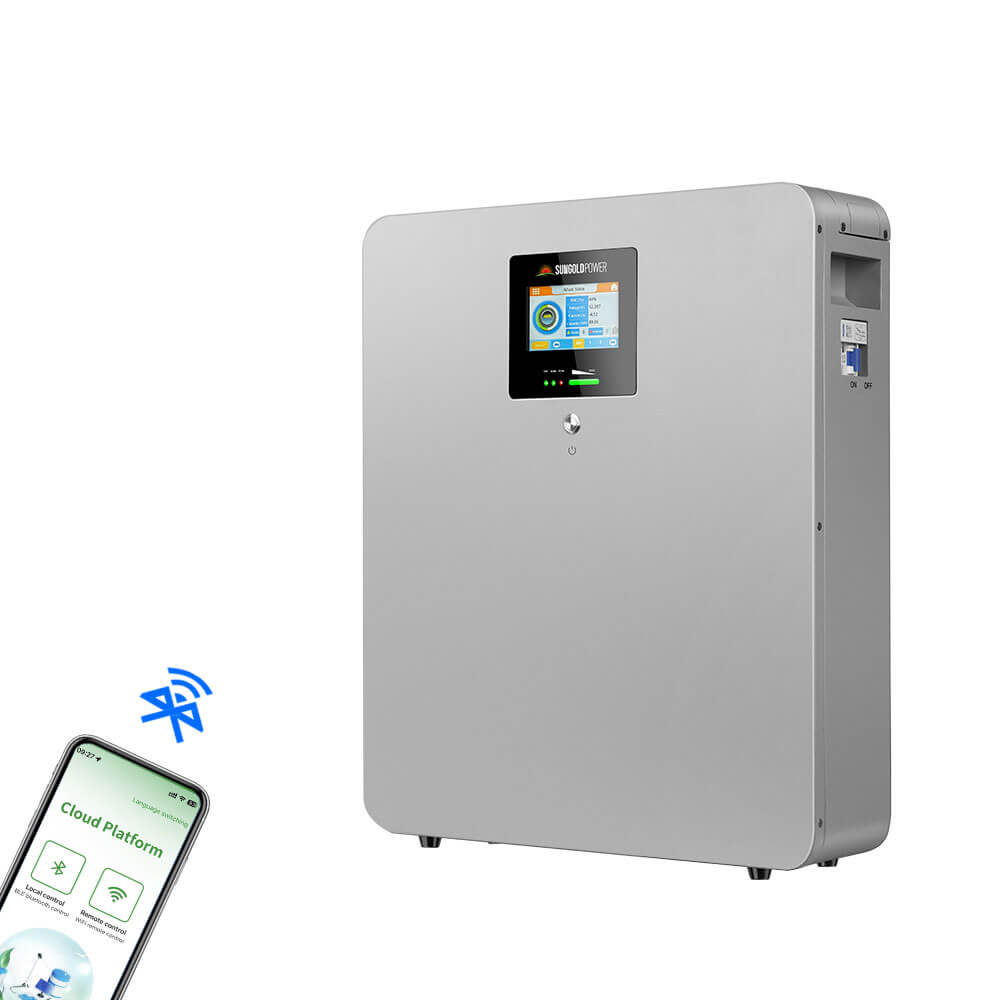

The Sungold Power CoreX 5 Elite is a residential energy storage battery designed to hang on a garage or utility-room wall next to your inverter. Each unit stores 5.12kWh at 51.2V (100Ah) in a 1P16S LiFePO4 pack built from EVE Grade A cells - one of the most widely used cell manufacturers in stationary storage - and is rated for 5,000 cycles at 100% depth of discharge while retaining 80% capacity.
A 100A smart BMS with multi-layer protection and cell balancing manages every charge, and the front LCD shows state of charge, voltage and current at a glance. Wi-Fi and Bluetooth connect the battery to the SunGoldPower app for real-time and historical data. CAN, RS485 and RS232 ports provide closed-loop communication with SunGoldPower inverters and most major brands, including Sol-Ark, EG4, Growatt, Deye, Victron, Schneider and MPP Solar.
Start with one battery for essential backup and expand as needs grow: up to 15 CoreX 5 Elite units parallel on one bus for 76.8kWh of storage. It is backed by a 10-year warranty.
Browse all Sungold Power products, Sungold solar kits, inverters and batteries.

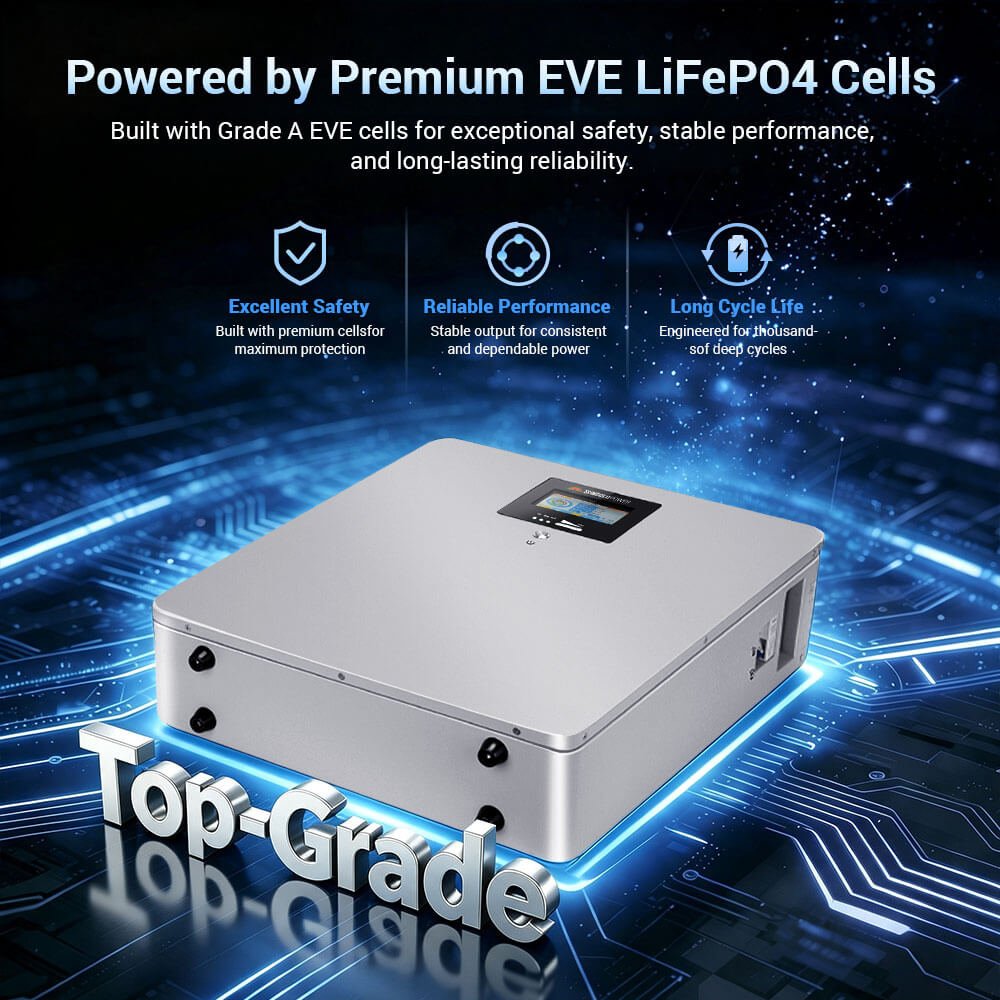

Premium cells with high consistency, batch traceability and long cycle life - not unbranded or lesser-known cells.
Real-time monitoring, cell balancing and full over-voltage, over-current, over-temperature and short-circuit protection.

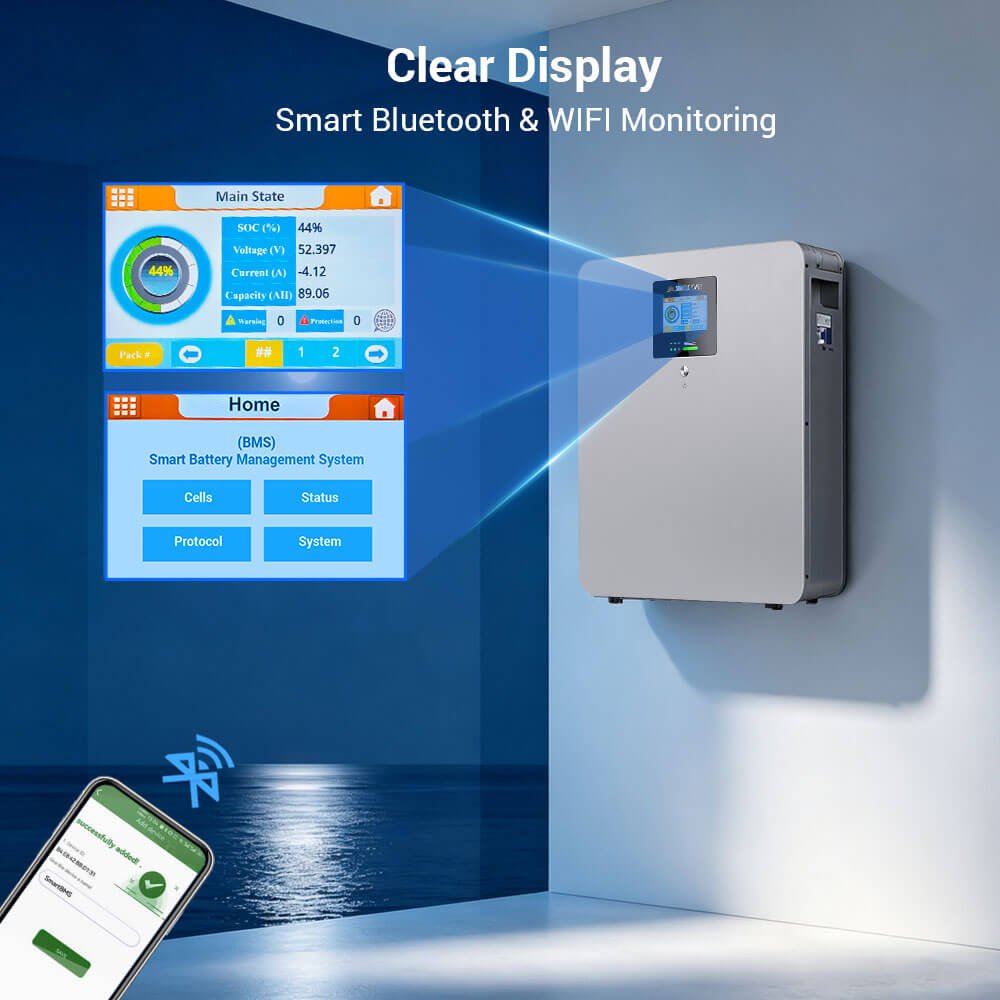

Read status on the built-in display or from your phone; the app keeps historical data for troubleshooting and planning.

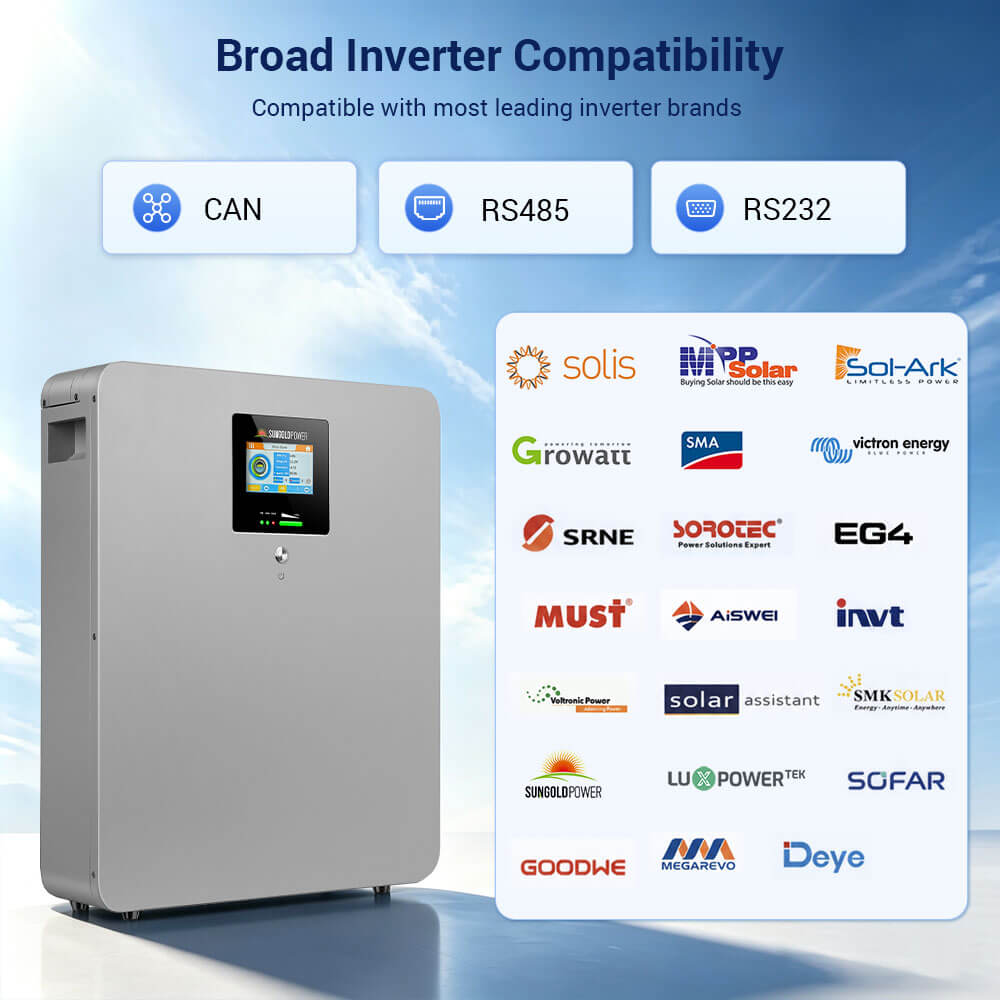

CAN / RS485 / RS232 closed-loop communication with SunGoldPower, Sol-Ark, EG4, Growatt, Deye, Victron, Schneider, Luxpower, MPP Solar and more.

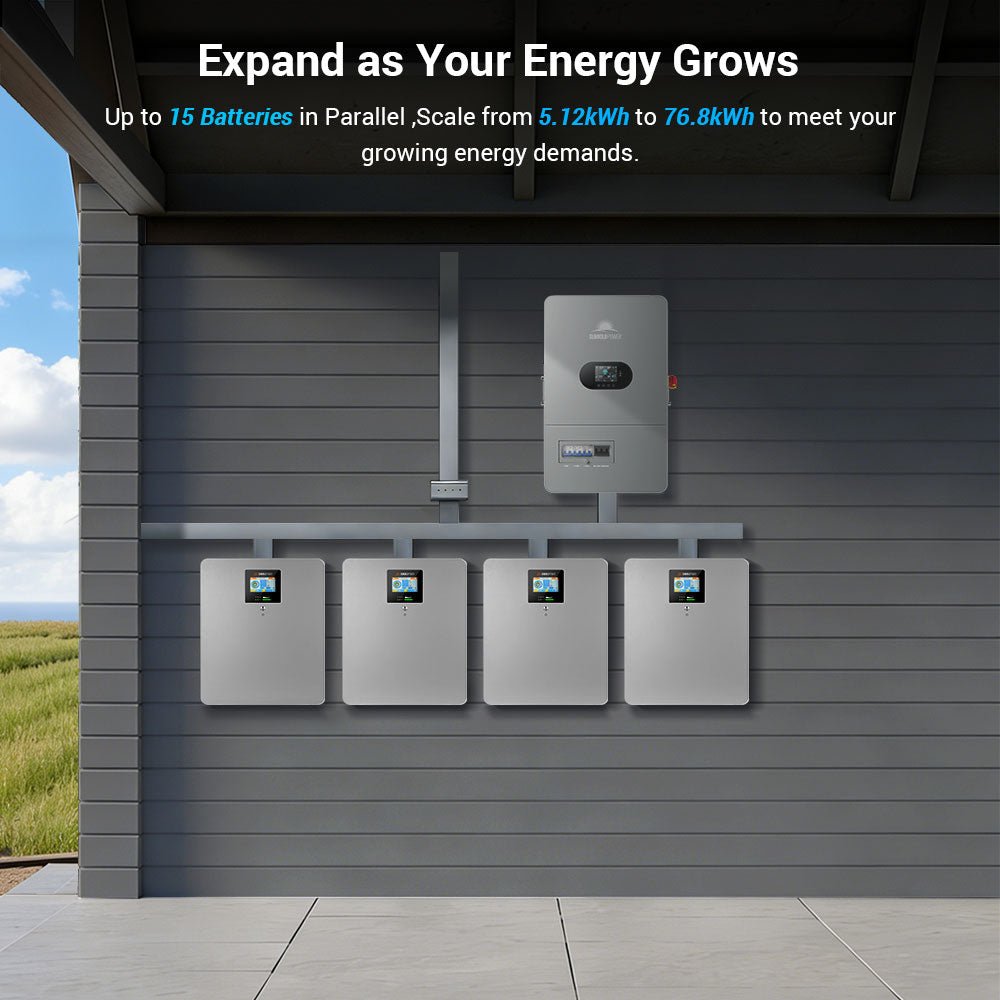

Parallel up to 15 units for larger homes or small commercial sites, starting from a single 5.12kWh module.

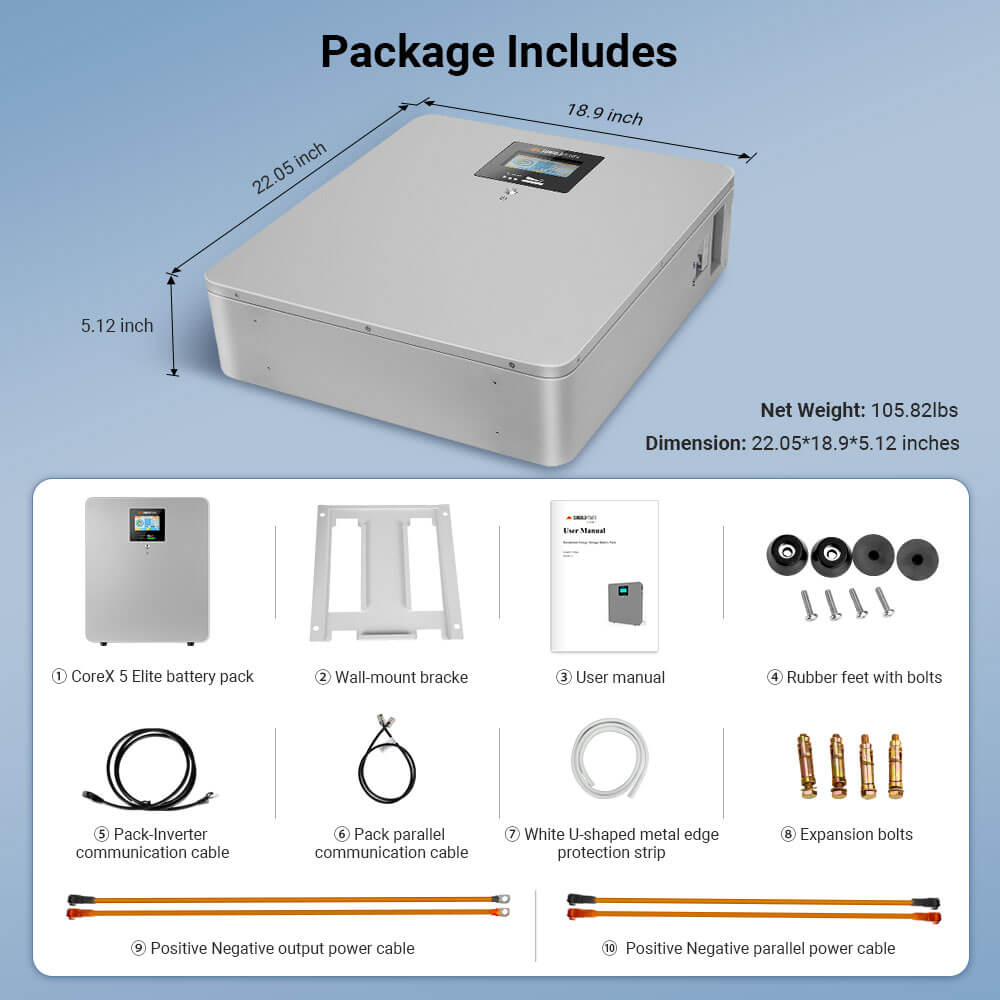

22.05 x 18.9 x 5.39 in and 105.82 lb per unit, mounting on a standard wall bracket beside the inverter.
Up to 15 units in parallel on the same 48V bus, for 76.8kWh of storage.
SunGoldPower inverters (FR12K-B, SGS-12K18MAX, SPH series) plus Sol-Ark, EG4, Growatt, Deye, Victron, Schneider, Luxpower, MPP Solar, SMA, Solis and others via CAN or RS485.
No - the enclosure is IP20 and intended for indoor installation, at 10-45°C (50-113°F) recommended.
10 years from Sungold Power, with 5,000 cycles at 100% DOD to 80% capacity.
CoreX 5 Elite 5.12kWh Wall-Mounted LiFePO4 Battery
| Battery | |
| Battery type | Lithium iron phosphate (EVE Grade A cells) |
| Configuration | 1P16S |
| Rated capacity | 100Ah |
| Rated voltage | 51.2V |
| Rated energy | 5.12kWh |
| Voltage range | 43.2-56.8V |
| Charging current limit | 20A |
| Standard charge/discharge current | 50A |
| Max charge current | 95A |
| Max discharge current | 100A |
| Cycle life | 5,000 cycles to 80% capacity at 100% DOD |
| Max parallel | 15 units (76.8kWh) |
| Communication | CAN / RS485 / RS232; Wi-Fi and Bluetooth app |
| General | |
| Recommended temperature | 50-113°F (10-45°C) |

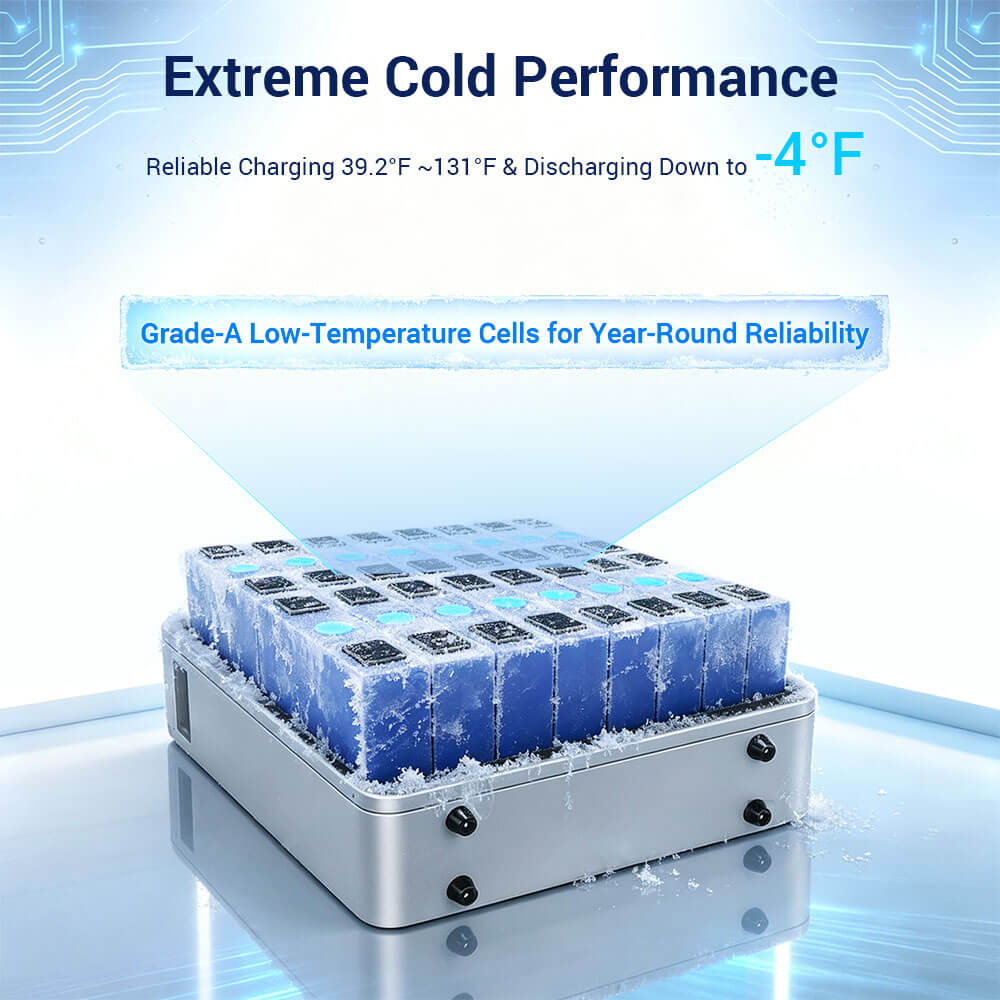

| Operating temperature | Charge 39.2-131°F (4-55°C); discharge -4-131°F (-20-55°C) |
| Humidity | 5-85% RH, no condensation |
| Storage | 1 month at -4-113°F; 1 year at 32-95°F |
| Dimensions | 22.05 x 18.9 x 5.39 in (560 x 480 x 137 mm) |
| Weight | 105.82 lb (48 kg) |
| IP rating | IP20 |
| Altitude | Up to 9,842 ft (3,000 m) |
| Warranty | 10 years |
