240V Solar Generator Kit · 6,000W · 7,060Wh
Two Mango Power E power stations working in tandem, paired with the mSocket Pro, deliver a portable 120/240V split-phase output capable of running heaters, dryers, water pumps, and other large appliances that a single 120V-only power station can't handle.
Two Mango Power E units combine for 6,000W and roughly 7,060Wh of storage. The included mSocket Pro merges their output into a single 240V split-phase receptacle, making this a portable solution rather than one wired permanently into a home's electrical panel — ideal for job sites, RV hookups, or any setup where 240V power is needed on a temporary or mobile basis.

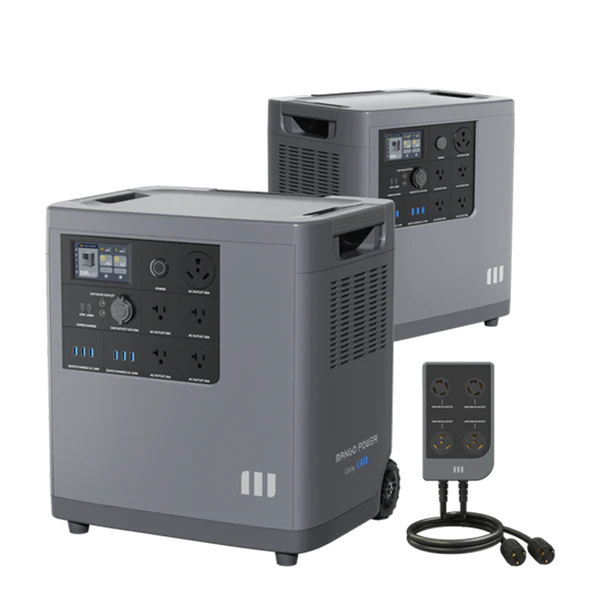

This kit includes 2× Mango Power E power stations and the mSocket Pro accessory. Some general Mango Power marketing material describes the mSocket Pro as sold separately — that applies to smaller packages; this specific kit includes it.
Note: the mSocket Pro provides portable 240V split-phase output when connecting two units together. It does not provide automatic whole-home circuit backup — that function requires the separate mPanel accessory, which is not included in this kit.
Both units in this kit run on CATL lithium iron phosphate cells, the same chemistry used in some of the highest-performing electric vehicles on the road. Rated for over 6,000 cycles while retaining more than 70% of original capacity, these cells hold up well under years of repeated charging and discharging.

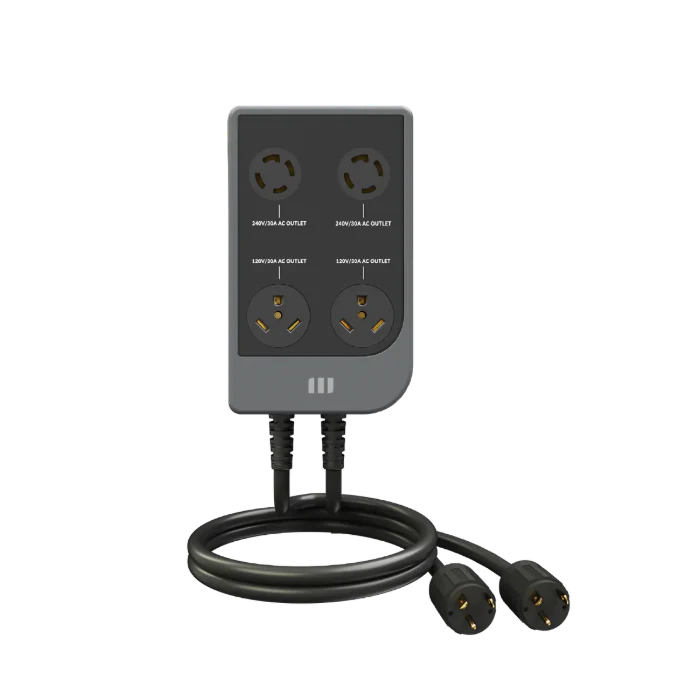

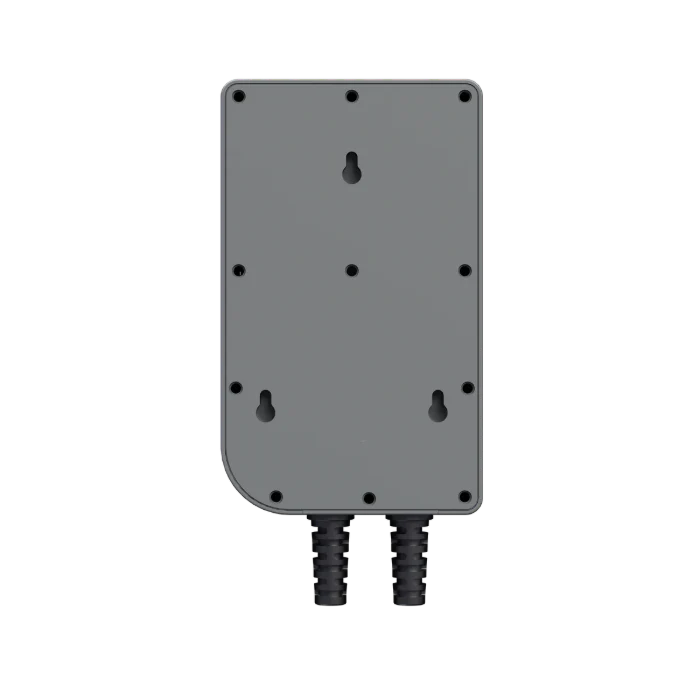

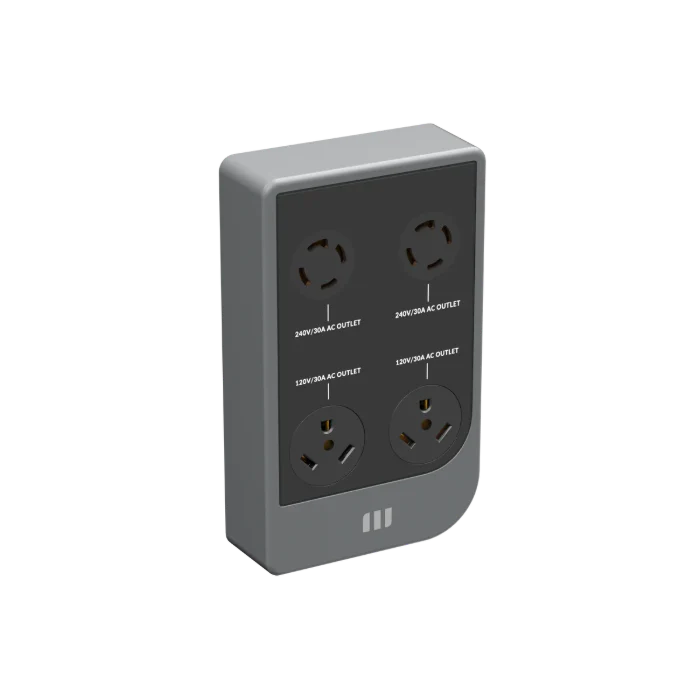

The mSocket Pro combines the output of two Mango Power E units into a portable 240V receptacle, giving access to real split-phase power without an electrician needing to wire anything into a home's panel. It's a practical option for running large tools or appliances at a job site, or for temporary heavy-load needs where a permanent panel connection isn't necessary or possible.
CATL's cell chemistry tolerates a wide operating range, so both units keep performing through conditions that would degrade many consumer battery packs — from cold-weather job sites to summer heat.
General & Battery
| Specification | Value |
|---|---|
| Net weight (each unit) | 100 lbs (45.4 kg) |
| Size (each unit) | 17.8 × 13.6 × 19.4 in |
| Working temperature | Charge -20°C to 60°C, discharge -30°C to 60°C |
| Warranty | 5 years |
| IP level | IP21 |
| Battery capacity (each unit) | 3.53 kWh |
| Cell chemistry | CATL LFP |
| Life span | > 70% capacity after 6,000 cycles @ 25°C |
| Max charging rate | Up to 1.1C |
Input & Inverter (Each Unit)
| Specification | Value |
|---|---|
| Charging method | AC wall, solar, EV charger, generator |
| AC charging | Max 3,000 W |
| Solar charging | Max 2,000 W (60–150V) |
| Rated AC output | 3,000 W, 120V, 60Hz |
| MPPT | 1× (roof and portable solar) |
| Inverter efficiency | Up to 88% |

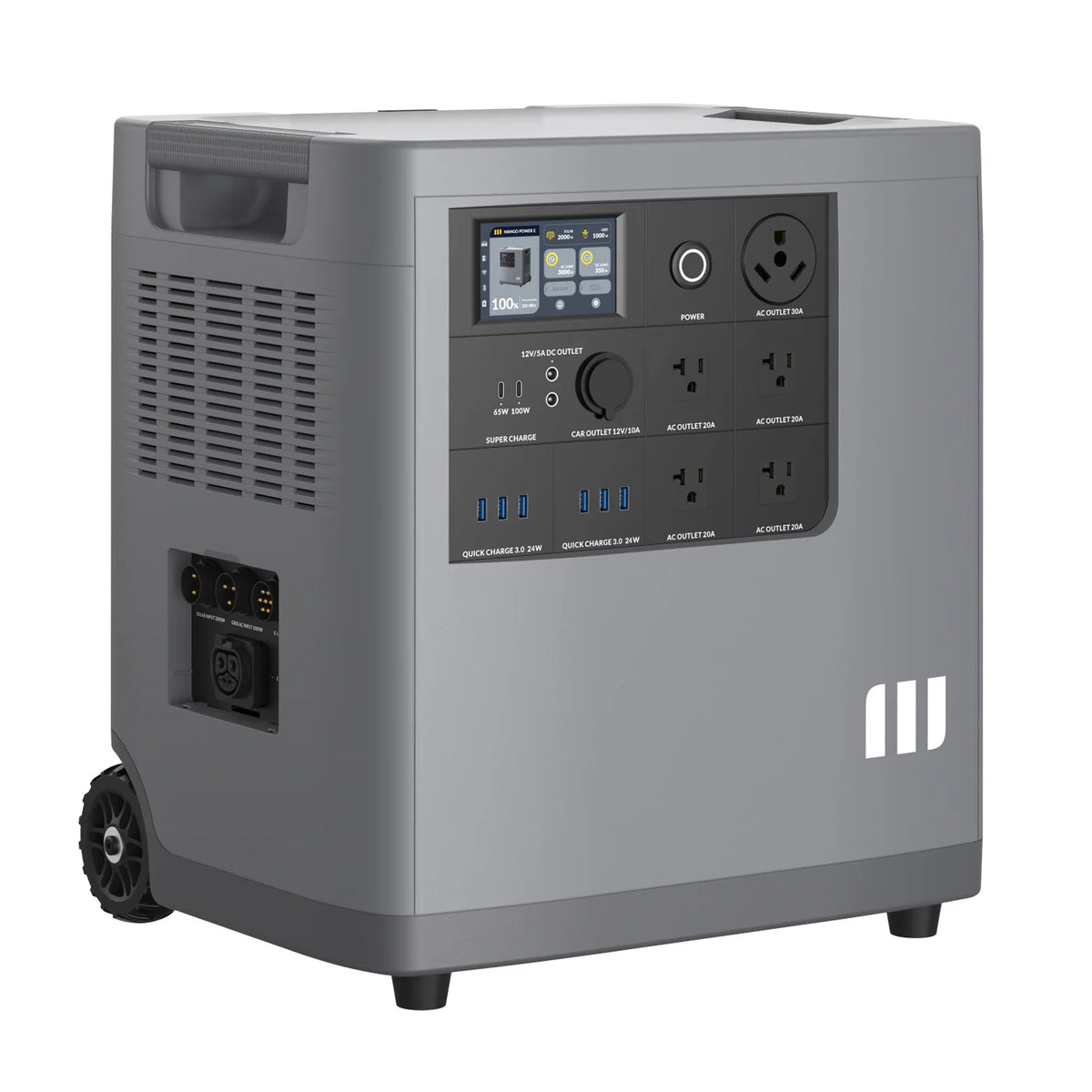

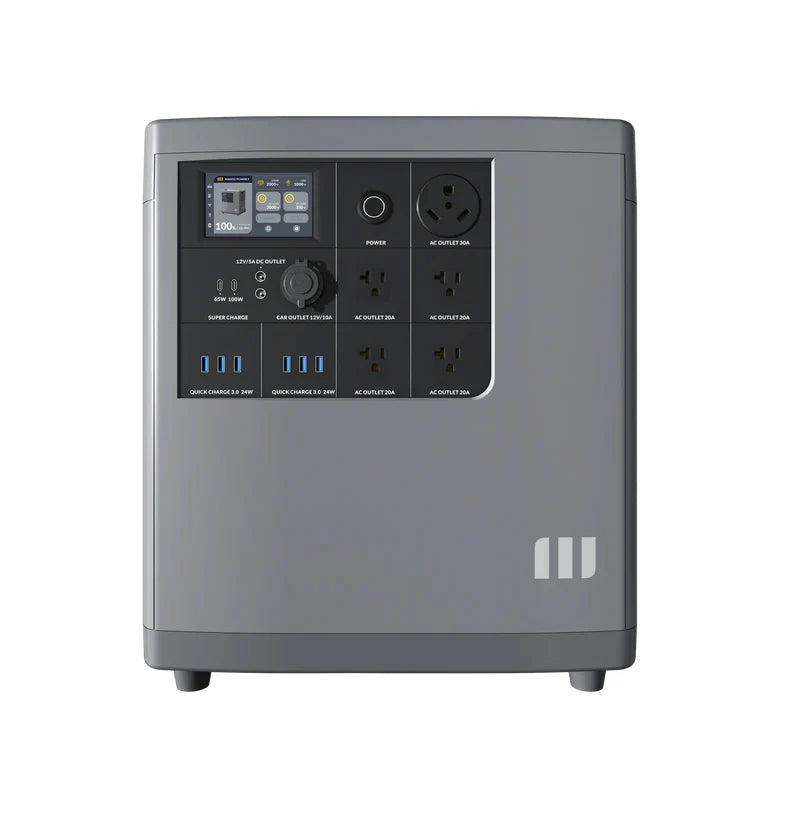

Output Ports (Each Unit)
| Specification | Value |
|---|---|
| Total output ports | 16 |
| AC output | 4 × 20A |
| USB-A | 6 × QC 3.0 27W |
| USB-C | 1 × PD 65W + 1 × PD 100W |
| Car power | 12V / 10A |
| AC RV port | 30A |
Smart Control & Display
| Specification | Value |
|---|---|
| Connectivity | Bluetooth and Wi-Fi |
| App remote control | Yes |
| OTA / USB firmware update | Yes |
| Customized modes | Backup, economical, time-based control |
| Screen | 4.3in touchscreen, 480×800, 16.7M colors |
It's included in this specific kit. Smaller Mango Power packages typically require it as a separate purchase, but this bundle includes it.
No. It provides portable 240V split-phase output when two units are connected together, but automatic whole-home circuit backup requires the separate mPanel accessory, which is not part of this kit.
No permanent wiring is required for the mSocket Pro itself since it's a portable output combiner, not a hardwired panel connection.
Yes. Each Mango Power E accepts up to 2,000W of solar input via its own built-in MPPT controller.
