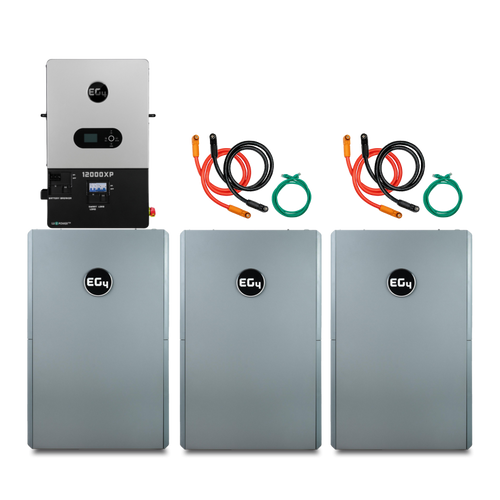

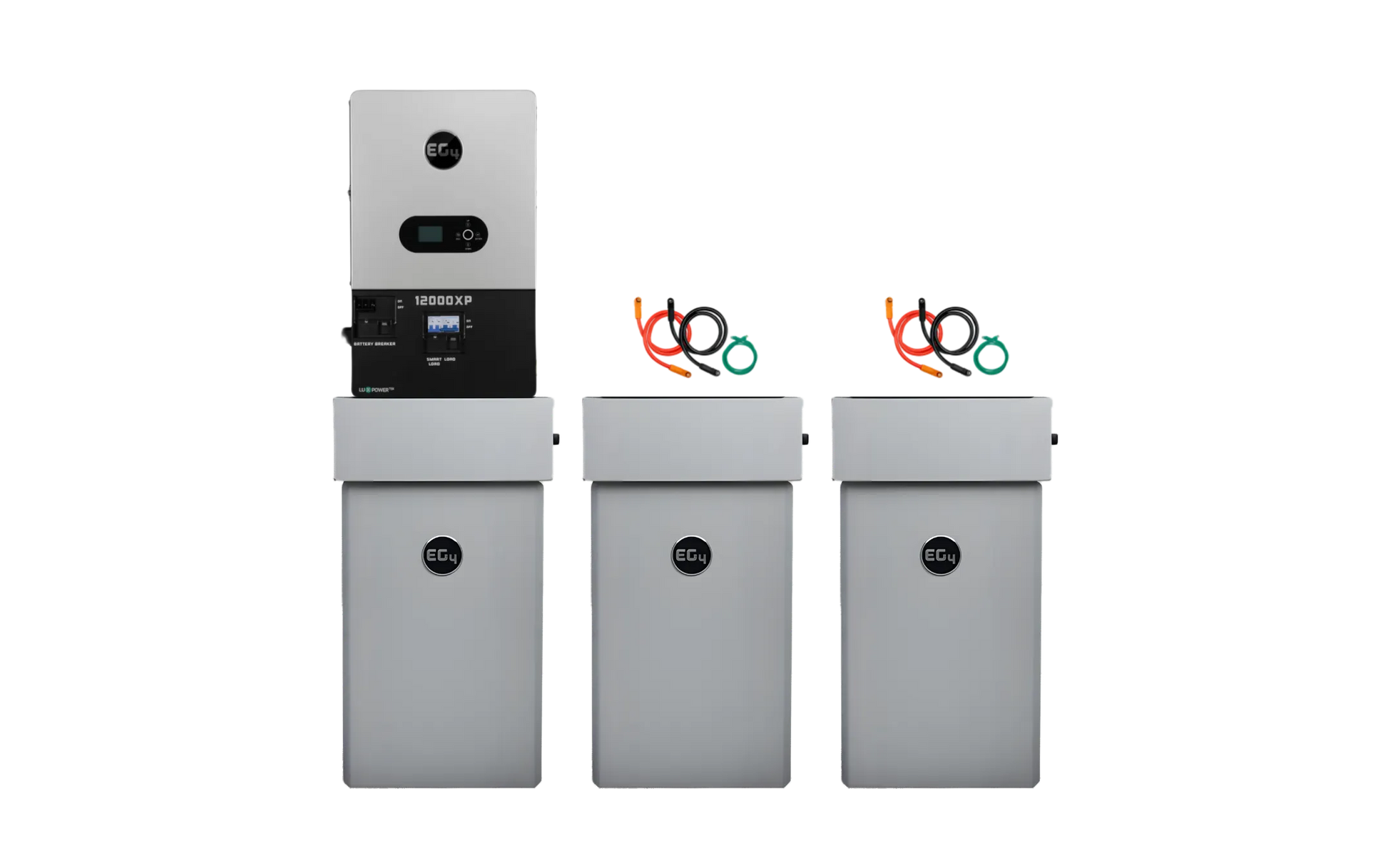

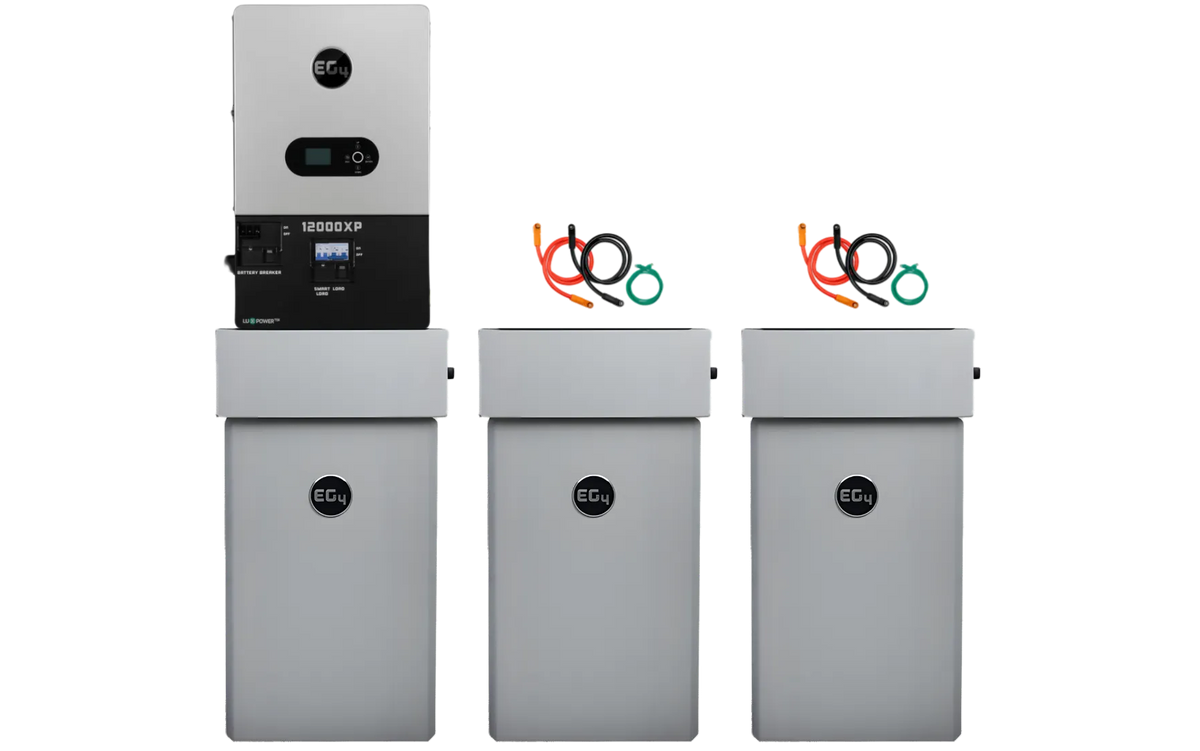

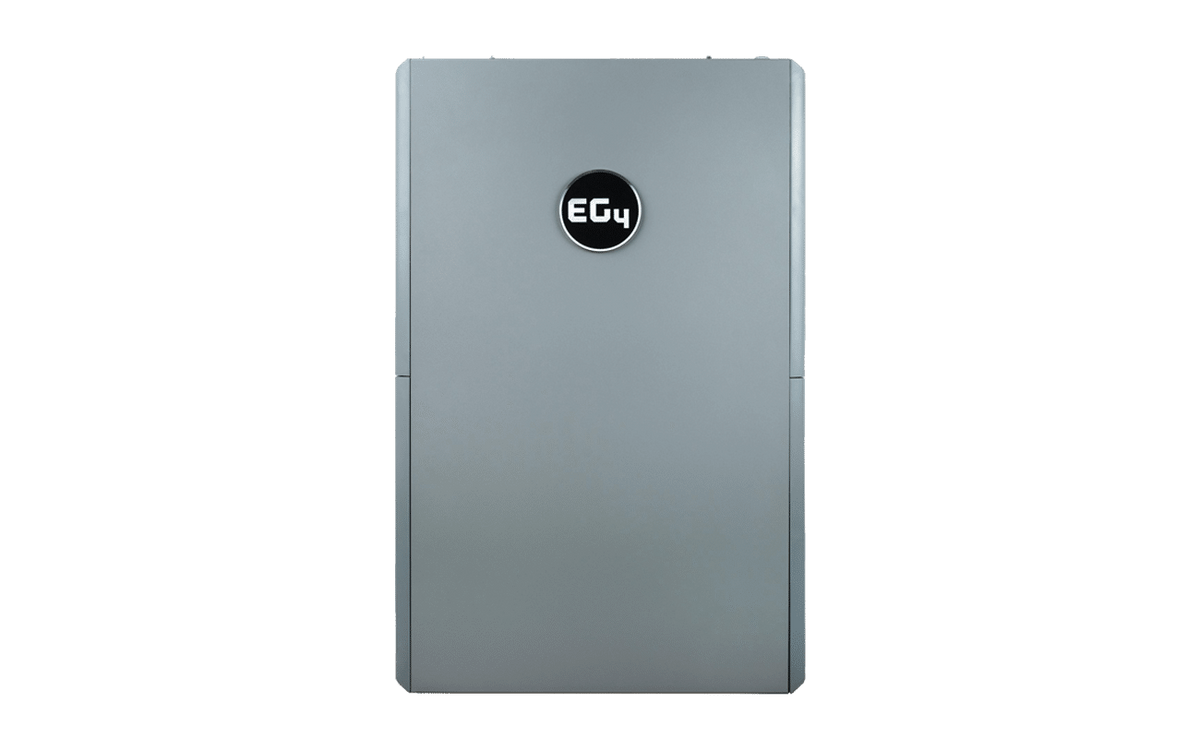

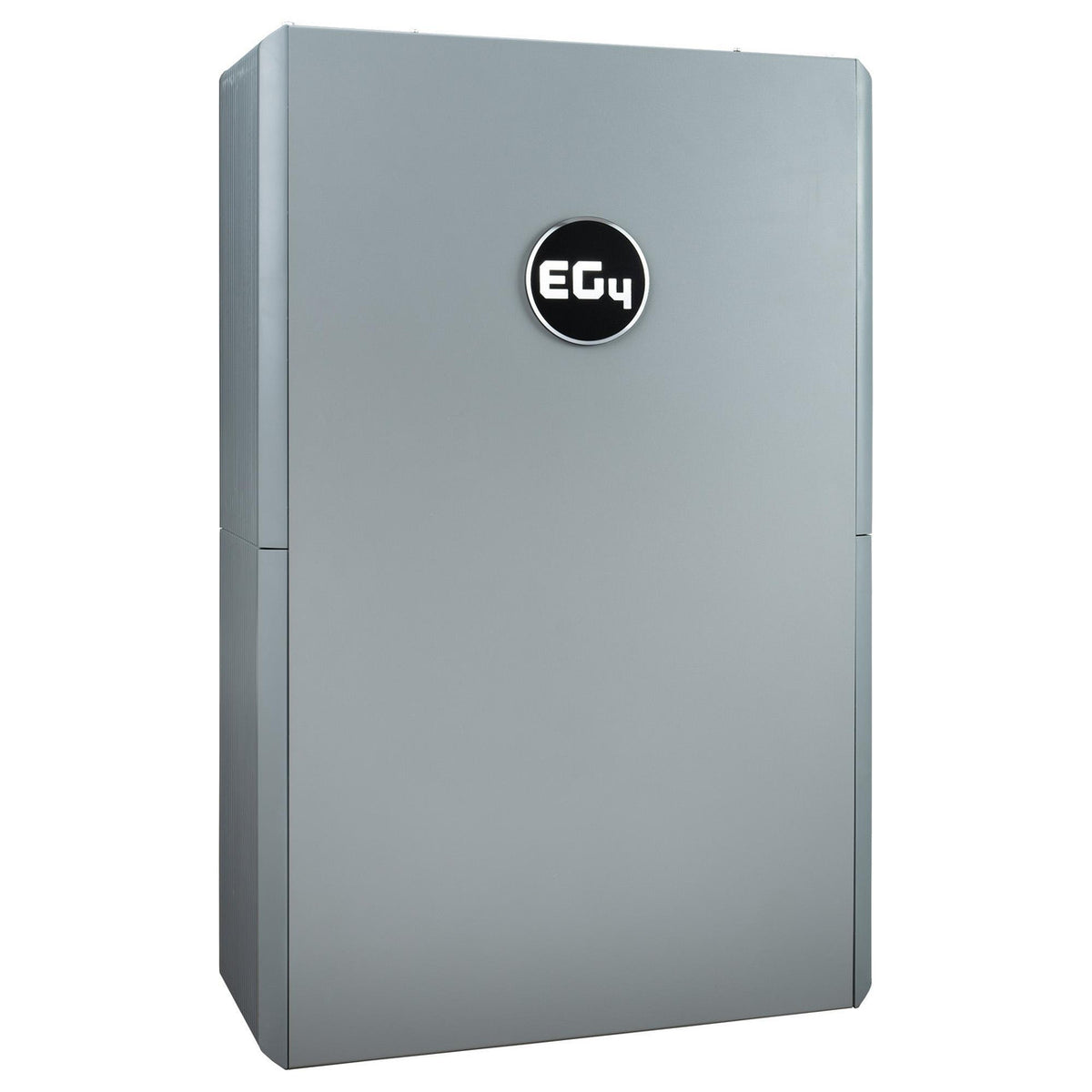

Introducing the 48V EG4 PowerPro, a high-capacity off-grid power solution designed to revolutionize energy storage for homes across America. This 43kWh configuration is the perfect solution for powering off-grid systems in tiny homes, cabins, and homesteads. Built with durability, reliability, and cutting-edge features in mind, the PowerPro ensures long-lasting performance in any environment.

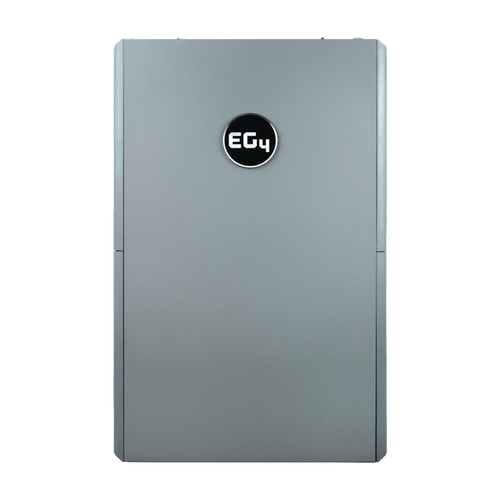

| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 14.34kWh |
| Ah Capacity: | 280Ah |
| Charging Voltage Range: | 55.2 - 56.8V |
| Max Charge Voltage: | 56.8V |
| Operating Voltage Range: | 48 – 56.8V |
| Suggested Low Voltage Cutoff: | 48 – 50.8V |
| Cell Configuration: | 16S |
| Max Continuous Discharge Current: | 200A |
| Max Continuous Power: | 10240W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | -4°F - 113°F (-20°C - 45°C) |
| Discharge Temperature Range: | -4°F - 122°F (-20°C - 50°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range (SoC >50%): | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 308.6 lb (140 kg) |
| Depth: | 9.1 in (231 mm) |
| Width: | 22.3 in (566.5 mm) |
| Height: | 34.6 in (879 mm) |
| Max Connections: | Up to (3) parallel connections per (1) inverter |
| Protection Rating: | IP65 / NEMA 4X |
| Communications: | CANBus / RS485 |
| Certifications: | UL9540A, UL1973, & UN38.3 |

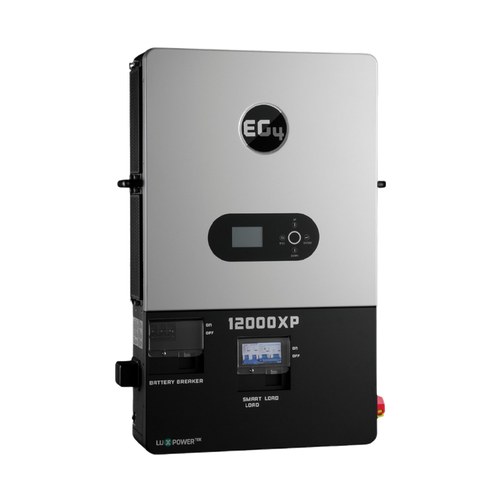

| AC Voltage: |
120V AC / 240V AC
|
| AC Frequency: | 50 Hz / 60 Hz |
| Max. Continuous AC Current: | 37.5A @ 240V |
| Max. AC Input Power: | 9000W |
| AC Bypass: | 50A |
| Output Voltage: |
120V AC / 240V AC
|
| Output Frequency: | 50 Hz / 60 Hz |
| Max. Continuous Output Current: | 25A @ 240V |
| Output Power: | 6000W |
| Surge Capacity: |
12000W (3.5 sec) / 11000W (5 sec)
|
| Power Factor: |
0.99 (Full Load)
|
| Reactive Power Adjustment Range: |
-0.8 - 0.8 Leading Adjustable
|
| Total Harmonic Distortion: | <3% |
| Switching Time: |
<15 ms (Single) / <30 ms (Parallel)
|
| No. of MPPTs (Inputs per MPPT): | 2 (1) |
| Max. Input Current: | 17A / 17A |
| Max. Short Circuit Input Current: | 25A / 25A |
| DC Input Voltage Range: | 100 - 480V DC |
| Start Up Voltage: |
100V DC ± 10V DC
|
| MPPT Operating Voltage Range: | 120 - 385V DC |
| MPPT Voltage: | 320V DC |
| Max. PV Array Power: |
8000W (4000W per MPPT)
|
| MPPT Efficiency: | 99% |
| Nominal Voltage: | 48V DC |
| Battery Voltage Range: | 46.4 - 60V DC |
| Max. Discharge Current: | 140A |
| Max. Charge Current: | 125A |
| DC Cut-Off Voltage: | 59V DC |
| DC Recovery Voltage: | 57.4V DC |
| Charge Cut-Off Voltage: | 58.4V DC |
| Operating Temperature: |
32ºF - 113ºF (0ºC - 45ºC)
|
| Storage Temperature: |
5ºF - 140ºF (-15ºC - 60ºC)
|
| Altitude: |
<6,561 ft (2000 m)
|
| Relative Humidity: | 5 - 95% |
| Typical Noise Emission: | <58 dB |
| Protection Rating: | IP20 |
| Max. Parallel Connections: | 16 |
| Weight: |
52.9 lbs (24 kg)
|
| Depth: |
5.25 in (132 mm)
|
| Width: |
18 in (457 mm)
|
| Height: |
25.5 in (648 mm)
|
| Spec Sheet: | Click Here |
| User Manual: | Click Here |
| Quick Start Guide: | Click Here |
| UL9540A Certification: | Click Here |
| UL1973 Certification: | Click Here |
| Spec Sheet: | Click Here |
| User Manual: | Click Here |
| Monitoring System Guide: | Click Here |
| Monitoring Adapter Installation Guide: | Click Here |
| UL1741 Certificate: | Click Here |
| Warranty: | Click Here |
