OVERVIEW

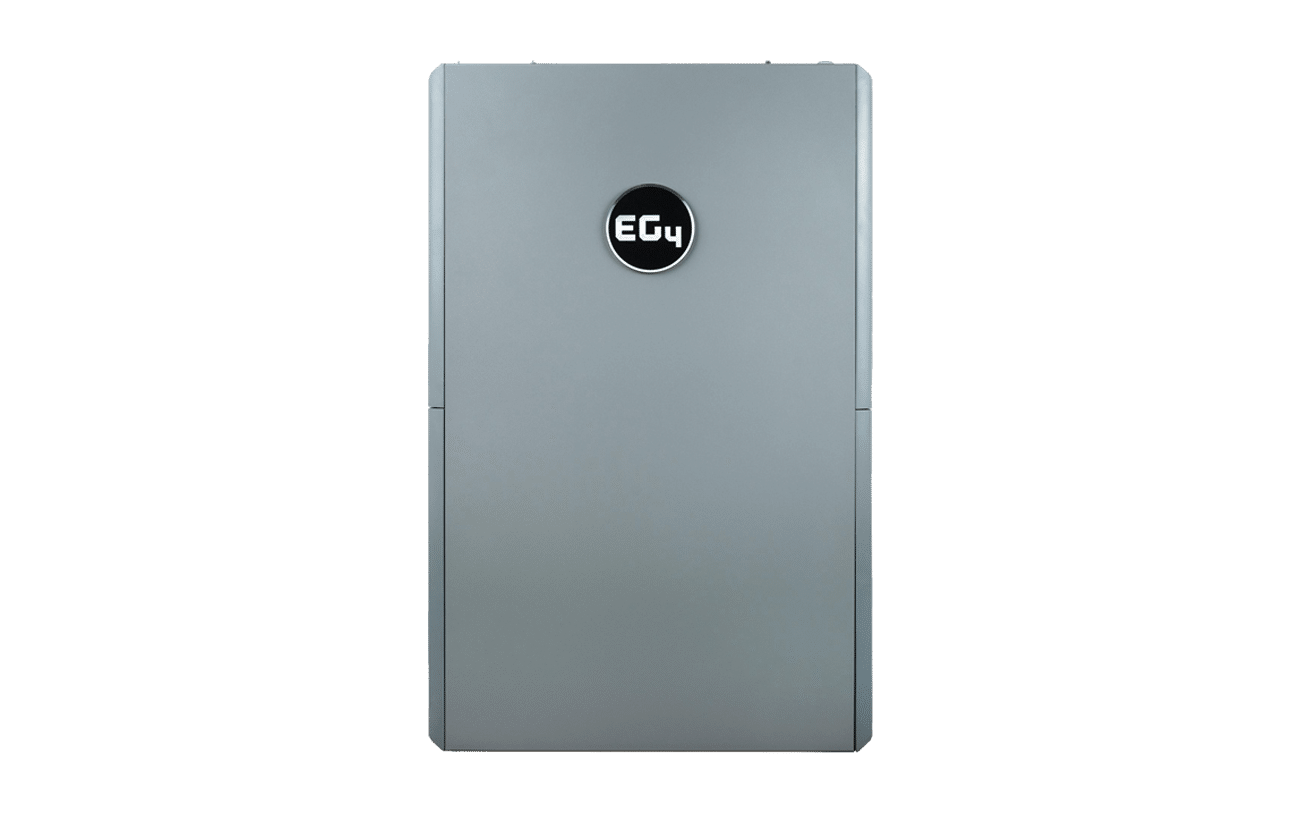

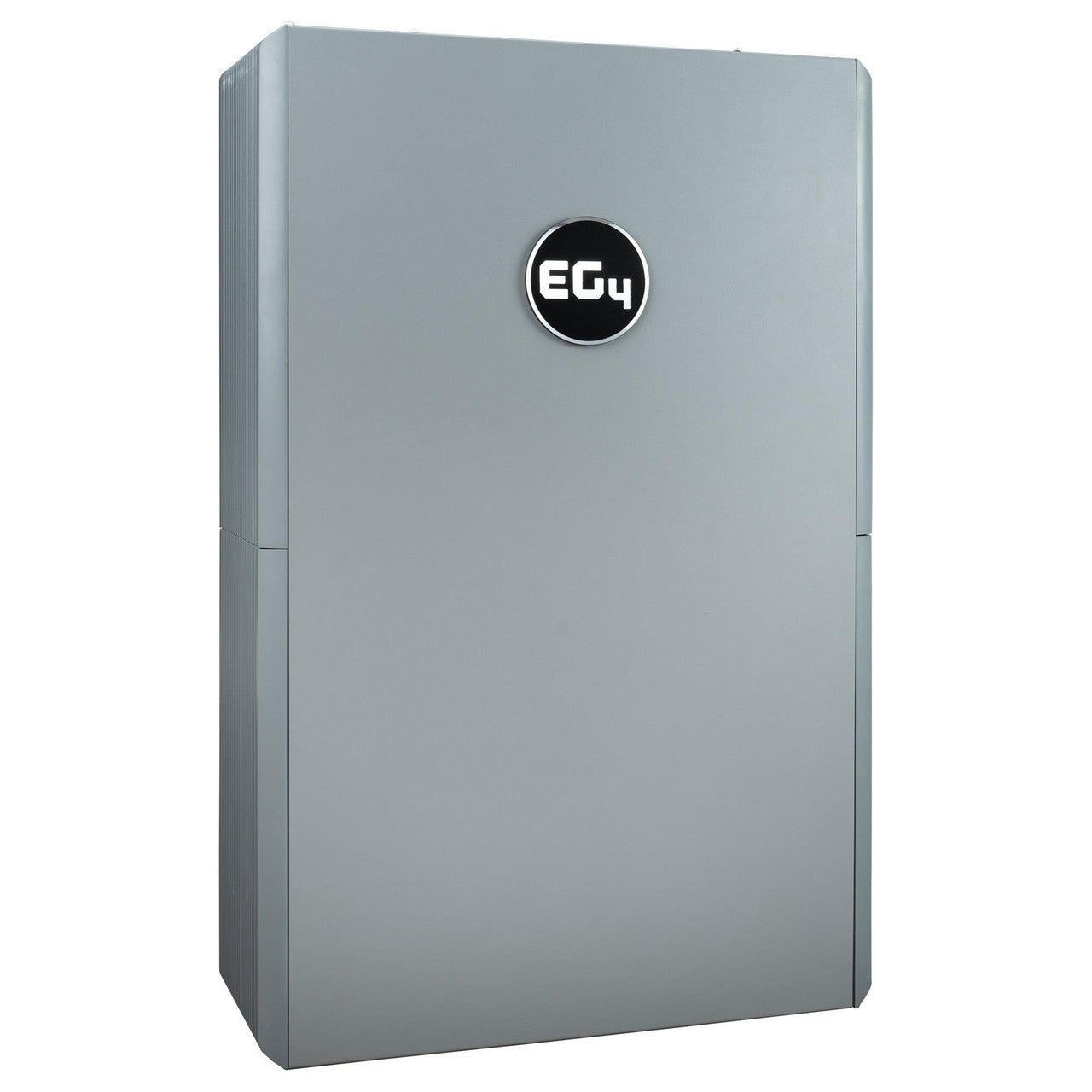

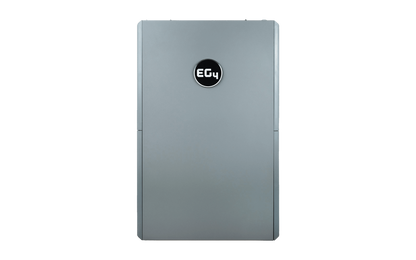

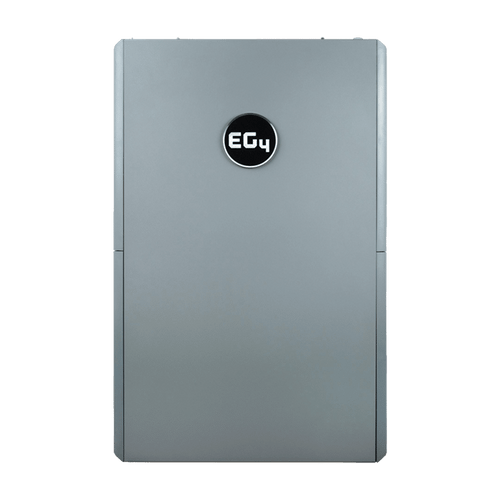

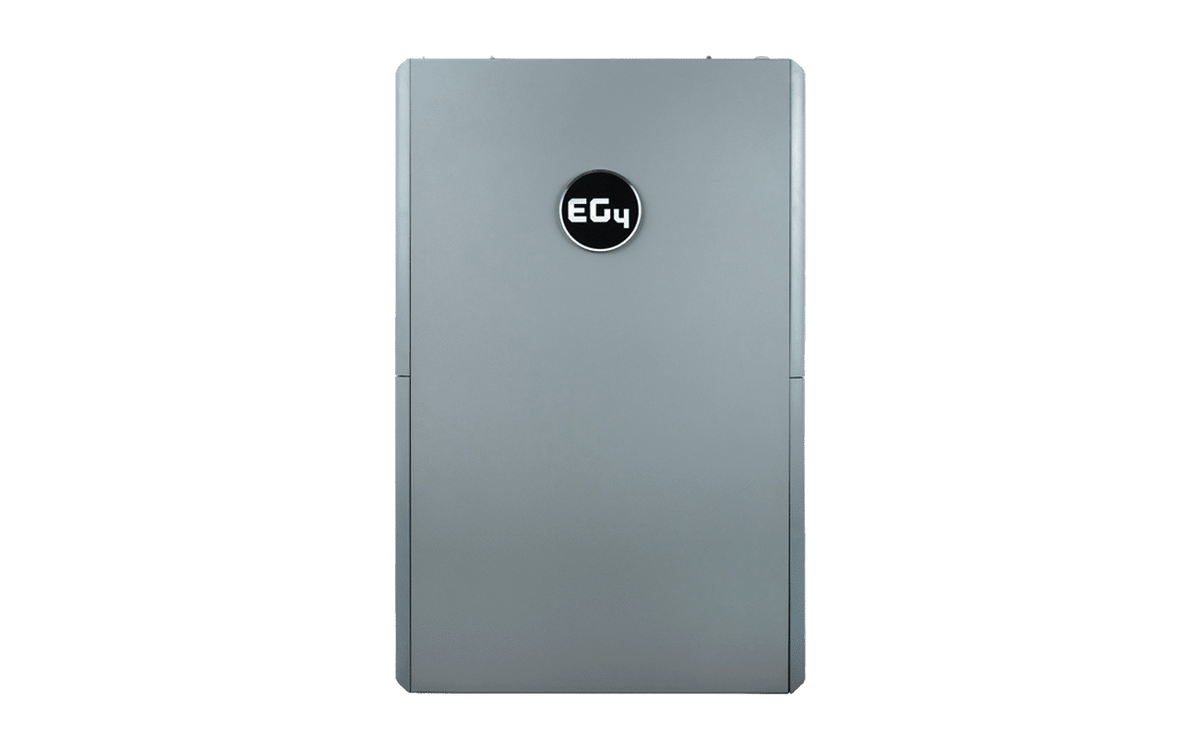

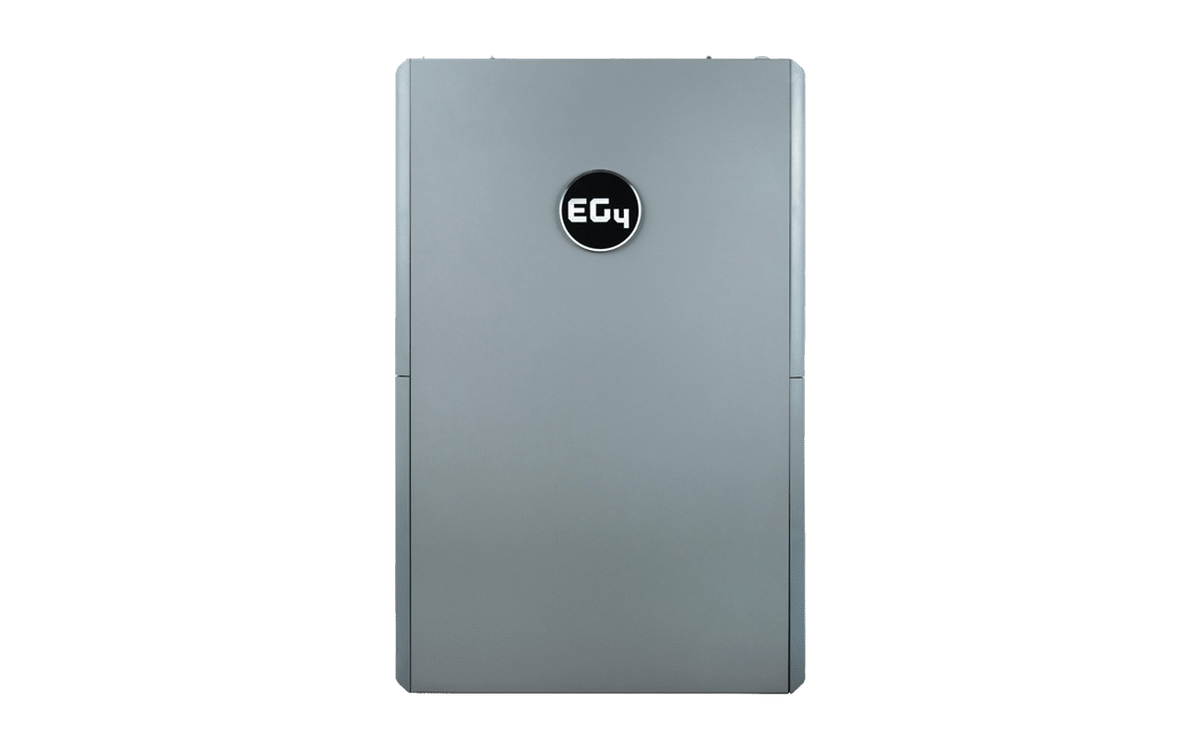

Introducing EG4’s game-changing 48V 14.34kWh PowerPro, the ultimate solution for both residential and commercial energy storage systems (ESS). This UL-certified, wall-mountable battery provides reliable and efficient power, helping homes and businesses significantly reduce utility costs. When paired with solar, users can also take advantage of incentive programs and tax credits, further enhancing savings.
FEATURES
-
48V 14.34kWh capacity for high-efficiency energy storage in residential and commercial applications
-
UL-certified for safety and reliability
-
Wall-mountable design for space-saving installation
-
Compatible with solar energy systems, enabling access to incentive programs and tax credits
-
LiFePO4 cells for the safest battery chemistry on the market today
- Designed to last over 8,000 cycles at 80% Depth of Discharge (DoD), providing an 82.6MWh lifetime production
-
IP65-rated all-weather casing ensures durability and peace of mind through any season
-
Intelligent Battery Management System (BMS) continuously monitors voltage, current, and temperature, with a passive cell-balancing function to optimize performance
-
LCD touch screen display for real-time monitoring of battery status
-
Automatic self-heating function for cold climates
- Dual fire extinguishers for fail-safe protection against thermal runaway
-
Emergency stop function (optional ESS disconnect) for instant system shutdown in case of an emergency
- Supports up to 8,000 cycles at 80% DoD, ensuring long-term energy savings and reliability
- Compatible with any hybrid or off-grid inverter, making it versatile for different setups
- Can be paired with EG4’s PowerPro ESS Systems or existing systems for seamless integration
- Equipped with the safest LiFePO4 cells
-
Dual fire extinguishers and an emergency stop function for maximum protection
-
Automatic self-heating for safe operation in cold weather
SUITABLE FOR
- Residential Power Systems
- Home Solar Systems
- Cabins & Tiny Homes
- Family Homes & Mansions
- Off-Grid Homesteads
- Emergency Power
- Whole Home Backup
- Commercial Systems
- Whole Office Backup
- Lead Acid Replacement

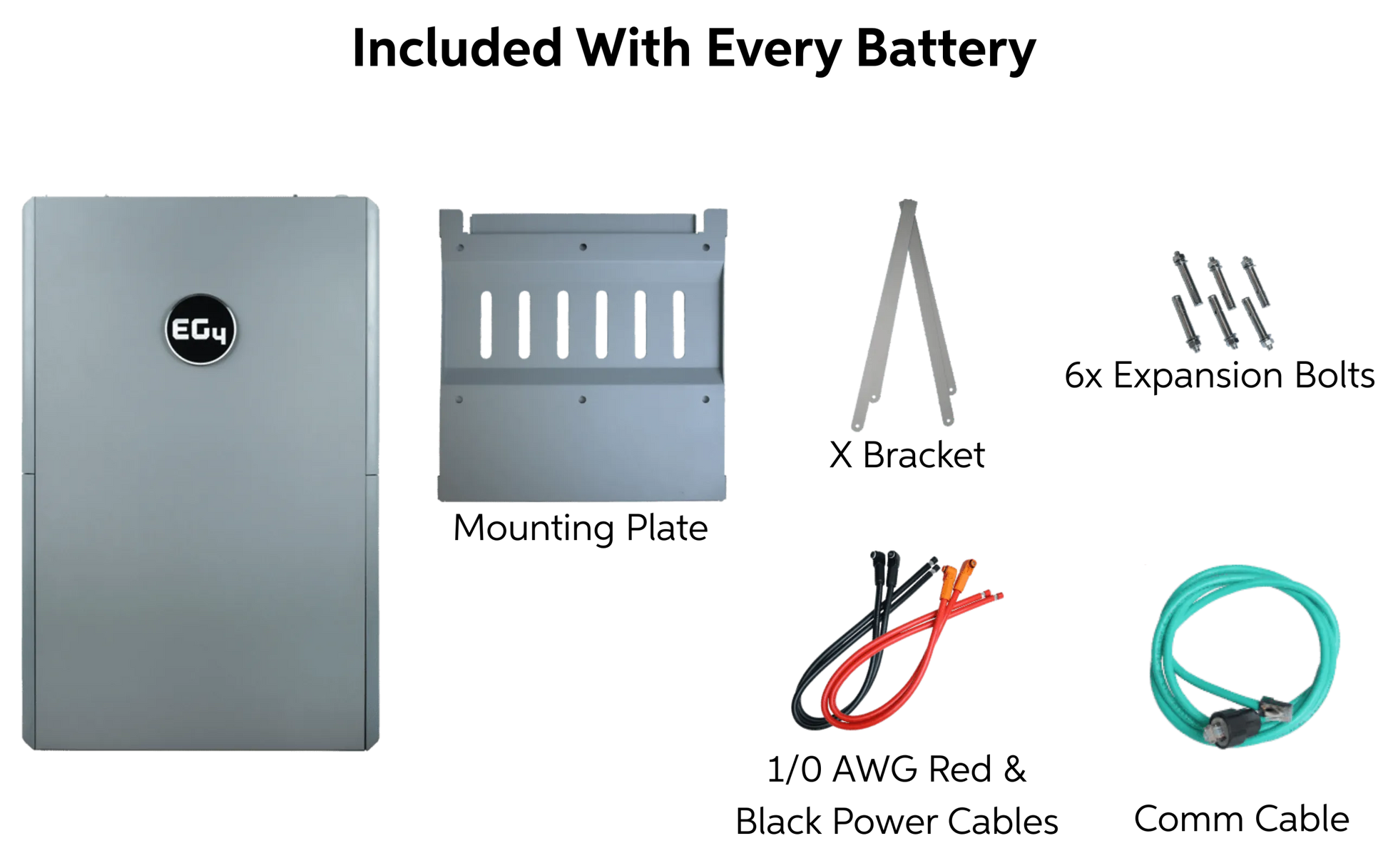

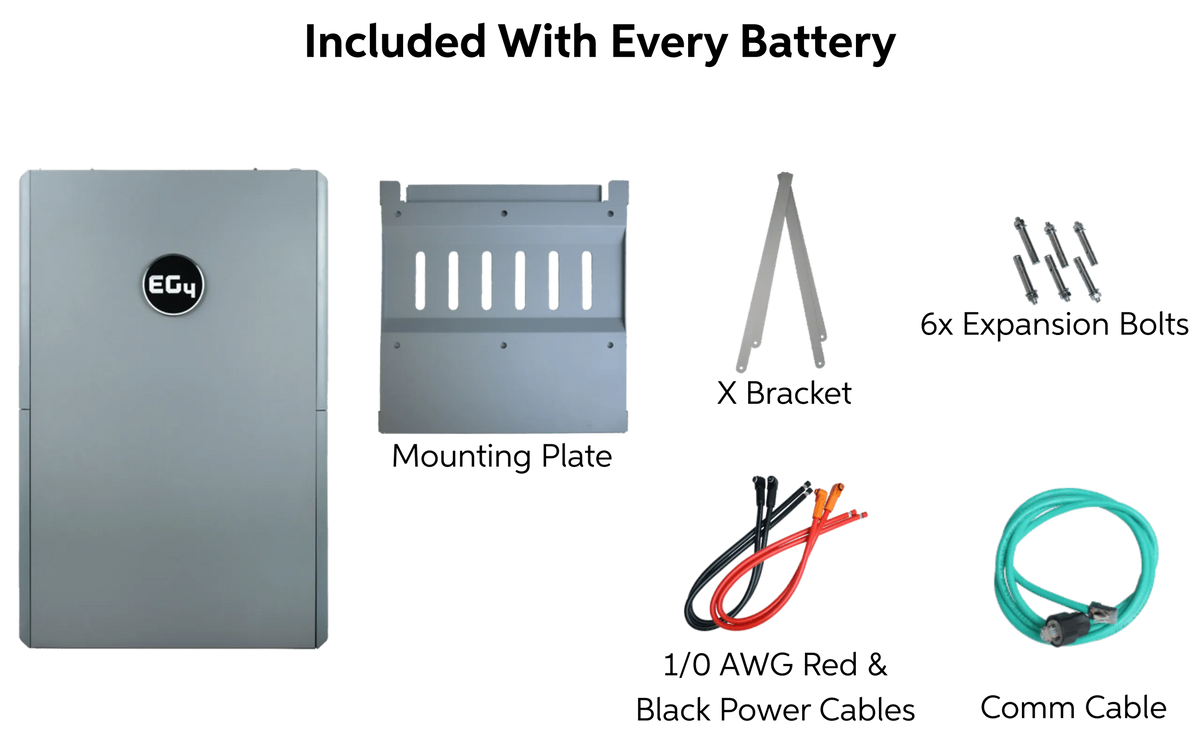

WHAT'S IN THE BOX
- (1) Mounting Bracket
- (1) X Bracket
- (6) Expansion Bolts
- (2) Red & Black Battery to Inverter Power Cables (3.3 FT)
- (1) Battery to Inverter Communication Cable (5 FT)
SPECIFICATIONS
| SKU: |
FEWPP-48143-G1 |
| System Voltage: |
48V |
| Nominal Voltage: |
51.2V |
| Chemistry: |
LiFePO4 |
| kWh Capacity: |
14.34kWh |
| Ah Capacity: |
280Ah |
| Charging Voltage Range: |
55.2 - 56.8V |
| Max Charge Voltage: |
56.8V |
| Operating Voltage Range: |
48 – 56.8V |
| Suggested Low Voltage Cutoff: |
48 – 50.8V |
| Cell Configuration: |
16S |
| Max Continuous Discharge Current: |
200A |
| Max Continuous Power: |
10240W |
| Max Discharge Peak Current: |
300A (Max 5 seconds) |
| Max Charge Current: |
200A |
| Charge Temperature Range: |
32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range: |
-4°F - 122°F (-20°C - 50°C) |
| Optimal Discharge Temperature Range: |
59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range (SoC >50%): |
-4°F - 122°F (-20°C - 50°C) |
| Weight: |
308.6 lb (140 kg) |
| Depth: |
9.1 in (231 mm) |
| Width: |
22.3 in (566.5 mm) |
| Height: |
34.6 in (879 mm) |
| Max Connections: |
Up to (3) parallel connections per (1) inverter |
| Protection Rating: |
IP65 / NEMA 4X |
| Communications: |
CANBus / RS485 |
| Certifications: |
UL9540A, UL1973, & UN38.3 |
