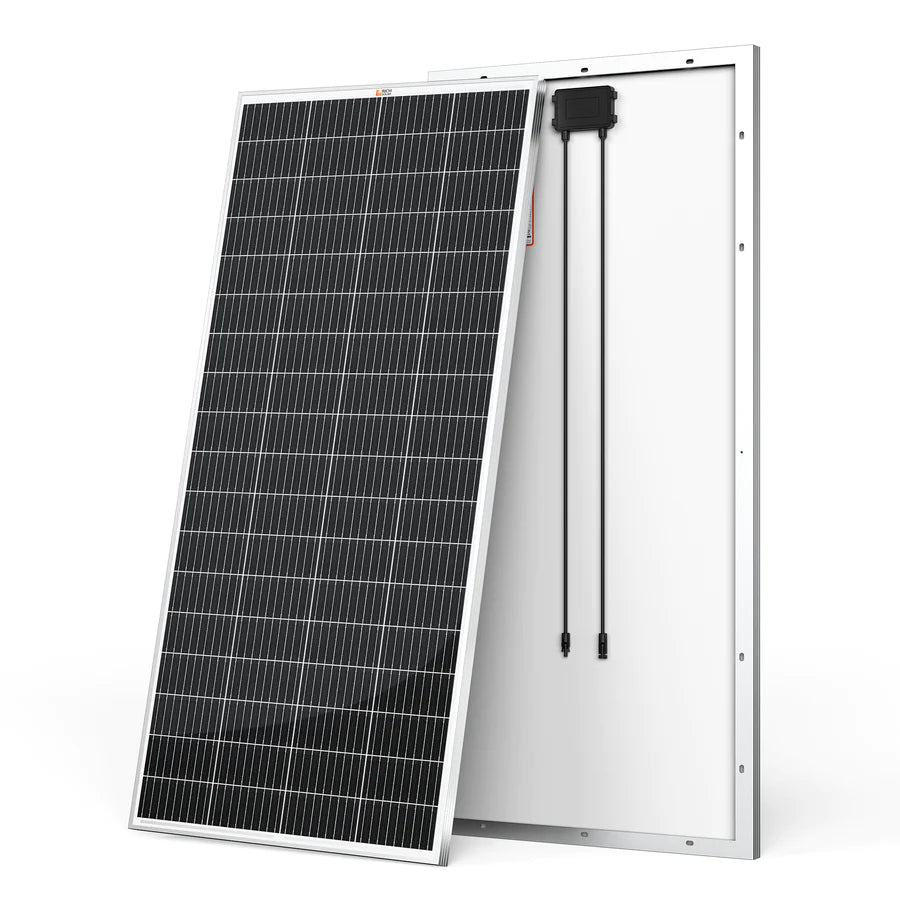

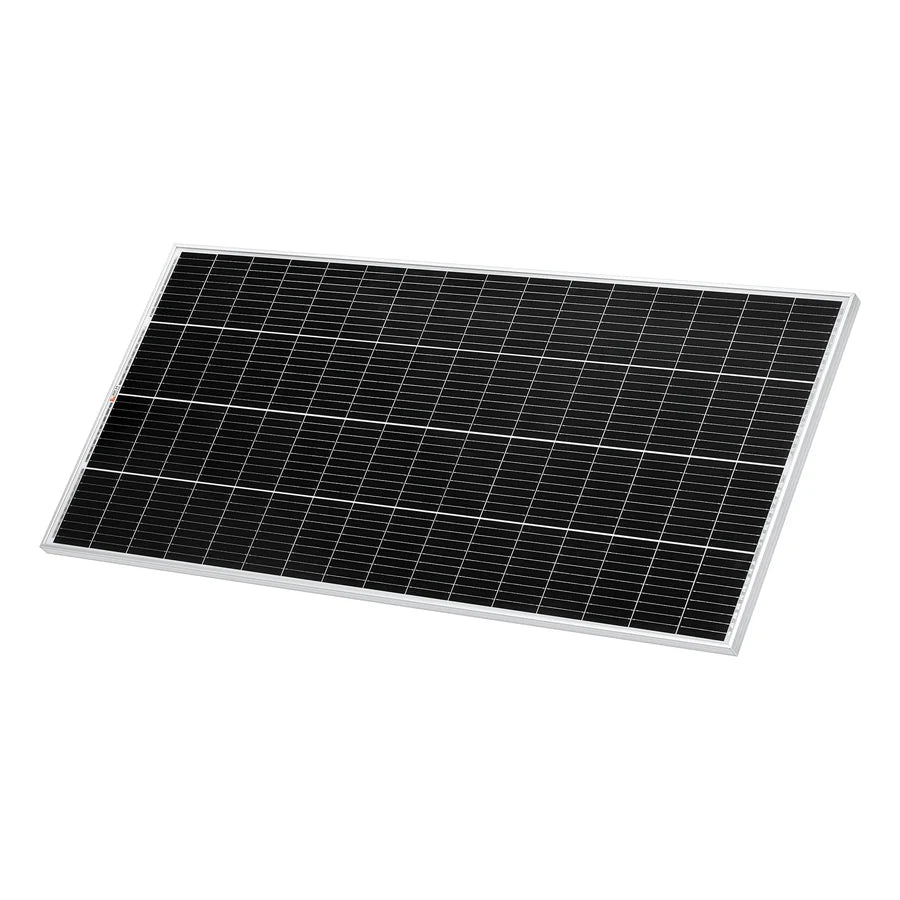

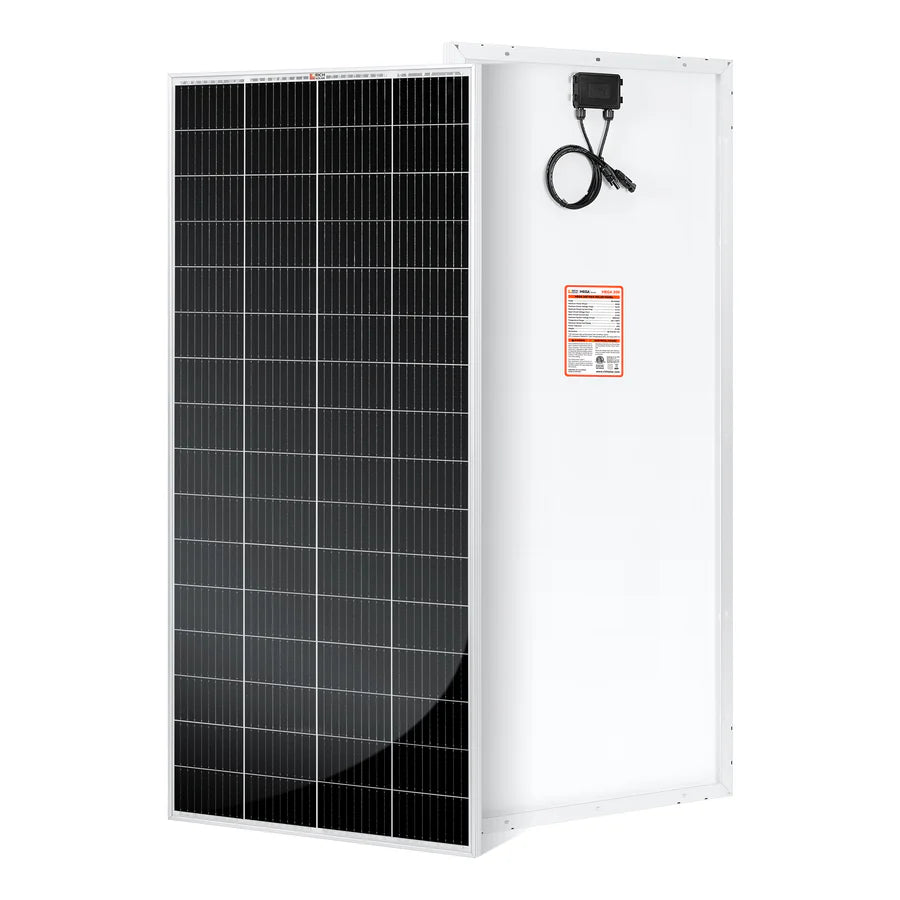

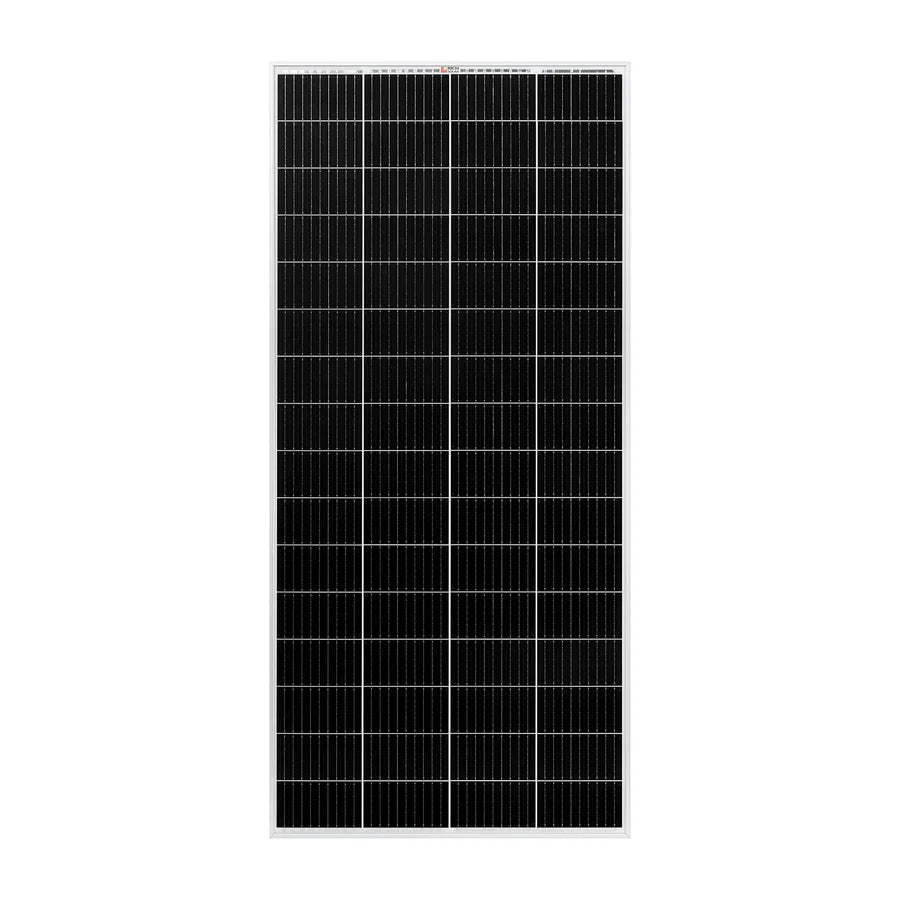

24V High-Voltage Solar Panel · N-Type TopCon · 200W
The MEGA 200 PRO delivers 200W at 24V nominal instead of the usual 12V — a single high-voltage panel that simplifies wiring and reduces connection points versus two standard 100W panels, built for RVs, trailers, cabins, and larger off-grid systems.
For systems above 12V, a single high-voltage panel can replace two standard panels wired in series.
Fewer cables and connection points make installation faster and cleaner.
A strong fit for off-grid homes, RVs, and larger solar arrays that need higher voltage input.
| Max. power (Pmax) | 200 W |
| Max-power voltage (Vmp) | 36.3 V |
| Max-power current (Imp) | 5.51 A |
| Open-circuit voltage (Voc) | 43.5 V |
| Short-circuit current (Isc) | 5.93 A |
| Max. system voltage | 1000 Vdc |
| Max. series fuse rating | 15 A |
| Weight | 24.0 lbs |

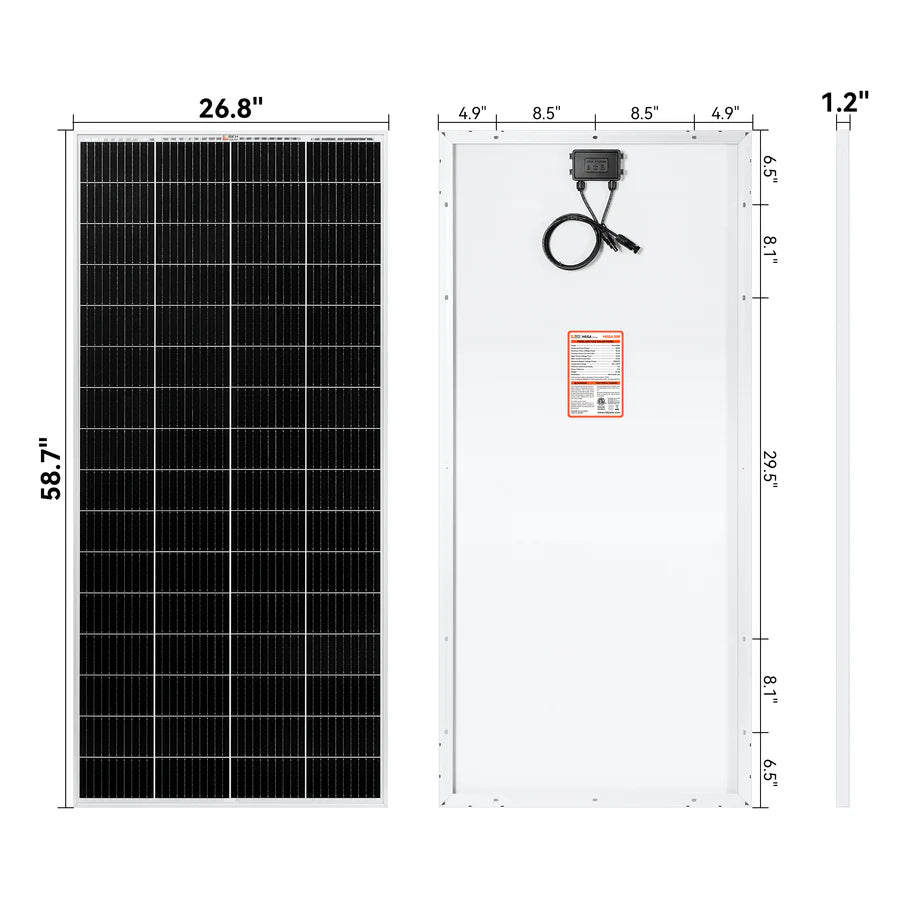

| Dimensions | 58.7 × 26.8 × 1.2 in |
| Package dimensions | 61 × 2 × 29 in |
| Operating temp | -40°F to 185°F |
| Protection rating | IP67 |
Instead of the standard 12V-nominal output most RV panels use, this panel outputs 36.3V at its max-power point — roughly equivalent to two 100W panels wired in series, but built into a single unit with one set of cables.
It's designed for systems above 12V and charge controllers rated for its higher voltage range — check your controller's input voltage rating before pairing it with this panel.
Same 200W rated output and similar physical size, but this panel is internally wired for a higher voltage, lower current output (36.3V/5.51A vs. a standard panel's roughly 18V/11A), reducing the number of panels and connections needed in higher-voltage systems.
It carries a 25-year performance warranty: at least 95% of rated output after 5 years, 90% after 10 years, and 80% after 25 years.
The MEGA 200 PRO is available in Silver or Onyx (Black) finish.
