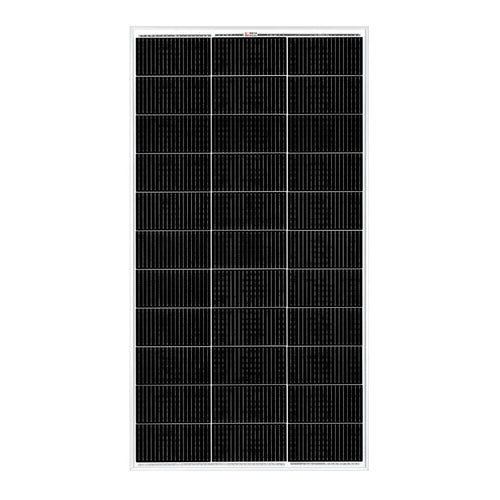

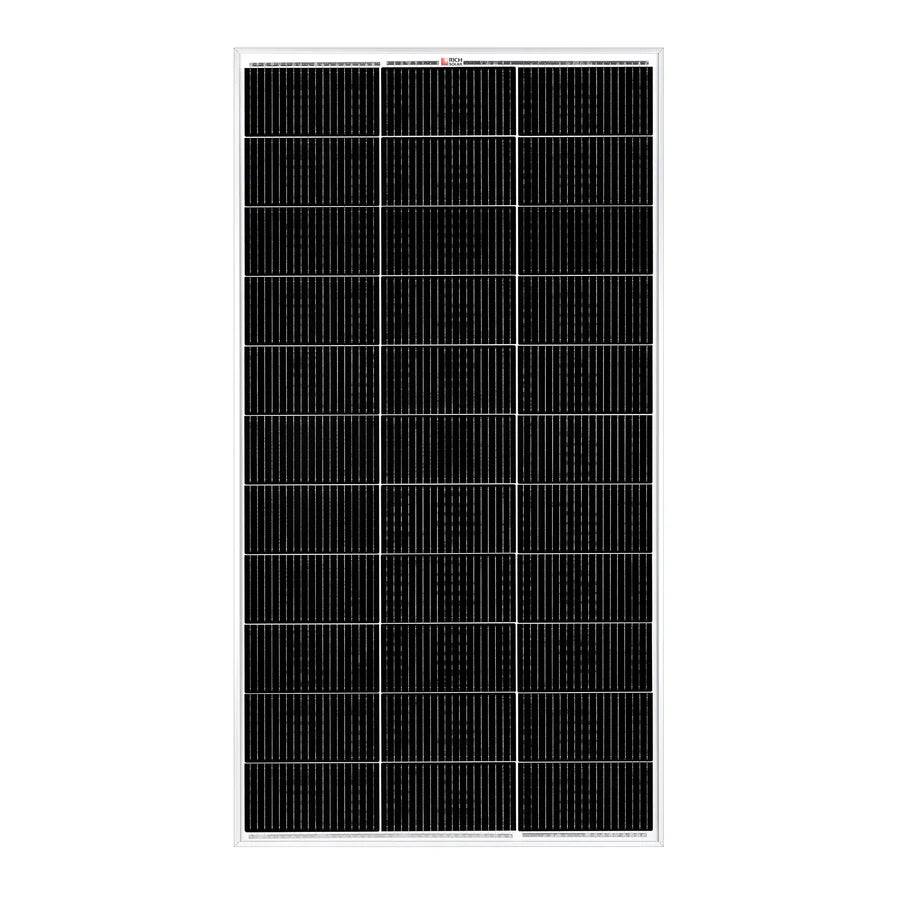

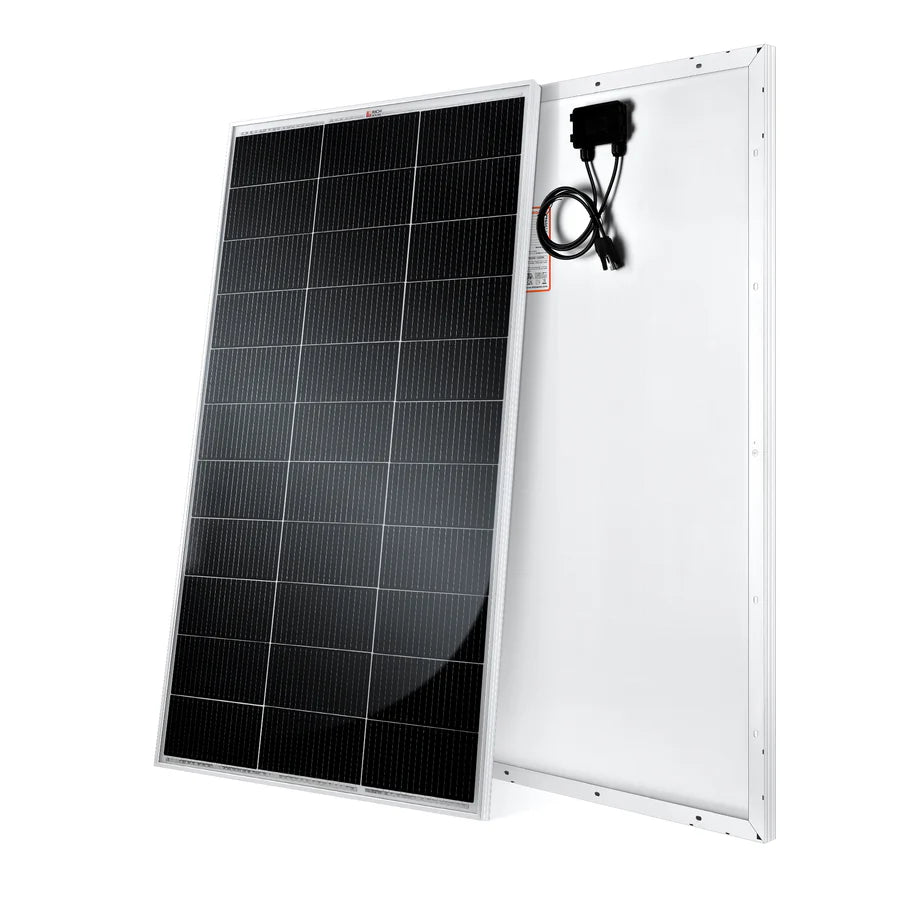

12V Solar Panel · N-Type TOPCon · 150W
The MEGA 150 pairs 18-busbar N-Type TOPCon cells with a lightweight anodized aluminum frame — up to 25.3% cell efficiency in a panel sized for RVs, boats, cabins, and other space-constrained off-grid setups.
| Max. power (Pmax) | 150 W |
| Max-power voltage (Vmp) | 17.5 V |
| Max-power current (Imp) | 8.57 A |
| Open-circuit voltage (Voc) | 21.8 V |
| Short-circuit current (Isc) | 8.94 A |
| Max. system voltage (Vmax) | 1000 Vdc |
| Max. series fuse rating | 10 A |
| Weight | 18.1 lbs |
| Dimensions | 44.0 × 26.4 × 1.2 in |
| Operating temp | -40°F to 185°F |
| Junction box | IP67 |
| Solar connectors | IP67, MC4 |
The MEGA 150 is a 12V off-grid solar panel, sized as a single panel or scalable in pairs for larger arrays.

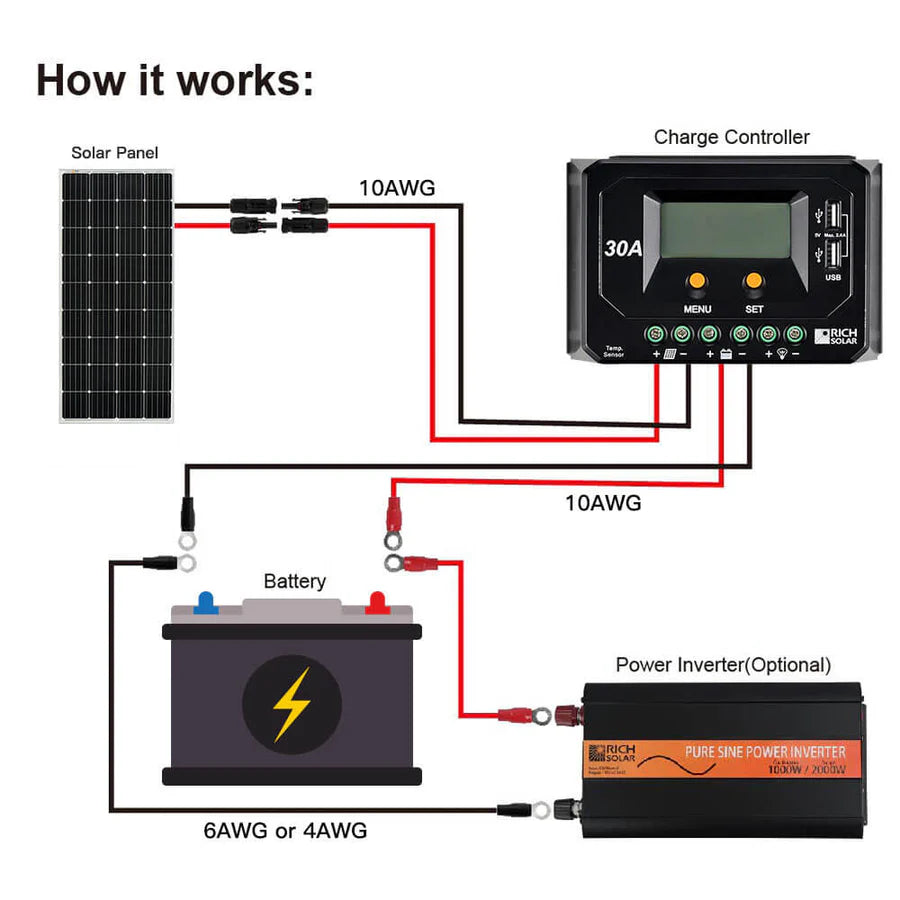

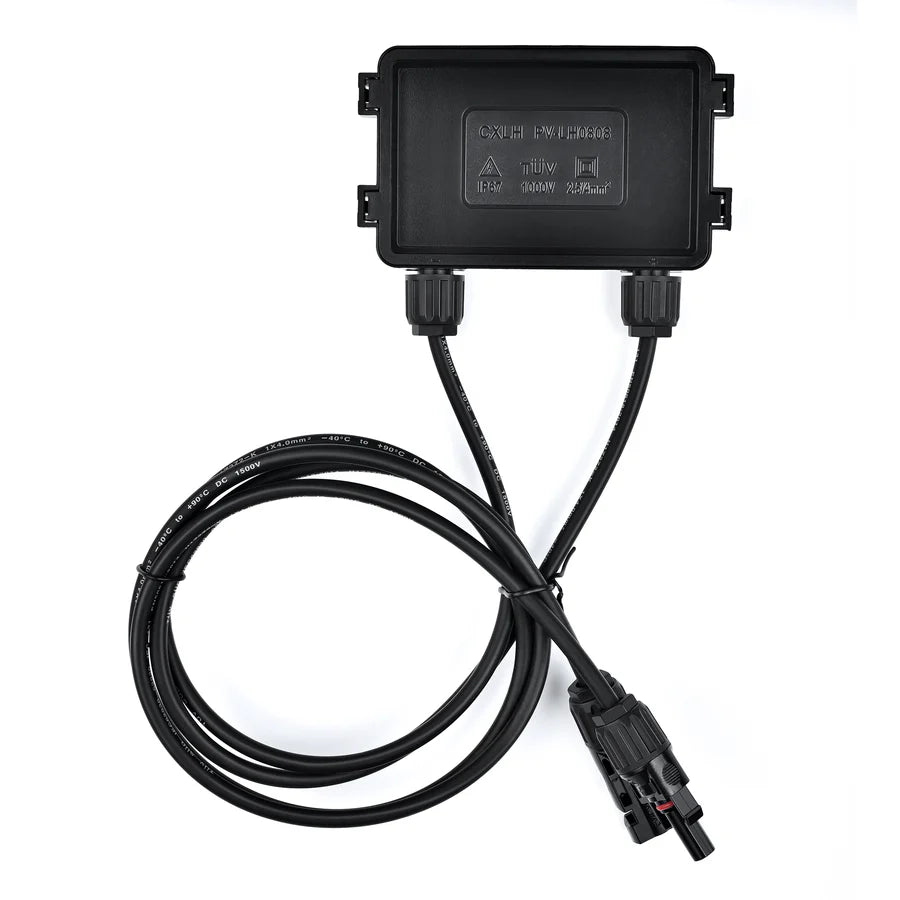

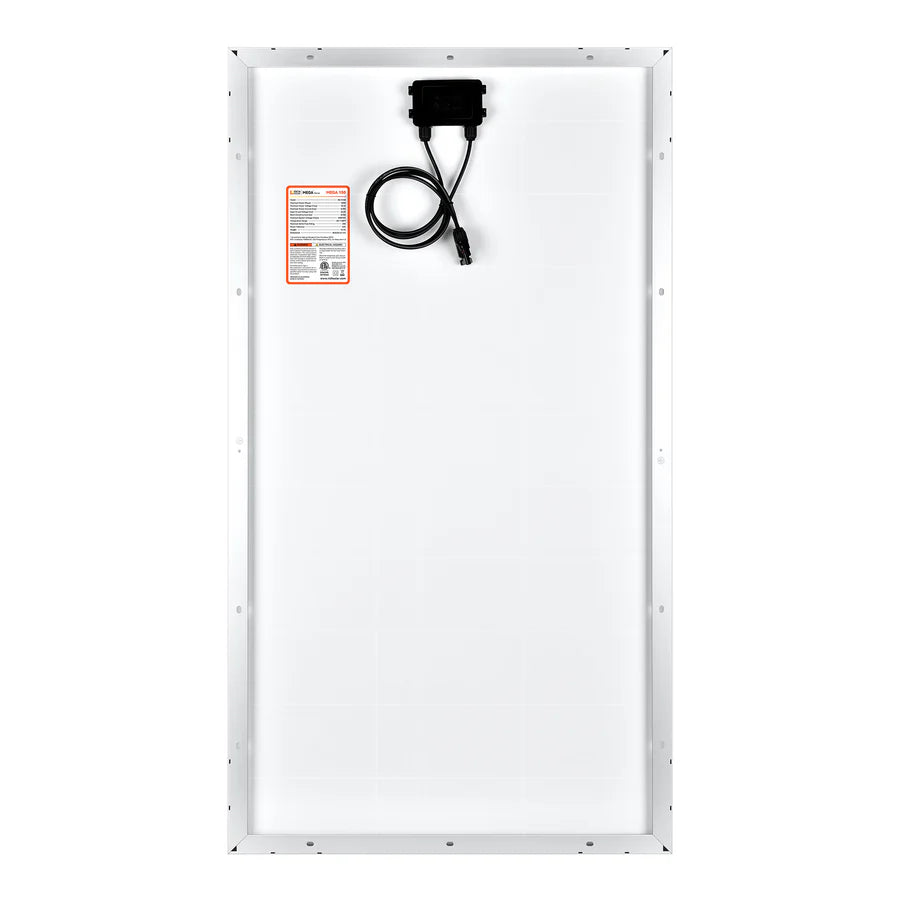

A pair of 12 AWG panel leads (3ft each) with MC4 connectors, terminating in an IP67-rated waterproof junction box — ready to wire into a charge controller.
Fourteen pre-drilled holes accept standard Z-brackets, tilt mounts, pole mounts, or ground mounts, so it fits most common RV, boat, and cabin mounting setups.
Yes — it's compatible with both on-grid and off-grid inverters and standard MPPT or PWM charge controllers rated for its voltage and current output.

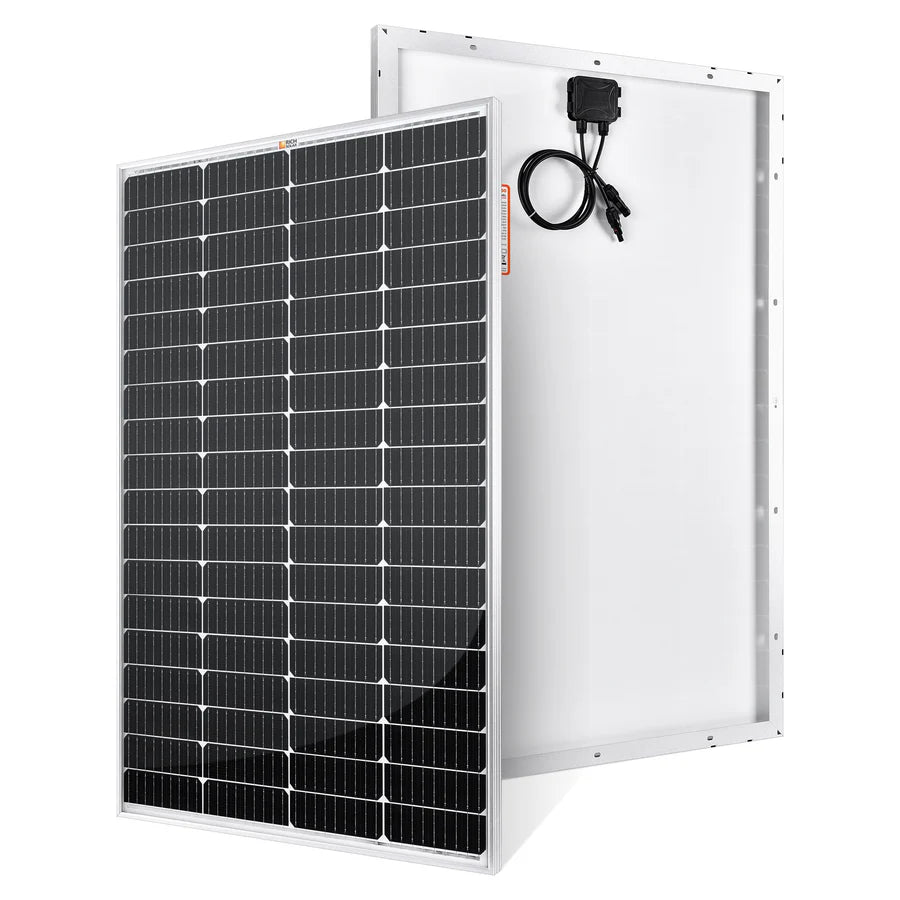

Both options are the same MEGA 150 panel — the 2-panel option simply bundles two units together for a 300W array at checkout.
