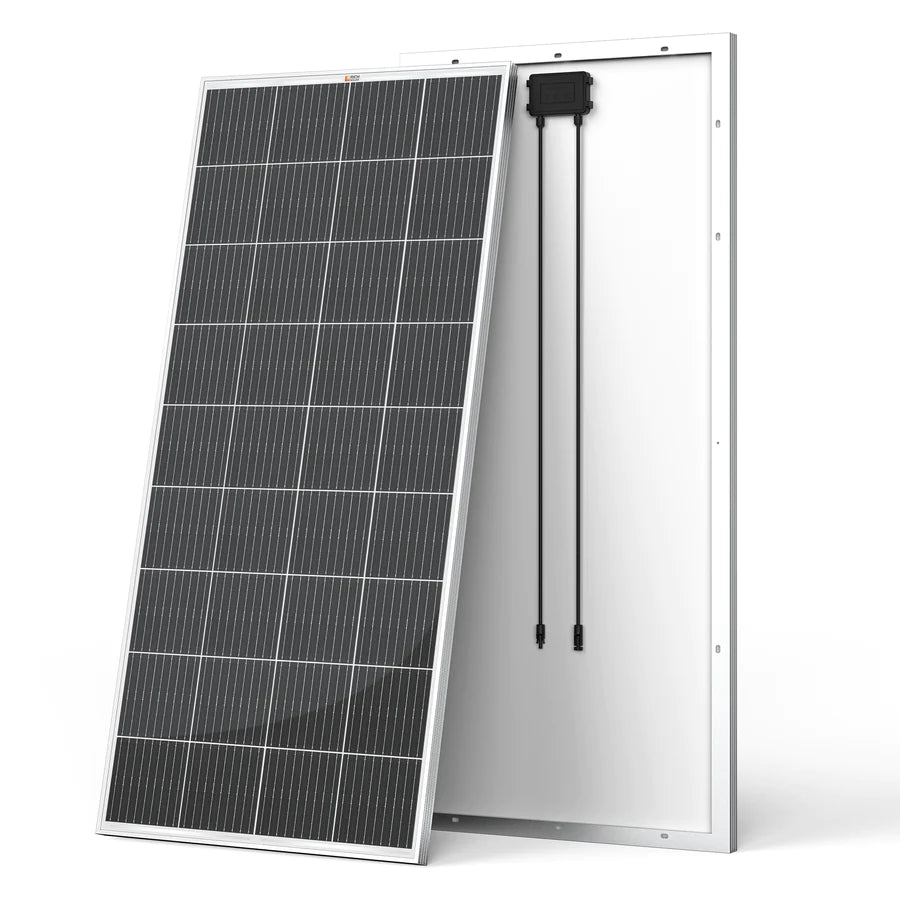

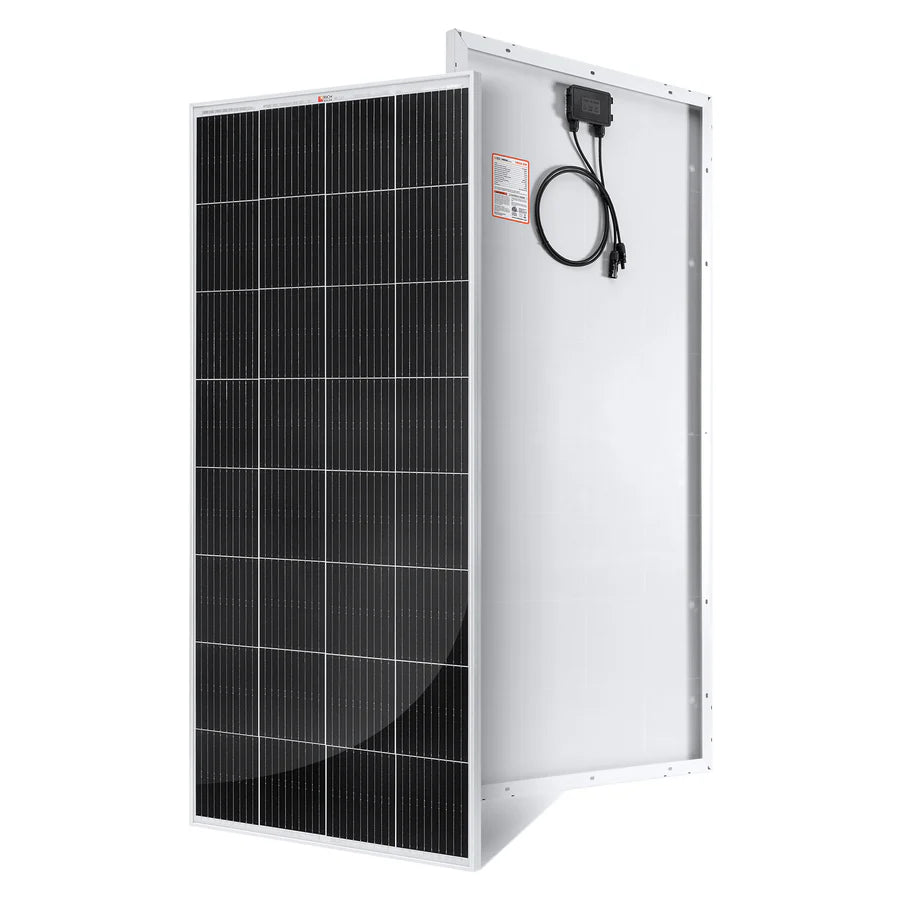

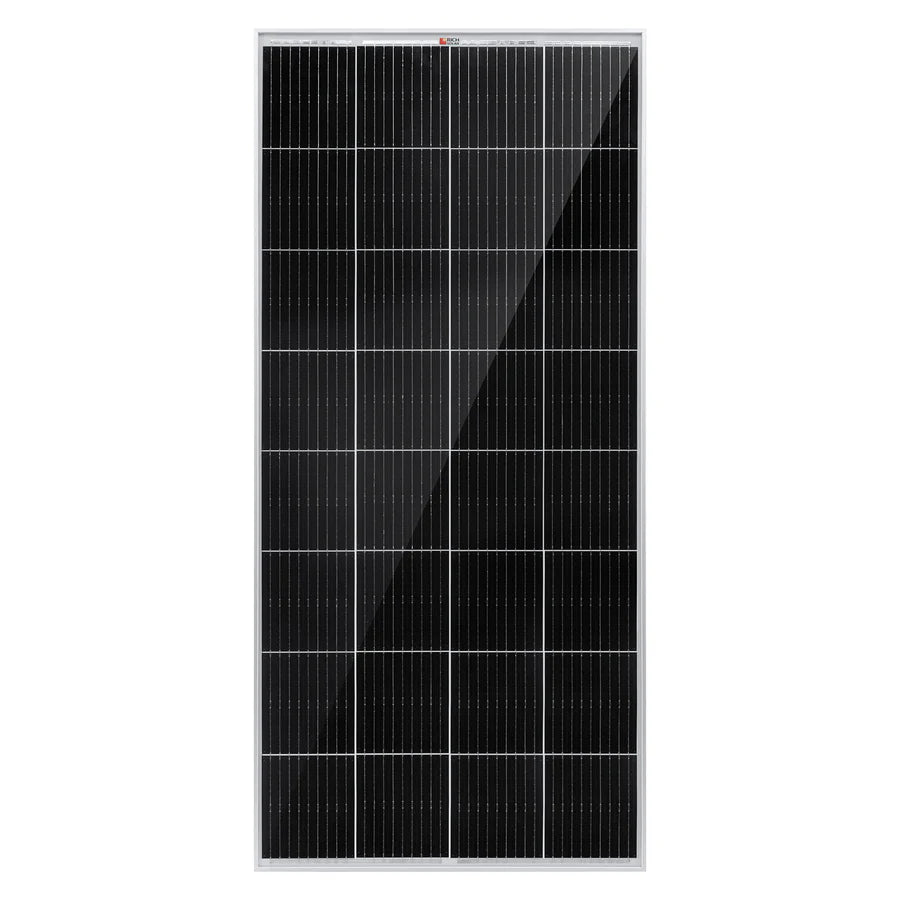

12V Solar Panel · 16BB Busbar Technology · 200W
The MEGA 200 uses 16-busbar cell technology and Grade A+ cells for dependable output — rated for hail up to 35mm at 97 km/h, 2,400 Pa wind, and 5,400 Pa snow loads, built for RVs, cabins, marine, and off-grid systems.
| Max. power (Pmax) | 200 W |
| Max-power voltage (Vmp) | 18.4 V |
| Max-power current (Imp) | 10.9 A |
| Open-circuit voltage (Voc) | 21.8 V |
| Short-circuit current (Isc) | 11.6 A |
| Max. series fuse rating | 15 A |
| Weight | 24.0 lbs |

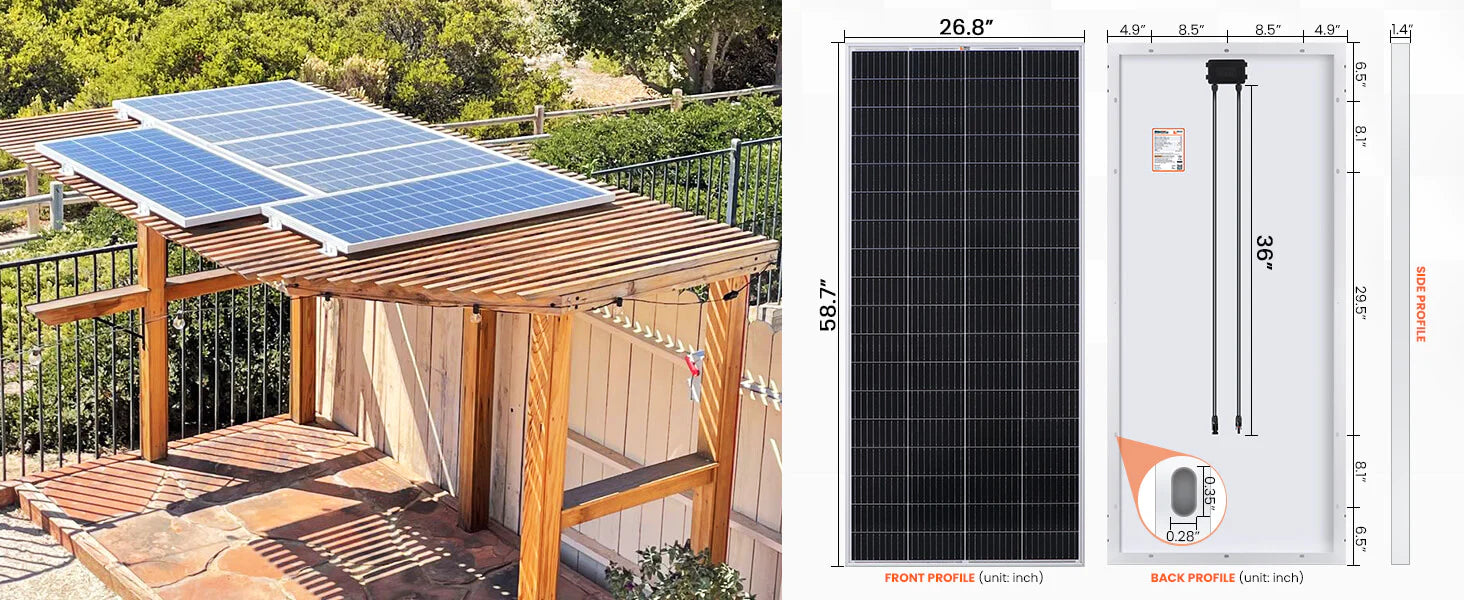

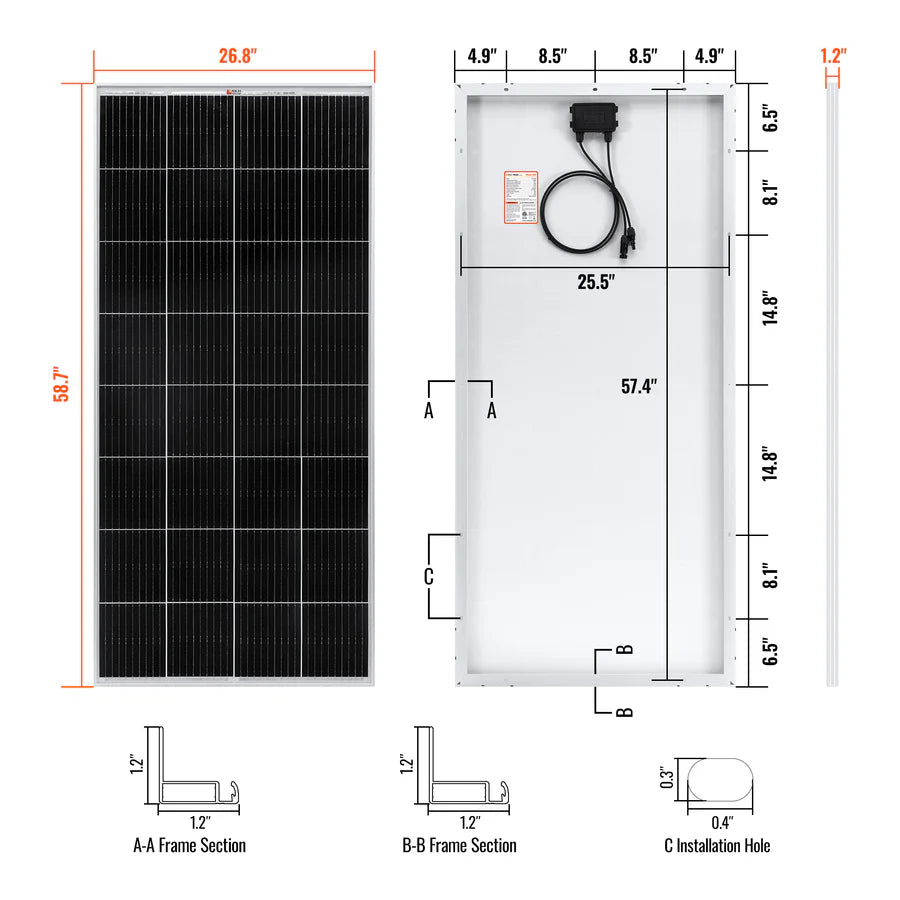

| Dimensions | 58.7 × 26.8 × 1.2 in |
| Package dimensions | 61 × 2 × 29 in |
| Operating temp | -40°F to 185°F |
| Mounting holes | 14, pre-drilled |
16BB panels use 16 busbars to collect and conduct electricity, resulting in higher efficiency, better performance, and reduced power loss compared to panels with fewer busbars. The extra busbars minimize resistance and improve both durability and energy output.
No — an inverter isn't needed just to charge a battery. You'll only need one if you plan to run AC appliances like a TV or refrigerator directly off the battery.
Yes — it's rated for 2,400 Pa wind loads, 5,400 Pa snow loads, and hail impact up to 35mm at 97 km/h.
It carries a 25-year performance warranty: at least 95% of rated output after 5 years, 90% after 10 years, and 80% after 25 years.
The MEGA 200 is available in Silver or Onyx (Black) finish.
I can’t believe how easy it was to install on my camper.

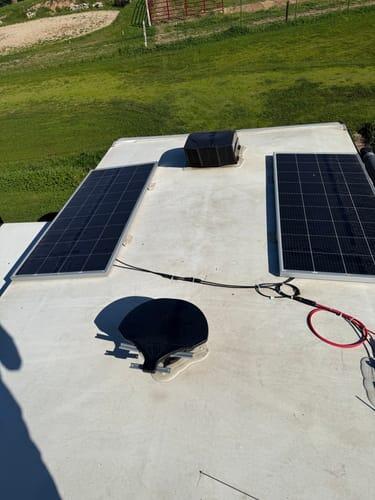

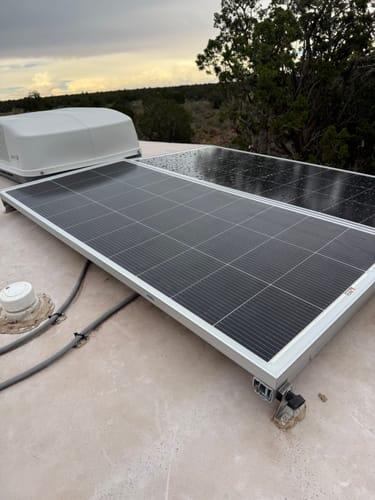

In the photos you can see that I bought a camper with bad solar panels and you guys were highly recommended. I also bought the quick connects to install on the wires in the trailer, from there it was plug and play. Thank you very much for a great product and for making the install easier than I expected.
(Review from richsolar.com)
Easy to install!
(Review from richsolar.com)
I appreciate the wonderful customer service.
(Review from richsolar.com)
I have dealt with Rich for many years and always have had great service!
(Review from richsolar.com)
These solar panels are amazing! Very good quailty. Easy to assemble and they work very well.
This is my go to solar panel for all my solar projects!
(Review from richsolar.com)
