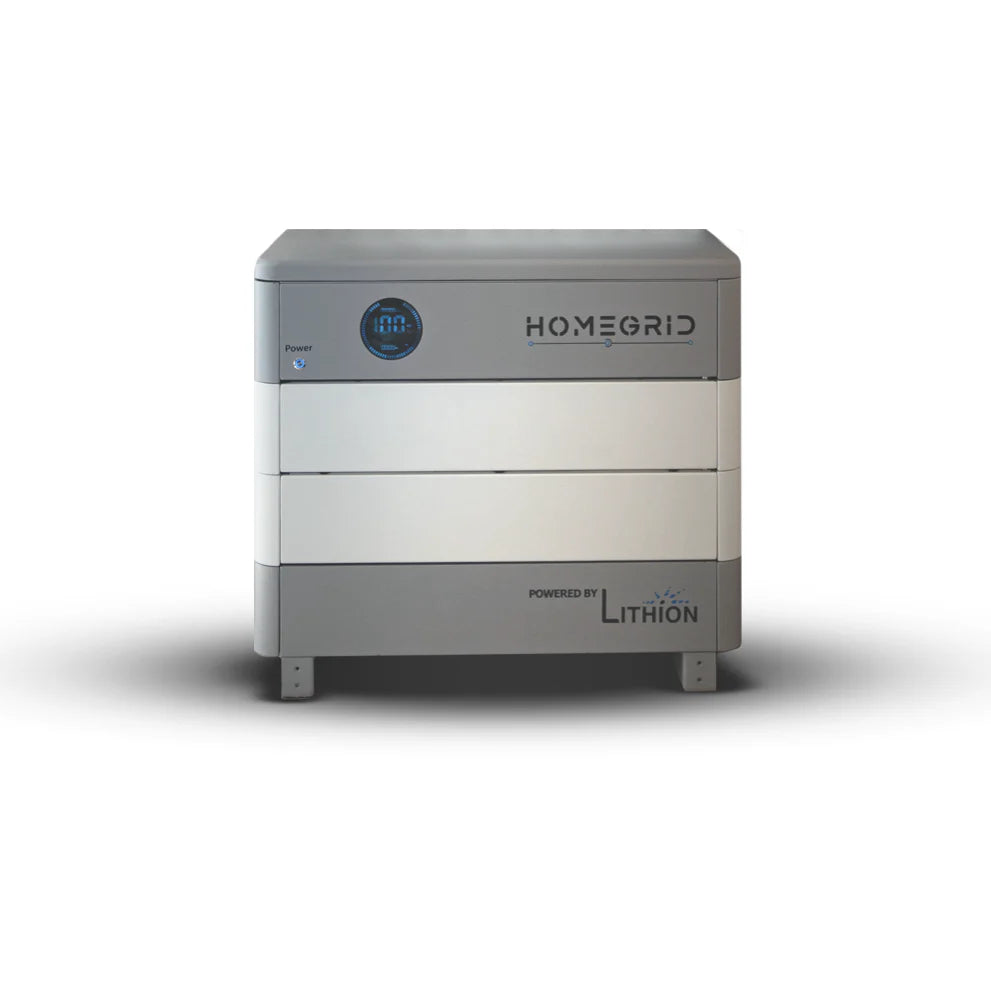

• A gray and white Homegrid modular home battery with a digital display and indicator lights stands on a white background—ideal for seamlessly meeting your homes energy needs.

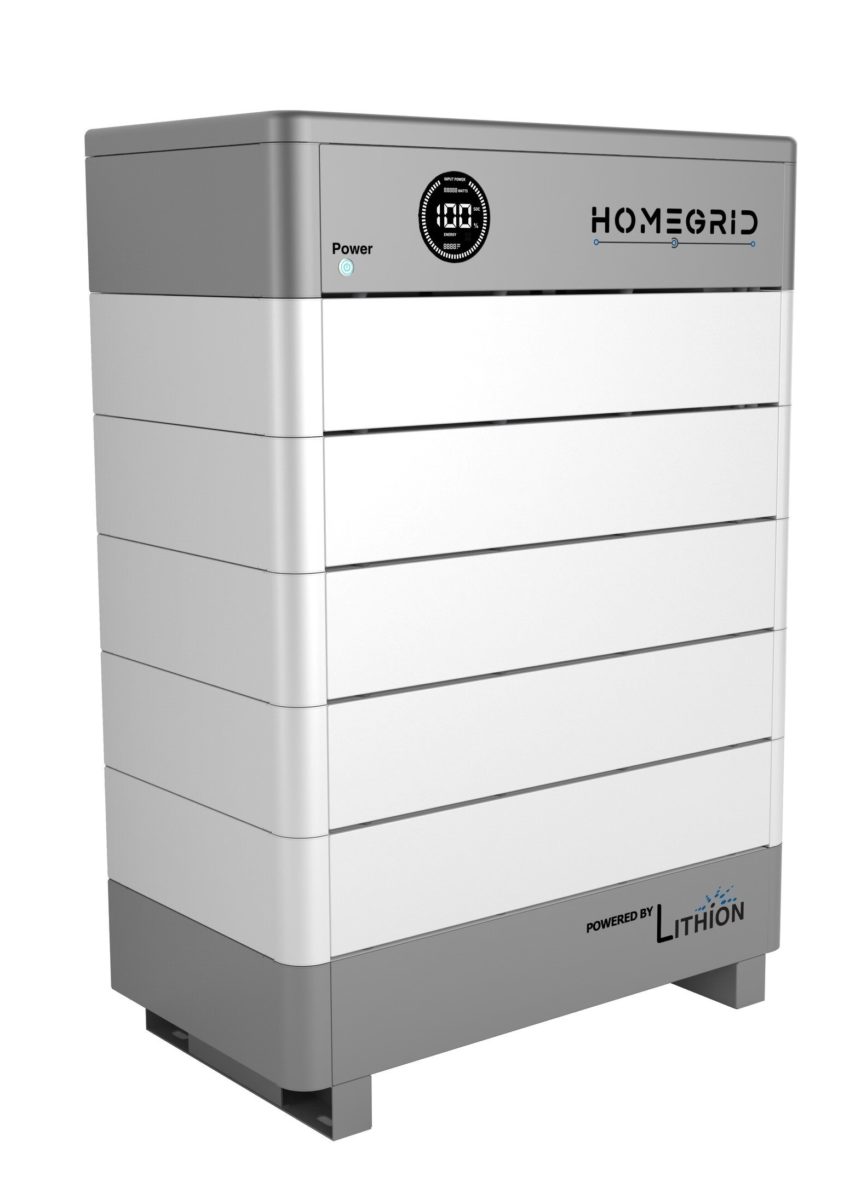

  • A modern, rectangular modular home battery from Homegrid with a digital display features a sleek white and gray design, seamlessly integrating with your homes energy needs.

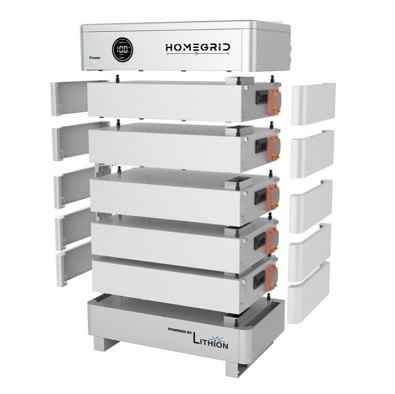

  • A modular Homegrid battery system with six stacked rectangular units, orange side connectors, and a display panel on the top unit delivers seamless energy integration for your home.
  • HomeGrid 2 Stack'd Series 48V 9.6kWh LFP Battery Bank
1 4

HomeGrid 2 Stack'd Series 48V 9.6kWh LFP Battery Bank

SKU: HG-2-STACK-ARCHIVE
Availability: In stock
$5,999.00
$6,799.00 $5,999.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • Use Promocode ECO50 At Checkout To Further Get $50 Off
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • Home Backup
  • Off-Grid
  • Grid-Tie
10-year manufacturer warranty Backed by Homegrid. Full coverage details in the Description tab.

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

Stack'd Series LFP Battery Bank · 48V · Modular

HomeGrid 2 Stack'd Series 48V 9.6kWh LFP Battery Bank

Introducing our modular home battery system, designed for seamless integration and future-proofing your energy needs. Each unit comes with a base capacity of 9.6 kWh, expandable in 4.8 kWh increments up to a robust 38.4 kWh per Stack.

9.6 kWhTotal Energy (This Config)
15 kWContinuous Output (Max Stack)
24 kWSurge (10s)
10yrWarranty

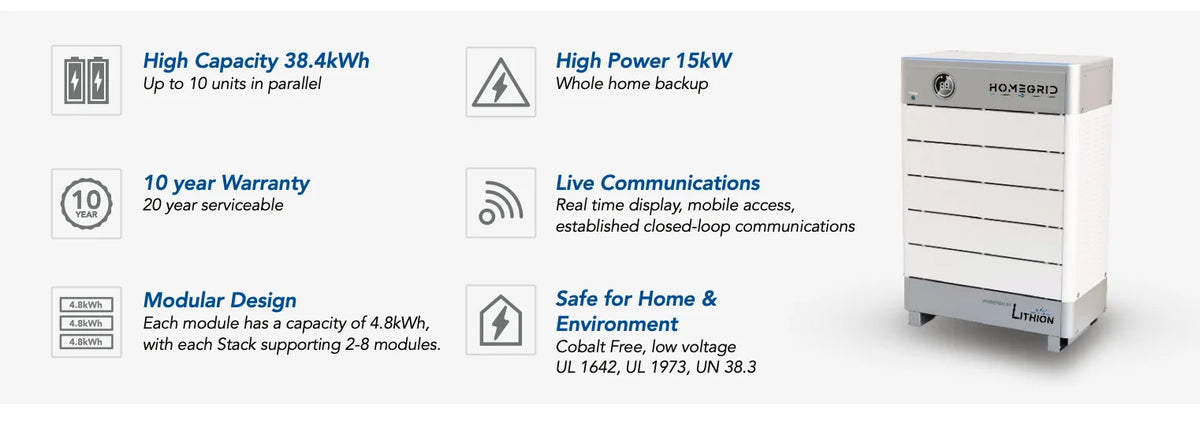

Infographic showing features of the HomeGrid 8 Stackd Series 48V 38.4kWh LFP Battery Bank: 38.4kWh capacity, 15kW power, 10-year warranty, modular design, live monitoring, eco-friendly materials. Battery shown right.
Overview

Modular, Expandable, Reliable

This modular design not only ensures flexibility for your current requirements but also enables hassle-free servicing and effortless expansion as your energy demands evolve. Featuring a continuous output of up to 15 kW and a surge capability of 24 kW for 10 seconds, our system offers reliable full-home backup power when you need it most. Whether it's keeping your lights on during an outage or powering essential appliances, rest assured, we've got you covered.

Configuration Example: 1 Base + 2 × 4.8kWh Modules = Total Capacity of 9.6 kWh

And the best part? You can easily add more modules in the future, tailoring the system to match your growing energy needs seamlessly.

Compatible with leading systems such as Sol-Ark, Schneider, and Outback, our home battery solution offers interoperability and versatility, ensuring a smooth integration into your existing setup. Experience the power of flexibility with our modular home battery system.

Your energy needs are unique, and your HomeGrid system can adapt. Discover the HomeGrid 8 Stack'd 38.4kWh LFP Battery for maximum capacity, or easily complement your stack with the HomeGrid 9.6kWh Battery Package. Check them out and find the perfect match for your home.

Data

Specifications

Battery chemistry technology Lithium Iron Phosphate
Nominal DC voltage 48 V
DC voltage range 46–56 V
Charge temperature 32°F to 113°F
Discharge temperature 14°F to 140°F
Enclosure rating IP55
Mounting options Floor standing
Certificates UL 1642, UL 1973, UN 38.3
Warranty 10 years
Service plan 20 years serviceable
Scalability Units in parallel (384 kWh)
Communication CAN/RS485
Efficiency > 98%
Compatible inverters Sol-Ark, Schneider, SMA, Growatt, Solis, Sofar, Sermatec, Victron, Studer, Goodwell, Outback
Stack Configurations

Specifications by Stack Size

The Stack'd Series scales in 4.8kWh increments from 9.6kWh up to 38.4kWh. This product is the 9.6kWh configuration (highlighted below); larger stacks are available as separate listings.

Specification 9.6 kWh 14.4 kWh 19.2 kWh 24 kWh 28.8 kWh 33.6 kWh 38.4 kWh
Total energy [kWh] 9.6 14.4 19.2 24 28.8 33.6 38.4
Continuous power output [kW] 9.6 14.4 15 15 15 15 15
Capacity [Ah] 200 300 400 500 600 700 800
Recommended charge current [A] 200 300 312.5 312.5 312.5 312.5 312.5
Max. discharge current, continuous [A] 200 300 312.5 312.5 312.5 312.5 312.5
Max. pulse current DC [A] 300 350 500 500 500 500 500
Weight [lbs] 304 412 520 628 736 844 952

Base unit dimensions (W×D×H): 29 × 15.75 × 25.25 in. Height scales with additional modules: 30.5, 35.75, 41, 46.25, 51.5, 56.75 in for the 14.4 through 38.4 kWh configurations respectively.

Additional Documentation

Documents & Downloads

HomeGrid Stack'd Series 48V LFP Batteries Datasheet

Backed by a 10-year warranty and 20 years of serviceability.
