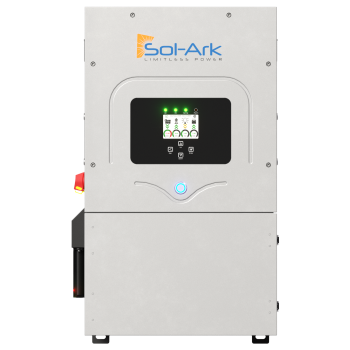

• Front view of the Sol-Ark 12K Hybrid Inverter displays green indicator lights and labeled buttons. The sleek silver device with EMP protection features the Sol-Ark logo at the top.

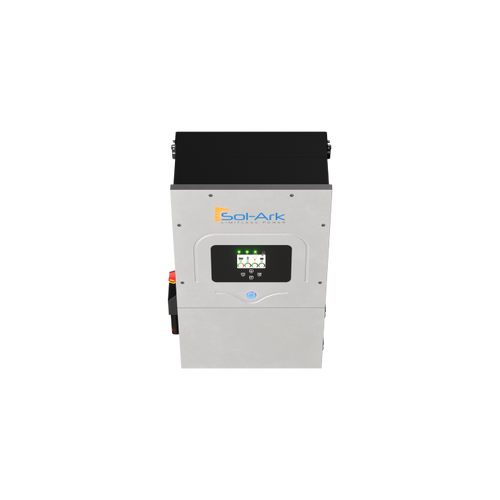

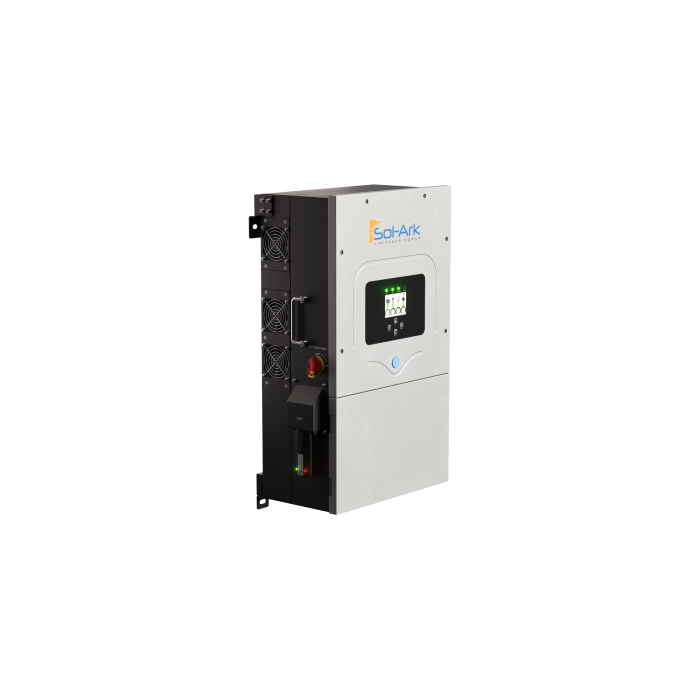

  • The Sol-Ark 12K Hybrid Inverter features a digital display, front control buttons, DC transformerless design, and EMP protection—ideal for energy systems. Shown isolated on a white background.

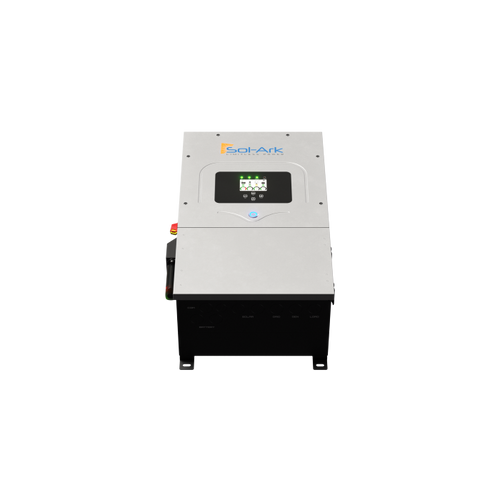

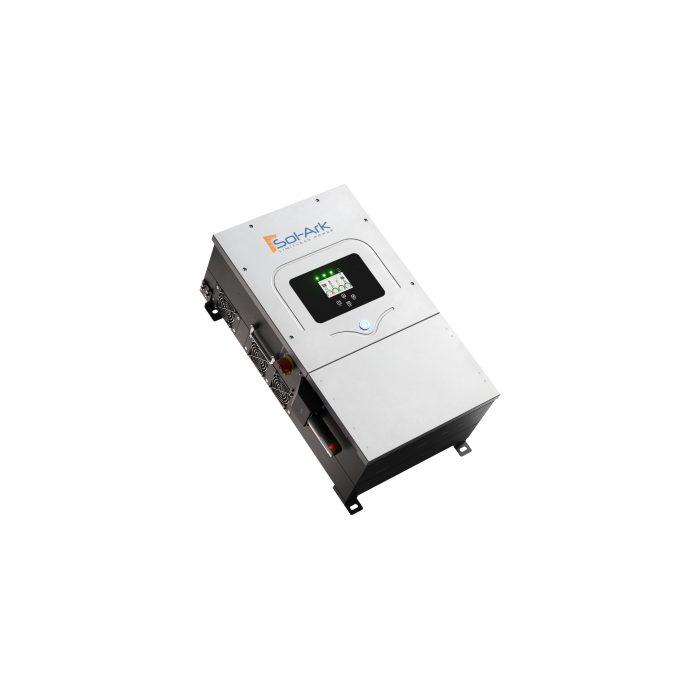

  • A silver industrial electronic device labeled Sol-Ark on top, featuring a digital display and various ports on the side. This hybrid inverter with EMP protection is shown isolated on a white background.

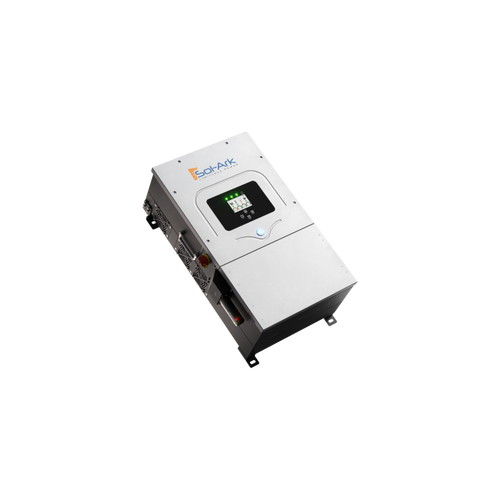

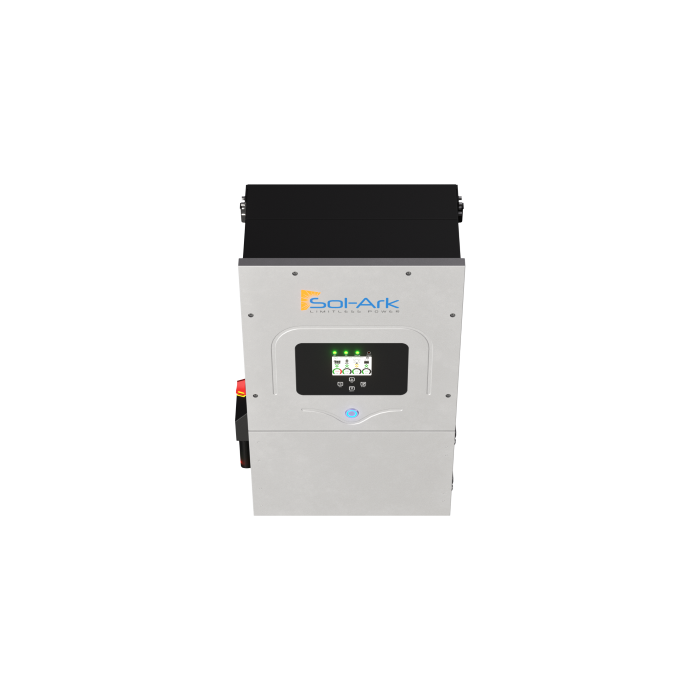

  • Front view of a silver Sol-Ark 12K Hybrid Inverter with digital display and control buttons, offering EMP protection and a transformerless DC design for advanced solar energy systems.

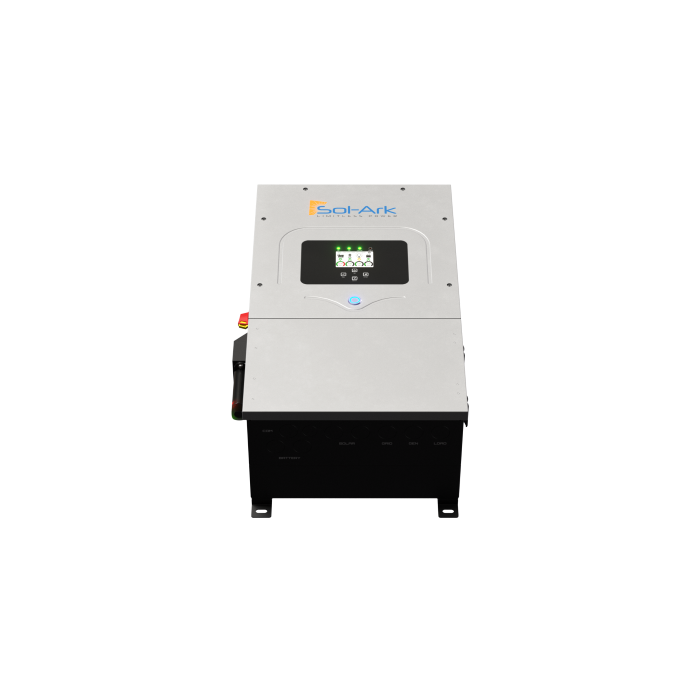

  • The Sol-Ark 12K Hybrid Inverter, branded with Sol-Ark, features a digital display and control buttons on the front panel and a DC transformerless design for solar energy systems, shown against a plain white background.

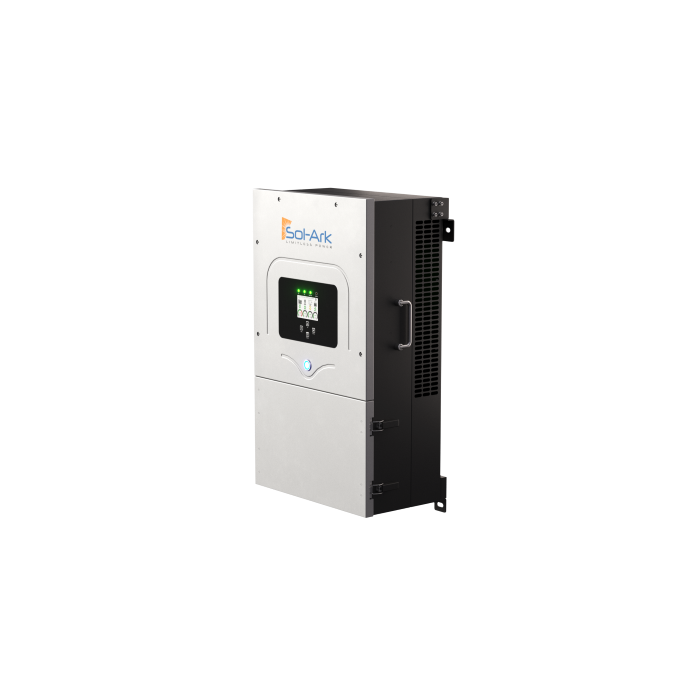

  • A Sol-Ark 12K Hybrid Inverter by Sol-Ark, wall-mounted with a digital display, control panel, EMP protection, and advanced DC transformerless design, is used in solar power systems.
1 6
5 people are viewing this right now

Sol-Ark 12K EMP 120/240/208V 48V All-In-One Hybrid Inverter | 10 Year Warranty

SKU: 12K-2P-EMP
Availability: In stock
$6,649.00
$7,699.00 $6,649.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • Home Backup
  • Off-Grid
  • Hybrid
10-year manufacturer warranty Backed by Sol-Ark. Full coverage details in the Description tab.

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

EMP-Hardened All-In-One Hybrid Inverter · 48V

Sol-Ark 12K EMP 120/240/208V 48V All-In-One Hybrid Inverter | 10 Year Warranty

Introducing the Sol-Ark 12K 120/240/208V EMP All-In-One Hybrid Inverter, designed to provide reliable power with added protection against electromagnetic pulses (EMP). With a robust 10-year warranty, this system is built to last. The EMP unit features indirect lighting, Solar Flare, and EMP hardening specifically tailored for the Sol-Ark system.

9,000WReal Power, Max Continuous
16,000VAPeak Apparent Power (10s)
13,000WMax Allowed PV Power
10yrWarranty
Overview

EMP-Hardened Reliable Power

It also comes equipped with EMP suppressors for solar panels and 20 appliance suppressors, ensuring your entire setup stays safeguarded.

Powering the Sol-Ark 12KW All-in-One Solar Generator System is a DC transformerless design, maximizing battery efficiency while maintaining ease of installation. It's like having a reliable backup power solution that doubles as an uninterruptible power supply (UPS), giving you peace of mind in any situation.

Note: the "12K" in this product's name is the EMP-hardened model-family designation, distinct from the standard Sol-Ark 12K. This unit's own confirmed spec table lists 9,000W as its real power, max continuous rating — worth confirming the actual load requirements rather than assuming parity with the standard 12K's 12,000W continuous rating.

Features

Features

  • All-in-one hybrid inverter
  • EMP resilience for enhanced protection
  • Efficient DC transformerless design
  • Easy installation process
  • Acts as an uninterruptible power supply (UPS)

Browse the full solar inverters collection to find the best fit for your off-grid or grid-tied system.

Data

Specifications

PV / Solar Input

Max. allowed PV power (STC) 13,000 W
Nominal voltage range 175–425 V
Startup voltage 125 V
Max. input voltage 500 V
Max. input current per MPPT 20 A (self-limiting)
No. of MPP trackers 2
No. of PV strings per MPPT 2
Max. AC coupled input 9,600 W

AC Output

Nominal AC voltage (L-L) 120/240V, 120/208V, 220V
Grid frequency 50 / 60 Hz
Real power, max continuous 9,000 W
Max output current 37.5 A
Peak apparent power (10s, off-grid) 16,000 VA
Peak apparent power (100ms, off-grid) 25,000 VA
Max output fault current (100ms) 104 A
Max. grid passthrough current 63 A
Power factor output range ±0.8 adjustable
Backup transfer time 4 ms
CEC efficiency 96.5%
Max efficiency 97.5%
Design (DC to AC) Transformerless DC
Stackable Up to 9 in parallel

Battery

Battery technologies Lithium / Lead Acid
Nominal DC voltage 48 V
Operating voltage range 43–63 V
Capacity 50–9,900 Ah
Max. battery charge/discharge current 185 A
Charging controller 3-stage with equalization
Grid to battery charging efficiency 96.0%
External temperature sensor Included
Current shunt for accurate % SOC Integrated
Automatic generator start Integrated
Communication to lithium CANBus & RS485

Physical & Environmental

Dimensions (H×W×D) 750 × 450 × 254 mm / 29.5 × 17.7 × 10 in
Weight 35.4 kg / 78 lb
Enclosure IP65 / NEMA 3R
Ambient temperature -25°C to 60°C, >45°C derating
Noise < 30 dB
Idle consumption – no load 60 W
Wi-Fi & LAN communication Included
Warranty 10 years

Certifications & Protection

Electronics certified safety SGS Labs — NEC 690.4B & NEC 705.4/6
Grid sell back UL1741-2010/2018, IEEE1547a, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
PV DC disconnect switch Integrated
Ground fault detection Integrated
PV rapid shutdown control Integrated
PV arc fault detection Integrated
PV input lightning protection Integrated
PV string reverse polarity protection Integrated
AC output breaker 63A integrated
Battery breaker/disconnect 250A integrated
Surge protection DC Type II / AC Type II
Additional Documentation

Documents & Downloads

Sol-Ark 12K EMP Datasheet Sol-Ark 12K EMP Manual

Backed by a 10-year warranty. EMP-hardened with suppressors for solar panels and 20 appliances.
