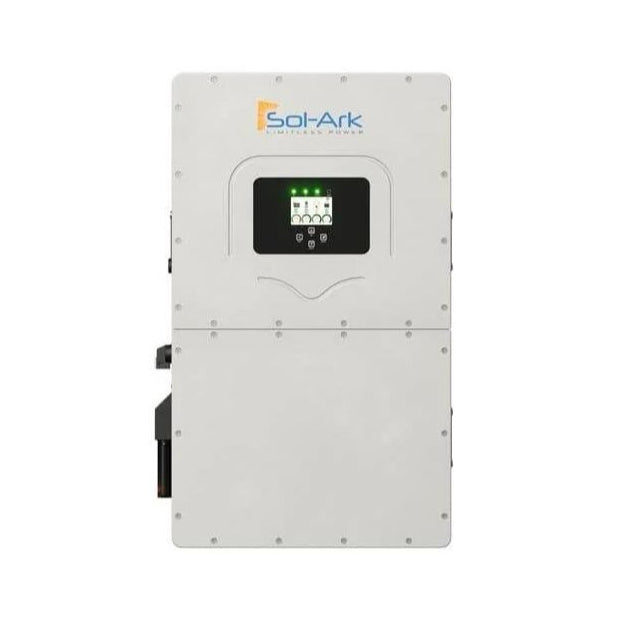

Sol-Ark 30K 120/208V 3-Phase Commercial Hybrid Inverter | 10 Year Warranty

SKU: 30K-3P-208V
Regular price $14,750.00
Regular price Sale price $14,750.00
Sold out
  • Authorized Distributor
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI or AK)
  • Use Promocode ECO500 To Further Get $500 Off
  • $0 SALES TAX For Every Order (WY is an exclusion)
  • Have Questions? Call our Expert for Answers +1 307 317 7213
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Delivery Information

Delivery information

Payment Methods

Return and Refund Policy

Live Chat

Live Agent

Category: Sol-Ark Inverter
View full product details


FEATURES

  • Solar Input Power: 39kW
  • Output Power Off-Grid: 30kW
  • Full Generator Compatibility
  • Outdoor Rating: NEMA 3R

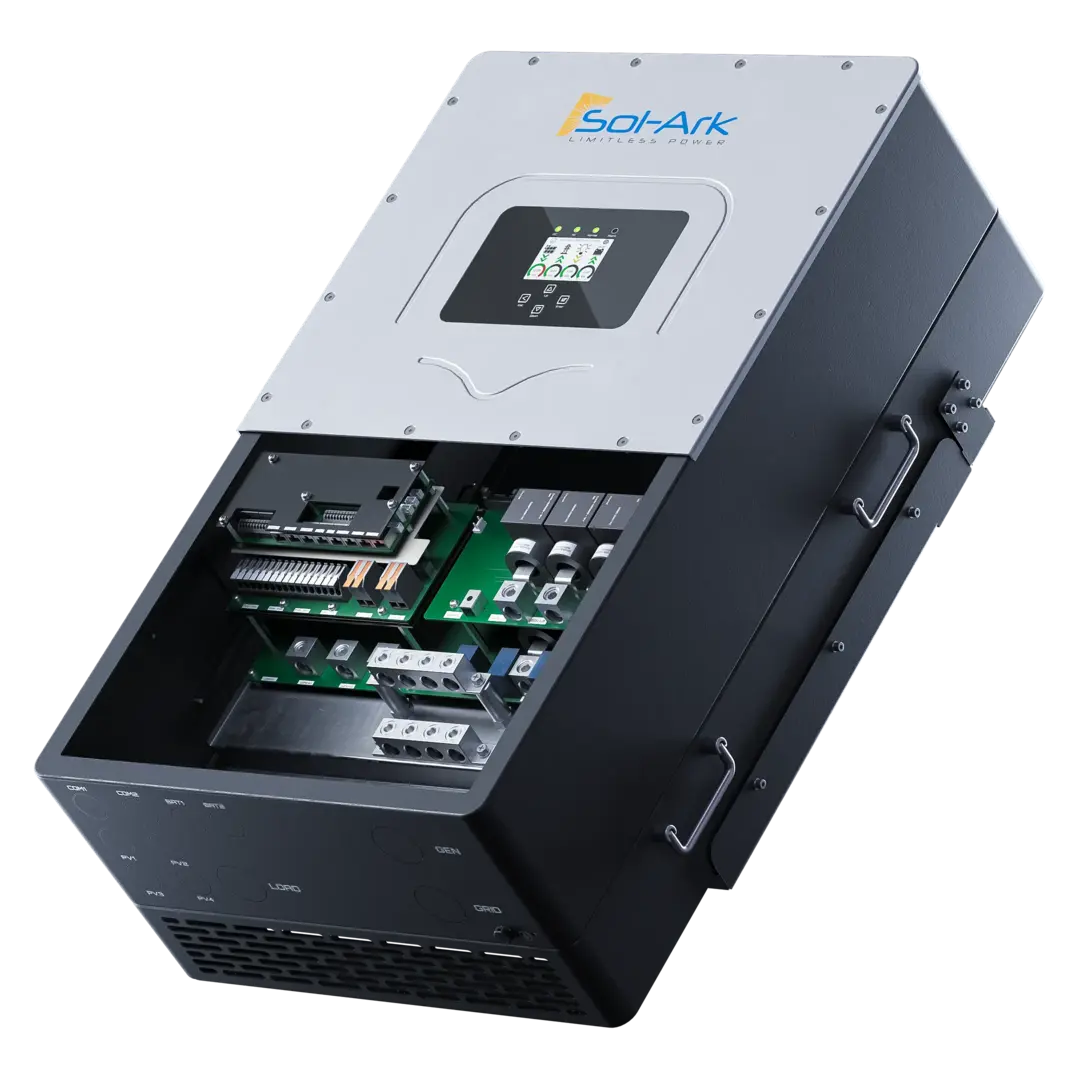

  • Easy Installation: The 30K Inverter includes all necessary components for a hassle-free setup, conveniently packaged for enhanced efficiency.
  • Fleet Management: Utilize Sol-Ark's remote access features and app for seamless system monitoring and quick adjustments or repairs without the need for on-site presence.
  • AC/DC Coupling & Stackable: Supports simultaneous DC and AC coupling, maximizing PV energy utilization without increasing array size. Reduces storage inverter costs by up to 30%.
  • Warranty and Reliability: Backed by an award-winning 10-year warranty and Sol-Ark's round-the-clock, seven-days-a-week live support for comprehensive assistance with all your needs.





SPECIFICATIONS

Max. Allowed PV Power (STC) 39,000 W
MPPT Voltage Range 150-500 V
Startup Voltage 180 V
Max. Input Voltage 550 V
Max. input current per MPPT 36 A
Max. short circuit current per MPPT 55 A
No. of MPP Trackers 4
No. of PV Strings per MPPT 2
Max. AC Coupled Input Power 30,000 W
Nominal AC Voltage  120/208 V
Grid Frequency 50 / 60 Hz
Real Power, max continuous 30,000 W
Max. Output Current 83.4 A
Peak Apparent Power  45,000 VA
Max. Grid Passthrough Current 200 A
Continuous Grid Passthrough Current 180 A
Power Factor Output Range +/- 0.8 adjustable
Backup Transfer Time 5 ms (adjustable)
CEC Efficiency 96.5%
Max Efficiency 97.5%
Design (DC to AC) Transformerless DC
Stackable Up to 10 in parallel
Battery Chemistry Lithium iron phosphate
No. of Battery Inputs 2
Battery Input Terminal Rating 50 A
Nominal DC Voltage ≥300 V
Operating Voltage Range 160 - 500 V
Battery Capacity Range 50 — 9900 Ah
Max. Battery Charge / Discharge Current 100 A (50 A per input)
Charge Controller Type 3-Stage with Equalization
Grid to Battery Charging Efficiency 96.0%
Automatic Generator Start (AGS) 2 Wire Start - Integrated
BMS Communication 2 CANBus & RS485
Dimensions (H x W x D) 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
Weight 80 kg / 176 lb
Enclosure IP65 / NEMA 3R
Ambient Temperature -40 – 60°C, >45°C Derating
Noise < 30 dB @ 25°C (77°F)
Idle Consumption - No Load 60 W
Communication and Monitoring Wi-Fi & LAN Hardware Included
Warranty 10 Years (15 Years)
Certifications and Listings UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP 4
PV DC Disconnect Switch NEC 240.15 Integrated
Ground Fault Detection NEC 690.5 Integrated
PV Rapid Shutdown Control NEC 690.12 Integrated
PV Arc Fault Detection NEC 690.11 Integrated
PV Input Lightning Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Surge Protection DC Type II / AC Type III





ADDITIONAL DOCUMENTATION

Sol-Ark 30K 3-Phase Commercial Hybrid Inverter Datasheet

Sol-Ark 30K 3-Phase Commercial Hybrid Inverter Manual

Sol-Ark 30K 3-Phase Commercial Hybrid Inverter Brochure
