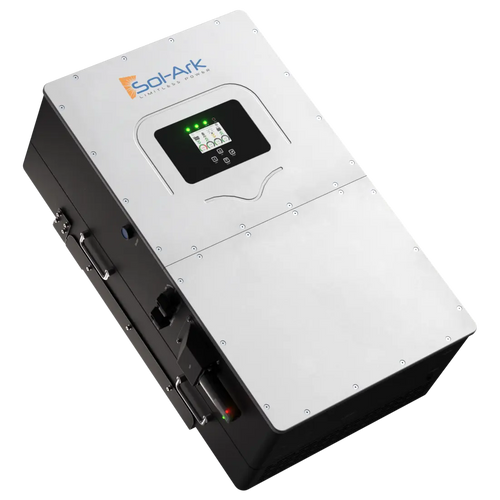

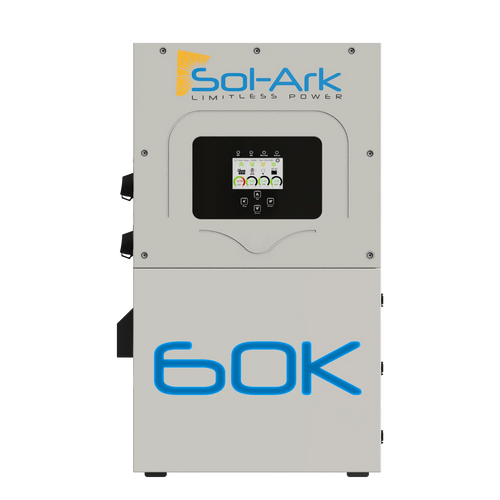

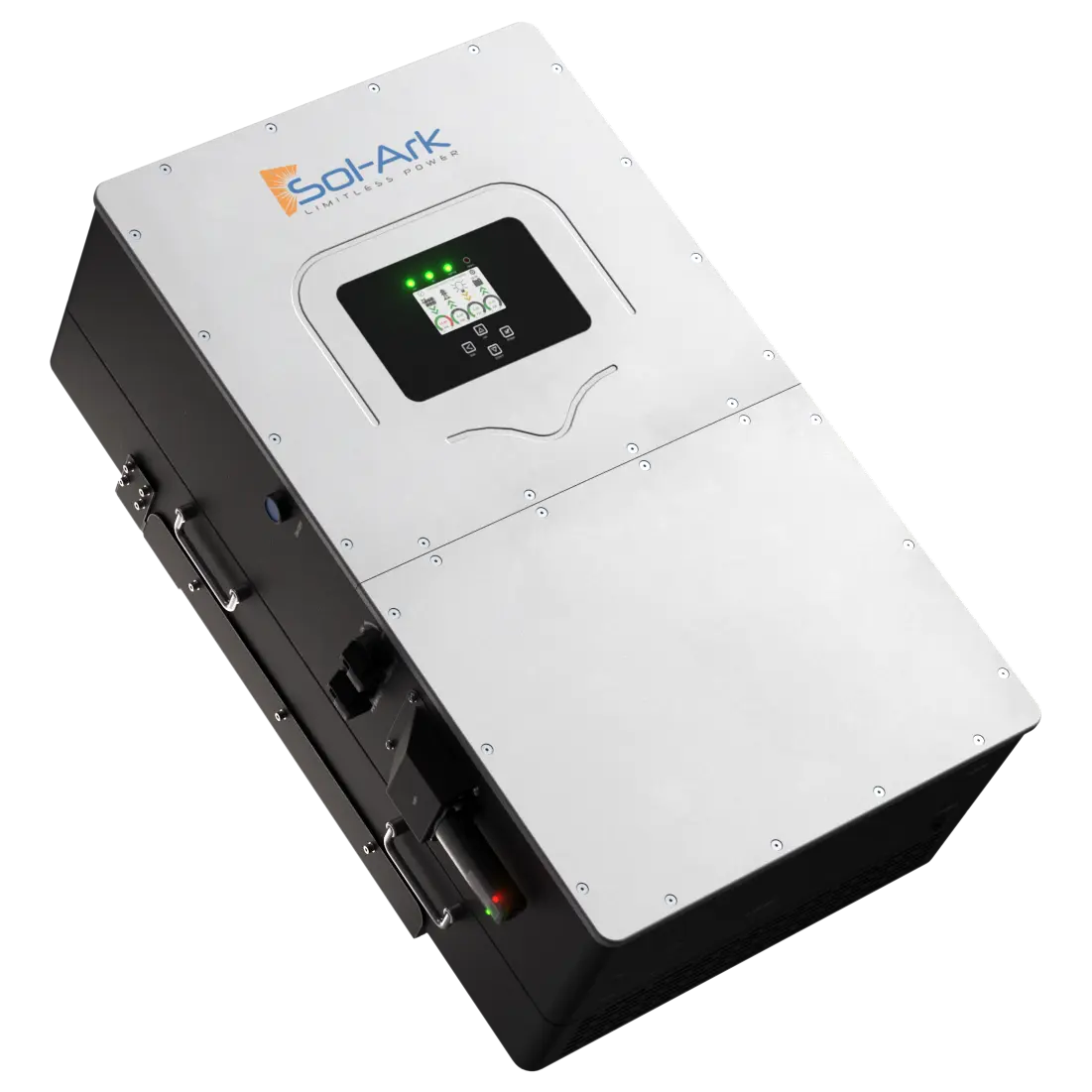

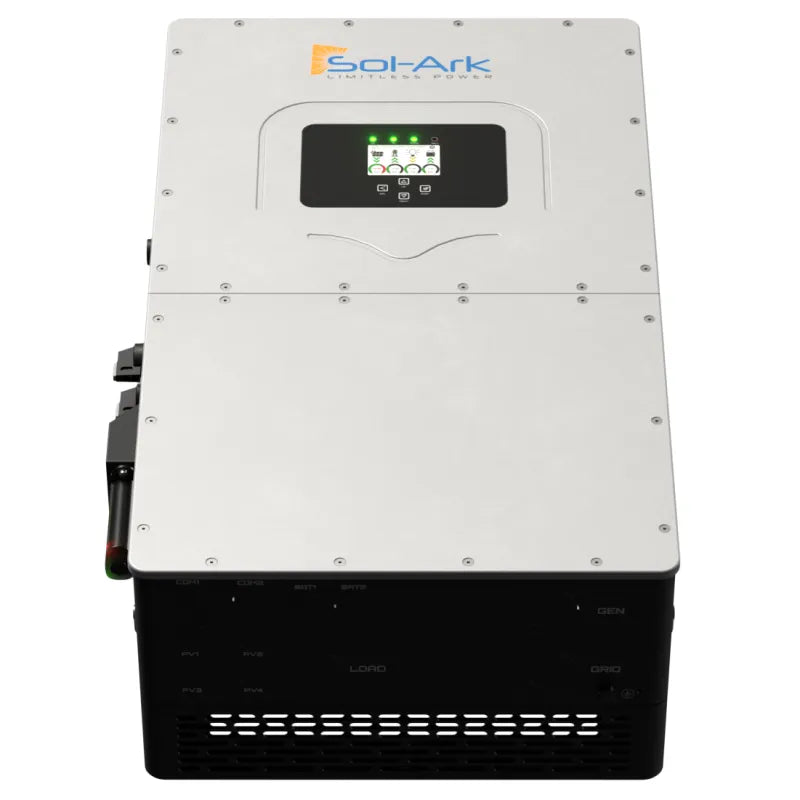

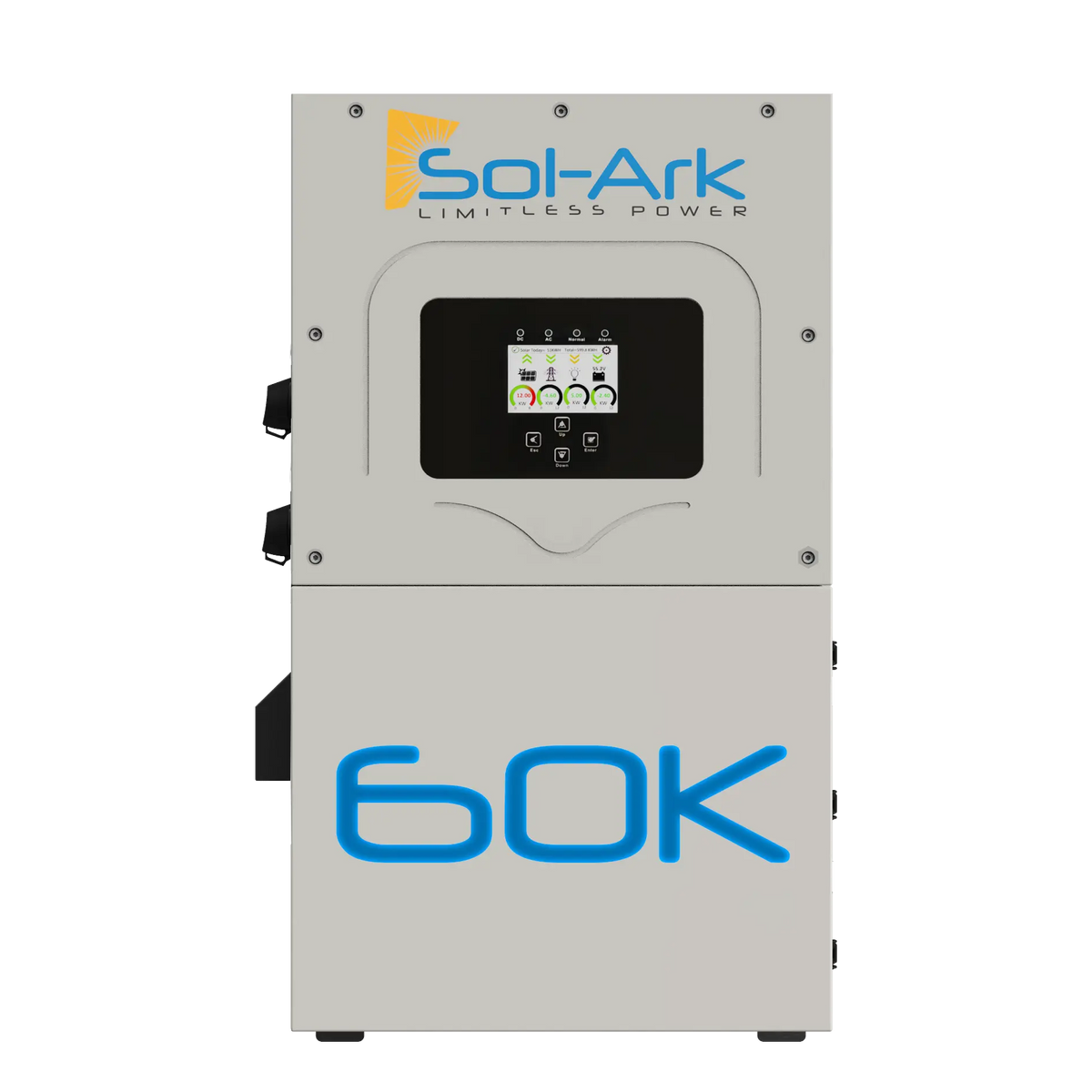

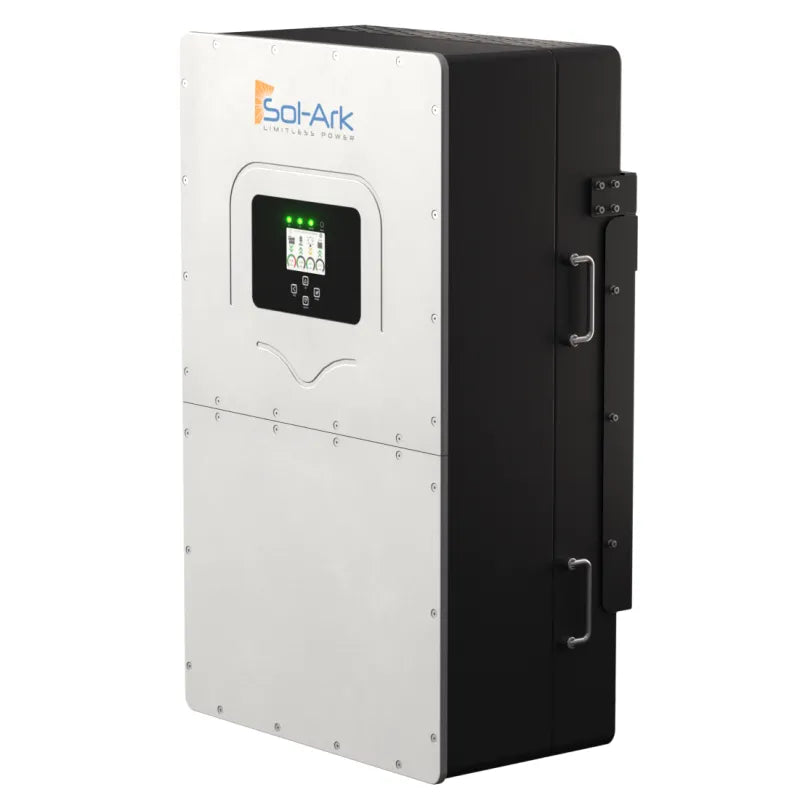

Sol-Ark 60K 277/480V 3-Phase Commercial Hybrid Inverter

SKU: 60K-3P-480V
Regular price $19,750.00
Regular price Sale price $19,750.00
Sold out
  • Authorized Distributor
  • FREE SHIPPING For Every Order No Matter How Big Or Small
  • Use Promocode ECO500 To Further Get $500 Off
  • $0 SALES TAX For Every Order (WY is an exclusion)
  • Have Questions? Call our Expert for Answers +1 307 317 7213
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Delivery Information

Delivery information

Payment Methods

Return and Refund Policy

Live Chat

Live Agent

Category: Sol-Ark Inverter
View full product details



FEATURES

  • Easy Installation: The 60K Inverter arrives with all necessary components for a hassle-free setup. Packaged for maximum efficiency during installation.

  • Fleet Management: Sol-Ark's remote access features and dedicated app keep you connected at all times. Effortlessly manage and adjust systems without the need for on-site visits.

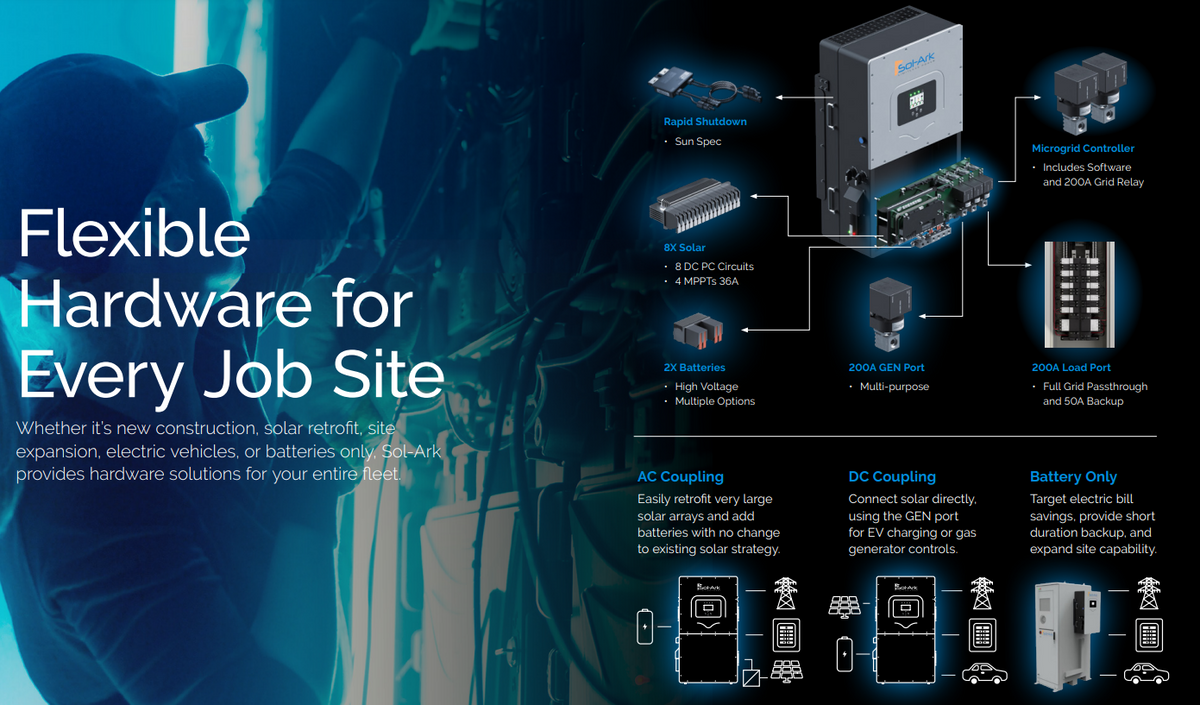

  • AC/DC Coupling & Stackable: Support for simultaneous AC and DC coupling. Boost PV energy without increasing array size and reduce storage inverter costs by up to 30%.

  • Warranty and Reliability: Backed by an award-winning 10-year warranty and Sol-Ark's 7-day-a-week live support. Assistance available for all your needs, ensuring peace of mind and dependable performance.





SPECIFICATIONS

Max. Allowed PV Power (STC) 78,000W
MPPT Voltage Range 150-850V
Startup Voltage 180V
Max. Input Voltage 1,000V
Max. input current per MPPT 36A
Max. short circuit current per MPPT 55A
No. of MPP Trackers 4
No. of PV Strings per MPPT 2
Max. AC Coupled Input 60,000W
Nominal AC Voltage 277/480V
Grid Frequency 50 / 60Hz
Real Power, max continuous 60,000W
Max. Output Current 72.3A
Peak Apparent Power  90,000VA
Max. Grid Passthrough Current  200A
Continuous Grid Passthrough Current 180A
Power Factor Output Range +/- 0.8 adjustable
Backup Transfer Time 5ms (adjustable)
CEC Efficiency 96.5%
Max Efficiency 97.5%
Design (DC to AC) Transformerless DC
Stackable Up to 10 in parallel
Battery Chemistry Lithium iron phosphate
No. of Battery Inputs 2
Battery Input Terminal Rating 50A
Nominal DC Voltage ≥ 600V
Operating Voltage Range 160 - 800V
Battery Capacity Range 50 — 9900Ah
Max. Battery Charge / Discharge Current 100A (50A per input)
Charge Controller Type 3-Stage with Equalization
Grid to Battery Charging Efficiency 96.0%
Automatic Generator Start (AGS) 2 Wire Start - Integrated
BMS Communication 2 CANBus & RS485
Dimensions (H x W x D) 894 x 528 x 295 mm
Weight 80 Kg / 176 lb.
Enclosure IP65 / NEMA 3R
Ambient Temperature -40 – 60°C, >45°C Derating
Noise < 30 dB @ 25°C
Idle Consumption 60W
Communication and Monitoring Wi-Fi & LAN Hardware Included
Warranty 10 Years (15 Years)
Certifications and Listings UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP
PV DC Disconnect Switch NEC 240.15 Integrated
Ground Fault Detection NEC 690.5 Integrated
PV Rapid Shutdown Control NEC 690.12 Integrated
PV Arc Fault Detection NEC 690.11 Integrated
PV Input Lightning Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Surge Protection DC Type II / AC Type III





ADDITIONAL DOCUMENTATION

Sol-Ark 60K 3-Phase Commercial Hybrid Inverter Datasheet

Sol-Ark 60K 3-Phase Commercial Hybrid Inverter Manual

Sol-Ark 60K 3-Phase Commercial Hybrid Inverter Brochure

Sol-Ark 60K 3-Phase Commercial Hybrid Inverter Certification
