48V Hybrid Inverter ยท Split-Phase ยท On-Grid or Off-Grid
The NOVA 12K handles solar, battery, utility, and generator input in one UL 1741-certified unit โ 10,000W of continuous 120/240V split-phase output with 12,000W of PV input capacity, built for whole-home backup, cabins, and off-grid living.
Most off-grid setups end up juggling separate hardware for solar charging, battery management, and grid or generator backup. The NOVA 12K folds all of that into a single hybrid inverter โ solar, battery, utility, and generator all route through the same unit, coordinated automatically rather than requiring a rack of separate boxes.
At 10,000W continuous with 12,000W of PV input headroom, it's sized for more than a backup role: whole-home systems, ADUs, and off-grid cabins with real daily loads. Split-phase 120/208V and 120/240V output covers standard residential wiring, and up to six units can be paralleled together for installations that outgrow a single inverter.
PV Input
| Maximum DC power | 12,000 W |
| Working DC voltage range | 120โ550 Vdc |
| Maximum DC voltage | 600 Vdc |
| Start-up voltage | 125 Vdc |
| MPPT | Dual, 2ร18A (30A max) |
AC Input
| AC start-up voltage | 85 Vac per phase |
| Auto restart voltage | 90 Vac per phase |
| Acceptable input range | 85โ140 Vac per phase |
| Nominal frequency | 50Hz / 60Hz |
| AC input power | 10,000 VA / 10,000 W |
| Max. AC input current | 60 A |
AC Output
| Rated power | 10,000 VA / 10,000 W |
| Output voltage | 120V (P-N) / 208V / 240V (P-P) |
| Output frequency | 50/60Hz (auto-sensing) |
| Output current | 41.7 A per phase |
| Output waveform | Pure sine wave |
| Efficiency (DC to AC) | 91% |
Battery & Charger
| Nominal DC voltage | 48 Vdc |
| Max. discharging current | 200 A |
| Max. charging current | 200 A |
Certifications & Compliance
| Safety standards | UL 1741SA/SB, CSA C22.2 No.107.1, IEEE 1547 |
| Regulatory | CEC Listed, FCC Part 15 Class B |
| Grid compliance | CA Rule 21, HECO Rule 14H |
General
| Communication | RS232, USB, BMS, WiFi |
| Protection rating | IP65 |
| Operating temp | -13ยฐF to 140ยฐF |
| Dimensions | 8.5 ร 20.3 ร 28.1 in |
| Net weight | 112 lbs |
| Max parallel units | 6 |
Both โ the NOVA 12K supports grid-tie, off-grid, and hybrid operating modes, so it can run connected to utility power, fully off-grid, or switch between the two depending on how it's configured.
It's built as a hybrid inverter designed to work with a 48V battery bank alongside solar, grid, and generator input. Check with Rich Solar on specific battery-free operation if that's part of your setup.
Up to 12,000W across two MPPT inputs (18A each, 30A peak), with a working DC voltage range of 120โ550V.
Yes โ up to 6 NOVA 12K units can be paralleled together for installations that need more than 10,000W of continuous output.

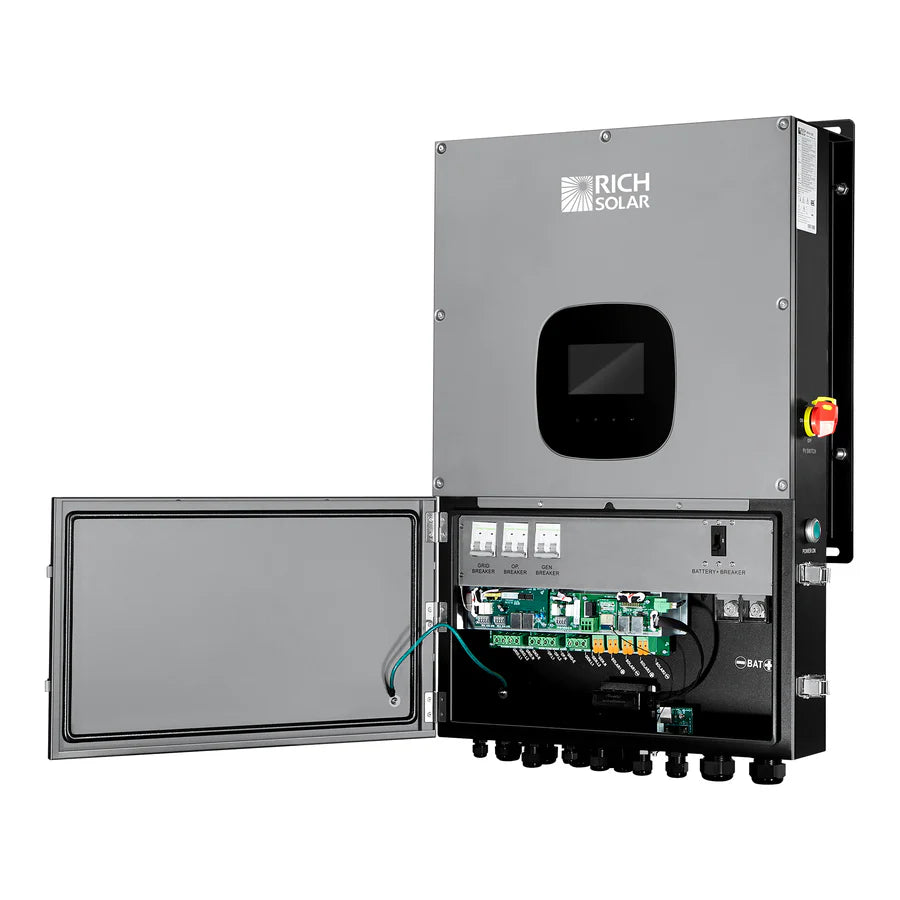

Yes โ a 300A DC breaker and 60A AC breaker are built into the unit, along with arc-fault, rapid-shutdown, and ground-fault detection meeting NEC 690.11, 690.12, and 690.5.
Given the voltages, currents, and grid-interconnection requirements involved, installation should be handled by a qualified, licensed electrician or solar installer familiar with your local code.
