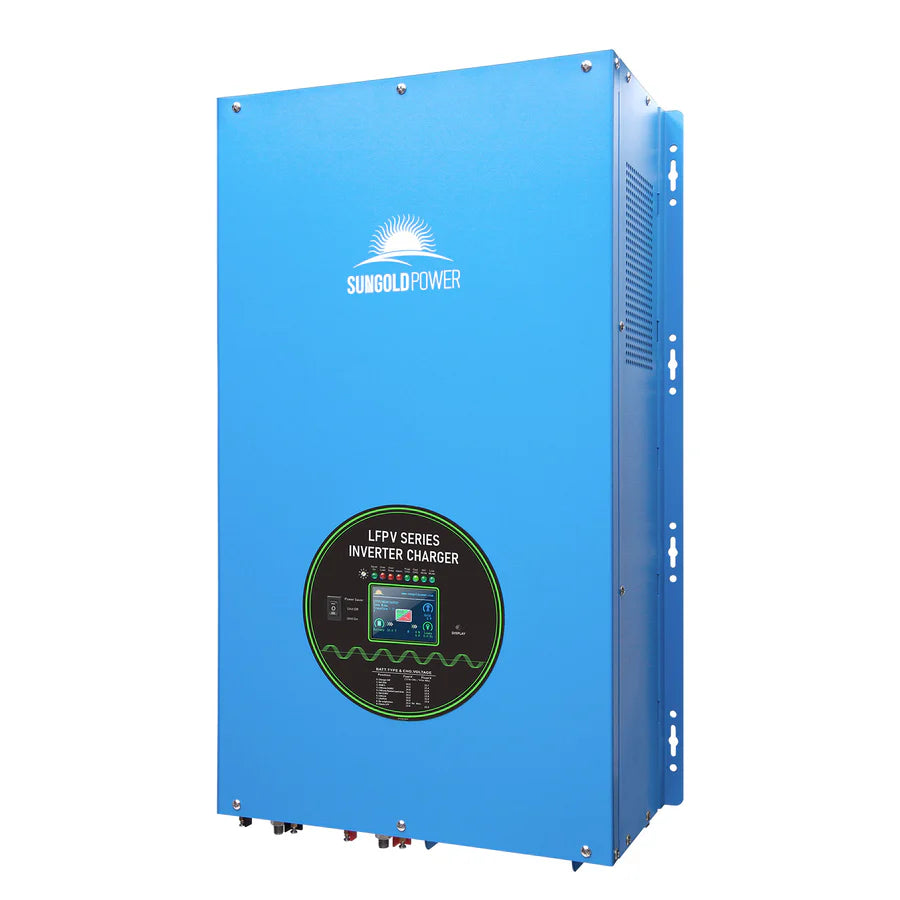

• A vertically mounted Sungold Power LPFV Series split-phase inverter charger features the brand logo, model name, and a circular control panel with buttons and indicator lights on the frontā€”perfect for off-grid living.

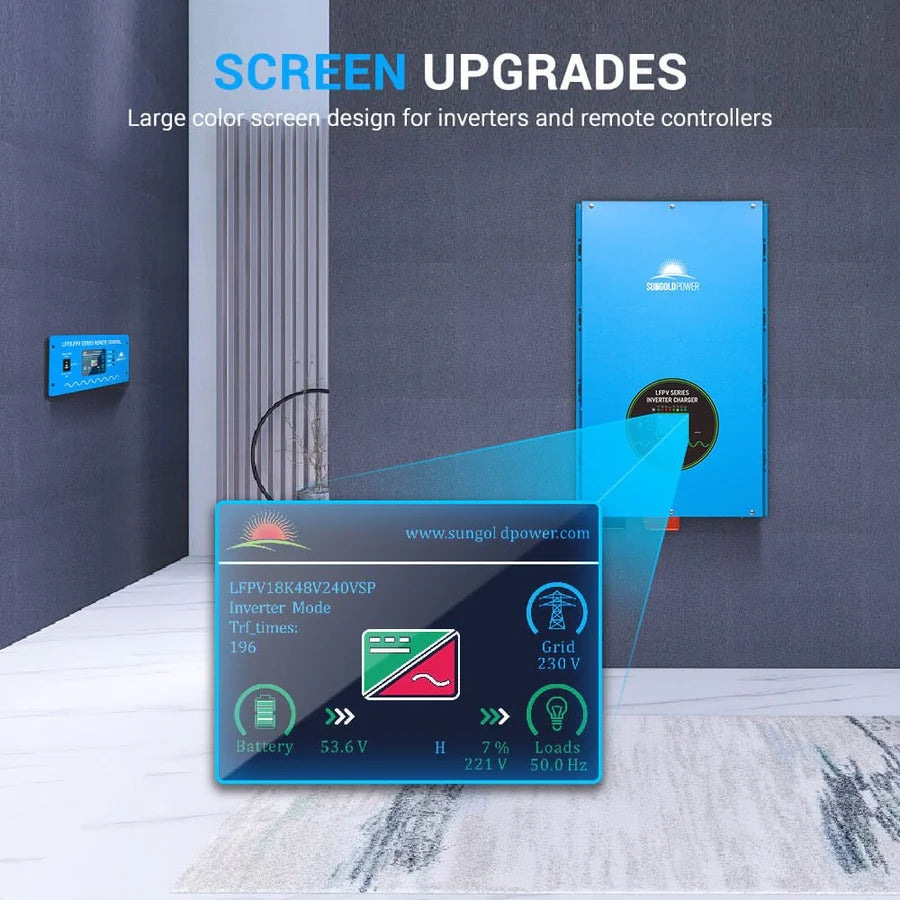

  • A modern room with two blue Sungold Power split-phase inverters on the wall. A digital graphic highlights a colorful screen displaying battery, grid, and load infoā€”showcasing enhanced screens for inverters and remote controllers ideal for off-grid living.
  • A blue Sungold Power split-phase inverter charger is centered, with icons above showing its compatibility with various battery types. Text reads, ā€œCompatible with 95% of batteriesā€ā€”perfect for off-grid living or as backup power.

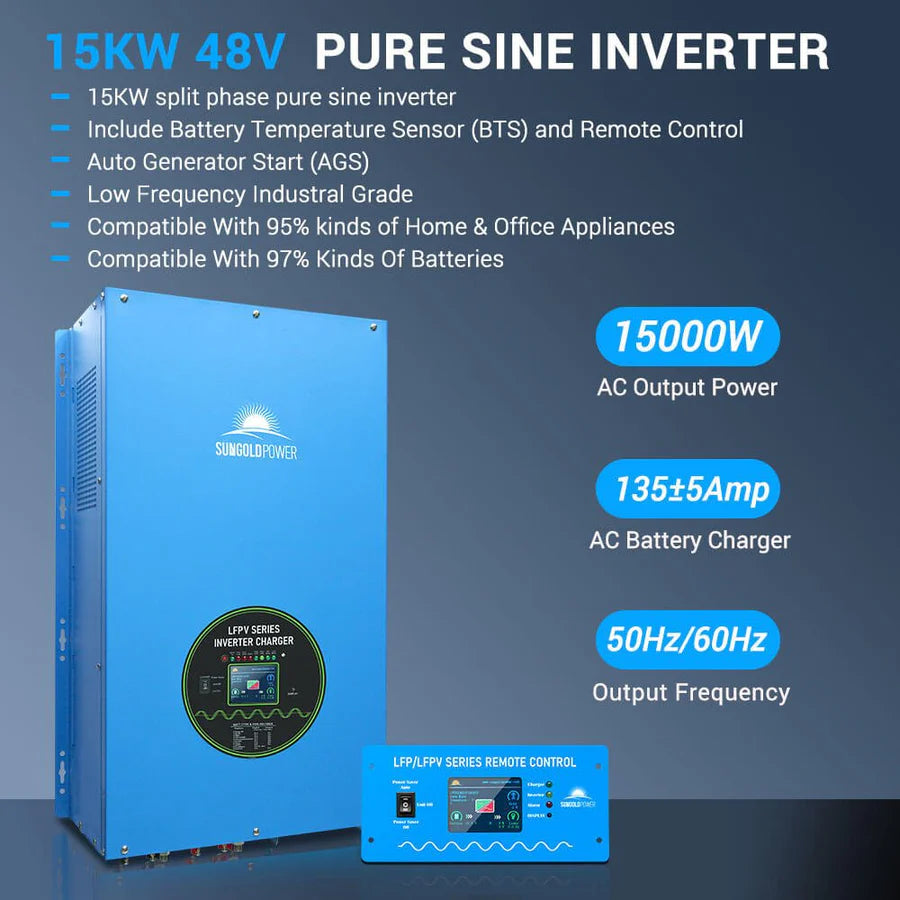

  • Sungold Power blue 15kW 48V pure sine split-phase inverter: 15000W AC output, 135Ā±5A charger, 50Hz/60Hz; ideal for off-grid living. Works with solar batteries for homes or offices. Remote control included.
1 4
3 people are viewing this right now

Sungold Power 15,000W 48V Split Phase Pure Sine Wave Inverter Charger

SKU: LFPV15K48V240VSP
Availability: In stock
$3,350.00
$3,700.00 $3,350.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

48V Split Phase Inverter Charger Ā· 15,000W

Sungold Power 15,000W 48V Split Phase Pure Sine Wave Inverter Charger

Introducing the Sungold Power 15000W 48V split-phase inverter, designed to power your entire household, office space, or large RV effortlessly. Engineered for seamless integration with renewable solar energy, this inverter is your ideal solution for off-grid living and as a backup power supply for both residential and business settings.

15.0KWContinuous Output
45.0KWSurge Rating (20s)
100Ā±5AAC Battery Charger
10msTypical Transfer Time
A modern home features the Sungold Power 15,000W 48V Split Phase Pure Sine Wave Inverter Charger installed outside in blue. Highlighted features include a robust low-frequency inverter design, impressive 300% surge capacity, automatic generator start function, a powerful 150A battery charger, and versatile backup power options for maximum energy reliability.
Overview

Built for Whole-Home & Business Backup

With a requirement of 240V AC input, this split-phase inverter delivers versatile output power options ranging from 110/120VAC to 220/230/240VAC, catering to a wide array of appliances with ease.

Equipped with a built-in UPS function, this inverter charger ensures uninterrupted power supply to keep your essential electronic devices running smoothly. Thanks to its internal transfer switch, there's no need for manual intervention during power outages ā€“ your selected devices seamlessly switch to the backup power source without any noticeable interruption.

For smaller off-grid setups or backup needs, consider the Sungold Power 3,000W 24V Solar Inverter Charger + 2 Ɨ 24V 100Ah Batteries, offering a compact yet reliable alternative from the same trusted brand.

Features

Full Feature List

  • 15KW split-phase pure sine inverter charger designed for DC 48V input and AC 240V output, supporting both 120V and 240V outputs.
  • Features Auto Generator Start (AGS) for added convenience.
  • Includes Battery Temperature Sensor (BTS) and Remote Control for enhanced functionality.
  • Offers 8 kinds of battery voltage selection, compatible with lithium LiFePO4, gel, AGM, and lead acid batteries.
  • Compatible with all kinds of home and office appliances, ensuring versatility.
  • Powerful charge rate of up to 100Amp, selectable from 0% to 100%, for efficient charging.
  • Equipped with a built-in transfer switch and battery charge, suitable for backup or off-grid power solutions.
  • AC/Battery Priority Mode allows for designating the inverter-preferred UPS configuration.
  • Utilizes 4-step Intelligent Battery Charging with PFC (Power Factor Correction) for efficient charging.
  • Ensures power continuity with a typical transfer time of 8 ms between utility and battery.
  • Provides a 15-second delay before transfer when AC recovers, offering protection for loads when used with a generator.
Sungold Power server rack batteries and a blue inverter are displayed, featuring specifications such as 48V 100AH, 5.12kWh capacity, a robust 100A BMS, support for up to 16 units, and an impressive lifespan of over 7000 cycles. The inverter shown is the Sungold Power 15,000W 48V Split Phase Pure Sine Wave Inverter Charger by Sungold Power. ā€œGet More Informationā€ is written at the top. Sorry, but no further product or feature details are available beyond these specificationsā€”only CSS code was provided in the original description.
In The Box

What's In The Box

  • ā€¢15000W 48V Split Phase Pure Sine Wave Power Inverter
  • ā€¢English Manual for easy setup and operation
  • ā€¢Remote Control for convenient access to controls
  • ā€¢BTS Cable for connecting the Battery Temperature Sensor
  • ā€¢Unit Weight: 176.6 lbs
  • ā€¢Unit Size: 28.7 Ɨ 16.5 Ɨ 8 in
  • ā€¢Shipping Weight: 213 lbs
  • ā€¢Shipping Size: 34.25 Ɨ 21.3 Ɨ 16.2 in
Data

15,000W Pure Sine Wave Inverter Specifications

Main Specification

Continuous output power 15.0 KW
Surge rating (20s) 45.0 KW
Output waveform Pure sine wave
AC output voltage 120V and 240V
AC input voltage 240V (not 120V)
DC battery voltage 48 Vdc
AC battery charger 100 Ā± 5 A
Output frequency 50Hz / 60Hz

DC Input

Nominal input voltage 48.0 Vdc
Minimum start voltage 40.0 / 42.0 Vdc
Low battery alarm 42.0 / 44.0 Vdc
Low battery trip 40.0 / 42.0 Vdc
High voltage alarm 64.0 Vdc
Low battery voltage recover 62.0 Vdc
Power saver on idle consumption 45 W
Power saver off idle power 225 W

Charger

Output voltage Depends on battery type
Battery initial voltage for start-up 40ā€“62.8V
Over charge protection shutdown 62.8 V
Charger breaker 100 A
Input voltage waveform Sine wave (grid or generator)
AC input range 184ā€“253Vac / 140ā€“270Vac
Nominal input frequency 50Hz or 60Hz (auto-detect)

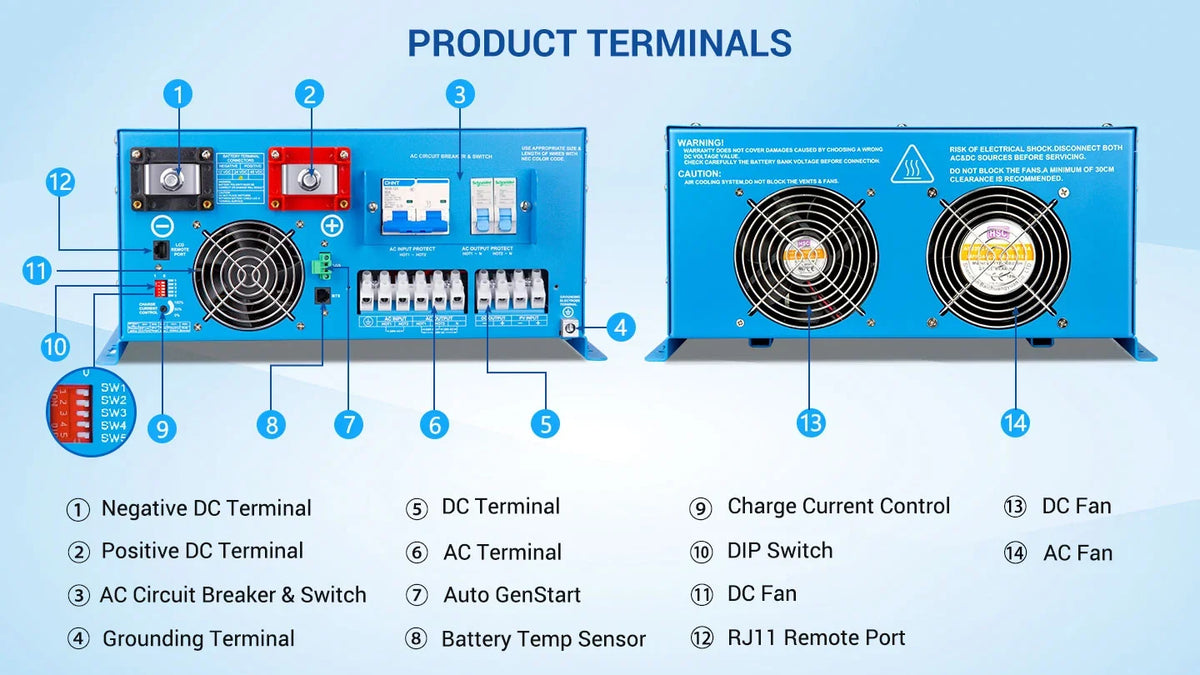

Diagram of the Sungold Power 15,000W 48V Split Phase Pure Sine Wave Inverter Charger from Sungold Power, showing both front and back views with numbered labels identifying terminals, switches, fans, circuit breakers, sensors, and ports. Text descriptions explain each componentā€™s function for users; however, the provided product description contains only CSS code and does not offer detailed product or feature information.
Use Cases

Where It Fits

Whole Households Office Spaces Large RVs Off-Grid Living Business Backup Power
Additional Documentation

Documents & Downloads

User's Manual

Includes Auto Generator Start, Remote Control, and Battery Temperature Sensor with cable.
