Eco Solar Kits · Sungold Power · SGR-20K30E
A complete off-grid solar system — dual 10,000W inverters paralleled for 20,000W total, 30.72kWh of LiFePO₄ battery storage, and thirty-two 450W bifacial N-Type monocrystalline panels.

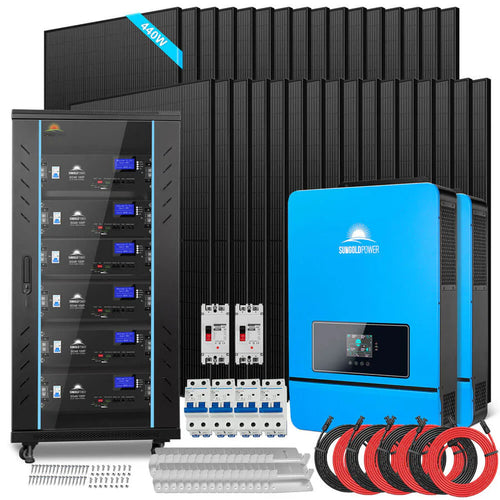

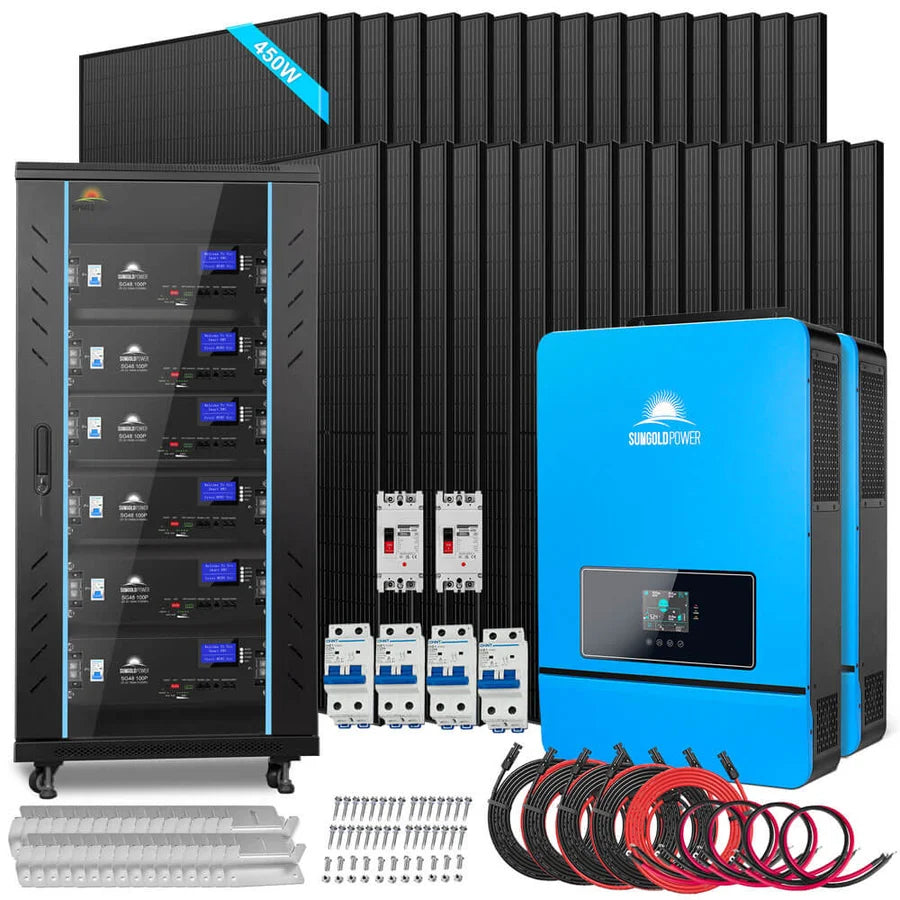

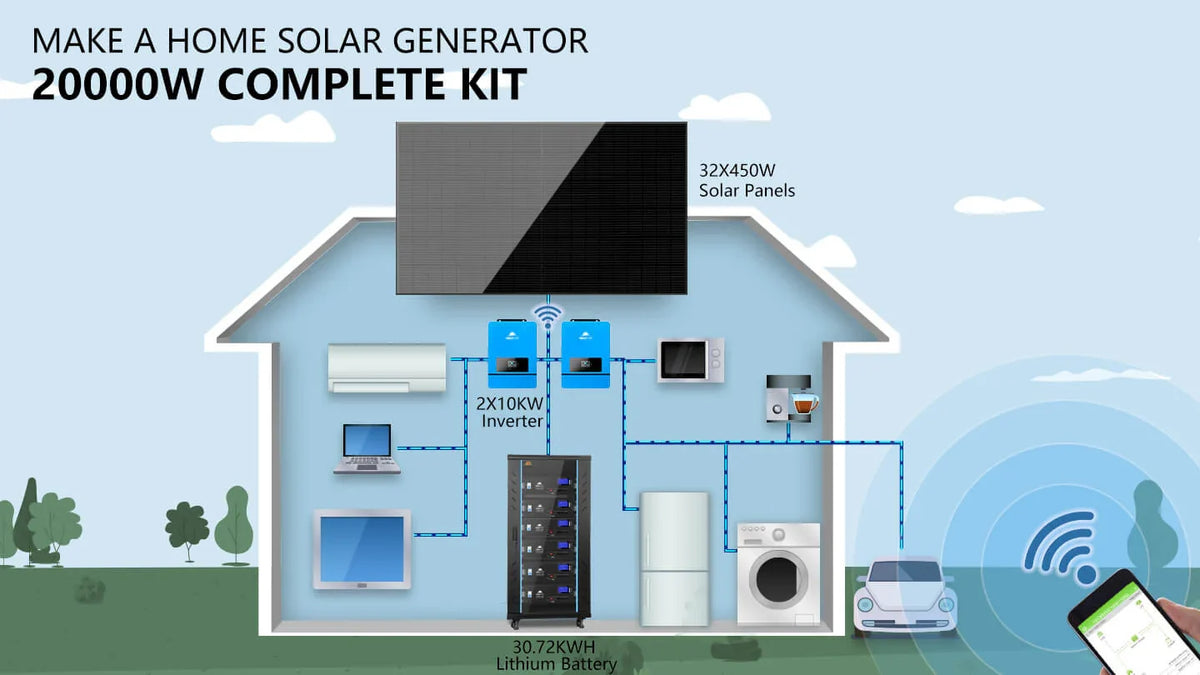

Discover the power of sustainable living with the SGR-20K30E Solar Kit, a comprehensive solution designed to bring clean energy to your home or off-grid retreat. This all-inclusive kit comes equipped with 32 x 450W high-performance solar panels, 6 x 5.12kWh server rack batteries, 2 x 10KW split-phase inverters (120V/240V), along with all the necessary cables and mounting hardware.
Capable of generating approximately 40.6kWh per day with just 4 hours of sunlight, this powerful 20 kilowatt solar system can handle the energy demands of your entire household. From air conditioners and well pumps to refrigerators, televisions, workshops, and offices, the SGR-20K30E ensures that you have reliable, uninterrupted power whenever you need it.
What sets this system apart is its scalability. The SGR-20K30E is ready for expansion, allowing you to parallel up to 6 identical inverters in single-phase (120VAC), split-phase (240VAC), or even three-phase (208V) configurations. As your energy needs grow, you can easily add more batteries and solar panels to enhance your system's capacity.
Whether you're aiming to reduce your carbon footprint, cut down on electricity bills, or simply enjoy the independence of off-grid living, the SGR-20K30E Solar Kit is your perfect companion on the journey to clean, renewable energy. Embrace the adventure of solar power and take control of your energy future today!
Two 10,000W inverters paralleled, each with a 20-second surge rating triple the continuous power for motor starts.
Runs standard household circuits and larger 240V appliances from the same system.
Minimal energy loss whether running on battery, solar, or passthrough grid power.
Check system status and performance remotely, without needing to be on-site.
Parallel up to 6 identical inverters in single-phase, split-phase, or three-phase configurations.
Meets the standard utilities and inspectors look for on grid-interactive and off-grid inverter equipment.
Schedule battery charge and discharge windows to match your rate plan or usage pattern.
Bifacial N-Type cells capture rear-side light for up to 30% additional energy, backed by a 30-year linear power warranty.

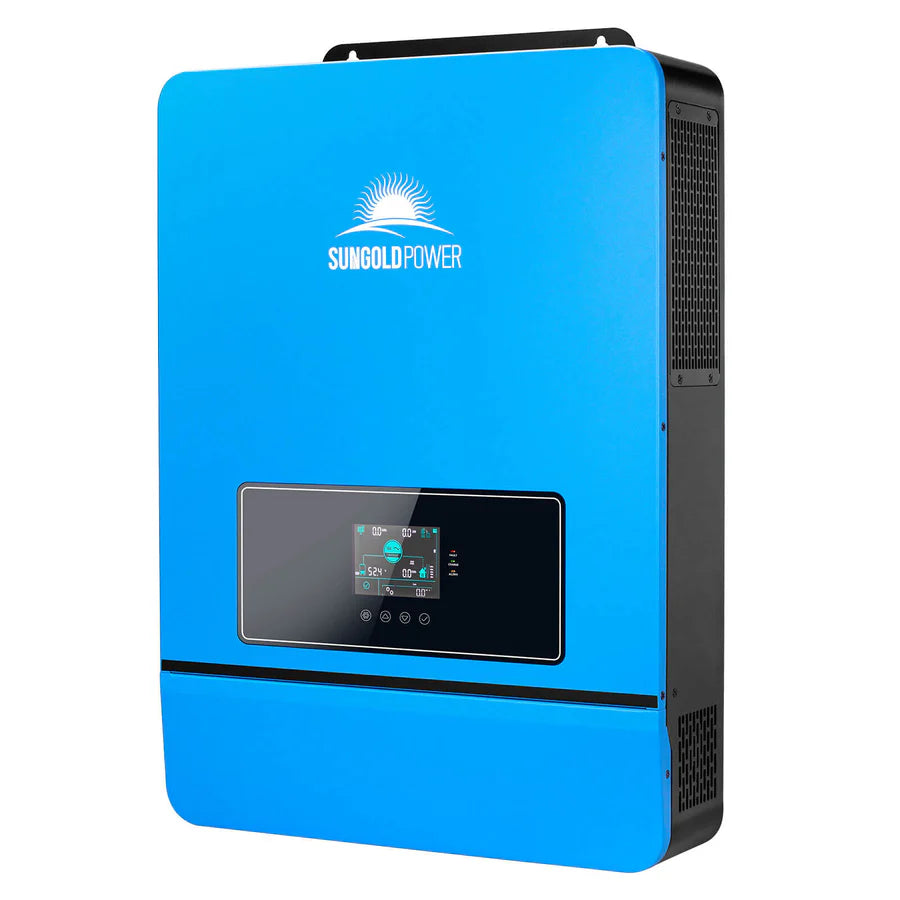

LF-PV 10KW Off-Grid Inverter/Charger (×2, Paralleled)
Per-unit values below; two units paralleled for 20,000W combined.
| Continuous output power | 10,000 W |
| Surge rating (20 sec) | 30,000 W |
| Rated output voltage | 120/240Vac split-phase |
| Waveform | Pure sine wave |
| Output frequency | 50Hz ± 0.3Hz / 60Hz ± 0.3Hz |
| Nominal (peak) efficiency | >88% |
| Line-mode efficiency | >95% |
| Nominal DC input voltage | 48 Vdc |
| Charger breaker rating | 80 A |
| Max. charge power rate | 1/3 rated power |
| Mounting | Wall mount |
| Standard warranty | 1 year |

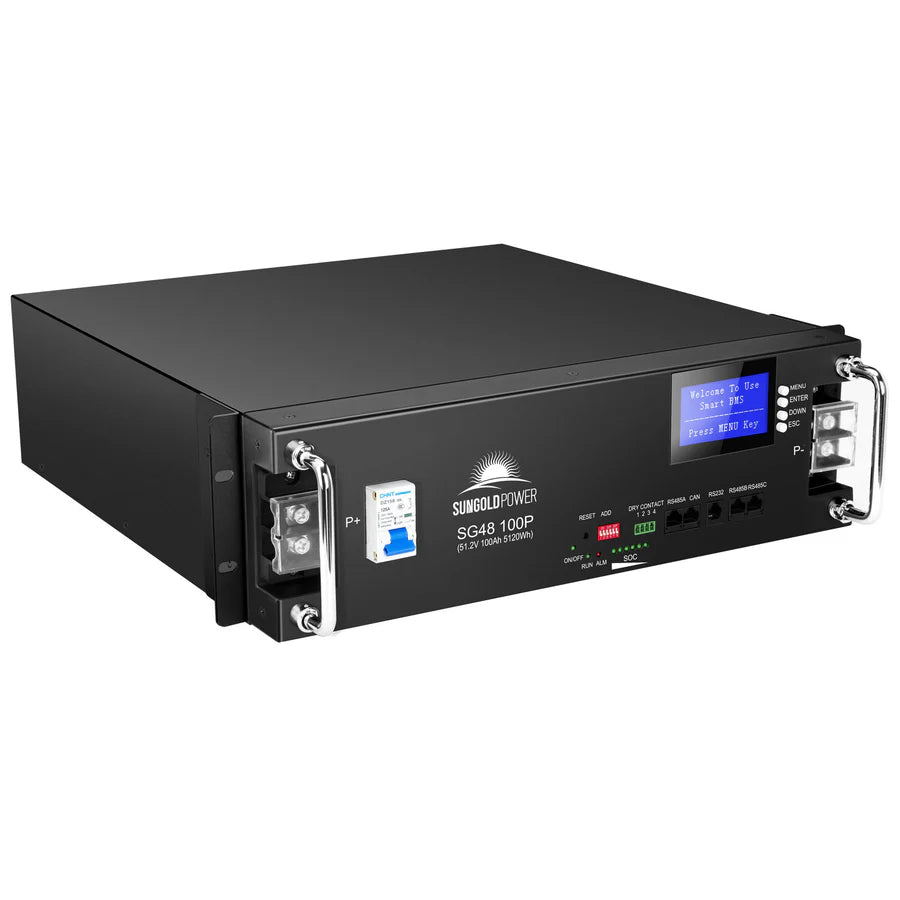

100AH 51.2V Battery (×6, In Server Rack Cabinet)
| Rated capacity | 100 Ah |
| Nominal voltage | 51.2 V |
| Energy per unit | 5,120 Wh |
| Combined (6 units) | 30,720 Wh (30.72 kWh) |
| Standard current | 50 A |
| Max. continuous current | 100 A |
| Cycle life | ≥7,000 @ 80% DOD |
| Design life | 15 years |
| Weight (each) | ~95 lbs (43 kg) |
| Dimensions | 16.5 × 22.8 × 5.5 in |
| Protection rating | IP20 (battery box) |
| Charging temp | 32–113°F |
| Discharging temp | -4–140°F |
| Max parallel | 63 batteries |
| Communication | RS232 / RS485 / CAN |

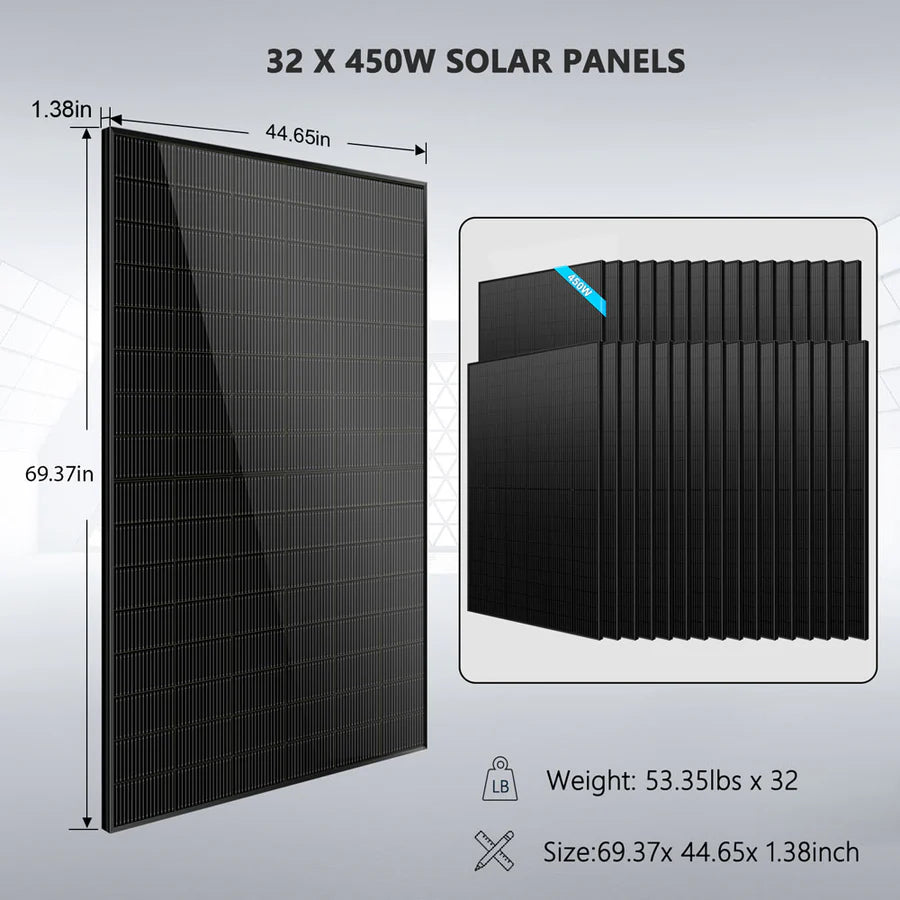

SGN-450-BDG5 Bifacial N-Type Panel (×32)
| Peak power | 450 W |
| Max-power voltage | 30.08 V |
| Max-power current | 14.97 A |
| Open-circuit voltage | 35.03 V |
| Module efficiency | 22.5% |
| Bifaciality | 80% ± 10% |
| Peak power w/ bifacial gain | Up to 499 W |
| Rear-side energy gain | Up to 30% |
| Cell type | N-type mono, 96 cells (182×210mm) |
| Construction | Dual-glass (2.0mm front + back) |
| Weight (each) | 53.35 lbs (24.2 kg) |
| Dimensions | 69.37 × 44.65 × 1.38 in |
| Junction box | IP68 (3 diodes) |
| Connector | MC4 compatible |
| Certification | UL61730, CEC Listed |
| Warranty | 12yr product + 30yr linear power |
With about 4 hours of direct sunlight, the 32-panel array produces roughly 40.6kWh per day — enough for air conditioners, well pumps, refrigerators, televisions, workshops, and offices, per the manufacturer's own description.
Yes — beyond the 2 inverters included, up to 6 identical inverters can run in parallel in single-phase (120VAC), split-phase (240VAC), or three-phase (208V) configurations.
30.72kWh combined from six 5,120Wh LiFePO₄ batteries in the included server rack cabinet, each rated for at least 7,000 cycles to 80% depth of discharge.
This kit includes a server rack cabinet for the batteries, rather than mounting them individually.
Yes — this system is easily expandable, letting you add more batteries and solar panels as your energy needs grow, per the manufacturer's own product description.
Given the scale of this system — dual 10,000W inverters, a 30.72kWh battery bank, and 32 panels — installation should be handled by a qualified, licensed electrician familiar with your local code.

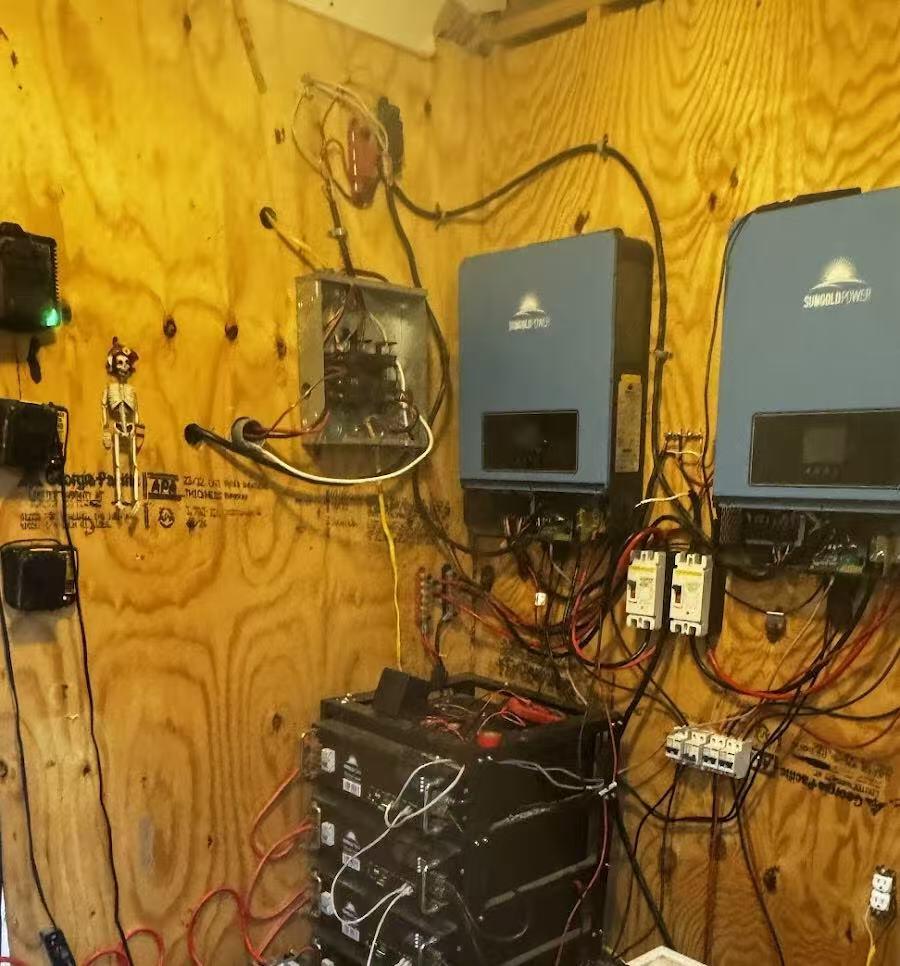

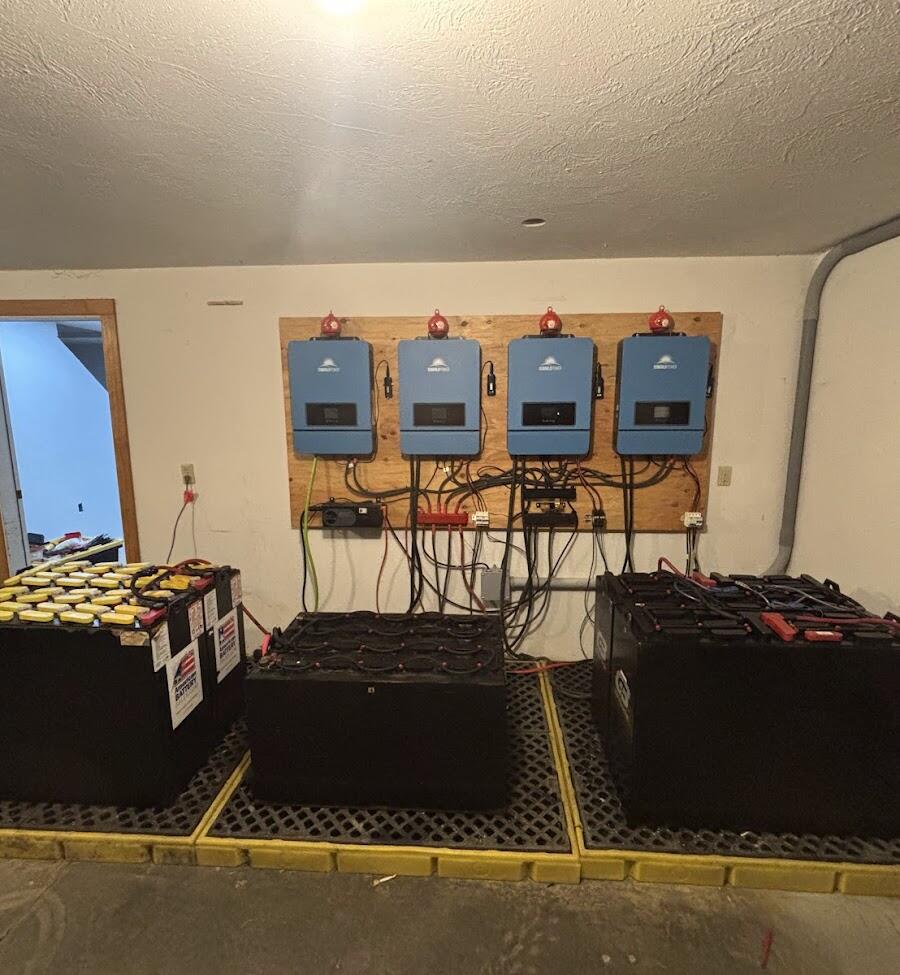

I’ve been running four SPH10048P units for two years in a fully off-grid setup, and overall I’ve been very happy with the performance.
This is not a light-duty system. The inverters have handled everything I’ve thrown at them without issue. They parallel well, carry load reliably, and the generator charging capability is a big plus plenty of current when you need to recover a large battery bank.
One thing I appreciate is how flexible the system is. It’s not a “plug-and-play toy” you can actually configure it to do real work.
Customer service has also been excellent. Anytime I’ve had questions or needed clarification, they’ve been responsive and helpful, which is something you don’t always get.
If I had one suggestion, it would be more granular control over charge settings specifically being able to limit PV charge current independently from generator/AC charging. Separating them would make the system even better for larger or more complex setups.
Overall, these units have proven themselves in a real-world, working environment not just in a lab or small residential install. I’d absolutely recommend them to anyone building an off-grid system.
(Review from sungoldpower.com)
Sun Gold Power has been good to do business with. I trust their products and will continue buying from them as projects open up. They have great prices and a lot of options.
(Review from sungoldpower.com)
I am utterly blown away by the performance of this 20KW 48V off-grid solar system. After extensive research, we invested in this system to achieve complete energy independence for our rural home, and it has exceeded our wildest expectations.
(Review from sungoldpower.com)
Its awesome, I dont take the generator with us in our camping trailer any more unless we want the microwave. It keeps our batteries charged even in cloudy weather. Best of all its silent, I love that when camping in the forest.
(Review from sungoldpower.com)
