Eco Solar Kits · Sungold Power · SGM-10K20

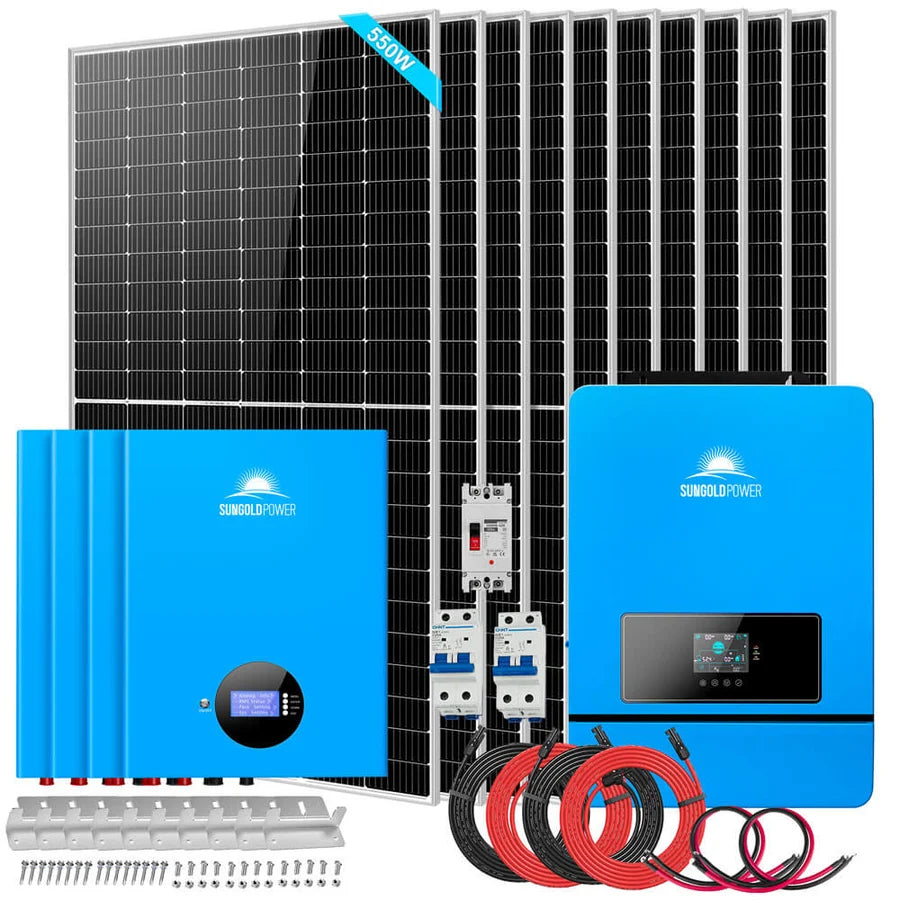

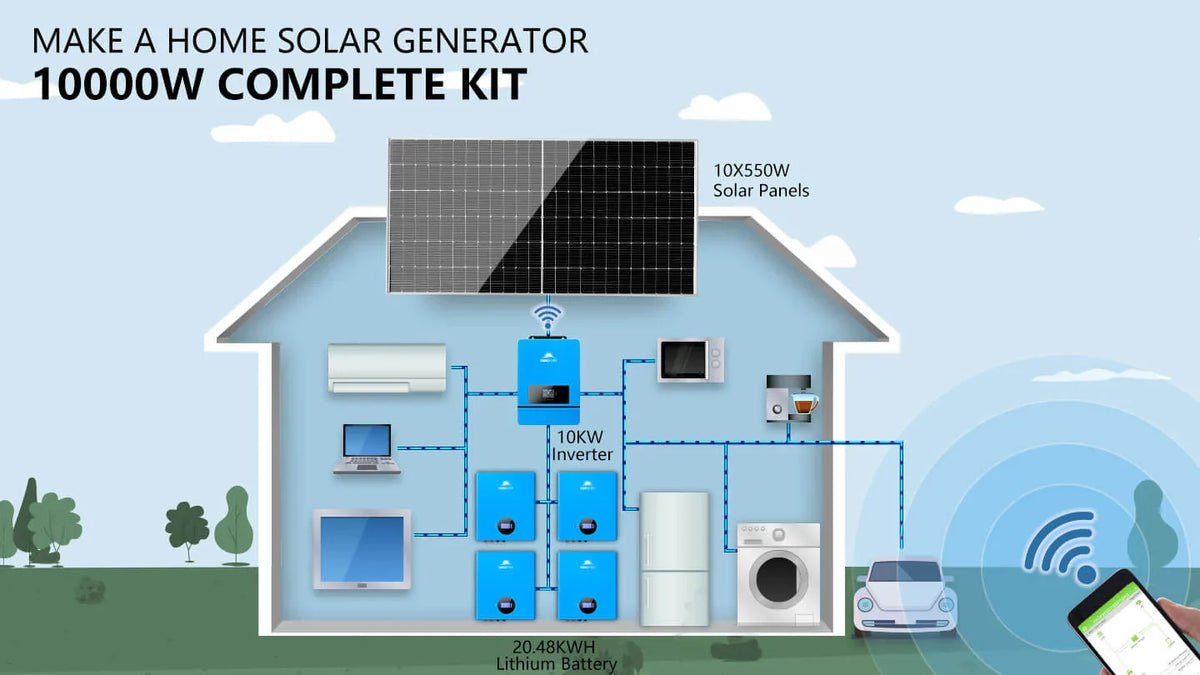

A complete off-grid solar system — 10,000W split-phase inverter, 20.48kWh of powerwall LiFePO₄ battery storage, and ten 550W monocrystalline panels — for cabins, shops, and homes.
Introducing our solar energy kit, designed to power your off-grid lifestyle with ease and efficiency. This comprehensive kit includes everything you need to harness the sun's energy:
With this setup, your solar array will generate approximately 22kWh per day, based on 4 hours of sunlight. Ideal for cabins, shops, and homes, this system provides reliable power wherever you need it.
But that's not all – the modular design allows you to customize your setup according to your specific needs. Add more batteries and solar panels as required to expand your energy capacity.
Embrace the freedom of off-grid living and embark on your solar adventure with our solar energy kit!
Rated continuous output with a 20-second surge rating triple the continuous power for motor starts and other high-draw moments.
Runs standard household circuits and larger 240V appliances from the same system.
Low standby draw keeps the system efficient even when appliances aren't actively running.
Track performance and energy data remotely through a dedicated mobile app.
Add more batteries and solar panels in the future as your energy needs grow.
Meets recognized North American safety standards for solar inverter equipment.
Junction box rated for full submersion protection, backed by a 25-year linear product warranty.
182mm Grade-A monocrystalline cells for a higher conversion rate per panel.

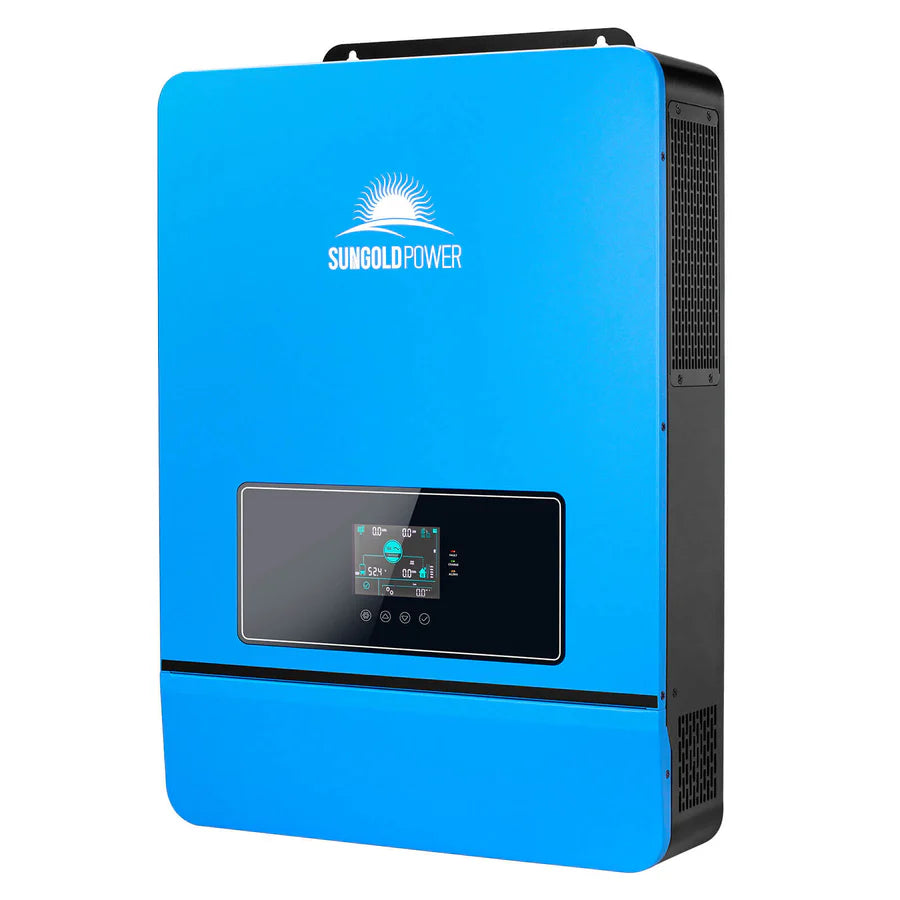

LF-PV 10KW Off-Grid Inverter/Charger (×1)
| Continuous output power | 10,000 W |
| Surge rating (20 sec) | 30,000 W |
| Rated output voltage | 120/240Vac split-phase |
| Waveform | Pure sine wave |
| No-load consumption | 100 W |
| Nominal DC input voltage | 48 Vdc |
| Safety | UL1741 Listed by ETL |
| Monitoring | WiFi app included |

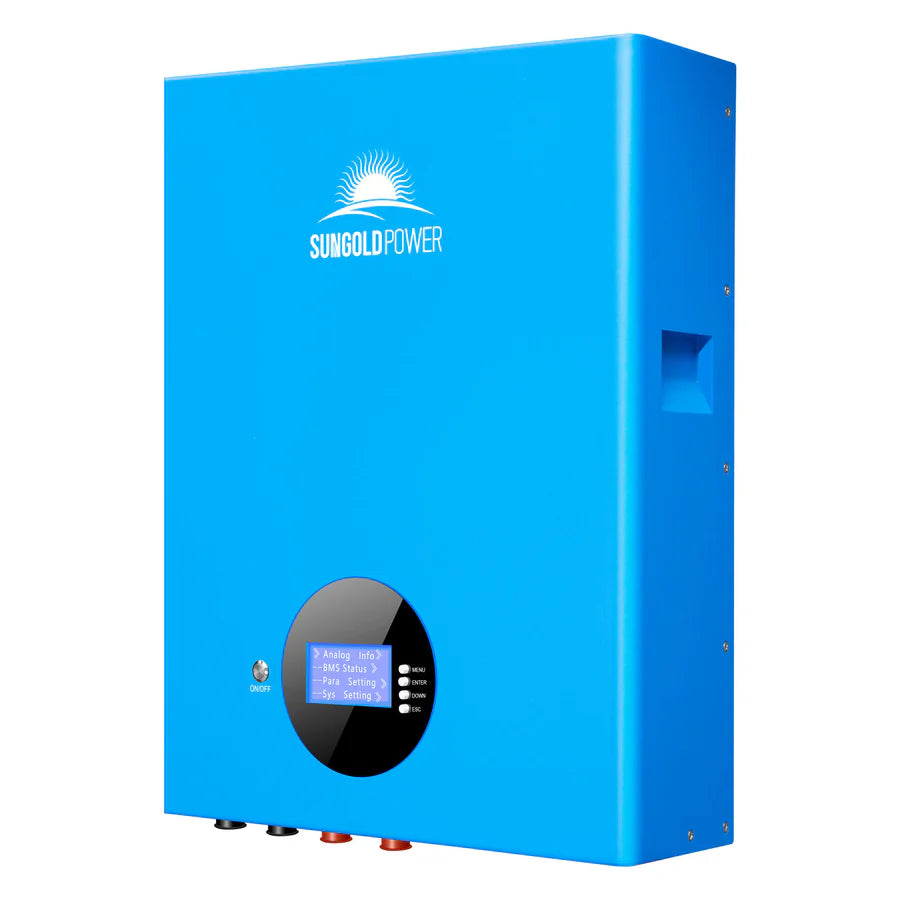

SG48100P Powerwall LiFePO₄ Battery (×4)
| Rated capacity | 100 Ah |
| Rated voltage | 51.2 V |
| Rated energy per unit | 5.12 kWh |
| Combined (4 units) | 20.48 kWh |
| Standard current | 50 A |
| Max. continuous current | 100 A |
| Cycle life | ≥7,000 @ 80% DOD |
| Design life | 15 years |
| Weight (each) | ~95 lbs (43 kg) |
| Dimensions | 16.5 × 22.8 × 5.5 in |
| Protection rating | IP20 (battery box) |
| Certification | UL1973 |
| Charging temp | 32–113°F |
| Discharging temp | -4–140°F |
| Max parallel | 63 batteries |
| Communication | RS232 / RS485 / CAN |

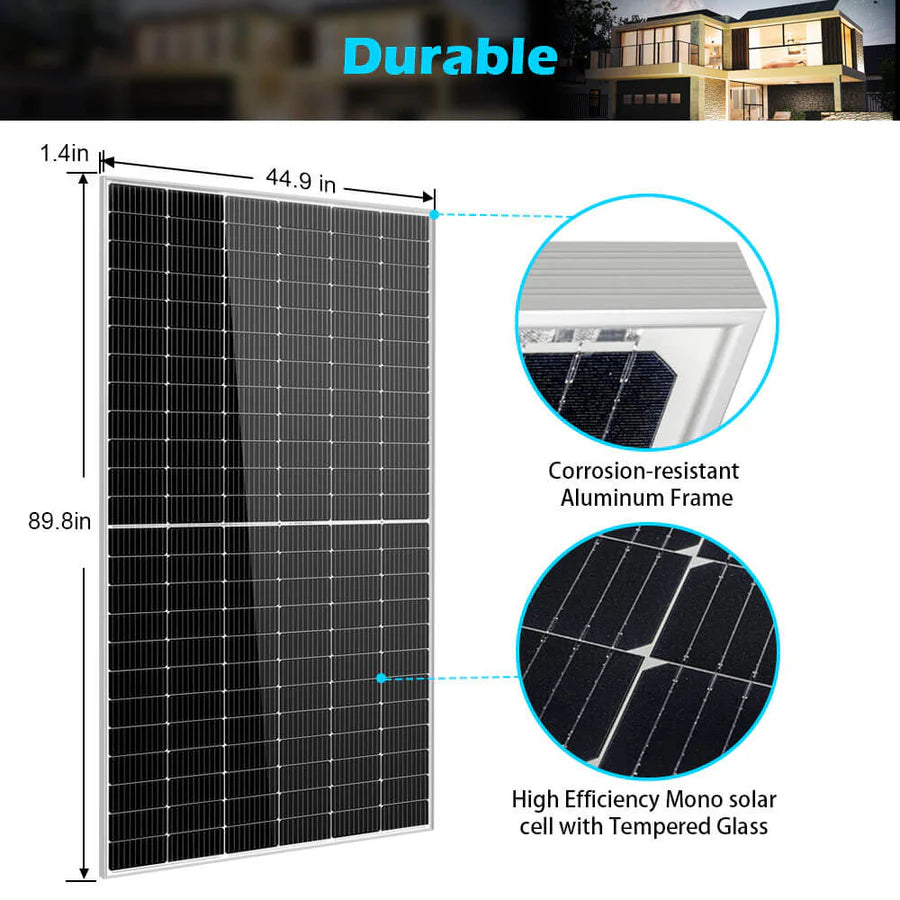

SG-550WM Monocrystalline Panel (×10)
| Max. power | 550 W |
| Max-power voltage | 41.96 V |
| Max-power current | 13.11 A |
| Open-circuit voltage | 49.9 V |
| Module efficiency | 21.28% |
| Cell type | Mono 182×91mm (144 cells) |
| Weight (each) | 63.05 lbs (28.6 kg) |
| Dimensions | 89.72 × 44.65 × 1.38 in |
| Junction box | IP68 |
| Warranty | 25yr linear product + 10yr workmanship |
With about 4 hours of direct sunlight, this system generates roughly 22kWh per day — ideal for cabins, shops, and homes, per the manufacturer's own description.
Yes — the LF-PV 10KW inverter has integrated solar charging, so no separate MPPT controllers are needed for this kit.
20.48kWh combined from four 5.12kWh powerwall batteries.
Yes — the modular design lets you add more batteries and solar panels as required to expand your energy capacity, per the manufacturer's own product description.
Cabins, shops, and homes, per the manufacturer's own product description — anywhere reliable off-grid power is needed.
Given the scale of this system — a 10,000W inverter and a 20.48kWh battery bank — installation should be handled by a qualified, licensed electrician familiar with your local code.
