Sungold Power 7.6kW 15.36kWh Split Phase Hybrid Solar Kit 48V Lithium Battery 12 x 500 Watt Solar Panels SGH-7.6N3E

SKU: SGH-7.6N3E
AvailabilityIn stock
Regular price $9,121.00
Regular price $9,799.00 Sale price $9,121.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • Use Promocode ECO100 At Checkout To Further Get $100 Off
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog

View full product details

Eco Solar Kits · Sungold Power · SGH-7.6N3E

Sungold Power 7.6kW 15.36kWh Split Phase Hybrid Solar Kit 48V Lithium Battery 12 x 500 Watt Solar Panels SGH-7.6N3E

A complete hybrid solar system — 7.6kW split-phase inverter with grid-tie capability, 15.36kWh of LiFePO₄ battery storage, and twelve 500W monocrystalline panels — supports off-grid, hybrid, and grid-tied configurations.

7.6kWContinuous Output
15.36kWhBattery Capacity
12×500WSolar Panels
120V/240VSplit-Phase Output

Overview

This Hybrid Solar Kit includes 6,000W or 13,280W of solar panels, a 7.6kW hybrid inverter, and your choice of 15.36kWh or 30.72kWh of lithium battery storage. Designed for ultimate flexibility, the system supports off-grid, hybrid, and grid-tied configurations, allowing you to run appliances on solar power, send excess energy to the grid, and store electricity for cost savings or backup during outages.

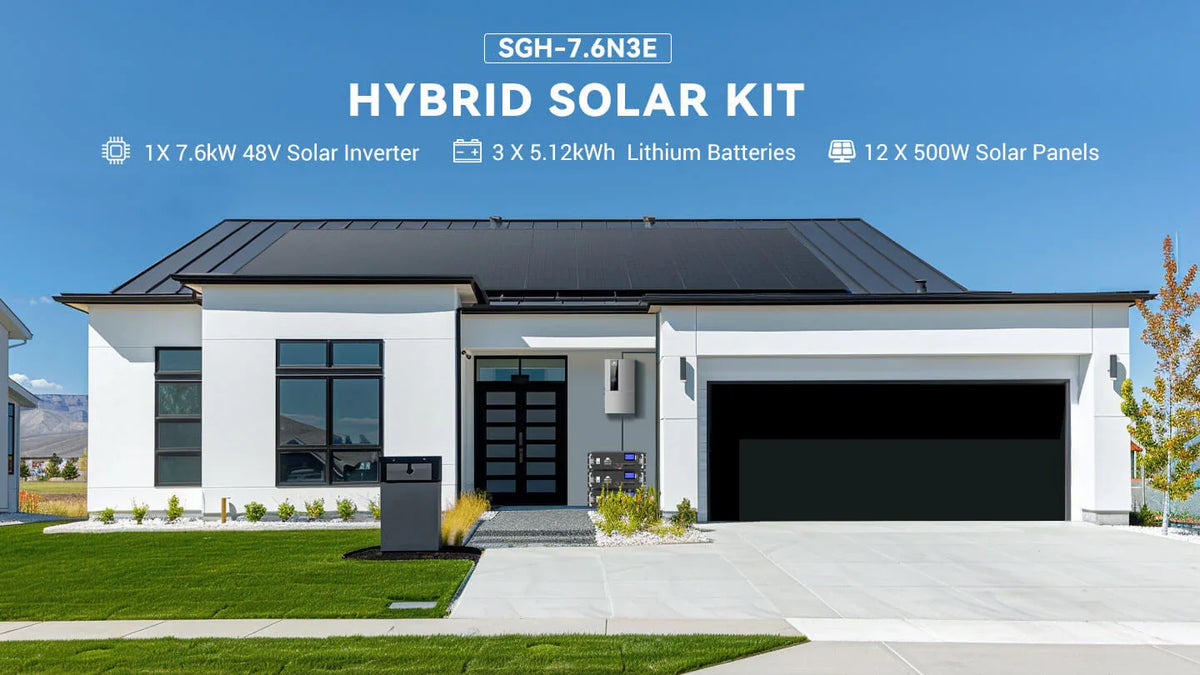

A modern white house with a black roof features Sungold Power’s SGH-7.6N3E hybrid solar kit, which includes a 7.6kW inverter, three 48V lithium batteries totaling 15.36kWh, and twelve 500-watt solar panels. The scene is bathed in natural light from the bright sky and complemented by a lush green lawn, giving the image a sleek aesthetic reminiscent of designs enhanced with border-radius or accentuated by box-shadow for extra depth.

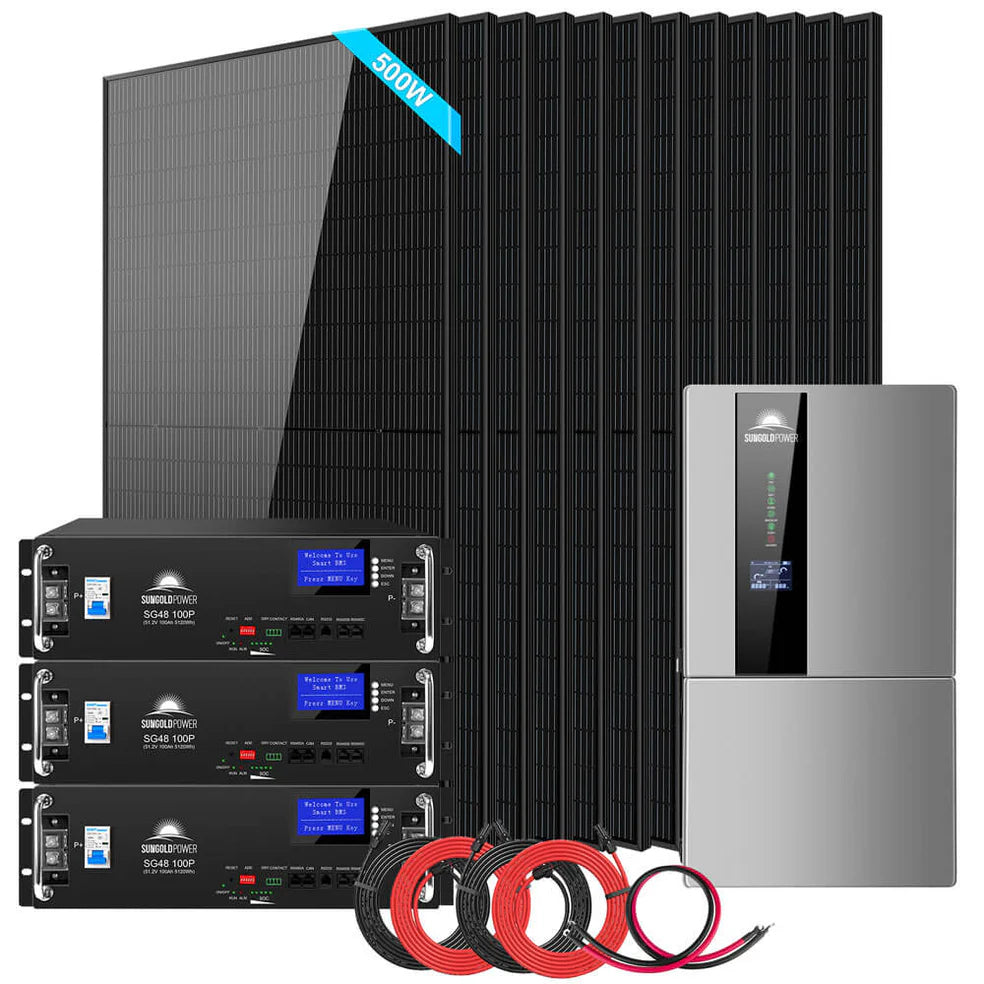

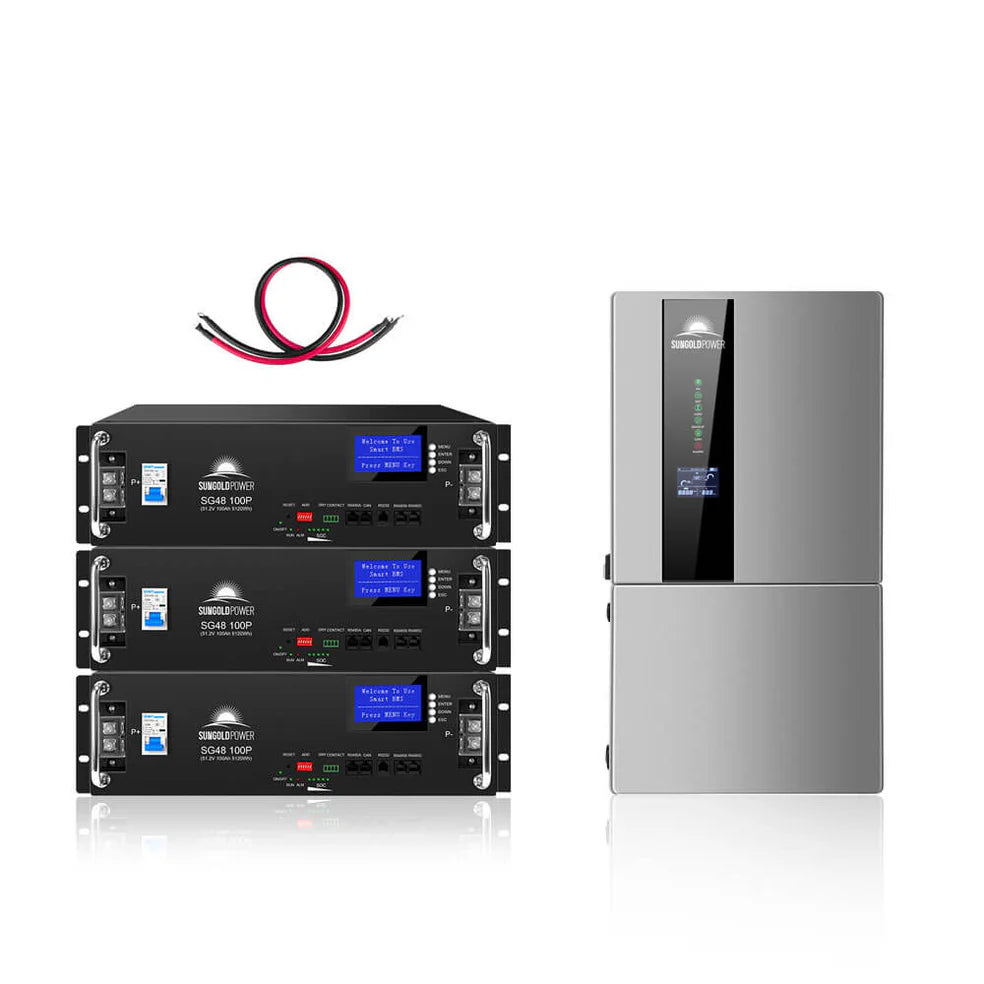

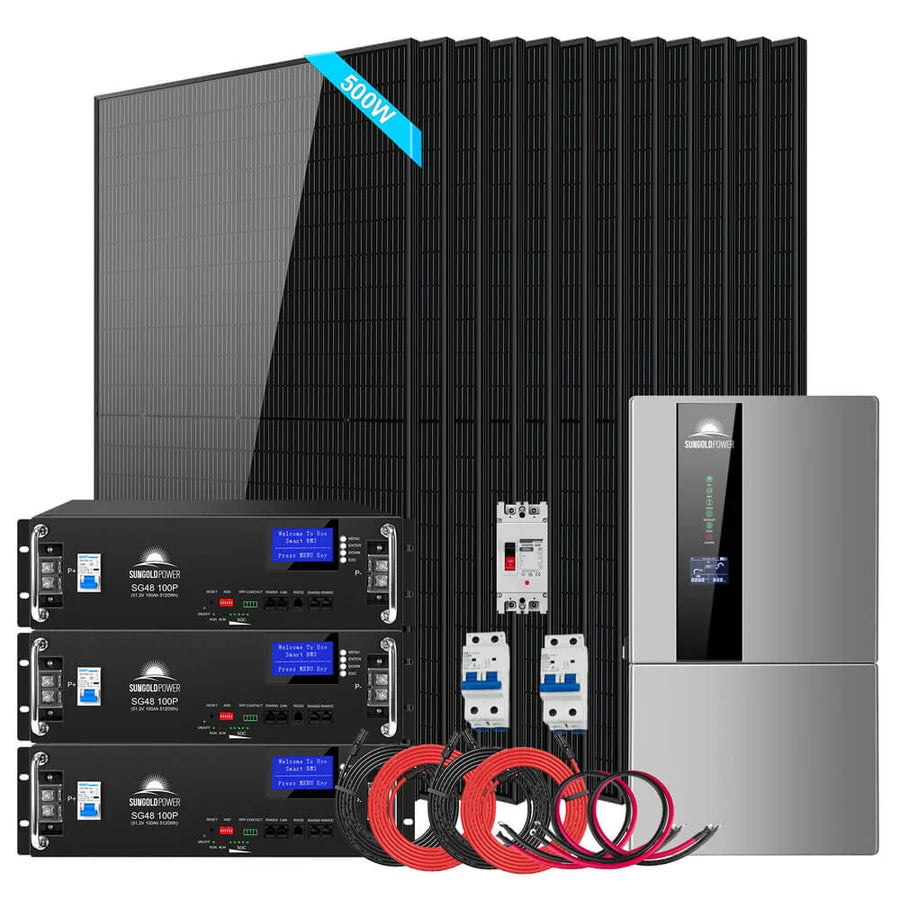

What is included with the solar kit?

  • 1 X 7.6KW 48V Split Phase Hybrid Solar Inverter
  • 12 X 500W Watt Monocrystalline Solar Panels
  • 3 X 100AH 51.2V Lifepo4 Battery
  • 2 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
  • 2/0 AWG Battery Cable

Key Features

7.6kW Continuous, 10kW Peak

Rated output with extra headroom available briefly for motor starts and other high-draw moments.

Off-Grid, Hybrid, or Grid-Tied

Run appliances on solar, send excess to the grid, or store power for backup — one system, three modes.

12kW Solar Input, 3 MPPTs

Each tracker supports up to 600V, for a combined solar array well beyond the 6kW of panels included here.

WiFi Monitoring Included

Track performance, battery status, and system behavior from your phone or browser.

Expandable to 9 Units

Parallel up to 9 identical inverters for a 68.4kW system as power needs grow.

UL 1741 / CEC Listed, IP65

Meets utility-interconnection standards for grid-tie use, in a rated-for-outdoor enclosure.

10-Year Inverter Warranty

Confirmed directly for this inverter model — notably longer than the off-grid SPH-series inverters.

21.05% Panel Efficiency

Half-cell Mono PERC cells backed by a 25-year linear performance warranty.

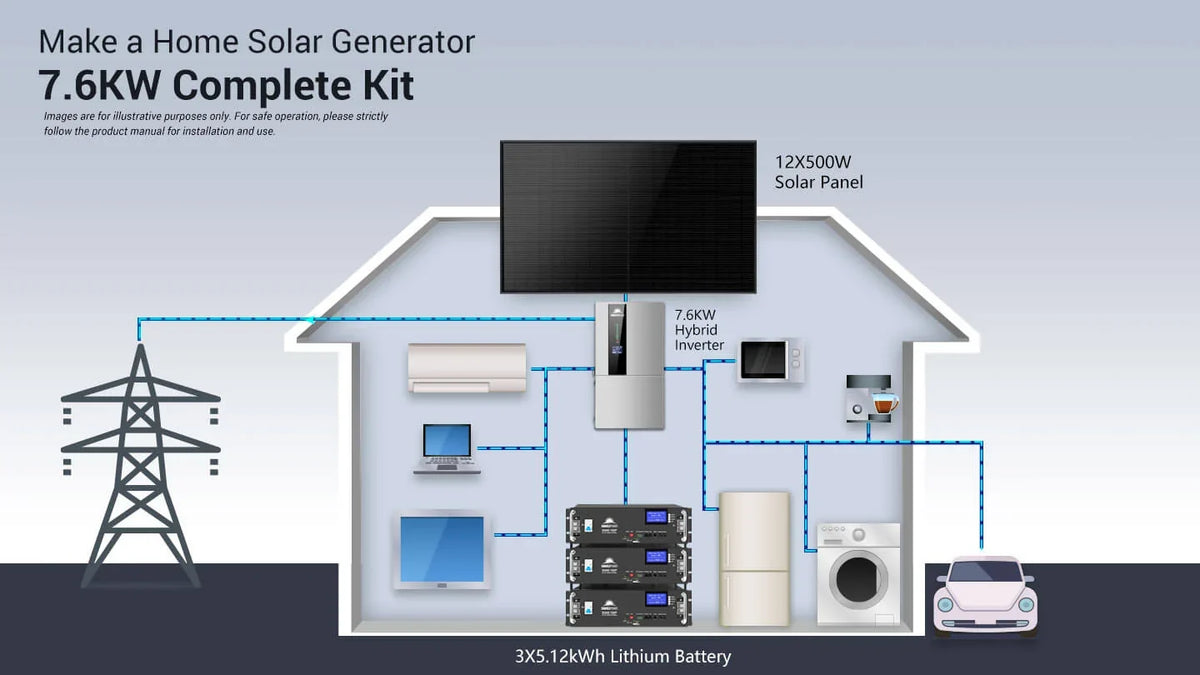

Diagram of a house equipped with the Sungold Power 7.6kW 15.36kWh Split Phase Hybrid Solar Kit, featuring 12 x 500 Watt solar panels (SGH-7.6N3E) mounted on the roof, along with a Sungold Power inverter and 48V lithium battery system. Connected appliances—including a TV, lighting, refrigerator, and an electric car charger—are clearly illustrated. The diagram uses clean lines and modern font labels for outstanding readability, while key components like the inverter and battery units are visually accentuated with subtle box-shadow effects for enhanced distinction.



Full Specifications

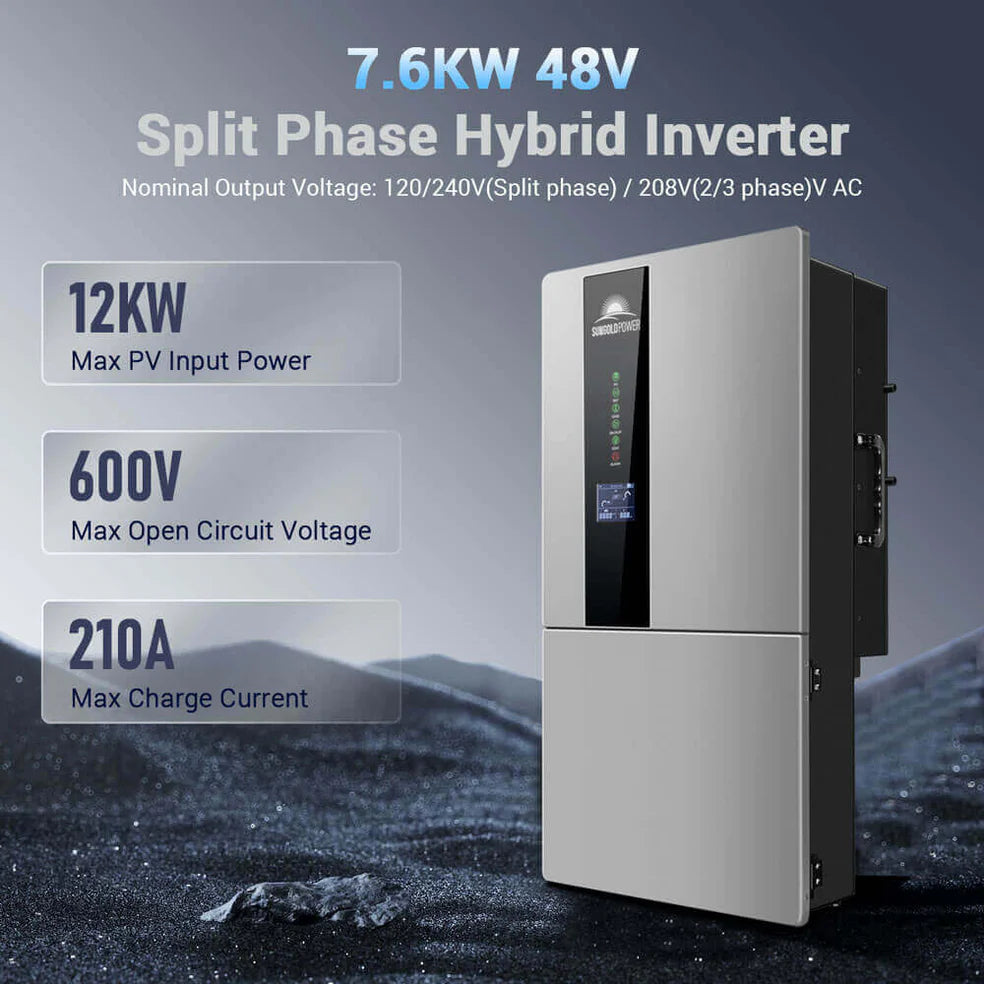

SGN7.6K1HB-48 Hybrid Inverter (×1)

Output

Continuous output power 7.6 kW
Peak output power Up to 10 kW
Rated output voltage 120/240Vac split-phase, or 208V (2/3 phase)
AC frequency 50/60 Hz

Battery Input

Battery voltage range 40–64 Vdc
Max. charge current 210 A
Max. discharge current 180 A

PV Input

No. of MPPT trackers 3 (independent)
Max. combined solar input 12 kW
Max. voltage per tracker 600 Vdc
PV voltage range 70–540 Vdc

Modes & Grid Functions

Operating modes Off-grid / Hybrid / Grid-tied
AC coupling Supported (single-inverter systems only)
Monitoring WiFi + mobile app, LCD display

Physical & Scaling

Protection rating IP65
Mounting Wall-mounted
Max parallel 9 units, up to 68.4kW combined

Certification & Warranty

Safety UL 1741, UL 1699B, UL 1741SB, CSA C22.2
Grid standards IEEE 1547:2018, HECO SRD 2.0, CEC Listed
Warranty 10 years

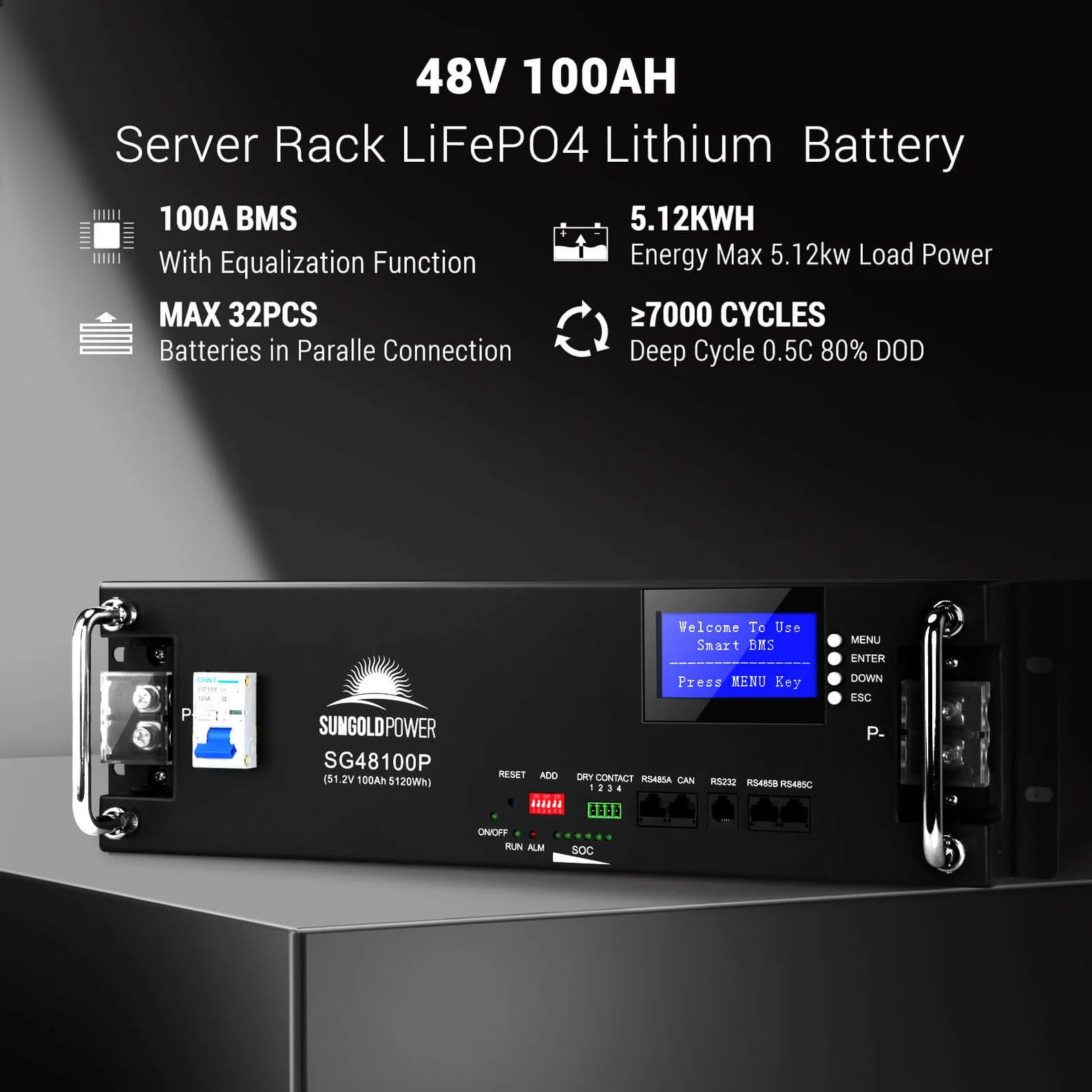

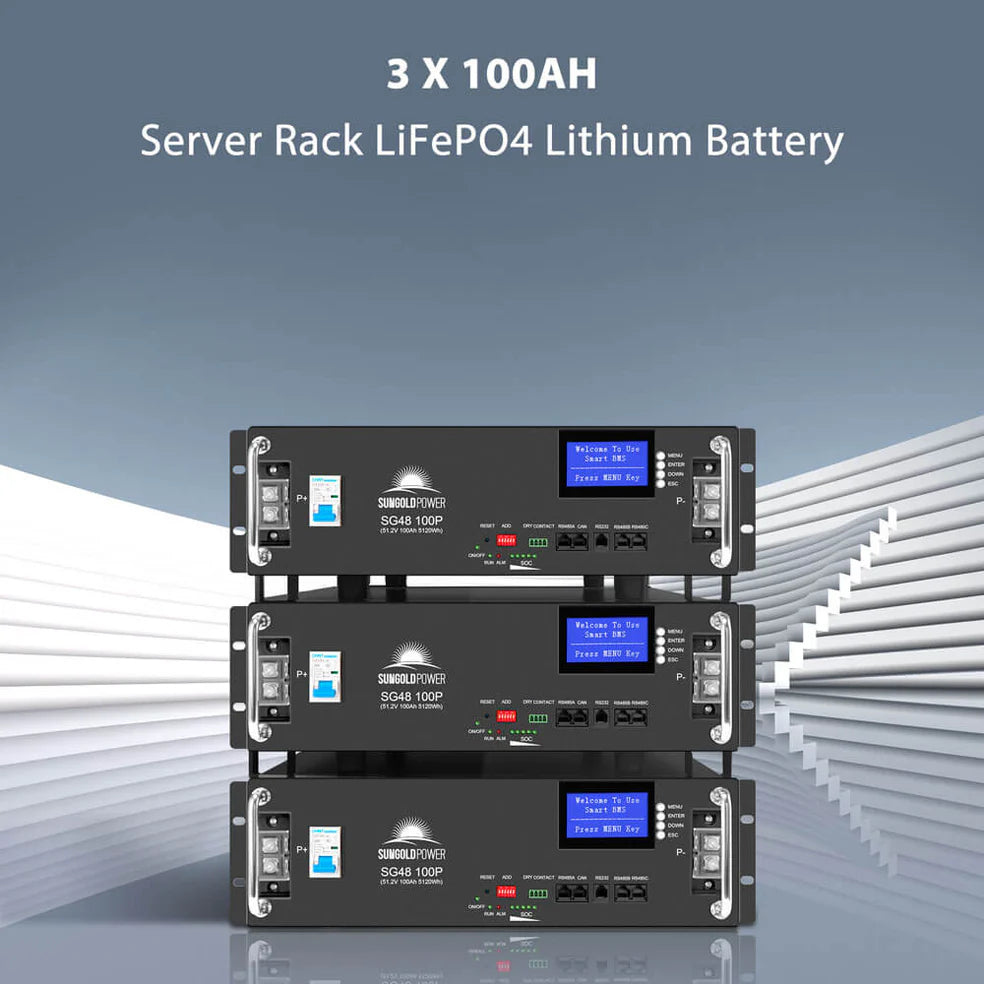

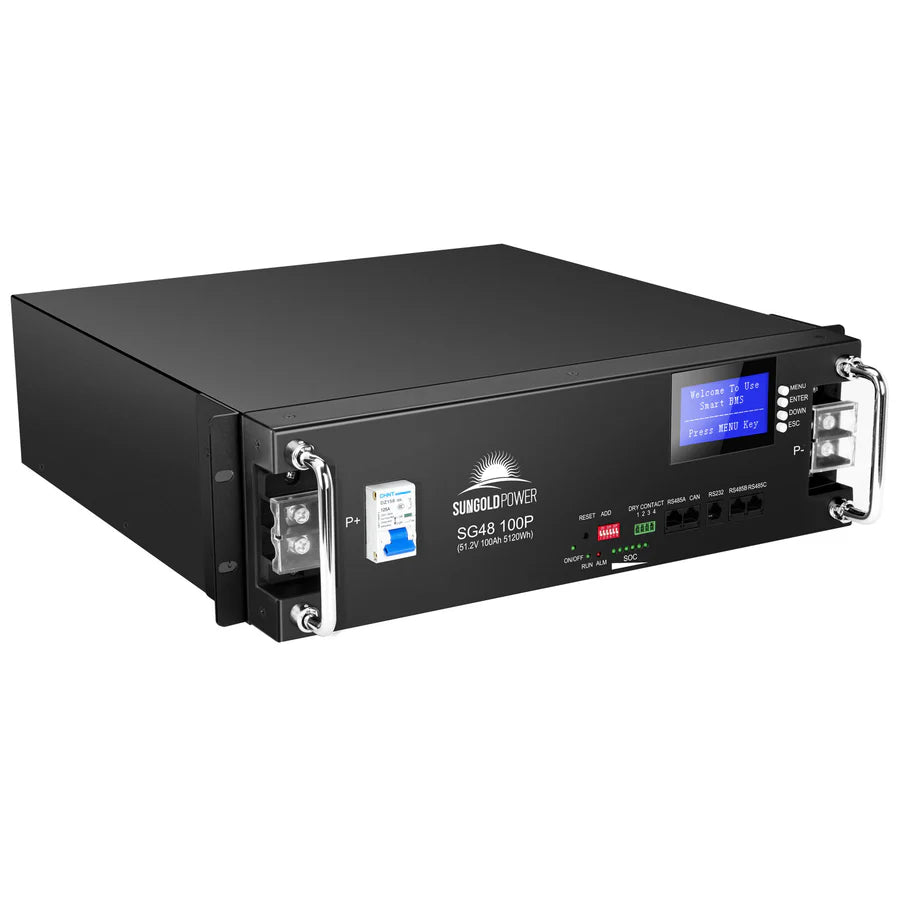

SG48100P LiFePO₄ Battery (×3)

Capacity

Rated capacity 100 Ah
Nominal voltage 51.2 V
Energy per unit 5,120 Wh
Combined (3 units) 15,360 Wh (15.36 kWh)

Durability & Warranty

Cycle life* ≥7,000 to 80% capacity
Design life 15 years
Warranty 10 years
Certification UL1973

Protection & Communication

Smart BMS Overcharge, deep-discharge, overheat, short-circuit
Communication CAN / RS485 / RS232
Inverter compatibility Growatt, Deye, Luxpower, Victron, and more

Scaling

Max parallel 32 units
Max combined capacity 163.84 kWh

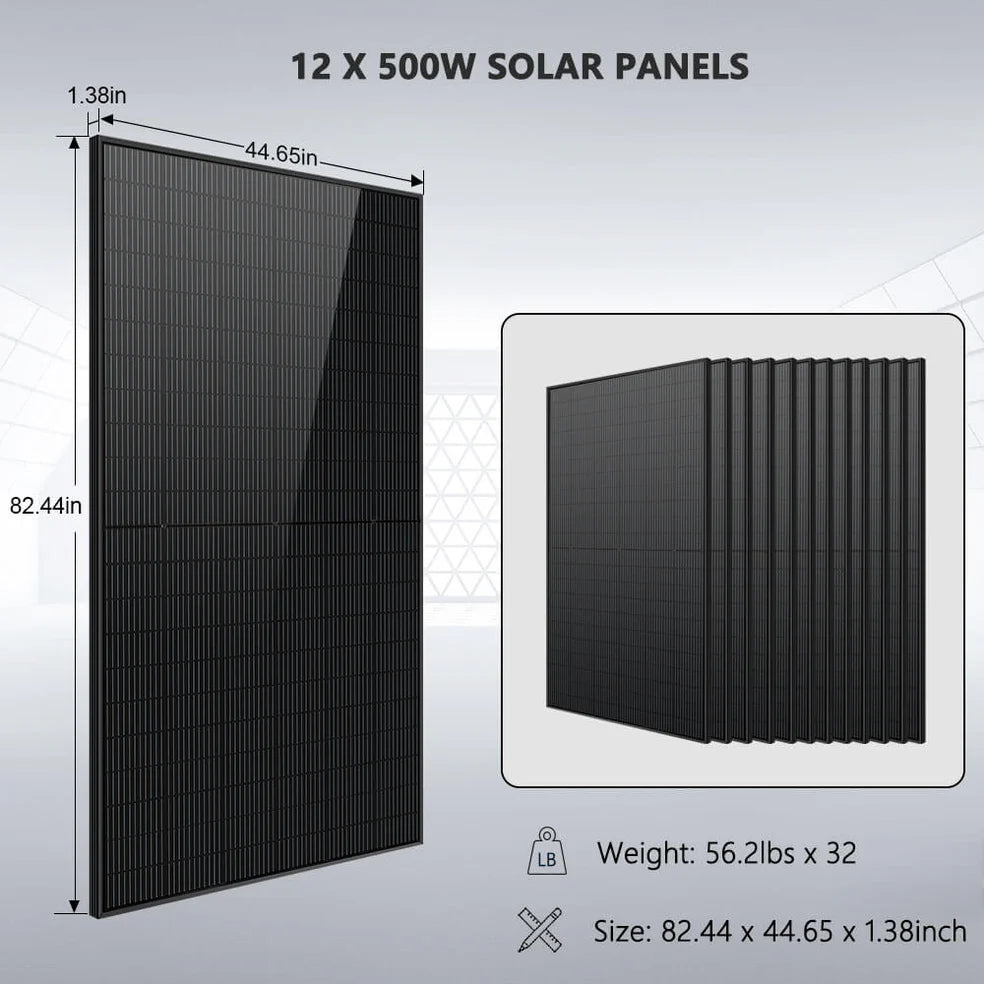

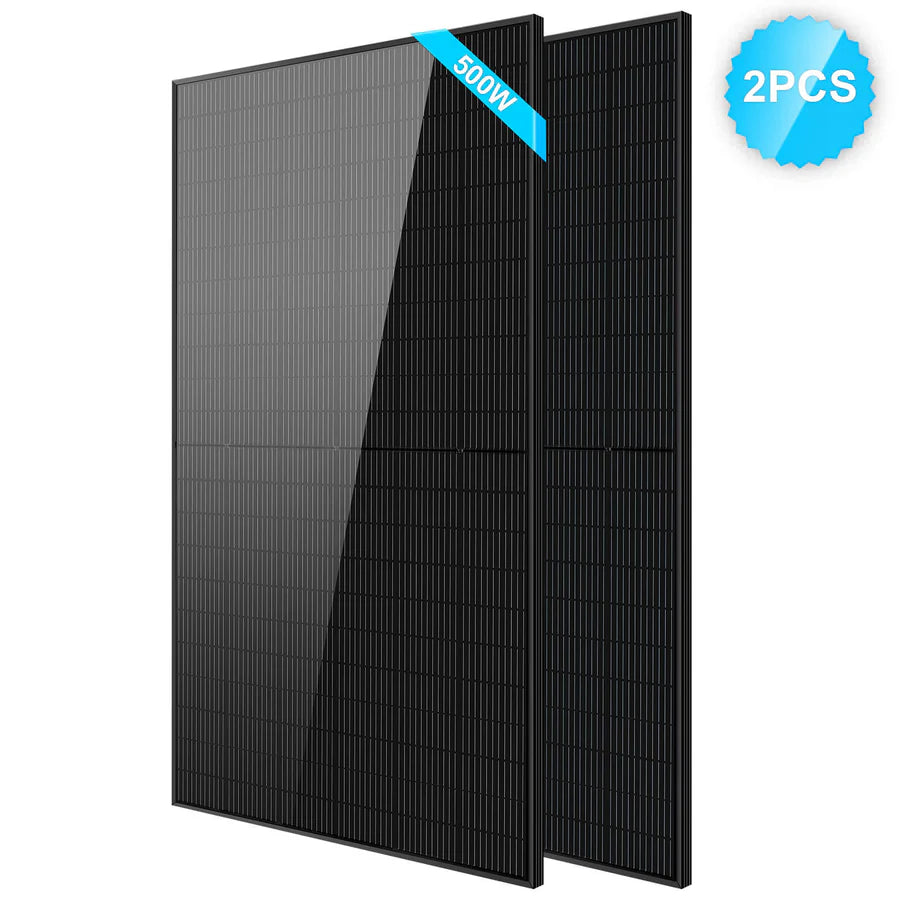

SG500WM Monocrystalline Panel (×12)

Electrical

Rated power 500 W
Module efficiency 21.05%
Cell technology Mono PERC, half-cut

Build & Warranty**

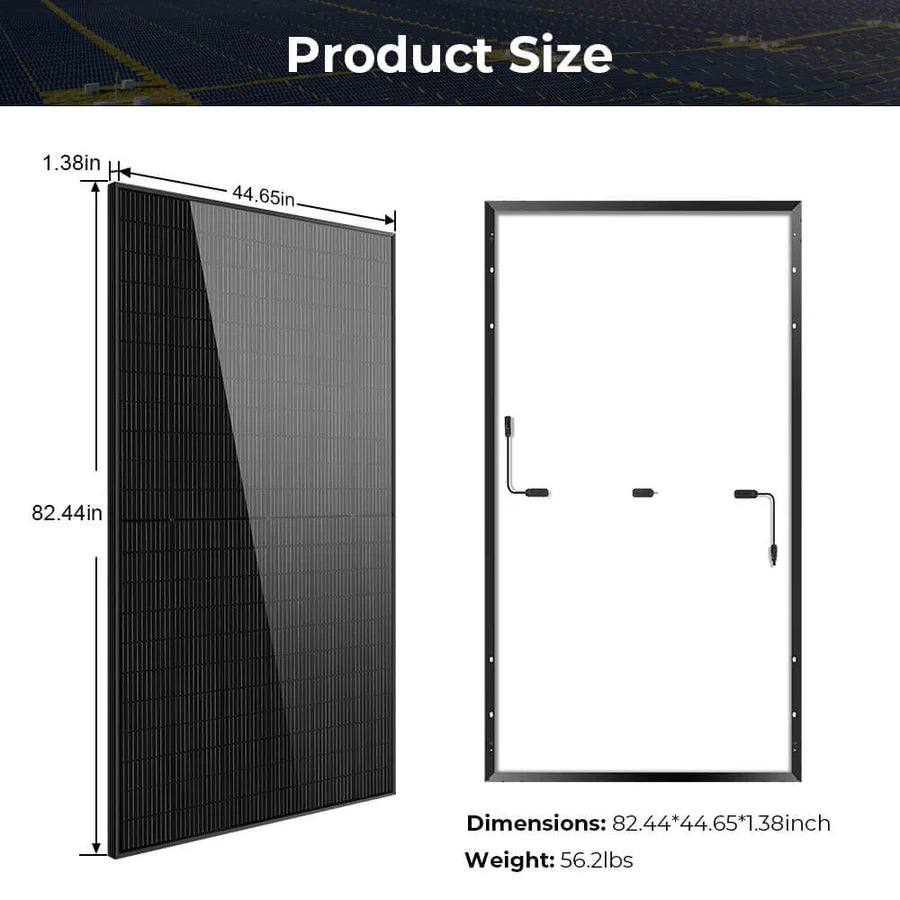

Weight (each) 56.2 lbs
Dimensions 82.44 × 44.65 × 1.38 in
Certification UL 61730, CEC Listed
Warranty 25yr linear performance + 10yr workmanship


Three Ways to Use It

Off-Grid — Run entirely on solar and battery Hybrid — Combine solar, battery, and grid Grid-Tied — Send excess power back to the grid

Common Questions

Can this system send power back to the grid?

Yes — in grid-tied mode, excess solar power can be sold back to the grid. The system also supports pure off-grid operation and a hybrid mode combining solar, battery, and grid.

Can I connect multiple inverters together?

Yes — up to 9 identical SGN7.6K1HB-48 inverters can run in parallel for a combined 68.4kW system as power needs grow.

What's the actual usable battery capacity?

15.36kWh combined from three 5,120Wh LiFePO₄ batteries, each rated for at least 7,000 cycles to 80% capacity and backed by a confirmed 10-year warranty.

Can I add more solar panels later?

Yes — the inverter's three MPPT trackers support up to 12kW of combined solar input, well above the 6kW (12×500W) included in this kit.

Is there a version without solar panels?

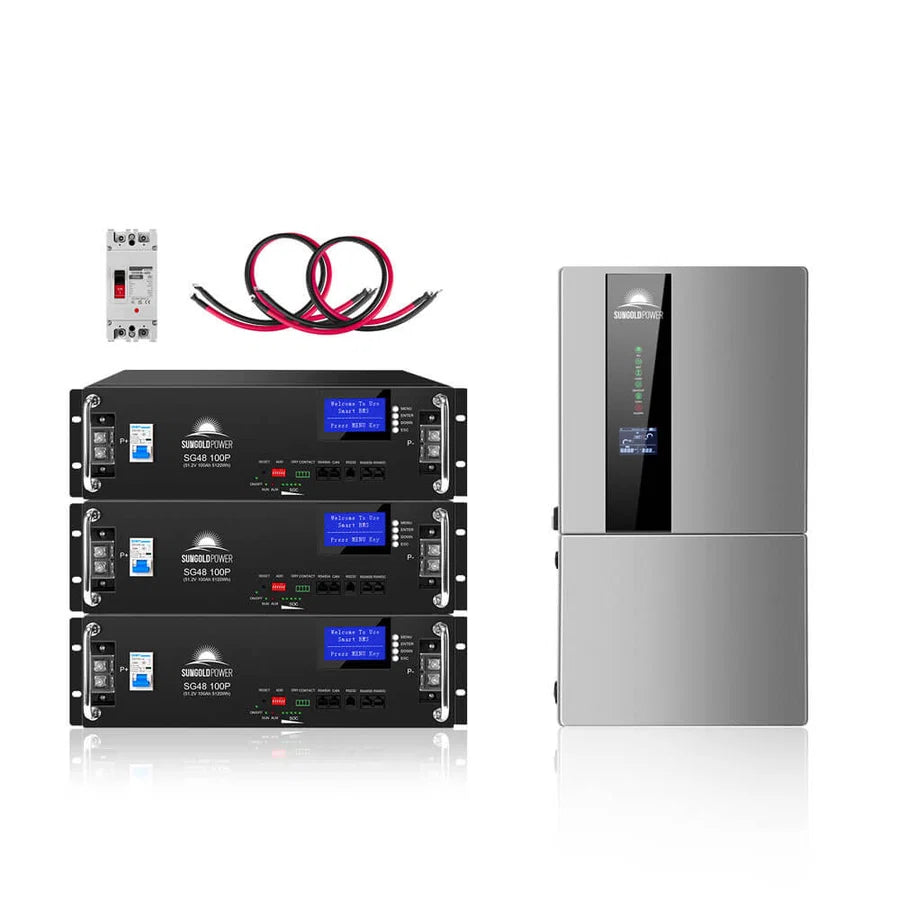

Yes — this product is also available without panels, for anyone sourcing their own or already owning compatible panels.

Do I need a licensed electrician to install this?

Given the grid-interconnection requirements plus the voltages, currents, and battery wiring involved, installation should be handled by a qualified, licensed electrician familiar with your local code and utility interconnection rules.
