Solar Kit · 6,500W · 20,480Wh
Discover a practical way to achieve energy self-sufficiency with our complete 48V off-grid solar kit featuring a 6500W hybrid inverter and 4kW+ solar array. Designed for reliability and seamless integration, it provides the foundation for a stable, self-sufficient power system.

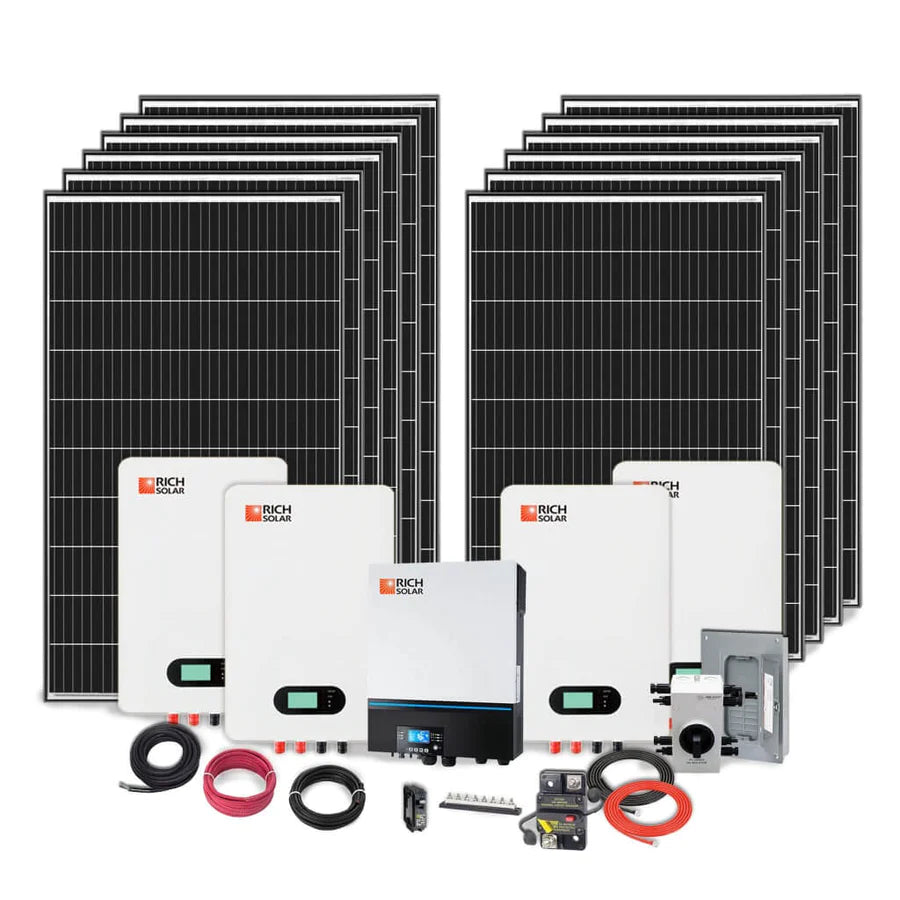

To capture maximum sunlight, this complete kit comes with twelve MEGA 335W solar panels. Built for efficiency, these modules consistently deliver high output even in variable weather, ensuring you get the most from every ray of sun. For additional configurations, explore our full range of Rich Solar panels.
For dependable energy storage, the system is equipped with four Rich Solar Alpha 5 LiFePO4 batteries (48V, 100Ah, 5kWh each). Together they provide 20 kWh of total capacity, giving you the ability to store surplus power during the day. With a cycle life of over 6,000 charges, these batteries are built for long-term performance. If you are looking for alternative capacities, browse our Rich Solar batteries collection.
To protect and streamline your installation, the kit also includes a PV DC Quick Disconnect Switch, 150A 48V Battery Breaker, and a 125A 8-Space Combiner Box. These essential components improve safety, simplify wiring, and keep your system organized and efficient.
Designed for cabins, tiny homes, and RV setups that demand reliable off-grid AC output, this system provides a robust power foundation for long-term energy independence. Scalable, dependable, and built for continuous operation, it supports real-world off-grid living without compromise.

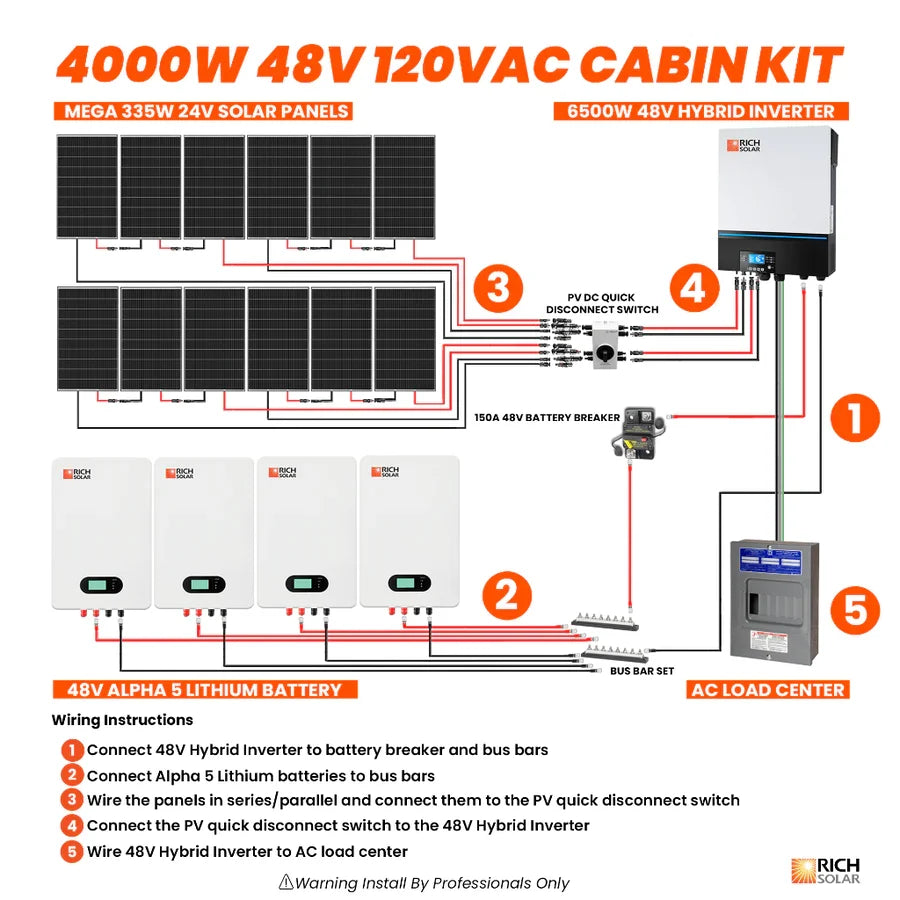

Every component in this solar kit is selected to support safe, controlled operation of a 48V off-grid power system.
PV DC Quick Disconnect Switch
Allows safe isolation of the solar array during maintenance or system shutdown.
150A 48V Battery Breaker
Provides essential protection against overcurrent conditions within the battery bank.
8-Space Combiner Box with Circuit Breakers
Helps organize incoming circuits while improving overall system protection and serviceability.
Dedicated Grounding Components
Designed to support proper grounding practices across the system for safer long-term operation.
Together, these elements simplify installation, reduce risk, and help ensure stable performance in off-grid environments.
Rich Solar NOVA 6548 6,500W 48V Hybrid Inverter
| Max. PV input power | 8,000 W |
| Solar charger type | MPPT (dual) |
| MPPT operating voltage range | 90–230 Vdc |
| Nominal input voltage | 120 Vac |
| Max. input voltage | 150 Vac |
| Max. AC input current | 60 A |
| Rated output power | 6,500 VA / 6,500 W |
| Surge power (5 sec) | 13,000 W |
| Output voltage | 120 Vac ± 5% |
| Output waveform | Pure sine wave |
| Peak efficiency | 91% |
| Optional DC output | 12Vdc ± 7%, 100W |
| Bulk charging (flooded) | 58.4 Vdc |
| Bulk charging (AGM/Gel) | 56.4 Vdc |
| Float charging | 54 Vdc |
| Overcharge protection | 66 Vdc |
| Operating temp | -14°F to 104°F |
| Dimensions | 5.8 × 17.0 × 21.8 in |
| Net weight | 40.6 lbs |
| Certification | UL 1741 |
12× Rich Solar MEGA 335 24V Monocrystalline Solar Panel
| Electrical | |
| Max. power (Pmax) | 335 W |
| Max-power voltage (Vmp) | 29.2 V |
| Max-power current (Imp) | 11.5 A |
| Open-circuit voltage (Voc) | 36.9 V |
| Short-circuit current (Isc) | 11.8 A |
| Max. system voltage (Vmax) | 1500 Vdc |
| Max. series fuse rating | 20 A |
| Physical | |
| Cell configuration | 96-cell monocrystalline |
| Weight | 35.2 lbs |
| Dimensions | 69.3 × 34.7 × 1.2 in |
| Operating temp | -40°F to 185°F |
| Protection rating | IP67 |
4× Rich Solar ALPHA 5 48V 100Ah Server Rack Battery
| Nominal voltage | 48 V |
| Rated capacity | 100 Ah |
| Nominal energy | 4,800 Wh |
| Cell chemistry | LiFePO₄ |
| Cycle life | 7,000+ |
| Charging voltage | 52.5 V |
| Max. charge current | 100 A |
| Max. continuous discharge current | 100 A |
| Parallel expansion | Yes |
| Bluetooth | No |
| Internal heating | No |
| Communication ports | RS485 / RS232 / CAN |
| Protection rating | IP21 |
| Warranty | 10 years |
| Dimensions (L×W×H) | 19 × 17.7 × 5.2 in |
| Net weight | 92.6 lbs |
