FEATURES
- Pure sine wave inverter with high-quality output.
- Customizable color options featuring a built-in RGB LED bar for visual appeal.
- Convenient mobile monitoring enabled by the built-in Wi-Fi functionality (requires app installation).
- Supports USB On-the-Go function for versatile connectivity.
- Equipped with a built-in anti-dusk kit for enhanced durability in various lighting conditions.

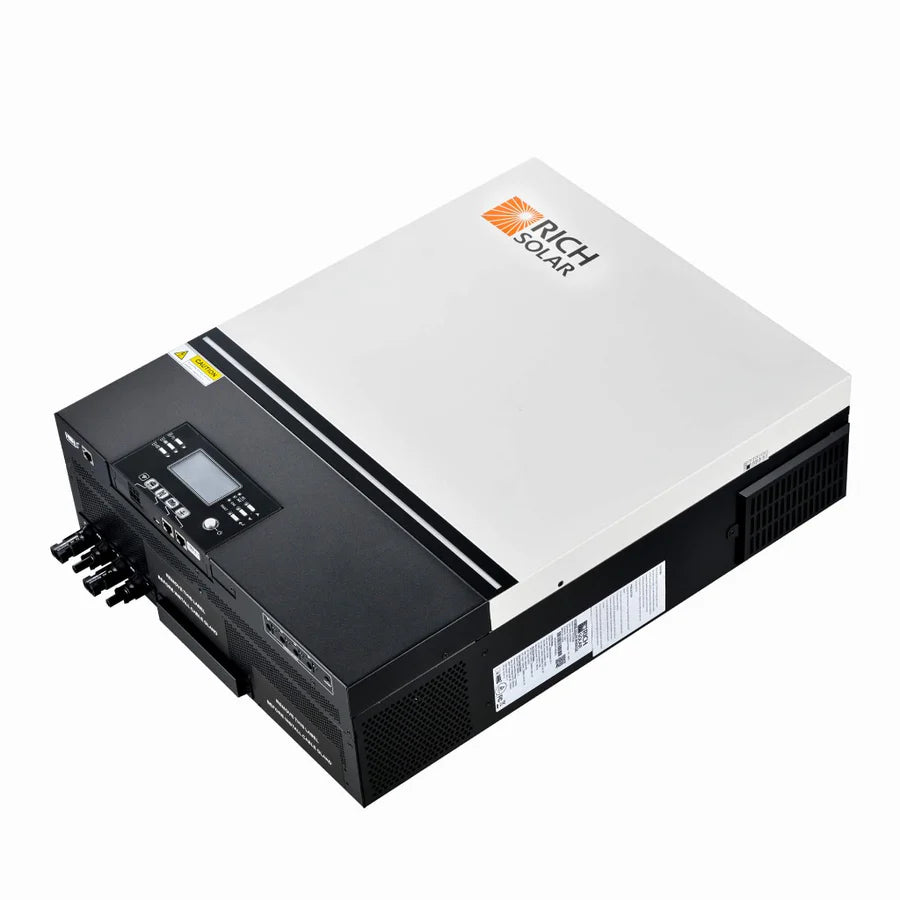

- Detachable LCD control module with multiple communication ports (RS485, CAN-BUS, RS232) for easy integration with BMS systems.
- LCD control panel allows for customizable input voltage ranges tailored for both home appliances and personal computers.
- Flexible configuration options for AC/PV output usage timer and prioritization to suit specific needs.
- Adjustable AC/Solar charger priority settings via the LCD control panel for efficient energy management.
- User-configurable battery charging current settings via the LCD control panel for optimal performance.
- Compatible with utility mains or generator power sources for uninterrupted operation.
- Auto restart feature ensures seamless recovery during AC power restoration.
- Comprehensive protection mechanisms including overload, over temperature, and short circuit protection for enhanced safety.
- Capable of parallel operation with up to 6 units for scalability and increased power output.
- Innovative smart battery charger design maximizes battery performance and longevity.
- Cold start function enables operation even in low-temperature environments without external power sources.
SPECIFICATIONS
| Rated Inverter Power |
6500VA/6500W |
| AC Voltage Regulation |
120VAC ± 5% |
| Surge Power |
15000VA |
| Efficiency (Peak) |
90% ~ 93% |
| Transfer Time |
15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform |
Pure Sine Wave |
| No Load Power Consumption |
<70W |
| Optional DC Voltage |
12 VDC ± 5%, 100W |
| Dual Outputs |
Yes |
| Voltage |
120 VAC |
| Selectable Voltage Range |
90-140 VAC (For PC), 80-140 VAC (Home Appliances) |
| Frequency Range |
50 Hz/60 Hz (Auto Sensing) |
| Battery Voltage |
48 VDC |
| Floating Charge Voltage |
54 VDC |
| Overcharge Protection |
66 VDC |
| Solar Charger Type |
MPPT |
| Maximum PV Array Power |
8000W (4000W x 2) |
| MPPT Operating Voltage |
90 ~ 230 VDC |
| Max PV Array Open Circuit |
250 VDC |
| Maximum Solar Charge Current |
120A |
| Maximum AC Charge Current |
120A |
| Maximum Charge Current |
120A |
| Dimension (D x W x H) |
5.8 x 17.0 x 21.8 in |
| Net Weight |
40.6 lb |
| Communication Interface |
USB/RS232/RS485/Wi-Fi/Dry-contact |
| Humidity |
5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-15°C to 60°C |
| Compliance Safety |
UL |
| PARALLEL CAPABILITY |
Yes, 6 units |
ADDITIONAL DOCUMENTATION
RICH SOLAR 6500 Inverter User Manual
RICH SOLAR 6500 Inverter Certification
RICH SOLAR 6500 Inverter Specifications
