Off-Grid Solar Kit · 10,000W · 32.14kWh · 6,600W PV

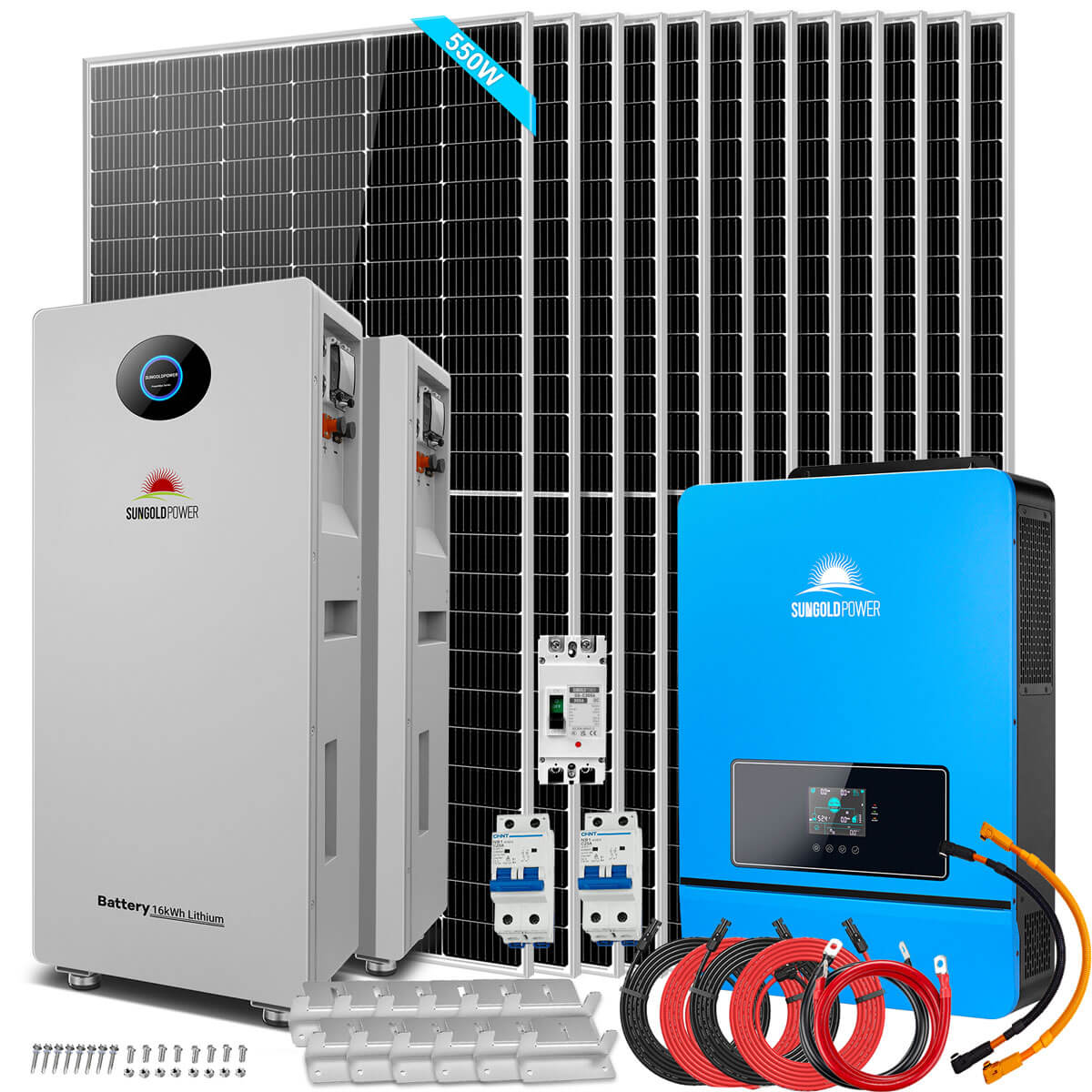

A 10kW 120/240V split-phase off-grid kit with two weatherproof PowerMax 314 outdoor batteries (32.14kWh), twelve 550W monocrystalline panels with Z-brackets, breakers and cables - storage that can live outside the house.
The SGR-10K32P is the PowerMax version of Sungold Power's popular 10kW off-grid kit: instead of a rack of server batteries indoors, two PowerMax 314 Outdoor cabinets (IP65, UL1973 and UL9540A certified, CEC listed) hold 32.14kWh of LiFePO4 storage and can be installed on a pad outside, in a garage or a shed. Each has a touch screen, Wi-Fi/Bluetooth monitoring and an 8,000-cycle rating.
The SPH10048P inverter delivers 10,000W of pure sine wave power at 120/240V split-phase (or 120V single-phase), charges at up to 200A, accepts 11,000W of solar on two MPPTs and is UL1741 listed by ETL. It supports time-slot charging and discharging, Wi-Fi app monitoring and closed-loop communication with SunGoldPower batteries; up to six units parallel for 48kW in single-, split- or three-phase.
Twelve SG550WM monocrystalline panels supply 6,600W - about 26kWh a day at four sun hours - and ship with twelve sets of Z-brackets for roof mounting. Two 50 ft PV extension cable sets, a battery parallel cable, a 300A DC breaker, two 25A PV breakers and 2/0 AWG cabling complete the kit.
Browse all Sungold Power products, Sungold solar kits, inverters and batteries.
Two PowerMax 314 batteries: 51.2V 314Ah each, IP65, 8,000 cycles, touch screen, UL1973 / UL9540A, 10-year warranty.
SPH10048P: 120/240V output, 11kW PV input, 200A charging, 92% efficiency, parallel to 48kW.
Twelve 21.3% efficient modules with 12/25-year warranties and Z-brackets included.
Air conditioners, well pumps, dryers and shop tools on split-phase power with 3-year inverter warranty.
Wi-Fi monitoring for the inverter and Wi-Fi/Bluetooth for each battery.
Up to 16 PowerMax batteries, 11kW of PV per inverter and six inverters in parallel.
Estimates assume 85% usable energy and typical load ratings; actual runtime depends on your appliances, weather and settings.
Yes. PowerMax 314 Outdoor batteries are IP65 rated for indoor or outdoor installation and operate from 14°F to 131°F.

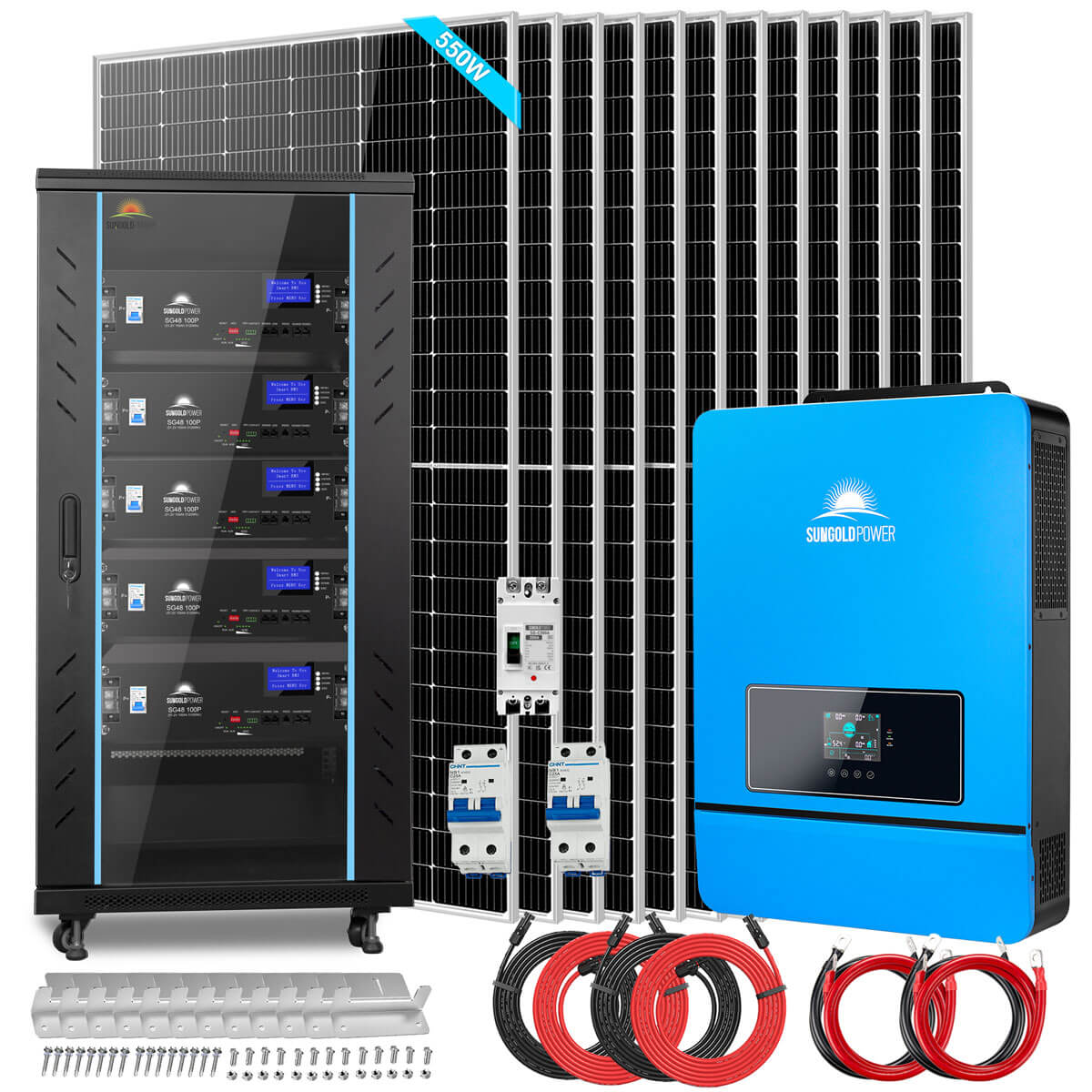

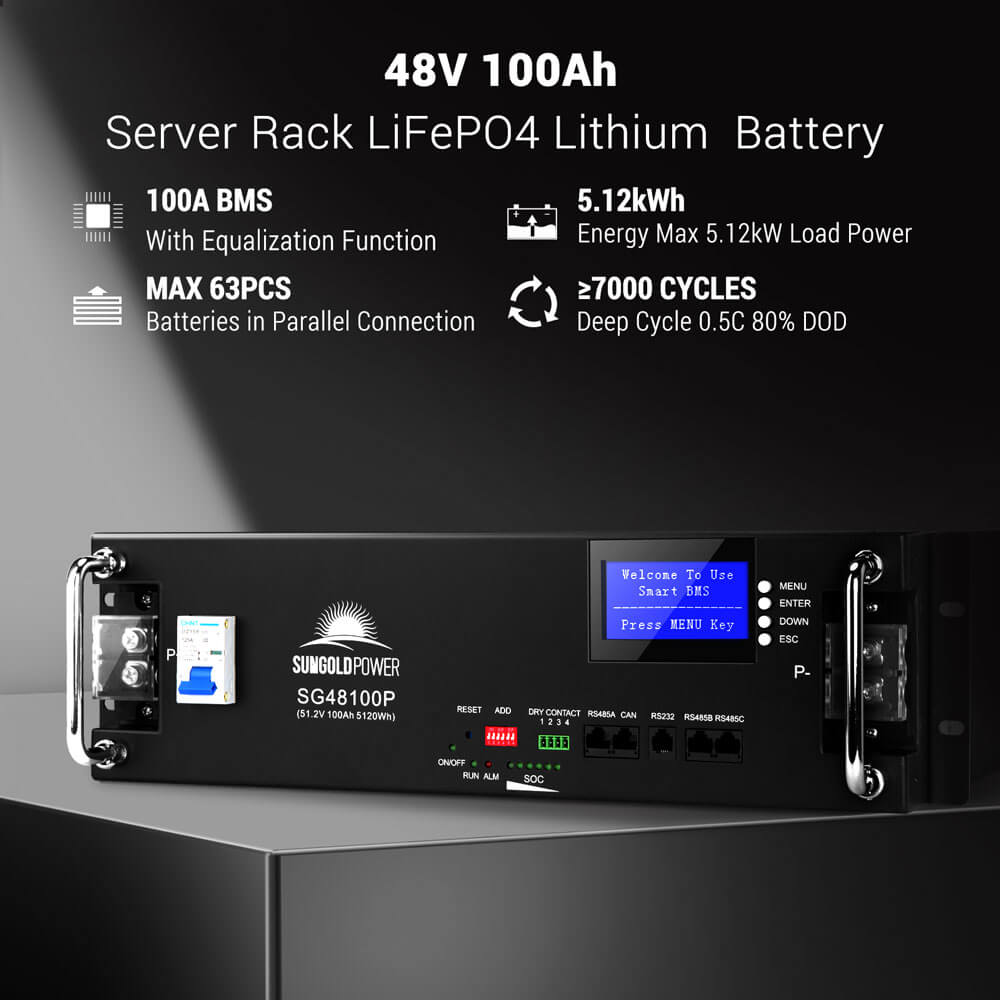

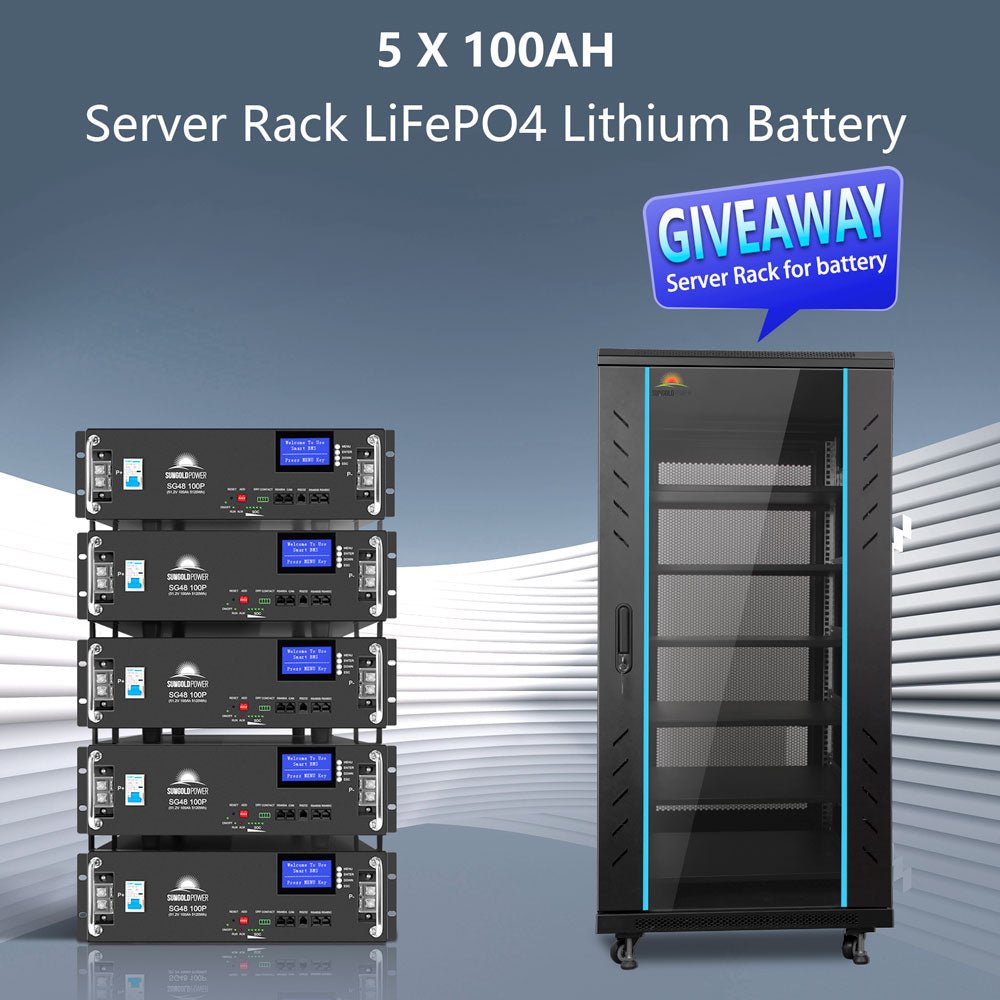

SGR-10K25S uses five SG48100P server-rack batteries (25.6kWh) in an indoor cabinet; SGR-10K32P uses two PowerMax outdoor cabinets with 32.14kWh and UL9540A certification.
Yes - the inverter accepts up to 11,000W of PV, so roughly eight more 550W panels can be added.
Yes - free shipping within the contiguous USA (freight delivery for kits), $0 sales tax in most states, and the ECO100 promo code takes another $100 off at checkout.

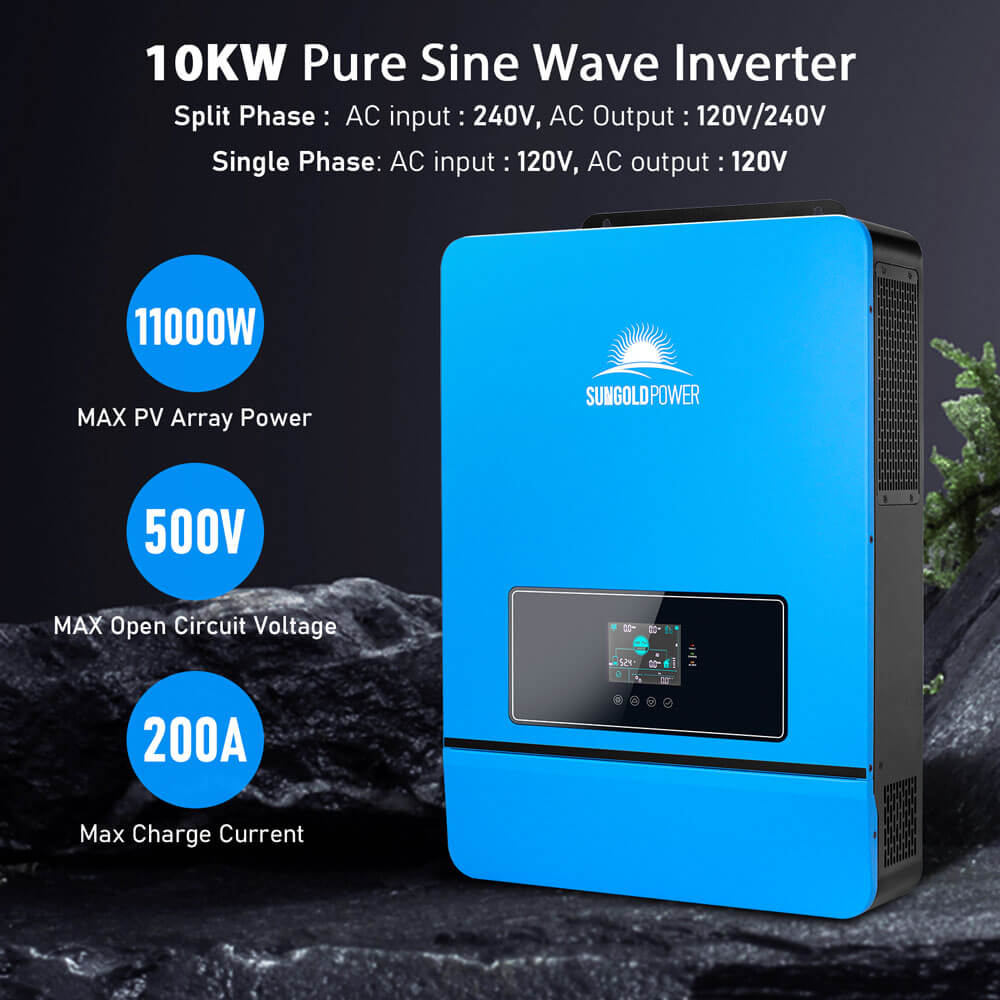

SPH10048P 10kW Split-Phase Solar Inverter
| Inverter Output | |
| Rated output power | 10,000W |
| Output waveform | Pure sine wave |
| AC output | 120/240V split-phase or 120V single-phase |
| Parallel units | Up to 6 (48kW); 120V single-phase, 120/240V split-phase or 208V three-phase |
| Efficiency | 92% |
| No-load consumption | 100W |
| PV and Charging | |
| MPPT trackers | 2 (99.9% tracking efficiency) |
| Max PV array power | 11,000W |
| MPPT operating range | 125-425Vdc |
| Max open-circuit voltage | 500Vdc |
| Max charging current | 200A |
| Charging modes | Time-slot charging / discharging, solar-first or hybrid |
| General | |
| Dimensions | 26 x 17.9 x 5.1 in |
| Weight | 54 lb |
| Monitoring | Wi-Fi app monitoring |
| Battery communication | Compatible with SunGoldPower lithium batteries (closed-loop) |
| Certification | UL1741 listed by ETL |
| Warranty | 3 years |

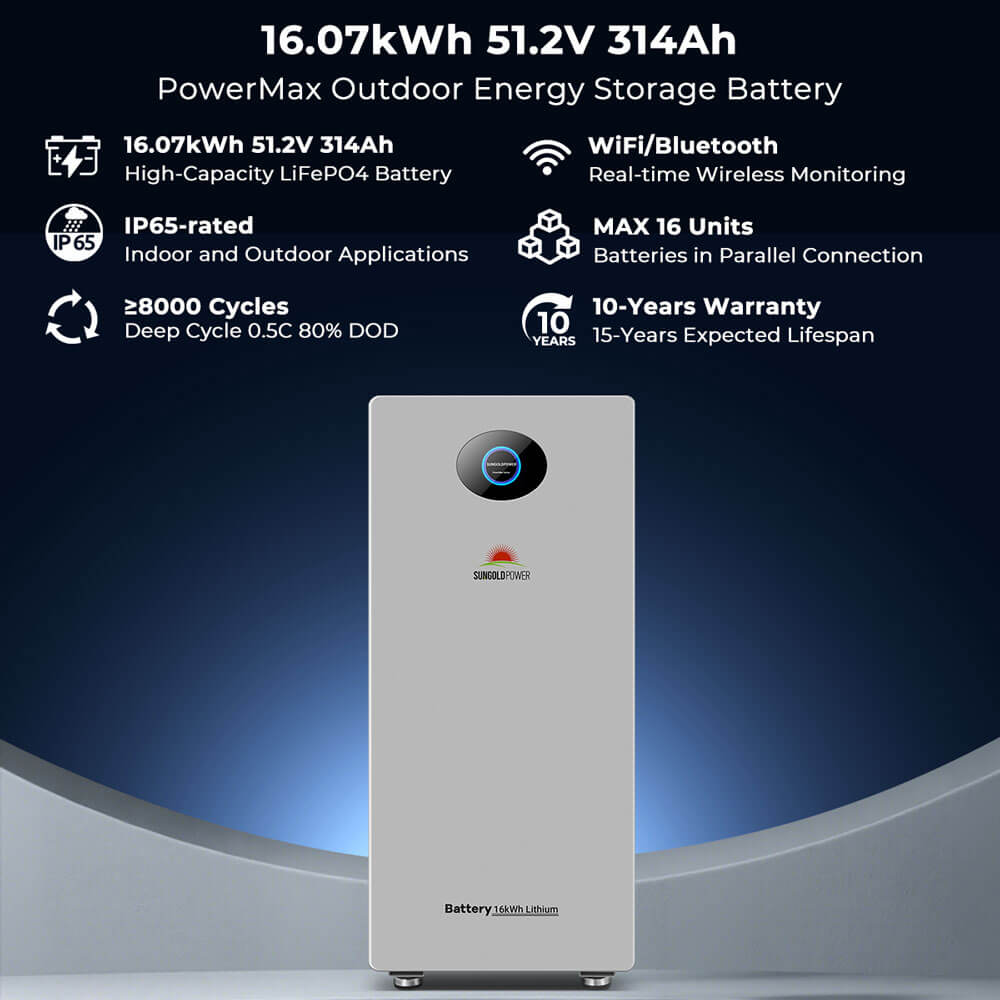

PowerMax 314 Outdoor 16.07kWh LiFePO4 Battery
| Battery | |
| Rated voltage | 51.2V |
| Voltage range | 44.8-57.6Vdc |
| Rated capacity | 314Ah |
| Rated energy | 16.07kWh (15.42kWh usable) |
| Depth of discharge | >96% |
| Rated DC power | 7.68kW |
| Standard charge / discharge current | 150A / 150A |
| Max charge / discharge current | 190A / 190A |
| Peak charge / discharge current | 220A (3s) |
| Breaker | 240A |
| Cycle life | 8,000 cycles (80% DOD, 0.5C, 25°C) |
| Max charging voltage | 57.6V |
| Over-discharge voltage | 44.8V |
| Max parallel | 16 units (257kWh) |
| Communication | CAN / RS485 / USB / Wi-Fi / Bluetooth |
| Screen | Touch screen |
| General | |
| Standards | UL1973, UL9540A, UN38.3, MSDS; CEC listed |
| Charging temperature | 32-131°F (0-55°C) |
| Discharging temperature | 14-131°F (-10-55°C) |
| Storage | 6 months at 25°C; 3 months at 35°C; 1 month at 45°C |
| Cooling | Natural cooling |
| Enclosure | IP65, indoor and outdoor |
| Dimensions | 41.26 x 18.11 x 10.67 in (1048 x 460 x 271 mm) |
| Weight | 271.17 lb (123 kg) |
| Warranty | 10 years (15-year design life) |

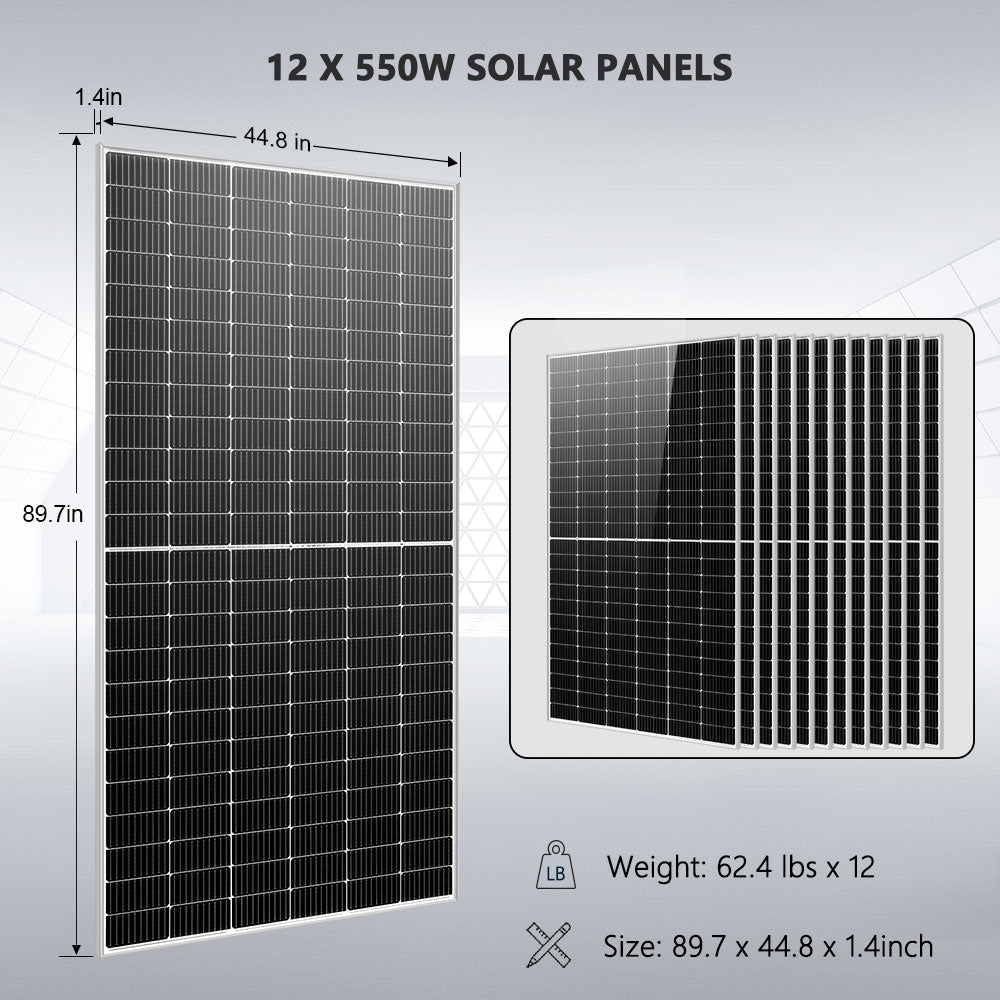

SG550WM 550W Monocrystalline Solar Panel
| Electrical | |
| Peak power | 550W (tolerance ±3%) |
| Cell type | Monocrystalline |
| Module efficiency | 21.3% |
| Max power voltage (Vmp) | 41.00V |
| Max power current (Imp) | 13.45A |
| Open-circuit voltage (Voc) | 49.70V |
| Short-circuit current (Isc) | 14.03A |
| Mechanical | |
| Dimensions | 89.7 x 44.8 x 1.4 in |
| Weight | 62.4 lb |
| Certifications | UL61730, CEC listed |
| Warranty | 12 years materials and workmanship, 25 years performance |
