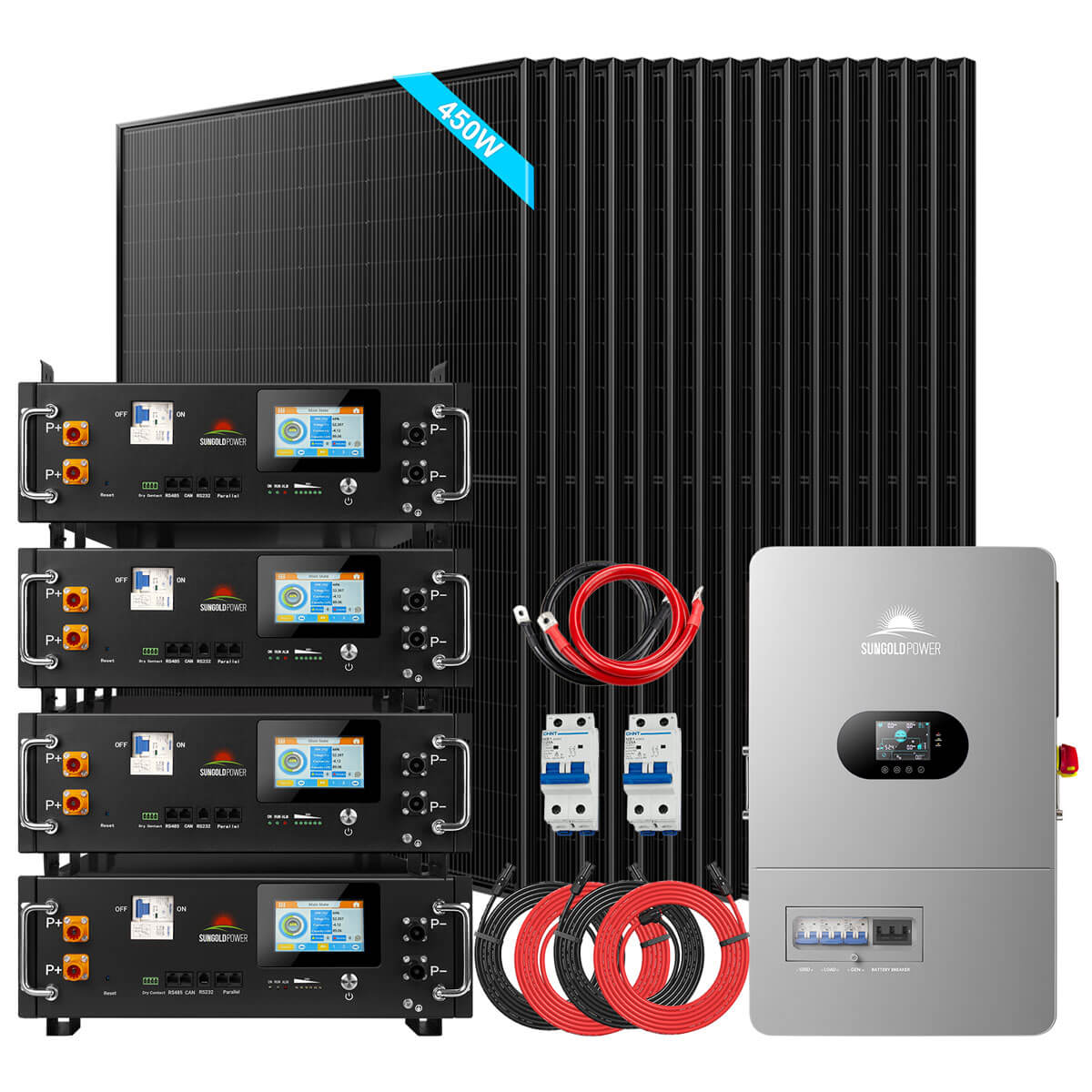

Off-Grid Solar Kit · 12,000W · 20.48kWh · 7,200W PV
The most affordable way into a 12kW split-phase off-grid system: the FR12K-B inverter, four CoreX 5 Pro rack batteries (20.48kWh) and sixteen 450W bifacial N-type panels (7,200W), with RSD, breakers and bus bar included.
The FR-12K20CP gives a home or cabin true 240V off-grid capability - 12,000W continuous, 24,000W surge - at an entry price. The FR12K-B all-in-one inverter/charger handles solar charging on two MPPTs, generator charging at 120A, load transfer in 10ms and rapid shutdown, all inside one wall-mounted cabinet with its own breakers.

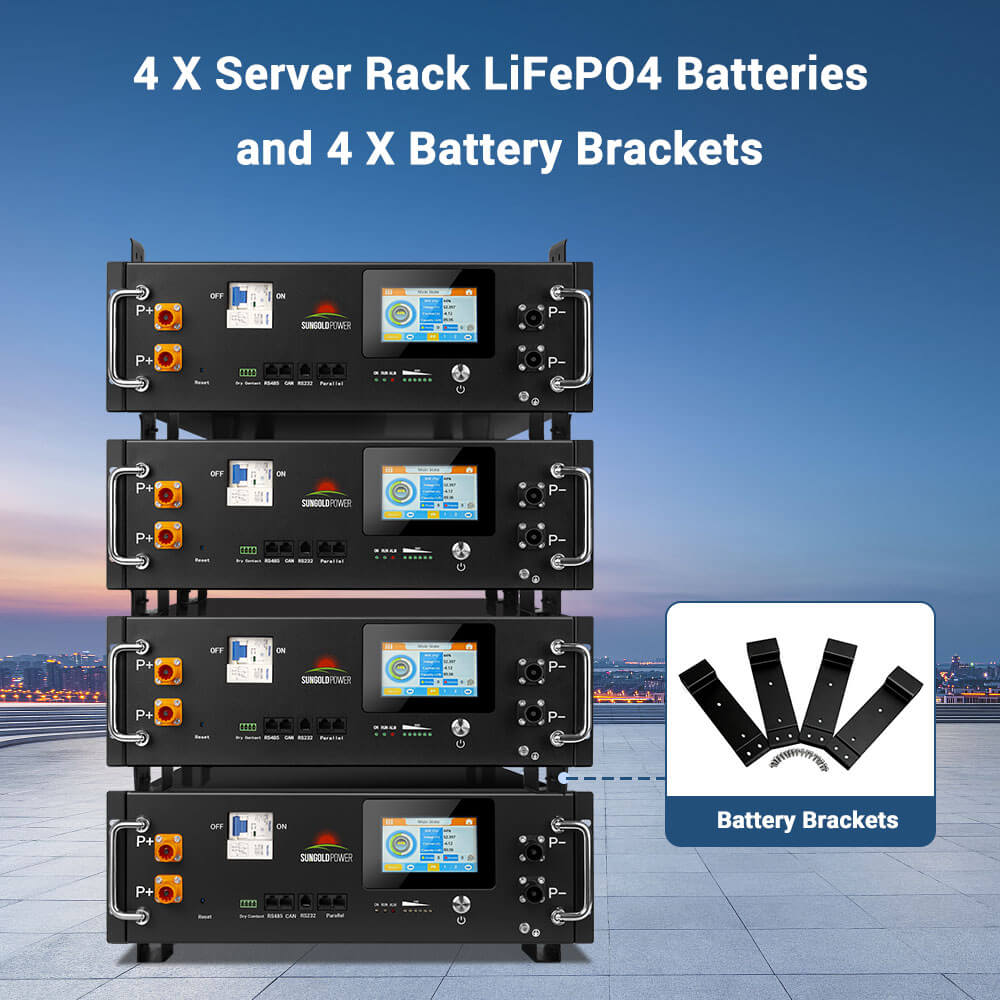

Four CoreX 5 Pro server-rack batteries provide 20.48kWh of LiFePO4 storage at 51.2V, enough for a typical evening-and-night load with reserve. Each module carries a 100A smart BMS and EVE Grade A cells rated for 6,000+ cycles, communicates with the inverter over CAN/RS485, and reports to the SunGoldPower app over Bluetooth and Wi-Fi. Sixteen SGN-450-BDG5 bifacial N-type panels produce 7,200W - about 29kWh a day at four sun hours.

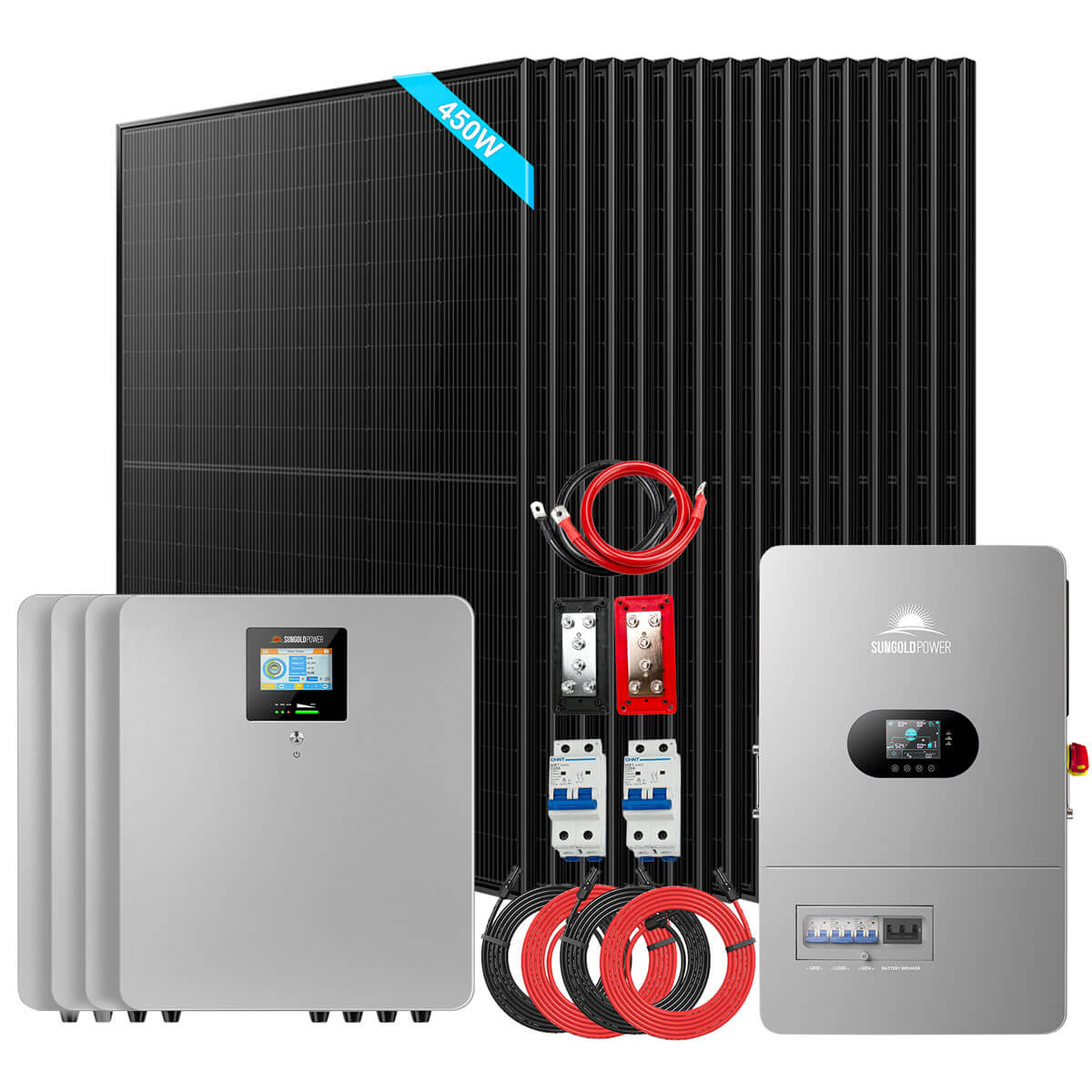

The kit ships with battery brackets, two 50 ft 10 AWG PV extension cables, a 4/0 AWG battery cable, two 25A PV breakers and a 400A bus bar set. It grows easily: the inverter accepts 13.2kW of PV, the battery stack takes up to 15 modules, and up to six inverters can be paralleled. A wall-mounted CoreX 5 Elite version (FR-12K20CE) is available.
Browse all Sungold Power products, Sungold solar kits, inverters and batteries.

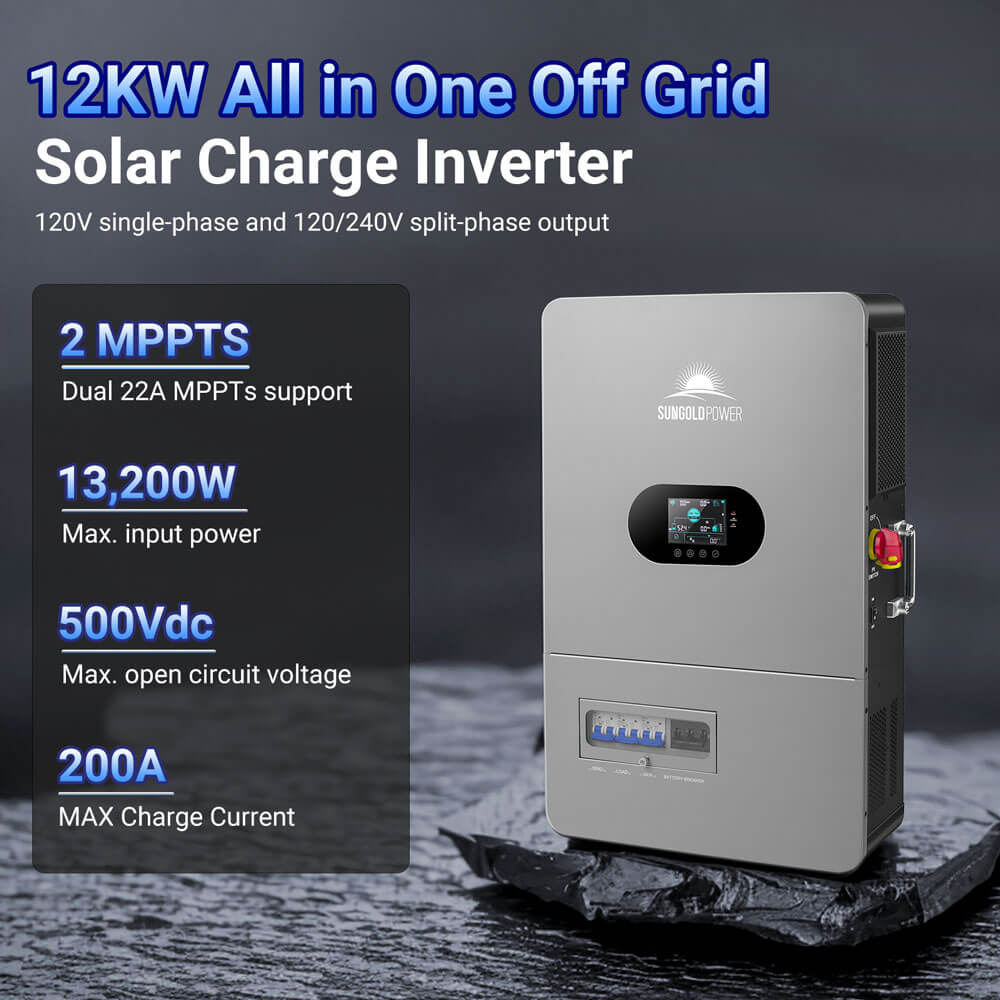

FR12K-B: 120/240V output, 24kW surge, dual MPPT, 200A charger, generator input, RSD and breakers built in.

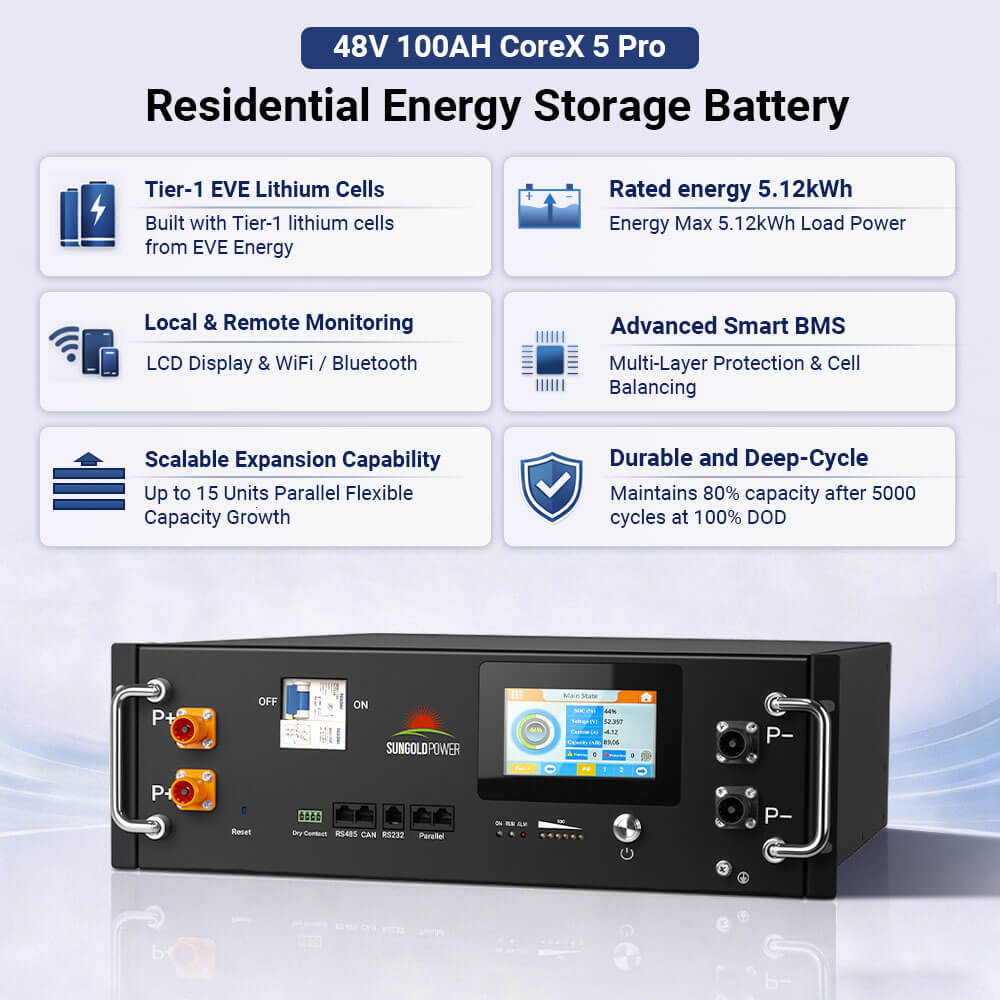

Four CoreX 5 Pro 5.12kWh rack batteries with EVE Grade A cells and 100A BMS, expandable to 76.8kWh.

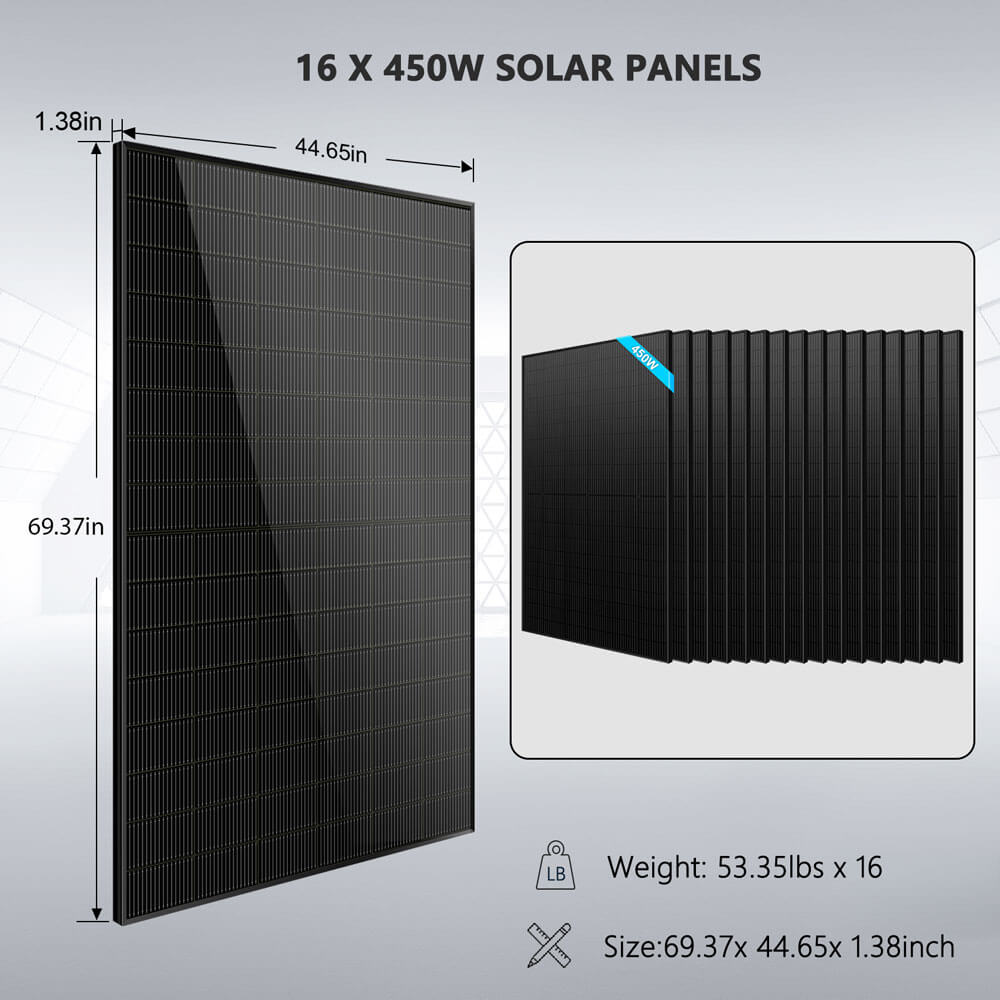

Sixteen 450W dual-glass panels at 22.5% efficiency, UL61730 and CEC listed, 30-year performance warranty.
Runs well pumps, mini-splits, dryers and ranges that 120V-only systems cannot.
Track production, consumption and state of charge remotely; set output priority and time-of-use charging.
Add panels (13.2kW input), batteries (15 per stack) or inverters (up to six for 72kW).
Estimates assume 85% usable energy and typical load ratings; actual runtime depends on your appliances, weather and settings.
It covers a typical evening and overnight load (8-15kWh) with reserve; homes with heavy 240V loads or long cloudy periods should consider the 30.72kWh FR-12K30CP or add CoreX 5 Pro modules later.
Up to 13,200W (6,600W per MPPT), so the 7,200W array leaves room for about 13 more 450W panels.

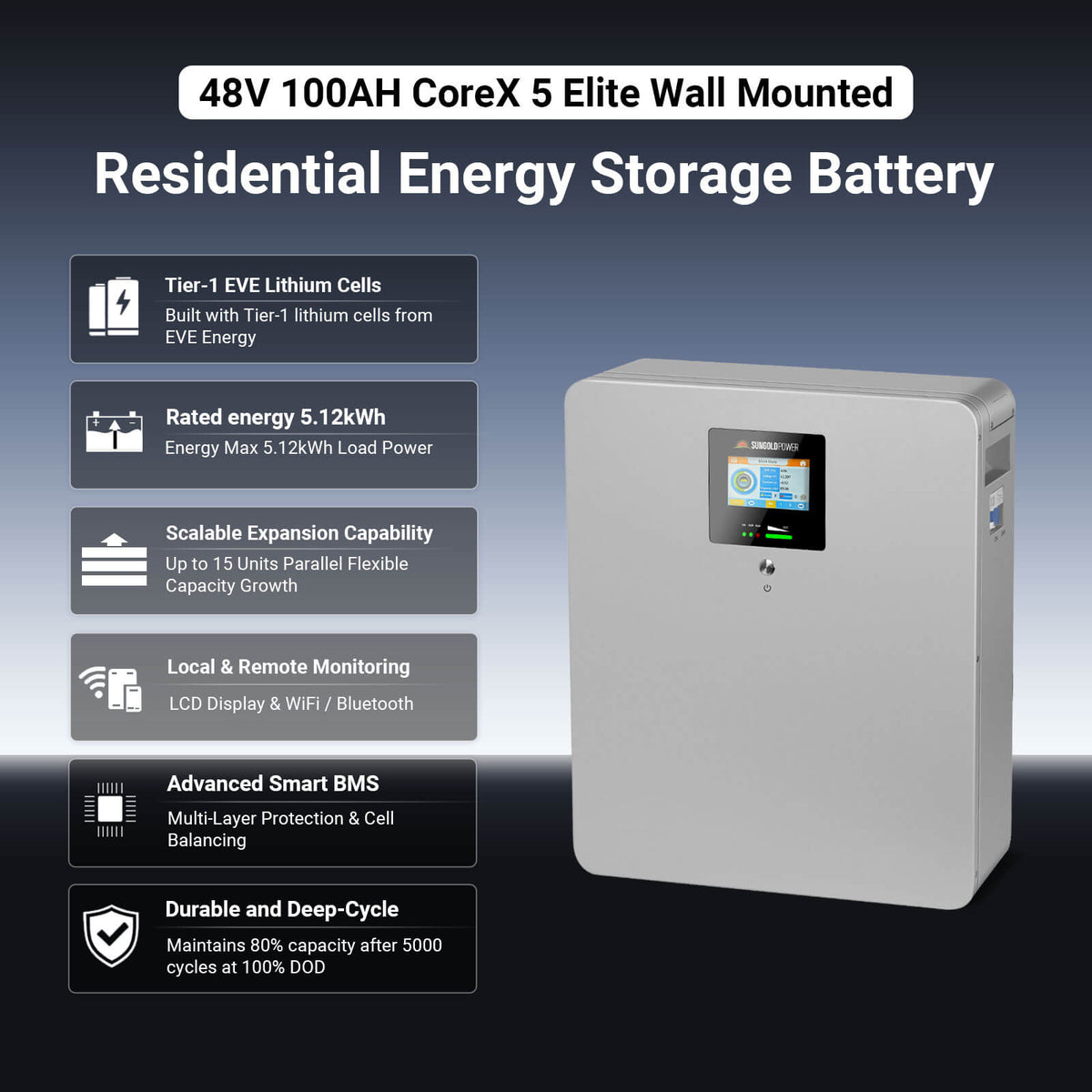

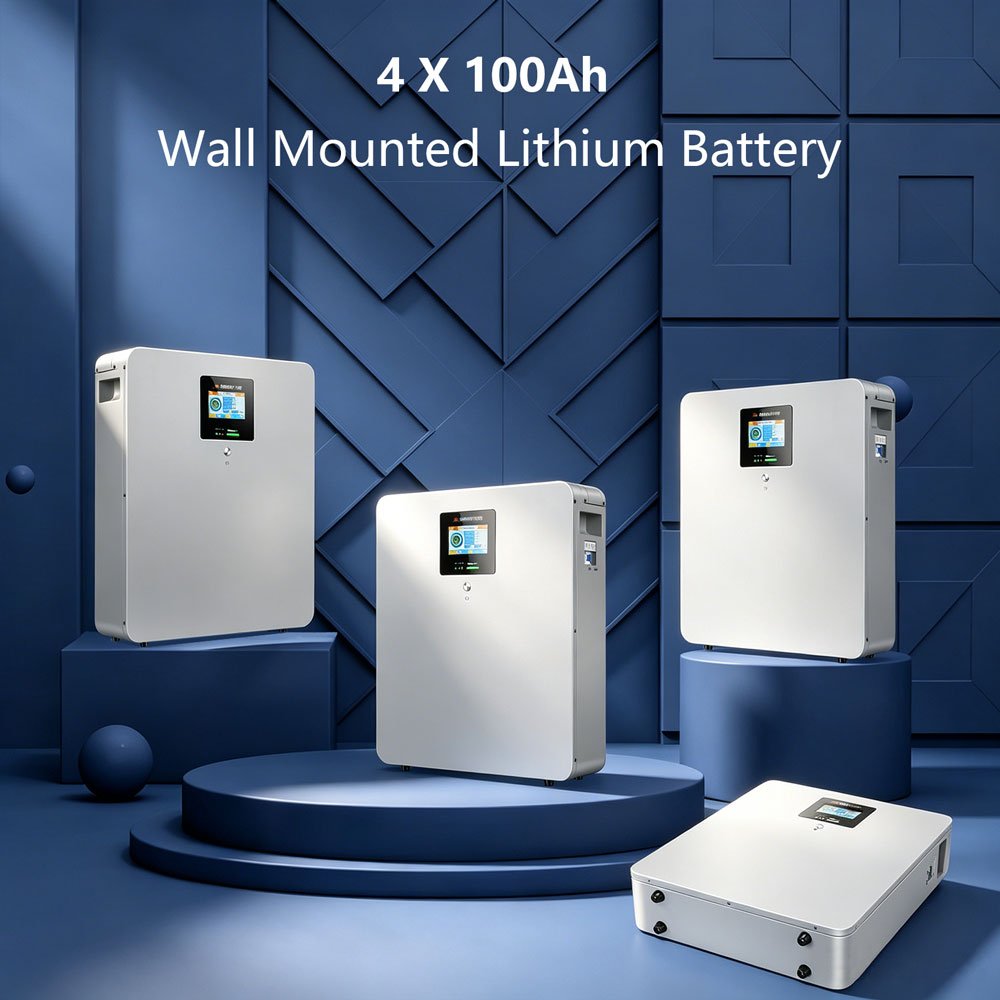

CP includes CoreX 5 Pro server-rack batteries with brackets; CE includes CoreX 5 Elite wall-mounted batteries. Same 20.48kWh.
Yes - free shipping within the contiguous USA (freight delivery for kits), $0 sales tax in most states, and the ECO100 promo code takes another $100 off at checkout.
FR12K-B 12kW All-in-One Off-Grid Inverter
| Inverter Output | |
| Rated output power | 12,000W |
| Peak power | 24,000W |
| Output voltage | 120/240Vac single-phase / split-phase |
| Load motor capacity | 6HP |
| Frequency | 50/60Hz |
| Output waveform | Pure sine wave |
| Switching time | 10ms (typical) |
| Parallel units | Up to 6 (72kW) |
| Battery | |
| Battery type | Lithium-ion / lead-acid / user-defined |
| Rated battery voltage | 48Vdc |
| Voltage range | 40-60Vdc |
| Max PV charging current | 200A |
| Max grid/generator charging current | 120A |
| Max hybrid charging current | 200A |
| PV Input | |
| MPPT trackers | 2 |
| Max PV input power | 6,600W + 6,600W (13,200W) |
| Max input current | 22A / 22A |
| Max open-circuit voltage | 500Vdc |
| MPPT operating range | 125-425Vdc |
| MPPT tracking efficiency | 99.9% |
| Battery-to-AC efficiency | 92% |
| Grid / Generator Input | |
| Input voltage range | 90-140Vac |
| Input frequency | 50/60Hz |
| Bypass overload current | 63A |
| General | |
| Dimensions | 28.48 x 17.64 x 5.91 in (723 x 448 x 150 mm) |
| Weight | 61.73 lb (28 kg) |
| Protection | IP20, indoor use |
| Ambient temperature | 14-131°F (derated above 113°F) |
| Noise | <60dB |
| Cooling | Intelligent fan |
| Communication | RS485 / CAN / USB / dry contact; Wi-Fi / GPRS optional |
| Safety | IEC62109-1, IEC62109-2, UL1741 |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 Class B |
| Warranty | 2 years |
CoreX 5 Pro 5.12kWh Server Rack LiFePO4 Battery
| Battery | |
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Energy | 5.12kWh |
| Cell type | EVE Grade A LiFePO4 |
| Voltage range | 43.2-56.8V |
| Charging current limit | 50A |
| Max continuous charge current | 95A |
| Max discharge current | 100A (100A smart BMS) |
| Cycle life | 6,000+ cycles |
| Communication | CAN / RS485; Bluetooth and Wi-Fi monitoring |
| Parallel | Up to 15 units (76.8kWh) |
| General | |
| Recommended operating temperature | 50-113°F |
| Dimensions | 20.80 x 17.64 x 5.91 in (3U rack) |
| Weight | 94.8 lb |
| Warranty | 10 years |

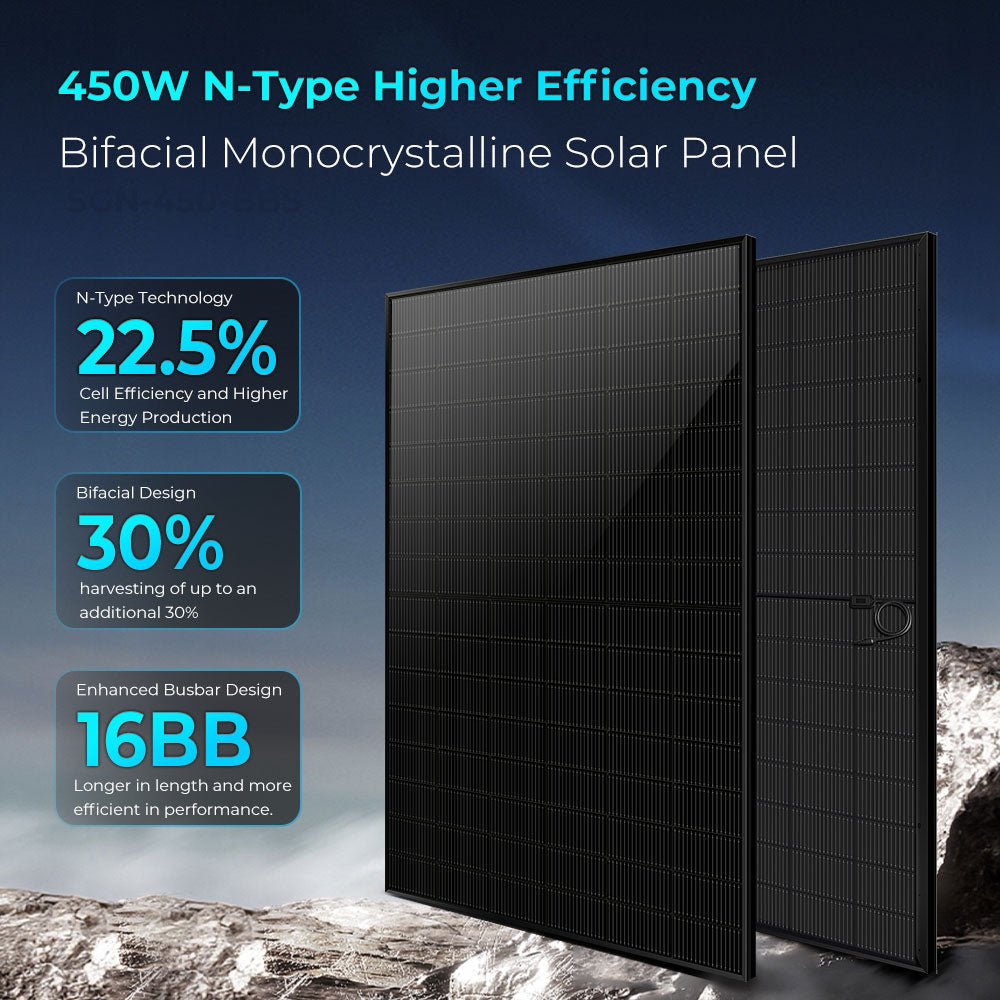

SGN-450-BDG5 450W Bifacial N-Type Solar Panel
| Electrical | |
| Peak power | 450W (power tolerance 0/+5W) |
| Cell type | N-type monocrystalline, 96 cells (2 x 48) |
| Module efficiency | 22.5% |
| Bifaciality | 80% ±10% |
| Max power voltage (Vmp) | 30.08V |
| Max power current (Imp) | 14.97A |
| Open-circuit voltage (Voc) | 35.03V |
| Short-circuit current (Isc) | 16.05A |
| Max fuse rating | 30A |
| Mechanical | |
| Dimensions | 69.37 x 44.65 x 1.38 in (1762 x 1134 x 35 mm) |
| Weight | 53.35 lb (24.2 kg) |
| Construction | Bifacial dual-glass |
| Operating temperature | -40 to 185°F |
| Certifications | UL61730, CEC listed |
| Warranty | 12 years materials and workmanship, 30 years performance |
