Eco Solar Kits · Sungold Power · SGM-10M2T

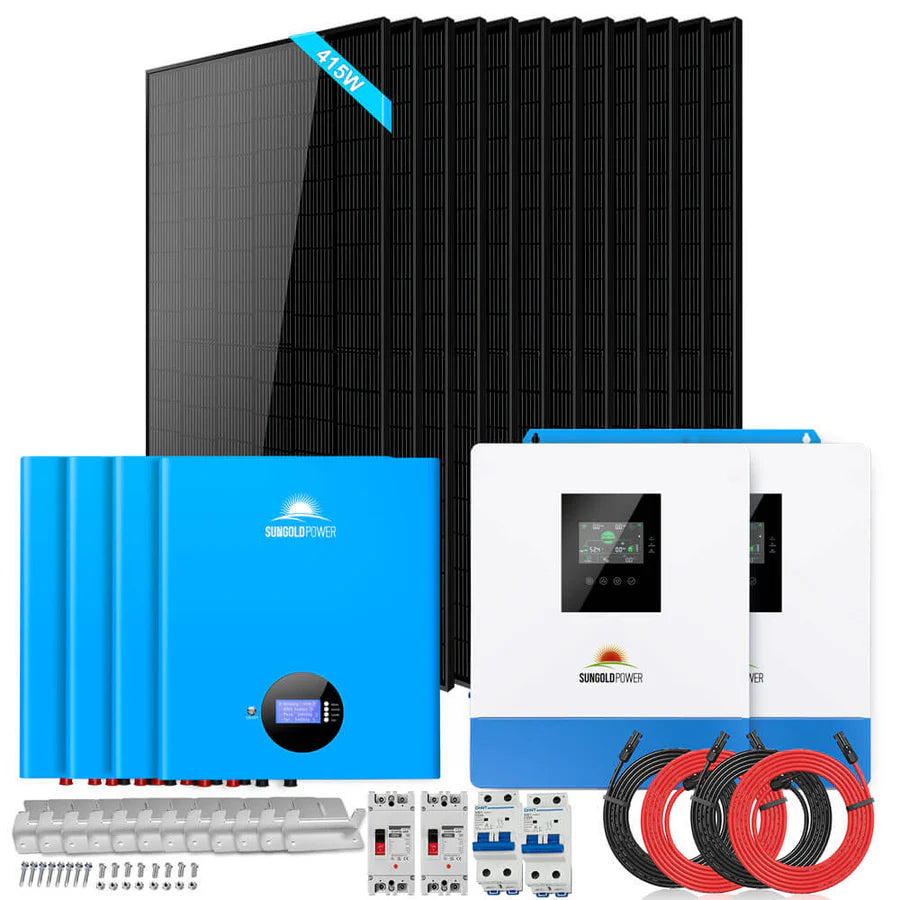

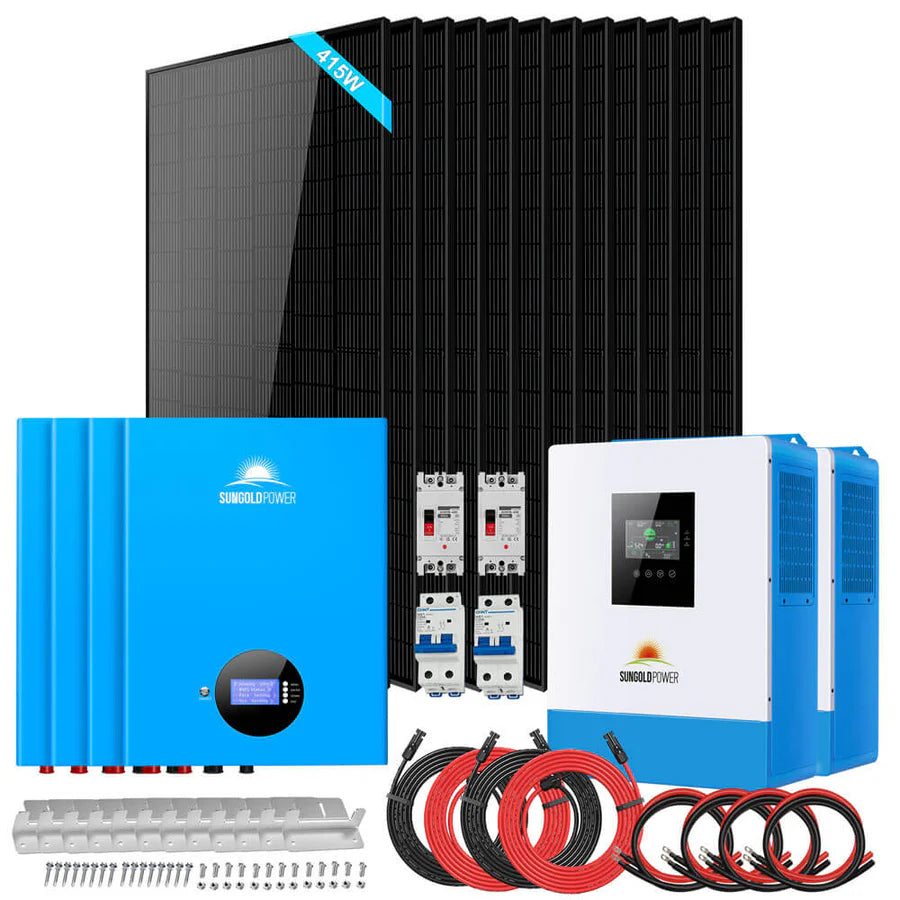

A complete off-grid solar system — two paralleled 5,000W WiFi-enabled inverters, 20.48kWh of powerwall LiFePO₄ battery storage, and twelve 415W monocrystalline panels.

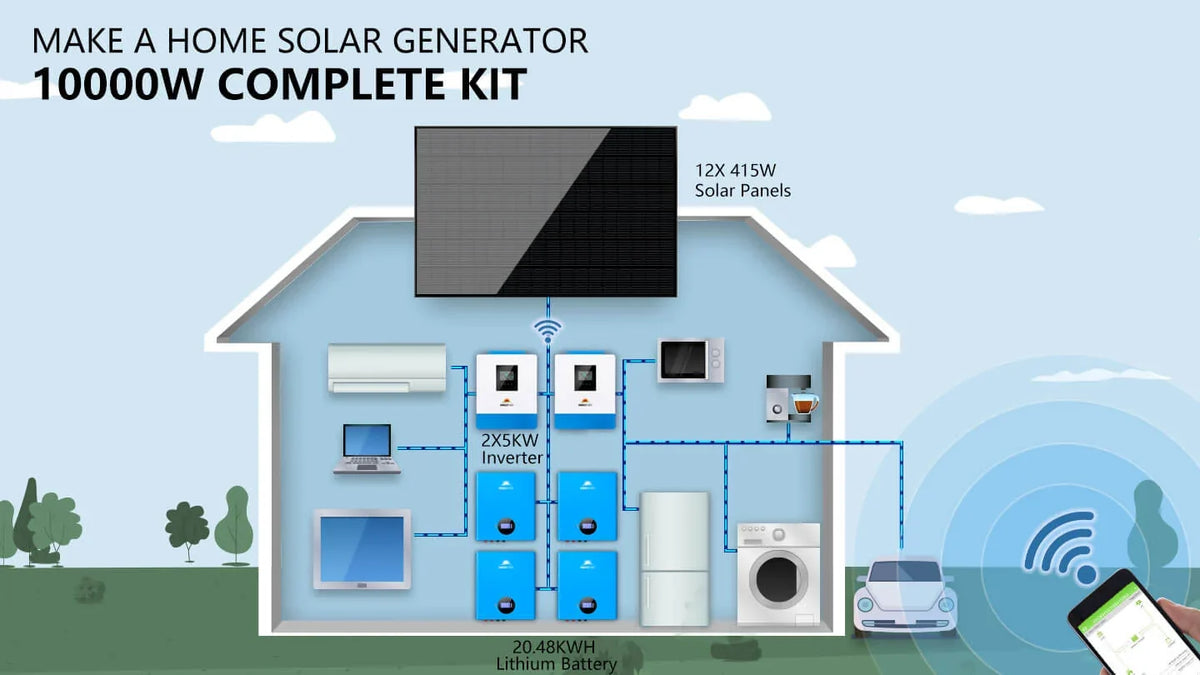

Introducing the SGM-10M2T Off-Grid Solar Kit – your ultimate solution for sustainable energy independence. This comprehensive package boasts a 12 X 415W solar panel array, 4PCS 5.12KWH Powerwall batteries, 2X5000w solar inverters, and two sets of solar cables and brackets. With an impressive output of approximately 20KWH per day, based on just 4 hours of sunlight, this system is a powerhouse.
Equipped with a robust 10KW 120V/240V split inverter, this kit is capable of powering an extensive range of appliances and devices, from air conditioners and well pumps to refrigerators, televisions, workshops, offices, and beyond. Its versatility extends to expansion options – up to 6 identical inverters can be paralleled in single-phase (120VAC) or split-phase (240VAC), or three-phase (208V). This means you can easily scale up your system by adding more batteries and solar panels to meet your specific requirements.
Say goodbye to reliance on traditional power sources and embrace the freedom of off-grid living with the SGM-10M2T Off-Grid Solar Kit. Experience the adventure of harnessing solar energy to power your lifestyle!
Two 5,000W inverters paralleled, with double the combined power available briefly for motor starts and other high-draw moments.
Runs standard household circuits and larger 240V appliances from the same system.
Each inverter has one MPPT tracker, supporting up to 5,500W of solar input per unit.
Parallel up to 6 identical inverters in single-phase, split-phase, or three-phase configurations.
Check system status and performance remotely via the mobile app, no extra hardware needed.
Meets recognized international and North American safety standards for solar inverter equipment.
Junction box rated for full submersion protection, backed by a 25-year linear product warranty.

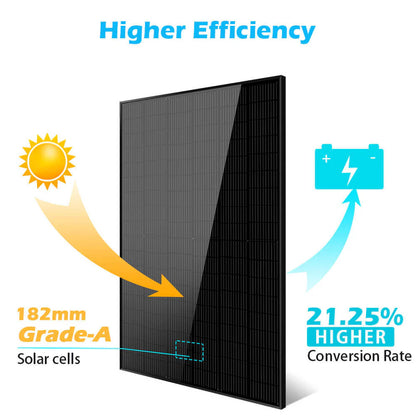

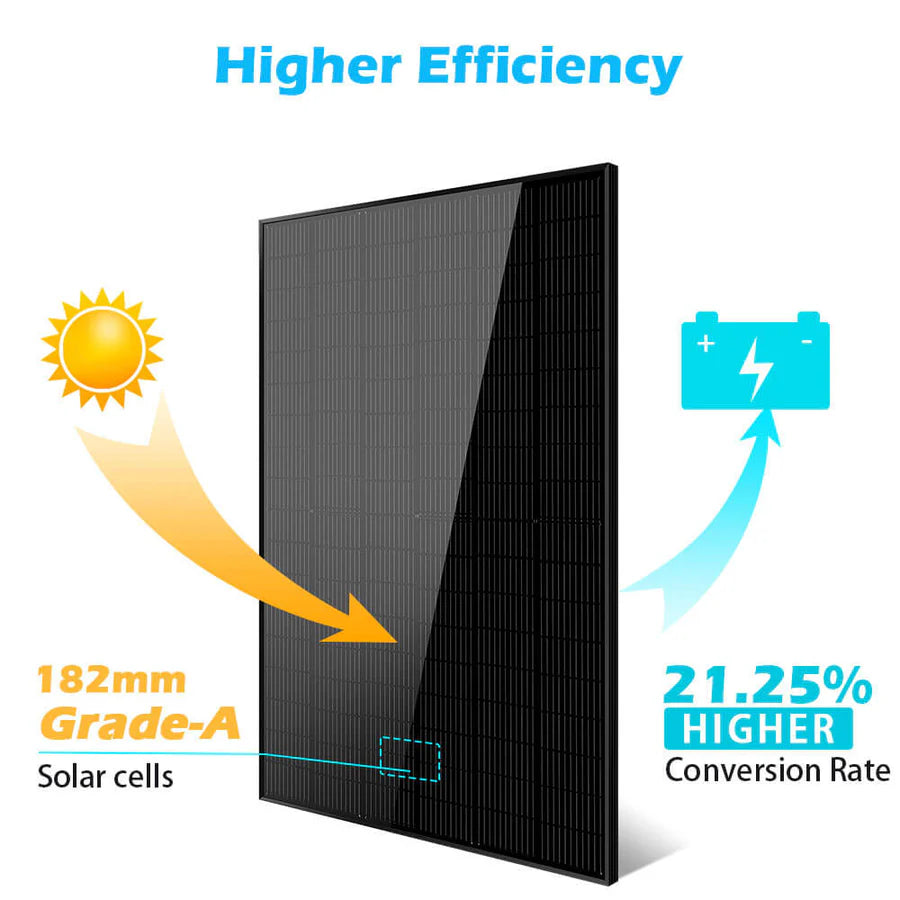

182mm Grade-A monocrystalline cells for a higher conversion rate per panel.

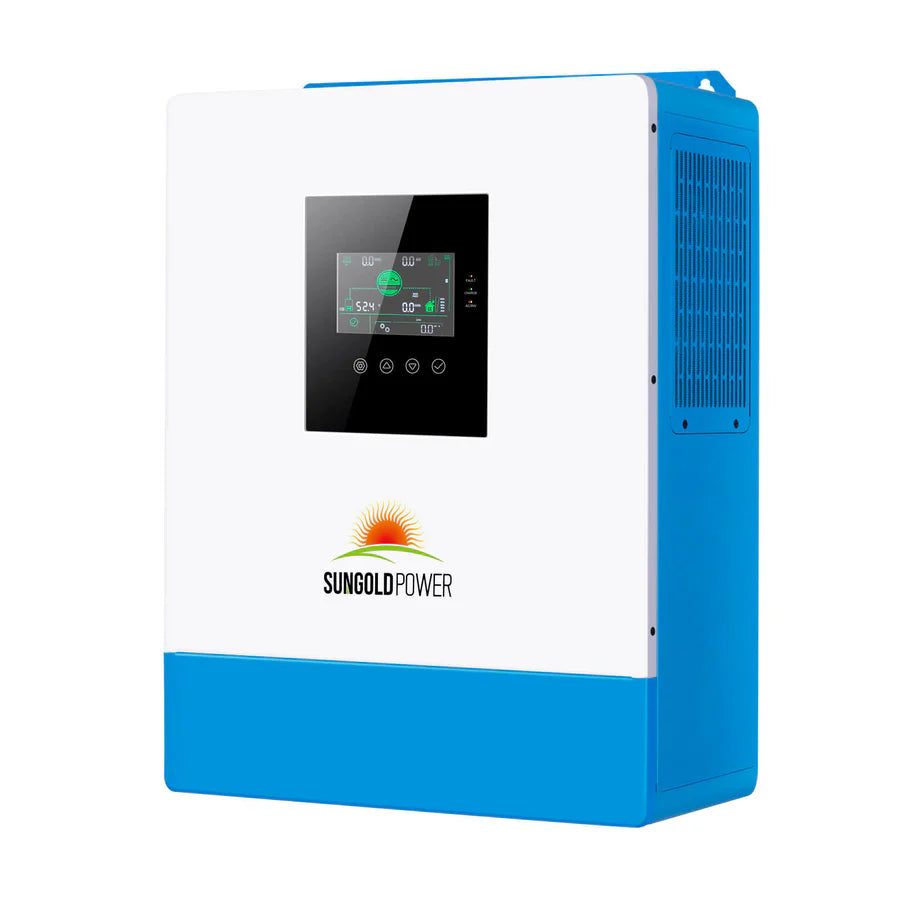

SPH5048P Inverter/Charger (×2, Paralleled)
| Rated output power | 5,000 W |
| Peak power | 10,000 VA |
| Rated output voltage | 120 Vac |
| Line-mode efficiency | >95% |
| Inverter-mode max efficiency | >92% |
| Nominal DC input voltage | 48 Vdc |
| Max. charging current (hybrid) | 100 A |
| Certification | CE (IEC62109-1), FCC, UL1741 |
| No. of MPPT trackers | 1 |
| Max. PV input power | 5,500 W |
| Max. input current | 22 A |
| Max. open circuit voltage | 500 Vdc |
| MPPT voltage range | 120–450 Vdc |
| Weight | 28.7 lbs (13 kg) |
| Dimensions | 17.6 × 13.8 × 5.2 in |
| Operating temp | 14–131°F |
| Noise | ≤60 dB |
| Built-in | WiFi model (included) / RS485 / USB / Dry contact |
| Max parallel | 6 units |

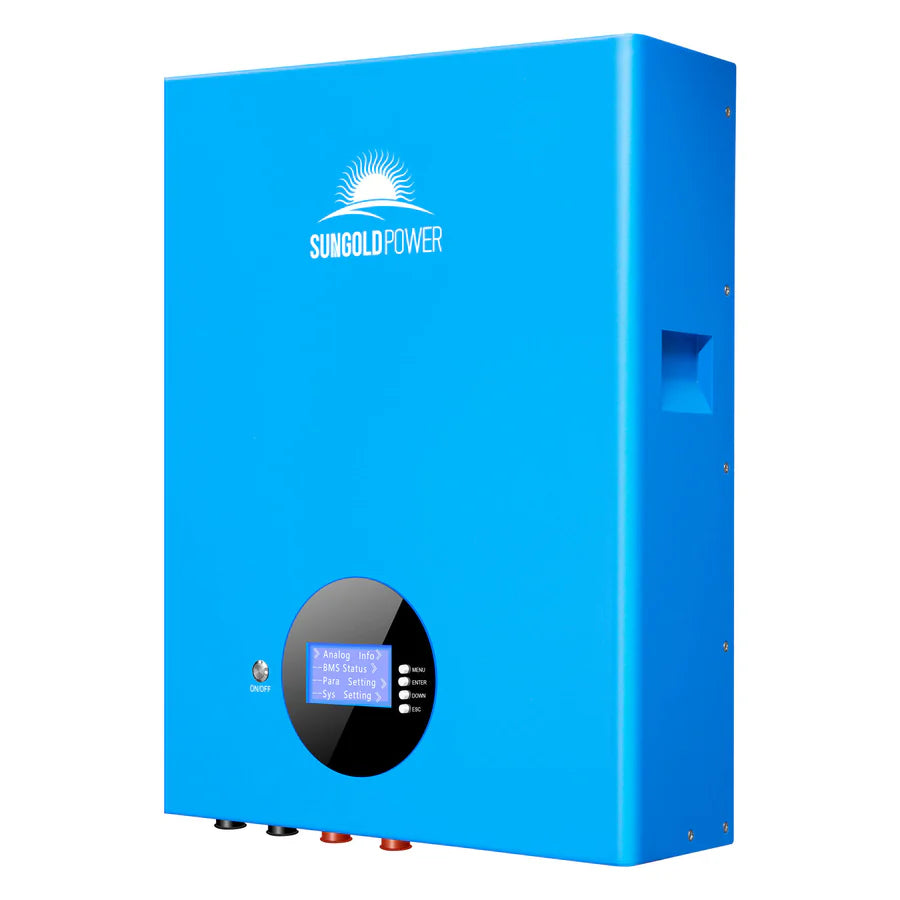

SG48100M Powerwall LiFePO₄ Battery (×4)
| Rated capacity | 100 Ah |
| Nominal voltage | 51.2 V |
| Rated energy per unit | 5.12 kWh |
| Combined (4 units) | 20.48 kWh |
| Standard current | 50 A |
| Max. continuous current | 100 A |
| Cycle life | ≥7,000 @ 80% DOD |
| Design life | 15 years |
| Weight (each) | ~95 lbs (43 kg) |
| Dimensions | 23 × 16.5 × 6 in |
| Protection rating | IP65 (battery box) |
| Flammability | UL94 V-0 (plastic parts) |
| Charging temp | 0–45°C |
| Discharging temp | -20–60°C |
| Max parallel | 16 batteries |
| Communication | RS232 / RS485 / CAN |

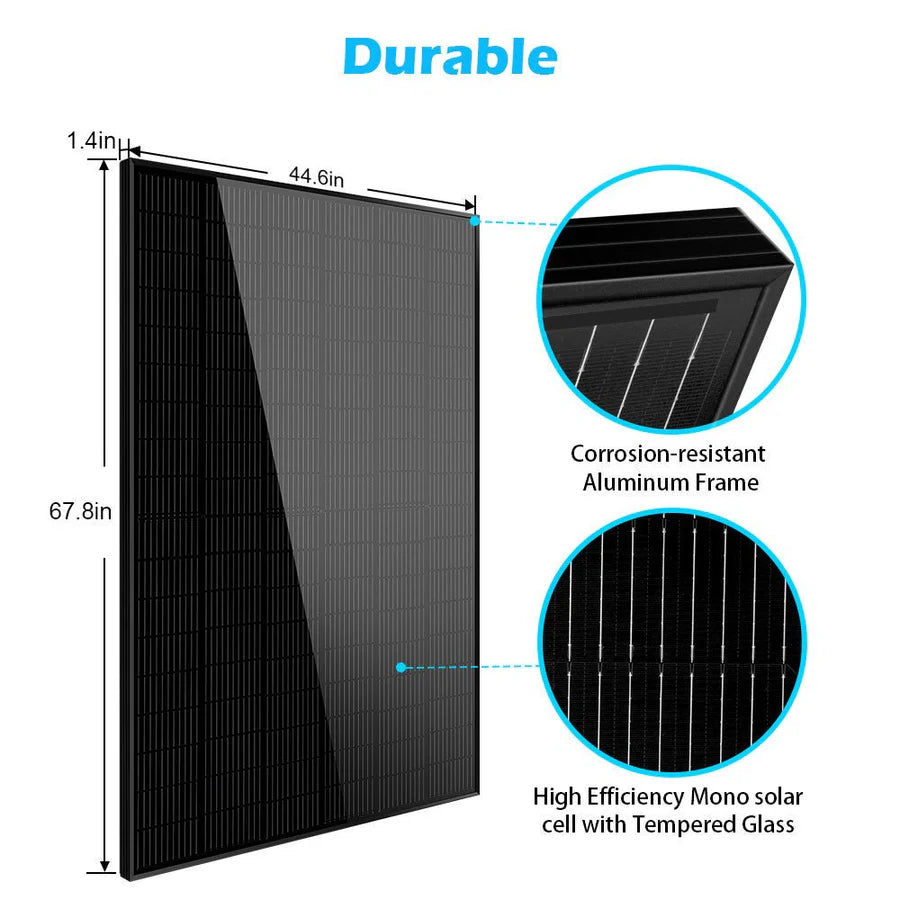

SG-415WM Monocrystalline Panel (×12)
| Max. power | 415 W |
| Max-power voltage | 31.61 V |
| Max-power current | 13.13 A |
| Open-circuit voltage | 38.82 V |
| Module efficiency | 21.25% |
| Cell type | Mono 182×91mm (108 cells) |
| Weight (each) | 45.1 lbs (20.45 kg) |
| Dimensions | 67.9 × 44.7 × 1.4 in |
| Junction box | IP68 |
| Warranty | 25yr linear product + 10yr workmanship |
With about 4 hours of direct sunlight, this system produces roughly 20kWh per day — capable of powering an extensive range of appliances and devices, per the manufacturer's own description.

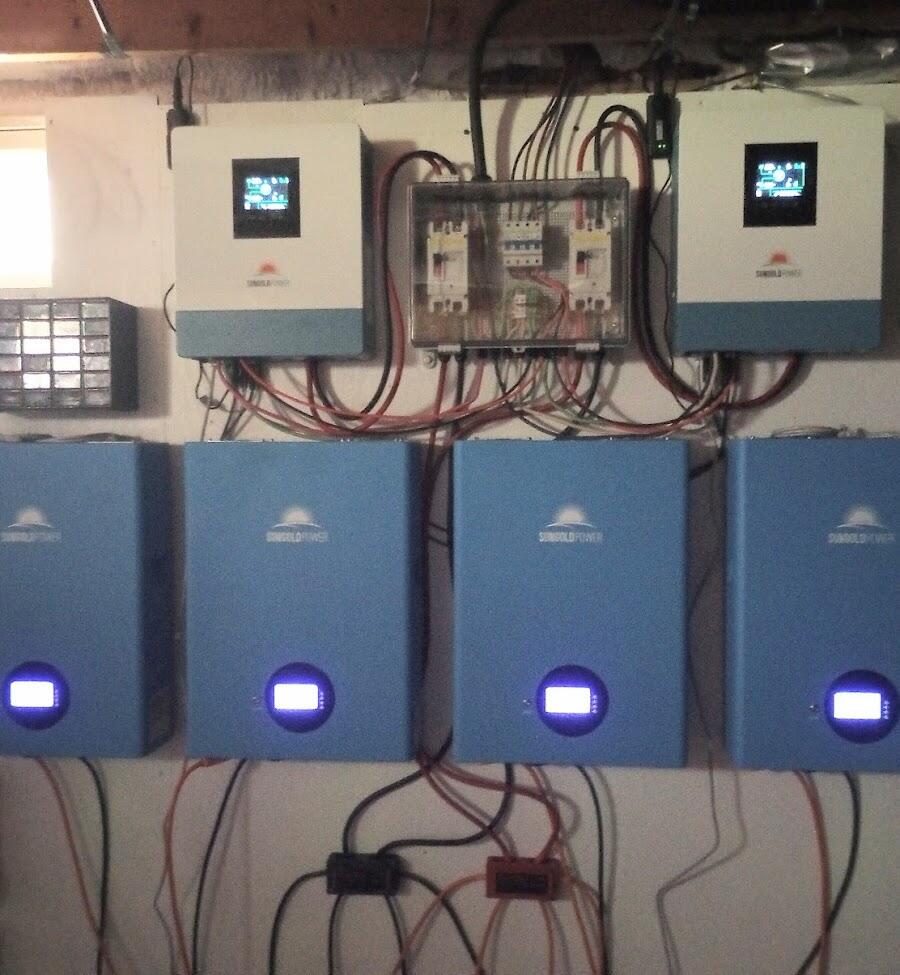

Two 5,000W SPH5048P inverters are paralleled to reach the system's combined 10,000W rating. Up to 6 identical units can be paralleled in single-phase, split-phase, or three-phase configurations.
Yes — each SPH5048P has one built-in MPPT tracker, supporting up to 5,500W of solar input per unit.
20.48kWh combined from four 5.12kWh powerwall batteries, each rated for at least 7,000 cycles to 80% depth of discharge.
Yes — you can easily scale up your system by adding more batteries and solar panels to meet your specific requirements, per the manufacturer's own product description.
Given the scale of this system — two paralleled 5,000W inverters and a 20.48kWh battery bank — installation should be handled by a qualified, licensed electrician familiar with your local code.
