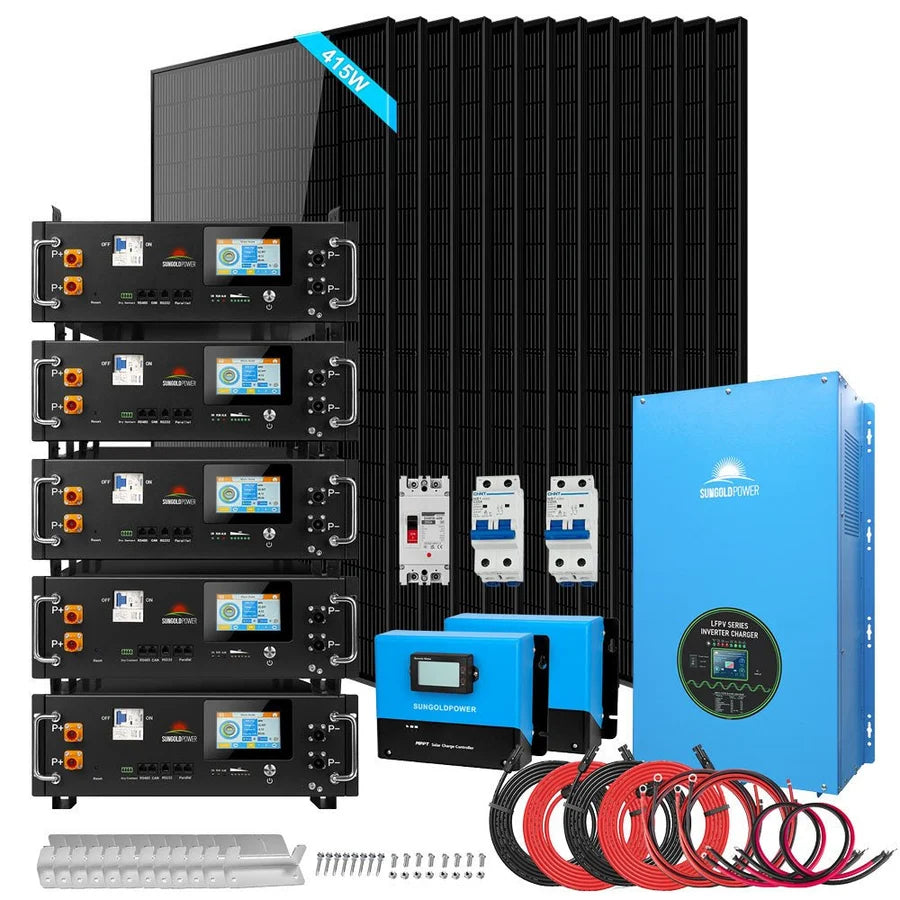

• A complete solar power kit with sleek black solar panels, five battery units, a blue inverter and controller, circuit breakers, cables, connectors, screws, and a mounting rail—everything you need for efficient renewable energy installation beautifully arranged against a white background.

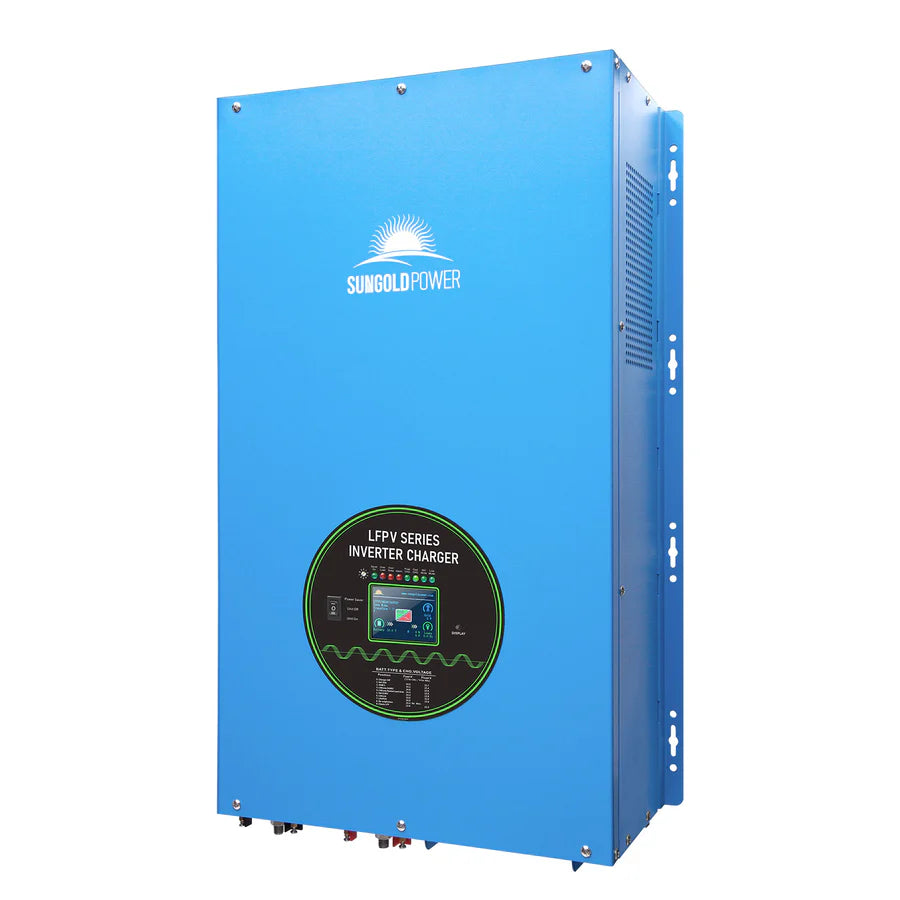

  • A standing Sungold Power blue inverter charger, perfect for off-grid solar systems, features a circular front display and side vents.

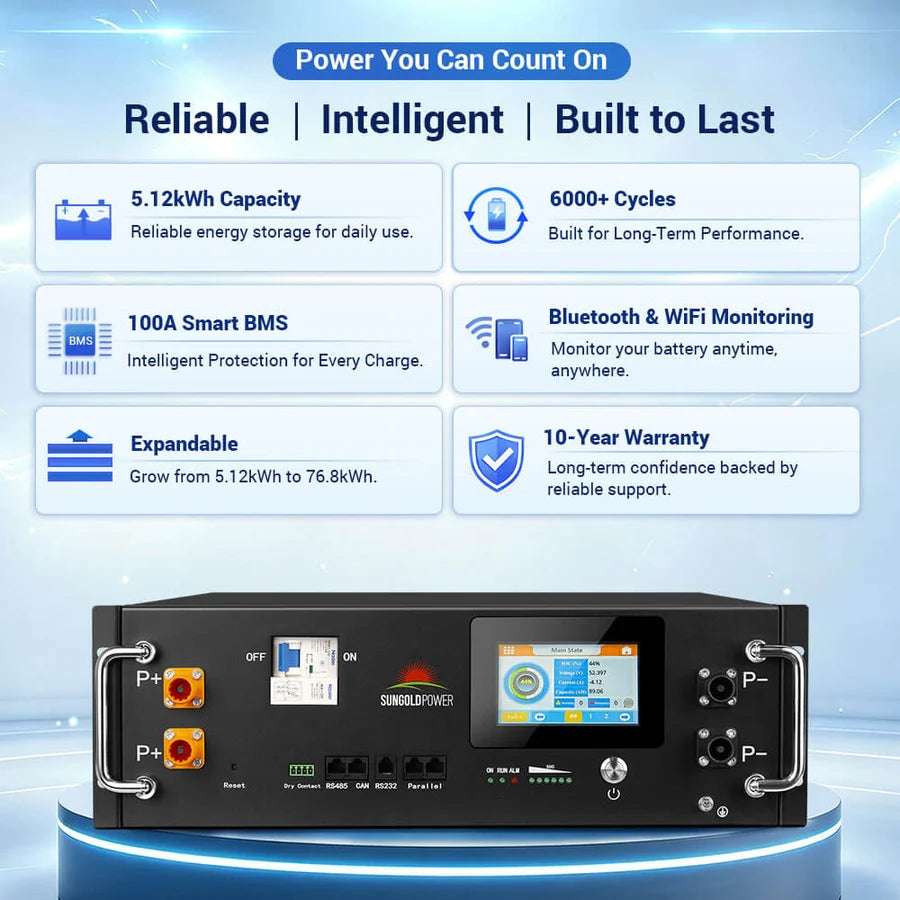

  • Front view of a SUNGOLDPOWER battery system. Highlighted features include 5.12kWh capacity, over 6000 cycles, a 100A smart BMS for enhanced safety, Bluetooth/WiFi monitoring for real-time performance tracking, expandability to meet growing power needs, and a reliable 10-year warranty. Sorry—the provided product description doesn’t contain any meaningful product information beyond technical.

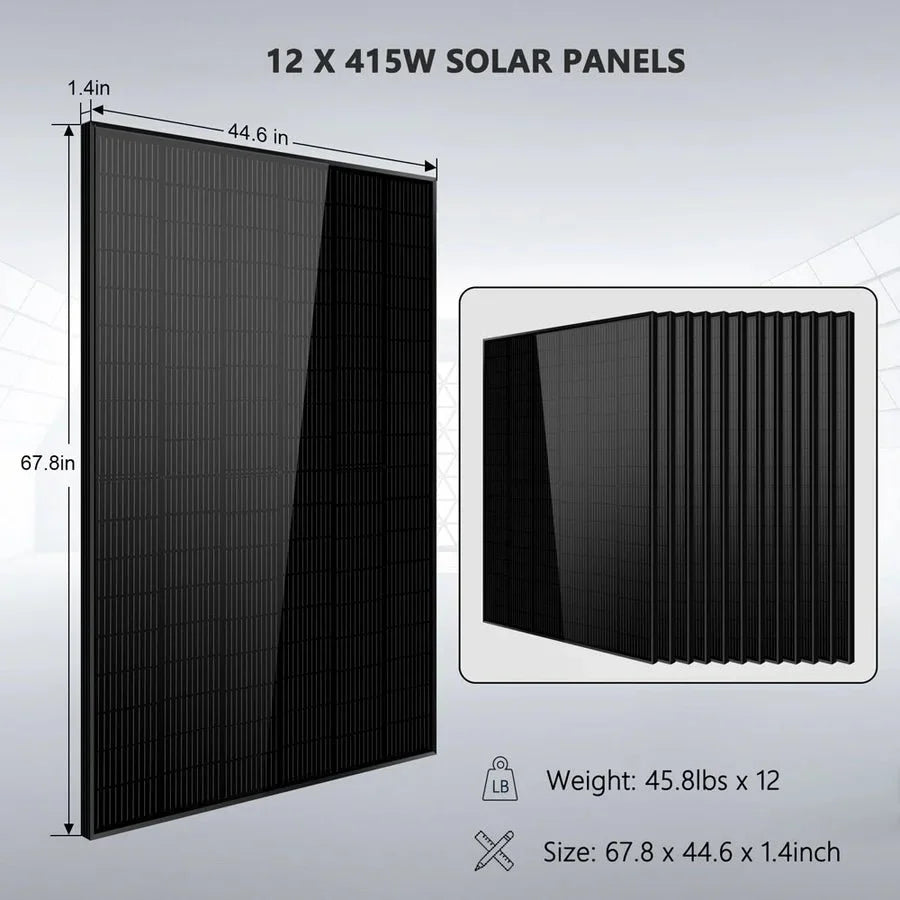

  • Twelve 415-watt solar panels are shown stacked. Each panel measures 67.8 by 44.6 by 1.4 inches and weighs 45.8 pounds. Text on the image highlights these specifications, providing actual details about the item for keyword extraction and making it easy to evaluate this efficient solar energy solution.

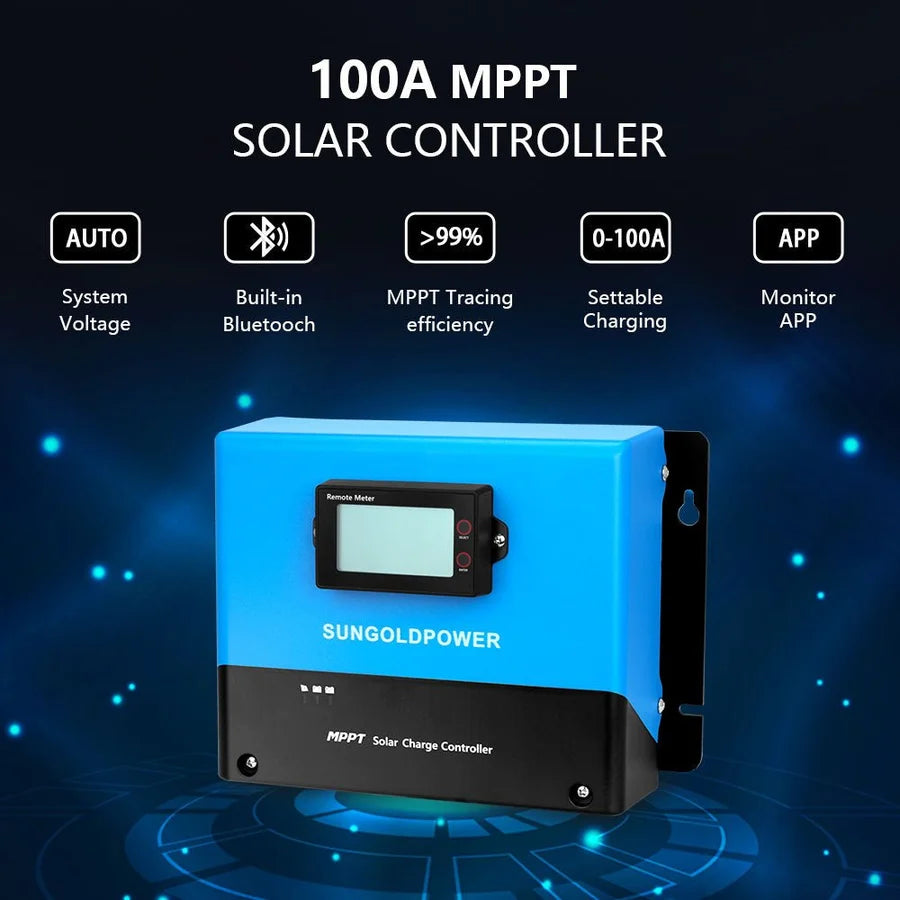

  • Blue and black Sungoldpower 100A MPPT solar controller with display screen. Featuring auto voltage, built-in Bluetooth, over 99% efficiency, and 0-100A charging capabilities, this controller offers easy monitoring through its dedicated app. Technical icons appear above the device. Please note: the provided product description doesn’t contain any meaningful product information—only CSS styling details. Therefore, Sorry,.

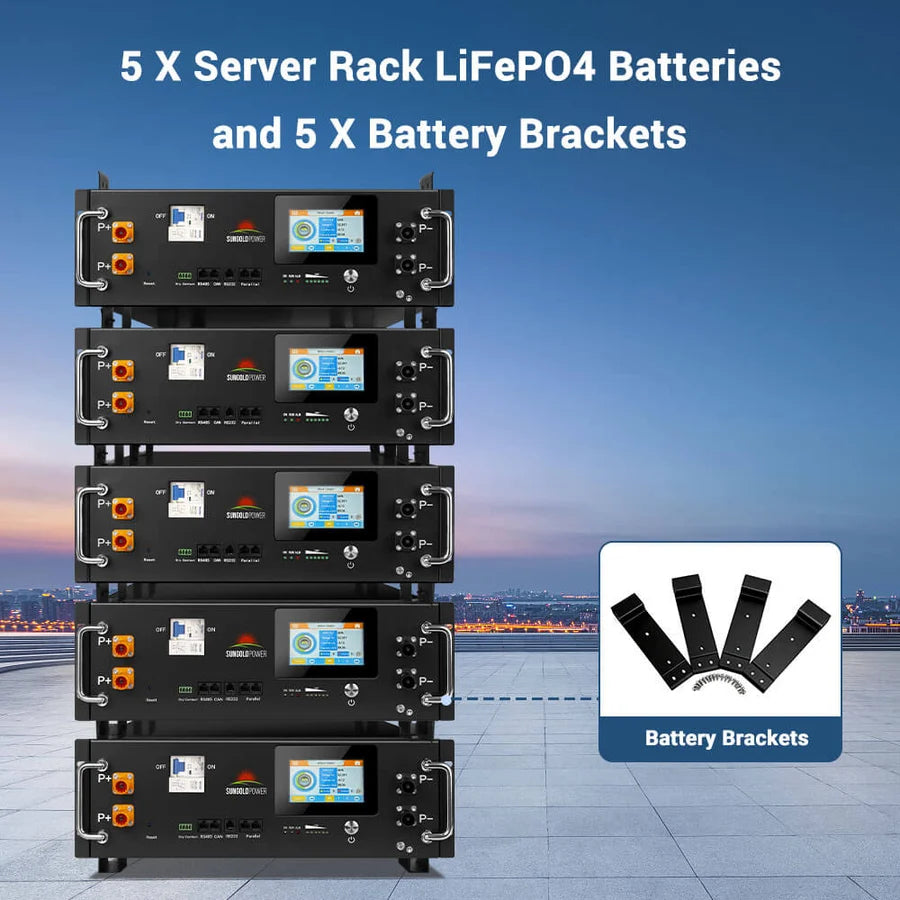

  • Five stacked black server rack LiFePO4 batteries with digital displays, orange and blue ports, and five black battery brackets shown separately. The provided product description doesn’t contain any meaningful product information—only CSS styling details. Text above describes included items. Cityscape visible in the background.
  • Sungold Power Off‑Grid Solar Kit 12,000W 48VDC 120V/240V LiFePO₄ 25.6 kWh Battery 12×415W Solar Panels SGR‑12K20E
  • Sungold Power Off‑Grid Solar Kit 12,000W 48VDC 120V/240V LiFePO₄ 25.6 kWh Battery 12×415W Solar Panels SGR‑12K20E
1 8

Sungold Power Off‑Grid Solar Kit 12,000W 48VDC 120V/240V LiFePO₄ 25.6 kWh Battery 12×415W Solar Panels SGR‑12K20E

SKU: SGR-12K20E
Availability: Out of stock
$13,273.00
$14,150.00 $13,273.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • Use Promocode SAVE250 At Checkout To Further Get $250 Off On Orders $4,000+
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • Off-Grid
  • Home Backup
  • Commercial
25-year manufacturer warranty Backed by Sungold Power. Full coverage details in the Description tab.

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

Sungold Power · SGR-12K20E

Sungold Power Off‑Grid Solar Kit 12,000W 48VDC 120V/240V LiFePO₄ 25.6 kWh Battery 12×415W Solar Panels SGR‑12K20E

A complete off-grid solar system — 12,000W split-phase inverter, 25.6kWh of LiFePO₄ battery storage, and twelve 415W monocrystalline panels — sized for a mid-sized home or cabin.

12,000WInverter Output
25.6kWhBattery Capacity
12×415WSolar Panels
120V/240VSplit-Phase Output

Overview

Presenting our off-grid solar power system kit, a comprehensive solution designed to bring solar power and battery storage to any remote location. This all-inclusive kit features 12 top-of-the-line 415W solar panels, a robust 25.6kWh battery, a 12,000W solar inverter, and a complete set of solar cables and brackets.

Generating approximately 20kWh per day with just 4 hours of sunlight, this kit offers reliable energy production for your off-grid needs. Equipped with a 12kW split-phase inverter (120/240V) output, it provides ample power to operate a variety of appliances and devices, from air conditioners and well pumps to lights, refrigerators, TVs, workshops, offices, and even light commercial and industrial applications.

Moreover, this system is designed for expansion, allowing for seamless integration of additional batteries and solar panels in the future to meet growing energy demands. With our off-grid solar power system kit, enjoy sustainable energy independence wherever you are.

A modern house with solar panels on the roof and a Sungold Power Off‑Grid Solar Kit displayed. Text lists features: 12,000W inverter, 48VDC, split phase 120V/240V output, LiFePO₄ 25.6 kWh battery, 12×415W solar panels, all from the trusted brand Sungold Power.

What is Included with the SGR-12K20E Solar Kit

  • •1 x 12,000 Watt 48V DC 120V/240V AC Output
  • •12 x 415 Watt Monocrystalline Solar Panels
  • •5 x 100AH 51.2V LiFePO4 Battery
  • •2 x 100A MPPT Solar Charge Controller
  • •1 x Server Rack for 5 x 100AH 51.2V LiFePO4 Batteries
  • •2 Sets 50 Feet, Solar Extension Cables-Inverter PV input
  • •2 Sets Cable Between Battery and MPPT Controller
  • •12 Sets Mounting Z-Brackets
  • •1 x 400A DC Breaker
  • •2 x 25A PV Breaker

Technical Highlights

12,000W, 36,000W Surge

Rated continuous output with a 20-second surge rating triple the continuous power for motor starts and other high-draw moments.

Split-Phase 120V/240V

Runs standard household circuits and larger 240V appliances from the same system.

Dual 100A MPPT Controllers

Two external solar charge controllers included, giving room to expand well beyond the 4,980W (12×415W) of panels included here.

Bluetooth-Enabled Controllers

Monitor charge controller status and performance via Bluetooth, without needing to be on-site.

Easily Expandable

Add more batteries and solar panels in the future as your energy needs grow.

>95% Line-Mode Efficiency

Minimal energy loss whether running on battery, solar, or passthrough grid power.

IP68 Waterproof Panels

Junction box rated for full submersion protection, backed by a 25-year linear product warranty.

21.25% Panel Efficiency

182mm Grade-A monocrystalline cells for a higher conversion rate per panel.

Full Specifications

LF-PV 12KW Off-Grid Inverter/Charger (×1)

Output

Continuous output power 12,000 W
Surge rating (20 sec) 36,000 W
Rated output voltage 120/240Vac split-phase
Waveform Pure sine wave
Output frequency 50Hz ± 0.3Hz / 60Hz ± 0.3Hz

Efficiency

Nominal (peak) efficiency >88%
Line-mode efficiency >95%

Battery & Charging

Nominal DC input voltage 48 Vdc
Charger breaker rating 80 A
Max. charge power rate 1/3 rated power

Mounting & Warranty

Mounting Wall mount
Standard warranty 1 year

100A MPPT Solar Charge Controller (×2)

Input & Output

Rated charge current 100 A
Max. PV input voltage 250 V
Battery voltage 12V–48V, auto-detect

Physical & Connectivity

Efficiency >99%
Weight 12.5 lbs
Monitoring Bluetooth

CoreX 5 Pro Battery Pack (×5, In Server Rack Cabinet)

Capacity

Configuration 1P16S
Rated capacity 100 Ah
Rated voltage 51.2 V
Rated energy per unit 5.12 kWh
Combined (5 units) 25.6 kWh

Charge & Discharge

Voltage range 43.2–56.8 V
Standard charge/discharge current 50 A
Max. charge current 95 A
Max. discharge current 100 A

Physical

Weight (each) 94.8 lbs (43 kg)
Dimensions 20.08 × 17.4 × 5.14 in
Protection rating IP20

Environmental & Scaling

Charging temp 39.2–131°F
Discharging temp -4–131°F
Max parallel 15 battery packs
Communication RS485 / CAN / RS232 / Bluetooth / WiFi

SG-415WM Monocrystalline Panel (×12)

Electrical

Max. power 415 W
Max-power voltage 31.61 V
Max-power current 13.13 A
Open-circuit voltage 38.82 V
Module efficiency 21.25%

Build & Warranty

Cell type Mono 182×91mm (108 cells)
Weight (each) 45.1 lbs (20.45 kg)
Dimensions 67.9 × 44.7 × 1.4 in
Junction box IP68
Warranty 25yr linear product + 10yr workmanship

What It Can Power

With about 4 hours of direct sunlight, the panel array produces roughly 20kWh per day — enough for air conditioners, well pumps, lights, refrigerators, TVs, workshops, offices, and light commercial or industrial applications, per the manufacturer's own description.

Air Conditioner Well Pump Lights Refrigerator TV Workshop / Office

Diagram showing a house powered by the Sungold Power Off‑Grid Solar Kit SGR‑12K20E, featuring a 12,000W 48VDC system with 120V/240V output, a LiFePO₄ 25.6 kWh battery, and twelve 415W solar panels. The system includes inverter and controllers and supports running appliances such as a refrigerator, computer, washing machine, and TV. Brand: Sungold Power.

Additional Documentation

12000W Solar Inverter CoreX 5 Pro 5.12kWh Lithium Battery 415 Watts Solar Panels 100A MPPT Solar Controller

Common Questions

Does this inverter have built-in solar charge controllers?

No — this kit pairs the inverter with two separate 100A MPPT solar charge controllers, rather than a controller built into the inverter itself.

What's the actual usable battery capacity?

25.6kWh combined from five 5.12kWh CoreX 5 Pro battery packs in the included server rack cabinet, each with real-time SOC/SOH monitoring via Bluetooth or WiFi.

Are the batteries stored in a rack or individually?

This kit includes a server rack cabinet sized for all five 100AH batteries, rather than mounting them individually.

Can I add more solar panels later?

Yes — this system is easily expandable, letting you add more batteries and solar panels as your energy needs grow, per the manufacturer's own product description.

Do I need a licensed electrician to install this?

Given the scale of this system — a 12,000W inverter, dual charge controllers, and a 25.6kWh battery bank — installation should be handled by a qualified, licensed electrician familiar with your local code.

Solar panels backed by a 25-year linear product warranty plus a 10-year workmanship warranty. Inverter is covered by a 1-year warranty.
