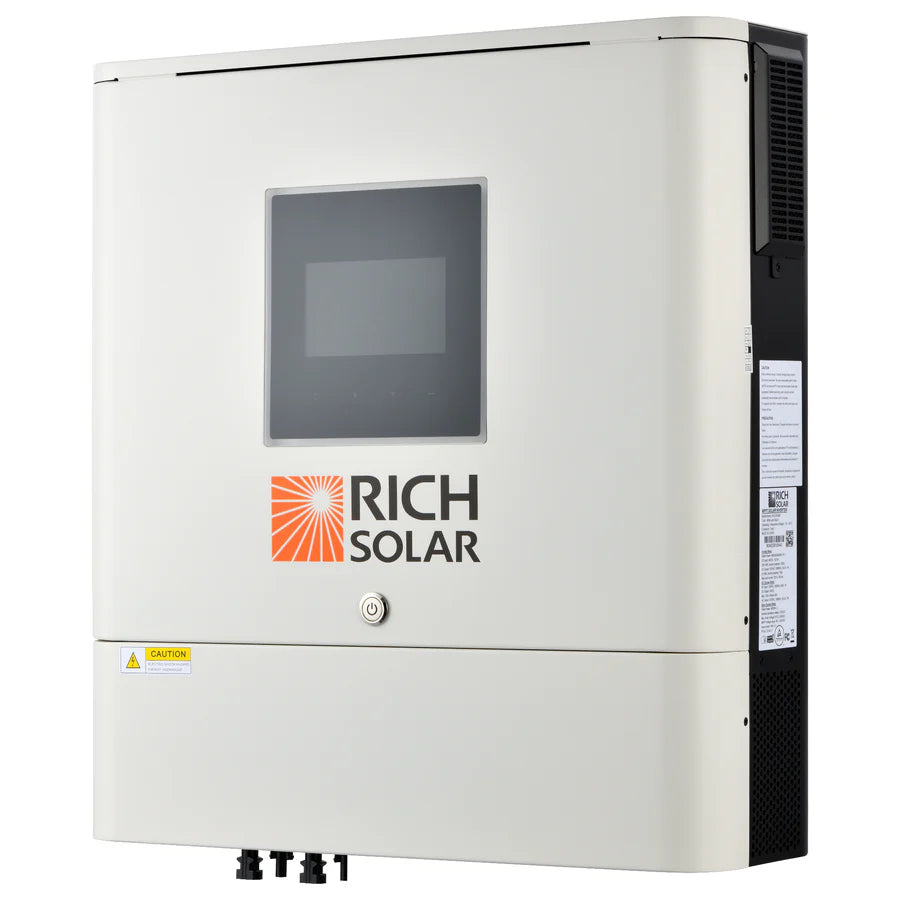

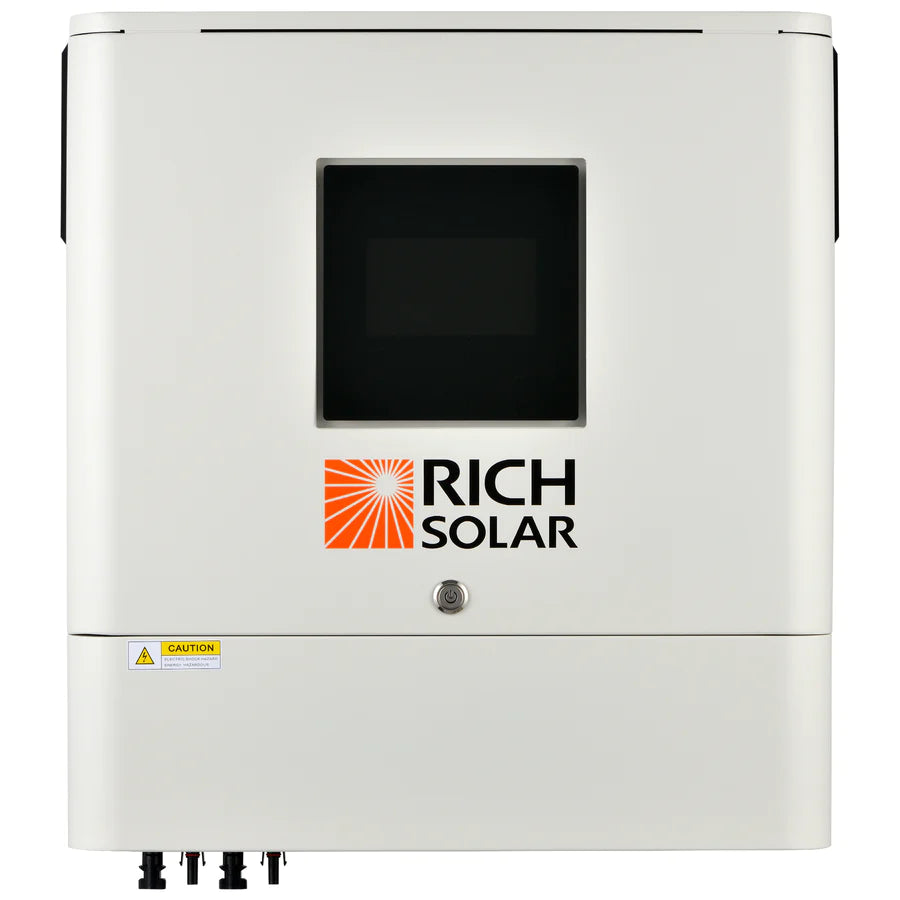

48V Hybrid Inverter · 6,500W · Touchscreen Display
The NOVA 6500S delivers the same 6,500W hybrid output and dual 120A MPPT charging as Rich Solar's other 48V hybrid inverters, with a 5" LCD touchscreen and RGB ambient status lights for at-a-glance monitoring and control — for homes, cabins, tiny homes, ADUs, and RVs.

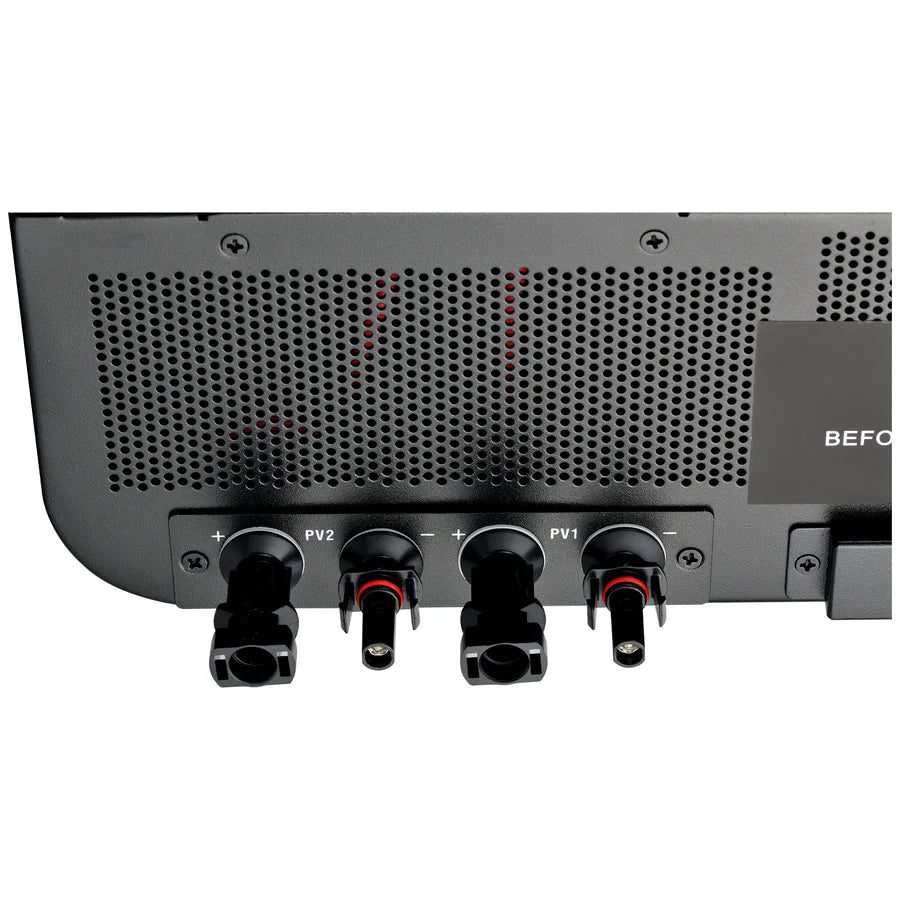

PV Input
| Max. PV input power | 8,000W (4,000W × 2) |
| Solar charger type | MPPT (dual) |
| MPPT operating voltage range | 90–230 Vdc |
| Max. PV open circuit voltage | 250 Vdc |
| Max. PV input current | 18A × 2 |
AC Input
| Nominal input voltage | 120 Vac |
| Max. input voltage | 150 Vac |
| Max. AC input current | 60 A |
| Input frequency | 50/60Hz auto-detect |
| Transfer time | 10ms (UPS) / 20ms (appliances) |
| Efficiency (line mode) | > 95% |
AC Output
| Rated output power | 6,500 VA / 6,500 W |
| Surge power | 13,000 VA |
| Output voltage | 120 Vac ± 5% |
| Output waveform | Pure sine wave |
| Peak efficiency | 91% |
| No-load power consumption | < 75 W |
Battery & Charger
| Nominal DC input voltage | 48 Vdc |
| Max. charge current | 120 A |
| Bulk charging (flooded) | 58.4 Vdc |
| Bulk charging (AGM/Gel) | 56.4 Vdc |
| Float charging | 54 Vdc |
| Overcharge protection | 66 Vdc |
General & Certification
| Parallel capability | Up to 6 units |

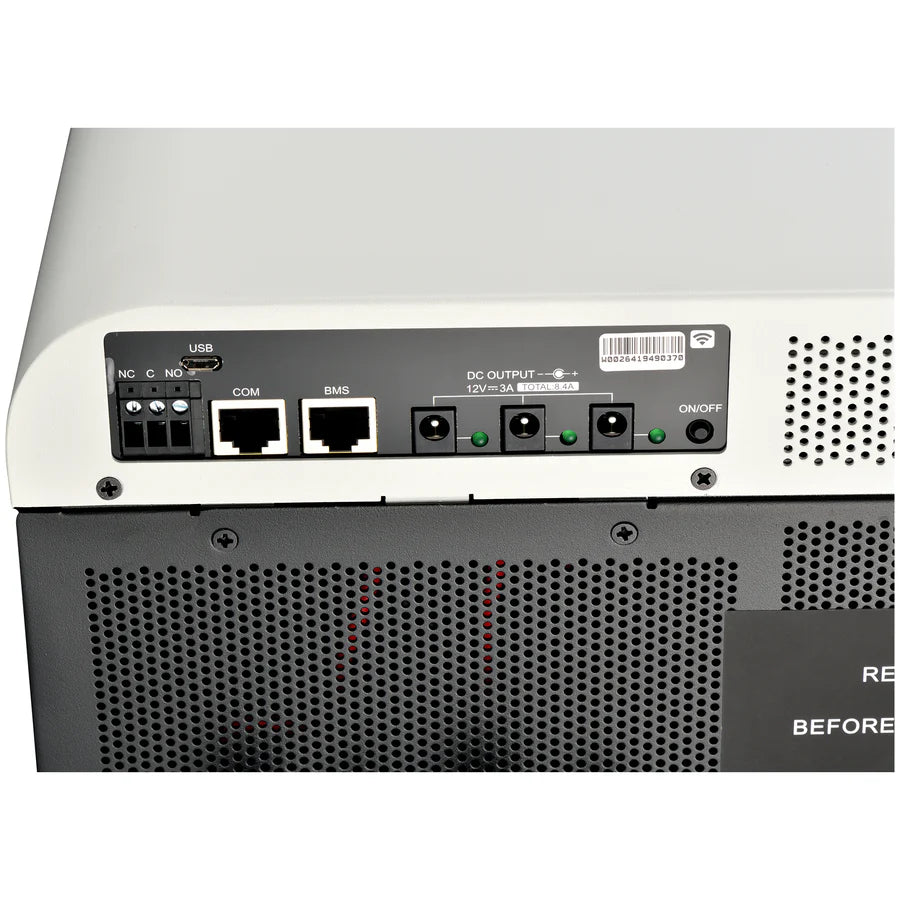

| Communication | USB, RS232, RS485, WiFi, dry contact |
| Operating temp | 14°F to 104°F |
| Dimensions | 6.2 × 19.8 × 20.9 in |
| Net weight | 44 lbs |
| Certification | UL 1741 |
The core power specs are similar, but the NOVA 6500S has a 5" LCD touchscreen with RGB ambient status lights for control and monitoring, rather than a standard LCD display — plus its own slightly different physical dimensions and weight.
They set which power source the inverter draws from first — Utility Grid First, Solar First, or SBU Priority (Solar, Battery, then Utility) — depending on whether you want to prioritize using solar, minimizing grid draw, or grid reliability.
Yes — it switches in as fast as 10ms in UPS mode (20ms for general appliances), fast enough to keep sensitive electronics running through a power interruption.
AGM, Gel, Flooded, and lithium batteries, with battery-specific bulk charging voltages and configurable charging current.
Yes — up to 6 units can be paralleled for expanded capacity, including split-phase configurations for larger loads.
Initially the unit worked very well, and then it just malfunctioned. Unfortunately, I was left without power for several months while Rich worked to replace the unit. This was an undue burden and I think given the length of time, a refund or a replacement with a similar or better unit would have been a better solution.
(Review from richsolar.com)
Works great
(Review from richsolar.com)
Nice balanced system with plenty of options for use and expansion.
(Review from richsolar.com)

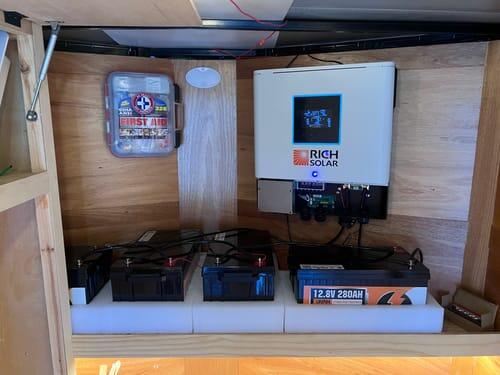

Everything fired up after I figured out the power button. Paired with 4-12v 280AH ecoworthy lithium-ion batteries. So far so good. 🤞
(Review from richsolar.com)
Way more than I expected, haven't hooked up yet, so no comment there. I bought four, but that may have been overkill. Anyway units came timely, priced...
(Review from richsolar.com)
