BLUETTI RV5 · All-in-One RV Solar Power Hub
The RV5 Power Hub consolidates an inverter, inverter charger, solar controller, alternator charger, DC system, and protection unit into a single integrated platform — 5,000W of continuous AC output (10,000W surge) and 1,620W of DC output. Pre-labeled wiring and an auto-recognition design mean most RV owners can install it with basic DIY skills, no electrician required. Rated IP65, vibration-resistant, and built to run under 50dB. Backed by a 5-year manufacturer's warranty.
The Power Hub itself doesn't include a battery — BLUETTI sells it standalone or bundled into larger kits.
Hub Only
Just the hub — for van conversions and custom builds where a battery is sourced separately.
~5kWh

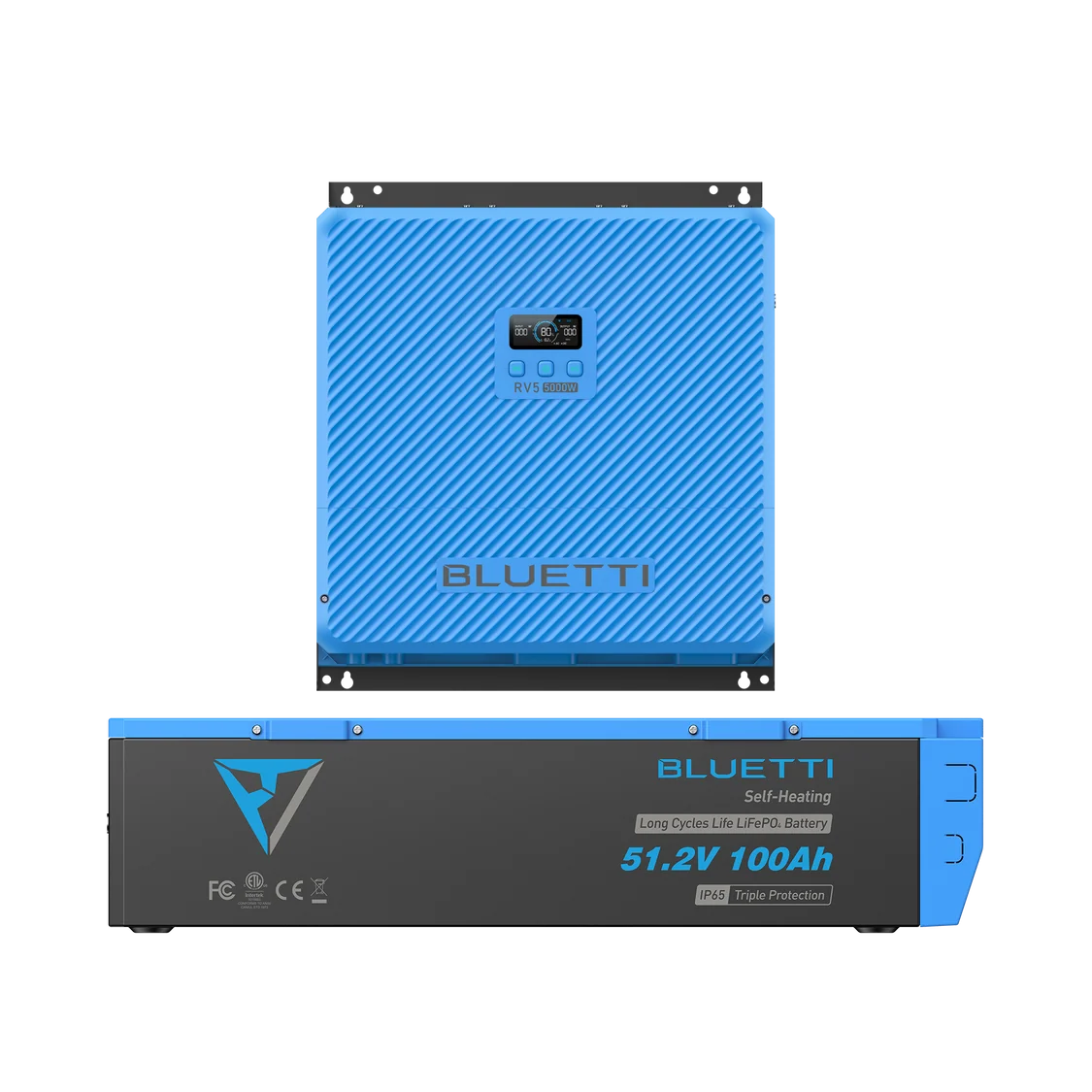

Hub plus one 5,120Wh battery — fast, simple install with limited run time.
~5kWh

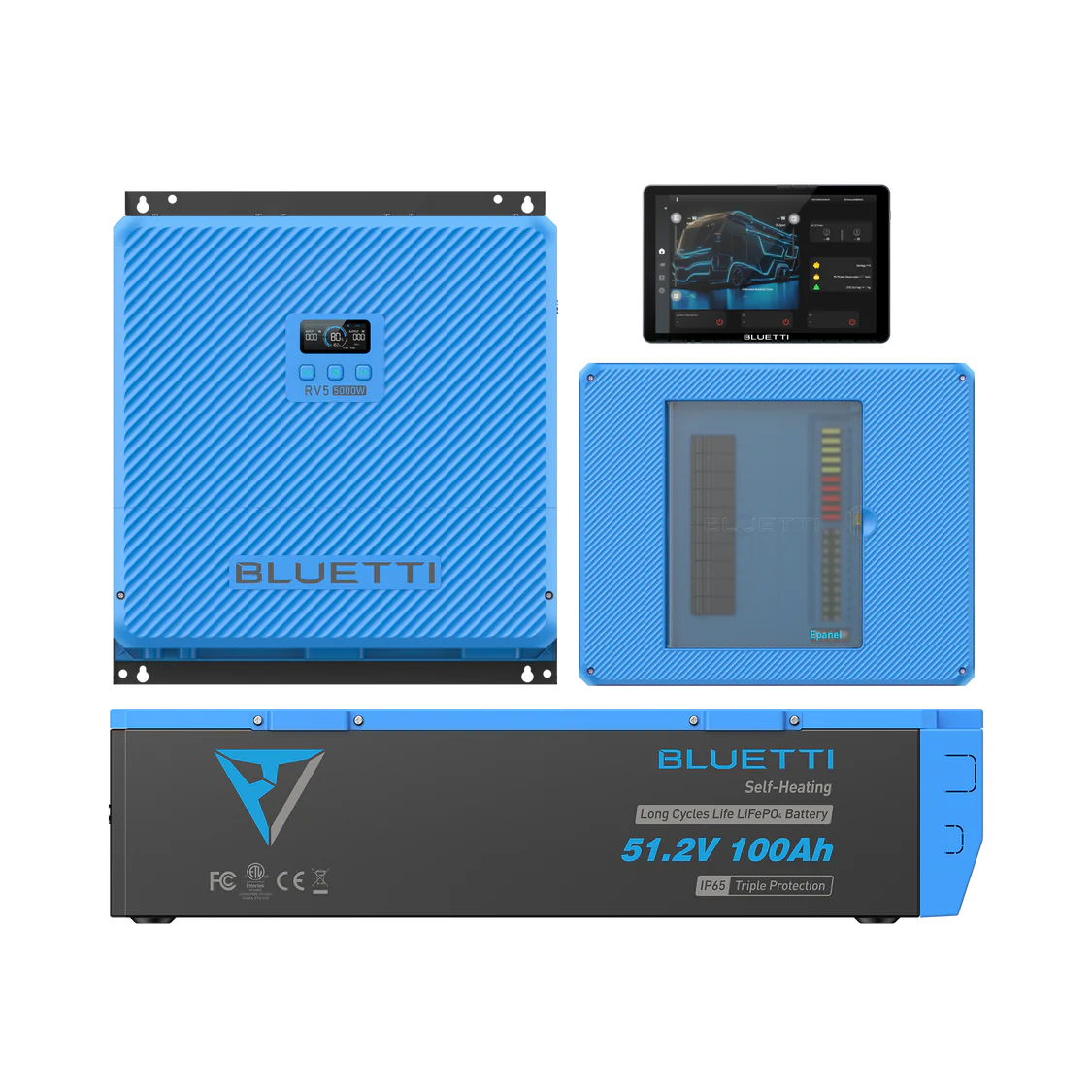

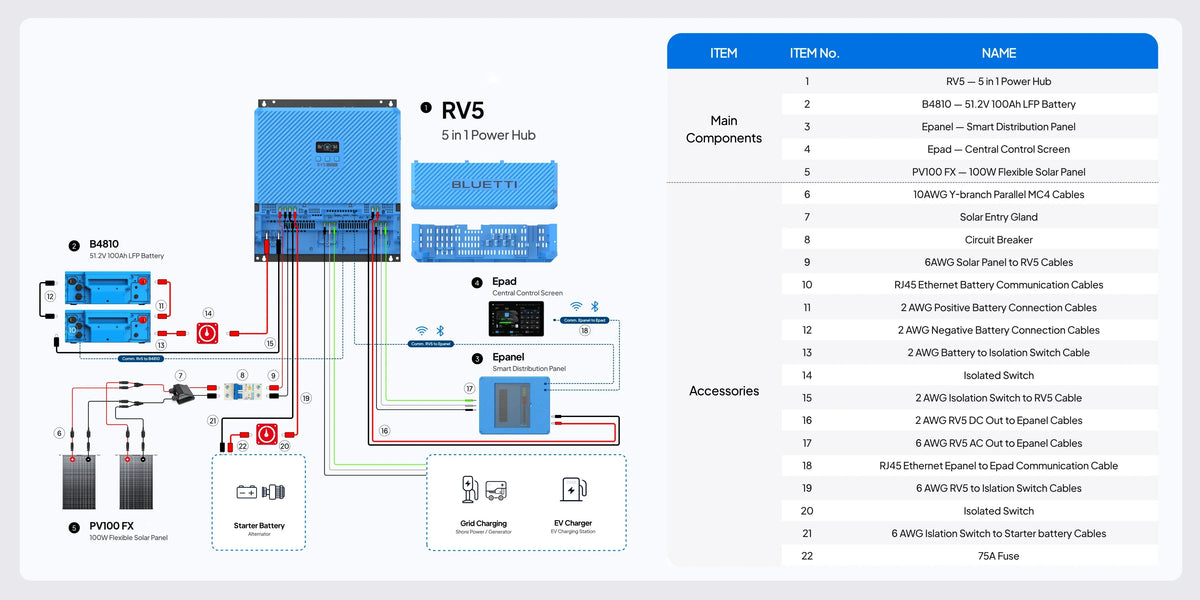

Adds an Epanel and Epad to the RV5+B4810 setup, for full monitoring and control.
~10kWh
Two batteries, Epanel, and Epad — built for full-time RVers and extended off-grid trips.

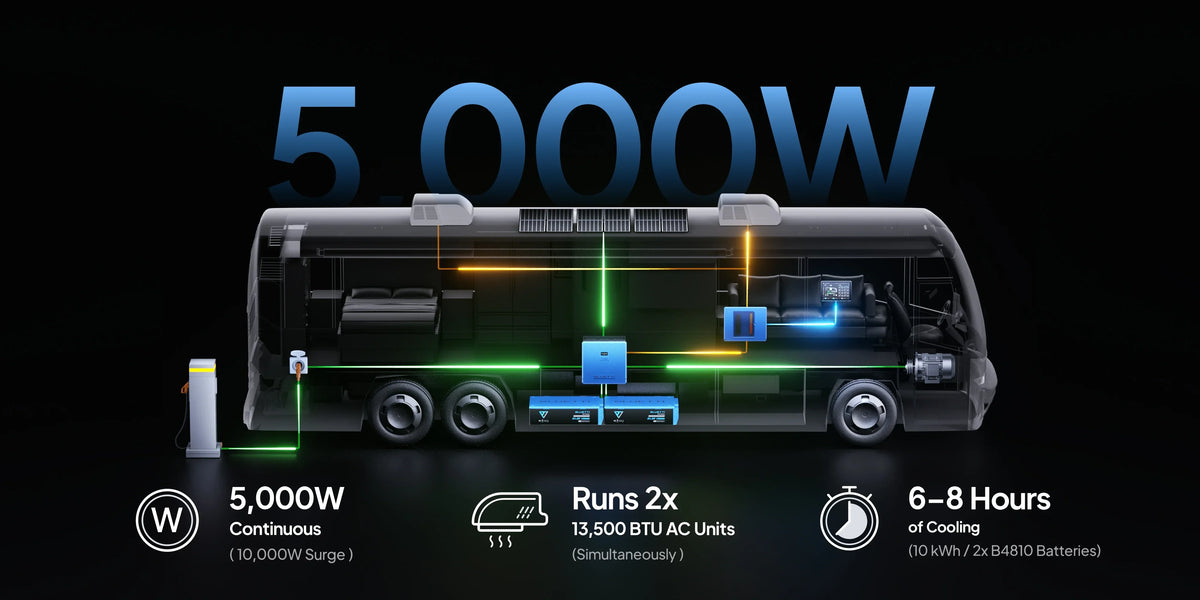

Runs A/C, microwave, fridge, and electronics at once, with enough surge headroom for high-startup appliances.

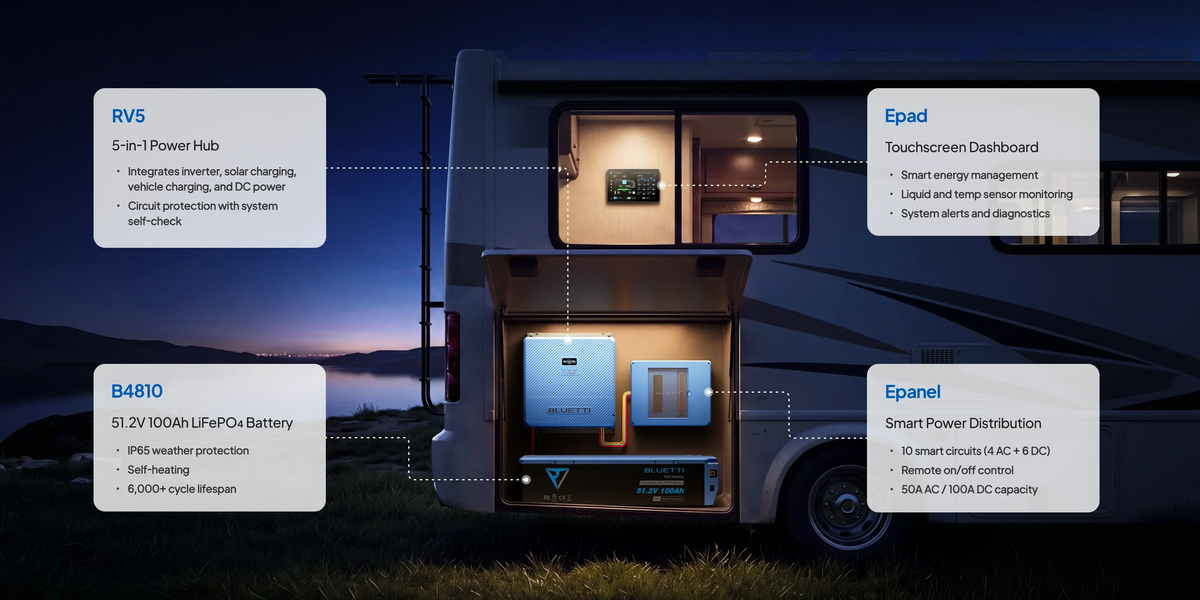

Inverter, inverter charger, solar controller, alternator charger, DC system, and protection unit in one platform.
Pre-labeled wiring and an auto-recognition design let most RV owners install it with basic DIY skills.
Plus up to 5,000W from shore power — 0 to 80% in about 50 minutes on shore power.
Built for the road — rough highways, long travel days, and the general wear of RV life.
Quiet enough to run in the background without the drone of a generator, with minimal idle power draw.

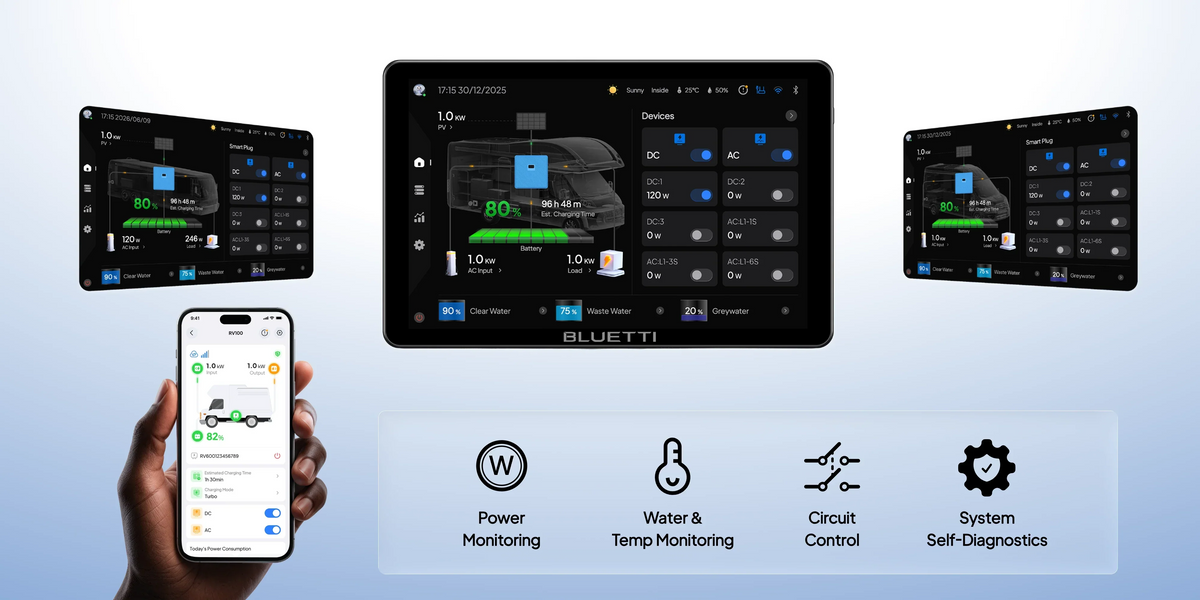

Monitor battery status, power usage, and charging inputs from one HD touchscreen or the BLUETTI app.
UL458-certified hardware backed by long-term coverage on defects in materials and workmanship.

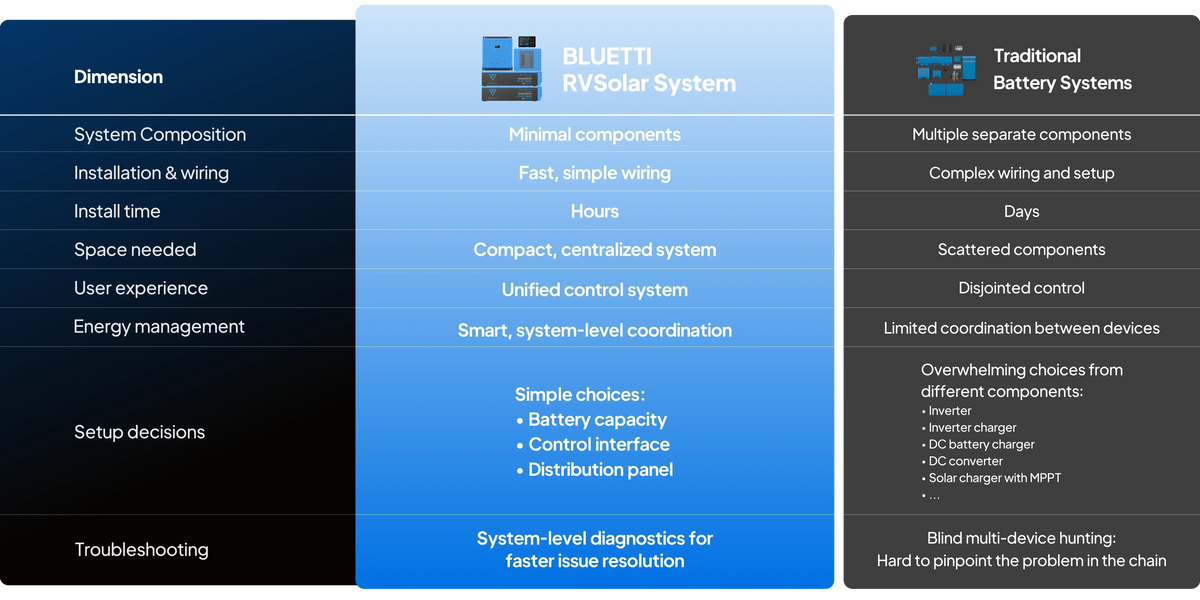

Most DIY RV power setups mean sourcing and wiring together a separate inverter, solar charge controller, alternator charger, DC converter, and protection circuitry — a project that can take days and leaves plenty of room for mismatched components. The RV5 folds all of that into one hub with auto-recognition design: it identifies voltage and current on its own, and pre-labeled wiring means most RV owners can get it installed with basic DIY skills, no electrician required.
Charging stays flexible on the road: up to 1,800W from solar, 1,200W from the vehicle's alternator, or up to 5,000W from shore power (0 to 80% in about 50 minutes). One detail worth planning around — for 12V auto-leveling systems with startup currents over 100A, BLUETTI recommends pairing with a dedicated B1210 battery or the vehicle's existing 12V lead-acid battery rather than relying on the RV5 alone. The platform's real ceiling is higher than the marketed kits suggest, too: BLUETTI's own spec sheet lists a maximum expansion of 122.88kWh via parallel and series battery wiring, well beyond the "10kWh" top-tier kit.

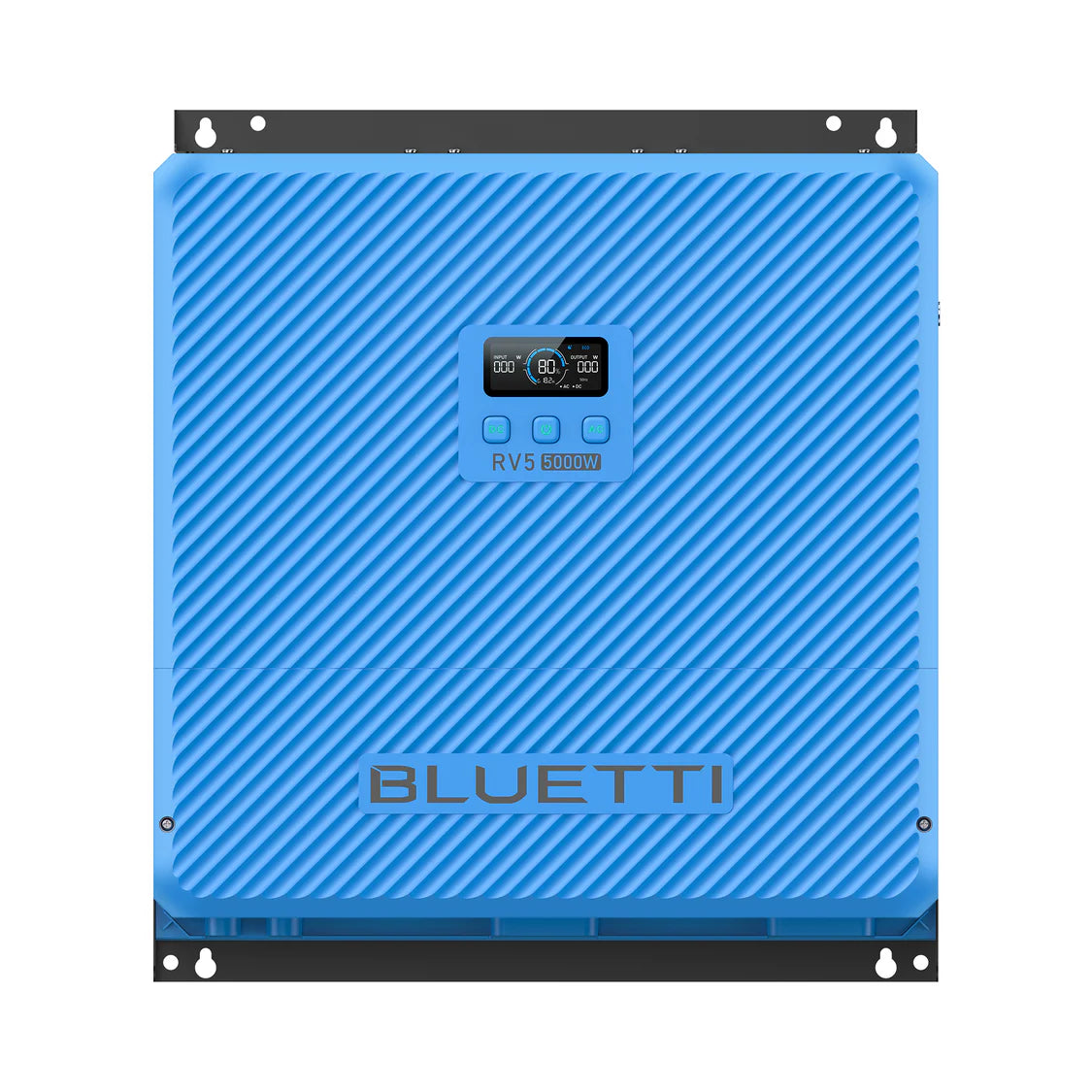

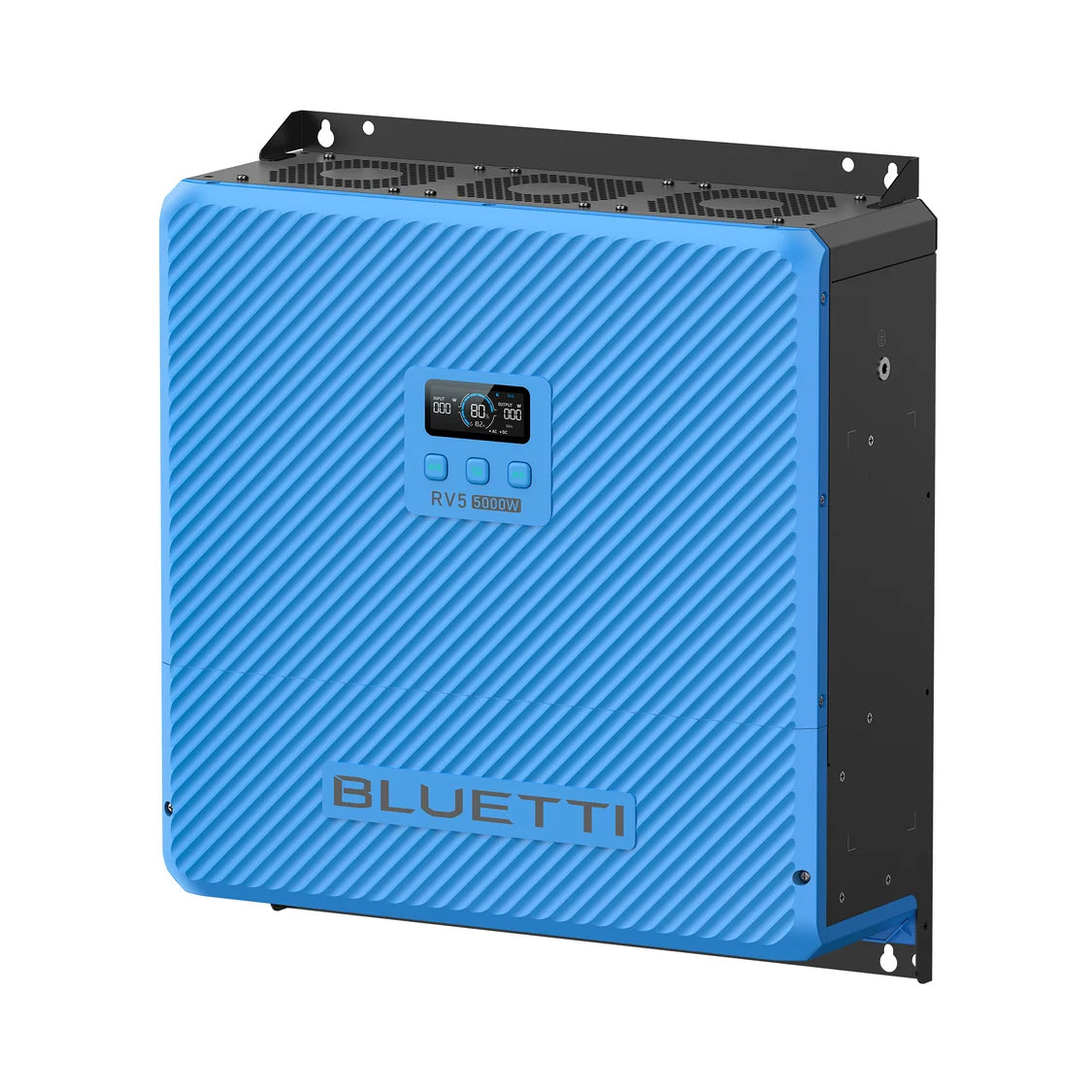

RV5 Power Hub
| Continuous AC output | 5,000 W |
| Surge power | 10,000 W |
| DC output | 1,620 W |
| System voltage | 48V |
| Max input/output current | 150 A |
| Shore power | Up to 5,000W, 120V/42A |
| Solar | Up to 1,800W, 12–50V |
| Alternator (12V / 24V) | 600W / 1,200W, 50A max |
| 0–80% via shore power | ~50 minutes |
| Protection rating | IP65 |
| Noise | <50 dB |
| Standby power draw | ~7 W |
| Operating temp | -4–131°F |
| Storage temp | -4–104°F |
| Humidity | 95% max |
| Weight | 30.86 lbs |
| Dimensions (L×W×H) | 17.72 × 19.69 × 6.30 in |
| Max system expansion | 122.88kWh (24P, parallel/series) |
| Certification | UL458 |
| Warranty | 5 years |
B4810 Battery (sold separately / bundled in kits)
| Rated capacity | 5,120 Wh (51.2V, 100Ah) |
| Chemistry | LiFePO₄ |
| Cycle life | 6,000 cycles @ 70% capacity |
| Weight | 101.4 lbs |
| Protection rating | IP65 |
No battery is included with the Power Hub alone — see the kit tiers above for bundled options with a B4810 battery, Epanel, and Epad.
The RV5 is designed for quick, beginner-friendly setup. With pre-labeled wiring and a simplified design, most RV owners can install it with basic DIY skills — no electrician required.
No — the RV5 Power Hub is sold on its own, or bundled with a B4810 battery (and optionally an Epanel and Epad) in the 5kWh and 10kWh RV Kits.
For 12V auto-leveling systems with startup currents over 100A, BLUETTI recommends pairing with a dedicated B1210 battery or the vehicle's existing 12V lead-acid battery, rather than relying on the RV5 system alone.
Through the Epad — an HD touchscreen showing power consumption, battery status, and charging inputs in real time — or remotely through the BLUETTI app.
The marketed kits top out at "10kWh," but the Power Hub's own spec sheet lists a maximum expansion of 122.88kWh through parallel and series battery wiring — well beyond what the standard kits offer.
5 years on the Power Hub, covering defects in materials and workmanship.
