Large Lithium Batteries for Energy Storage Systems (ESS)

Solar Power Storage Batteries: Large Lithium Units for ESS Builds

Solar power storage batteries in this collection are the multi-kilowatt-hour building blocks of an energy storage system: server-rack modules you stack in a cabinet, wall-mounted units that hang beside the inverter, outdoor cabinets that arrive pre-wired, and complete inverter-plus-battery packages. They are meant for people who already understand they need a 48V lithium bank and want to compare formats, cycle ratings and price per kWh rather than read introductions.

There are 36 products here from Pytes, EG4, Sungold Power, BigBattery and Rich Solar. A single 5.12kWh rack module starts around $1,550; a pre-matched three-phase off-grid ESS with 85.8kWh runs $26,415. All are LiFePO4, and every one carries a stated cycle rating you can compare directly.

How to choose lithium ion batteries for solar power storage

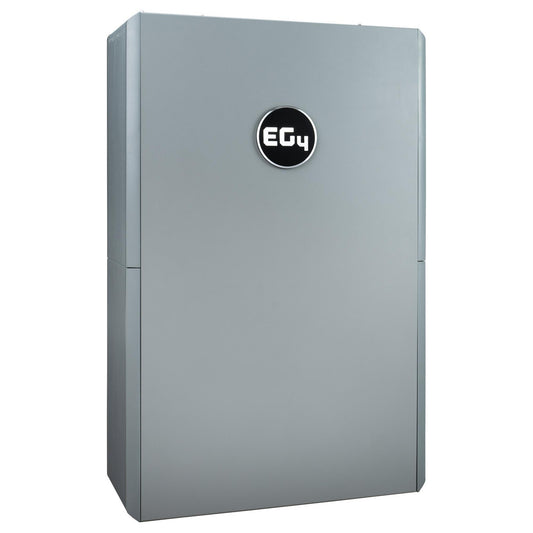

• Format. Rack modules are the cheapest way to add kWh in 5.12kWh steps and fit a standard 19-inch enclosure; the Pytes V5 LiFePO4 5.12kWh Server Rack Battery is rated 6,000+ cycles with a 10-year warranty from $1,550. Wall units such as the EG4 48V WallMount 16kWh Indoor Self-Heating Battery put 16kWh in one box with no rack to buy.
• kWh, not Ah. Two 100Ah products can differ in energy if their voltage differs. Compare the kWh figure in the title: 5.12kWh for a 51.2V 100Ah module, 14.3kWh for the EG4 280Ah unit, 20.48kWh for the four-module Pytes cabinet.
• Discharge current. The inverter can only pull what the BMS allows. EG4's 280Ah and 314Ah batteries are rated 200A continuous, which supports a 12kW inverter; a single 100Ah rack module supports far less, so plan on paralleling.
• Closed-loop communication. Batteries that talk to the inverter charge more accurately and report state of charge. The BigBattery HUSKY 2 INV 48V 5.12kWh is built around inverter comms in an IP65 case, and the EG4 PowerPro packages are closed-loop out of the box.

Popular picks in this collection

Sizing tips

• Size the bank to two nights of load, then check that solar can refill it in one day. The Solar Kit Calculator takes your appliance list and ZIP code and returns battery, inverter and panel numbers together.
• Use the recommended-usable figure. EG4 lists 12.86kWh usable on a 16kWh unit; that is the number to divide your daily load by.
• Leave one rack slot free. A 20.48kWh Pytes bank can grow later, and adding a module of the same model is cheaper than replacing the ESS energy storage system.
• Match the batteries to each other. Mixing a 100Ah module with a 280Ah unit on one bus is not supported by any brand here.
• Note the pre-order flag. The Rich Solar ALPHA 5 (non-PRO) ships on a 60-day pre-order; the ALPHA 5 PRO is stocked.

Frequently asked questions

What is the difference between a rack battery and a wall-mount? Energy per unit and installation. Rack modules are 5.12kWh each and need an enclosure; wall units carry 14.3kWh or 16kWh and bolt to a stud wall. Price per kWh is similar, so choose by the space you have.

Are these lithium solar batteries for sale rated for outdoor use? Some. The EG4 280Ah is IP65, the 314Ah All-Weather is IP67 and the Pytes outdoor cabinet is IP55. Rack modules and the indoor 314Ah unit belong inside.

How many cycles should I expect? Stated figures here range from 6,000+ on the Pytes V5 to 7,000+ on the ALPHA 5, 8,000+ on the EG4 280Ah and 10,000 on the 314Ah All-Weather. At one cycle a day, all of them outlast the warranty period.

Large batteries for solar storage ship free to the mainland US from brand partner warehouses, usually within a few business days, with 30-day returns. Send us your inverter model and we will confirm compatibility before you order.
