Eco Solar Kits · Sungold Power · SGM-5K10M

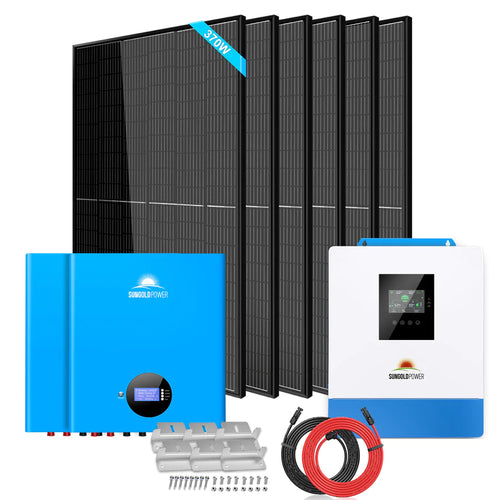

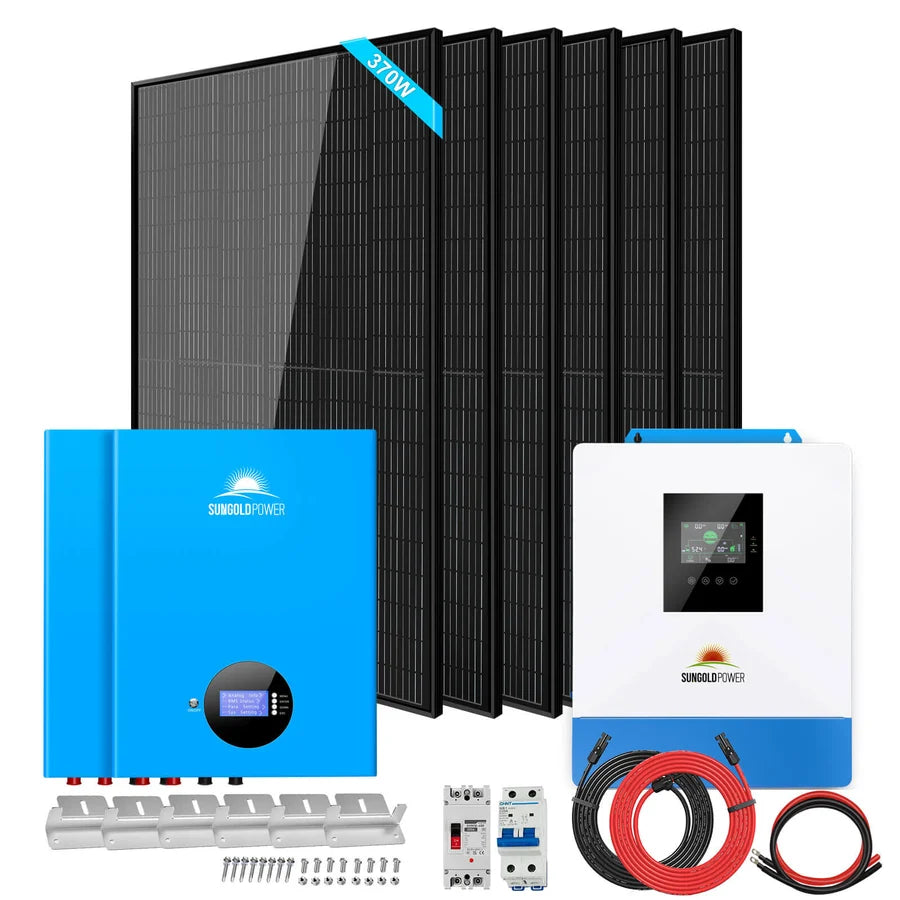

A complete off-grid solar system — 5,000W inverter, 10.24kWh of LiFePO₄ battery storage, and six 370W monocrystalline panels — customizable with extra batteries and panels as needs grow.

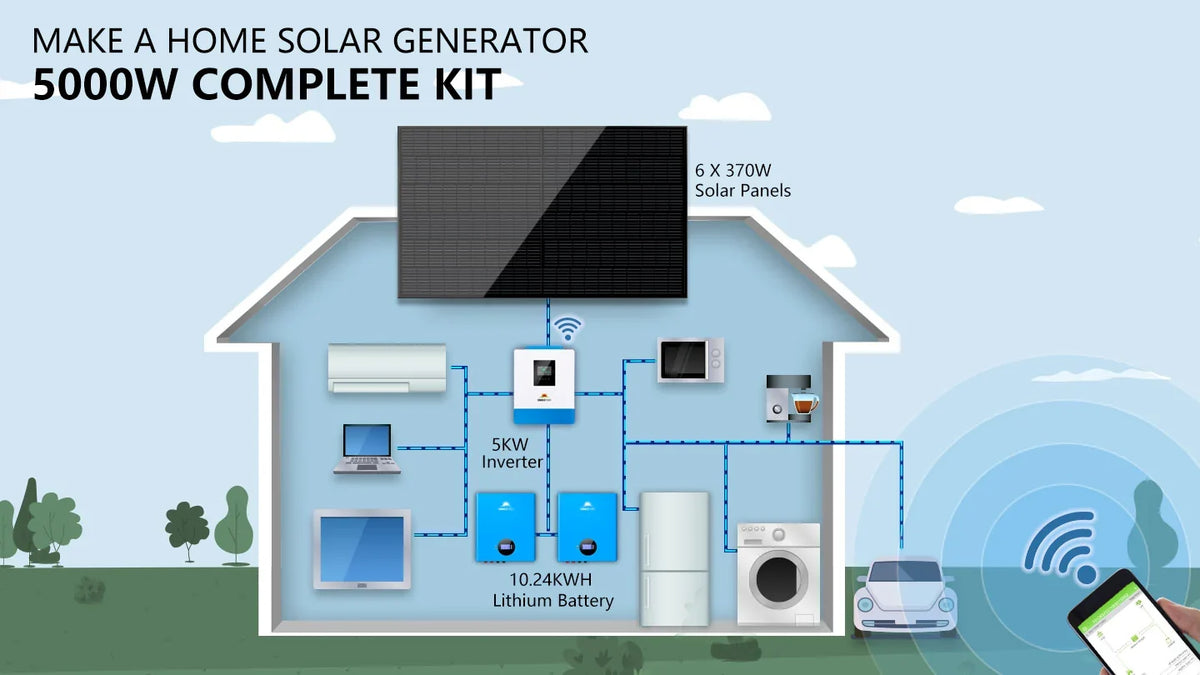

Introducing our comprehensive off-grid solar system kit, designed to effortlessly bring 2.22kW of solar power and storage to mid-sized off-grid homes or remote cabins. Complete with 2PCS 51.2V 100AH PowerWall Lithium batteries and solar panel mounting hardware, this kit sets you on the path to energy independence. For a larger capacity option, check out the Sungold Power Off-Grid 5000W Solar Kit with 48VDC 120V Inverter and LiFePO4 Batteries, offering 10–24kWh of storage and 6×415W solar panels for expanded energy needs.
Equipped with a 5000W 48V 120V pure sine wave inverter, capable of powering most household appliances, our system is primed for expansion. You can seamlessly integrate up to 6 identical inverters, allowing for parallel operation in single-phase (120VAC), split-phase (240VAC), or three-phase (208V) configurations. Tailor your system to your needs by adding more batteries and solar panels as required.
Monitor your system's performance and energy data with ease through the Wi-Fi monitor, accessible via a convenient app. Embrace off-grid living and embark on the adventure of sustainable energy with our solar energy kit!
Rated output with double the power available briefly for motor starts and other high-draw moments.
Minimal energy loss whether running on battery, solar, or passthrough grid power.
Room to add panels beyond the 2,220W (6×370W) included, up to the system's rated ceiling.
Add remote monitoring hardware for system status and performance without needing to be on-site.
Parallel up to 6 identical inverters as a system's power needs grow.
Meets recognized international safety standards for solar charge controller equipment.
The LiFePO₄ battery is rated for at least 7,000 cycles to 80% depth of discharge — a 15-year design life.
Grade-A monocrystalline cells with IP67-rated connectors for weather resistance.

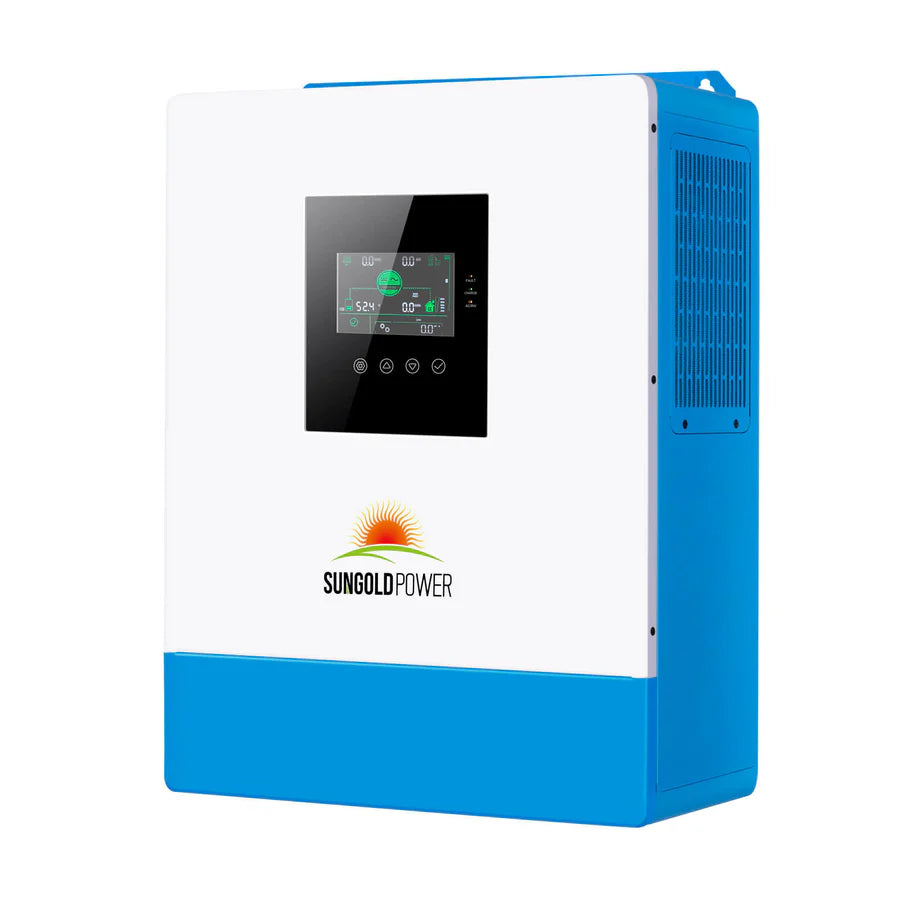

SPH5048P Inverter/Charger (×1)
| Rated output power | 5,000 W |
| Peak power | 10,000 VA |
| Rated output voltage | 120 Vac |
| Line-mode efficiency | >95% |
| Inverter-mode max efficiency | >92% |
| Nominal DC input voltage | 48 Vdc |
| Max. charging current (hybrid) | 100 A |
| Certification | CE (IEC62109-1) |
| No. of MPPT trackers | 1 |
| Max. PV input power | 5,500 W |
| Max. input current | 22 A |
| Max. open circuit voltage | 500 Vdc |
| MPPT voltage range | 120–450 Vdc |
| Weight | 28.7 lbs (13 kg) |
| Dimensions | 17.6 × 13.8 × 5.2 in |
| Operating temp | 14–131°F |
| Noise | ≤60 dB |
| Built-in | USB / RS485 / Dry contact |
| Optional | Wi-Fi / GPRS module |
| Max parallel | 6 units |

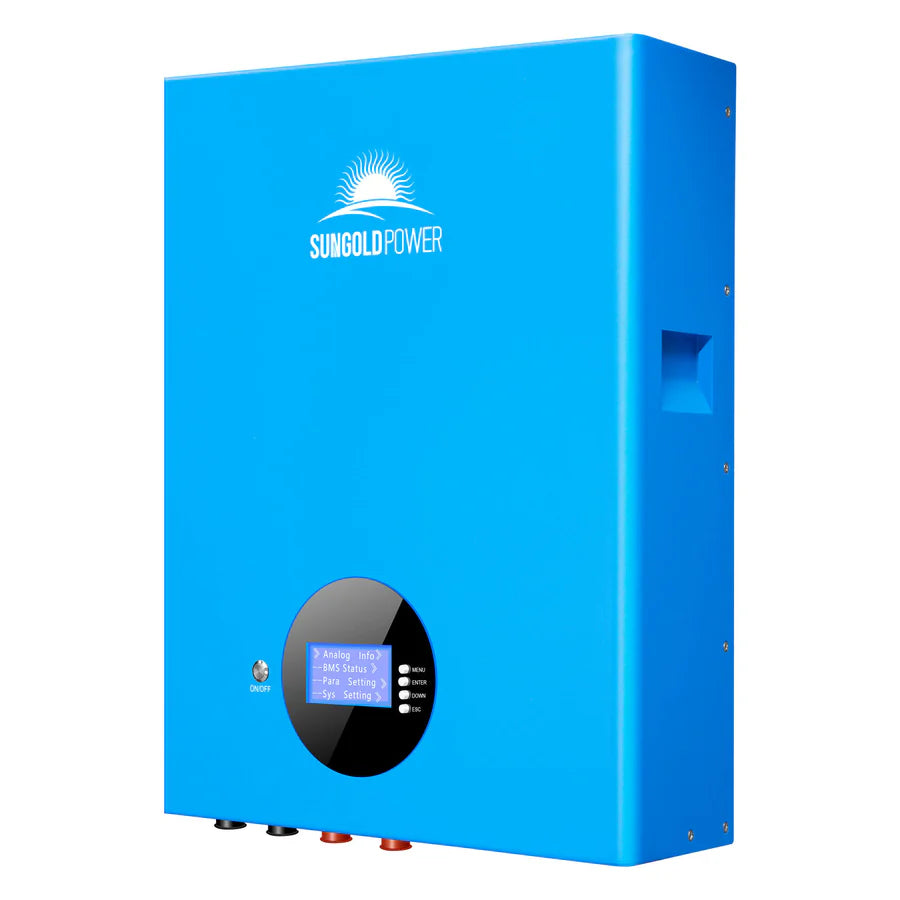

SG48100M LiFePO₄ Battery (×2)
| Rated capacity | 100 Ah |
| Nominal voltage | 51.2 V |
| Energy per unit | 5,120 Wh |
| Combined (2 units) | 10,240 Wh (10.24 kWh) |
| Standard current | 50 A |
| Max. continuous current | 100 A |
| Cycle life | ≥7,000 @ 80% DOD |
| Design life | 15 years |
| Weight | ~95 lbs (43 kg) |
| Dimensions | 16.5 × 22.8 × 5.5 in |
| Protection rating | IP20 (battery box) |
| Charging temp | 32–113°F |
| Discharging temp | -4–140°F |
| Communication | RS232 / RS485 / CAN |
| Max parallel | 63 batteries |

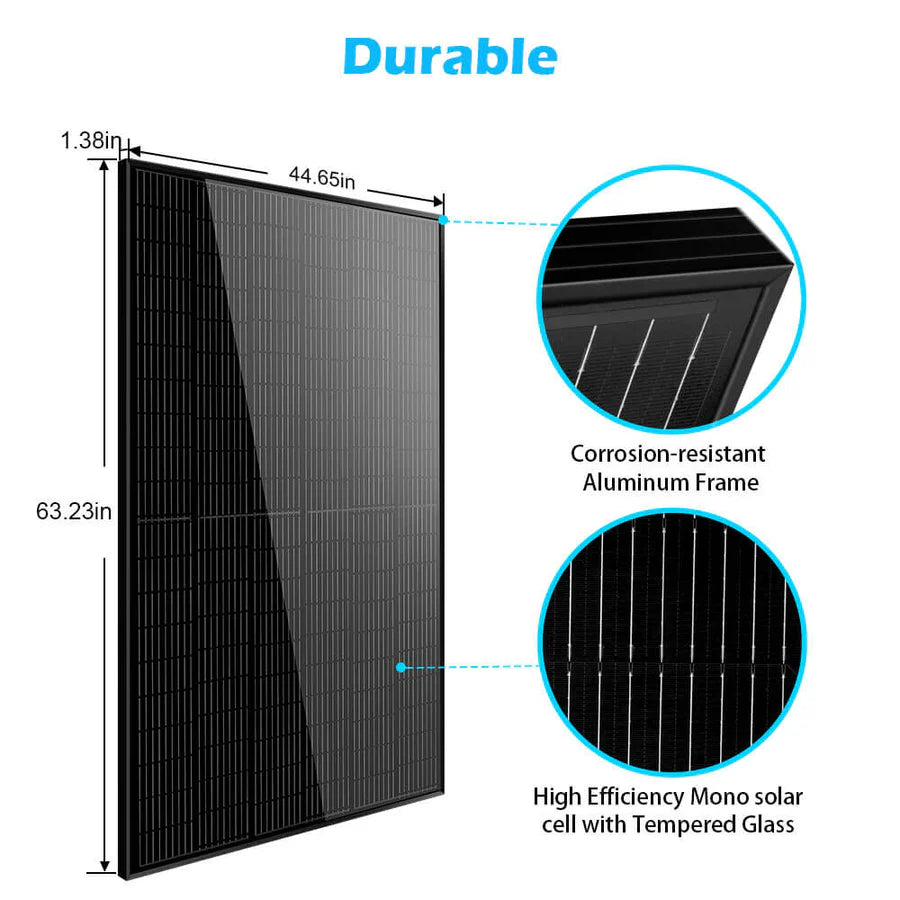

SG-370WM Monocrystalline Panel (×6)
| Max. power | 370 W |
| Max-power voltage | 33.2 V |
| Max-power current | 11.15 A |
| Open-circuit voltage | 40.17 V |
| Module efficiency | 20.30% |
| Cell type | Mono 166×83mm (120 cells) |
| Weight (each) | 41.3 lbs (18.75 kg) |
| Dimensions | 69.3 × 40.9 × 1.4 in |
| Junction box | IP68 |
| Warranty | 25yr linear product + 10yr workmanship |
Yes — the inverter supports up to 5,500W of solar input in total, well above the 2,220W (6×370W) included in this kit, leaving significant room to expand.
Yes — up to 6 identical SPH5048P inverters can run in parallel in single-phase (120VAC), split-phase (240VAC), or three-phase (208V) configurations.
10.24kWh combined from two 5,120Wh LiFePO₄ batteries, each rated for at least 7,000 cycles to 80% depth of discharge — a 15-year design life per the manufacturer.
Per the manufacturer's own product description, the SGR-5KE offers a larger-capacity option with 415W panels for expanded energy needs — this kit uses 370W panels and is positioned as the smaller of the two.
Given the voltages, currents, and battery wiring involved, installation should be handled by a qualified, licensed electrician familiar with your local code.
Easy installation, works flawlessly. When i had questions on install their customer service was excellent.
(Review from sungoldpower.com)

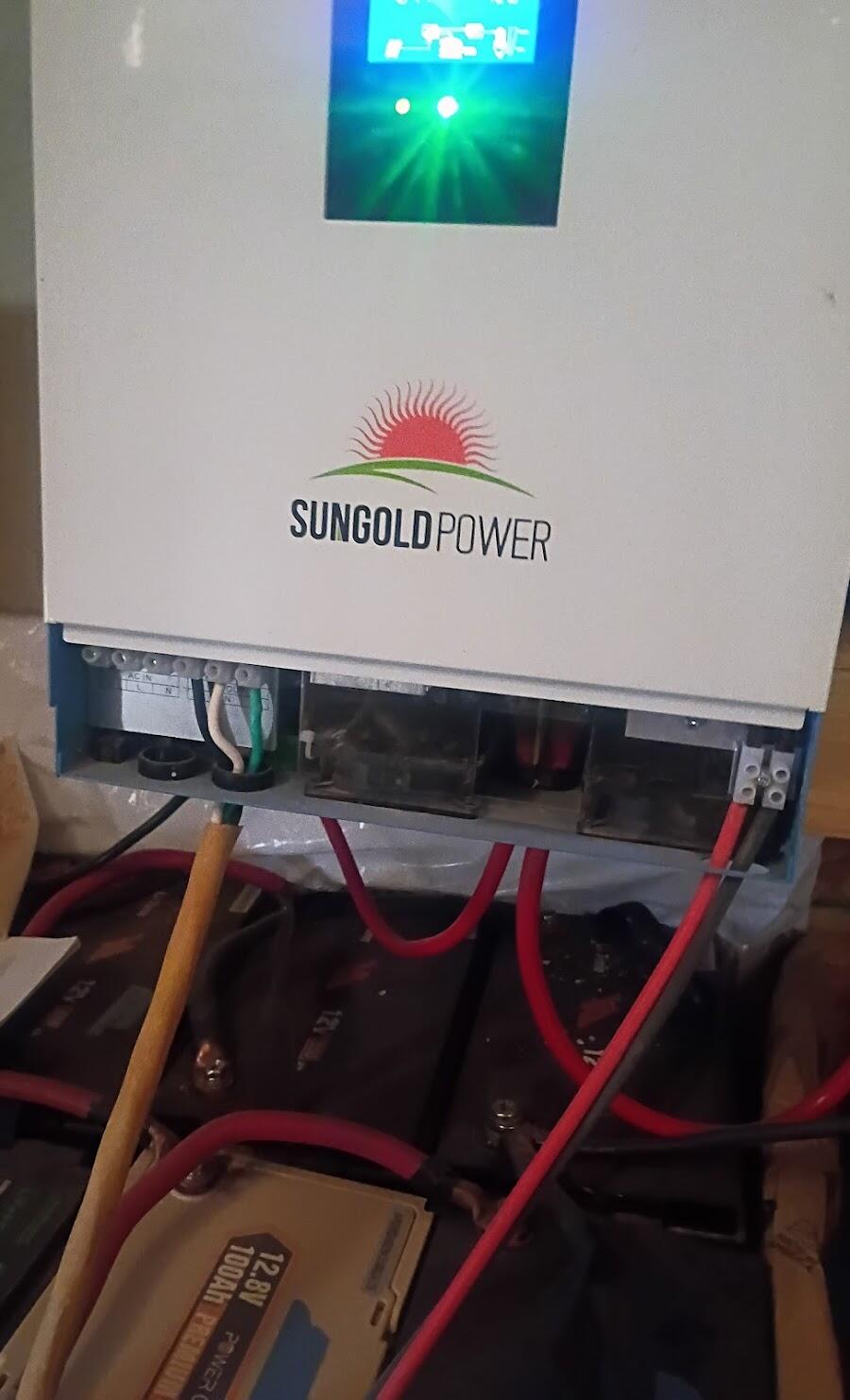

We have an 5KW 48V all-in-one controller inverter from Sungold Power, and are extremely happy with this unit. Day after day it performs flawlessly, truly set-it and forget-it unit. We are in a rural area of New Mexico with no access to utility company power and are completely dependent on solar power.
When we got the unit, we were very impressed with the overall design, finish and packaging. The manual included with the unit was easy to follow and get the unit setup. We followed the easy to use instructions and had the unit up and running in no time. Sun Gold Power was the right choice and we will not hesitate to add more Sun Gold products And units as the need arises.
(Review from sungoldpower.com)

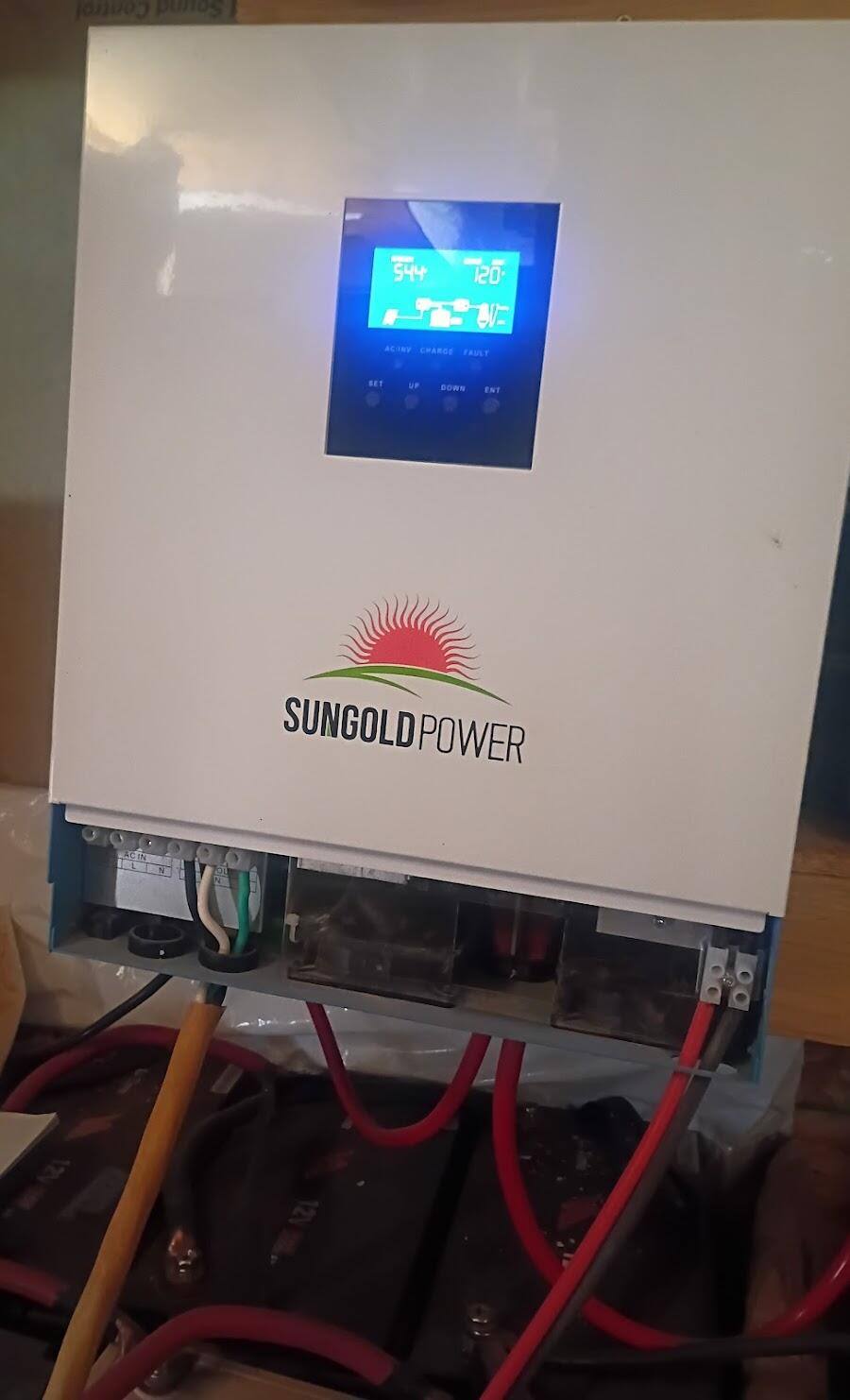

I purchased a 5KW 48V Solar Inverter from Sun Gold Power last year, its the center piece of a temporary power system in case we get a repeat of Helene. I didn't include my solar panels here, but the Inverter has been a big comfort through the winter, and Sun Gold Power is a name I trust to order these sorts of things from in the future for the quality of packaging and timeliness in shipping.
In terms of other hindsight, with as well as this one works, I'm thinking of getting a larger 240v outputting inverter, because this works very well, and its very easy to wire in. Its easy to add solar in and connect my panels to charge it that though that does take a little longer.
(Review from sungoldpower.com)

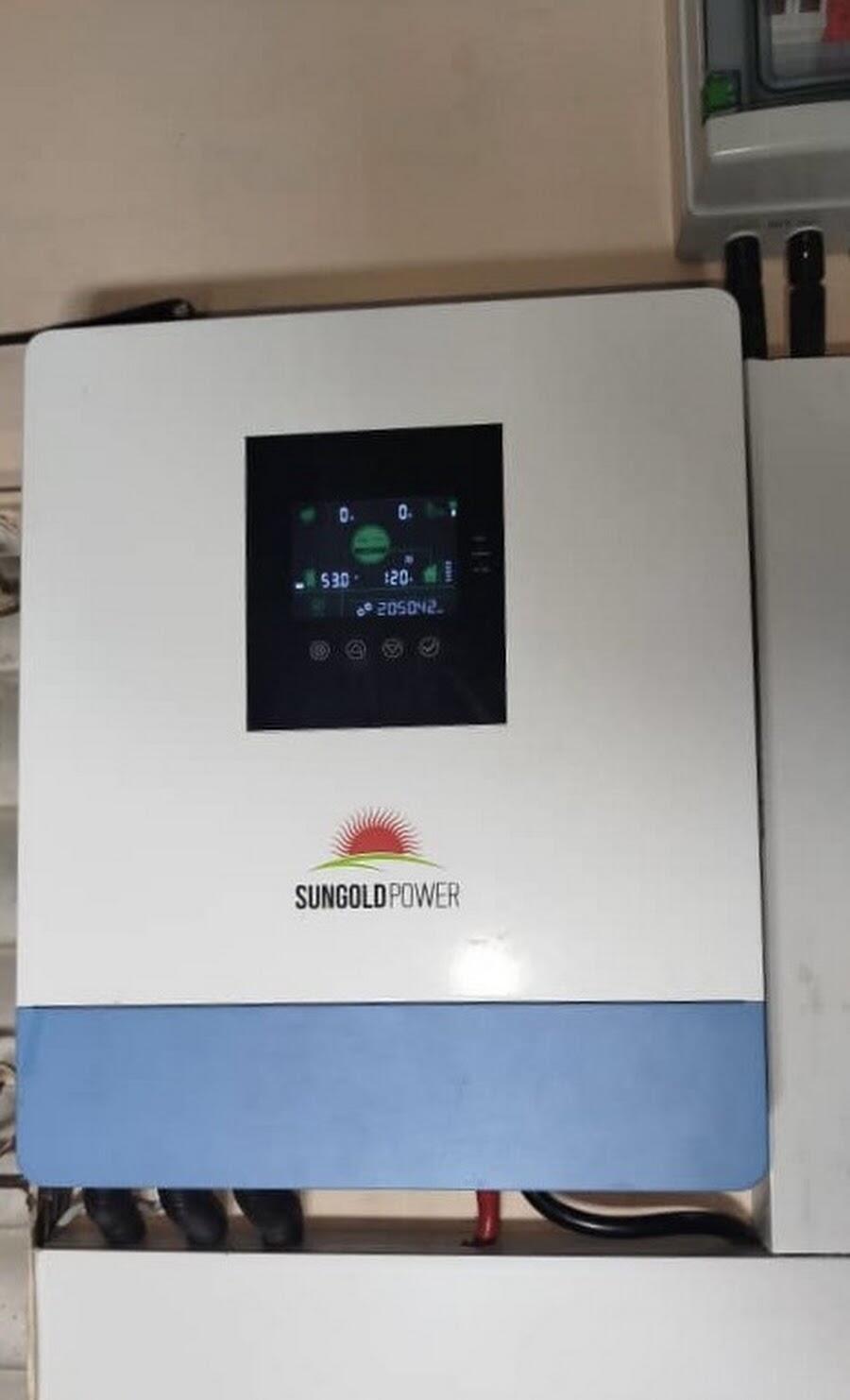

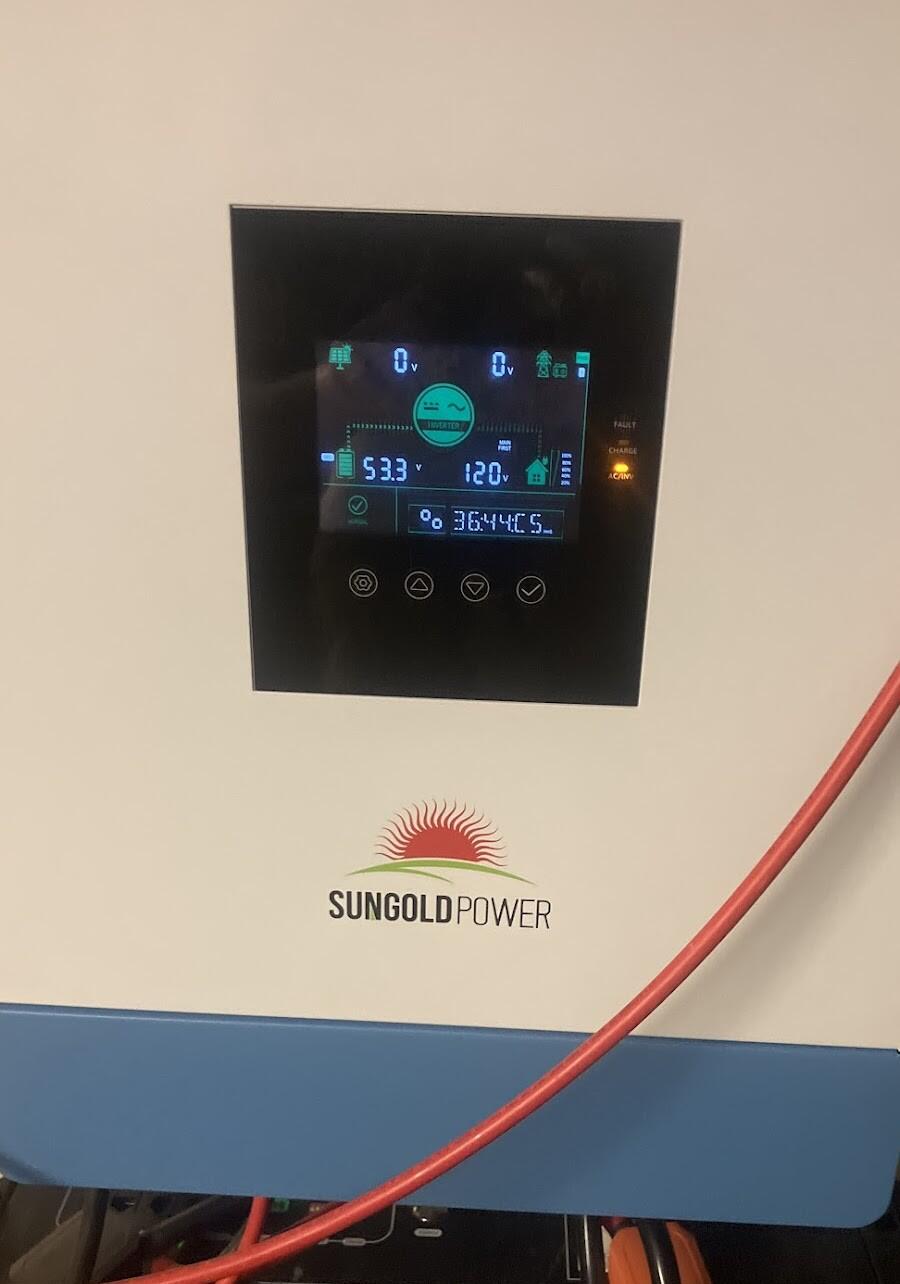

I’ve been using this 5kW 48V inverter for a while now and overall I’m very satisfied with its performance. The unit provides stable and clean power, which is important for running sensitive electronics like TVs and appliances without any issues. Installation was straightforward, and it integrates well with my battery setup.
One thing I appreciate is how consistent it is under load, handling multiple devices smoothly. The build quality feels solid, and so far it has been reliable in daily use.
Overall, a great option if you’re looking for a dependable solar inverter for home backup systems.
(Review from sungoldpower.com)

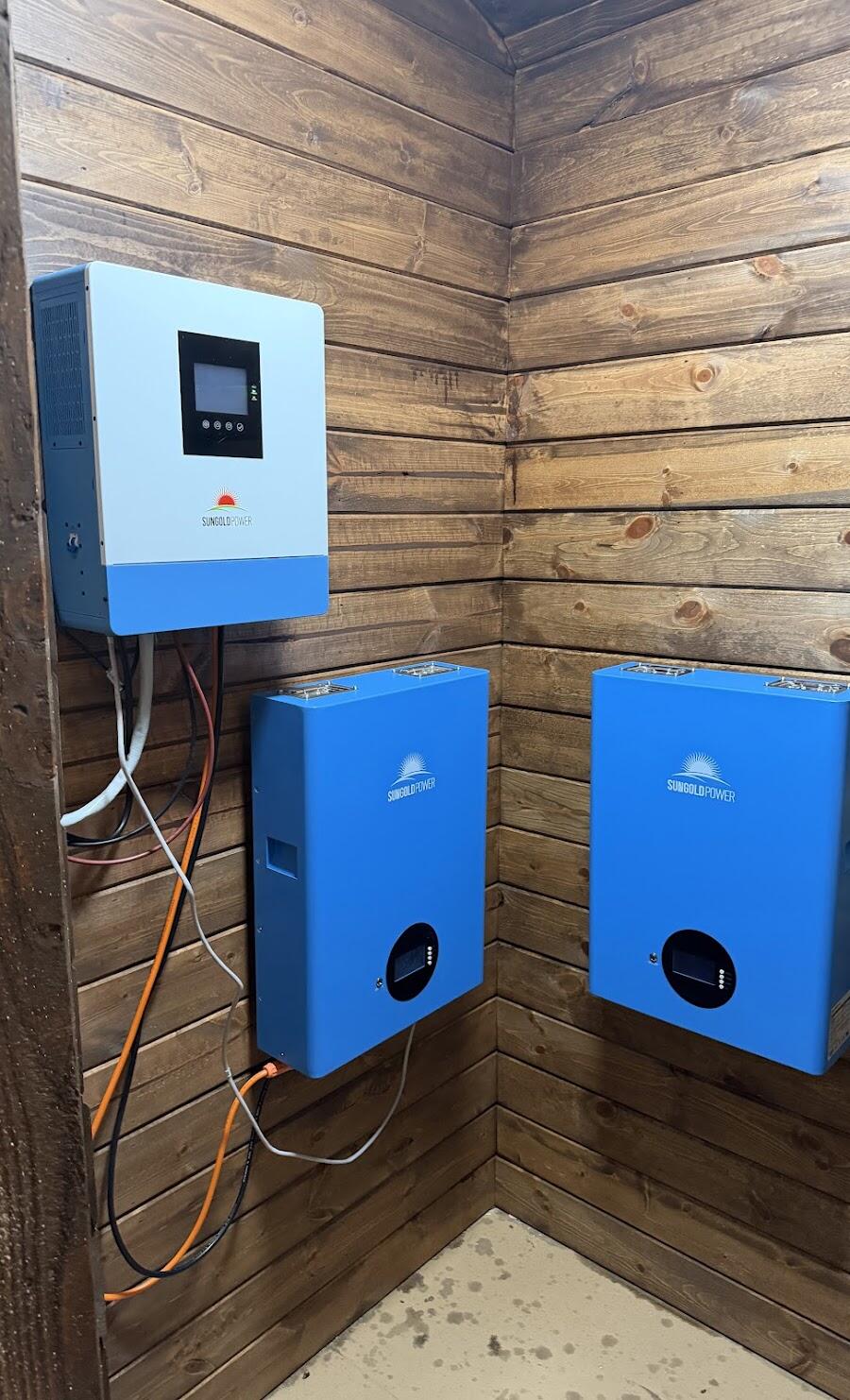

Really like this kit a lot! This kit has brought so much convenience to my cabin! At first I thought it would be very difficult to install this kit, but SunGold's customer service was excellent! They provided wiring diagrams and responded to my emails every day to answer my questions and helped me get the inverter communicating successfully with the batteries, and I was able to monitor the kit's operation at all times on the mobile app.
(Review from sungoldpower.com)
