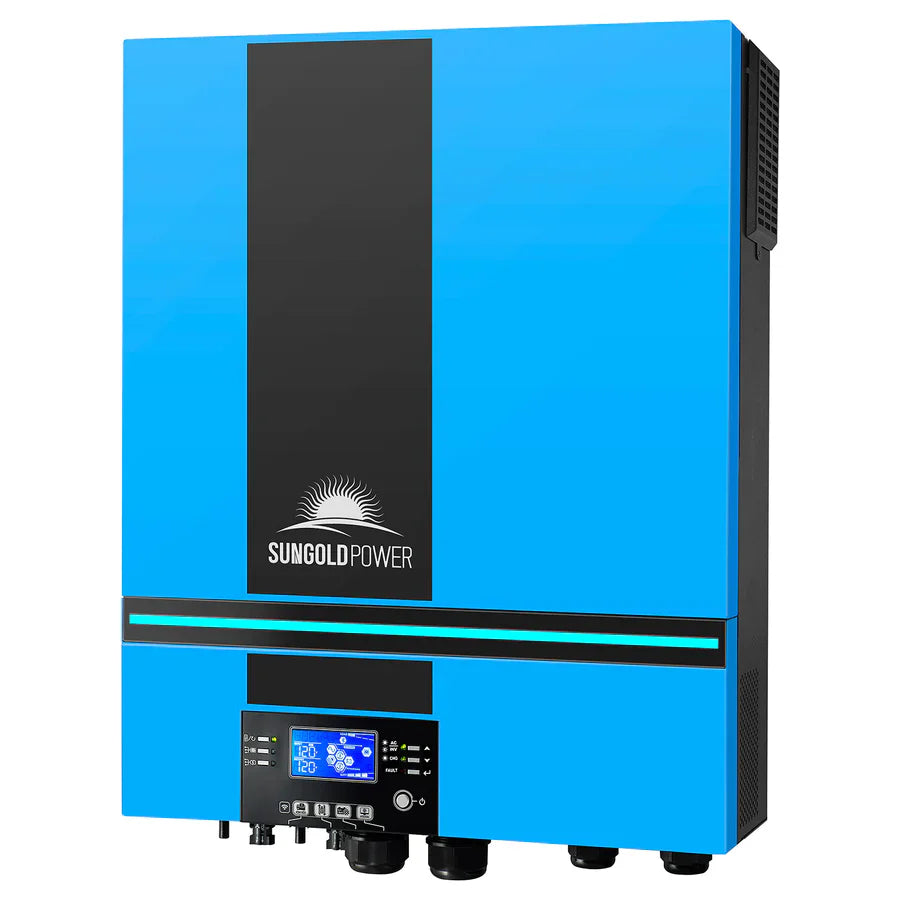

• A Sungold Power blue solar inverter with a black vertical stripe, digital display, multiple buttons, and bottom connection ports delivers pure sine wave output for reliable solar power systems.

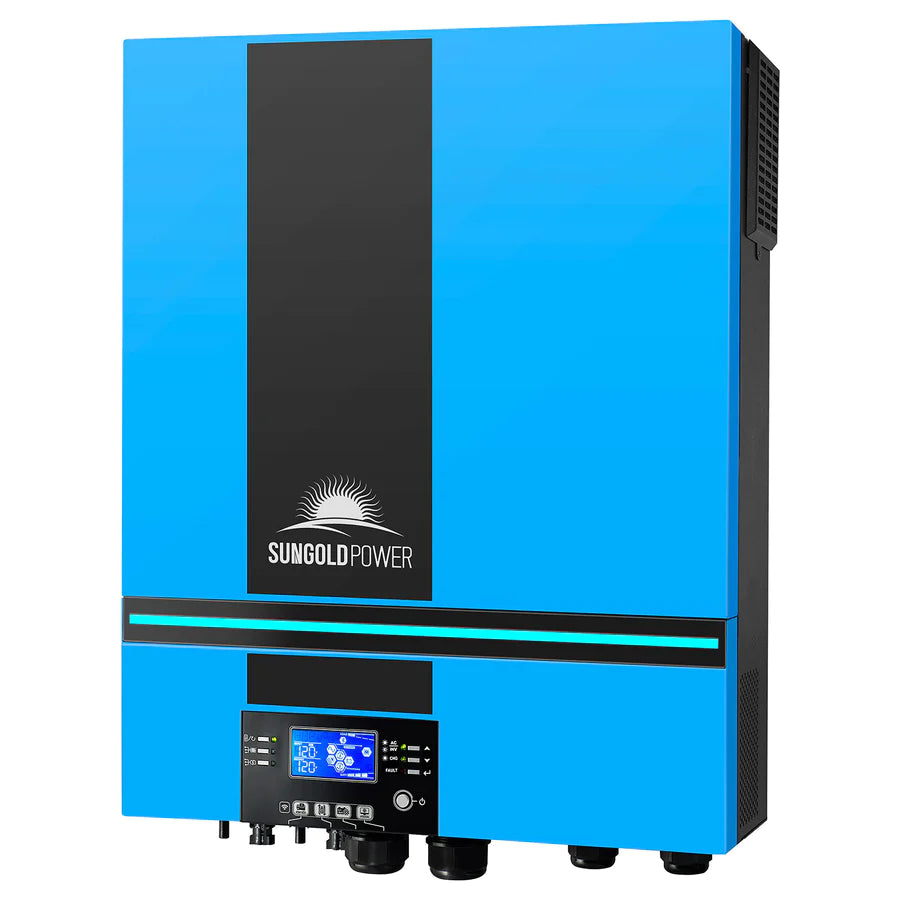

  • A Sungold Power blue and black pure sine wave solar inverter featuring a digital display, multiple buttons, and ports on the lower front panel, designed for use in solar energy systems.
  • Two Sungold Power solar inverters are shown. The top has a blue and black design with a digital display, ports, and an MPPT solar charger. The bottom is a black pure sine wave solar inverter with a screen, buttons, and multiple terminals.

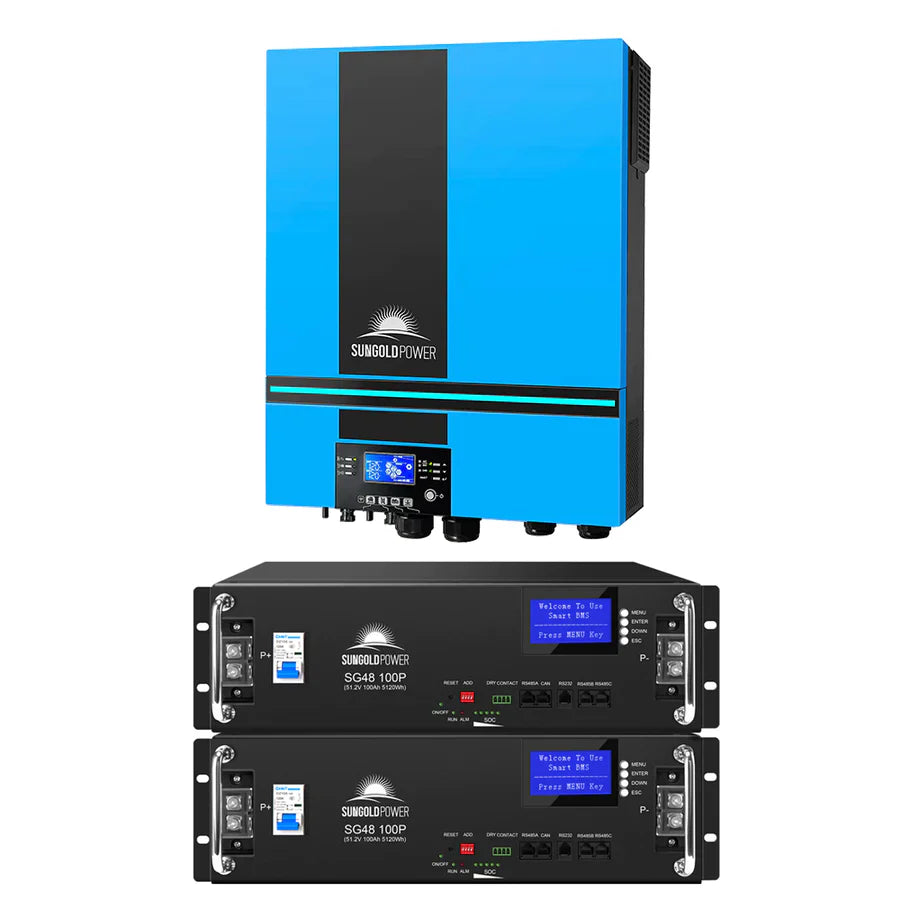

  • A blue Sungold Power pure sine wave solar inverter is mounted above two black SG48100P battery modules with digital displays, all from Sungold Power, designed for advanced solar energy systems.
  • Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard
  • Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard
  • Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard
  • Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard
  • Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard
  • Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard
  • Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard
  • Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard
1 12
2 people are viewing this right now

Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard

SKU: SP6548
Availability: Out of stock
$1,250.00
$1,250.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • Off-Grid
  • Home Backup

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

Inverter · 6,500W

Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard

Features

Features

  • Solar Inverter: Featuring a 6.5KW DC 48V pure sine wave output of 120VAC, equipped with a built-in MPPT solar charger with a maximum capacity of 120A, and a utility battery charger with a maximum capacity of 120A. Supports a maximum PV input of 390V (VOC) with dual PV input. Compliant with UL 1741 Standard and listed by TUV/CSA/FCC.
  • Parallel Kit: Supports parallel connection of up to 6 units, offering 120V single-phase output (1 unit), 120V/240V Split Phase capability (2 units parallel), and 208V 3-Phase Support (3 units parallel).
  • WIFI Model: Includes a built-in WIFI transmitter, allowing for the transmission of inverter data via WIFI to the user's iPhone or Android smartphone. The app for monitoring can be downloaded from the Apple or Android store.
  • Batteryless Support: The inverter is capable of powering loads directly from the PV array or AC grid without the need for a connected battery.
  • LCD Operation: Features a detachable LCD control module with multiple communication ports for BMS, including RS485, CAN-BUS, and RS232.
Promotional graphic for the Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard, showing a blue inverter with pure sine wave output, MPPT charging features, certification logos, and a tech-style blue background.
Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor (UL1741) by Sungold Power: 48V, supports LiFePO4 batteries, MPPT solar charger, up to 16 parallel units. Over 7000 cycles. Get More Information at the top.

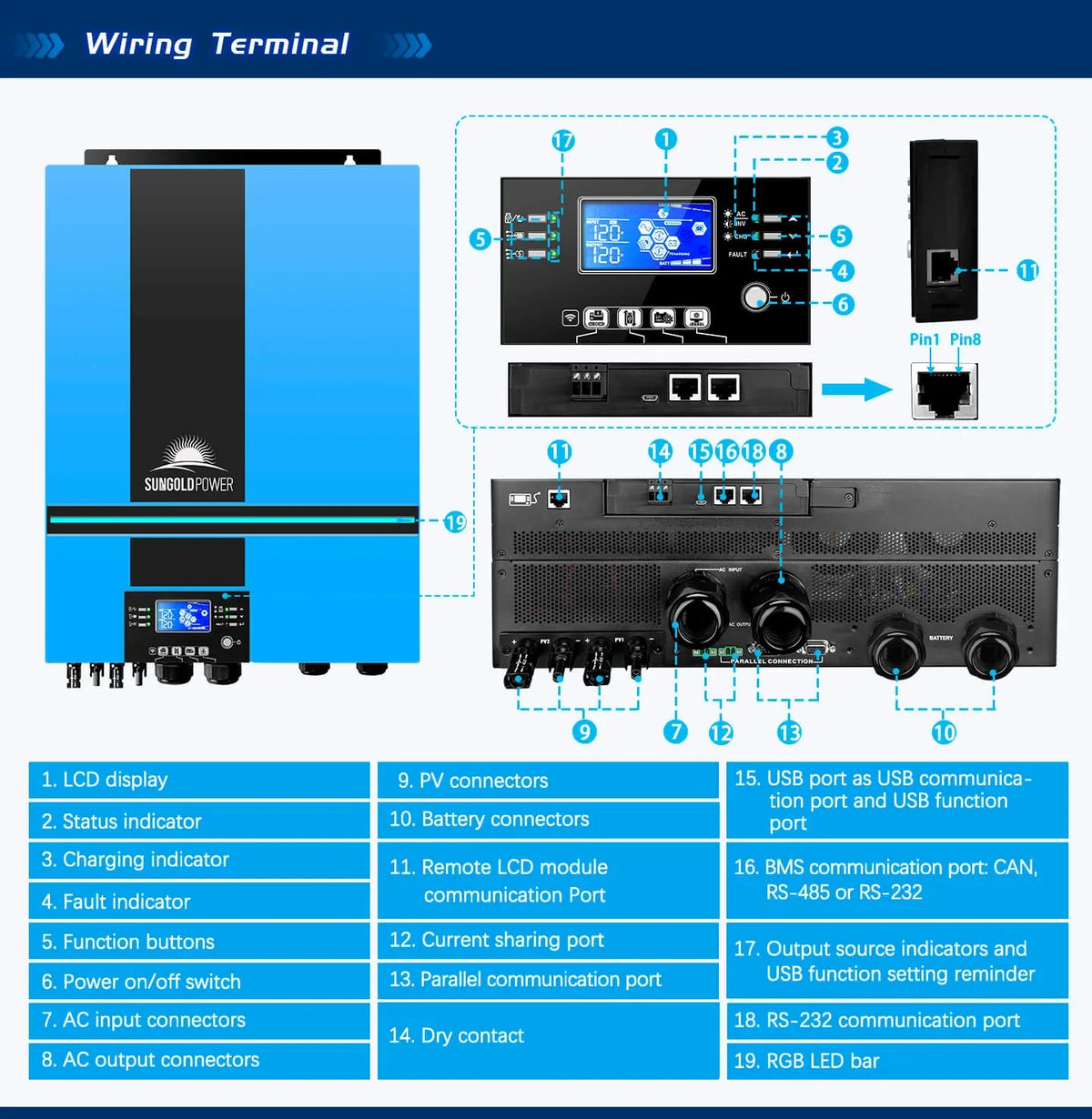

Diagram of the Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 Standard shows front and rear views with labeled LCD display, connectors, ports, function buttons, MPPT charger, indicator lights, and wiring terminals.

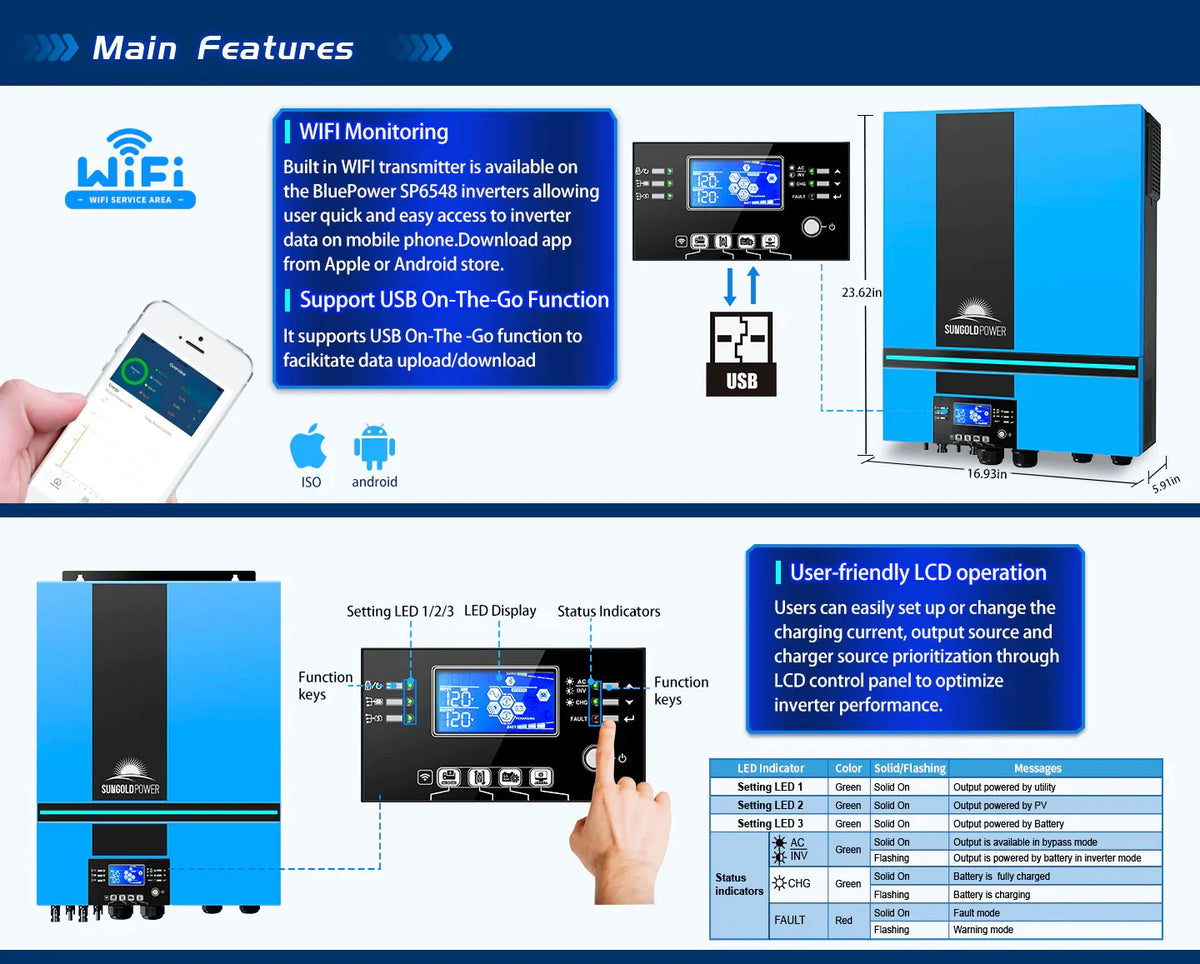

Image showing features of the Sungold Power 6,500W 48V Solar Charge Inverter: WiFi monitoring via app, USB OTG support, user-friendly LCD with summary table, and illustrated product dimensions. UL1741 standard. Brand: Sungold Power.

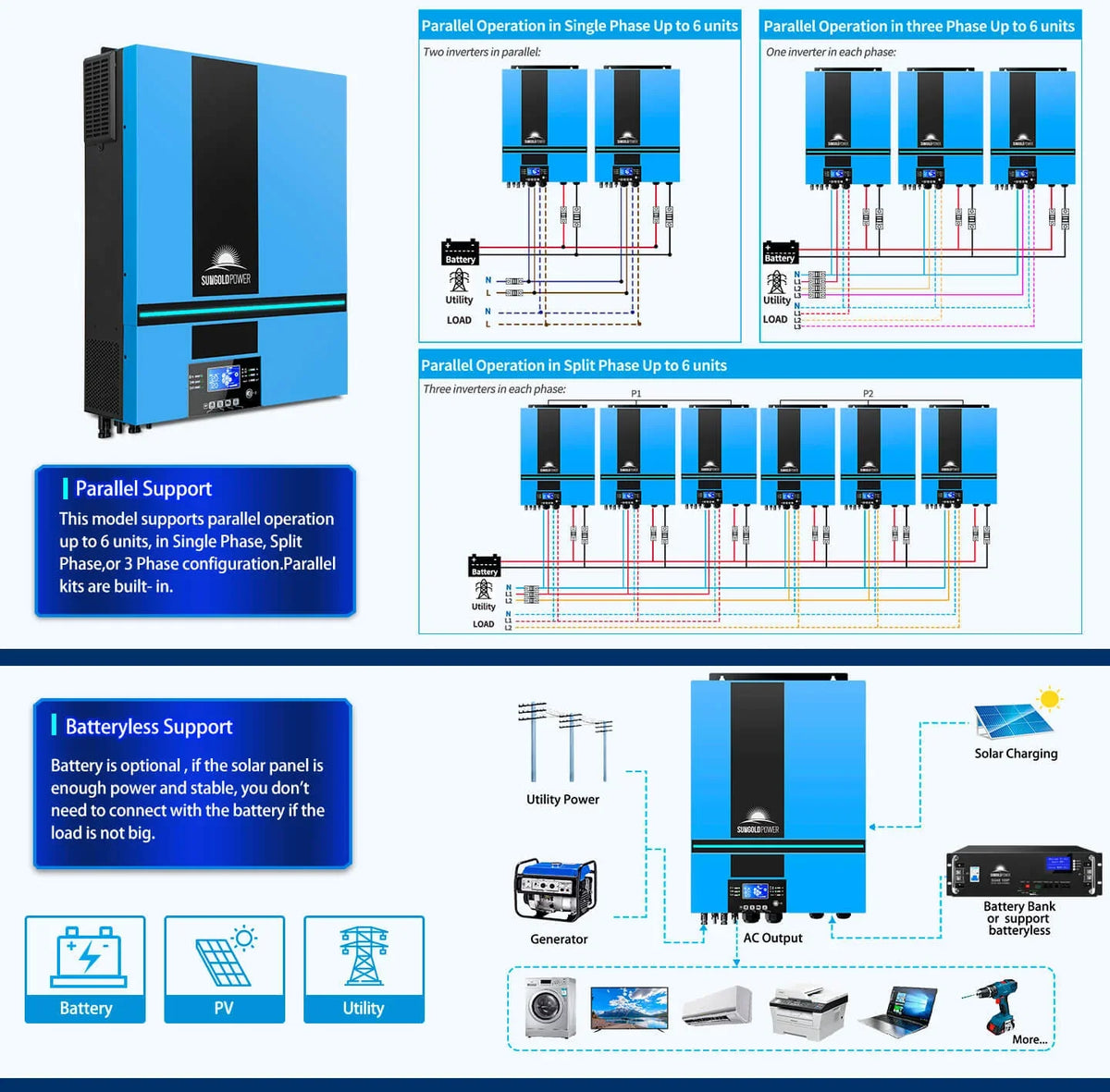

Diagram of the Sungold Power 6,500W 48V Solar Charge Inverter (UL1741), showing parallel setups for single, split, and three-phase systems, with battery, solar, and utility icons, WiFi monitor, MPPT integration, and pure sine wave output.

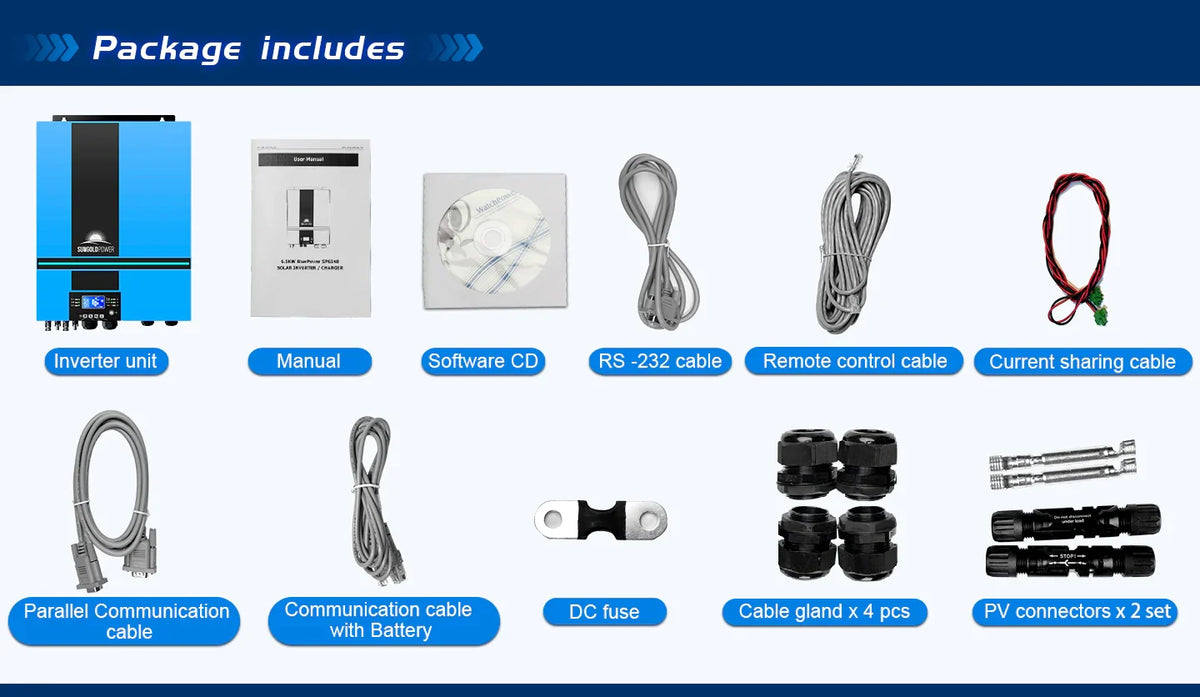

The image shows the Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 package by Sungold Power, including the inverter, MPPT manual, software CD, several cables, DC fuse, cable glands, and PV connectors.

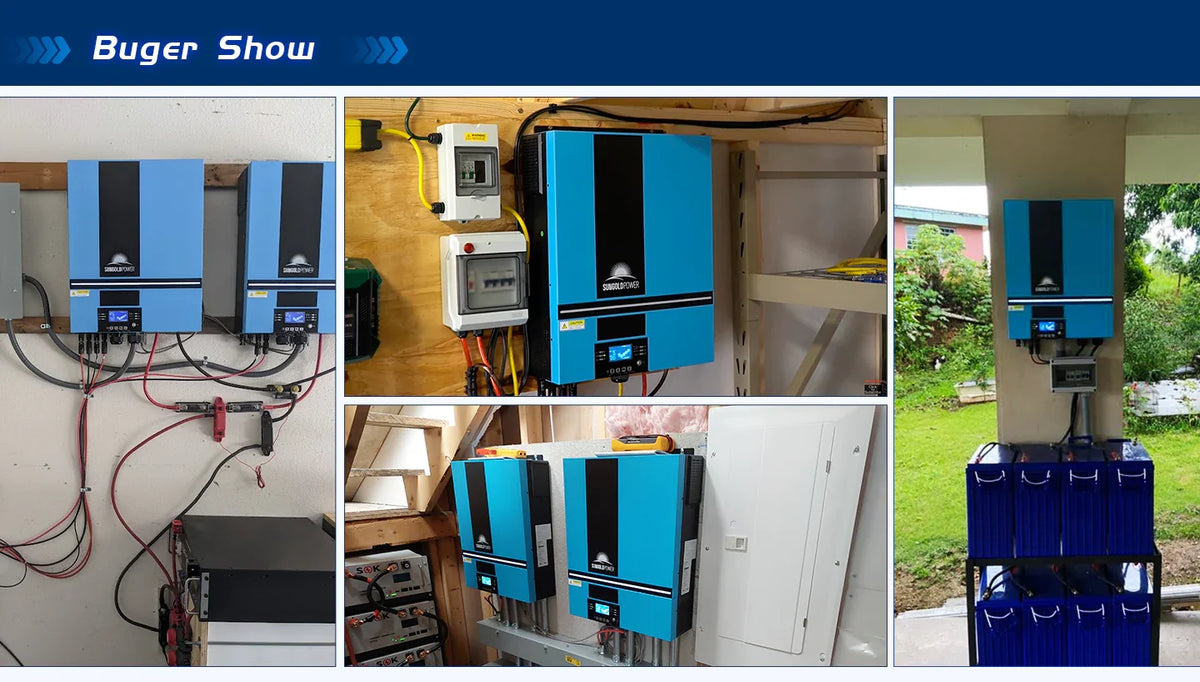

A collage displays several Sungold Power 6,500W 48V Solar Charge Inverter Parallel + WiFi Monitor UL1741 units mounted indoors and outdoors, connected to panels and batteries, illustrating different installation setups.
Data

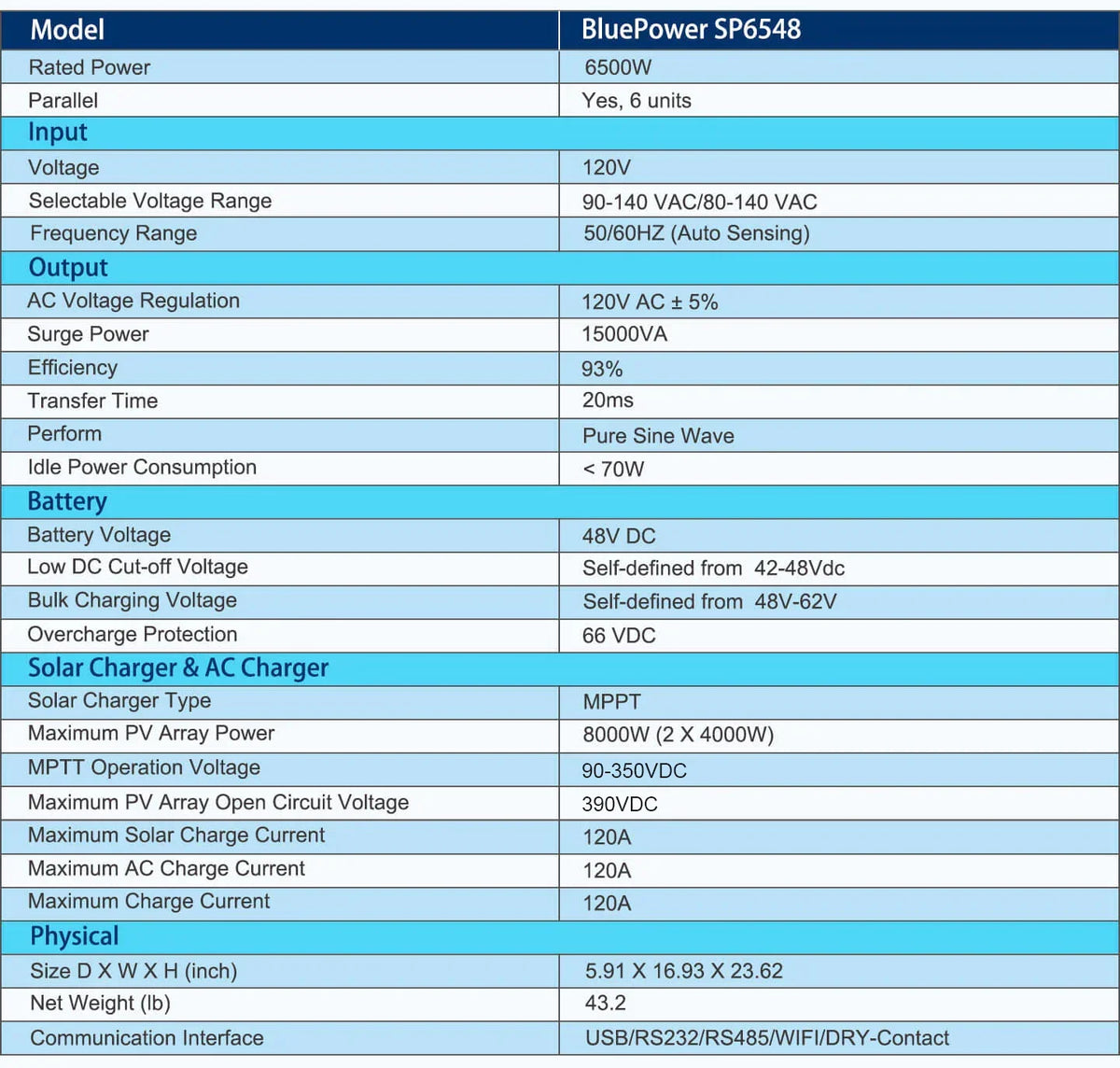

Specifications

BluePower SP6548 6,500W 48V Solar Charge Inverter

General
Rated Power 6,500W
Parallel Yes, up to 6 units
Input
Voltage 120V
Selectable Voltage Range 90-140 VAC / 80-140 VAC
Frequency Range 50/60Hz (auto sensing)
Output
AC Voltage Regulation 120V AC ±5%
Surge Power 15,000VA
Efficiency 93%
Transfer Time 20ms
Waveform Pure sine wave
Idle Power Consumption <70W
Battery
Battery Voltage 48V DC
Low DC Cut-off Voltage Self-defined, 42-48VDC
Bulk Charging Voltage Self-defined, 48-62V
Overcharge Protection 66VDC
Solar Charger & AC Charger
Solar Charger Type MPPT
Max PV Array Power 8,000W (2 × 4,000W)
MPPT Operating Voltage 90-350VDC
Max PV Array Open Circuit Voltage 390VDC
Max Solar Charge Current 120A
Max AC Charge Current 120A
Max Charge Current 120A
Physical
Size (D × W × H) 5.91 × 16.93 × 23.62 in
Net Weight 43.2 lb
Communication Interface USB / RS232 / RS485 / Wi-Fi / dry contact
Additional Documentation

Additional documentation

Download BluePower SP6548 Inverter Charger User's Manual UL 1741 Standard Listed by TUV / CSA / FCC
