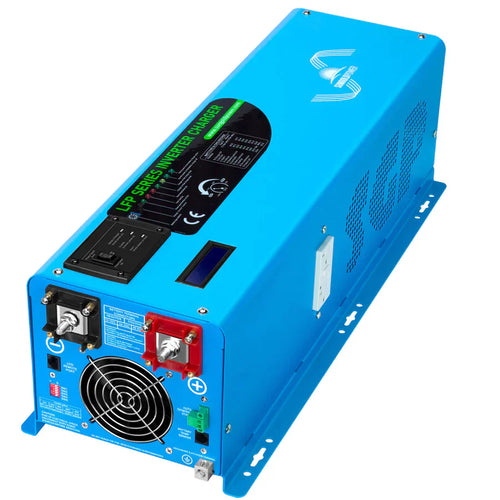

• A blue Sungold Power LFP series Pure Sine Inverter charger features labeled power terminals, a ventilation fan, switches, and ports on one end, along with a digital display on the top panel.
  • The Sungold Power blue LFP series Pure Sine Inverter Charger features multiple control buttons, a cooling fan, power terminals, and a side-mounted outlet for dependable electrical power management.
  • A blue Sungold Power 6000W Pure Sine Inverter and three blue 24V 100Ah lithium iron phosphate (LiFePO4) batteries are shown. The inverter includes control buttons, ports, and a visible cooling fan.
  • Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger UL1741 Standard
  • Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger UL1741 Standard
  • Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger UL1741 Standard
  • Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger UL1741 Standard
  • Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger UL1741 Standard
1 8
5 people are viewing this right now

Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger UL1741 Standard

SKU: LFP6K48V230VSP
Availability: Out of stock
$1,355.00
$1,355.00
Sold out
  • FREE SHIPPING WITHIN USA On All Orders! (No shipping to HI, AK or Overseas Territories)
  • Use Promocode ECO100 At Checkout To Further Get $100 Off On Orders $1,500+
  • $0 SALES TAX For Most States (Except WY)
  • Have Questions? Call our Expert for Answers +1 307 317 7213

Best for

  • Off-Grid
  • Home Backup
  • RV

Secure Checkout:

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping
information

Payment Icon

Return and
Refund Policy

Live Chat

Live Agent

Our Blog

Our blog
View full product details

Inverter · 6,000W

Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger UL1741 Standard

Introducing the SunGold Power LFP 6000 Watt DC 48V AC 120/240 Split Phase Inverter Charger - a premier solution for robust, low-frequency power conversion. Engineered to power your entire residence (including small homes), business premises, RV setups, trailers, or marine vessels, this inverter charger stands out for its reliability and performance. Whether you're off the grid or need a backup power source during emergencies, this unit has you covered.

6,000WRated Output
48VSystem Voltage
88%Efficiency
76.7 lbWeight
Overview

Overview

Designed for versatility, this split-phase inverter demands a 240VAC input while offering flexible output options of 110/120V or 220/230/240VAC. Plus, it provides the choice of 50 or 60Hz output via the SW4 setting. With the capability to deliver two legs of 110V power, it's tailor-made for domestic and commercial applications equipped with a 220-panel setup.

A Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger (UL1741 Standard) is displayed in front of a modern house at dusk, featuring pure sine wave highlights and a UL certification logo.
Features

Features

  • 6000W low frequency pure sine inverter with charger.
  • AC/battery priority selector.
  • Automatic generator start.
  • Safety and convenience features.
  • Compatibility with various appliances.
  • LCD display and remote control.
  • Low idle consumption.
  • Nine battery type settings for charger.
  • Multi-stage smart charger (60+/-5A), with optional disabling.
  • Swift 10msec typical transfer time.
Data

Specifications

Inverter Output
Continuous Output Power 6000W
Surge Rating 18000W (20 Seconds)
AC Output AC 120V and AC 240V
AC Input 240V
Output Wave Pure Sine Wave (bypass mode)
Typical Transfer Time 10ms (MAX)
Nominal Efficiency >88%

DC Input
Nominal Input Voltage 48.0Vdc
Minimum Start Voltage 40.0Vdc
Low Battery Alarm 42.0Vdc-44.0Vdc
Low Battery Trip 40.0Vdc-42.0Vdc (select by SW1)
High Voltage Alarm 64.0Vdc
Low Battery Voltage Restart 52Vdc
Idle Consumption 81W
Power Saver Mode Idle Consumption 30W

AC Charger
Charger Rate 60+/-5A
AC Input Range (Grid or Generator) 140V-270VAC/184V-253VAC (select by SW2)
Over Charge Protection Shutdown 62.8V
Selectable Charge Setting Yes
Adjustable Charge Current Off 0%-100%
3-Step Intelligent Battery Charger Yes
Details

Packaging

  • 6000W 48V low frequency pure sine inverter
  • English manual included
  • Remote control included
  • BTS cable included
  • Unit weight: 76.7LB
  • Unit size: 25.6 x 9.1 x 7.5 inches
  • Shipping weight: 85.5LB
  • Shipping size: 30.3 x 13.4 x 12.8 inches
Sungold Power 6,000W 48V Split Phase Pure Sine Wave Inverter with Charger (UL1741), includes remote control, BTS cable, and manual—reliable power conversion from Sungold Power.
Split image: Left shows features with a blue Sungold Power LiFePO4 battery; right displays the Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger UL1741 and four 24V 100Ah batteries. Specs, split phase, and a 5-year warranty are highlighted.
Two labeled diagrams of the Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter with Charger (UL1741 Standard) by Sungold Power, showing front and back views with numbered terminals and ports explained below.
A diagram shows a house with solar panels, a solar controller, battery bank, and a Sungold Power 6,000W DC 48V Split Phase Pure Sine Wave Inverter (UL1741). Home appliances are powered by the battery bank or backup generator.
Additional Documentation

Additional Documentation

LFP 6KW 48V Pure Sine Wave Split Inverter/Charger Data Sheet Download LFP Series Pure Sine Wave Inverter/Charger User's Manual
