Power Station · 8,000W · 14,340Wh
Say hello to the BigBattery 48V RHINO 2 – a game-changer in powering homes across America. This sleek, wall-mounted system packs a punch with 14.34kWh of power, all UL-certified for your peace of mind. Designed to brave the elements with its IP65 rating, the RHINO 2 thrives outdoors, even in the harshest conditions, thanks to its all-weather construction and integrated self-heating feature for optimal performance in colder climates.
Experience unrivaled longevity with our LiFePO4 battery chemistry, renowned as the safest on the market. With over 8000 cycles at 80% Depth of Discharge (DOD) and a continuous discharge current of 200A, rest assured your energy needs are met with resilience. Safety is paramount, evident in our built-in fire suppression system and advanced Battery Management System (BMS), ensuring cell balancing and backed by a 10-year warranty.
The RHINO 2 isn’t just powerful; it’s adaptable too. Its modular design allows for seamless scalability, while the included components simplify wall mounting. Compatible with any inverter and existing solar systems, the RHINO 2 integrates effortlessly into your setup. Stay informed with the interactive LCD display, monitoring your power status at a glance.
Whether you seek reliable backup power or aim to maximize your solar investment, the RHINO 2 delivers consistent, efficient energy day in, day out. Take charge of your home’s energy destiny – invest in the 48V RHINO 2 today!
| SKU | FRHNO-48143-G2 |
| System voltage | 48V |
| Nominal voltage | 51.2V |
| Chemistry | LiFePO4 |
| kWh capacity | 14.34kWh |
| Ah capacity | 280Ah |
| Charging voltage range | 55.6 - 57V |
| Max charge voltage | 57V |
| Operating voltage range | 48 – 57V |
| Suggested low voltage cutoff | 48 – 50.8V |
| Cell configuration | 16S |
| Max continuous discharge current | 200A |
| Max continuous power | 10240W |
| Max discharge peak current | 300A (max 5 seconds) |
| Max charge current | 200A |
| Charge temperature range | -4°F - 113°F (-20°C - 45°C) |
| Discharge temperature range | -4°F - 122°F (-20°C - 50°C) |
| Optimal discharge temperature range | 59°F - 95°F (15°C - 35°C) |
| Storage temperature range (SoC >50%) | -4°F - 113°F (-20°C - 45°C) (max 6 months) |
| Weight | 308.6 lb (140 kg) |
| Depth | 9.1 in (231 mm) |
| Width | 22.3 in (566.5 mm) |
| Height | 34.6 in (879 mm) |
| Max connections | Up to 3 parallel connections per 1 inverter |
| Protection rating | IP65 |
| Communications | CANBus / RS485 |
| Warranty | 10 years |

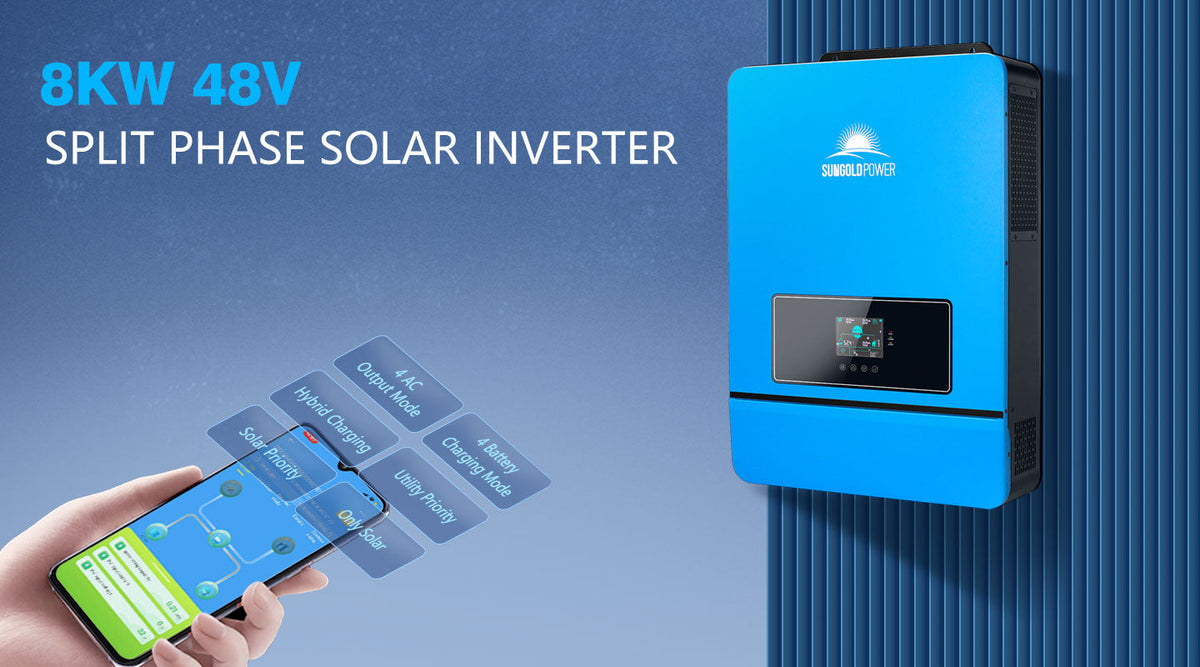

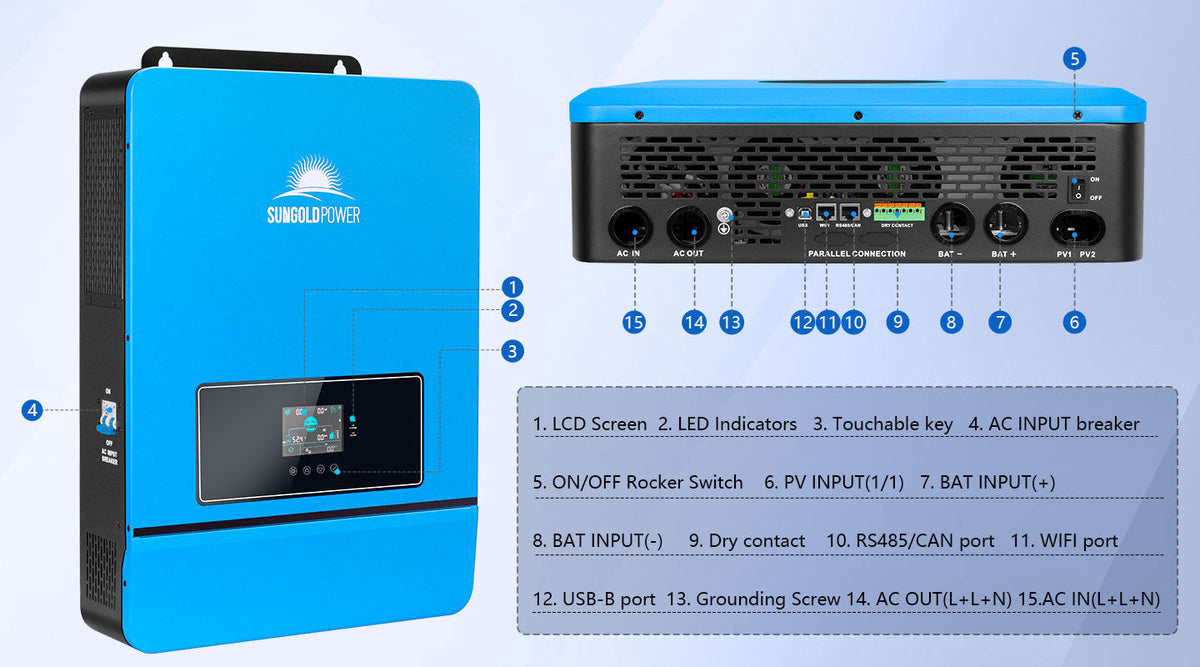

SPH8K48SP 8,000W 48V Split Phase Hybrid Solar Inverter

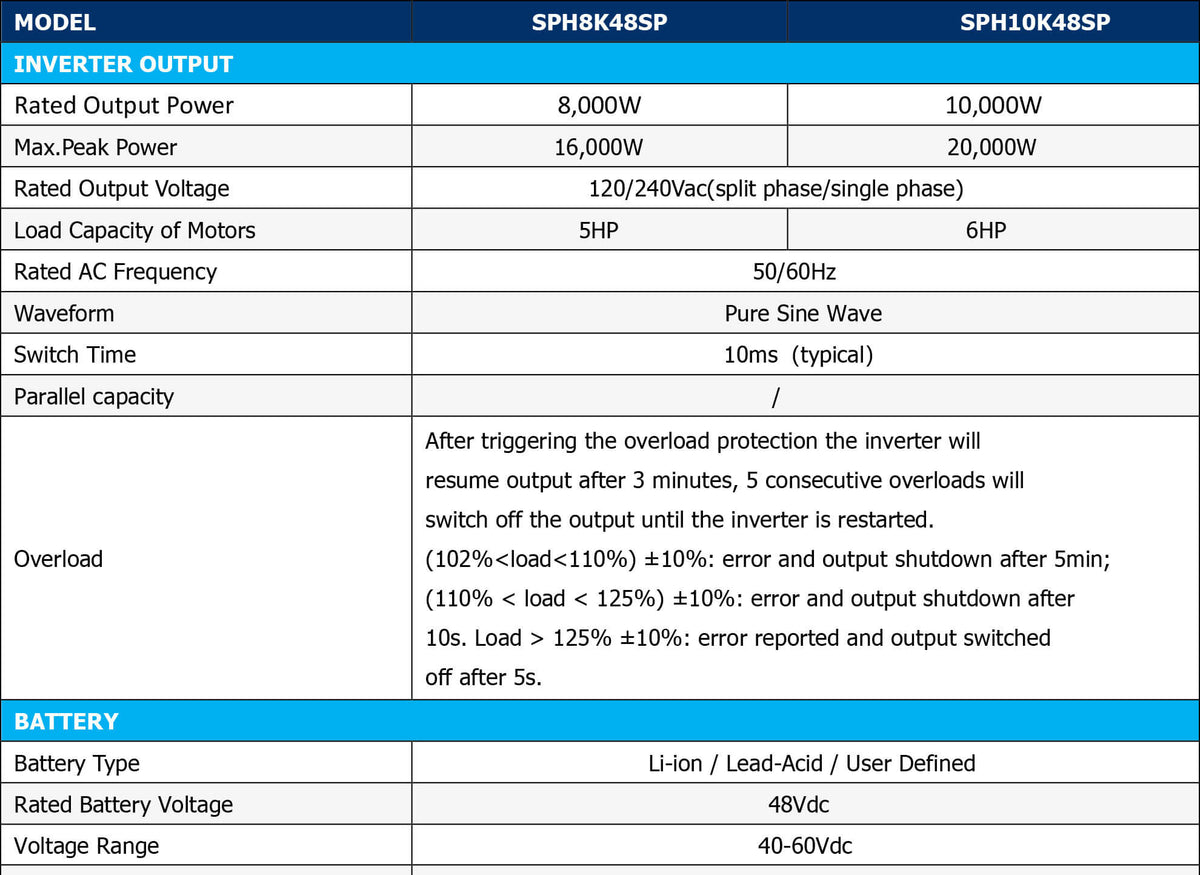

| Inverter Output | |
| Rated Output Power | 8,000W |
| Max Peak Power | 16,000W |
| Rated Output Voltage | 120/240VAC (split phase / single phase) |
| Load Capacity of Motors | 5HP |
| Rated AC Frequency | 50/60Hz |
| Waveform | Pure sine wave |
| Switch Time | 10ms (typical) |
| Overload | Resumes after 3 min; 5 consecutive overloads switch off the output until restart. 102-110%: shutdown after 5 min; 110-125%: after 10s; >125%: after 5s |
| Battery | |
| Battery Type | Li-ion / lead-acid / user defined |
| Rated Battery Voltage | 48VDC |
| Voltage Range | 40-60VDC |

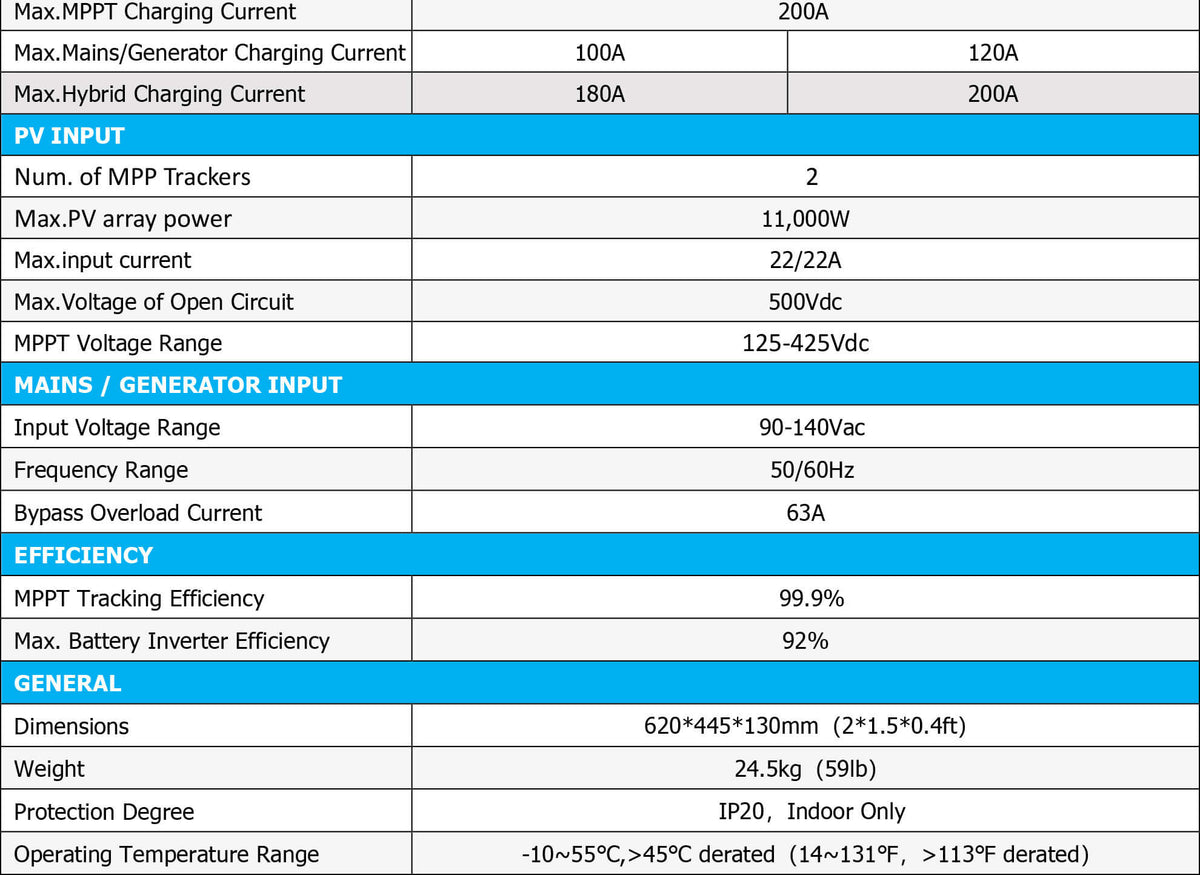

| Max MPPT Charging Current | 200A |
| Max Mains/Generator Charging Current | 100A |
| Max Hybrid Charging Current | 180A |
| PV Input | |
| Number of MPP Trackers | 2 |
| Max PV Array Power | 11,000W |
| Max Input Current | 22A / 22A |
| Max Open Circuit Voltage | 500VDC |
| MPPT Voltage Range | 125-425VDC |
| Mains / Generator Input | |
| Input Voltage Range | 90-140VAC |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 63A |
| Efficiency | |
| MPPT Tracking Efficiency | 99.9% |
| Max Battery Inverter Efficiency | 92% |
| General | |
| Dimensions | 620 × 445 × 130 mm (24.4 × 17.5 × 5.1 in) |
| Weight | 24.5 kg (59 lb) |
| Protection Degree | IP20, indoor only |
| Operating Temperature | -10 to 55°C, derated above 45°C (14 to 131°F, derated above 113°F) |

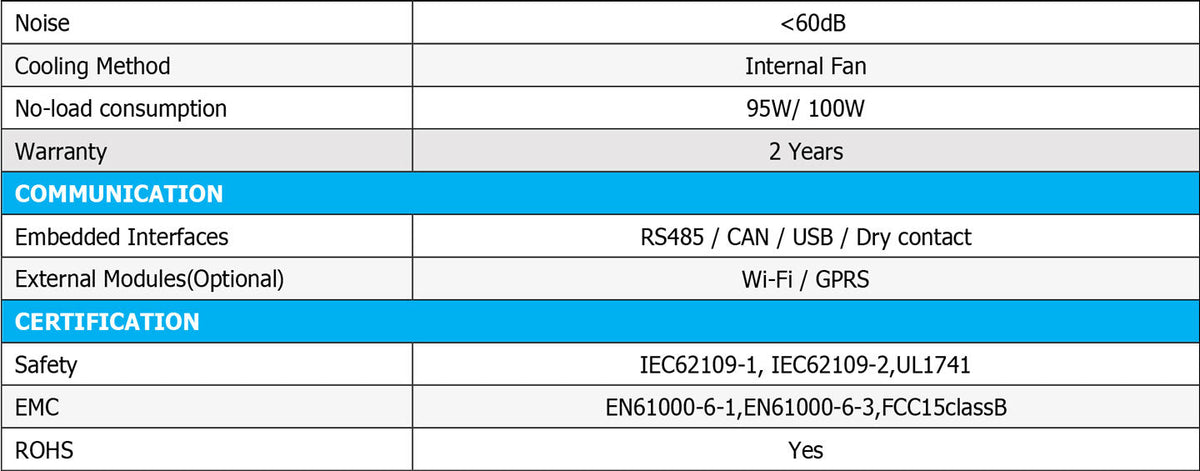

| Noise | <60dB |
| Cooling | Internal fan |
| No-load Consumption | 95W / 100W |
| Warranty | 2 years |
| Communication | |
| Embedded Interfaces | RS485 / CAN / USB / dry contact |
| External Modules (optional) | Wi-Fi / GPRS |
| Certification | |
| Safety | IEC62109-1, IEC62109-2, UL1741 |
| EMC | EN61000-6-1, EN61000-6-3, FCC15 class B |
| RoHS | Yes |

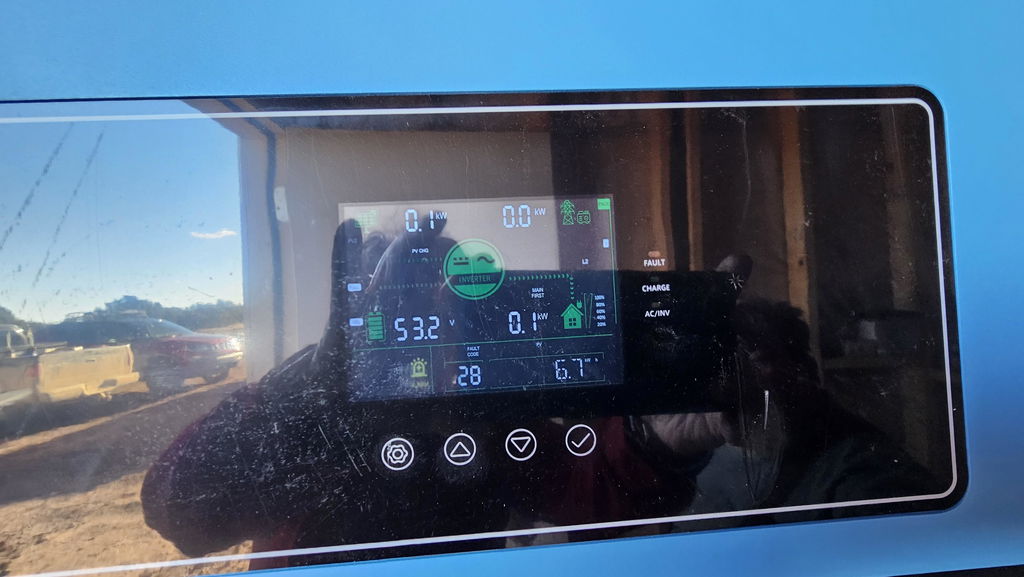

Configured with Wi-Fi components, allowing users to easily access inverter data via mobile phone.

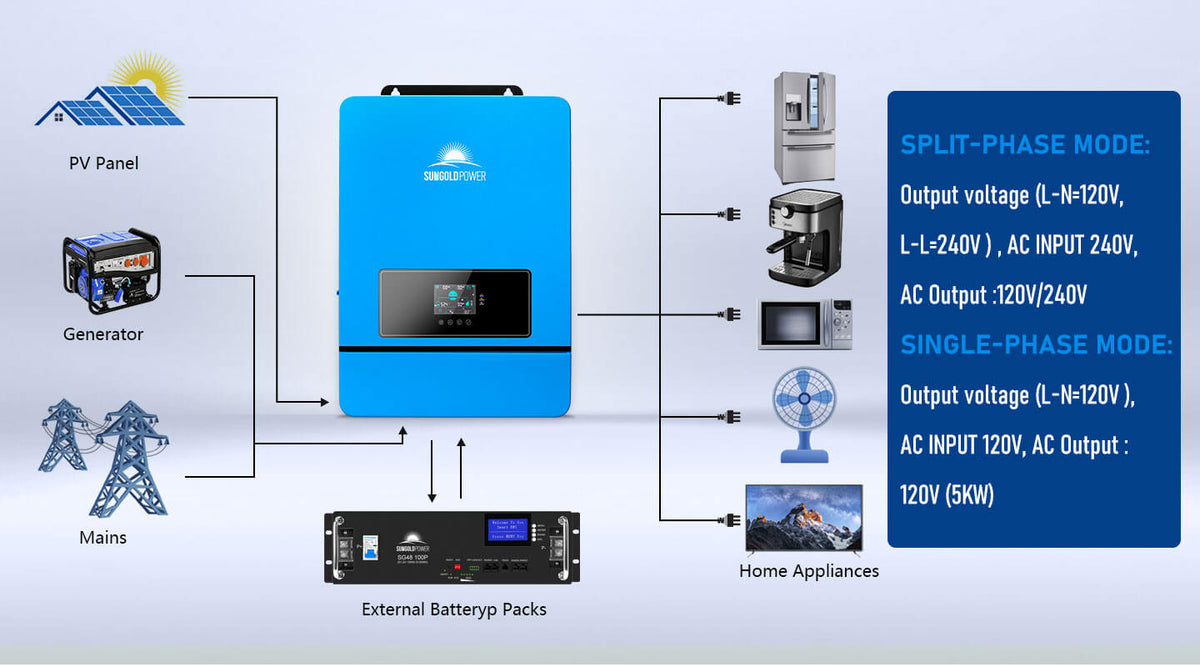

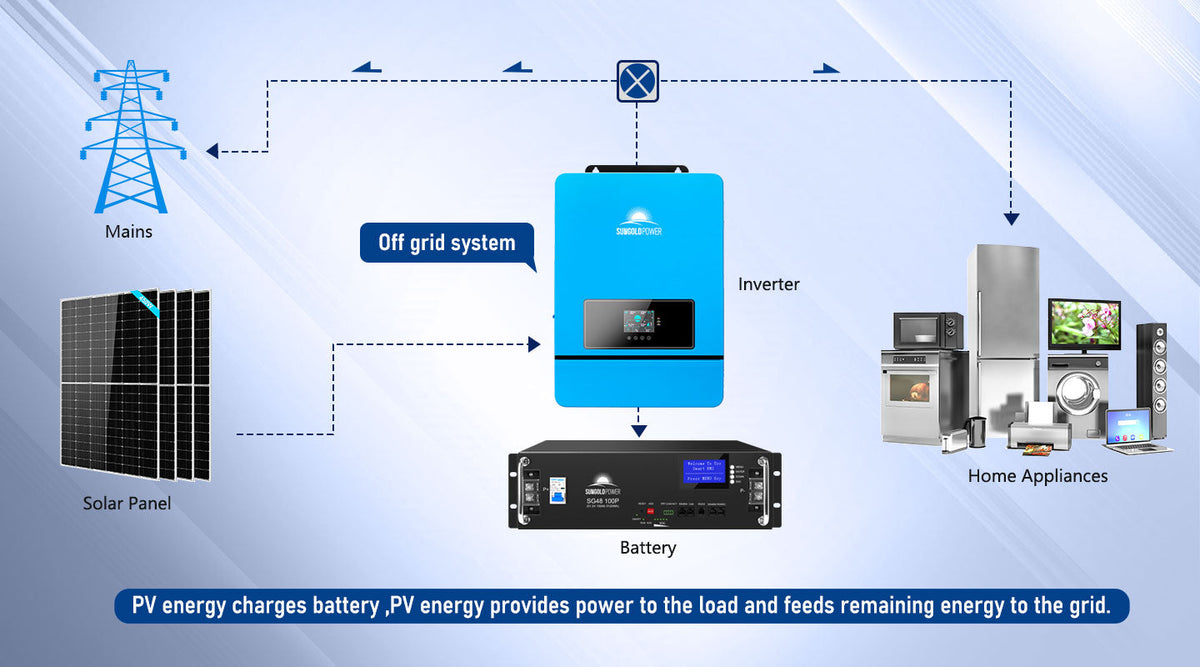

PV can charge the battery and supply power to the load via the inverter. If PV or battery power is insufficient, the grid or generator can power the load and charge the battery.
An off-grid solar inverter with solar panels that generates electricity, stores it in solar batteries, and runs independently from the power grid.

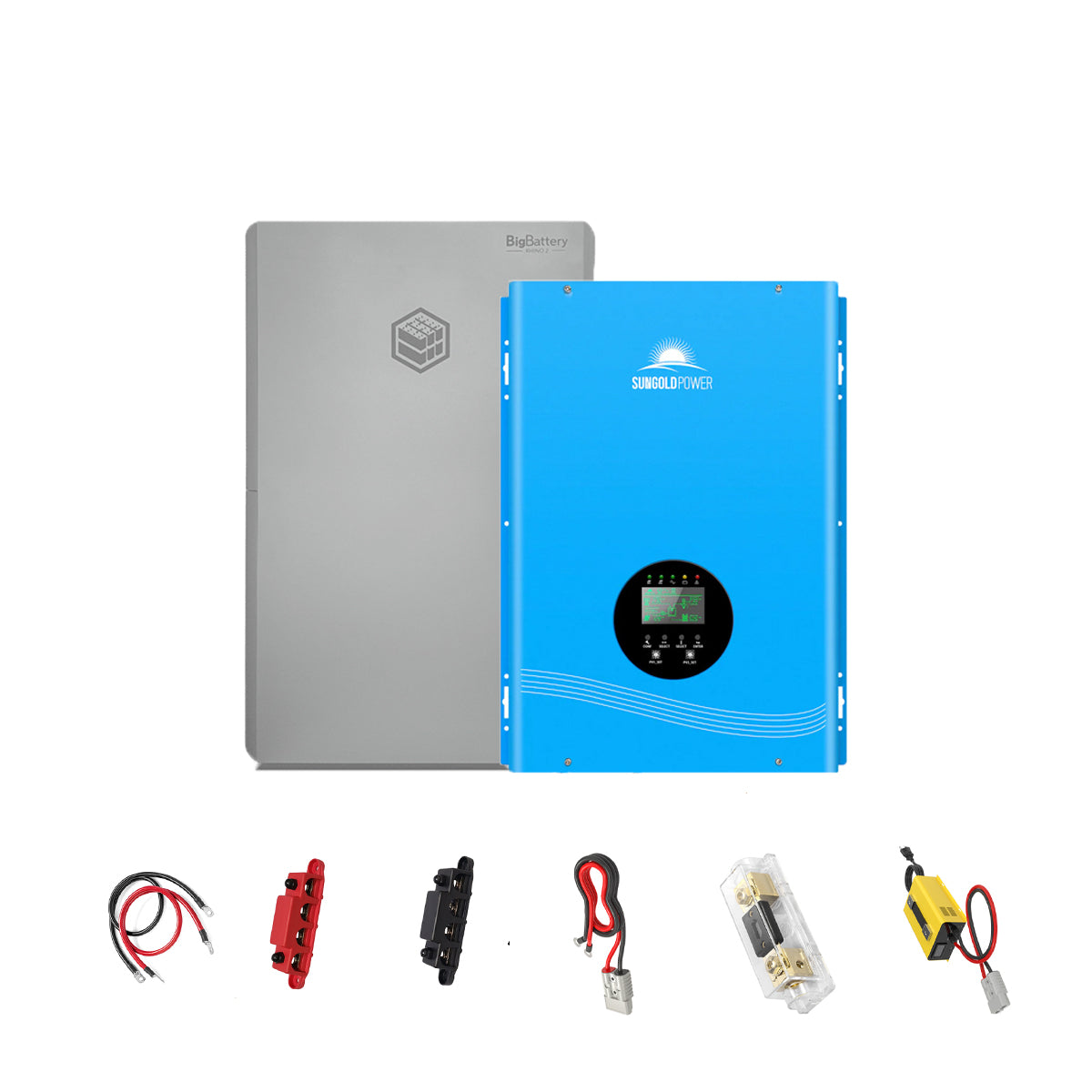

Advertised as a complete kit.
This is not true.

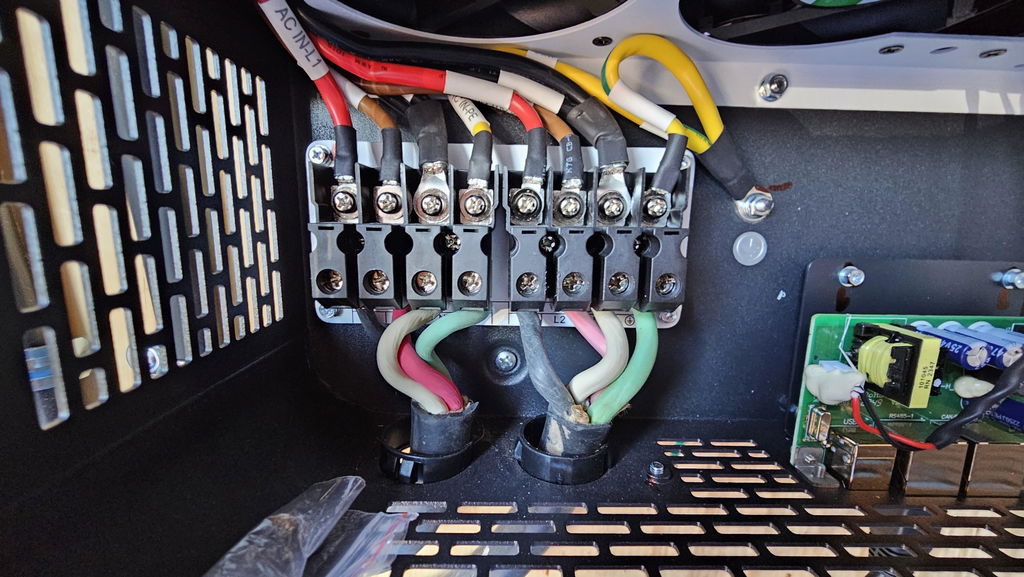

There was no wire or terminals for the batteries. Just a breaker and the batteries. One would think that they would at least put something with the kit.
Also the 2 solar breakers had no way of mounting without ordering brackets for them.
Another $500 later and I should be able to get the system up and running.
(Review from sungoldpower.com)
This off grid set was a bit to install, once up and running the run time was used up quick. Tech support helped us get all set up but the information that is provided does not tell you how much usage you get with 4 batteries or what size generator you need and the wattage and volts needed to charge batteries. We purchased an 8500 watt inverter generator to run our house and then to charge batteries and to our surprise it was not enough power. It kept tripping the breaker on our generator. I feel this Info should be provided in the description. Don't get me wrong the system is great but does need more batteries and consumer needs to know about what size generator is needed to recharge batteries. We were disappointed to find that we spent 2200.00 on a generator that can't help us. Now we need 4 more batteries and a new generator. Do your research people, make sure you know all the specs of the system before purchase. We did that and still have issues.
(Review from sungoldpower.com)
