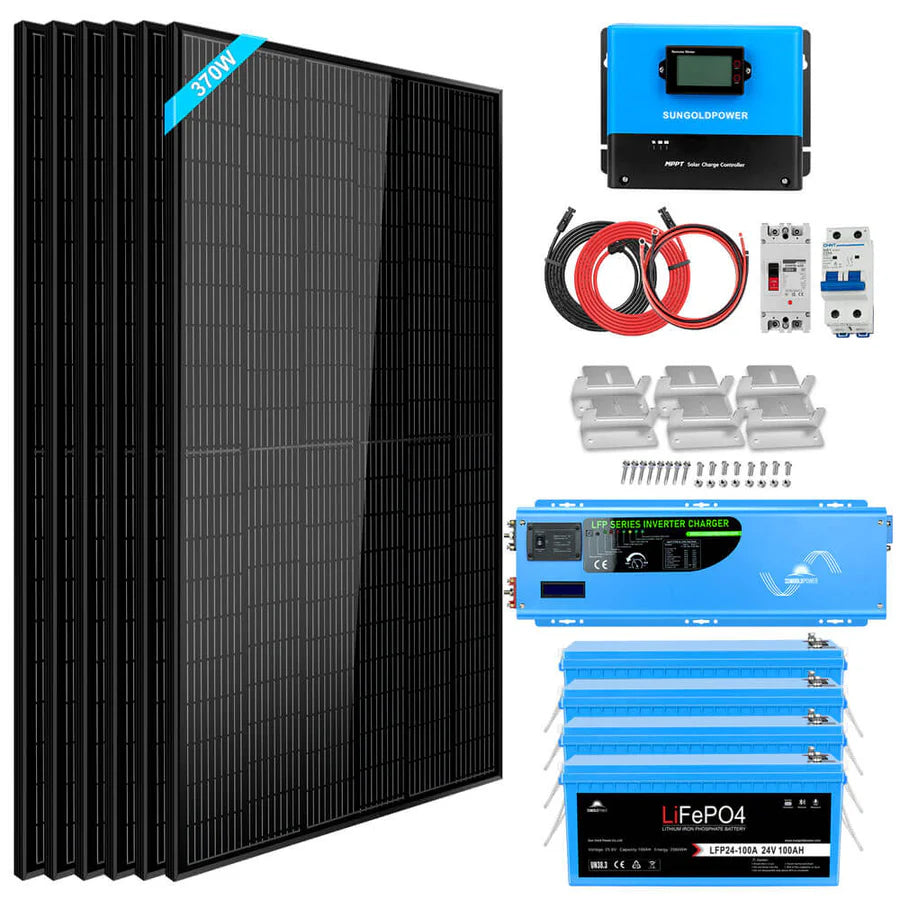

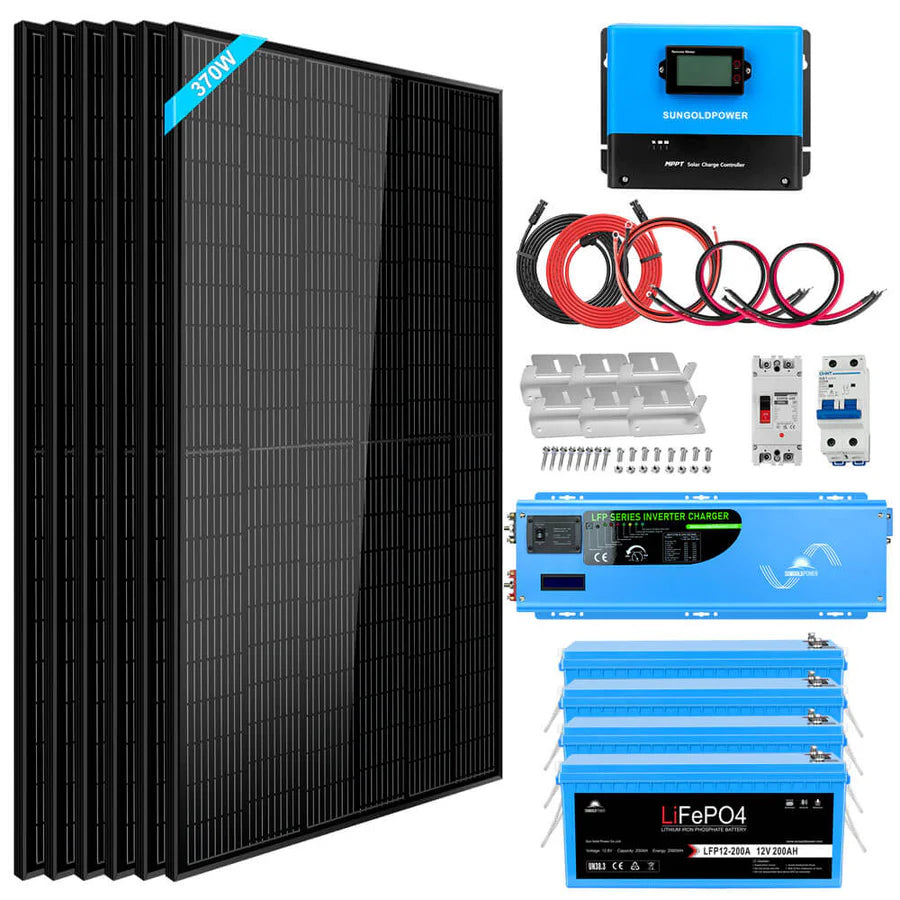

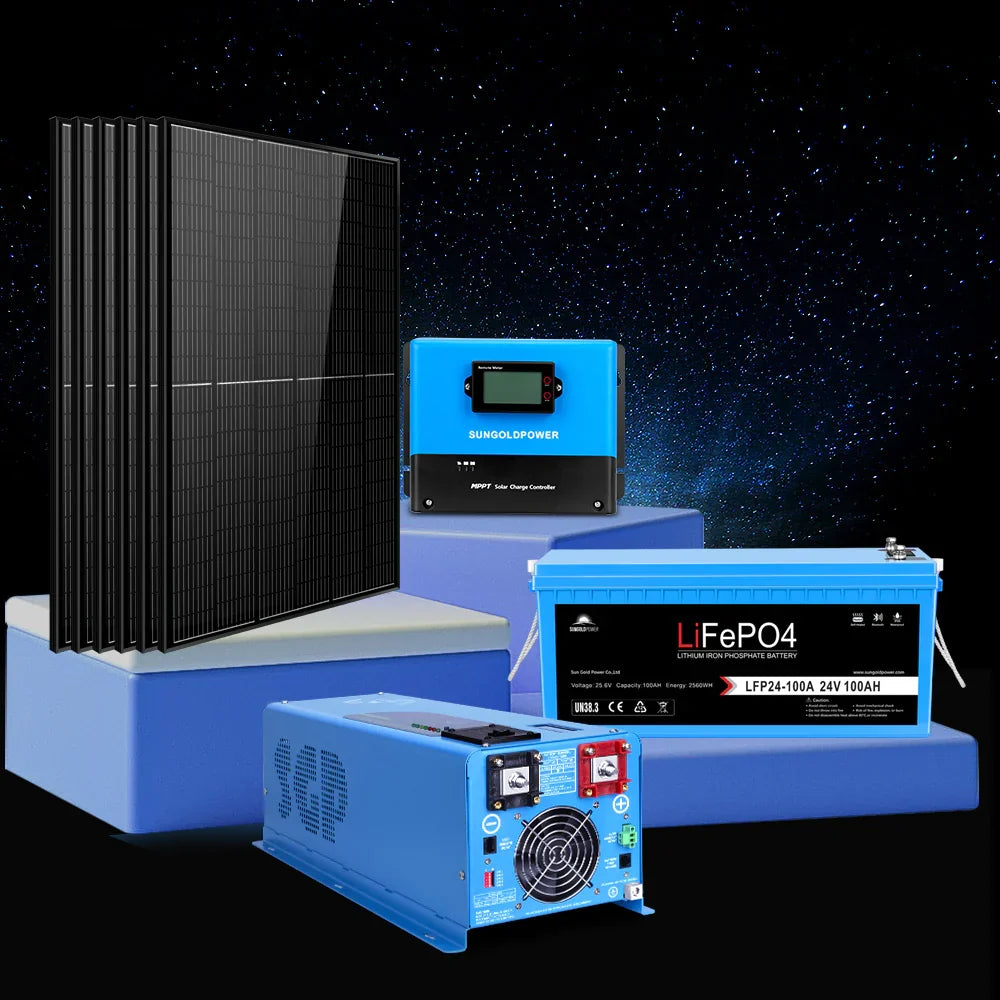

Solar Kit · 6,000W · 10,240Wh

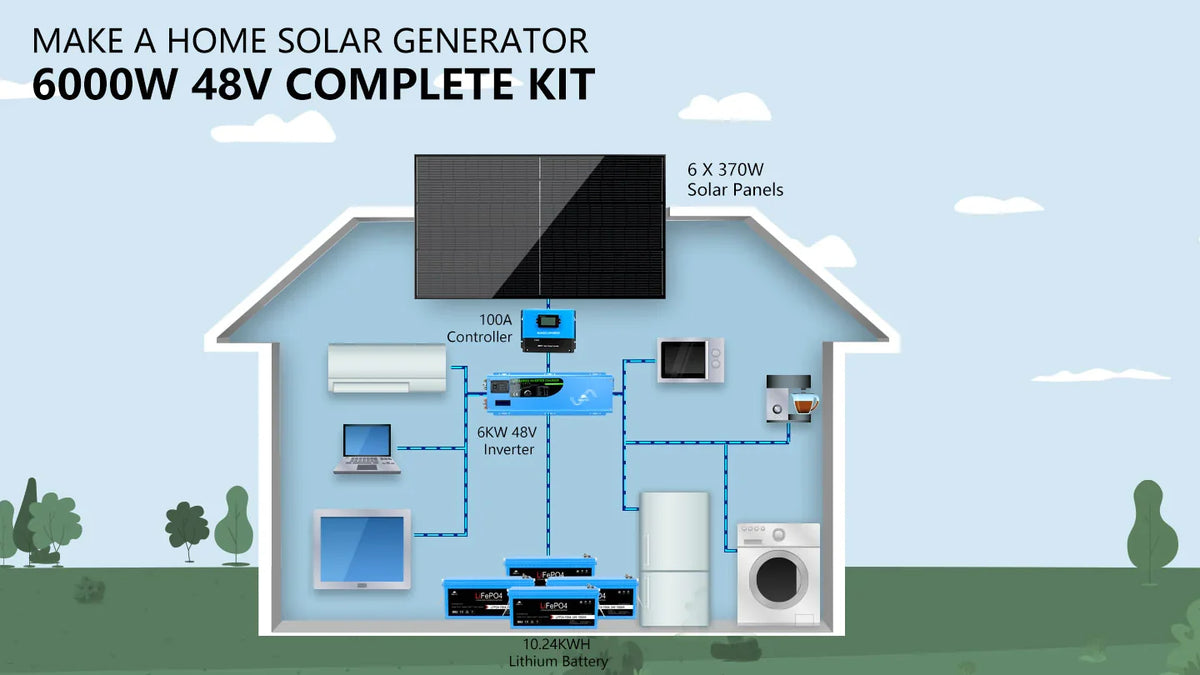

Introducing our comprehensive off-grid solar system kit, meticulously designed to deliver 2.22KW of sustainable solar power and storage to mid-sized off-grid homes or remote cabins. Equipped with a cutting-edge 10.24KWH Lithium battery system and efficient solar panel mounting, you're primed for energy independence.
This advanced system features a 6000W 48V split-phase Inverter/Charger UL1741, capable of powering the majority of 120V and 240V home appliances. With auto-generator start functionality, you'll experience the seamless transition to clean, quiet, and remarkable off-grid power. Say goodbye to reliance on conventional energy sources and embrace a new era of self-sufficiency with our off-grid solar system kit.
For smaller off-grid setups or lower power needs, consider our Sungold Power 3000W 24V Solar Inverter Charger with 2×24V 100Ah Batteries - a compact yet reliable solution for cabins, RVs, or backup power.

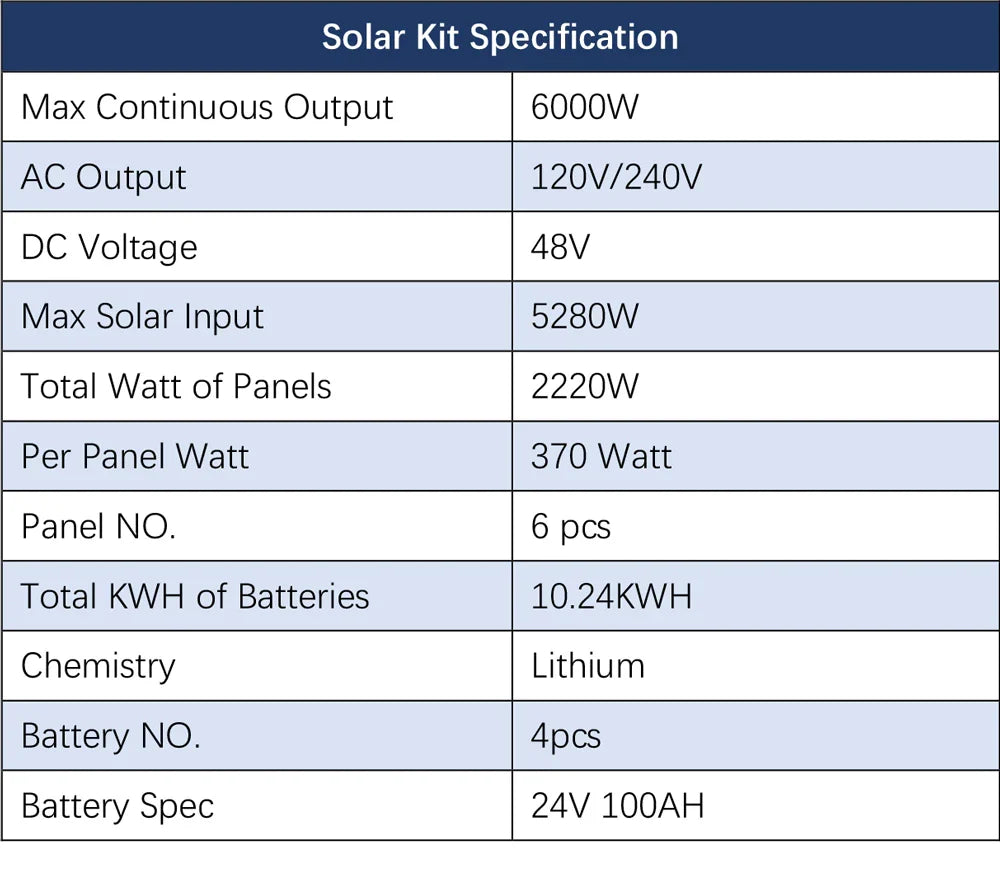

Solar Kit Specification (SGK-PRO64)
| Max Continuous Output | 6,000W |
| AC Output | 120V/240V |
| DC Voltage | 48V |
| Max Solar Input | 5,280W |
| Total Solar Panel Watts | 2,220W |
| Per Panel Watts | 370W |
| Number of Panels | 6 |
| Total Battery Capacity | 10.24kWh |
| Battery Chemistry | Lithium (LiFePO₄) |
| Number of Batteries | 4 |
| Battery Spec | 12V 200Ah (4 in series for 48V) |

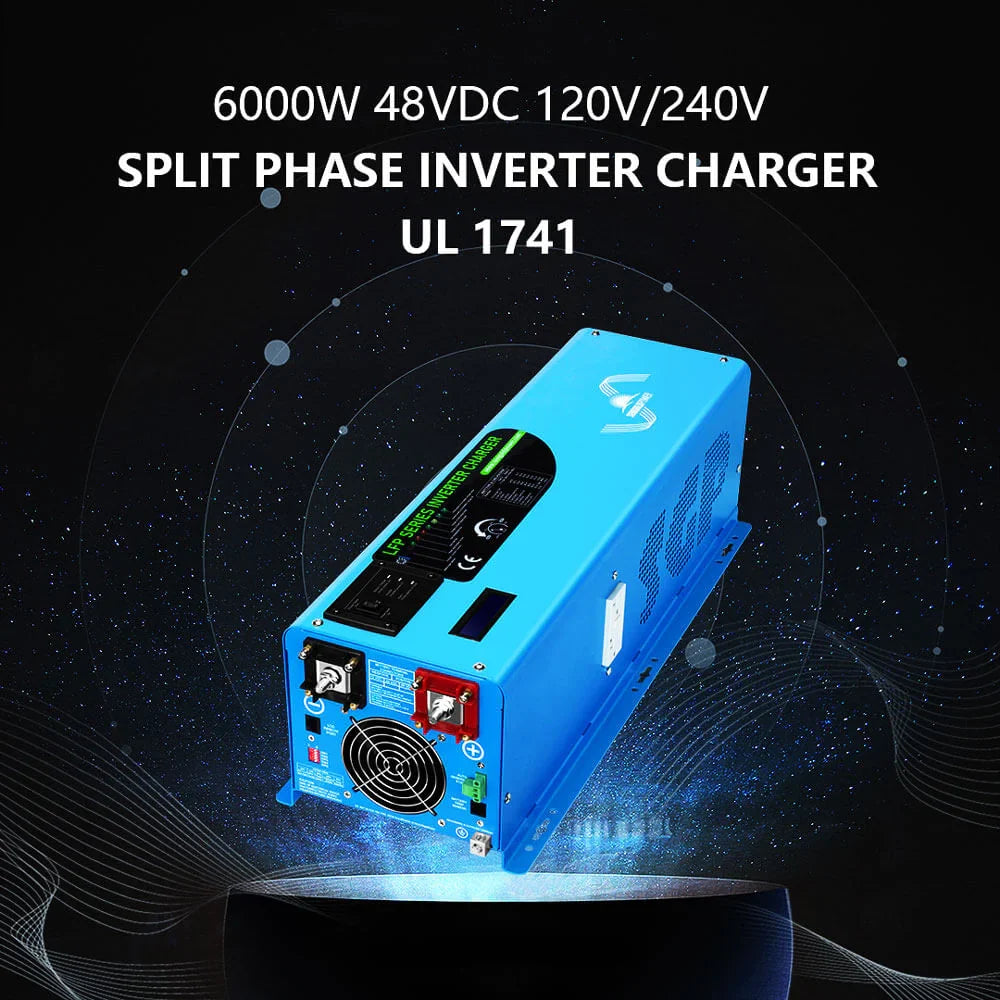

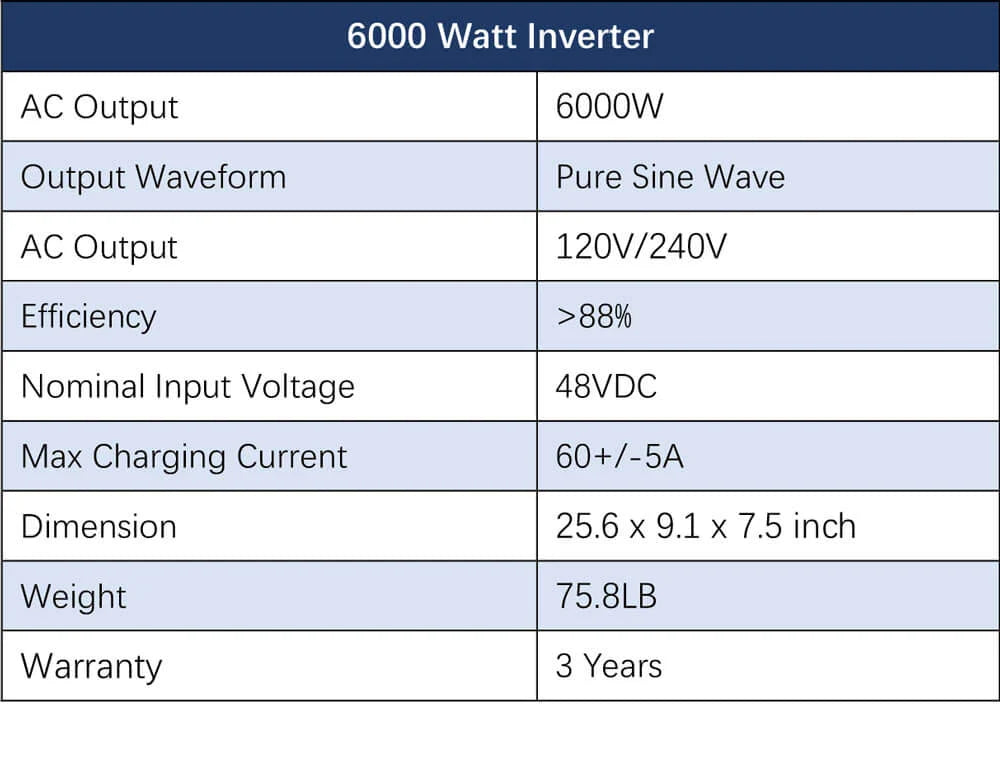

Sungold Power 6,000W 48V Split Phase Inverter Charger
| Continuous Output Power | 6000W |
| Surge Rating | 18000W (20 Seconds) |
| AC Output | AC 120V and AC 240V |
| AC Input | 240V |
| Output Wave | Pure Sine Wave (bypass mode) |
| Typical Transfer Time | 10ms (MAX) |
| Nominal Efficiency | >88% |
| Inverter Output | |
| Nominal Input Voltage | 48.0Vdc |
| Minimum Start Voltage | 40.0Vdc |
| Low Battery Alarm | 42.0Vdc-44.0Vdc |
| Low Battery Trip | 40.0Vdc-42.0Vdc (select by SW1) |
| High Voltage Alarm | 64.0Vdc |
| Low Battery Voltage Restart | 52Vdc |
| Idle Consumption | 81W |
| Power Saver Mode Idle Consumption | 30W |
| DC Input | |
| Charger Rate | 60+/-5A |
| AC Input Range (Grid or Generator) | 140V-270VAC/184V-253VAC (select by SW2) |
| Over Charge Protection Shutdown | 62.8V |
| Selectable Charge Setting | Yes |
| Adjustable Charge Current | Off 0%-100% |
| 3-Step Intelligent Battery Charger | Yes |

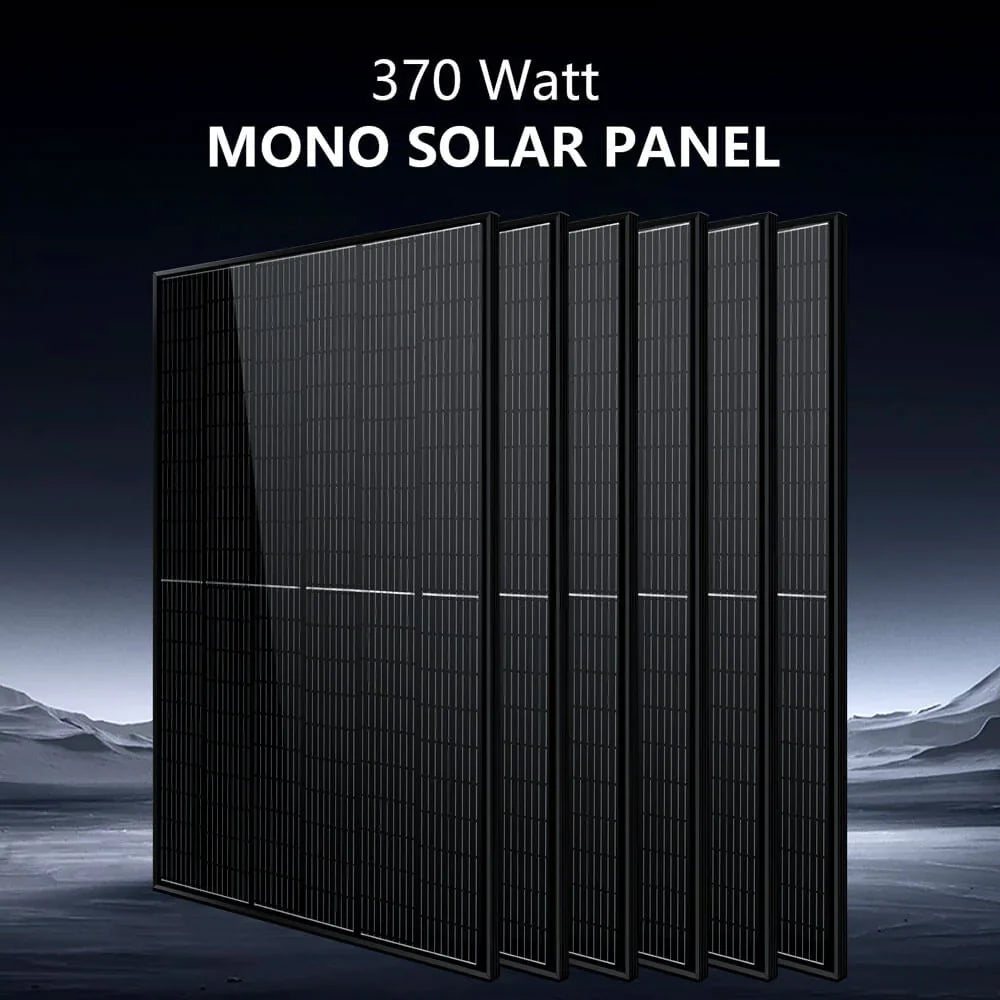

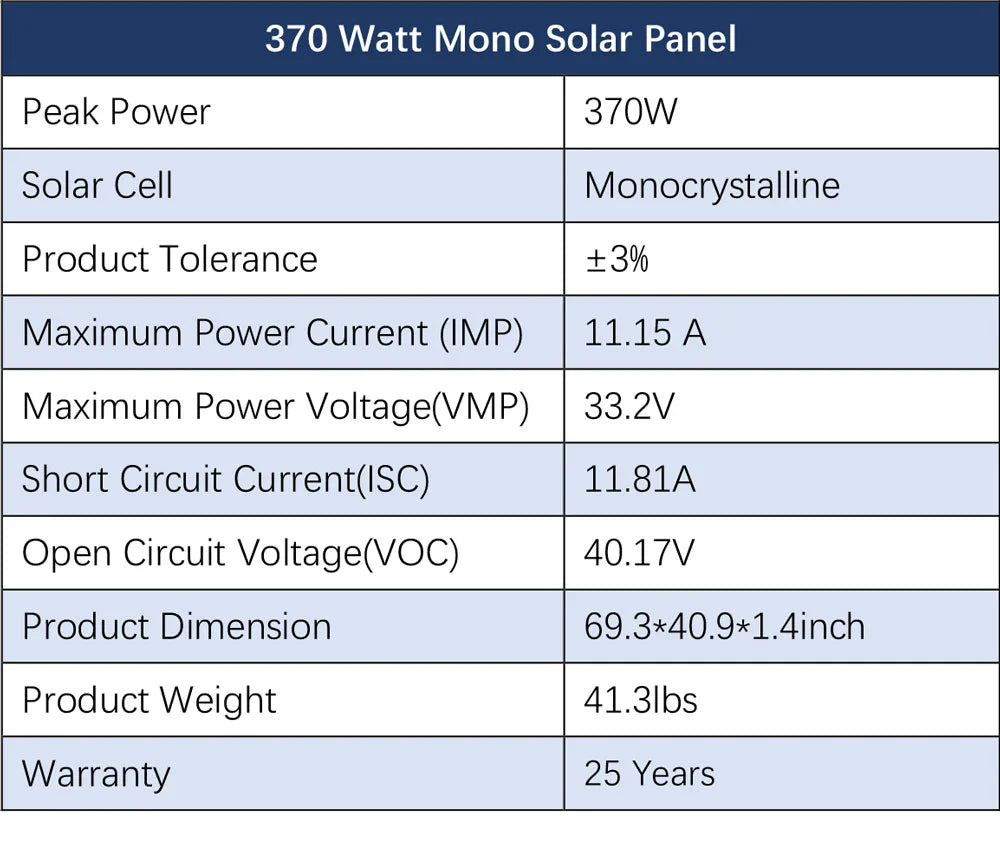

6× Sungold Power 370W Monocrystalline PERC Solar Panel
| Model type | SG-370WM |
| Peak power (Pmax) | 370 W |
| Production tolerance | ± 3% |
| Max. power current (Imp) | 11.15 A |
| Max. power voltage (Vmp) | 33.2 V |
| Short circuit current (Isc) | 11.81 A |
| Open circuit voltage (Voc) | 40.17 V |
| Max. system voltage | 1,500 V |
| Wind resistance | 2,400 Pa |
| Snow load | 5,400 Pa |
| Output cables | 12 AWG (1ft per cable) |
| Number of cells | 120 (6×20) |
| Cell type | Mono 166×83mm |
| Certifications | CE, TUV |
| Product weight | 41.3 lbs |
| Product dimensions | 69.3 × 40.9 × 1.4 in |

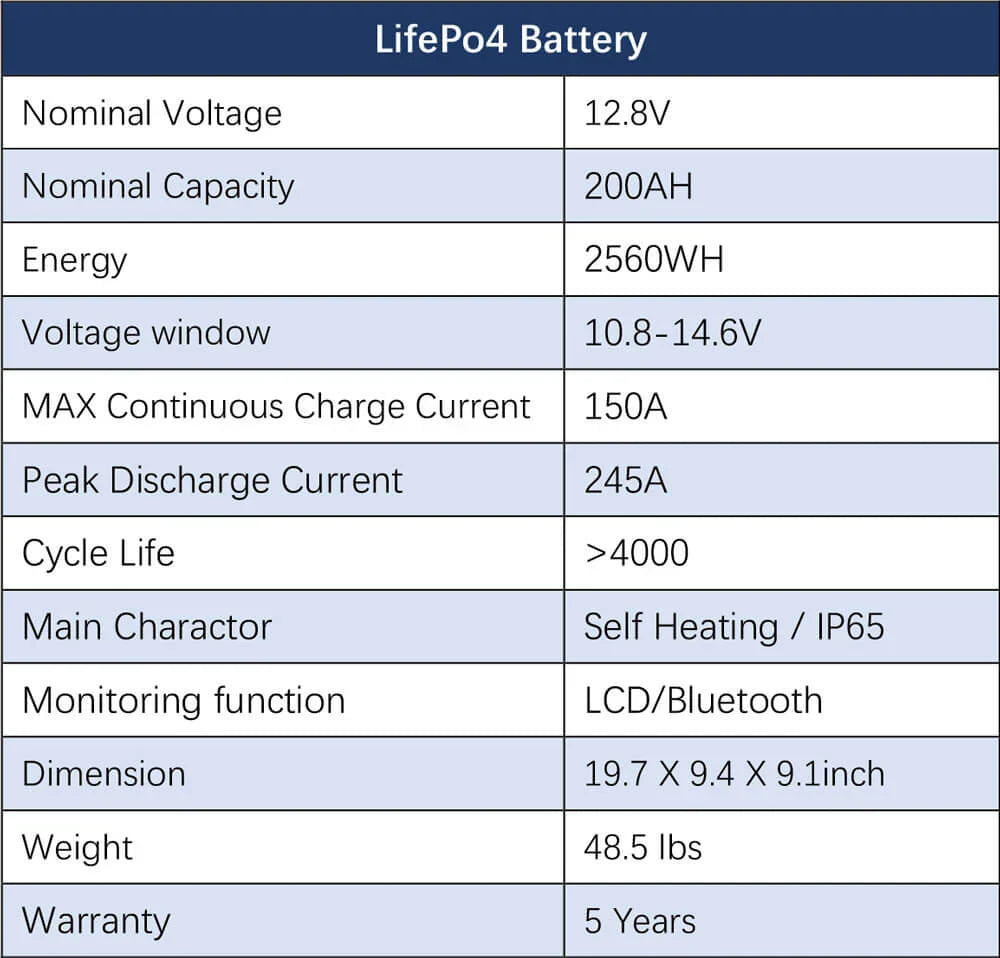

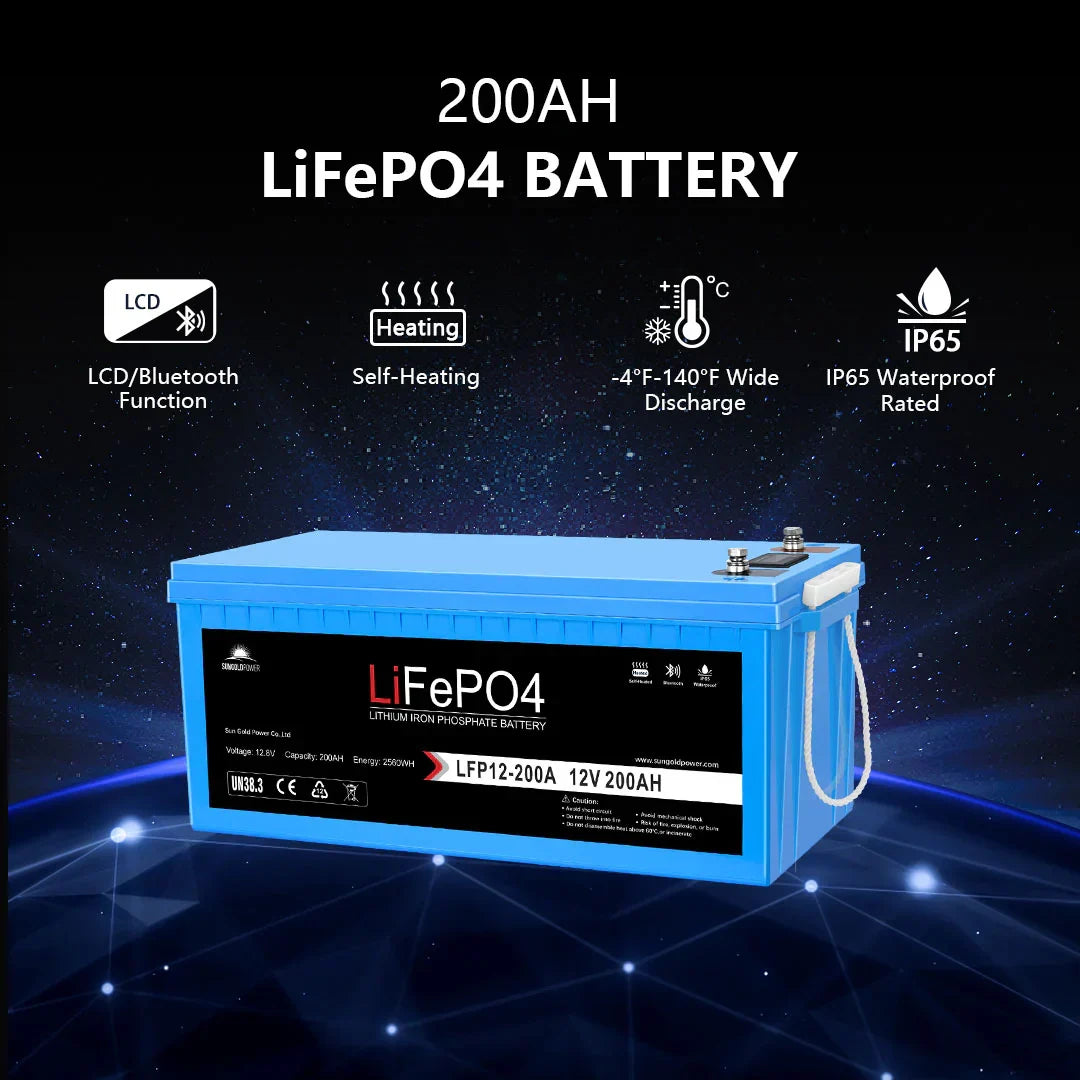

4× Sungold Power 12V 200Ah LiFePO4 Battery
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Energy | 2,560Wh |
| Voltage Window | 10.8-14.6V |
| Max Continuous Charge Current | 150A |
| Peak Discharge Current | 245A |
| Cycle Life | >4,000 cycles |
| Main Features | Self-heating / IP65 |
| Monitoring | LCD / Bluetooth |
| Dimensions | 19.7 × 9.4 × 9.1 in |
| Weight | 48.5 lb |
| Warranty | 5 years |

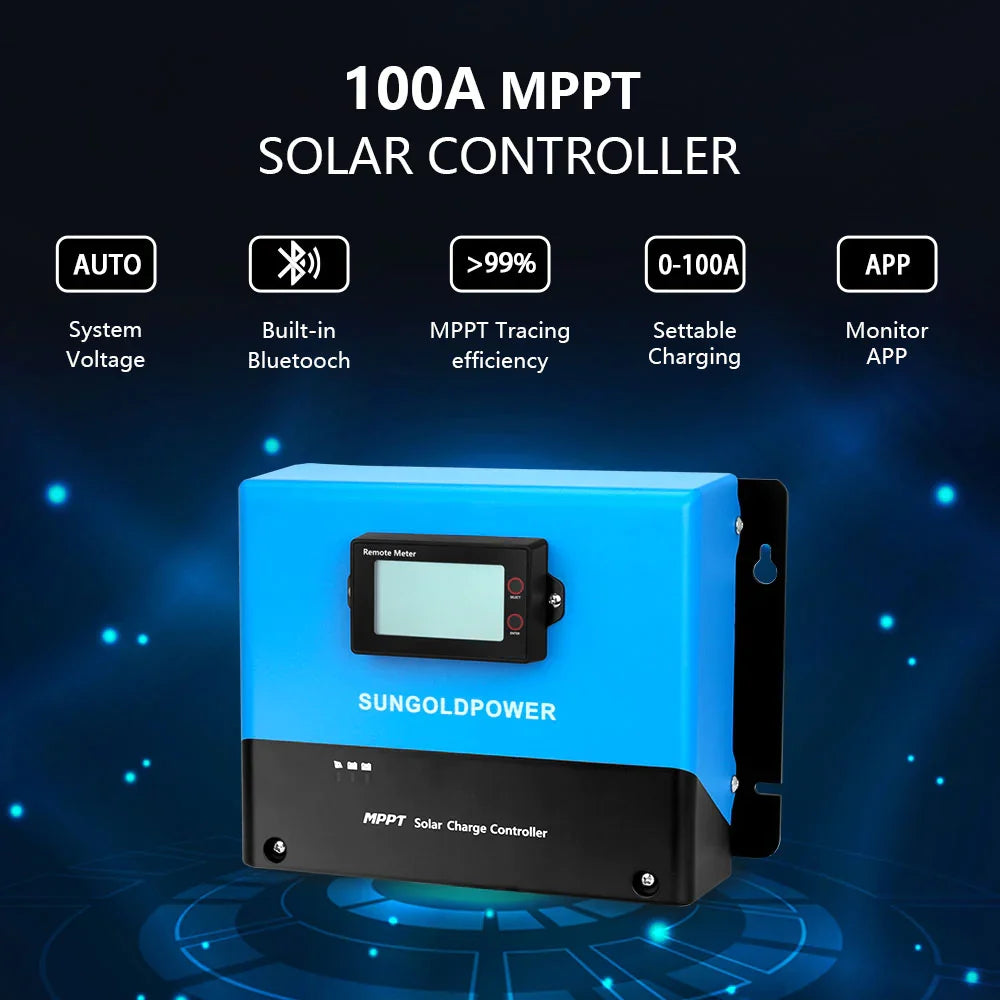

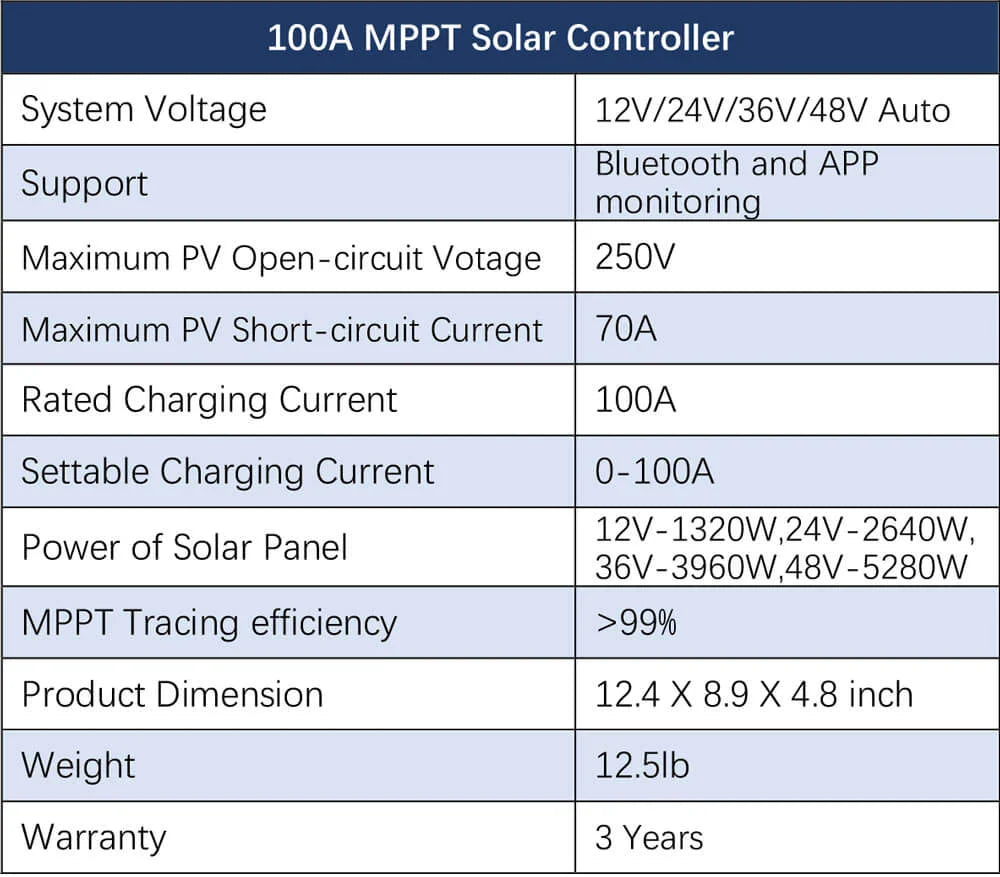

Sungold Power 100A MPPT Solar Charge Controller
| System Voltage | 12V/24V/36V/48V auto |
| Monitoring | Bluetooth and app monitoring |
| Max PV Open-Circuit Voltage | 250V |
| Max PV Short-Circuit Current | 70A |
| Rated Charging Current | 100A |
| Settable Charging Current | 0-100A |
| Max Solar Array Power | 12V: 1,320W · 24V: 2,640W · 36V: 3,960W · 48V: 5,280W |
| MPPT Tracking Efficiency | >99% |
| Dimensions | 12.4 × 8.9 × 4.8 in |
| Weight | 12.5 lb |
| Warranty | 3 years |
