Eco Solar Kits · Sungold Power · SGH-7.6DN6E

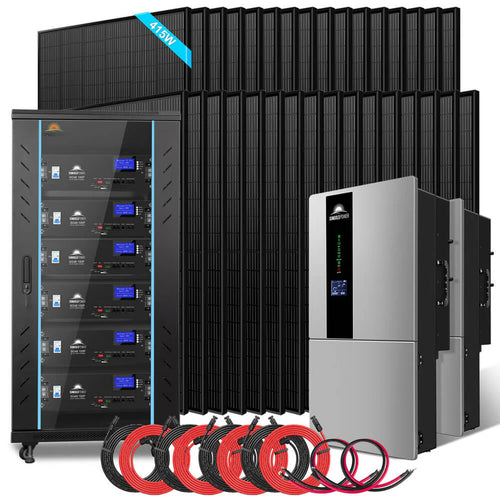

A complete hybrid solar system — dual 7.6kW split-phase inverters with grid-tie capability, 30.72kWh of LiFePO₄ battery storage, and thirty-two 415W monocrystalline panels — supports off-grid, hybrid, and grid-tied configurations.

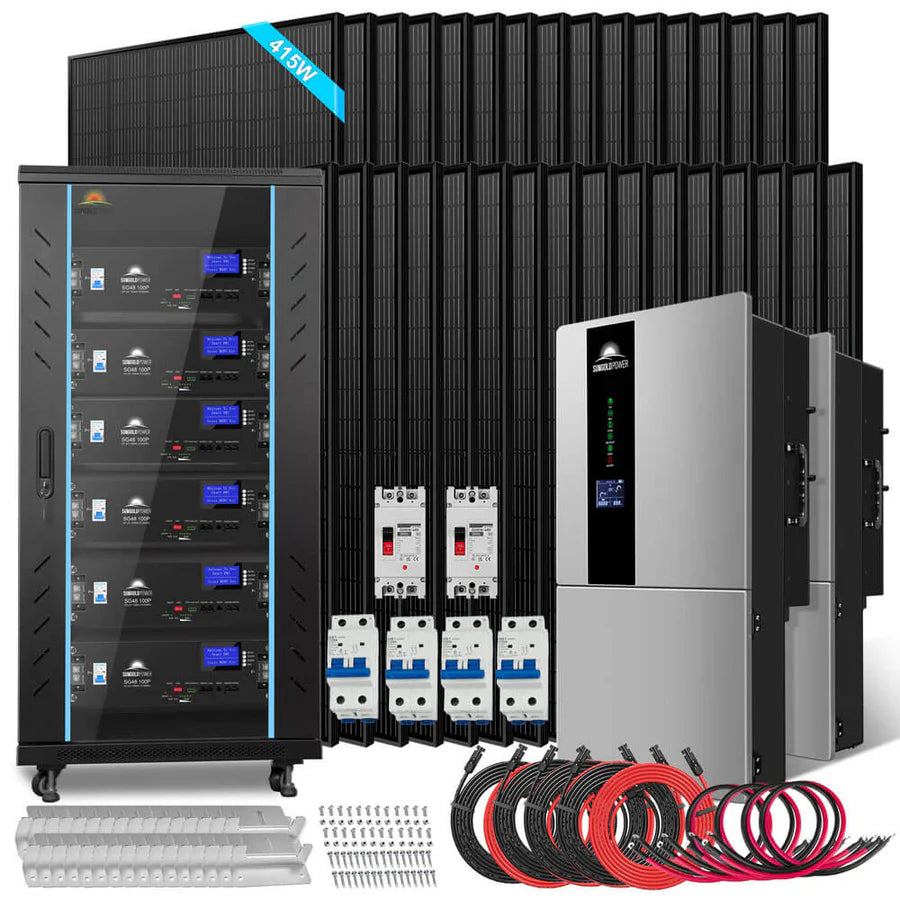

This Hybrid Solar Kit features 13,280W of solar panels, 2 x 7.6kW hybrid inverters, and 30.72kWh of lithium battery storage.
Two 7.6kW inverters paralleled, each with extra headroom available briefly for motor starts and other high-draw moments.
Run appliances on solar, send excess to the grid, or store power for backup — one system, three modes.
Two inverters, three MPPT trackers each, supporting up to 600V per tracker — well beyond the 13,280W of panels included here.
Track performance, battery status, and system behavior from your phone or browser.
Beyond the 2 inverters included, parallel up to 9 total for a 68.4kW system as power needs grow.
Meets utility-interconnection standards for grid-tie use, in a rated-for-outdoor enclosure.
Confirmed directly for this inverter model — notably longer than the off-grid SPH-series inverters.

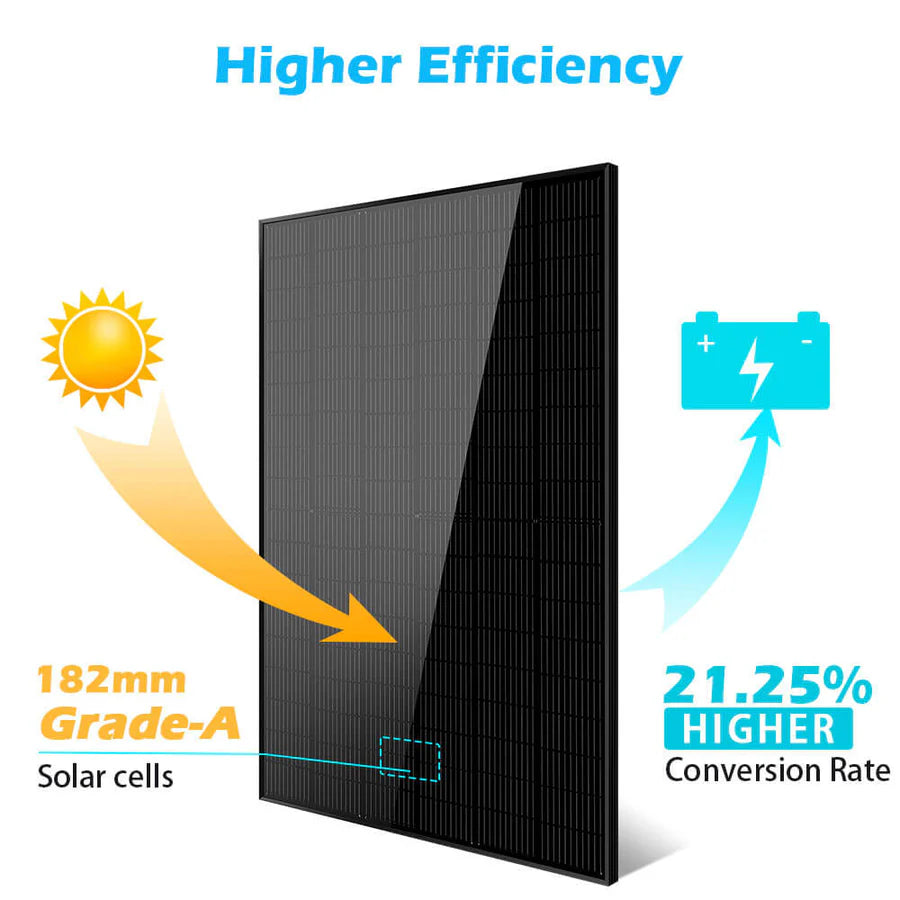

182mm Grade-A monocrystalline cells backed by a 25-year linear product warranty.

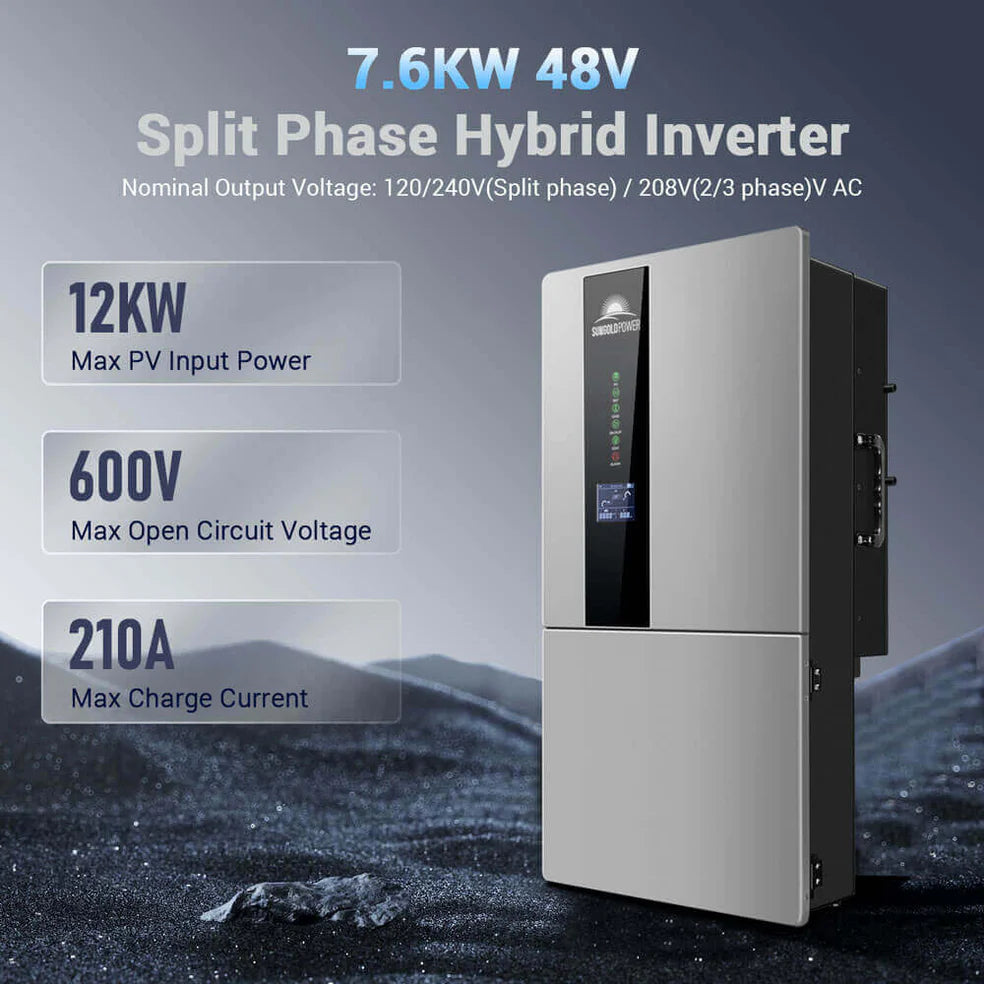

SGN7.6K1HB-48 Hybrid Inverter (×2, Paralleled)
Per-unit values below; two units paralleled for 15.2kW combined continuous output.
| Continuous output power | 7.6 kW |
| Peak output power | Up to 10 kW |
| Rated output voltage | 120/240Vac split-phase, or 208V (2/3 phase) |
| AC frequency | 50/60 Hz |
| Battery voltage range | 40–64 Vdc |
| Max. charge current | 210 A |
| Max. discharge current | 180 A |
| No. of MPPT trackers | 3 (independent) |
| Max. combined solar input | 12 kW |
| Max. voltage per tracker | 600 Vdc |
| PV voltage range | 70–540 Vdc |
| Operating modes | Off-grid / Hybrid / Grid-tied |
| AC coupling | Supported (single-inverter systems only) |
| Monitoring | WiFi + mobile app, LCD display |
| Protection rating | IP65 |
| Mounting | Wall-mounted |
| Max parallel | 9 units total, up to 68.4kW combined |
| Safety | UL 1741, UL 1699B, UL 1741SB, CSA C22.2 |
| Grid standards | IEEE 1547:2018, HECO SRD 2.0, CEC Listed |
| Warranty | 10 years |

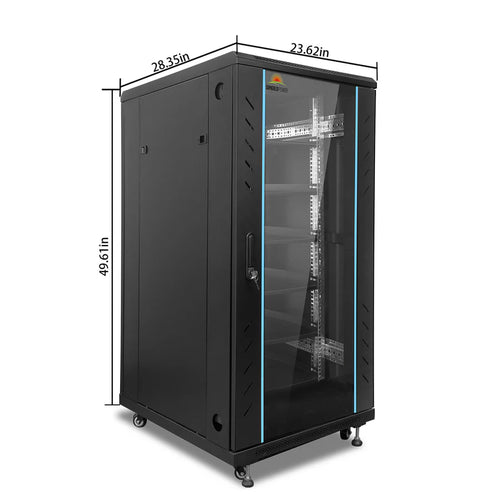

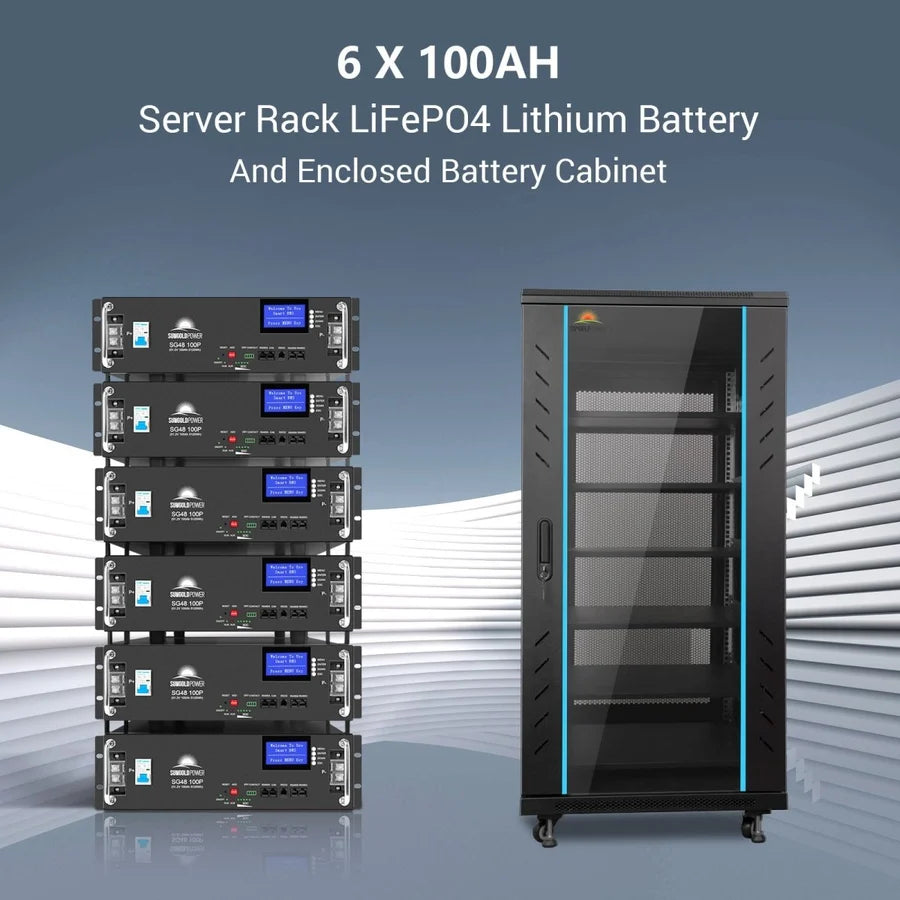

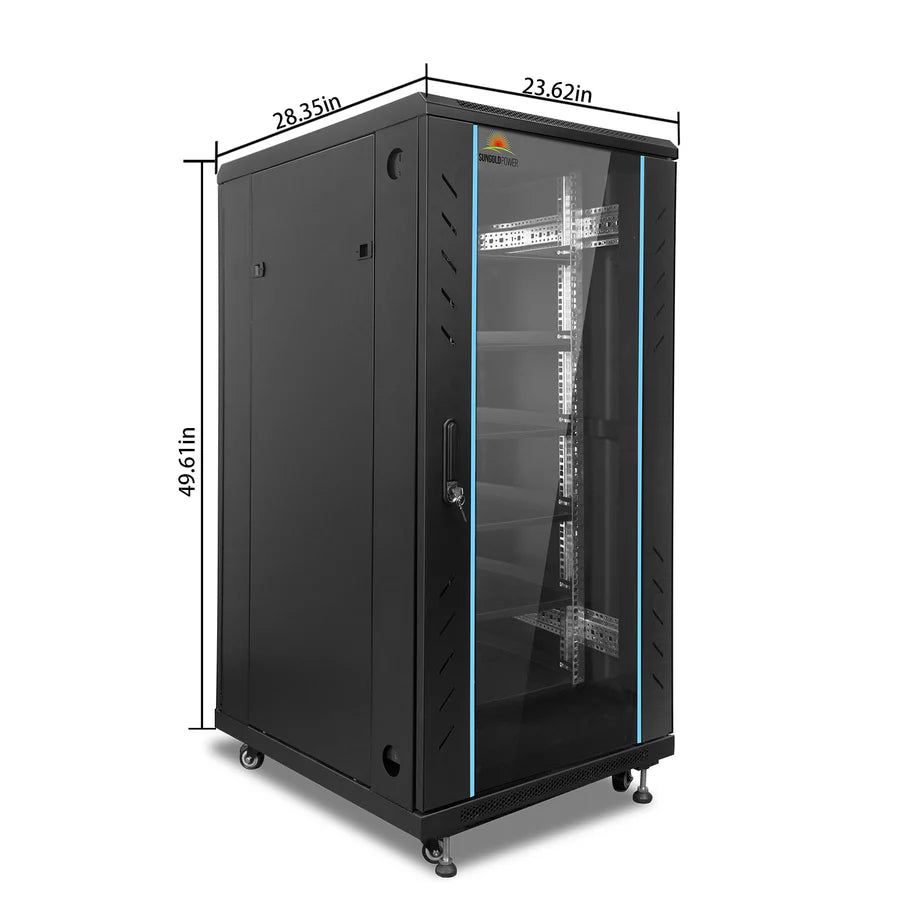

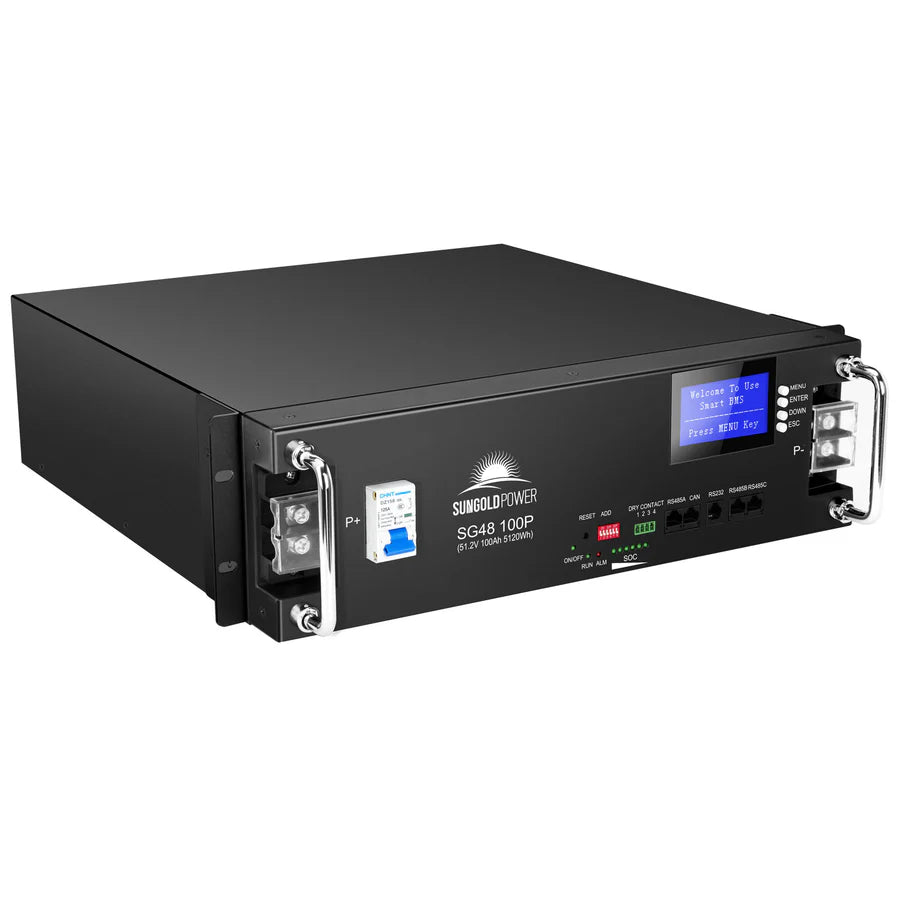

SG48100P LiFePO₄ Battery (×6, In Enclosed Cabinet)
| Rated capacity | 100 Ah |
| Nominal voltage | 51.2 V |
| Energy per unit | 5,120 Wh |
| Combined (6 units) | 30,720 Wh (30.72 kWh) |
| Cycle life* | ≥7,000 to 80% capacity |
| Design life | 15 years |
| Warranty | 10 years |
| Certification | UL1973 |
| Smart BMS | Overcharge, deep-discharge, overheat, short-circuit |
| Communication | CAN / RS485 / RS232 |
| Inverter compatibility | Growatt, Deye, Luxpower, Victron, and more |
| Max parallel (battery spec) | 32 units |
| Cabinet capacity (this kit)** | 6 units |

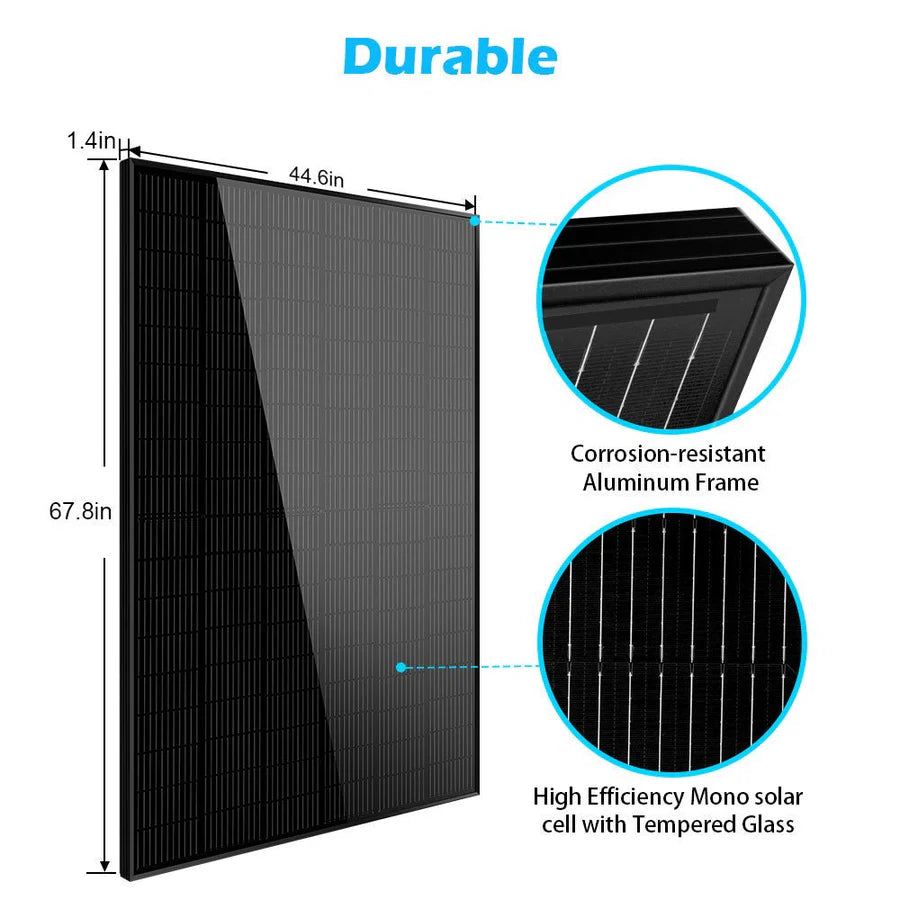

SG-415WM Monocrystalline Panel (×32)
| Max. power | 415 W |
| Max-power voltage | 31.61 V |
| Max-power current | 13.13 A |
| Open-circuit voltage | 38.82 V |
| Module efficiency | 21.25% |
| Cell type | Mono 182×91mm (108 cells) |
| Weight (each) | 45.1 lbs (20.45 kg) |
| Dimensions | 67.9 × 44.7 × 1.4 in |
| Junction box | IP68 |
| Warranty | 25yr linear product + 10yr workmanship |
Yes — in grid-tied mode, excess solar power can be sold back to the grid. The system also supports pure off-grid operation and a hybrid mode combining solar, battery, and grid.
Yes — beyond the 2 inverters included, up to 9 identical SGN7.6K1HB-48 inverters can run in parallel for a combined 68.4kW system as power needs grow further.
30.72kWh combined from six 5,120Wh LiFePO₄ batteries in the included enclosed cabinet, each rated for at least 7,000 cycles to 80% capacity and backed by a confirmed 10-year warranty.
Yes — the two inverters combined support up to 24kW of solar input, well above the 13,280W (32×415W) included in this kit.
Yes — this product is also available without panels, for anyone sourcing their own or already owning compatible panels.
Given the grid-interconnection requirements plus the voltages, currents, and battery wiring involved, installation should be handled by a qualified, licensed electrician familiar with your local code and utility interconnection rules.
