Solar Kit · 4,000W · 5,120Wh

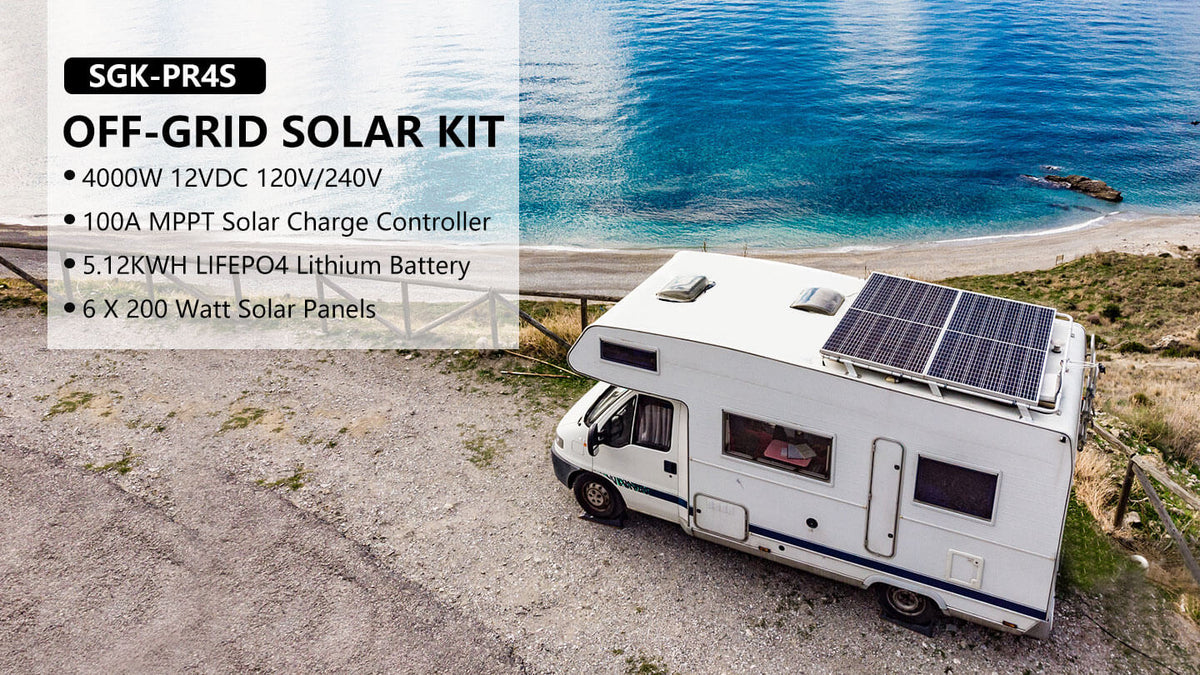

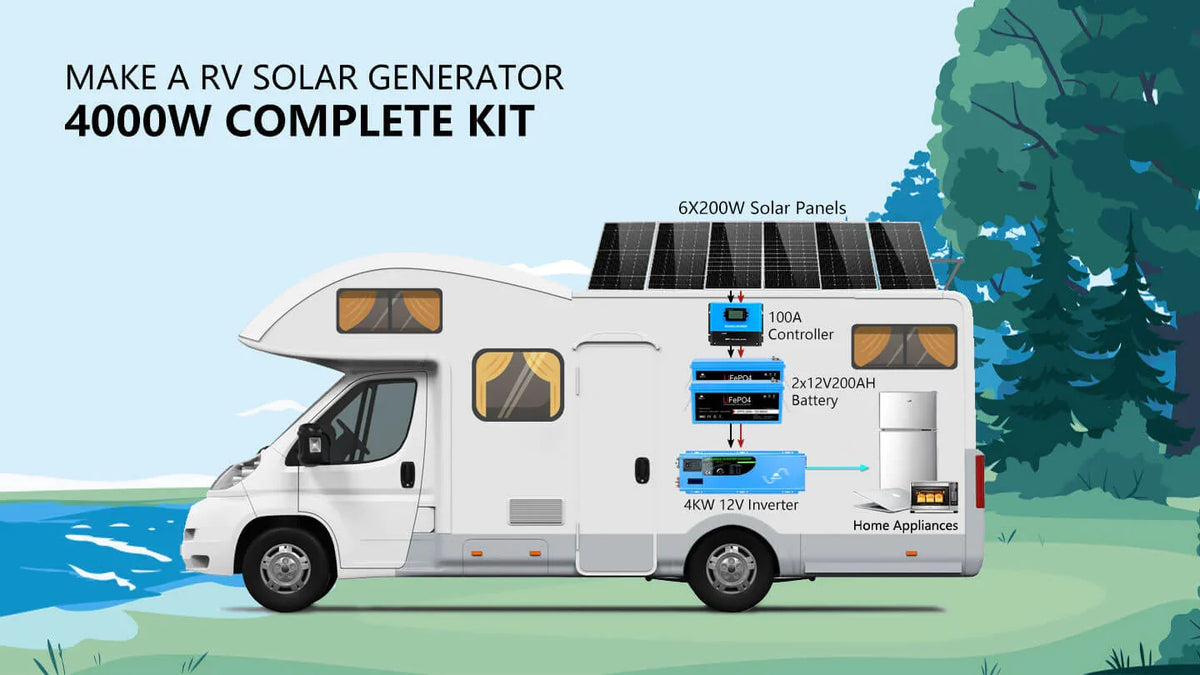

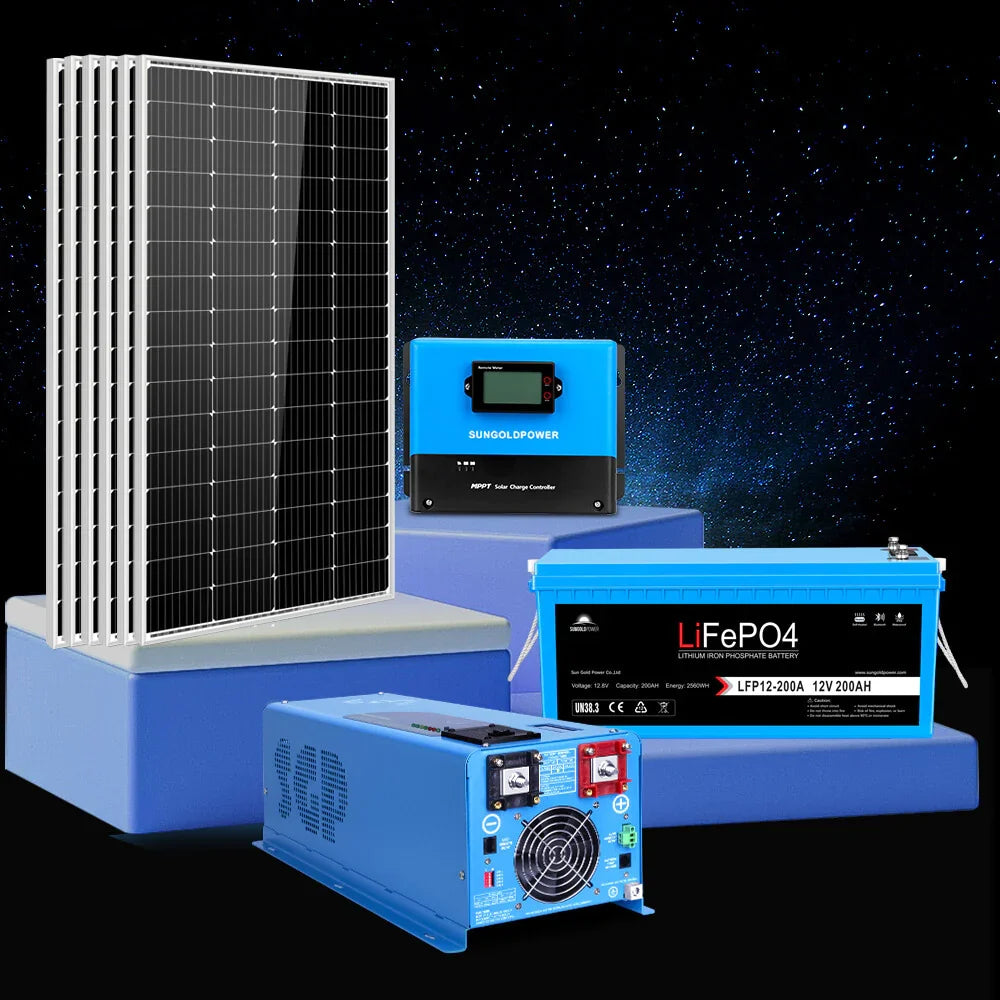

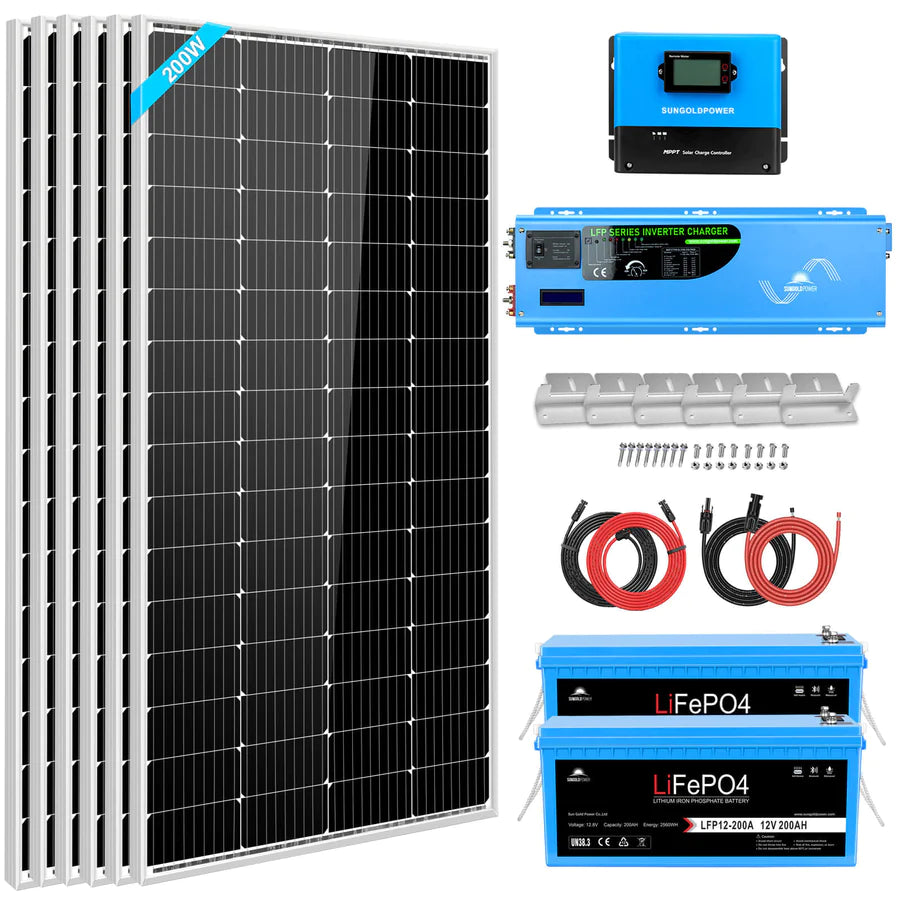

Experience the freedom of RV living with our solar energy kit! Whether you're camping or traveling in an RV, harnessing solar power offers a cost-effective, eco-friendly, and convenient way to access electricity on the go. Our RV solar panel kit includes everything you need: solar panels, an inverter, a charge controller, brackets, and solar wires for easy mounting on your RV.
Customize your setup by adding more batteries and solar panels according to your needs. This starter package is perfect for complete off-grid cabins or RVs. With a solar array capable of producing around 5400 watts per day based on 4.5 hours of sunlight, this system is ideal for cabins, shops, and RVs consuming around 162 kWh per month.
Built to be easily scalable, you can expand your system with additional panels or batteries in the future. Embrace the adventure, explore exciting places, and power your journey with our solar energy kit!

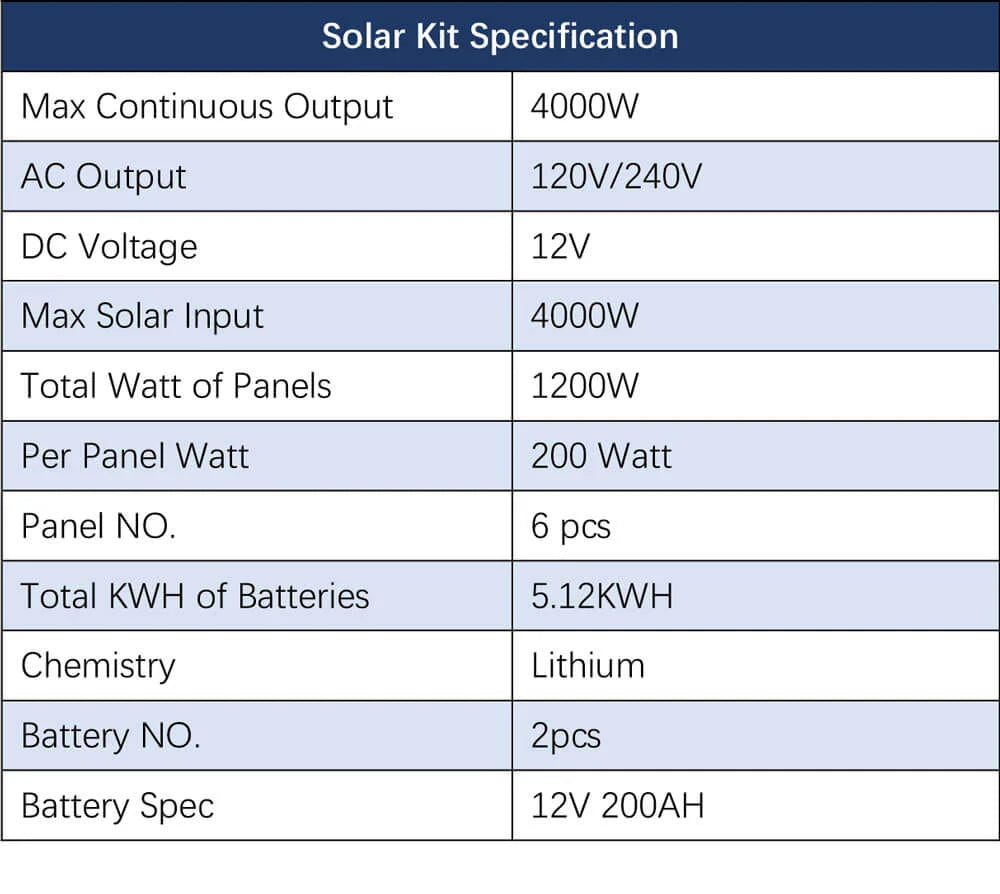

Solar Kit Specification (SGK-PR4S)
| Max Continuous Output | 4,000W |
| AC Output | 120V/240V |
| DC Voltage | 12V |
| Max Solar Input | 4,000W |
| Total Solar Panel Watts | 1,200W |
| Per Panel Watts | 200W |
| Number of Panels | 6 |
| Total Battery Capacity | 5.12kWh |
| Battery Chemistry | Lithium (LiFePO₄) |
| Number of Batteries | 2 |
| Battery Spec | 12V 200Ah |

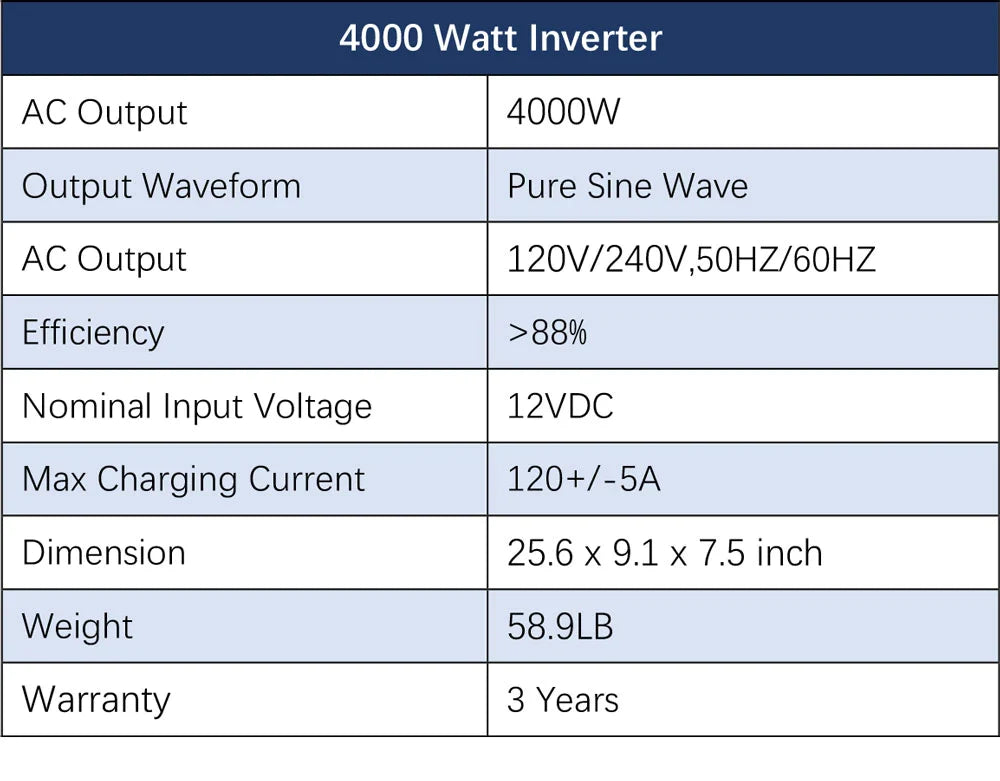

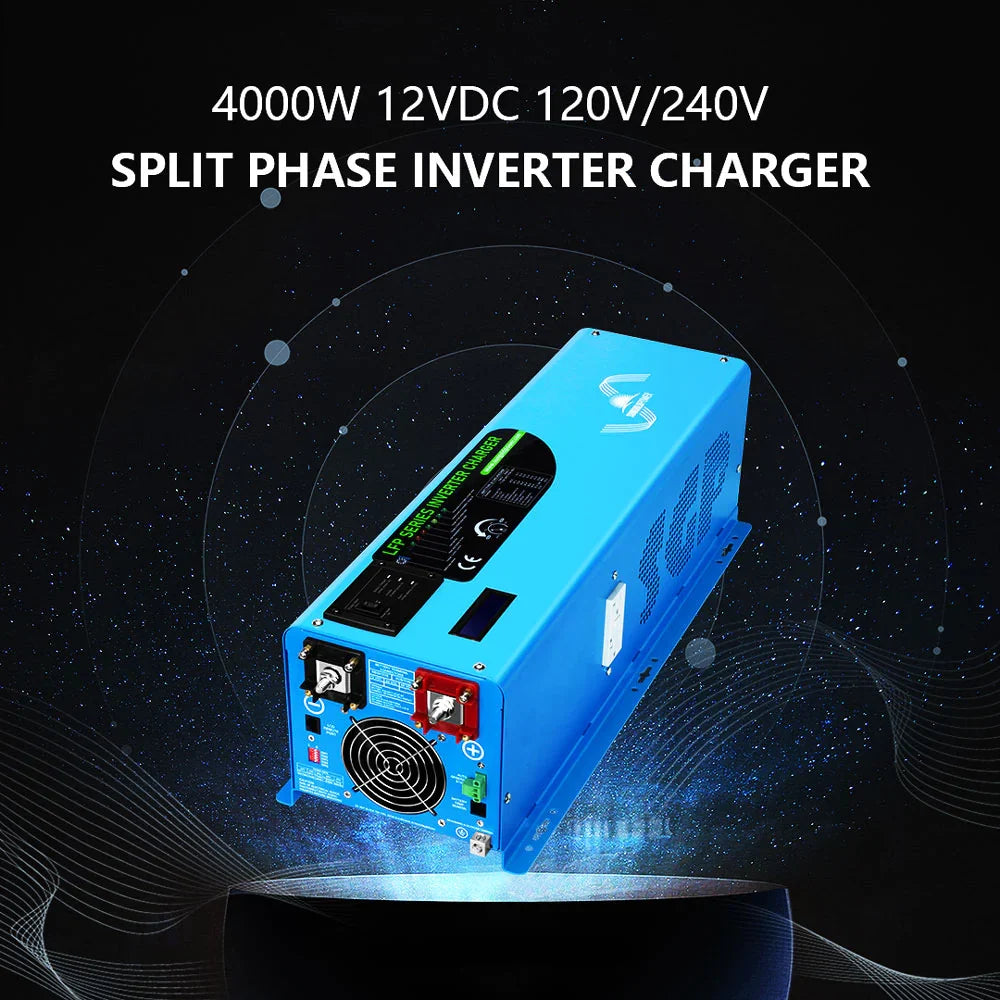

Sungold Power 4,000W 12V Split Phase Inverter Charger
| Inverter Output | |
| Continuous Output Power | 4000W |
| Surge Rating | 12000W (20 Seconds) |
| AC Output | 120VAC |
| AC Input | 120VAC |
| Output Wave | Pure Sine Wave (bypass mode) |
| Typical Transfer Time | 10ms (MAX) |
| Nominal Efficiency | >88% |
| DC Input | |
| Nominal Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc-11.0Vdc |
| Low Battery Trip | 10.0Vdc-10.5Vdc (select by SW1) |
| High Voltage Alarm | 16.0Vdc |
| Low Battery Voltage Restart | 13Vdc |
| Idle Consumption | 45W |
| Power Saver Mode Idle Consumption | 18W |
| AC Charger | |
| Charger Rate | 120+/-5A |
| AC Input Range (Grid or Generator) | 90V-135VAC/100V-135VAC (select by SW2) |
| Over Charge Protection Shutdown | 15.7V |
| Selectable Charge Setting based on battery type Adjustable Charge Current | off 0%-100% |

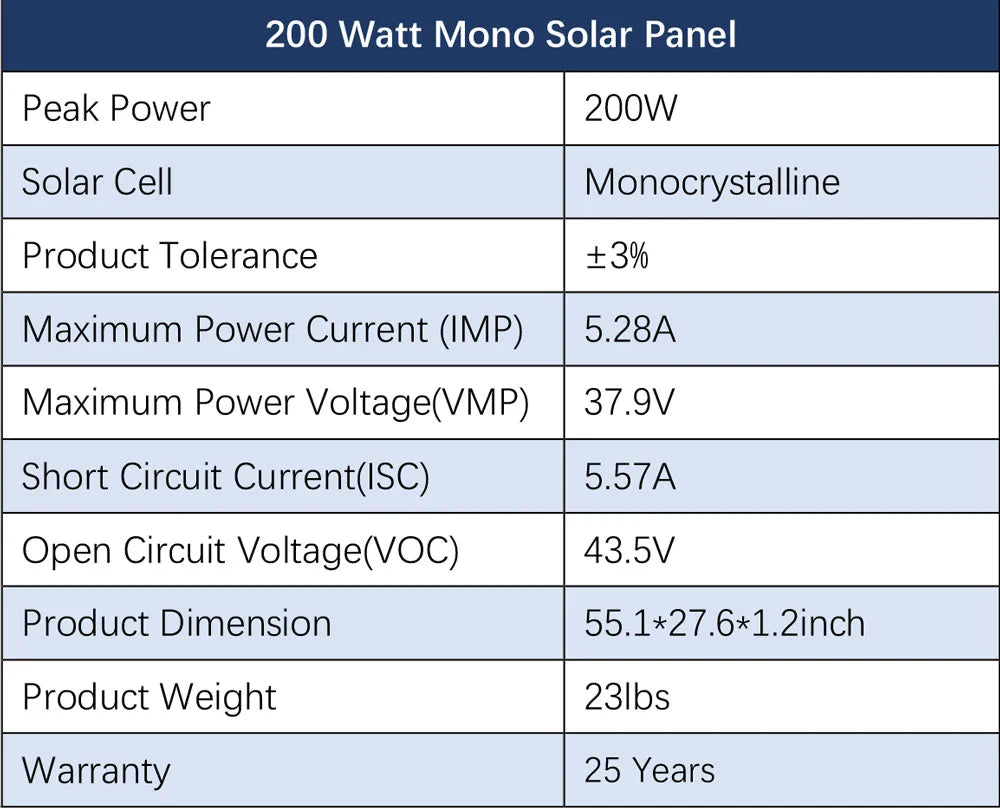

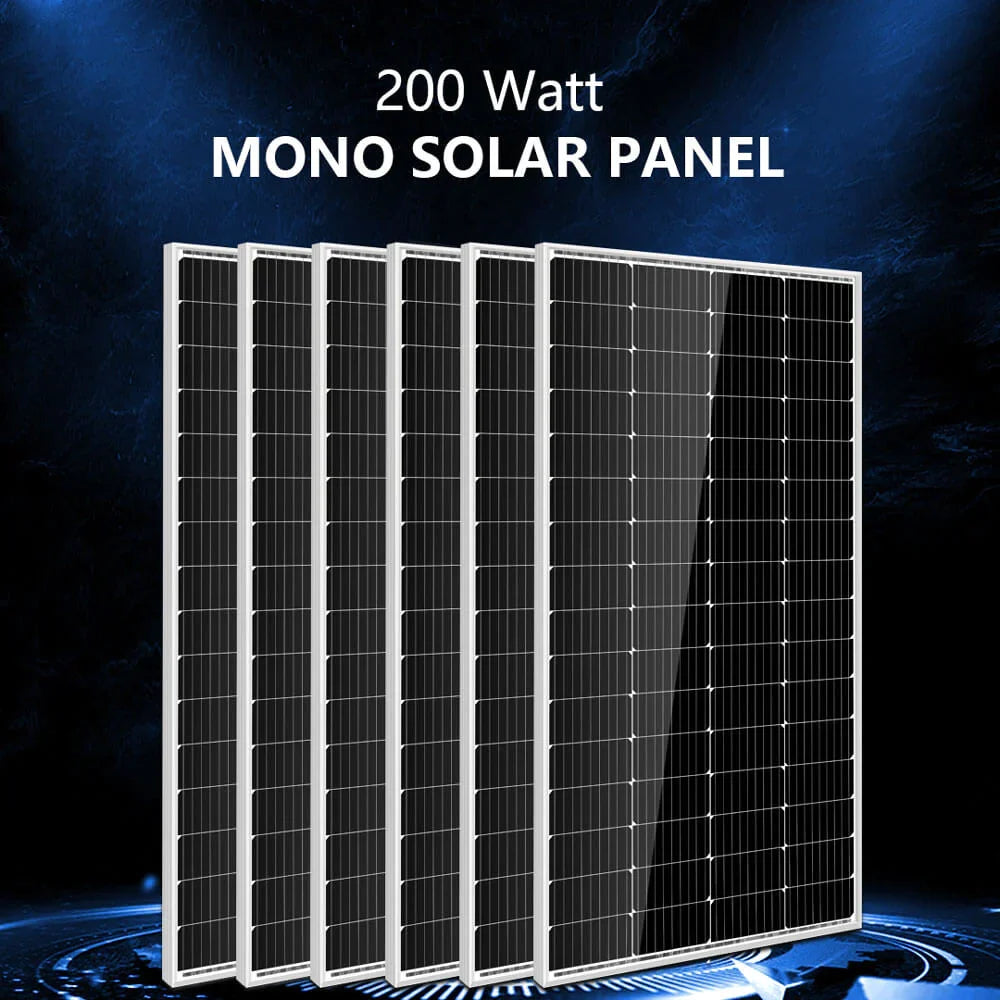

6× Sungold Power 200W Monocrystalline Solar Panel
| Peak Power | 200W |
| Solar Cell | Monocrystalline |
| Power Tolerance | ±3% |
| Max Power Current (Imp) | 5.28A |
| Max Power Voltage (Vmp) | 37.9V |
| Short Circuit Current (Isc) | 5.57A |
| Open Circuit Voltage (Voc) | 43.5V |
| Dimensions | 55.1 × 27.6 × 1.2 in |
| Weight | 23 lb |
| Warranty | 25 years |

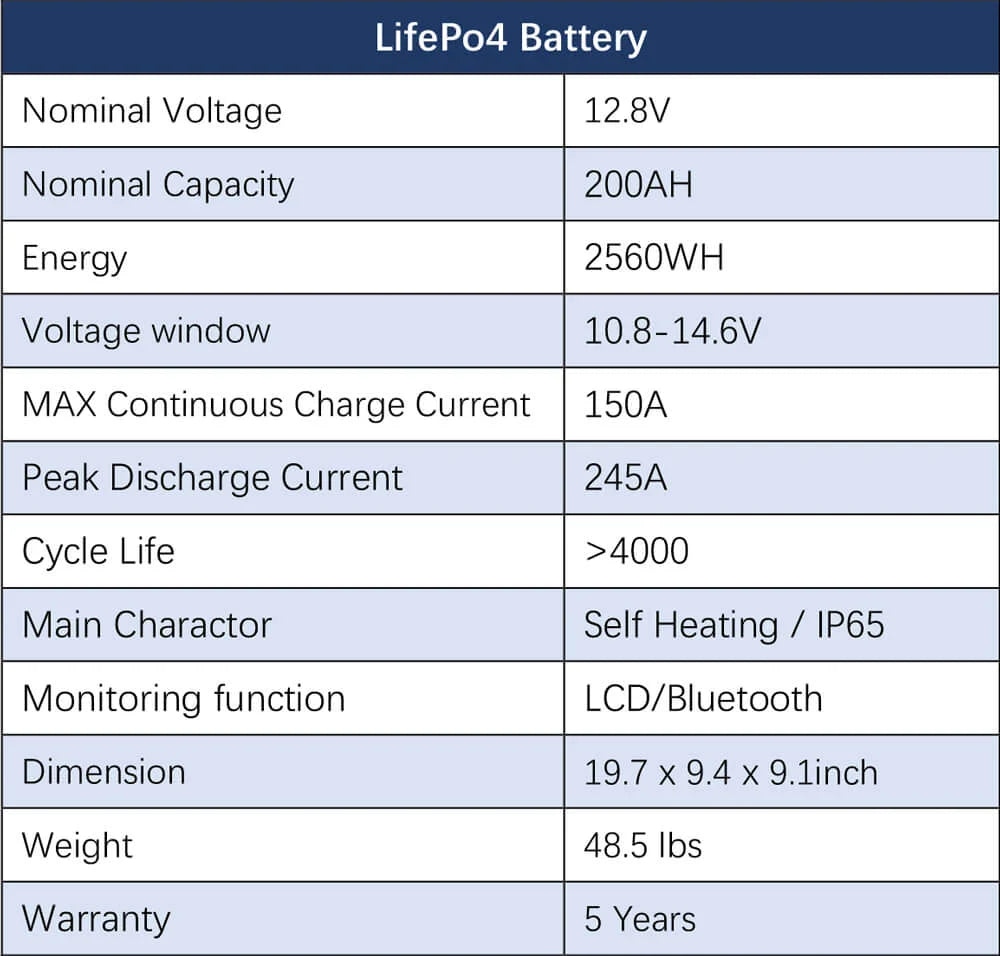

2× Sungold Power 12V 200Ah LiFePO4 Battery
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Energy | 2,560Wh |
| Voltage Window | 10.8-14.6V |
| Max Continuous Charge Current | 150A |
| Peak Discharge Current | 245A |
| Cycle Life | >4,000 cycles |
| Main Features | Self-heating / IP65 |
| Monitoring | LCD / Bluetooth |
| Dimensions | 19.7 × 9.4 × 9.1 in |
| Weight | 48.5 lb |
| Warranty | 5 years |

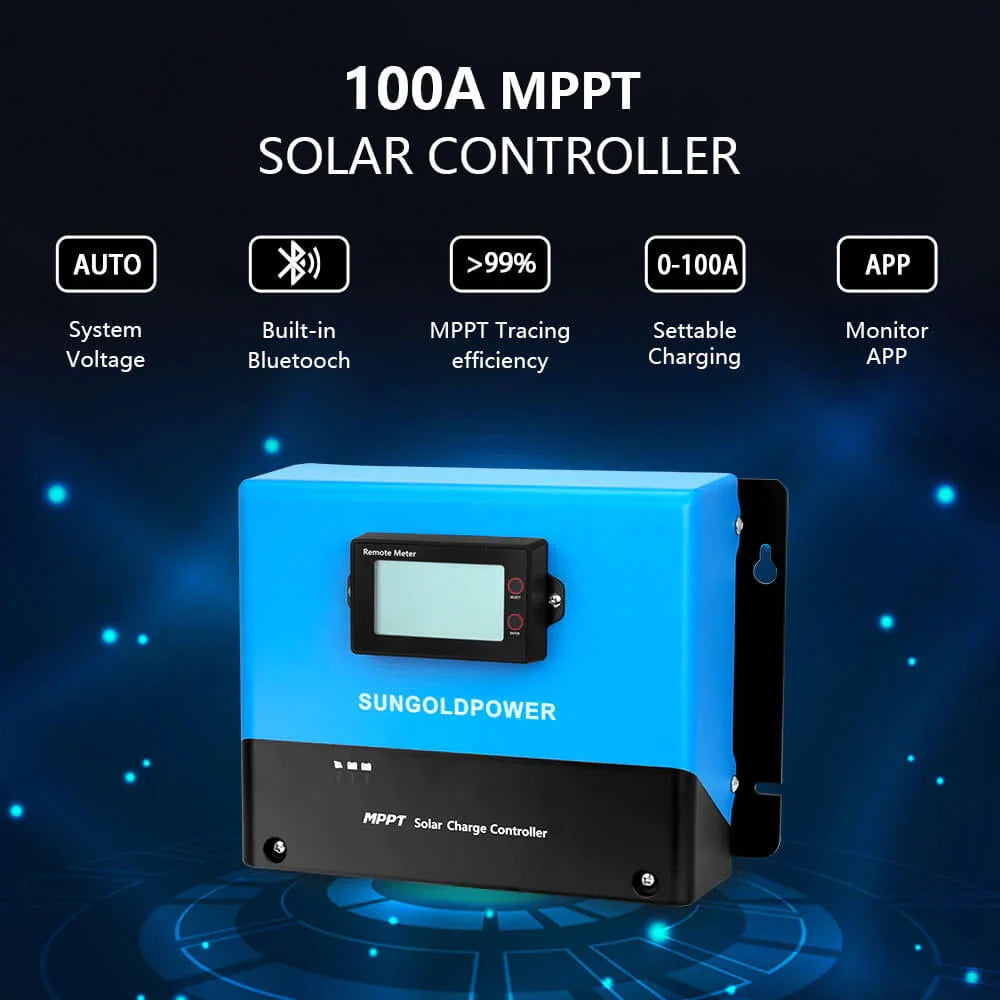

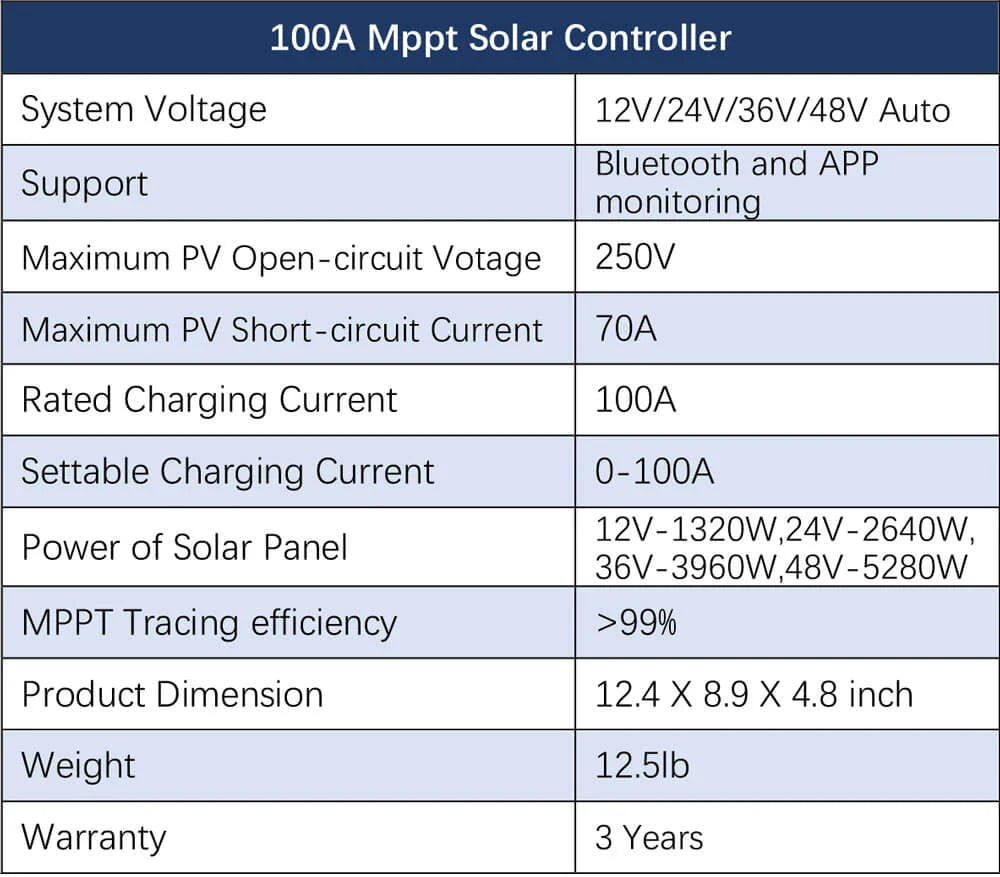

Sungold Power 100A MPPT Solar Charge Controller
| System Voltage | 12V/24V/36V/48V auto |
| Monitoring | Bluetooth and app monitoring |
| Max PV Open-Circuit Voltage | 250V |
| Max PV Short-Circuit Current | 70A |
| Rated Charging Current | 100A |
| Settable Charging Current | 0-100A |
| Max Solar Array Power | 12V: 1,320W · 24V: 2,640W · 36V: 3,960W · 48V: 5,280W |
| MPPT Tracking Efficiency | >99% |
| Dimensions | 12.4 × 8.9 × 4.8 in |
| Weight | 12.5 lb |
| Warranty | 3 years |
