24V Lithium Battery · LiFePO4 · 100Ah

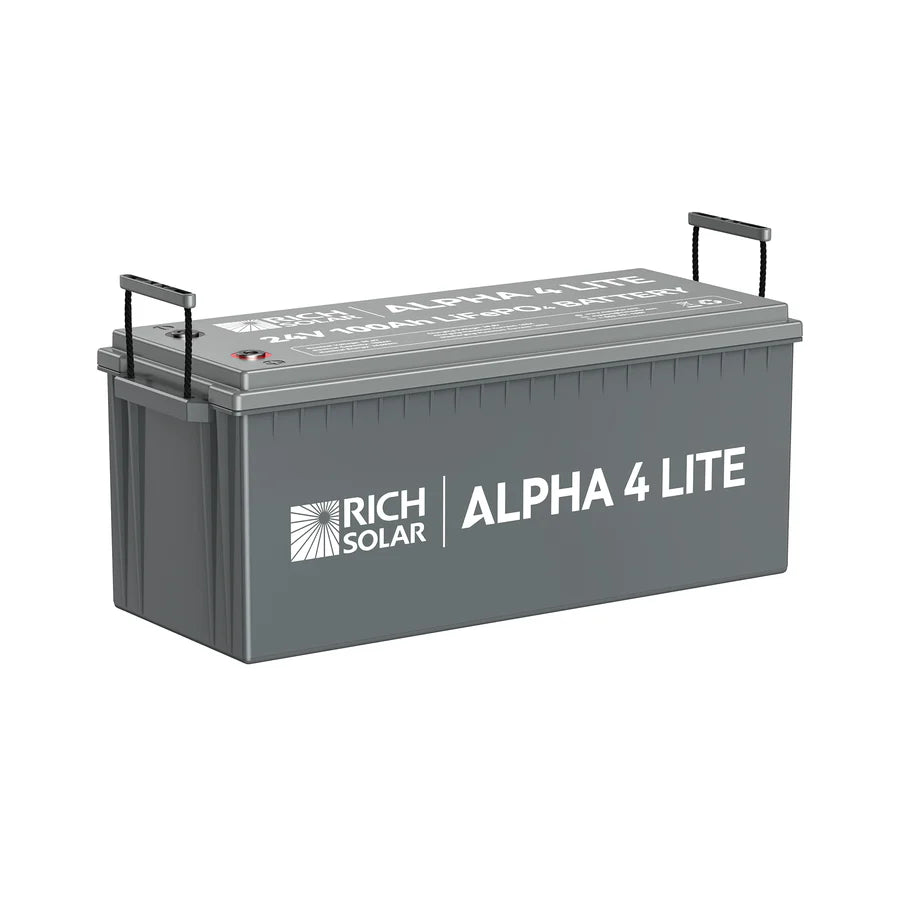

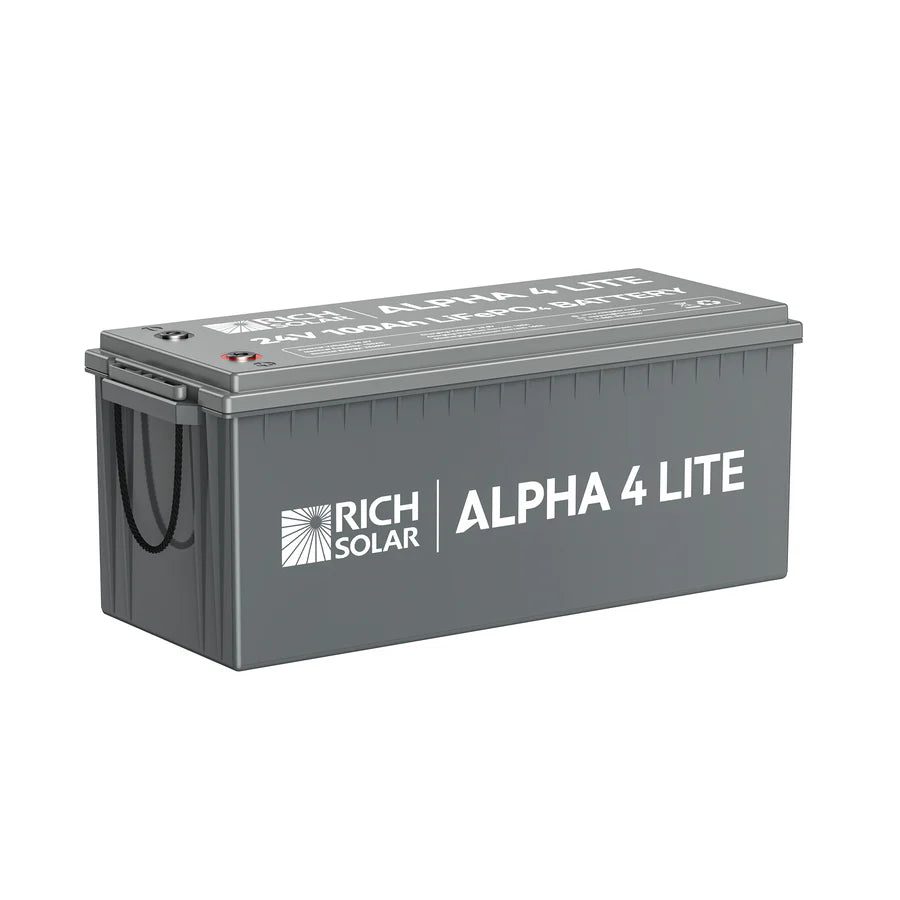

The ALPHA 4 LITE is Rich Solar's value-focused 24V 100Ah LiFePO4 battery — rated for more than 4,000 cycles, built with individually fused lithium cells, and sized for RVs, trailers, vans, boats, and off-grid backup power.
The ALPHA 4 LITE is designed for people who want a battery that simply performs, without extra complexity or cost. It packs 2,560Wh of usable energy into a durable, lightweight case, using individually fused lithium cells so a single cell fault can't take down the whole pack.
As the value-focused version of Rich Solar's ALPHA 4 lineup, it's built around the same core LiFePO4 chemistry and 4,000+ cycle rating as the standard ALPHA 4, aimed at anyone who wants dependable power for the road or off-grid without paying for features they won't use.
Battery & Operating Specifications
| Nominal voltage | 25.6 V |
| Nominal capacity | 100 Ah |
| Minimum capacity | 99.5 Ah |
| Energy | 2,560 Wh |
| Cycle life | > 4,000 cycles |
| Charge voltage | 28.8 V |
| Continuous discharge current | 100 A |
| Self-discharge | < 5% / month |
Temperature Performance
| Charge temperature | 32°F to 131°F (0°C to 55°C) |
| Discharge temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage temperature | 14°F to 113°F (-10°C to 45°C) |
| Storage humidity | 90% RH max (>3 months) |
Physical

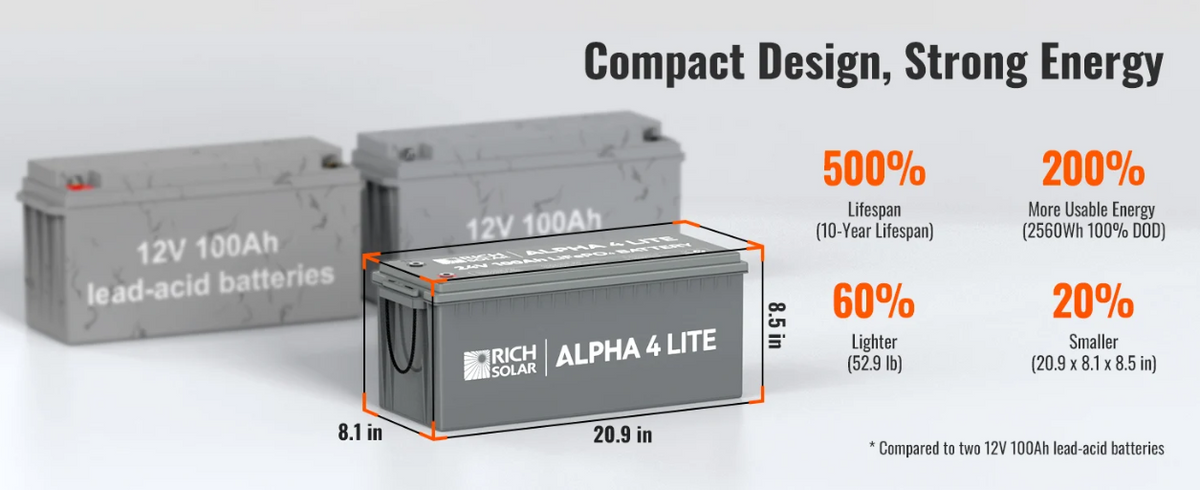

| Dimensions (L×W×H) | 20.9 × 8.1 × 8.5 in |
| Weight | 52.9 lbs |
BMS Protection
| Over-charge detection voltage | 3.75V ± 0.05V |
| Over-charge detection delay | 1000ms ± 500ms |
| Over-charge recovery voltage | 3.55V ± 0.05V |
| Over-discharge detection voltage | 2.20V ± 0.08V |
| Over-discharge detection delay | 1000ms ± 500ms |
| Over-discharge recovery voltage | 2.70V ± 0.10V |
| Short-circuit protection | Yes |
| Warranty | 5 years |
The ALPHA 4 LITE shares the same 24V 100Ah LiFePO4 chemistry and 4,000+ cycle rating as the standard ALPHA 4, positioned as the more affordable, value-focused option in the lineup.
Each lithium cell in the pack has its own fuse, so if a single cell develops a fault, it's isolated rather than affecting the rest of the battery.

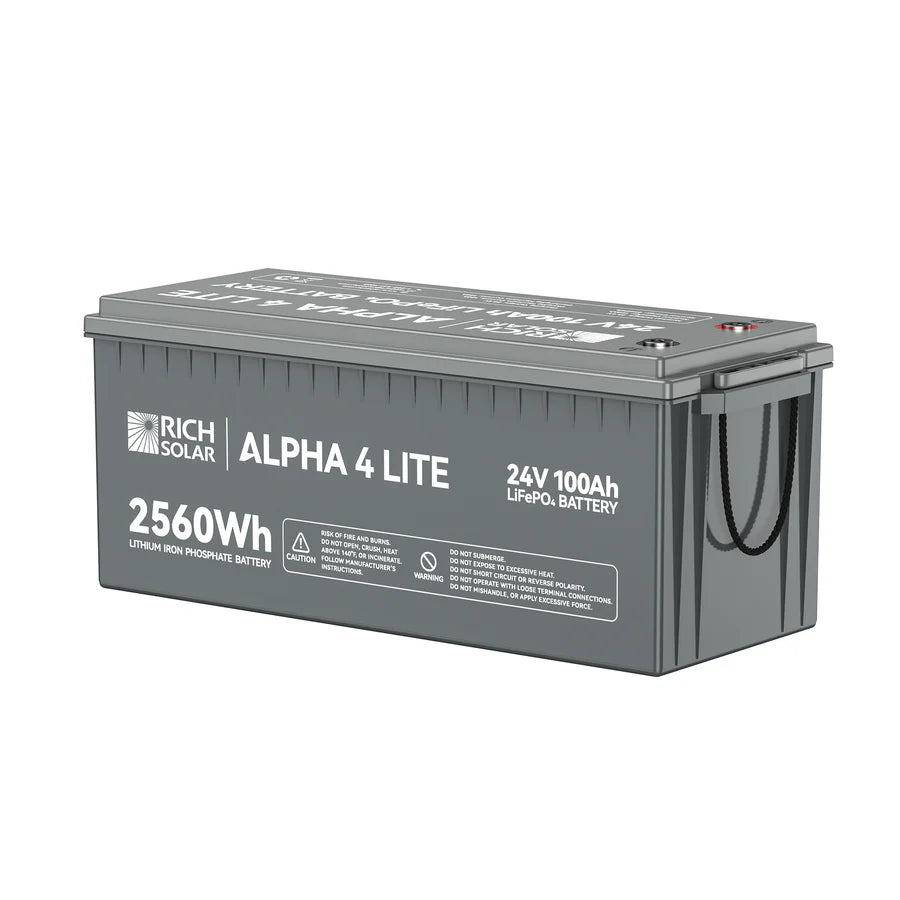

2,560Wh at a 25.6V nominal voltage and 100Ah capacity, with a minimum rated capacity of 99.5Ah.

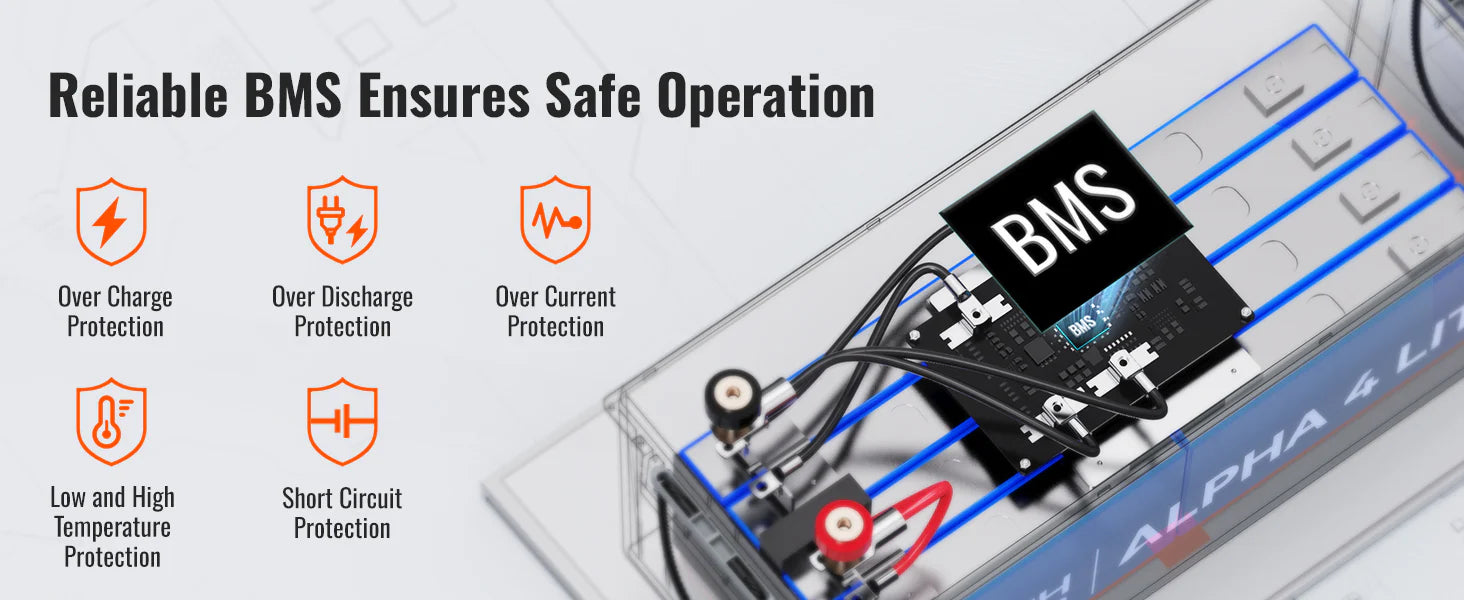

Over-charge protection, over-discharge protection, and short-circuit protection, each with specific voltage thresholds and recovery points managed automatically by the battery management system.
Charging is rated from 32°F to 131°F. Discharging has a wider range, down to -4°F, but charging below freezing isn't recommended for this battery.
The ALPHA 4 LITE carries a 5-year warranty.
