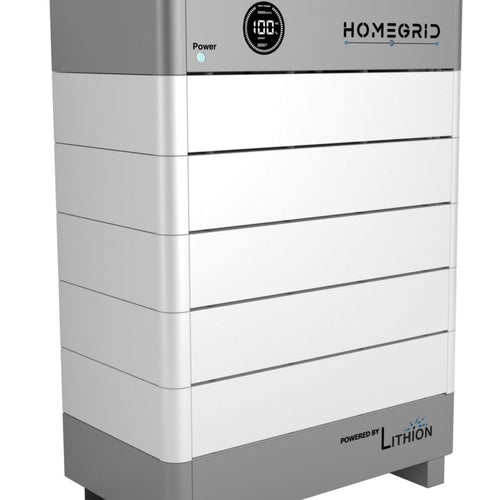

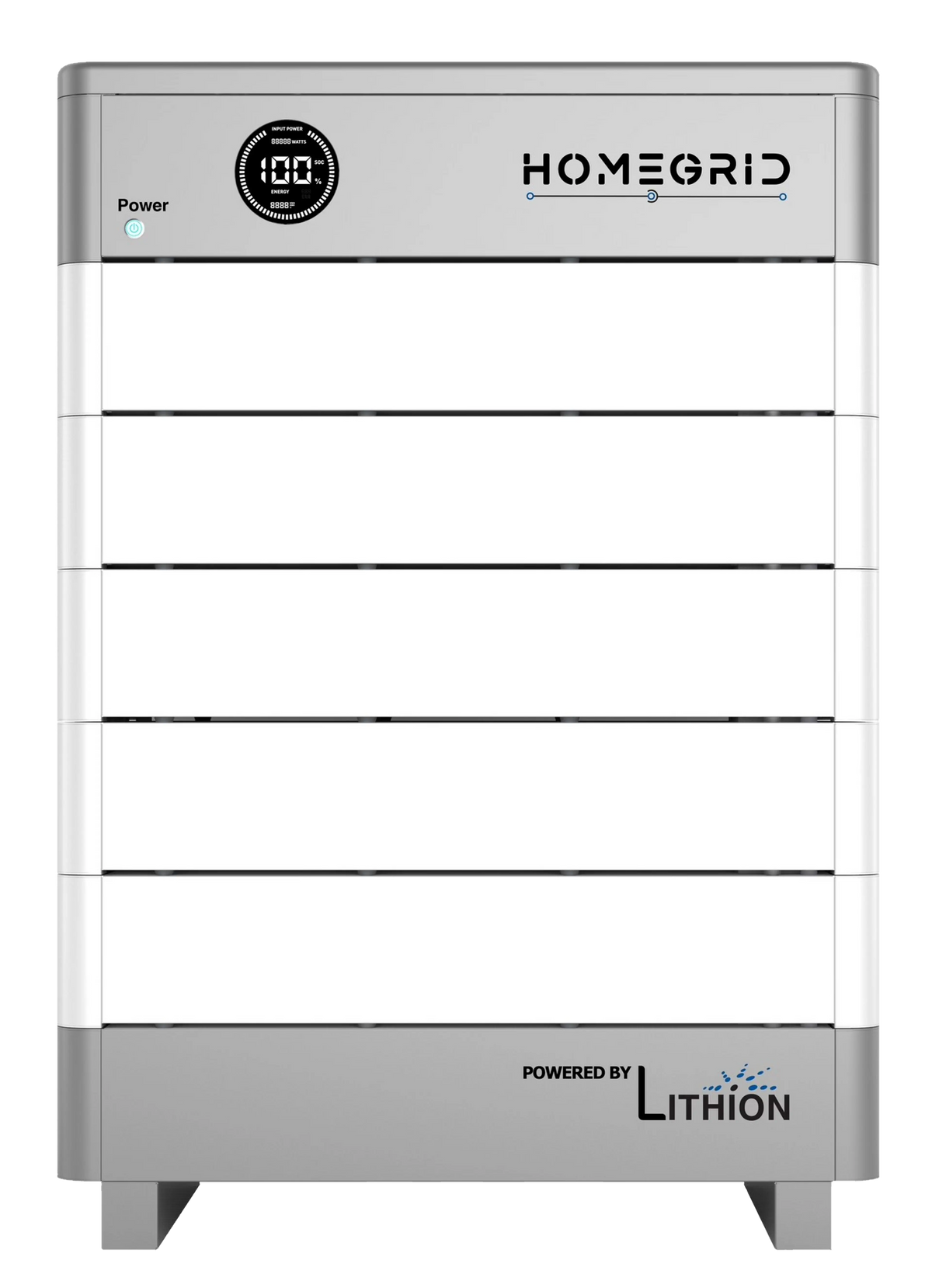

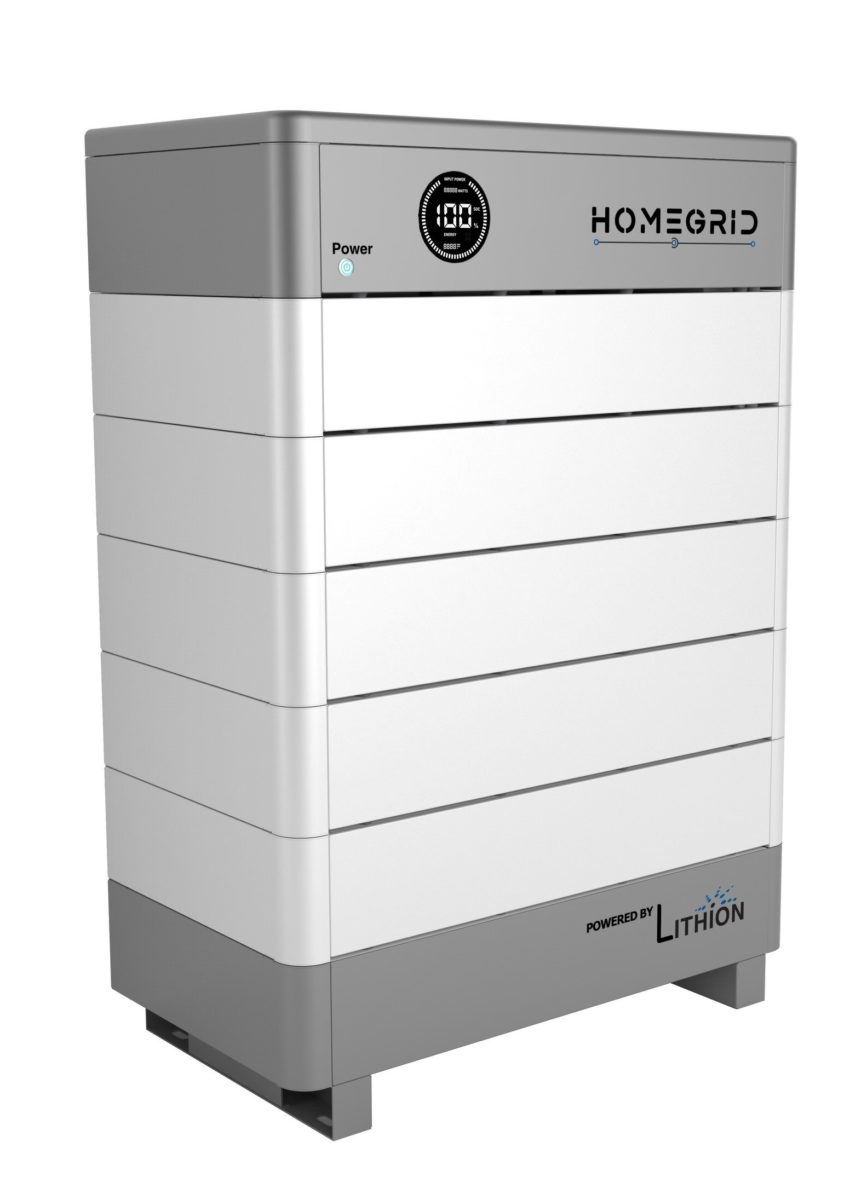

Stack'd Series LFP Battery Bank · 48V · Modular

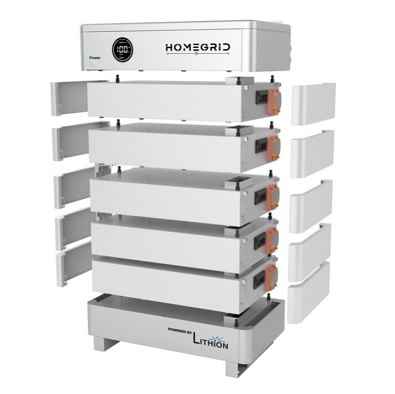

Introducing our modular home battery system, designed for seamless integration and future-proofing your energy needs. Each unit comes with a base capacity of 9.6 kWh, expandable in 4.8 kWh increments up to a robust 38.4 kWh per stack. This modular design not only ensures flexibility for your current requirements but also enables hassle-free servicing and effortless expansion as your energy demands evolve.
Featuring a continuous output of up to 15 kW and a surge capability of 24 kW for 10 seconds, our system offers reliable full-home backup power when you need it most. Whether it's keeping your lights on during an outage or powering essential appliances, rest assured, we've got you covered.
For smaller setups, consider the HomeGrid 3 Stack'd LFP Battery Bank to provide reliable full-home backup power.
And the best part? You can easily add more modules in the future, tailoring the system to match your growing energy needs seamlessly. Explore the full range of HomeGrid Stack'd Batteries to find the right configuration for your home.
Compatible with leading systems such as Sol-Ark, Schneider, and Outback, our home battery solution offers interoperability and versatility, ensuring a smooth integration into your existing setup. Experience the power of flexibility with our modular home battery system.
| Battery chemistry technology | Lithium Iron Phosphate |
| Nominal DC voltage | 48 V |
| DC voltage range | 46–56 V |
| Charge temperature | 32°F to 113°F |
| Discharge temperature | 14°F to 140°F |
| Enclosure rating | IP55 |
| Mounting options | Floor standing |
| Certificates | UL 1642, UL 1973, UN 38.3 |
| Warranty | 10 years |
| Service plan | 20 years serviceable |
| Scalability | Units in parallel (384 kWh) |
| Communication | CAN/RS485 |
| Efficiency | > 98% |
| Compatible inverters | Sol-Ark, Schneider, SMA, Growatt, Solis, Sofar, Sermatec, Victron, Studer, Goodwell, Outback |
The Stack'd Series scales in 4.8kWh increments from 9.6kWh up to 38.4kWh. This product is the 24kWh configuration (highlighted below); other stack sizes are available as separate listings.
| Specification | 9.6 kWh | 14.4 kWh | 19.2 kWh | 24 kWh | 28.8 kWh | 33.6 kWh | 38.4 kWh |
|---|---|---|---|---|---|---|---|
| Total energy [kWh] | 9.6 | 14.4 | 19.2 | 24 | 28.8 | 33.6 | 38.4 |
| Continuous power output [kW] | 9.6 | 14.4 | 15 | 15 | 15 | 15 | 15 |
| Capacity [Ah] | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Recommended charge current [A] | 200 | 300 | 312.5 | 312.5 | 312.5 | 312.5 | 312.5 |
| Max. discharge current, continuous [A] | 200 | 300 | 312.5 | 312.5 | 312.5 | 312.5 | 312.5 |
| Max. pulse current DC [A] | 300 | 350 | 500 | 500 | 500 | 500 | 500 |
| Weight [lbs] | 304 | 412 | 520 | 628 | 736 | 844 | 952 |
Base unit dimensions (W×D×H): 29 × 15.75 × 25.25 in. Height scales with additional modules: 30.5, 35.75, 41, 46.25, 51.5, 56.75 in for the 14.4 through 38.4 kWh configurations respectively.
